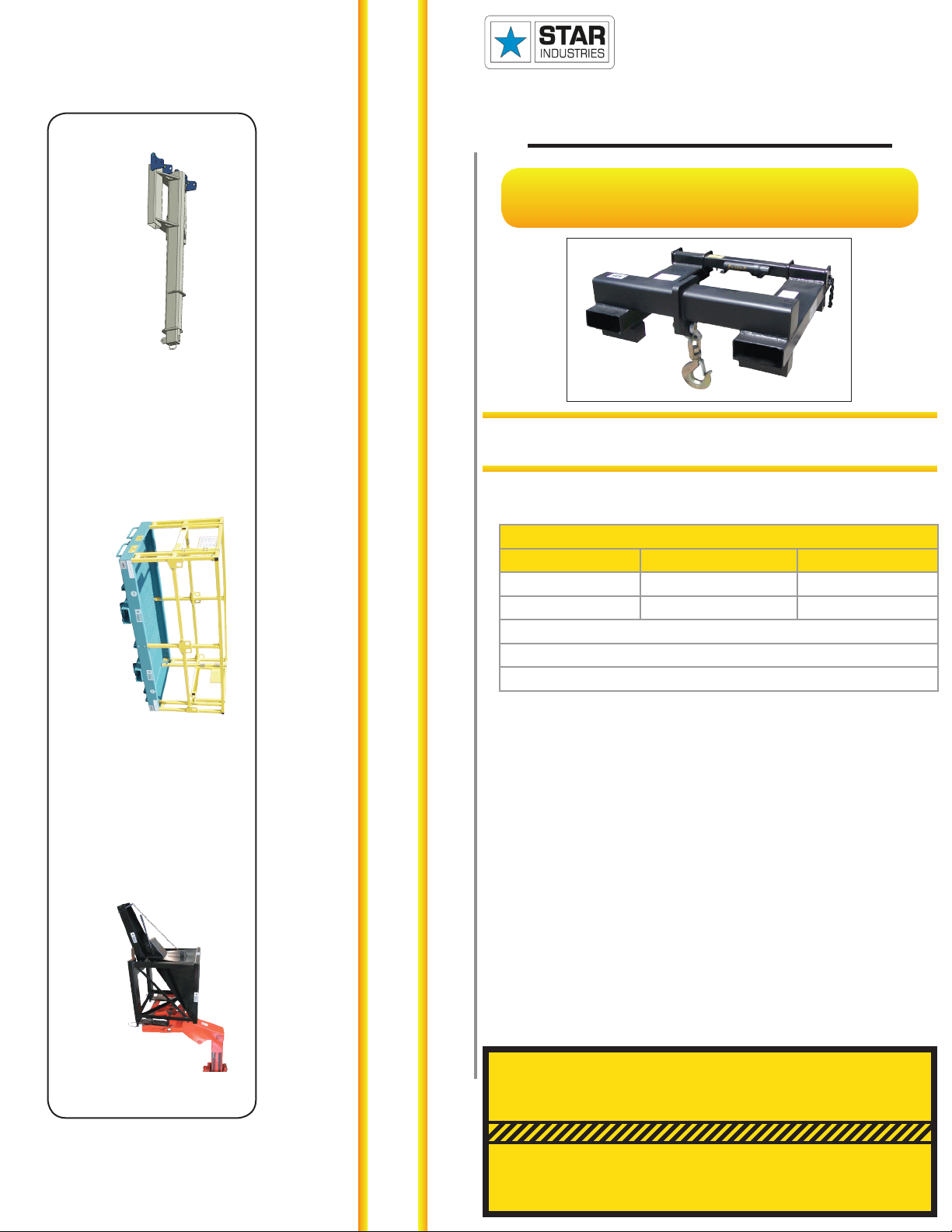

STAR INDUSTRIES 1370B User manual
4101 Garland Drive, Fort Worth, TX 76117
Phone 817.485.6073 Fax 817.428.6008
www.starindustries.com
for Model
your Star dealer or call Star Industries @ 1-800-541-1797
during normal business hours.
SPECIFICATIONS
1370B 10,000 lbs. 271 lbs.
1371B 12,000 lbs. 277 lbs.
Overall Dimensions – 42” wide x 12” High x 28½” deep
Fork Pocket Spread - 34” Center to Center
Accepts forks up to 7” wide x 3” thick
The Star Industries Model 1370B and 1371B Universal-Fit Lift
Hooks are designed for use on telehandlers extendible reach
forklifts) and straight mast forklifts as well. Their design has been
reviewed and carries an engineer’s stamp of approval to meet a
3 to 1 or better factor of safety.
The design of the attachment positions the swivel hook at the
standard 24” load center typically found on most forklifts up to
30,000 lb capacity. Because the lifting point is located at the 24”
load center, the forklift’s standard load chart will normally apply.
It is only necessary to include the weight of the attachment itself
and rigging along with the weight of the load. A separate load
chart or de-rating of the forklift should not be required.
Be aware that the rated capacity of the Lift Hook itself does not
or boom position.
BEFORE USE, READ AND UNDERSTAND THE COMPLETE OPERATOR’S MANUAL.
Star Industries @ 1-800-541-1797 during normal business hours.
Customers Who Bought this product also bought
Safety Work Platforms -
Turn your forklift into an
Aerial work platform
Concrete Hoppers -
Turns your forklift into
A concrete placer.
Visit www.starindustries.com or call us at 800-541-1797 for more information on these and other great products.
DANGER - DO NOT USE WITHOUT INSTALLING
RETAINING PINS behind the heel of each fork and
securing with hair pins or cotter pins
Safety chain(s) must also be used. Wrap chain
around a strong part of the fork carriage and secure
with locking grab hook.
Heavy Duty Jib
Extend The Reach Of Your Forklift
Farther, Higher And Over Obstructions
Use it With Condence:
Star Industries has been manufacturing forklift attachments for
over 25 years and has earned an excellent safety record. In
addition, Star attachments have proven themselves repeatedly
on all types of jobs all over the United States as well as in
Canada, Mexico and South America.
Please be aware that the information contained in this manual
is intended as a guide and does not replace the need for the
user to know, understand, and observe all applicable company,
addition, any relevant safety requirements or recommendations
contained in the forklift operator’s manual must be observed.
Before Use:
forklift model to be used, has read and understands this
manual and has reviewed the forklift operator’s manual for any
additional requirements, limitations, restrictions, or additional
safety procedures prescribed by the forklift manufacturer. The
requirements to operate the forklift to be used.
Inspect the Lift Hook to make sure it is in good condition. There
must not be any broken welds, deformation of the steel tube or
other component, nor any cracks in the steel. Inspect the swivel
hook and shackle to make sure they are complete, are in good
condition, and that shackle anchor screw pin is screwed in tight.
Make sure the operator’s manual is in its storage tube. Inspect
to make sure the fork retaining pins are present and attached
to their retaining chains and that the pins and attachment plates
are in good condition. Make sure the hair pins used to secure
the fork retaining pins are present and in good condition. Check
that all decals are in place and legible. The following decals are
required: “Empty Weight”, “Caution”, and “Rated Lift Capacity”.
Replacement decals are available from a Star dealer. If any
defects, missing components, damage or excesive ware are
found, discontinue use until corrections or a safety assessment
Make sure personnel involved understand any hand signals that
will be required and all involved personnel understand what will
be required of them.
Make sure the travel path is clear of obstructions and that
adequate clearance will be maintained from all power lines.
Caution: 3
1. Risks are high for serious injury or death when working
around suspended loads. The operator must avoid carrying
the load over people and when loads are suspended all non
essential personnel must remain clear of the “fall zone” (the
area in which it is reasonably foreseeable that suspended
material could fall in the event of an accident.) No personnel
should ever be directly under the load.
2. Do not allow anyone to ride on the lift hook nor on the load
being carried.
3.
without written authorization from the manufacturer.
Replacement of hooks, shackles, decals and hair-pins does
not require authorization.
will need to be returned to Star Industries for inspection
or if circumstances dictate other solutions. Dealer or other
entity repairs must have prior written authorization. A “cost
of repair” estimate will be required prior to authorization.
Reimbursement will be at the current “Star Warranty Labor
A Warranty Claim Form must be submitted within 45 days
of warranty repair authorization to receive credit for repair.
A return authorization number must be obtained from Star
Industries before a product can be returned for inspection
return shipping label. Upon inspection, Star Industries will
determine if the product is defective and if so, whether it
will be repaired or replaced. Repair or replacement is at
the discretion of Star Industries. Transportation charges
to Star Industries are not covered under the warranty and
must be prepaid by dealer or customer unless it is within
acceptable to Star Industries, is provided that the product
is defective and the return is from within the continental
United States or Canada, Star will arrange for return
shipment at Star Industries expense. Products found to
be defective within the initial two year period and returned
to Star Industries for repair or replacement will be returned
to the dealer or customer freight prepaid providing it is
within the continental United States or Canada. Warranted
products to be shipped outside the United States or
Canada and those warranted after the initial 2 years will
be shipped freight collect. Unwarrantable products will
be returned freight collect at the request of the dealer or
customer, otherwise they will be destroyed.
Star’s obligation under this warranty shall not include
costs of installation, duty, taxes or any other charges
whatsoever or any liability for direct, indirect, incidental
or consequential damages or delay. Star’s liability for any
and all losses and damage to purchaser resulting from any
cause whatsoever, including negligence or breach of form
of warranty, express or implied by Star, alleged damage
for defective goods, irrespective of whether such defects
are discoverable or latent, shall in no event exceed the
purchase price of the particular goods. Products repaired
or replaced under this warranty are warranted only for
the remainder of the original warranty. Any improper use
including operation after discovery of defective or worn
parts not approved by Star or any alteration or repair by
product materially and adversely shall void this warranty.
Installation:
The Universal-Fit Lift Hook is installed on the forklift by inserting
both forks fully into the fork pockets so that the rear of the Lift
Hook is against the back of the fork. The fork retaining pins are
then installed through the retaining plates and behind the heel
of the forks and are secured with hair pins. This locks the Lift
chain with locking grab hook must also be used.
Stop Pin on some
attachments are not
removable
Stop Pin must be in
lower hole with using
thick forks
Stop Pin must be upper
holes when using 2 ”
to 3” thick forks
DANGER - DO NOT USE WITHOUT INSTALLING RETAINING PINS
behind the heel of each fork and securing with hair pins or cotter pins
Safety chain(s) must also be used. Wrap chain around a strong part of
the fork carriage and secure with locking grab hook.
Rated Capacities:
the Lift Hook decal. Be aware that these capacities are for the
for capacity ratings and any limitations or restrictions when
using this type of attachment. Remember the weight of the Lift
Hook and all load suspension rigging must be included with the
weight of the load to determine total weight being lifted. If there
is any question as to the forklift’s lifting capacities when using
In addition, never exceed the rated capacities of the Lift Hook
except for purpose of a test and then do not exceed 125% of its
rated capacity. Never exceed the capacity of the forklift. Make
sure also that the load rating for slings, chains, or straps used
with the Lift Hook are equal to or exceed the rating of both the
forklift and Lift Hook, if not; always limit the load to the lowest
rated part of the lifting system.
The swivel hook is located 24” from the back of the Lift Hook
frame. This puts the hook at the same location at which most
forklifts are rated – 24” load center. This means that the standard
forklift load charts are applicable. Just remember to include the
weight of the lift hook. and the weight of the rigging in with the
weight of the load. Please keep aware that forklift rated load
elevated the rated lift capacity will frequently be decreased
and likewise on extendable reach forklifts when the boom is
extended the rated capacity will be decreased.
Use:
When using the Lift Hook the forklift forks must remain level
or the tips tilted slightly upward. The Lift Hook is designed for
vertical lift only and must not be used to pull a load. When lifting
a load, the area below the lift should be clear of personnel. All
personnel must maintain a safe distance away from danger
area should a failure occur.
Star Products are warranted to the original purchaser
properly installed, used, and maintained) for a period as
an authorized Star Dealer or direct from Star Industries.
This warranty does not cover misuse, abuse, normal wear
and tear, or accidental damage.
All Star products except as
noted below. (Includes HD
Auger Drives & most non-
hydraulic products)
Medium Duty Auger Drives
Auger Bits and Auger
Accessories (excludes
auger drives), Crane Forks.
Grapples, Angle Broom,
Self Dumping Hoppers,
Replacement Forks, and Over
the Bucket Forks
Concrete Mixers
Product defects should be reported to the Star
dealer from whom the product was purchased or to
Star Industries in writing promptly after discovery.
Preferably photographs showing the defect should
also be provided along with a written report of
circumstances involved. Warranty claims not made
within 30 days after discovery of the defect shall be
null and void.
If a warranty claim is found worthy and made within the
warranty period we reserve the right at our discretion
to repair existing defects or to replace it with the same
or current model free of charge or to issue a credit
for the reasonable cost of repair or take possession
of the equipment and issue reimbursement for the
calculated value.
Safety Precautions:
Before elevating the load, make sure the forklift
mast or boom is level (vertical) - not leaning to
the right or left. Do not use the Lift Hook when
operating on a side slope.
Before the load is raised make sure slings,
chains, or straps are properly secured and are
not twisted around each other or entangled.
The load must be picked up so that it is equally
balanced and hangs level.
When lifting a load, guard against shock loading
by taking up the slack in slings or straps slowly.
Prevent jerking at the beginning of the lift, and
accelerate or decelerate slowly.
Do not use the Lift Hook to drag or pull a load.
Do not leave suspended loads unattended.
Take care that the load does not swing or come
in contact with an obstruction.
Keep all personnel clear while the load is being
raised, moved, or lowered. Forklift operator
should be watchful of the load at all times,
especially when it is in motion.
Never allow more than one person to give
signals to the forklift operator except to warn of a
hazardous situation.
Never raise or carry the load higher than
necessary.
Never allow anyone to work under a suspended
load.
Never exceed rated capacity of any part of the
lifting system.
Never allow anyone to ride on Lift Hook or on the
load being carried.
Forklift operator must be properly trained and
Before using the Lift Hook check to see that it
is properly secured to the forklift as described in
the installation section and that the shackle and
hook are properly secured and screw pins are
tight.
Determine that the loads to be handled are within
the capabilities of the forklift. Keep in mind that
rated capacities will likely decrease when the
boom is in a raised position, or when the mast
is tilted forward, or in the case of telehandlers,
when the boom is extended.
Forks should be level or tipped upward (never
down below level) when using the Lift Hook.
Do not pull loads – it is designed for vertical lift
only.
The load should always be carried low and kept
from swinging using tag lines as necessary. Any
time a load is raised, extreme caution should be
exercised as the forklift is far more vulnerable to
tipping with a raised load.
Any time the load is raised make sure the forklift
Refer to the forklift operator’s manual for more
information on handling elevated loads as well as
information for safe and proper forklift operation.
Always comply with all local, state, and federal
Safety regulations.
This manual suits for next models
1
Other STAR INDUSTRIES Forklift manuals
Popular Forklift manuals by other brands
Still
Still RX50-13 Original instructions
Noblelift
Noblelift PS12/15CB-C Instruction handbook
Manitou
Manitou MRT-X 2150 Privilege Plus ST3A S2 Operator's manual
Princeton
Princeton PIGGY BACK EASY HITCH instruction manual
Hyundai
Hyundai HDF 20-5 Operation manual
Flexi AC
Flexi AC Flexi ACiON VNA Operator's handbook
