Star GRILL EXPRESS GX10IG User manual

1
TWO SIDED
GRILLS
MODEL
GX10IG, IS, ISG
GX14IG, IS, ISG
GX20IG, IS, IGS
Installation and
Operation
Instructions
2M-Z7971 Rev. J 9/22/2010
GX10IG

2
2
These symbols are intended to alert the user to the presence of
important operating and maintenance instructions in the manual
accompanying the appliance.
RETAIN THIS MANUAL FOR FUTURE REFERENCE
NOTICE
Using any part other than genuine Star factory supplied parts relieves the
manufacturer of all liability.
Star reserves the right to change specications and product design without
notice. Such revisions do not entitle the buyer to corresponding changes,
improvements, additions or replacements for previously purchased
equipment.
Due to periodic changes in designs, methods, procedures, policies and
regulations, the specications contained in this sheet are subject to change
without notice. While Star International Holdings Inc., Company exercises
good faith efforts to provide information that is accurate, we are not
responsible for errors or omissions in information provided or conclusions
reached as a result of using the specications. By using the information
provided, the user assumes all risks in connection with such use.
MAINTENANCE AND REPAIRS
Contact your local authorized service agent for service or required maintenance.
Please record the model number, serial number, voltage and purchase date in the area below and have it ready when
you call to ensure a faster service.
SAFETY SYMBOL
Model No.
Serial No.
Voltage
Purchase Date
Business 8:00 am to 4:30 p.m. Central Standard Time
Hours:
Telephone: [phone]
Fax: [phone]
E-mail [email protected]
[email protected]
W[email protected]
Website: www.star-mfg.com
Service Help Desk
Authorized Service Agent Listing
Reference the listing provided with the unit
or
for an updated listing go to:
Website: www.star-mfg.com
E-mail [email protected]
Mailing Address: Star International Holdings Inc., Company
10 Sunnen Drive
St. Louis, MO 63143
U.S.A

3
GENERAL INSTALLATION DATA
This equipment is designed and sold for commercial use only by personnel trained and experienced
in its operation and is not sold for consumer use in and around the home nor for use directly by the
general public in food service locations.
All shipping containers should be checked for freight damage both visible and concealed. This
unit has been tested and carefully packaged to insure delivery of your unit in perfect condition. If
equipment is received in damaged condition, either apparent or concealed, a claim must be made
with the delivering carrier.
Concealed damage or loss - if damage or loss is not apparent until after equipment is unpacked, a
request for inspection of concealed damage must be made with carrier within 15 days. Be certain to
retain all contents plus external and internal packaging materials for inspection. The carrier will make
an inspection and will supply necessary claim forms.
VENTILATION AND CLEARANCES
The installation of any components such as a vent hood, grease extractors, and/or re extinguishing
systems, must conform to their applicable nationally recognized installation standards and/or local
building codes.
ELECTRICAL CONNECTION
Before making any electrical connection be sure to read data plate which is located at the bottom of
the unit.
ELECTRICAL GROUNDING INSTRUCTIONS
This unit is equipped with a 3-prong (grounding) plug for your protection against shock hazard and
must be plugged directly into a properly grounded 3-prong receptacle.
DO NOT CUT OR REMOVE THIS PLUG OR GROUNDING PRONG FROM THE
PLUG.
CONNECT/PLUG UNIT INTO DEDICATED A.C. LINE ONLY SPECIFIED ON THE
DATA PLATE OF THE UNIT.
CAUTION
WARNING

4
CONNECT/PLUG UNIT INTO DEDICATED A.C. LINE ONLY SPECIFIED ON THE
DATA PLATE OF THE UNIT.
INITIAL START UP
Level unit using the adjustable feet under the unit (approximately 1/2" adjustment).
Before using the unit for the rst time, wipe down the exterior and grilling area with a damp cloth. Take
to a well ventilated area and heat for approximately 30 minutes. The grill may emit a small amount of
smoke as the cooking surfaces reaches 450°F. Do not be alarmed, as the smoke is caused by oils
associated with the manufacturing process and will stop when the burn off is complete. Brush off any
debris from the grilling surface.
SEASONING THE COOKING SURFACES
The cooking surfaces must be "seasoned" in order to reduce product sticking. To season, bring grill
to 300°F, until completed. Brush upper and lower cooking surfaces with a a salt free liquid vegitable
oil. If using an aerosol agent, rst apply into a cup and then brush onto cooking surface. Let sit for 20
minutes, and then wipe clean using a warm damp cloth. Repeat if required.
SETTING THE TEMPERATURE
The thermostat control knob is used to set the temperature to your requirements. The maximum set
point is 450°F (232°C), the minimum set point
is 175°F (79°C). See Knob Settings.
DAILY OPERATION
Check the power cord to insure that it is plugged into a proper outlet.
Check that the thermostat control is turned on.
The pilot light will come on when the thermostat control goes past the 175°F.
Set the thermostat control knob to desired temperature.
Always allow 20 minutes of preheat time before loading the unit with product.
Failure to allow sufcient preheat time will result in unsatisfactory cooking of the rst load.
WARNING
ELECTRICAL SPECIFICATIONS
Model Voltage Rated Wattage Amps Plug
GX10IG 120V 1,400 11.7 NEMA5-15P 230V 1,650 7.2 BS 1363A(16amp)
208/240V 1,350 / 1,800 6.5 / 7.5 NEMA6-15P
GX10IS 120V 1,400 11.7 NEMA5-15P 230V 1,650 7.2 BS 1363A(16amp)
208/240V 1,350 / 1,800 6.5 / 7.5 NEMA6-15P
GX10ISG 120V 1,400 11.7 NEMA5-15P
230V 1,650 7.2 BS 1363A(16amp)
208/240V 1,350 / 1,800 6.5 / 7.5 NEMA6-15P
GX14IG 120V 1,800 15 NEMA5-15P
230V 2,570 11.2 BS 1363A(16 amp)
208/240V 2,100 / 2,800 10.1 / 11.7 NEMA6-15P
GX14IS 120V 1,800 15 NEMA5-15P 230V 2,570 11.2 BS 1363A(16 amp)
208/240V 2,100 / 2,800 10.1 / 11.7 NEMA6-15P
GX14ISG 120V 1,800 15 NEMA5-15P
230V 2,570 11.2 BS 1363A(16 amp)
208/240V 2,100 / 2,800 10.1 / 11.7 NEMA6-15P
GX20IG 208/240V 2,700 / 3,600 13 / 15 NEMA6-20P
230V 3,300 14.4 BS 1363A(16 amp)
GX20IGS 208/240V 2,700 / 3,600 13 / 15 NEMA6-20P
230V 3,300 14.4 BS 1363A(16 amp)
GX20IS 208/240V 2,700 / 3,600 13 / 15 NEMA6-20P
230V 3,300 14.4 BS 1363A(16 amp)

5
OPERATING HINTS AND SAFETY
Disconnect power to the unit with the switch at the end of each day of operation.
Do not leave the unit in operation without an attendant.
Turn thermostat down to 200°F (93°C) during idle periods. It will take only a few minutes to
regain operating temperature.
Use spatula to push excess grease into grease cup after each load of food is cooked.
This will reduce smoking of hot grease and carbonizing.
Do not leave the unit at high temperature when not in use or during idle periods.
This will cause food particles and grease lm to carbonize.
"Season" cooking surfaces with non-salted vegetable oil to reduce product sticking.
MONTHLY LUBRICATION/INSPECTION
Apply two (2) drops of non-toxic mineral or vegetable oil to
hinge bracket at the rear.
Check the bolts, screws and nuts, tighten if necessary.
TOP HOUSING MAINTENANCE
The Spring setting which holds the top housing in the up position is
set at the factory and should provide many years of use without the
need of adjusting. After a extended period of time the top housing
may not maintain its original setting, therefore the spring tension can
be adjusted by tightening and loosening the Retainer bolts on the
back of the unit.
CLEANING
While holding top lid with one hand, apply only cleaners which are safe for aluminum and
iron surfaces. Wipe with clean sponge or towel until unit is clean.
1. If particles adhere to the cooking surface during the day, scrape them off with a spatula
or stiff brush.
NOTE: It is best not to let food cook on to the grill, as build up of food on the grill will increase
sticking and smoking. In addition, carbon may build up on the grill surface and reduce the
cooking efciency.
2. At the end of the day, wipe down all surfaces with a warm, damp cloth, use a mild detergent on
all non-cooking areas and then dry entire unit.
3. Remove and empty to clean grease catcher cup as required using mild detergent and
water.
CLEANING CARBON BUILDUP
1. When carbon build up occurs, use a carbon removal agent to clean cooking surface.
When this process is completed, you must re-season the grill (See Seasoning Grill).
2. Acidic cleaners are NOT recommended as a cleaning agent.
DO NOT IMMERSE OR LET THE UNIT STAND IN WATER.
DO NOT HOSE DOWN THE UNIT OR THE TABLE/COUNTER IF THE UNIT IS ON
THE TABLE/COUNTER.
KEEP AWAY FROM RUNNING WATER.
Abobe: Oiling the Hinge,
Below: Tightening the top housing
CAUTION

6
CLEANING cont
DO NOT USE SHARP OBJECTS TO REMOVE CARBON BUILD-UP.
BEFORE CLEANING MAKE SURE POWER IS TURNED OFF, UNIT IS
UNPLUGGED AND IS NOT TOO HOT.
DO NOT SPLASH WATER ON FRONT CONTROL PANEL!
DO NOT SPLASH WATER ON FLEX CONDUIT CONNECTING TOP AND
BOTTOM OF THE UNIT.
Do not use ice or cold water to clean the cooking surfaces when the unit is hot. The surfaces
are cast aluminum or cast iron and may crack or deform under the shock of rapid temperature
change.
OPERATION TROUBLESHOOTING
1. Unit not heating.
A.Check if unit is plugged in correct receptacle.
B.Check incoming power line.
C.Check that thermostat is set to proper temperature.
If unit still does not operate contact the factory or one of its representatives or a local service
company for service or required maintenance.
CAUTION
WARNING
WARNING

7
2M-4497-2 10/2010
The foregoing warranty is in lieu of any and all other warranties expressed or implied and constitutes the entire warranty.
FOR ASSISTANCE
Should you need any assistance regarding the Operation or Maintenance of any Star equipment; write, phone, fax or email our Service Department.
In all correspondence mention the Model number and the Serial number of your unit, and the voltage or type of gas you are using.
ALL:
*Pop-Up Toasters
*Butter Dispensers
*Pretzel Merchandisers
(Model 16PD-A Only)
*Pastry Display Cabinets
*Nacho Chip Merchandisers
*Accessories of any kind
*Sneeze Guards
*Pizza Ovens
(Model PO12 Only)
*Heat Lamps
*Pumps-Manual
Visit our Website at: www.star-mfg.com Email: [email protected]
THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL
This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in
which the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the
transportation company who delivered the item to you and initiate your claim with same. If this procedure is not followed, it may affect the warranty status of
the unit.
LIMITED EQUIPMENT WARRANTY
All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited
to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair
of defects without charge, by the factory authorized service agency or one of its sub-agencies. Models that are considered portable (see below) should be taken
to the closest Star service agency, transportation prepaid.
>Star will not assume any responsibility for loss of revenue.
>On all shipments outside the United States and Canada, see International Warranty.
*The warranty period for the JetStar six (6) ounce & Super JetStar eight (8) ounce series popcorn machines is two (2) years.
*The warranty period for the Chrome-Max Griddles is ve (5) years on the griddle surface. See detailed warranty provided with unit.
*The warranty period for Teon/Dura-Tec coatings is one year under normal use and reasonable care. This warranty does not apply if damage occurs to
Teon/Dura-Tec coatings from improper cleaning, maintenance, use of metallic utensils, or abrasive cleaners, abrasive pads, product identiers and
point-of-sale attachments, or any other non-food object tha comes in continuous contact with the roller coating. This warranty does not apply to the
“non-stick” properties of such materials.
>This warranty does not apply to "Special Products" but to regular catalog items only. Star's warranty on "Special Products" is six (6) months on parts
and ninety (90) days on labor.
>This warranty does not apply to any item that is disassembled or tampered with for any purpose other than repair by a Star Authorized Service Center or
the Service Center's sub-agency.
>This warranty does not apply if damage occurs from improper installation, misuse, wrong voltage, wrong gas or operated contrary to the Installation and
Operating instructions.
>This warranty is not valid on Conveyor Ovens unless a "start-up/check-out" has been performed by a Factory Authorized Technician.
PARTS WARRANTY
Parts that are sold to repair out of warranty equipment are warranted for ninety (90) days. The part only is warranted. Labor to replace the part is chargeable to
the customer. SERVICES NOT COVERED BY WARRANTY
PORTABLE EQUIPMENT
Star will not honor service bills that include travel time and mileage charges for servicing any products considered "Portable" including items listed below.
These products should be taken to the Service Agency for repair:
1. Travel time and mileage rendered beyond the 50 mile radius limit
2. Mileage and travel time on portable equipment (see below)
3. Labor to replace such items that can be replaced easily during a daily cleaning
routine, ie; removable kettles on fryers, knobs, grease drawers on griddles, etc.
4. Installation of equipment
5. Damages due to improper installation
6. Damages from abuse or misuse
7. Operated contrary to the Operating and Installation Instructions
8. Cleaning of equipment
9. Seasoning of griddle plates
10. Voltage conversions
11. Gas conversions
12. Pilot light adjustment
13. Miscellaneous adjustments
14. Thermostat calibration and by-pass adjustment
15. Resetting of circuit breakers or safety controls or reset buttons
16. Replacement of bulbs
17. Replacement of fuses
18. Repair of damage created during transit, delivery, &
installation OR created by acts of God
*The Model 510FD Fryer.
*The Model 526TOAToaster Oven.
*The Model J4R, 4 oz. Popcorn Machine.
*The Model 518CMA & 526CMA Cheese Melter.
*The Model 12MC & 15MC & 18MCP Hot Food Merchandisers.
*The Model 12NCPW & 15NCPW Nacho Chip/Popcorn Warmer.
*All Hot Dog Equipment except Roller Grills & Drawer Bun Warmers.
*All Nacho Cheese Warmers except Model 11WLASeries Nacho Cheese Warmer.
*All Condiment Dispensers except the Model HPD & SPD Series Dispenser.
*All Specialty Food Warmers except Model 130R, 11RW Series, and 11WSA Series.
*All QCS/RCS Series Toasters except Model QCS3 & RCS3 Series.
*All Fast Steamer Models except Direct Connect Series.

8
MODEL:
GX & PBF SINGLE LID SERIES, WIRE DIAGRAM, 120V/230/240V
THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.
NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
STAR INTERNATIONAL HOLDINGS INC. COMPANY
SK2116 Rev - 02/16/2005
GREEN
WHITE
15 AMP PLUG
NEMA 5-15P ON ALL 120V UNITS.
NEMA 6-15P ON 240V, 1,800 WATT UNITS.
20 AMP PLUG
NEMA 6-20P ON 240V, 3,600 WATT UNITS.
IEC 320 POWER INLET, 16 AMP RATING
SEE SEPERATE SKETCH, 230V UNITS.
TOP ELEMENT
1
BLACK
3
3
2
1
TERMINAL
BLOCK
BOTTOM ELEMENT
THERMOSTATINDICATOR LIGHT
FOR REFERENCE
WIRING DIAGRAM IS SHOWN AS UNIT ISASSEMBLED
WITH THE BOTTOM PLATE REMOVED. ITEMS ARE IN
GENERAL LOCATION BUT MAY BE RELOCATED OR SCALED
FOR CLARITY.
G
20
N19
18
L
CERTAIN INSTANCES MAY NOT BEAVAILABLE ILLUSTRATIVE PURPOSES ONLYAND IN SOME ITEMS ARE INCLUDED FOR

9
GREEN
WHITE
20 AMP PLUG
NEMA 6-20P ON 240V, 3,600 WATT UNITS.
IEC 320 POWER INLET, 16 AMP RATING
SEE SEPERATE SKETCH, 230V UNITS.
TOP ELEMENT
1
BLACK
3
3
2
1
TERMINAL
BLOCK
BOTTOM ELEMENT
THERMOSTATINDICATOR LIGHT
FOR REFERENCE
WIRING DIAGRAM IS SHOWN AS UNIT ISASSEMBLED
WITH THE BOTTOM PLATE REMOVED. ITEMS ARE IN
GENERAL LOCATION BUT MAY BE RELOCATED OR SCALED
FOR CLARITY.
G
20
N19
18
L
TOP ELEMENT
3
2
3
1
1
11
12 11 12
CERTAIN INSTANCES MAY NOT BE AVAILABLE ILLUSTRATIVE PURPOSES ONLY AND IN SOME ITEMS ARE INCLUDED FOR
MODEL:
GX & PBF DOUBLE LID SERIES, WIRE DIAGRAM, 230/240V
THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.
NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
STAR INTERNATIONAL HOLDINGS INC. COMPANY
SK2118 Rev - 02/16/2005

10
26 55
59
19
18
16 49
54
55
23
21
21
56
56
24
57
57
20
20
17
22 59
153
28
42
36
35 35
51
52
50
30
37
Nameplate
34
27
7
9
39
40
41
29
4
5
6
17
32
2
10
11
48
6
5
45
43
58
Accessory
Grooved Scraper
(pn: D9-Z12061)
46
8
47
44
28
14
13
12
3
8
25
338
49
15
This drawing contains information confidential
to Star Manufacturing International, Inc.
No reproduction or disclosure of its
CERTAIN INSTANCES MAY NOT BE AVAILABLE
ILLUSTRATIVE PURPOSES ONLYAND IN
SOME ITEMS ARE INCLUDED FOR
contents is permitted.

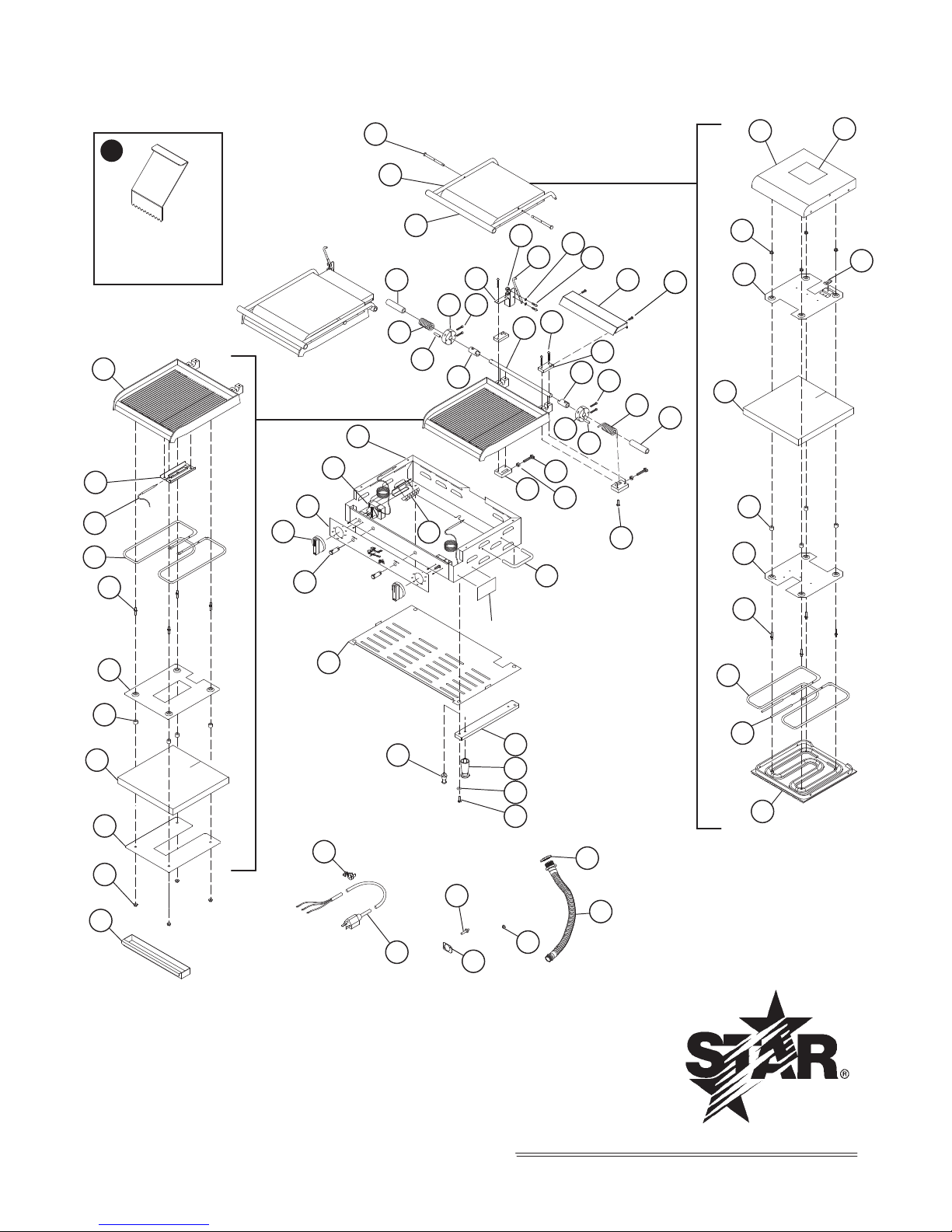

MODEL GX10, GX14, GX20 SERIES
GX20 SHOWN STAR MANUFACTURING INTERNATIONAL, INC.
SK2121 Rev. H 9/22/2010
31
33

11
1 D9-GR0239 1 TOP HOUSING & CONDUIT - 10 ALL
2 2C-Z2054 1 CLAMP, THERMISTOR ALL
3 2C-Z2893 8 NUT 10-24 Hex STL ZP ALL
4 D9-GR0228 1 TOP INS. PLATE ASSY -10” ALL
5 D9-Z2908 1 INSULATION, 10” ALL
6 2A-Z6604 8 SPACER, INSULATION PLATE ALL
7 D9-Z7646 1 PLATE, ELE.&INS RET. -10” ALL
8 2C-08-07-0285 8 SCREW 10-24 x 3/4 3/8 ALL
9 PS-Z7761 1 ELEMENT, TOP, 600W, 120V-10” 120 V
PS-Z2019 1 ELEMENT, HEATING 800W/240V 230/240 V
10 1O-E1500 3" SLEEVING #4 .208ID GLASS ALL
11 2F-Z7657 1 CASTING, IRON, TOP GR - 10” GROOVED MODELS
2F-Z7737 1 CASTING, IRON, TOP SM. -10” SMOOTH MODELS
12 2V-Z7641 2 ROD, ARM CONNECTION COMMON ALL
13 2B-Z7860 2 ARM, SIDE COMMON ALL
14 2V-Z7662 1 HANDLE -10” GRILL EXPRESS ALL
15 D9-Z8769 1 COVER, HINGE 10 ALL
16 2V-Z3252 1 ROD - TOP HOUSING LATCH ALL
17 2V-Z7863 2 SPACER, INSIDE 10” ALL
18 2P-Z8824 1 SPRING, TORSION LH ALL
19 2P-Z8823 1 SPRING, TORSION RH ALL
20 2V-Z8407 2 COLLAR, 2 PIECE COMMON ALL
21 2V-Z7862 2 SPACER, OUTSIDE COMMON ALL
22 2V-Z7861 1 ROD, HINGE 10” ALL
23 2F-Z8529 2 RETAINER, HANDLE COMMON ALL
24 D9-Z8444 1 BRACKET, MTG - TOP LATCH ROD ALL
25 2C-Z2992 2 BOLT 1/4”-20X1 PHP STL NP ALL
26 2F-Z7910 2 RETAINER, SPRING ALL
27 D9-GR0253 1 BODY ASSY - 10” ALL
28 2T-Y2313 1 THERMOSTAT 118V-236V ALL
29 2M-Z8848 1 OVERLAY EXP GRILL - 10” ALL
30 2R-Z8847 1 KNOB, T-STAT CONTROL ALL
31 2E-Z2894 1 TERMINAL BLOCK (304) ALL
32 2J-Y6689 1 PILOT LIGHT 120V 120 V
2J-Z2329 1 PILOT LIGHT 240 V 230/240 V
33 2V-Z8859 2 SPACER, SIDE ALL
34 D9-Z7697 1 PLATE, BOTTOM-10” ALL
35 2A-Z1485 4 FOOT 1” ADJUSTABLE ALL
36 2K-Y3240 1 BUSHING HEYCO SR 17-2 ALL
37 2E-Z2898 1 CONDUITASSY, PTFE ALL
38 2C-Z3917 2 RIVET, POP ALL
39 2E-Z3768 1 LOCKNUT, CONDUIT 1/2 IN ALL
40 2C-Z3780 2 RETAINER, CONDUIT ALL
41 2A-Z3827 1 PLATE, STAMPING - CONDUIT ALL
42 D9-Z8861 1 CORD SET 14/3 120V 15A 120 V
2E-Y9251 1 CORD SET CONT EUR 16AMP 230V
2E-Z2770 1 CORD, POWER, 14-3, 6-15 240 V
43 2F-Z7730 1 CASTING, IRON, BOTTOM GR - 10” GROOVED MODELS
2F-Z7756 1 CASTING, IRON, BOT., SM.-10” SMOOTH MODELS
44 D9-GR0229 1 BRACKET ASSY, THERMOSTAT ALL
45 2N-Z7765 1 ELEMENT, BOT, 800W, 120V-10 120 V
2N-Z2020 1 ELEMENT, HEATING 1000W/240 230/240V
46 D9-Z7677 1 ELEMENT PLATE, BOTTOM-10” ALL
47 D9-Z7676 1 INS. PLATE, BOTTOM-10” ALL
48 D9-Z8842 1 GREASE CUP 10” ALL
49 2C-1512 6 SCREW 10-24X3/8 RHP STL NP ALL
53 2M-Z2620 1 LABEL CAUTION,BI-LINGUAL ALL
54 2C-6260 2 WASHER #10 INT STL NP ALL
55 2C-2559 2 NUT 10-24 ACHD BR NP ALL
56 2A-Z8408 2 PIN, SLOTTED SPRING-S.S. ALL
57 2C-08-07-0236 4 SCREW 10-32 X 3/4 SHCS ALL
58 D9-Z12061 - SCRAPER-GROOVES ACCESSORY
59 2C-Z5193 8 SCREW 10-24 X .75 PH SS ALL
PARTS LIST September 22, 2010, Rev J
10" TWO SIDED GRILLS
Some items are included for illustrative purposes only and in certain instances may not be available.
Number
Per
Unit Description
MODEL
Part
Number
Key
Number
Star Manufacturing International, Inc.
: GX10IG, GX10IS, GX10ISG

12
1 D9-GR0233 1 TOP HOUSINGASSY 14” ALL
2 2C-Z2054 1 CLAMP, THERMISTOR ALL
3 2C-Z2893 8 NUT 10-24 Hex STL ZP ALL
4 D9-GR0232 1 TOP INS. PLATE ASSY -14” ALL
5 D9-Z7991 1 INSULATION, 14” ALL
6 2A-Z6604 8 SPACER, INSULATION PLATE ALL
7 D9-Z7846 1 PLATE, ELE.&INS RET. -14” ALL
8 2C-08-07-0285 8 SCREW 10-24 x 3/4 3/8 ALL
9 PS-Z7769 1 ELEMENT, TOP, 800W, 120V-14” 120 V
PS-Z7771 1 ELEMENT, TOP, 1250W,240V-14 230/240 V
10 1O-E1500 0.333 SLEEVING #4 .208ID GLASS ALL
11 2F-Z7741 1 CASTING, IRON, TOP GR - 14” GROOVED MODELS
2F-Z7742 1 CASTING, IRON, TOP SM. -14” SMOOTH MODELS
12 2V-Z7641 2 ROD, ARM CONNECTION COMMON ALL
13 2B-Z7860 2 ARM, SIDE COMMON ALL
14 2V-Z7992 1 HANDLE -14” GRILL EXPRESS ALL
15 D9-Z8429 1 COVER, HINGE 14 ALL
16 2V-Z3252 1 ROD - TOP HOUSING LATCH ALL
17 2V-Z7863 2 SPACER, INSIDE 10” ALL
18 2P-Z8756 1 SPRING, TORSION LH ALL
19 2P-Z8755 1 SPRING, TORSION RH ALL
20 2V-Z8407 2 COLLAR, 2 PIECE COMMON ALL
21 2V-Z7862 2 SPACER, OUTSIDE COMMON ALL
22 2V-Z7994 1 ROD, HINGE 14” ALL
23 2F-Z8529 2 RETAINER, HANDLE COMMON ALL
24 D9-Z8444 1 BRACKET, MTG - TOP LATCH ROD ALL
25 2C-Z2992 2 BOLT 1/4”-20X1 PHP STL NP ALL
26 2F-Z7910 2 RETAINER, SPRING ALL
27 D9-GR0254 1 BODY ASSY - 14” ALL
28 2T-Y2313 1 THERMOSTAT 118V-236V ALL
29 2M-Z8849 1 OVERLAY 14” EXPRESS GRILL ALL
30 2R-Z8847 1 KNOB, T-STAT CONTROL ALL
31 2E-Z2894 1 TERMINAL BLOCK (304) ALL
32 2J-Y6689 1 PILOT LIGHT 120V 120V, 120VC-CANADA
32 2J-Z2329 1 PILOT LIGHT 240 V 230/240 V
33 2V-Z8859 2 SPACER, SIDE ALL
34 D9-Z7842 1 PLATE, BOTTOM-14” ALL
35 2A-Z1485 4 FOOT 1” ADJUSTABLE ALL
36 2K-Y3240 1 BUSHING HEYCO SR 17-2 ALL
37 2E-Z2898 1 CONDUITASSY, PTFE ALL
38 2C-Z3917 2 RIVET, POP ALL
39 2E-Z3768 1 LOCKNUT, CONDUIT 1/2 IN ALL
40 2C-Z3780 2 RETAINER, CONDUIT ALL
41 2A-Z3827 1 PLATE, STAMPING - CONDUIT ALL
42 D9-Z8861 1 CORD SET 14/3 120V 15A 120V
2E-Z8917 1 CORD SET 120V 5-20P 120VC-CANADA
2E-Y9251 1 CORD SET CONT EUR 16AMP 230V
2E-Z2770 1 CORD, POWER, 14-3, 6-15 240 V
43 2F-Z7758 1 CASTING, IRON, BOTTOM GR - 14” GROOVED MODELS
2F-Z7757 1 CASTING, IRON, BOT., SM.-14” SMOOTH MODELS
44 D9-GR0229 1 BRACKET ASSY, THERMOSTAT ALL
45 2N-Z7772 1 ELEMENT, BOT, 1000W, 120V-14 120 V
2N-Z7774 1 ELEMENT, BOT, 1500W,240V-14 230/240V
46 D9-Z7843 1 ELEMENT PLATE, BOTTOM-14” ALL
47 D9-Z7844 1 INS. PLATE, BOTTOM-14” ALL
48 D9-Z8843 1 GREASE CUP 14” ALL
49 2C-1512 6 SCREW 10-24X3/8 RHP STL NP ALL
53 2M-Z2620 1 LABEL CAUTION,BI-LINGUAL ALL
54 2C-6260 2 WASHER #10 INT STL NP ALL
55 2C-2559 2 NUT 10-24 ACHD BR NP ALL
56 2A-Z8408 2 PIN, SLOTTED SPRING-S.S. ALL
57 2C-08-07-0236 4 SCREW 10-32 X 3/4 SHCS ALL
58 D9-Z12061 - SCRAPER-GROOVES ACCESSORY
59 2C-Z5193 8 SCREW 10-24 X .75 PH SS ALL
Some items are included for illustrative purposes only and in certain instances may not be available.
Number
Per
Unit Description
Part
Number
Key
Number
Star Manufacturing International, Inc.
PARTS LIST September 22, 2010, Rev J
14" TWO SIDED GRILLS
MODEL
: GX14IG, GX14IS, GX14ISG

13
1 D9-GR0239 2 TOP HOUSING & CONDUIT - 10 ALL
2 2C-Z2054 2 CLAMP, THERMISTOR ALL
3 2C-Z2893 16 NUT 10-24 Hex STL ZP ALL
4 D9-GR0228 2 TOP INS. PLATE ASSY -10” ALL
5 D9-Z2908 2 INSULATION, 10” ALL
6 2A-Z6604 16 SPACER, INSULATION PLATE ALL
7 D9-Z7646 2 PLATE, ELE.&INS RET. -10” ALL
8 2C-08-07-0285 16 SCREW 10-24 x 3/4 3/8 ALL
9 PS-Z2019 2 ELEMENT, HEATING 800W/240V ALL
10 1O-E1500 0.666 SLEEVING #4 .208ID GLASS ALL
11 2F-Z7657 1 or 2 CASTING, IRON, TOP GR - 10” GROOVED MODELS
2F-Z7737 1 or 2 CASTING, IRON, TOP SM. -10” SMOOTH MODELS
12 2V-Z7641 4 ROD, ARM CONNECTION COMMON ALL
13 2B-Z7860 4 ARM, SIDE COMMON ALL
14 2V-Z7662 2 HANDLE -10” GRILL EXPRESS ALL
15 D9-Z8417 2 COVER, HINGE 10 ALL
16 2V-Z3252 2 ROD - TOP HOUSING LATCH ALL
17 2V-Z7863 4 SPACER, INSIDE 10” ALL
18 2P-Z8824 2 SPRING, TORSION LH ALL
19 2P-Z8823 2 SPRING, TORSION RH ALL
20 2V-Z8407 4 COLLAR, 2 PIECE COMMON ALL
21 2V-Z7862 4 SPACER, OUTSIDE COMMON ALL
22 2V-Z7861 2 ROD, HINGE 10” ALL
23 2F-Z8529 4 RETAINER, HANDLE COMMON ALL
24 D9-Z8444 2 BRACKET, MTG - TOP LATCH ROD ALL
25 2C-Z2992 4 BOLT 1/4”-20X1 PHP STL NP ALL
26 2F-Z7910 4 RETAINER, SPRING ALL
27 D9-GR0255 1 BODY ASSY - 20” ALL
28 2T-Y2313 2 THERMOSTAT 118V-236V ALL
29 2M-Z8850 1 OVERLAY 20” EXPRESS GRILL ALL
30 2R-Z8847 2 KNOB, T-STAT CONTROL ALL
31 2E-Z2894 2 TERMINAL BLOCK (304) ALL
32 2J-Z3157 2 PILOT LIGHT 250V AMBER ALL
33 2V-Z8859 2 SPACER, SIDE ALL
34 D9-Z7918 1 PLATE, BOTTOM-20” ALL
35 2A-Z1485 4 FOOT 1”ADJUSTABLE ALL manufactured on or before 2/4/08
2R-200716 4 LEG, 2.5" IN METAL ALL manufactured after 2/5/08
36 2K-Y6764 1 BUSHING - STRAIN RELIEF ALL
37 2E-Z2898 2 CONDUITASSY, PTFE ALL
38 2C-Z3917 2 RIVET, POP ALL
39 2E-Z3768 2 LOCKNUT, CONDUIT 1/2 IN ALL
40 2C-Z3780 4 RETAINER, CONDUIT ALL
41 2A-Z3827 2 PLATE, STAMPING - CONDUIT ALL
42 2E-Z2905 1 CORD SJTO 12/3 NEMA6-20P ALL
2E-Y9251 1 CORD SET CONT EUR 16AMP 230V
43 2F-Z7730 1 or 2 CASTING, IRON, BOTTOM GR - 10” GROOVED MODELS
2F-Z7756 1 or 2 CASTING, IRON, BOT., SM.-10” SMOOTH MODELS
44 D9-GR0229 2 BRACKET ASSY, THERMOSTAT ALL
45 2N-Z2020 2 ELEMENT, HEATING 1000W/240 ALL
46 D9-Z7677 2 ELEMENT PLATE, BOTTOM-10” ALL
47 D9-Z7676 2 INS. PLATE, BOTTOM-10” ALL
48 D9-Z8838 1 GREASE CUP 20” ALL
49 2C-1512 8 SCREW 10-24X3/8 RHP STL NP ALL
50 2V-Z11462 2 FOOT PLATE, 1/2" X 12" ALL
51 2C-08-07-0262 4 WASHER 1/4 INT STL NP ALL
52 2C-Z2992 4 BOLT 1/4-20X1 PHP STL ALL
53 2M-Z2620 1 LABEL CAUTION,BI-LINGUAL ALL
54 2C-6260 4 WASHER #10 INT STL NP ALL
55 2C-2559 4 NUT 10-24 ACHD BR NP ALL
56 2A-Z8408 4 PIN, SLOTTED SPRING-S.S. ALL
57 2C-08-07-0236 8 SCREW 10-32 X 3/4 SHCS ALL
58 D9-Z12061 - SCRAPER-GROOVES ACCESSORY
59 2C-Z5193 8 SCREW 10-24 X .75 PH SS ALL
PARTS LIST September 22, 2010, Rev J
20" TWO SIDED GRILLS
Number
Per
Unit Description
Part
Number
Key
Number
Star Manufacturing International, Inc.
MODEL
: GX20IG, GX20IGS, GX20IS

14

15

16
STAR INTERNATIONAL HOLDINGS INC. COMPANY
Star - Holman - Lang - Wells - Bloomeld - Toastmaster
10 Sunnen Drive, St. Louis, MO 63143 U.S.A.
[phone]
www.star-mfg.com
