Staray D-260 User manual

LaserShowSystem
- 1 -
1. General instructions
Thank you for purchasing this product. Please read user guide for safety and operations information before using the
product for better use and safety operation. Keep this manual for future reference. This product can create perfect laser
programs and effects since it has passed a series of strictly tests before delivery.
Please handle with care after receiving the unit and check the attachments listed on the page after opening the carton. In
the event of carton damage or attachment missing in transit, please contact your dealer or our after sales service
department.
Attachments:
1.LaserLight1PCS
2. Power Cable 1PCS
3. User Guide 1PCS
2. Notice:
1. Do not exposure the human eye direct to laser beam.
2. Do not turn on and off the unit frequently.
3. Before using this unit makes sure the power supply is ground.
4. This unit is intended for indoor use only and should be prevented form water, moisture and shake. The working
temperature of this unit is 18～30, do not use this continuously over 4 hours, otherwise it shortens the lifetime of the
unit.
5. Use cleaning tissue to remove the dust absorbed on the external lenses periodically to optimize light output.
6. Do not remove or break the warranty label, otherwise it void the warranty.
7. Always replace with the exact same type fuse, replacement with anything other than the specified fuse can cause fire
or electric shock and damage your unit, and will void your manufactures warranty.
This product installation operation and maintenance should be by professional.
Warning！Do not exposure the human eye direct to laser beam.
3. Installation
1. Before installation, please make sure power voltage is proper as the one marked on the unit.
2. This product should be installed by professional to make sure it is fixed safely and have adjusted suitable shining
angel.
LaserShowSystem
- 2 -
D-260
LASER SH OW SYSTEM
4
3
2
1
MUSIC
POWER
MICRO
3. When installing this unit, please make sure there is nothing flammable or explosive 0.5 meter near the unit. Make
sure there is 15 mm distance between the unit and the wall. Please make sure to use safety rope which can support
tenfold weight of the unit to assist fitting.

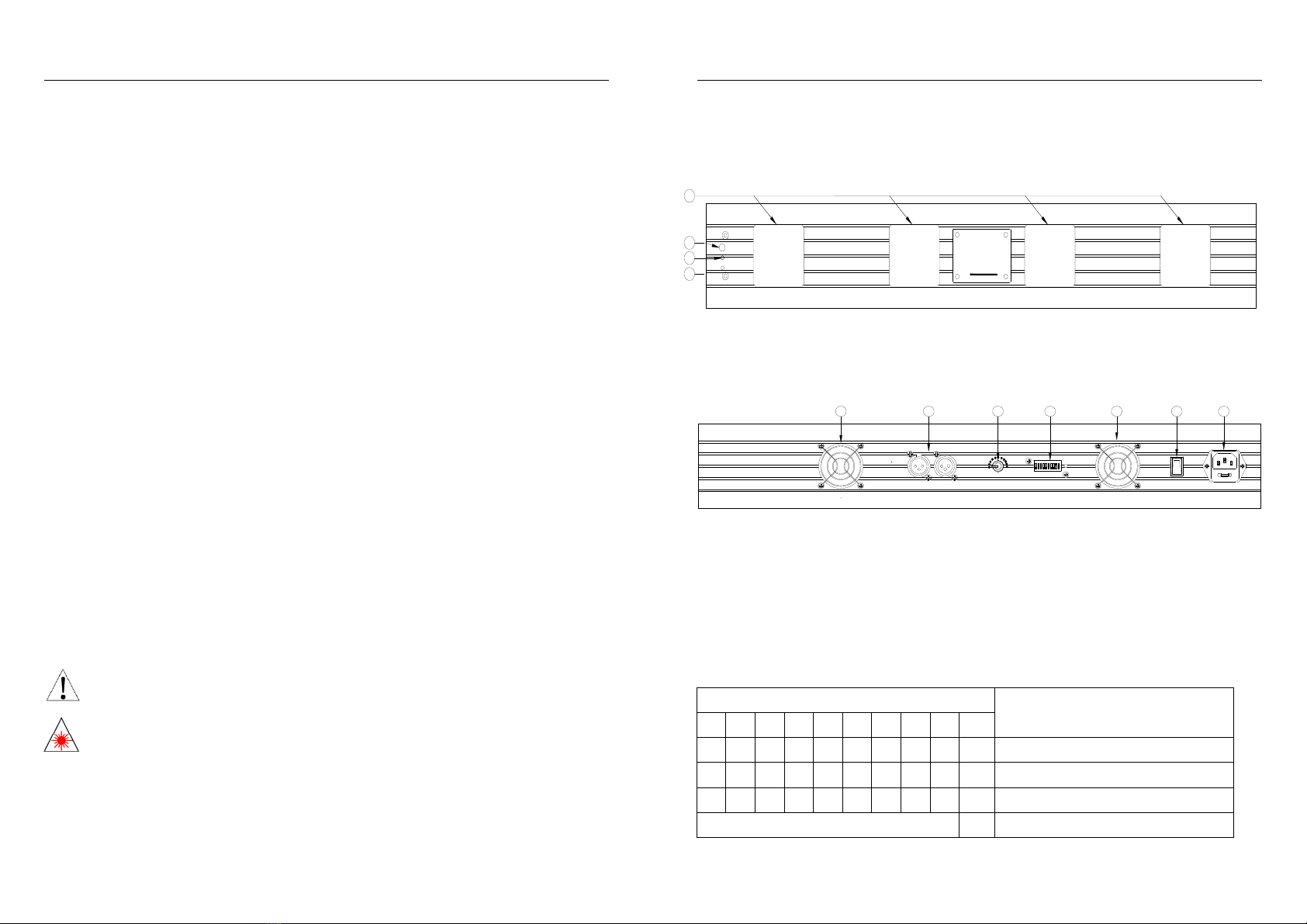

4. Front Panel
1. Sound Active Microphone 2. Sound Active Indicator
3.PowerIndicator 4/5.LaserAperture
5. Rear Panel
MAX
MIN
3
1 0 9 8 7 6 5 4 3 2 1
220V/AC/2A 5 0-60Hz
OFF
0N
POWER SWITCH
FUNCTI0N SETTING
OUT
DMX
IN
651421
1. Fan 2. .DMX Input/ Output 3. Sound Sensitivity Adjustment Knob Fuse
4. Address code selection 5. Power supply switch 6. Power input connector
6. Function Setting
Dipswitches #10 are use to set 4 working modes as Sound active, Automatic, Slave/Master and DMX mode.DMX mode
have DMX control channel address for setting, Namely DMX Address, see the function setting chart. When dipswitch
10# selected ON, Function of #1～#9 as below: 0＝OFF 1=ON X=OFF or ON
DIPSWITCH CHART
FUNCTION
#1 #2 #3 #4 #5 #6 #7 #8 #9 #10
X X X X X X X X 0 1 SOUND ACTIVE
X X X X X X X X 1 1 AUTO MODE
1 X 1 X X X X X X 1 LIGHT SETTING MODE
SET DMX ADDRESS 0 DMX/SLAVE

LaserShowSystem
- 3 -
7. Stand-Alone Operation (Sound Active, AUTO mode)
1. Set dipswitch to select Sound Active or AUTO mode.
2. The unit will react to the low frequencies of music via the internal microphone. Adjust the audio sensitivity knob on
the back of the unit to make the unit more or less sensitive in sound active.
8. Master-Slave Operation
1. Choose a unit to function as Master mode, set dipswitch to select Sound Active or AUTO mode. The others must be
set to Slave mode, set dipswitch to select Slave mode.
2. Use standard XLR microphone cable chain your units together via the XLR connector on the rear of the units. For
longer cable runs we suggest a terminator at the last fixture.
3. Turn on the all units' power, the units begins reset, and then the unit begins working. The slave units will action the
same as the master unit.
Master/Slave mode no need DMX controlled, There should be only one master unit in Master-Slave operation. For
working time of slave and the master unit should at the same time, we suggest Master and Slave unit run from one power
switch.

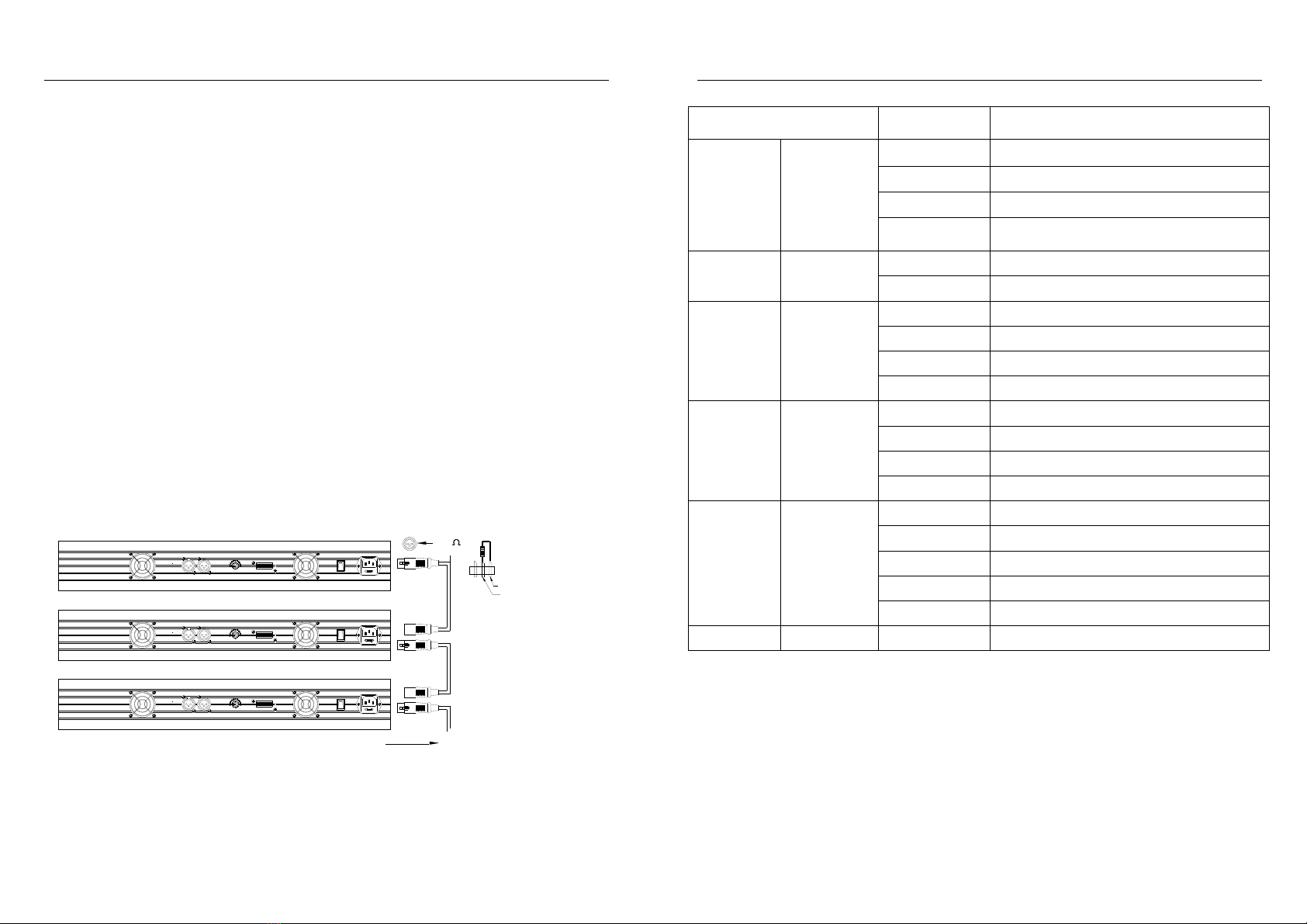

9. Master-Slave Connection
DMX SIGNAL
120
PIN2
PIN3
220V/AC/2A 50-60 Hz
OFF
0N
POWERSWITCH
FUNCTI0NSETTING
OUTDMXIN
1 0 9 8 7 6 5 4 3 2 1
MAX
MIN
MINMAX
1 2 3 4 5 6 7 8 9 1 0
IN DMX OUT
FUNCTI0NSETTING POWER SWITCH
0N
OFF
220V/AC/2A 50-60 Hz
220V/AC/2A 50-60 Hz
OFF
0N
POWERSWITCH
FUNCTI0NSETTING
OUT
DMX
IN
1 0 9 8 7 6 5 4 3 2 1
MAX
MIN
LaserShowSystem
- 4 -
10. DMX Control
Channel Function DMX512 Value Description
1
Mode
0~69 Shut off
70~139 Sound Active mode
140~209 Auto Active mode
210~255 Manual control
2
Pattern change 0~33 Static pattern
34~255 dynamic pattern
3
Horizontal move
1~160 Hand control horizontal moving
161~190 Automatic from left to right
191~220 Automatic from right to left
221~255 Automatic left and right
4
Vertical move
1~160 Manual control
161~190 Automatic from up to down
191~220 Automatic from down to up
221~255 Automatic up and down
5 Scale
0~2 No Scale
3~92 Manual control Scale
93~146 Auto scale large
147~200 Auto scale small
221~255 Auto scale large and small
6 Reset 0~255 Value > 200 , Reset
11. Troubleshooting
1. In Stand-Alone operation, if the power supply indicator is light up and sound active indicator isn't light up, but the
laser is shut off doesn't work, Please check if unit has been set up in slave mode, then set up in master mode.
2. In Master-Slave operation, slave unit don't function, please check as below.
A. Make sure to there's only one master in the chain, and the others are set in slave mode.
B. Make sure to control the unit without DMX console controlling.

LaserShowSystem
- 5 -
C. Make sure to take a good quality power cable and connection.
3. In DMX mode operation, the laser is OFF and the DMX signal indicator is unlighted, please check as below
Make sure to set up the DMX mode, make sure to have a good connection.
4. In DMX operation, the unit can’t be controlled by the DMX console, but the DMX signal indicator is flashing,
please make sure the DMX console and unit have the same channel.
5. If the unit is fail, please turn off the unit, and then turn on again after 5 minutes.
● After trying the above solution you still have a problem, please contact your dealer or our company for service.
Trouble manifestation Trouble shooting
If the power supply indicator doesn’t light up and laser
doesn’t work
Please check the power supply and the input voltage
If the sound active indicator isn’t light up with music
active Please increase the music volume or audio sensitivity with sensitivity knob
In Automatic mode operation, if power supply indicator
is light up, but laser light is not light up
Please check if any trouble with laser machinery
If the laser beam is at rest in working mode Product problem
After trying the above solution you still have a problem, please contact your dealer or our company for service
12. Universal DMX Operation (DMX mode)
The System only accepts the DMX512 signal of international standard to control the system mode, the laser beam
ON/OFF, running direction, running speed and twinkle speed etc.
LaserShowSystem
- 6 -
DMX SIGNAL
120
PIN2
PIN3
220V/AC/2A 50-60 Hz
OFF
0N
POWERSWITCH
FUNCTI0NSETTING
OUTDMXIN
1 0 9 8 7 6 5 4 3 2 1
MAX
MIN
MINMAX
1 2 3 4 5 6 7 8 9 1 0
IN DMX OUT
FUNCTI0NSETTING POWER SWITCH
0N
OFF
220V/AC/2A 50-60 Hz
220V/AC/2A 50-60 Hz
OFF
0N
POWERSWITCH
FUNCTI0NSETTING
OUT
DMX
IN
1 0 9 8 7 6 5 4 3 2 1
MAX
MIN
13. Technical Parameter
Item
Spec D-260
Laser Light Red/Green
Laser Power
Red：100mW+100mW
Green：60mW
Dimension 185*572*80mm
Net Weight 5.0kg
Scan System High Speed Step Motor Drive and Grating Scan
System Port DMX512 input and output port
Control Mode Sound Active, Automaticl,DMX512(6 channels)
Demo Effect More than one hundred of patterns, green lasers effect from apertures.
Work Environment 10-35°C Indoor
Power Supply AC240V 50-60Hz 50W
Work Place Disco, KTV, Bars, Clubs, Family party etc.
