Varytec BEAM R5 User manual

Manual
Beam R5

2 / 15
Table of contents
1. Safety instructions............................................................................................................................ 3
1.1. FOR SAFE AND EFFICIENT OPERATION............................................................................ 3
1.2. Additional Information for safety.............................................................................................. 4
2. Statement......................................................................................................................................... 5
2.1. Product description.................................................................................................................. 5
2.2. Introduction to the product....................................................................................................... 5
2.2.1. Technical Data................................................................................................................. 5
3. Packaging......................................................................................................................................... 7
3.1. Contents .................................................................................................................................. 7
3.2. Transport lock.......................................................................................................................... 7
3.3. Lamp types.............................................................................................................................. 7
3.3.1. Changing the lamp .......................................................................................................... 8
4. Control.............................................................................................................................................. 9
4.1. Description of the display section............................................................................................9
4.1.1. Structure of the menu...................................................................................................... 9
4.2. DMX Chart............................................................................................................................. 11

3 / 15
1. Safety instructions
•This device is suitable for indoor use (not outdoors) only.
•All modifications to the device will void the warranty.
•Repairs are to carry out by skilled personnel only.
•Use only fuses of the same type and original parts as spare parts.
•Protect the unit from rain and humidity to avoid fire and electric shocks.
•Make sure to unplug the power supply before opening the housing.
1.1.FOR SAFE AND EFFICIENT OPERATION
Be careful with heat and extreme temperature
Avoid exposing it to direct rays of the sun or near a heating appliance.
Not put it in a temperature bellow 32°F /0°C, or exceeding 104°F /35°C.
Keep away from humidity, water and dust
Do not place the set in a location with high humidity or lots of dust.
Containers with water should not be placed on the set.
Keep away from sources of hum and noise
Such as transformer motor, tuner, TV set and amplifier.
To avoid placing on un-stable location
Select a level and stable location to avoid vibration.
Do not use chemicals or volatile liquids for cleaning
Use a clean dry cloth to wipe off the dust, or a wet soft cloth for stubborn dirt.
If out of work, contact sales agency immediately
Any troubles arose, remove the power plug soon, and contact with an engineer for repairing,
do not open the cabinet by yourself, it might result a danger of electric shock.
Take care with the power cable
Never pull the power cable to remove the plug from the receptacle, be sure to hold the plug.
When not using the device for an extended period of time, be sure to disconnect the plug
from the receptacle
.

Important:
Damages caused by the d
warranty. The dealer will not accept liability for any resulting defects or problems. Make sure
the electrical connection is carried out by qualified personnel. All electrical and mechanical
connections have
to be carried out according to the European safety standards.
1.2.

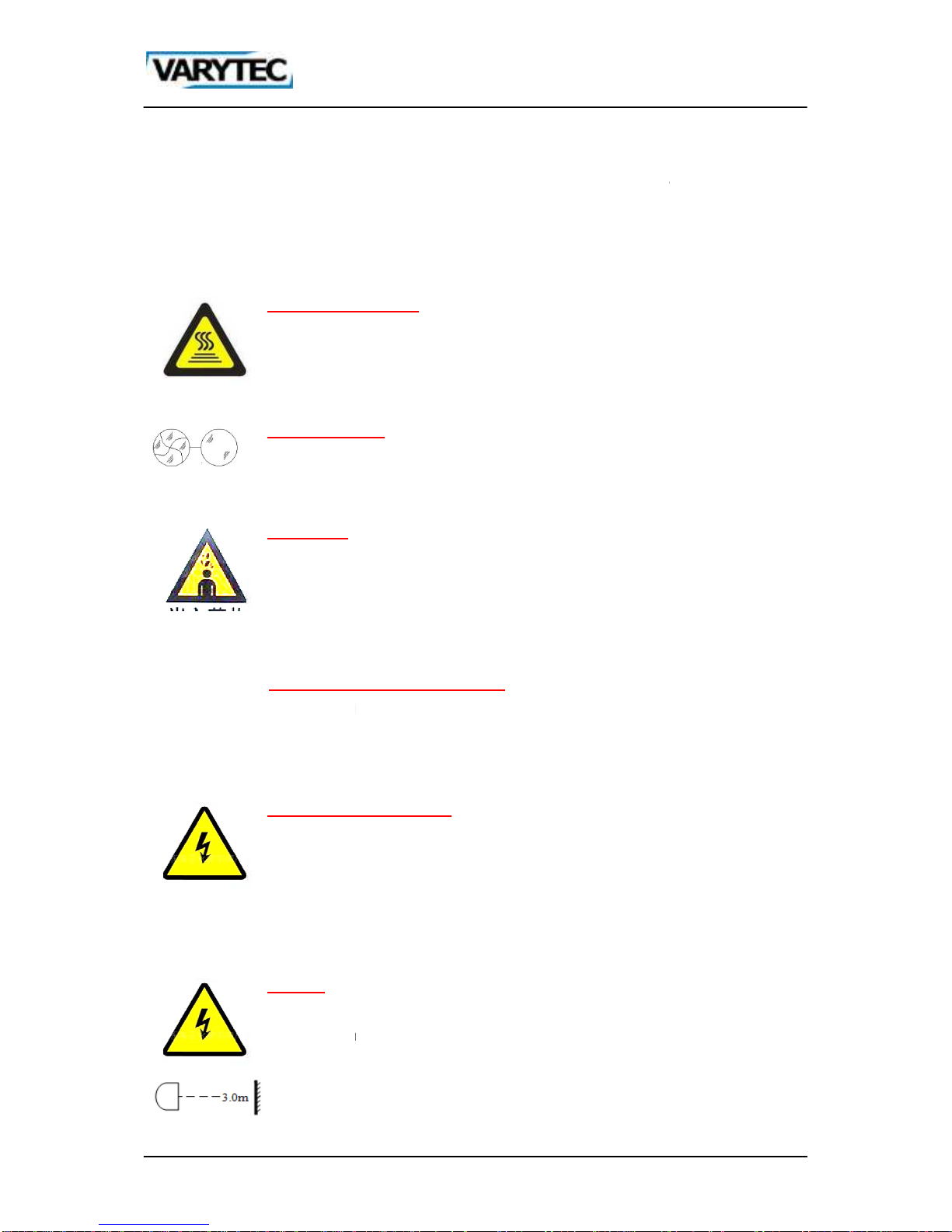

Additional Information for safety
Exessive temperature
Ta=40°C
Please do not use the device if the temperature exceeds 40°C/104°F.
Risk of breakage
If the lens is broken you
lens only for an original of the producer. Size of lens:
Drop safety
To avoid injuries carry the package only by twos.
mounting bracket has the ability to carry the te
device.
Always u
working at the device the place below has to be vacated
UV protection and lamp explosion
Do not look unprotected directly into the light.
lens and the casing, but without the casing it is possible to cause damages
eyes.
Beware of electrical shock
Make sure the electrical connection is carried out by qualified personnel.
you plug in the device
voltage and also a crowbar. Every device has to be grounded.
supply
if you want to change a lamp or you have to open the device. You also have
to accomplish this action if there is a thu
Fire risk
Make sure that the fuse functioned. It is never allowed to bridge it.
exchange it only use fuses of the same type.
The distance between the device and lighted things has to be at least 3m. From a
di
stance of 3m the temperature of the beam subside among 60°C.
It is not allowed cover fans and
4 / 15
Damages caused by the d
isregard of this user manual are not subject to
warranty. The dealer will not accept liability for any resulting defects or problems. Make sure
the electrical connection is carried out by qualified personnel. All electrical and mechanical
to be carried out according to the European safety standards.
Additional Information for safety
Exessive temperature
Please do not use the device if the temperature exceeds 40°C/104°F.
Risk of breakage
If the lens is broken you
cannot use the
device anymore. Exchange in this case the
lens only for an original of the producer. Size of lens:
d = 74 x30mm.
To avoid injuries carry the package only by twos.
If you install the device the
mounting bracket has the ability to carry the te
nfold load of the weight of the
Always u
se a corresponding safety to safe the device additional. While
working at the device the place below has to be vacated
UV protection and lamp explosion
Do not look unprotected directly into the light.
The UV
radiation is
lens and the casing, but without the casing it is possible to cause damages
Beware of electrical shock
Make sure the electrical connection is carried out by qualified personnel.
you plug in the device
make sure that the power supply system has the right
voltage and also a crowbar. Every device has to be grounded.
if you want to change a lamp or you have to open the device. You also have
to accomplish this action if there is a thu
nderstorm or high humidity.
Make sure that the fuse functioned. It is never allowed to bridge it.
exchange it only use fuses of the same type.
The distance between the device and lighted things has to be at least 3m. From a
stance of 3m the temperature of the beam subside among 60°C.
It is not allowed cover fans and
air in and outlets.
isregard of this user manual are not subject to
warranty. The dealer will not accept liability for any resulting defects or problems. Make sure
the electrical connection is carried out by qualified personnel. All electrical and mechanical
to be carried out according to the European safety standards.
Please do not use the device if the temperature exceeds 40°C/104°F.
device anymore. Exchange in this case the
d = 74 x30mm.
If you install the device the
nfold load of the weight of the
se a corresponding safety to safe the device additional. While
radiation is
shielded by the
lens and the casing, but without the casing it is possible to cause damages
on the
Make sure the electrical connection is carried out by qualified personnel.
Before
make sure that the power supply system has the right
voltage and also a crowbar. Every device has to be grounded.
Unplug the power
if you want to change a lamp or you have to open the device. You also have
nderstorm or high humidity.
Make sure that the fuse functioned. It is never allowed to bridge it.
If you have to
The distance between the device and lighted things has to be at least 3m. From a
stance of 3m the temperature of the beam subside among 60°C.

5 / 15
Make sure that there is a distance between the device and all objects in a area of
0.5m.
Don’t put or mount anything on the lens.
The device has to cool down for 20 minutes before opening.
2. Statement
When we send out the goods, they are well packaged and also at best condition. Every product was
tested before delivery. If you recognize mistakes or damages please contact the delivery agent or the
supplier. Please read this manual faithful. In this manual you can find information about the handling
and the safety regulations of this product. If you disregard this manual we cannot give a warranty for it.
Technical changes, which are for progress, may be possible at any time. They are not mentioned
particularly in this manual, but affixed extra.
2.1.Product description
Thank you for choosing the Beam R5. This device is on the current state of technology and has a
range of features and meets the requirements of the DMX512 USITT 1990 standard. This device was
developed for many different purposes e.g. TV studios, discos, nightclubs, bars and concerts.
2.2.Introduction to the product
2.2.1. Technical Data
Power supply
Voltage 110V - 240V / 50-60HZ
Lightsource
Lamp type YODN R5 200W
Wattage 200W
Color temperature 500K
Optics
Zoom 0 - 3. °
Focus yes
Connections
Power in Powercon
Power out no
DMX in/out XLR 3pin / 5pin
Functions
Pan 540°
Tilt 250°
Colors Color wheel (14 colors)

6 / 15
Gobo wheel 17xstatic
Prism -way
Frostfilter yes
Operation
Sound-to-light yes
Automatic yes
Master-Slave yes
DMX 15 channels
Artnett no
RDM no
Hardware
Protection class IP20
Skill indoor
Measruements (LxWxH) 395 x 2 7 x 495 mm
Weight 1 .5kg
Material Plastic

7 / 15
3. Packaging
3.1.Contents
The device could be packed in carton, in a single case or in twin case.
To every device belong the following accessories, which you have to multiply with the number of
devices.
Per device:
Material Quantity
Manual 1 pcs.
Hangig Brackets 2 pcs.
Cable 1 pcs.
3.2.Transport lock
To protect the device there is a transport lock. Before connecting the device to the power supply
system you have to open the transport lock. If you want to transport you have to close the transport
lock, so that the head of the device is not able to swing freely.
3.3.Lamp types
Please do not use other types as these which are mentioned in this manual.
Type Wattage Lifetime
Color
temperature
YODN 5R 200W 2200h 000K
Please change always the lamp when lifetime runs out. If you do not it could be possible that the lamp
implodes and damages the device.

8 / 15
3.3.1. Changing the lamp
Important! If you change the lamp it is not allowed to touch the lamp with bare fingers. The body fat
layer remains in the lamp and could damaged it or brand.
1. Interrupt the current supply. Wai tat least 20min before you open the device, so that the old
lamp can cool down. Arrest the Y-position of the device to 60°.
2. Use a cross-tip screwdriver to open the cover. Release the bracket of the fan and the cable at
the three points which you can see in the picture.
3. Now you can release the screws of the fan how you can see here.
4. Press cautious on the reflector. Like you can see in this picture.
5. Pull the lamp in one direction like it is shown.

9 / 15
6. Now you can remove the lamp, you only have to release the cables of the lamp and then you
can remove it.
7. Install the new lamp backwards.
4. Control
4.1.Description of the display section
Every menu is controlled by the jogwheel on the right of the display.
Rotation changes the values if you push it you confirm the value. You can exit the menu with point of
menu EXIT; there you have to push the wheel again.
4.1.1. Structure of the menu
Main Menu
Su menu 1 Su menu 2 Function SET Function description
DMX
Address 1-512 Address number set
Mode
Smal Simplify mode
Stan Standard mode
Exte Extended
Display
ShowReve
Natu Normal
Revl Reverse 1 0°
BrigSett 000-007 Brightness set
Backligh 60S Backlight close after delay 60s
Ligh Backlight light always
MenuBack 90S Menu back to main menu after delay 90s
Off Menu back not automatically
Return
Return
Feature XY Setup
Xreverse Off Pan scan normal
Open Pan scan reverse
Yreverse Off Tilt scan normal
Open Tilt scan reverse
XY Speed
Fast Pan/Tilt fast speed
NORM Pan/Tilt normal
Solw Pan/Tilt slow
X Angle
360, 360 Pan angle 360°
540, 540 Pan angle 540°
630, 630 Pan angle 630°

10 / 15
XY Fback Off Pan/Tilt optical sensor testing off
Open Pan/Tilt optical sensor testing on
Return
Return
Shortcut Off Shortcut off for colors and gobos
Open Shortcut open for colors and gobos
FullColr Off Half color function
Open Full color function
ReceMode
DMX, DMX Accept DMX
Wire Accept Wireless
Auto AutoRun
RunMode
Slve Accept other signal control
Muse Sound active
Auto Inside program run automatically
SigClear Off keep signal data
Open clear signal data
Return
Return
LampSett
Default Wink Lamp off
Ilum Lamp on
Control Wink Lamp off by manual
Ilum Lamp on by manual
DmxLamp Off Close other signal control the lamp
On open other signal control the lamp
LampTime 0000-9999 Lamp time
ClearTim * Password input enter
Ilum Clear lamp time
LampStat Wink Lamp off
Ilum Lamp on
Return
Return
InfoSee
WorkHour 0000-9999 working hours memo for connect power
Times 0000-9999 Open times memo
Fan1Rota 0000-9999 Fan rotation speed 1
Fan2Rota 0000-9999 Fan rotation speed 2
Version V0.0 Version
ChanLevel
Chan 00
-
Chan40 DMX value number
Return
Return
Control
Chan 00
-
Chan40 Control the channels
AssiTool
Factory
* Password input enter
Fold Recover factory set
Save Save factory set
Defaults * Password input enter
Fold Recover to default
DMXReset Off Close other signal control reset
Open Open other signal control reset

11 / 15
Redress * Password input enter
00-10 Set motors
Brightne
* Password input enter
TimeLimi 0000-9999 Open fixture time limit
TimsLimi 0000-9999 Fixture times limit
Passwor1 000-255 Revise password 1
Passwor2 000-255 Revise password 2
Passwor3 000-255 Revise password 3
Passwor4 000-255 Revise password 4
X Drivin 000-255 Pan main drive gear
X Driven 000-255 Pan slave drive gear
Y Drivin 000-255 Tilt main drive gear
Y Driven 000-255 Tilt slave drive gear
LampPowe Off Ballast earthed
total 5V, Open Ballast 5V
Y Angle 000-255 Tilt angle rotation set
Return 000-255 Return
Checksum 01-10 Check cabrilate data
Return
Return
Reset Annu Cancel
Exec Reset
ExitMenu
Exit
4.2.DMX Chart
Channel
Value
from
Value
to Description
1 PAN 0 255 Pan
2 PAN f 0 255 Pane fine
3 TILT 0 255 Tilt
4 TILT f 0 255 Tilt fine
5 PT Speed 0 255 PT speed from fast to slow
6 COLOR
0 4 Open white
5 9 Open white + Color 1
10 14 Color 1
15 19 Color 1 + Color 2
20 24 Color 2
25 29 Color 2 + Color 3
30 34 Color 3
35 39 Color 3 + Color 4
40 44 Color 4
45 49 Color 4 + Color 5
50 54 Color 5
55 59 Color 5 + Color 6

12 / 15
60 64 Color 6
65 69 Color 6 + Color 7
70 74 Color 7
75 79 Color 7 + Color
0 4 Color
5 9 Color + Color 9
90 94 Color 9
95 99 Color 9 + Color 10
100 104 Color 10
105 109 Color 10 + Color 11
110 114 Color 11
115 119 Color 11 + Color 12
120 124 Color 12
125 129 Color 12 + Color 13
130 134 Color 13
135 139 Color 13 + Color 14
140 144 Color 14
145 149 Color 14 + Weiß
150 200 Color rotation from slow to fast clockwise
201 204 Stop at any position
205 255 Color rotation from fast to slow counterclockwise
7 Gobo
0 4 Gobo offen
5 9 Gobo 1
10 14 Gobo 2
15 19 Gobo 3
20 24 Gobo 4
25 29 Gobo 5
30 34 Gobo 6
35 39 Gobo 7
40 44 Gobo
45 49 Gobo 9
50 54 Gobo 10
55 59 Gobo 11
60 64 Gobo 12
65 69 Gobo 13
70 74 Gobo 14
75 79 Gobo 15
0 4 Gobo 16
5 9 Gobo 17
90 94 Gobo 1 Shake
95 99 Gobo 2 Shake
100 104 Gobo 3 Shake
105 109 Gobo 4 Shake
110 114 Gobo 5 Shake
115 119 Gobo 6 Shake

13 / 15
120 124 Gobo 7 Shake
125 129 Gobo Shake
130 134 Gobo 9 Shake
135 139 Gobo 10 Shake
140 144 Gobo 11 Shake
145 149 Gobo 12 Shake
150 154 Gobo 13 Shake
155 159 Gobo 14 Shake
160 164 Gobo 15 Shake
165 169 Gobo 16 Shake
170 174 Gobo 17 Shake
175 210 Gobo wheel rotation slow to fast clockwise
211 224 Stop at any position
225 255 Gobo wheel rotation slow to fast counterclockwise
Shutter
0 19 Off
20 39 Open
40 59 Random strobe from slow to fast
60 79 Open
0 99 Ramp up from slow to fast
100 119 Open
120 139 Ramp down from slow to fast
140 249 Strobe standard from slow to fast
250 255 Open
9 Dimmer 0 255 Linear dimmer
10 Frost 0 255 Linear frost
11 Focus 0 255 Linear Focus
12 Prism
0 19 No effect
20 99 Indesing prism 360°
100 149 Prism rotation from slow to fast clockwise
150 159 Stop at any position
160 209 Prism rotation from slow to fast counterclockwise
210 255
Prism rotation clockwise/counterclockwise altering from
slow to fast
13 Reset
0 33 No function
34 36
Lamp off after 3 seconds when dimmer and shutter are at
255
37 79 No function
0 9
Lamp on
after 3 seconds when dimmer and shutter are at
255
90 99 No function
100 109 Motor reset after 3 seconds
110 129 No function
130 139 Reset complete after 3 seconds
140 255 No function
14 Macros 0 14 Open

14 / 15
functions
15 32 Effect 1
33 46 Effect 2
47 63 Effect 3
64 79 Effect 4
0 95 Effect 5
96 110 Effect 6
111 125 Effect 7
126 143 Effect
144 159 Effect 9
160 175 Effect 10
176 191 Effect 11
192 207 Effect 12
20 223 Effect 13
224 239 Effect 14
240 255 Effect 15
15 Speed 0 255 Speed for macro effects

15 / 15
Importer:
B & K Braun GmbH
Industriestraße 2
D-76307 Karlsbad
www.bkbraun.com
[e-mail]
