Event Lighting DASDI1000RGB User manual

1
DASDI Laser
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any
errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
www.event-lighting.com.au V1.0

2
CONTENTS
Safety Instructions
Product Installation
Rear Panel
Control Board Operation
- Display panel
- Main screen
- Play Mode
- Files operating
- Pictures setting
- Setting the sensitivity of sound active
- Setting the Rotation
- DMX instructions
DMX Values
Warranty
Laser Emission Data
Specifications

3
Safety Instructions
WARNING
• Do not open this device, there is no user-serviceable parts inside. Risk of electric shock.
• Do not look at the light source when the device is on.
• CAUTION: This unit's housing may be hot during and after operation.
• Install this device in a location with adequate ventilation, at least 20 inch (50 cm) from adjacent surfaces.
• Do not leave any flammable material within 50 cm of this unit while operating or connected to power.
• Use a safety chain when mounting this device overhead.
• Do not operate this device outdoors or in any location where dust, excessive heat, water, or humidity may affect it.
• Do not operate this device if the housing, lenses, or cables appear damaged.
• Do not connect this device to a dimmer or rheostat.
• ONLY connect this device to a grounded and protected circuit.
• ONLY use the hanging bracket to carry this device.
• In case of a serious operating problem, stop using immediately.
• The maximum ambient temperature is 104° F (40° C). Do not operate this device at higher temperatures.
• Do not point this laser toward people or crowds.
• Do not point this laser toward any area where you or the operator do not know where the beams are being directed.
• Use aperture cover whenever not in use.
• Use the key to lock the laser to avoid unauthorised use.
• Avoid direct eye contact with laser light. Never intentionally expose your eyes or others to direct laser light.
• This laser product can potentially cause instant eye injury or blindness if laser light directly strikes the eyes.
Power Input
This device has an auto-switching power supply work with input voltage range of 100~240 VAC, 50/60 Hz.
Product Installation
This device can be mounted in many orientations provided each individual device is secured by the use of correct
mounting bracket.

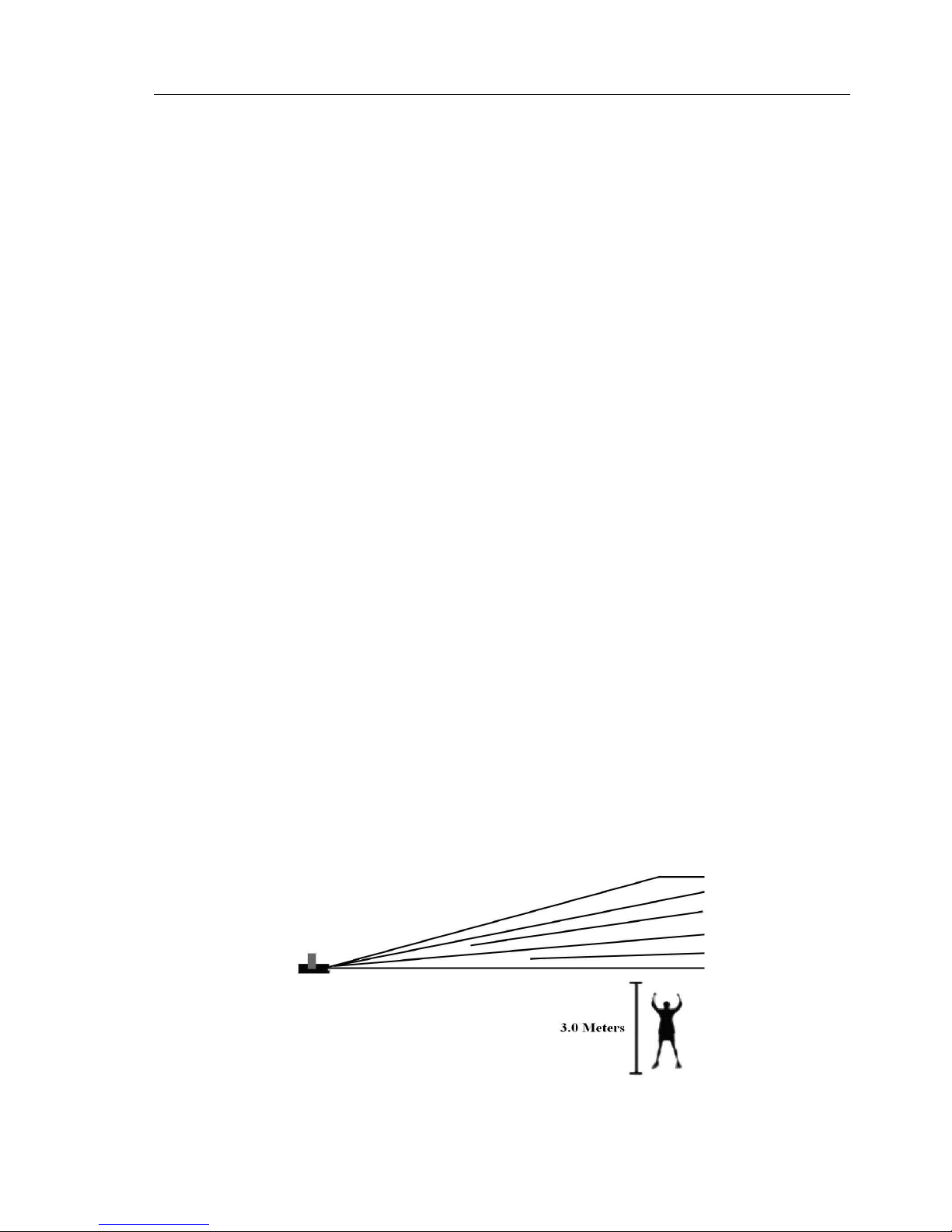

This device should be directed above the heads of people and do not direct it toward the line of sight of people
Refer to the diagram below
Use a safety chain when mounting this device overhead.

4
Rear Panel
1 DMX input 3PIN Male XLR port, using for DMX
2 DMX output 3PIN Female XLR port，using for DMX
3 Safety Loop Attach the safety cable
4 SIZE The Size of X and Y axis adjustment
5 ILDA OUTPUT Standard ILDA DB25 Output (throught)
6 ILDA INPUT Standard ILDA DB25 Input
7 LCD control Panel Intelligent LCD control panel of the system
8 Mains input With socket and integrated fuse holder
9 Switch Switch on and off the power
10 Cooling fan Cooling and never cover this fan outlet
11 Key Switch To turn the laser effect (laser diode) ON/OFF. Be sure that only authorized operator
hold the key

5
CONTROL BOARD OPERATION
Display Panel Instructions
1.Display Window 2.UP 3.DOWN 4.SDCARD 5.MIC 6.ENTER 7.MENU/EXIT
Function Description of Main Display Screen
1 .Present Play Mode
2. Opening Folder (A:\ shows that it under the SD card root directory)
3. Icons of The folders' types
Folder
Picture file .ida format
Programs List files .ist format
4. Operating Prompts, add the current file to play list (only the ida format is effective)
5. Sign of opening sound-active function, only if you turn to Sound-active mode)
6. Current working speed (Only under SD browse mode with Built-in effect mode is effective)
7. choosing the file or file' s name
8. Total number of files and which file is chosen currently.

6

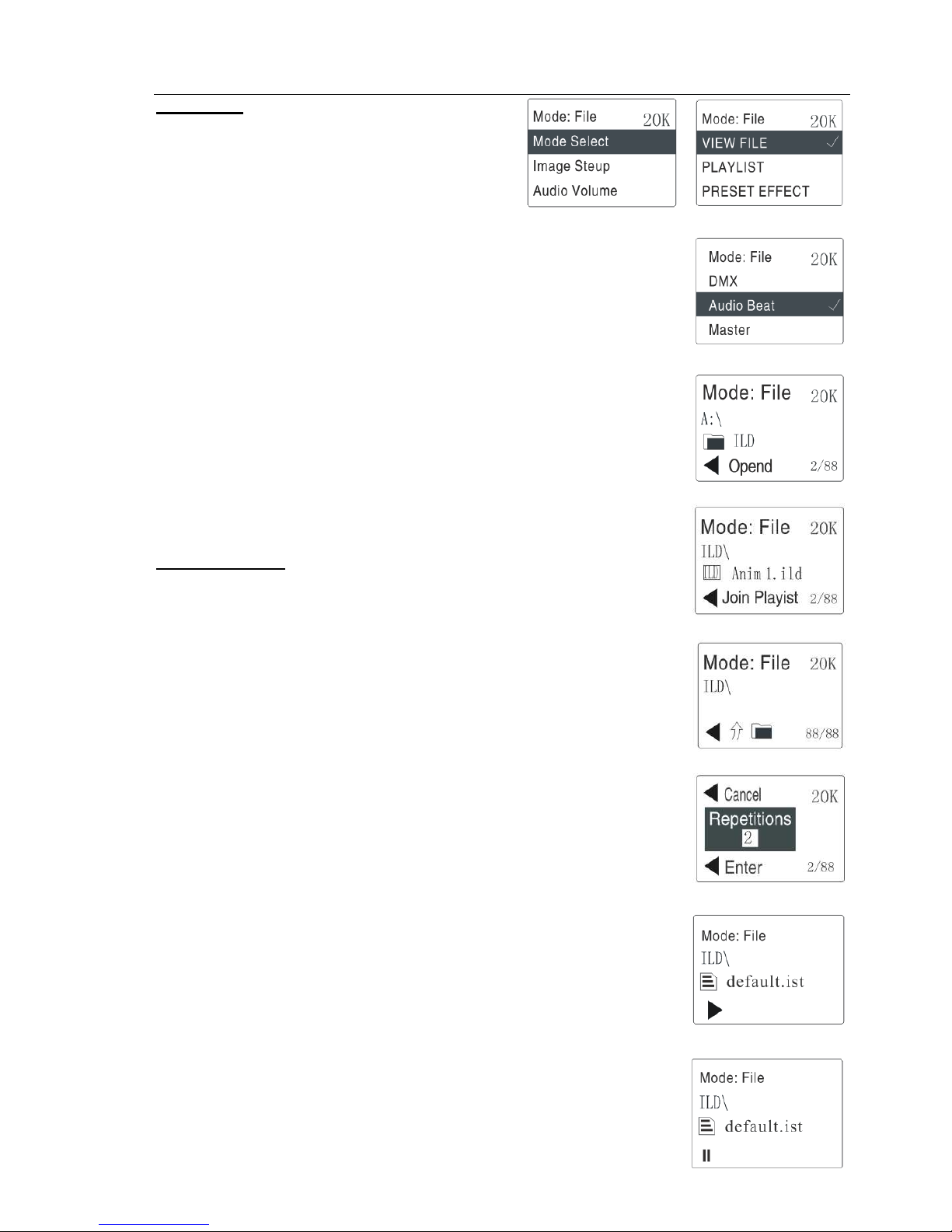

Play Mode
1 .Seven combined play modes of this machine:
-The mode of SD card file browsing
-The mode of SD card play list
-The mode of Built-in effect
-The mode of DMX control
-The mode of SD card file browsing and sound-active
-The mode of SD card play list and sound-active
-The mode of Built-in effect and sound-active
2. The choices of Play Mode
-Press the "menu" under main screen, it will show the menu of Picture 3,then press "up" and "
down" to choose mode Return white says selected
-Press the "enter" it will show the Picture 4, "up" and "down" to choose what you want, and next
press the "enter",“√”presents your current play mode.
3. Sound-active combination mode
-As picture 4, choose "sound control" and press" enter". then it will show sound-active mode with
your last step.(“√”presents that the sound-active mode is effective.)
4. Setting to Host
-As picture 4,choose "Setting to Host" and press "enter"，then the machine is set be
as the Host machine. you can connect other machine which is not host machine with
ILDA interface,(when the machine has been set be as host machine, it cannot
be receive the signal of ILDA interface.)
5. Setting finished, press the "exit" and return the main screen.
File’s operating
1.At the main screen of "SD card browsing mode "and" SD card play list mode", press "up"
and "down" to choose the file.
2.when you choose a file, please press the "enter" then you can open this file, look the
picture 6,after opening the ILD Folder, you will see the picture 7.
3.CDUP, two way
-press "Menu" at the main screen, it will show the menu, then press "down" to choose
"upper directory". then Press "enter".
-At the main screen, press the "down" to last file, look picture8, then press "enter".
4. Edit play list
-After choosing the ida file, then press "enter", it will show" setting the playing time"
as in the picture 9, press "up" will add the time and "down" will reduce
the time" (Playing time is the times of the program has been played)
-After setting the playing time, press the "enter"，it will show "add successful" presents that it
has been added to the profile list" Profile list. 1st" (Note: The machine will create a new profile list
automatic under every directory, and the file name is “default .ist")
5.PIay and Stop
This function only under the play list mode will be effective.After choosing one file of the playing
list, press "enter”,it will open. The machine will play as the edited programs, press "enter'，it
will stop playing. The picture will stopped, Picture 10 shows the "stop" and "play".
Picture 11 shows that it is playing. When press "up" and "down",it will stop and show next program.
Picture3 Picture4

7

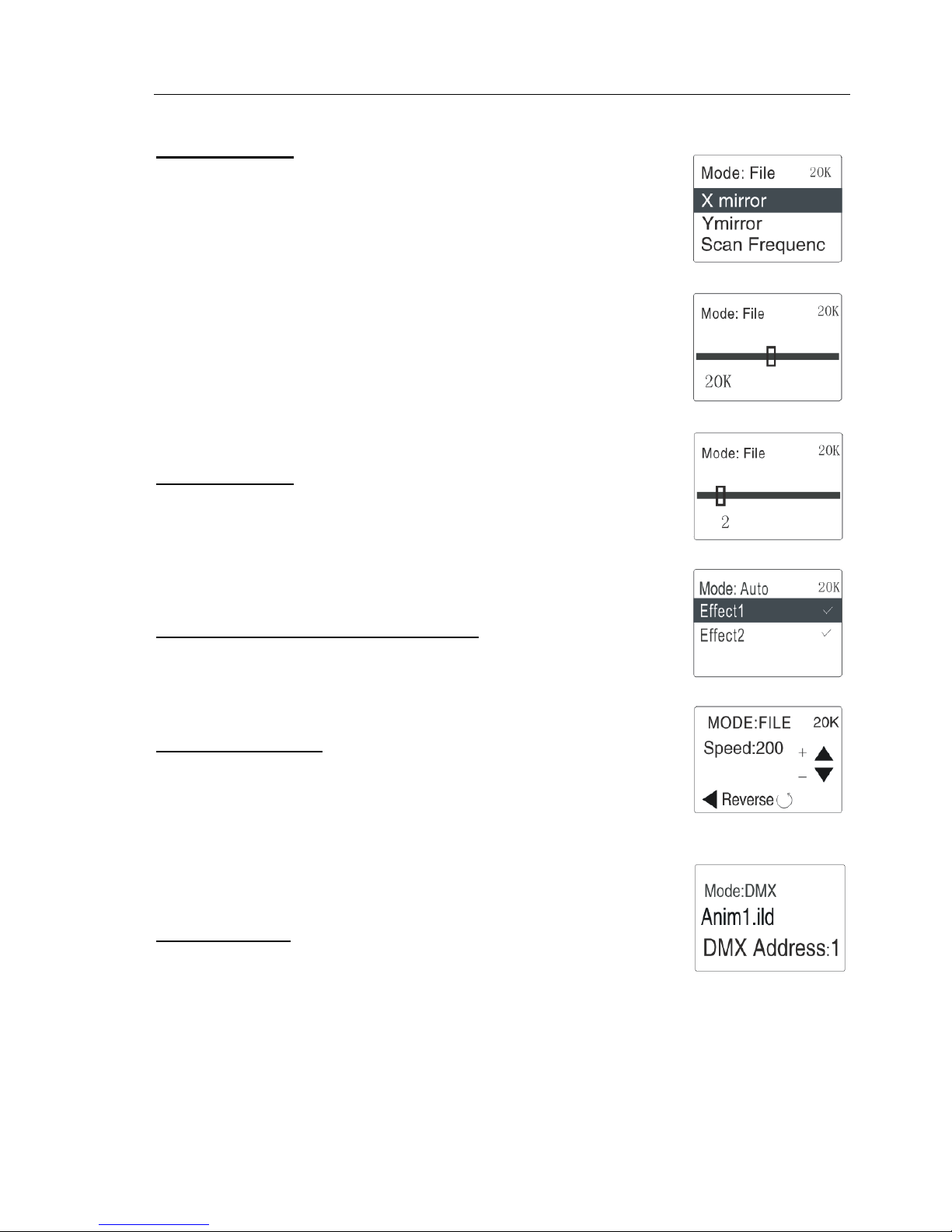

Pictures' Setting
At the main screen press "menu" it will show a item of "Pictures" Setting", then press
"enter" , you will see many orders, do as below (picture 12):
1.Setting Image Reverse, under "Pictures' Setting"，choose "X mirror image" or
"Y mirror image"，and press "enter'，the picture will be reversed in X or Y
direction , then press the "exit"，it will Automatic keep your Setting.
2.Setting the Scanning speed, under "Pictures” ”Setting"，Choose "Scanning speed"，
press "enter"，you will see the screen As picture 13 Press "up" and "down" to change
the Scanning speed. After finished the setting, Press "exit"，it will automatic keep your
setting.(Note: Under The play list Mode, it is no effective.)
3.Setting the Playing speed(The speed of pictures moving), under "Pictures Setting"，
choose "Playing Speed" ,like the picture 14, Press "up" and "down" to change the
playing speed.(The larger of the number, the slower of the speed). After finished the
setting, Press "exit",it will automatic keep your setting.(Note: Under The play list
Mode and Built-in effect mode, it is no
effective.)
Pictures' Setting
This Machine has some effects for user's option (Default is two),operation as below:
1.At the main Screen which Under Auto mode, Press "enter"
2.Press "down"，choose "effect select"
3.Press "enter" ,it will show the menu of effects .(See picture 15)
4.Press "Up" or "Down" to choose the effect and press the "enter" it will show the
effect which has “√”，if several items has”√”,the programs will be played by turns.
Setting the Sensitivity of Sound-Active
At the Main Screen, Press the "menu",and choose "Sensitivity of Sound-Active",
and then "enter", it will show the items of Sensitivity, Press "up" and "down"
to change the Sensitivity, The number 87 is the most sensitivity, and number 0
represents that it cannot accept sounds.
Setting the Rotating
Note: must under hardware Configuration Rotating is the rotating of stepping motor (the
machine has rotating gratings will be effective), at the main screen, press "menu",
and choose "Setting the Rotating", Press the "enter". Ir will show the order of Setting
the rotating, as picture 16:
1.Setting the Rotating speed, press "up", it will add the speed to 255,it stop rotating,
it is 0,turn "down" ,you can see it.
2.Setting the direction of Rotating, Press "enter', it will make the stepping motor wrap
around. After finished, Press ”exit” ,return to main Screen, keep the setting automatically.
DMX instruction
1.Setting the DMX address: at main Screen of DMX mode，press "up" or "Down" to
choose the DMX address. the system will keep your address automatically.
See picture17.

8
DMX CHANNELS DESCRIPTION:
CH1
Operating Mode Selection
0 Blackout
1-40 SD Browse Mode
41 - 80 SD List Mode
81-100 SD Browse Mode + Voice
101-120 SD Browse Mode + Voice
121-160 Built in Effects
161-200 Built in Effect + Voice
201 -240 DMX Programming Mode
241-255 DMX Programming Mode + Voice
CH2 Sound Sensitivity Control 0-255
CH3/14
Pattern Mode Selection 1st/2nd
0 Off Light
1-50
out of bounds through the mode; When the channel
value is less than 5, the pattern size will be reduced.
50-100
out of bounds for the exhumation mode, when
channel values less than 55, the size of the pattern
will be reduced
CH4/15 Pattern Selection 1st / 2nd 0-255
2 for a number of built-in effects mode pattern
3-channel SD card mode, a logarithmic
transformation to a folder,
0: Select the root recorded on day
CH5/16 Pattern Scaling
0-63
static size adjustment
64-255
dynamic size effect, every 32 values for some, each
piece is different from the size of the effect, in the
same paragraph, the greater the value, the faster the
action
CH6/17 Y-axis rotation
0-63
static rotation adjustment
64-255
the dynamic effect of the rotation every 32 values
for some, each for different rotation effects, in the
same paragraph, the greater the value,the faster the
action
CH7 / 18
Horizontal movement of the pattern 0-63 static level shift adjustment

9
64-255
the dynamic horizontal movement effect, every 32
values for some, each for different horizontal
movement effects, within the same segment, the
larger the value, the faster the action
CH8 / 19
The vertical movement of the pattern
0-63
static vertical movement adjustment
64-255
the dynamic vertical movement effect, every 32
values for some, each for different vertical
movement effect, within the same segment, the
larger the value, the faster the action
CH9 / 20
horizontal roll
0-63
static horizontal scaling adjustment
64-255
dynamic horizontal scaling effect, every 32 values
for some, each for different levels of zoom effect,
in the same paragraph, the greater the value, the
faster the action
CH10 / 21
vertical roll
0-63
static vertical scaling adjustment
64-255
dynamic vertical zoom effect, every 32 values for
some, each for different vertical zoom effect, in the
same paragraph, the greater the value, the faster the
action
CH11 / 22
Gradually painting
0-63
static gradually drawn regulation
64-255
dynamic gradually painting effect, the greater the
value, the faster the action
CH12 / 23
Node
0-255
CH13 / 24 Colour Selection
0-63
static color choices, every the eight value of a color
scheme
64-127
five-colour flow
128-255
Automatic colour

10
WARRANTY
Please refer to your local dealer or please contact Event Lighting.
LASER EMISSION DATA
* As measured under IEC measurement conditions for classification.
Laser Classification：Class 3B
Green Laser Medium DPSS：Nd:YVO4+KTP,532nm
Red Laser Medium LD：GaAIAs 650nm,typical
Blue Laser Medium LD：InGaN 450nm, typical
Beam Diameter：r <5mm at aperture
Divergence(each beam)：<12 mrad
Divergence(total light) ：<90 degrees
Laser Power:300mW 650nm Red CW, 100mW 532nm Green CW, 600mW 450nm Blue CW
Transverse Beam Mode：TEM00
Scanning：ILDA 20 Kpps
SPECIFICTAIONS
Mains Input:AC100~240V, 50/60Hz
Fuse:250V /1.6A Slow Blow (20mm Glass)
Total Power:25W
X/YAxis Beam Angle:±20°
Laser Safety Standard:EN60825-1 2007
Condition Temperature:10~40℃
DMX Connections:3 pins XLR Male/Female
Net Weight:3.25Kg

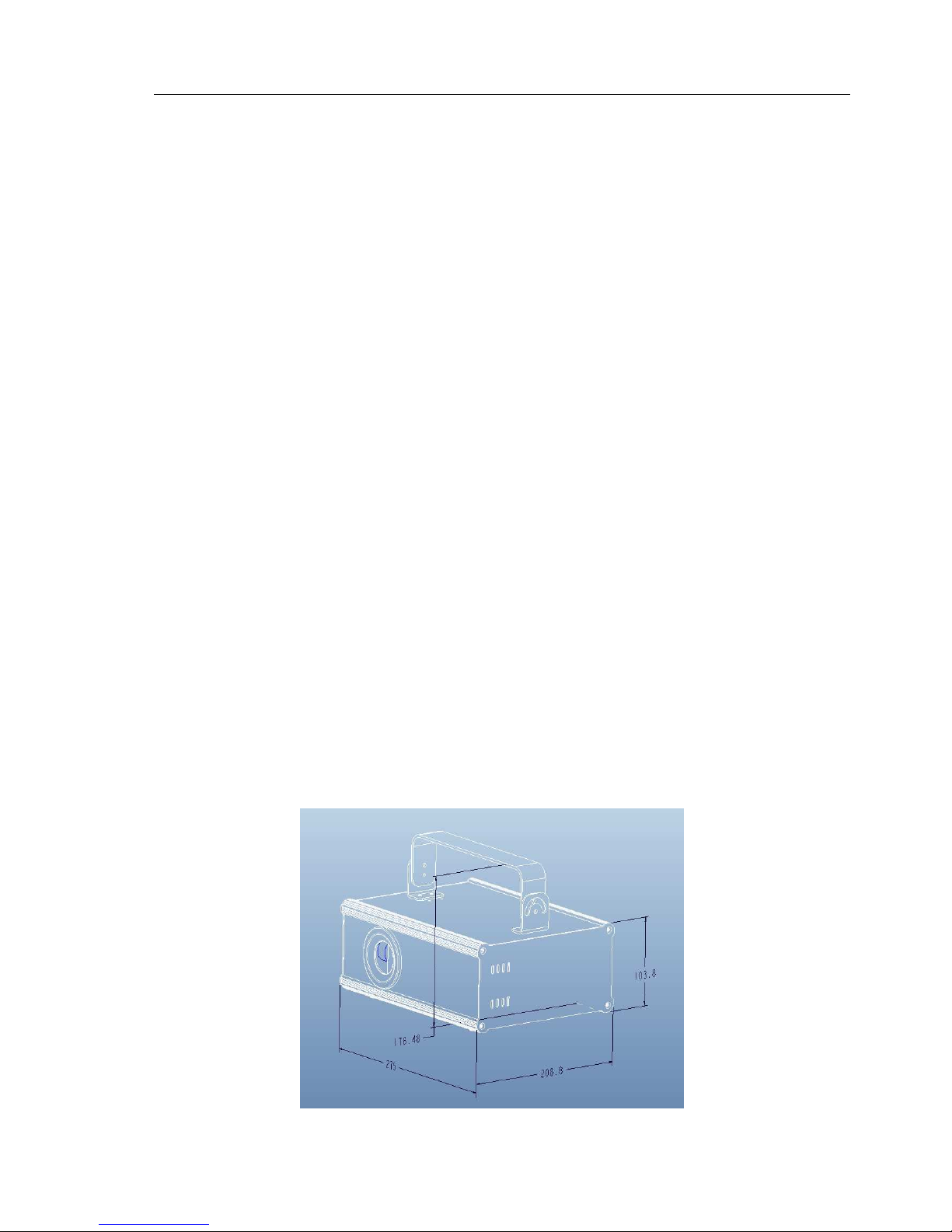

Measurement:
