Starck Sefam S.Box User manual

2 Sefam S.Box
Manufacturer:
Manufacturing and technical service location:
SEFAM
144 AV CHARLES DE GAULLE
92200 NEUILLY SUR SEINE
FRANCE
SEFAM
10 ALLEE PELLETIER DOISY
54600 VILLERS-LES-NANCY
FRANCE
TEL: [phone]
www.Sefam-medical.com
Technical assistance:
TEL.: [phone]
E:mail: technicals[email protected]om

3 Features of the device Sefam S.Box
CONTENTS
Features of the device........................................................................................................................... 7
Heated humidification ..................................................................................................................................7
Intelligent Start...............................................................................................................................................7
Mask Fit & Go .................................................................................................................................................7
Mask unplugged ............................................................................................................................................7
Comfort Control Plus ....................................................................................................................................7
Information and settings....................................................................................................................... 9
Using the SD card........................................................................................................................................23
Cleaning and maintenance ................................................................................................................. 24
Daily................................................................................................................................................................24
Weekly ...........................................................................................................................................................24
Monthly..........................................................................................................................................................25
Disinfecting the materials ................................................................................................................... 26
Disinfecting the surface of the device .....................................................................................................26
Disinfecting the humidifier chamber (if humidifier is installed) ..........................................................26
Things never to use.....................................................................................................................................27
Troubleshooting tips............................................................................................................................ 28
Device Messages.........................................................................................................................................28
Error Messages............................................................................................................................................29
Technical characteristics.................................................................................................................... 30
Performance of the device ........................................................................................................................30
Humidifier performance .............................................................................................................................30
Conditions of use.........................................................................................................................................31
Transport and storing conditions.............................................................................................................31
Electrical characteristics ............................................................................................................................31
Physical characteristics .............................................................................................................................32
Definition of symbols..................................................................................................................................32
CE marking ...................................................................................................................................................33
Regulatory Requirements ..........................................................................................................................33
End of life disposal of the device..............................................................................................................33
Electromagnetic Compatibility..................................................................................................................34
Special characteristics according to the standard NF EN ISO 17510-1:2009 .................................35
Functional diagram of the internal pneumatic circuit...........................................................................37
Maintenance......................................................................................................................................... 38
Disassembly instructions...........................................................................................................................39
Assembly instructions ................................................................................................................................45
Pressure Verification...................................................................................................................................54
Spare parts....................................................................................................................................................55

4 Features of the device Sefam S.Box
Before you start
This user guide is intended for Physicians & Home Care Providers. Under no condition should it be
given to patients.
Safety guidelines
WARNING:
It means that there is a possibility of danger risk of injuries or accident
to patient.
Please take note of the safety measures indicated in the SEFAM S.Box®Patient Manual.
See Patient Manual for instructions on how to install, maintain and store the device.
It is imperative that each patient is provided with the Patient Manual as well as the accessory use
instructions.
Use this device only with the authorized accessories listed in this manual.
To ensure proper maintenance, and to avoid all possible damages, only qualified and trained personnel is
authorized to perform maintenance work or authorized modifications on the device. The User takes full
responsibilities for any dysfunction of the device caused by any maintenance done by any unauthorized
person.
Do not begin treatment if you detect an anomaly with the device.
Never use the device before making sure that the Air inlet filter is installed.
WARNING: It is advisable not to use portable RF communicating devices (including peripherals, such as
antenna cables as well as external antennas) closer than 30 cm (12 inches) from all parts of the SEFAM
S.Box®device. This also includes the specified cables by the manufacturer. Should the opposite happen,
the performance of these devices could be altered.
In case the device is equipped with a heated humidifier:
The side cover must be removed and replaced by the humidifier that includes the heater plate and
humidifier chamber.
Precaution must be taken by the patient while using the humidifier chamber in order to prevent any risk of
water entering the machine, which can cause irreversible damage. For this purpose, the device must be
placed on a horizontal and stable surface, and not in a tilted position.
The humidifier chamber should always be emptied before moving it with the device or transporting it.
CAUTION:
It means that there is a possibility of material damage to the device or
others.
As this device is an electrical medical device, during its installation, please follow and respect all
instructions concerning the electromagnetic compatibility, as indicated in this manual.
Like all electrical medical devices, the device could experience interferences and disturbances from mobile
or wireless radiofrequency communication equipment (Wi-Fi, cell phones or mobile phones…).
Recommended use
The SEFAM S.Box®is designed for the treatment of Obstructive Sleep Apnea–Hypopnoea Syndrome
(OSAHS) in patients over 30 kg, breathing spontaneously. This device is not intended to provide
assistance to vital functions. It can be used at home or in healthcare centers (hospital or clinics). It is
also designed for hassle free travelling and can be used on airplanes.
The S.Box heated humidifier is an accessory designed to warm and add moisture to the air flow
delivered to the patient by the SEFAM S.Box device, for the treatment of Obstructive Sleep Apnea–
Hypopnoea Syndrome (OSAHS). It is intended for use by adult patients in either the homecare or the
hospital environment.

Sefam S.Box Features of the device 5
NOTE: The EMISSION characteristics of this device allows the machine to be used in industrial zones
and in healthcare centres (class A defined in the CISPR 11). When it is used in a residential area
(class B defined in the CISPR 11 is normally required), this device may not provide enough protection
for communication services with radio frequencies. Users may have to take certain measures, such
as the repositioning or the reorientation of the device in order to correct for this.
Contra-indications
Studies have shown that using positive pressure can be contraindicated in certain patients with one
of these pre-existing medical conditions:
Severe bullous emphysema
Pneumothorax
Pneumocephalus, trauma or recent surgery with sequela of cranio-nasopharyngeal fistula.
Decompensated cardiac insufficiency or hypotension, particularly in case of decreased blood
volume or cardiac arrhythmia
Dehydratation
Tracheotomy.
Furthermore, due to the fact that positive pressure affects the cardiac output in certain heart failure
patients, it is recommended that patient blood pressure and heart rate are carefully monitored when
starting treatment at an effective pressure. The risks and benefits of treatment by Continuous
Positive Airway Pressure must be individually evaluated in such subjects. This evaluation must take
into account the fact that the device can be adjusted to deliver pressures up to 20 cm H2O, and under
certain defect conditions, static pressures up to 40 cm H2O are possible. The device must not be
used then, if such pressure level presents a risk to the patient.
Essential performance of the device
The essential performance of the SEFAM S.Box®is to deliver a pressure equivalent to that of the
adjusted pressure ± 0.5 cm H2O.
The device was designed to maintain basic safety and essential performance without maintenance
regarding electromagnetic disturbance during the lifetime of the machine. However, in case of failure
the device has to be repaired by authorized persons who will use original parts only.

6 Features of the device Sefam S.Box
List of authorized accessories
The SEFAM S.Box®product can be used with the following optional accessories:
Description
Reference
SEFAM S.Box
M-116412
S.Box®heated humidifier
M-216430-06
S.Box®humidifier chamber
M-216430-15
Oximeter 3150
3150-0201
Connectivity:
S.Box®modem
M-116500
S.Box®WIFI module
M-116900
Tubings:
S.Box®heated tube
M-216430-07
S.Box®Ø 15 mm standard tube
M-261000-05
S.Box®Ø 22 mm standard tube
M-261000-06
Travel accessories:
S.Box®carrying bag
M-816405-00
SEFAM S.Box®by Starck carrying case
M-816405-01
S.Box®cigarette cable (24 VDC-5 m)
M-216430-08
Machine data analysis:
SEFAM Analyze Software
M-215630-04
S.Box®SD card
M-216430-05
S.Box®USB cable
M-216430-09
Divers:
Inlet air filters (50 pcs)
M-315940-01
S.Box®Power supply
M-416410-00
WARNINGS:
Use only the authorized accessories given in the list above or compliant with the standard
EN ISO 17510-2:2007.
Only connect the USB authorized cable to the USB connector. The SEFAM S.Box®should not be used if
connected via USB to an unauthorized device.
Use only those accessories which can guarantee the patient’s treatment pressure and reduce the re-
breathing of CO2. When a full face mask is necessary, always use a mask which is equipped with an anti-
asphyxia valve to maintain spontaneous breathing.
WARNING: Use of this equipment adjacent to or stacked with other equipment should be avoided because
it could result in improper operation. If such use is necessary, this equipment and the other equipment
should be observed to verify that they are operating normally.
WARNING: Use of accessories, transducers and cables other than those specified or provided by the
manufacturer of this equipment could result in increased electromagnetic emissions or decreased
electromagnetic immunity of this equipment and result in improper operation.

Sefam S.Box Features of the device 7
Features of the device
The SEFAM S.Box®can operate either in constant mode (CPAP), it then delivers a constant pressure
level, or automatic mode (Auto-CPAP) where the pressure changes between a minimum pressure
and a maximum pressure depending on the detected respiratory events. When selected, the AUTO-
CPAP mode will be activated 5 minutes after starting treatment.
Heated humidification
This function allows to control the power supplied to the heater plate depending on the air flow, and
to regulate the heating power to maintain the difference in temperature between the water and the air
constant. The device is delivered with an installed side cover and depending on the selected
configuration, it may be delivered with a heated humidifier which needs installing. In this case, the
side cover must be removed from the device and replaced by the humidifier including the heater plate
and the humidifier chamber (refer to the patient manual for the setup). The presence of the
humidification system is automatically detected by the machine and the heated humidification
function starts and stops simultaneously with the device.
Intelligent Start
This feature permits the patient to start the treatment automatically at the first breathings in the
mask, without using the start / standby button . It can be activated or deactivated by following
the instructions of paragraph ”1. Setting menu” page 19.
Mask Fit & Go
Before starting the treatment and when the device is in standby mode, the patient can check the air
tightness of his/her mask by using the touch button . The level of unintentional leak is displayed
and in case of undesired leak, the patient can adjust his/her mask.
Mask unplugged
When the patient removes his mask, the device automatically switches to low power. The machine
will restore normal power when the mask is reconnected (pressure delivered above 3 cm H2O) or if
the start / standby button or the ramp button is pressed. If the mask is unplugged for more
than 5 minutes, the compliance session is stopped and recorded, and the device will automatically
turn off after 30 minutes.
Note:
If the patient uses a resistive interface (nasal pillows mask), a specific calibration of the pneumatic
configuration may be performed so that the device can detect that the mask is unplugged (Ciruit Select
function).
Comfort Control Plus
The Comfort Control Plus CC+ is intended to increase the treatment pressure while inhaling and to
decrease it while exhaling to make the patient's breathing more comfortable during the treatment. It
can be activated during the ramp or the treatment. In both cases, three levels are available in order to
get an optimal comfort.

8 Features of the device Sefam S.Box
Ramp function

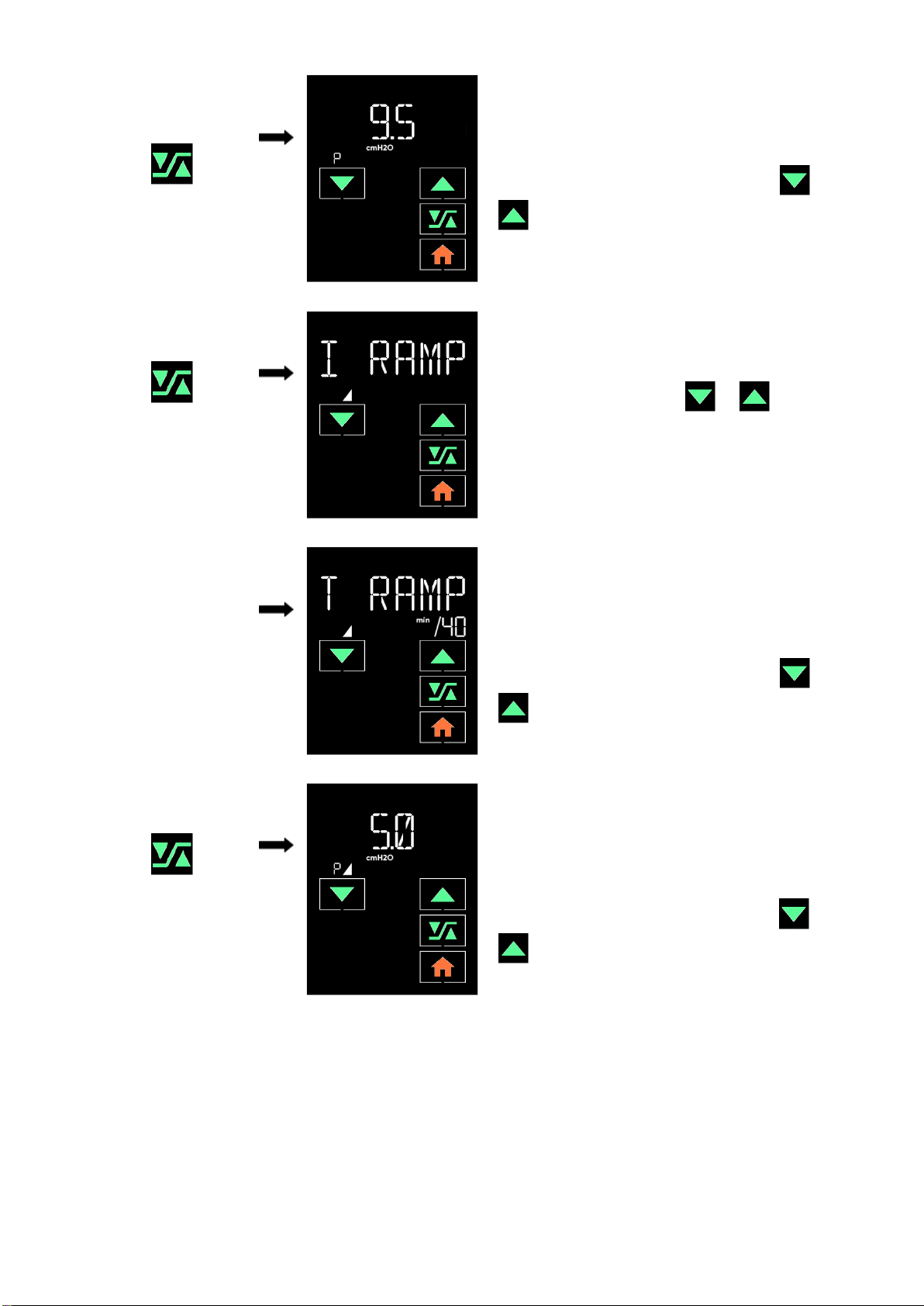

The ramp function makes it possible to gradually increase the pressure to help the patient fall asleep.
If it is activated, it starts automatically when the device is switched on (if the ramp time is different
than zero). Pressing the ramp button deactivates (and by pressing again reactivates) this
function. There are two types of ramp:
T RAMP Time ramp: you can determine the ramp time
I RAMP Intelligent ramp: the ramp time is automatically determined by the device.
Time ramp
In CPAP mode, the treatment begins at a reduced pressure called Ramp pressure (ramp start
pressure), and then the pressure rises up to the prescribed pressure (during the ramp time). If the
T Ramp function is deactivated, the pressure increases immediately to the prescribed pressure.
In AUTO-CPAP mode, this function is used to delay the activation of automatic operation (during the
latency or ramp time). In the case where the Ramp pressure (ramp start pressure) is less than the
minimum pressure, a progressive increase in pressure will be done from the Ramp pressure to the
minimum pressure. If the function is deactivated, the pressure remains at the Ramp pressure within
the first 5 minutes of treatment and then switches to automatic operation.
T Ramp function in CPAP mode
T Ramp function in Auto-CPAP mode
The symbol is displayed in the status bar and you can adjust the Ramp pressure, the ramp time
or latency time and the maximum ramp time (if the Ramp pressure is below the prescribed pressure).
Intelligent ramp
The I Ramp function permits the beginning of the treatment at an adjustable Ramp pressure (ramp
start pressure), then a faster increase pressure in the CPAP mode or the activation of the automatic
operation in the Auto-CPAP mode as soon as the device starts to detect respiratory events indicating
that the patient has fallen asleep.
The symbol is displayed in the status bar. The I Ramp stops automatically when the maximum
ramp time bas been reached (45 minutes).

Sefam S.Box Information and settings 9
Information and settings
The adjustment of the therapeutic pressure must be determined by the prescribing physician for
each patient individually, with the configuration of the equipment to be used, including the
accessories. The correct installation and positioning of the patient interface are critical to the proper
operation of the device.
WARNING:
Before setting the device, confirm that the product delivers an air flow when it is in operation mode. Otherwise,
stop the machine immediately and contact the technical support.
Settings are accessible directly on the interface of the device, via a Bluetooth connection (tablets/cell
phones apps), via a configured SD card or remotely through S.Box®Wi-Fi module or S.Box®modem.
You can also adjust the device with the SEFAM Analyze software, by connecting the machine to a
computer with a USB cable or a wireless connection.
CAUTION:
The USB connection inhibits automatically any Bluetooth communication.
The most recent compliance data are recorded by sessions in the device memory and on the SD card
up to one year for 8 hours of operation per day. They can also be retrieved by wired or wireless
connection with the PC software, on the SD card or by modem. Using SEFAM Analyze, you can
analyze the compliance data, the use of the device by the patient and the treatment efficiency.
Definitions
Bluetooth, BLE
(Bluetooth Low Energy):
low-power, short-range wireless communications technology for
connecting devices.
Device hour counter:
device operating time.
Usage hour counter:
total time during which the patient has effectively breathed in the mask
(treatment time minus the time when the mask was removed and the
time with no respiration).
Ramp pressure (ramp
start pressure):
level of pressure produced by the device at the beginning of the ramp
function to help the patient fall asleep comfortably. In Auto-CPAP
mode, the pressure is reset to the Ramp pressure or the minimum
pressure (if the Ramp pressure is lower than the minimum pressure)
when no breathing cycle is detected for more than 2 minutes.
Maximum pressure:
maximum pressure that the device can deliver in Auto-CPAP mode.
Minimum pressure:
minimum pressure that the device can deliver in Auto-CPAP mode.
Prescribed pressure:
level of pressure prescribed for the patient.
Humidifier chamber:
chamber containing the water necessary for humidification.
Session:
period during which data is recorded to memory between the time the
device starts operation and the time the device goes into standby.
Heating time:
time needed for the device to reach the operating level required by the
heated humidification feature.
Ramp time:
time taken by the device to reach the prescribed pressure from the
Ramp pressure in CPAP mode or to activate the Auto-CPAP feature
when the time ramp is enabled.
Maximum ramp time:
parameter accessible only by the home care provider which restricts

10 Information and settings Sefam S.Box
the maximum value of the ramp time adjustable by the patient when
the ramp is activated.
3G:
wireless mobile telecommunication technology for connecting
electronic devices.
Wi-Fi:
high-speed wireless transmission technology for connecting electronic
devices to one another.
Settings ranges
The following tables indicate the operating mode of the device, the default value, the minimum and
maximum values that can be set for each parameter, and the available functions.
Operating mode:
Parameter
Display
By default
Operating mode
CPAP
APAP
(Auto-CPAP)
APAP
(Auto-CPAP)
Adjustable parameters:
Parameter
Minimum
value
Maximum
value
Value by
default
Increment
Humidification level (if the
humidifier is installed)
OFF
10
02
01
Heating power of the heated
tube (if installed)
OFF
05
AUTO (with humid.)
01 (without humid.)
01
Mask select: theoretical leak
in the mask at 12.0 cm H2O
20 l/min
(Type:A)
60 l/min
30 l/min
(Type:B)
2 l/min
Ramp time
(if T Ramp is selected)
OFF
Maximum
ramp time
15 min
5 min
Maximum ramp time
(if T Ramp is selected)
OFF
45 min
45 min
5 min
Brightness of the display
01
10
05
01
In CPAP mode:
Set pressure
4 cm H2O
20 cm H2O
8 cm H2O
0.5 cm H2O
Ramp pressure (ramp start
pressure)
4 cm H2O
Prescribed pressure
4 cm H2O
0.5 cm H2O
In Auto-CPAP mode:
Ramp pressure (ramp start
pressure)
4 cm H2O
Maximum
set pressure
4 cm H2O
0.5 cm H2O
Maximum pressure
4 cm H2O or
minimum pressure
20 cm H2O
20 cm H2O
0.5 cm H2O
Minimum pressure
4 cm H2O
20 cm H2O or
maximum pressure
4 cm H2O
0.5 cm H2O
The device is switched on by holding down the start / standby button . If the heated humidifier is
installed, it switches on automatically if the humidification level is set between 01 to 10.

Sefam S.Box Information and settings 11
Note:
With a humidification level set to 10, the maximum filled humidifier chamber allows at least 8 hours of
use. The rate of water evaporation depends on several factors such as environment, leak rate, patient's
breathing pattern, etc.
Available features:
Feature
Activated
feature
Deactivated
feature
By default
Bluetooth
BT: ON
BT: OFF
BT: ON
Comfort Control Plus CC+
CC+: R.1, R.2 or R.3
(during the ramp)
CC+: OFF
CC+: OFF
CC+: 1, 2 or 3
(during the treatment)
Modem connection
3G: ON
3G: OFF
3G: ON
PolyLink connection
BLE: ON
BLE: OFF
BLE: ON
Wi-Fi connection
WIFI: ON
WIFI: OFF
WIFI: ON
Intelligent Start
IS: ON
IS: OFF
IS: ON
Ramp
T RAMP
(Time ramp)
OFF
I RAMP
I RAMP
(Intelligent ramp)
Locking access to a group of
three settings by the patient
(Ramp pressure, CC +,
Intelligent Start)
LOCK
(locked access)
UNLOCK
(unlocked access)
UNLOCK
(unlocked access)
Note:
The connection to the PolyLink system, the S.Box®modem or the Wi-Fi module will operate only when
the corresponding accessory is installed in the device.
Circuit Select (pneumatic calibration):
Used patient circuit
Length: 1,80 m
Diameter: 15 mm
(Heated tube included)
Length: 1,80 m
Diameter: 22 mm
Other
By default
Display
15
22
CS
15
Note:
As the device is equipped with a differential pressure sensor, the pressure level is automatically
compensated for altitude.
User interface description
The two mechanical buttons on the top of the device are used to manage its operation:
Start / standby button : to switch the device on or off.

12 Information and settings Sefam S.Box
Ramp button : to disable or enable the ramp feature when the device is in use. If it is pressed
simultaneously with the touch key , it also allows you to access your specific settings menu.
The touch screen areas located on the front side permit to access the information and the settings
menus of the device, and eventually, change the value of certain parameters.
The parameters are accessible by various touch keys:
the settings concerning the treatment of the patient,
the recorded compliance data,
the general settings of the device like the brightness and the time.
The display can also notify possible problems concerning the device or its accessories.
General organization of display

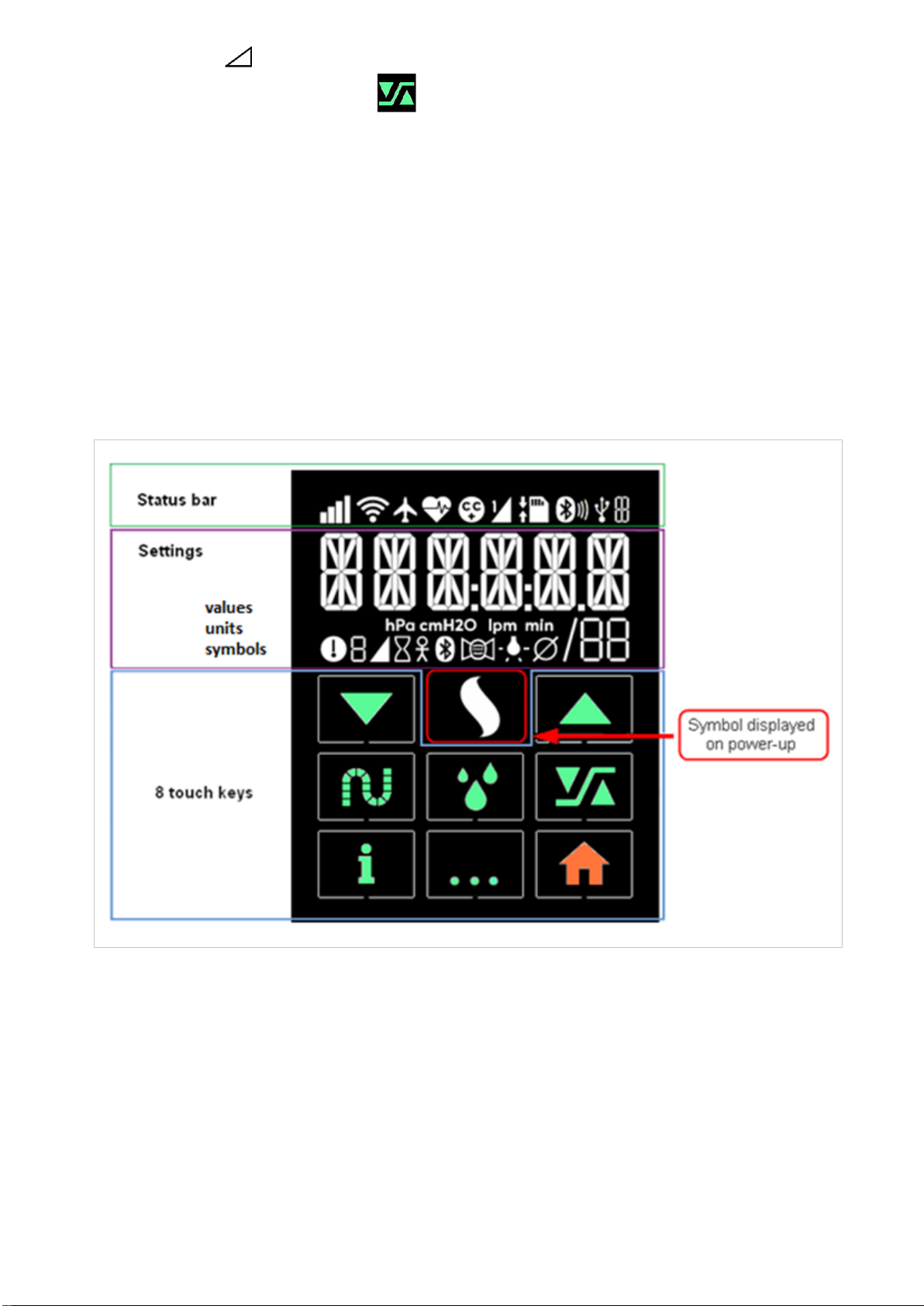

From top to bottom, the display is structured in three zones:
a status bar
a settings zone
an area with 8 touch keys and the ‘S’ symbol displayed when the device is switched on.
Notes:
The backlight of the display is activated when you approach your hand (Wave & Go function) or by
tapping a touch key or one of the two operating buttons located at the top of the device.
The displays used in this manual are given as examples.

Sefam S.Box Information and settings 13
Description of symbols
Symbol
Meaning
Symbol
Meaning
Status bar
GSM mobile phone network
status. Flashes quickly during the
transmission.
Wi-Fi Communication activated.
Flashes quickly during the
transmission.
Airplane mode
Oximeter connected
Comfort Control Plus C.C.+
function activated
Time ramp T RAMP activated
Intelligent ramp I RAMP activated
SD card inserted
Flashes slowly when data
storing is in progress.
Flashes slowly when settings
update is in progress.
Bluetooth connection activated
Bluetooth transmission in
progress
USB connection activated
Operation mode
C: CPAP
A: APAP (Auto-CPAP)
Settings: values, units and symbols displayed
Numbers or letters
Pressure unit: hecto Pascal or
cm H2O
Flow unit: liter per minute
Time unit: hour and minute
Caution: the device detected an
error or an incident
Setting of the ramp time
Machine hour counter
Usage hour counter
Bluetooth
Mask adjustment
Setting of the brightness of the
display
Diameter of tube
Touch keys
Scrolling-down touch key, allows
to decrease the value of the
displayed parameter
Scrolling-up touch key, allows to
increase the value of the
displayed parameter
Touch key to adjust the S.Box
heated tube with ATC setting
Touch key to adjust the heated
humidifier setting
Touch key to access the settings
Touch key to access information
Multifunctional touch key
Home touch key

14 Information and settings Sefam S.Box
How to set the device
1. Setting menu
The adjustment of the treatment parameters is accessible by the touch keys displayed on the screen.
The access to some of them is restricted to the medical professional (in standby mode only). In this
case, press and maintain the ramp button , then tap the touch key for two seconds when it
is shown on the display. In the settings sequence:
tapping the touch key or permits to decrease or increase the value of the parameter,
make changes, deactivate or activate the displayed function,
tapping the touch key permits to access the next display,
maintain the ramp button pressed, then tapping the touch key permits to return to the
previous display,
The standby screen is restored by tapping or after two minutes without tapping a key.
❶
Press and hold the
ramp button
then tap the touch
key

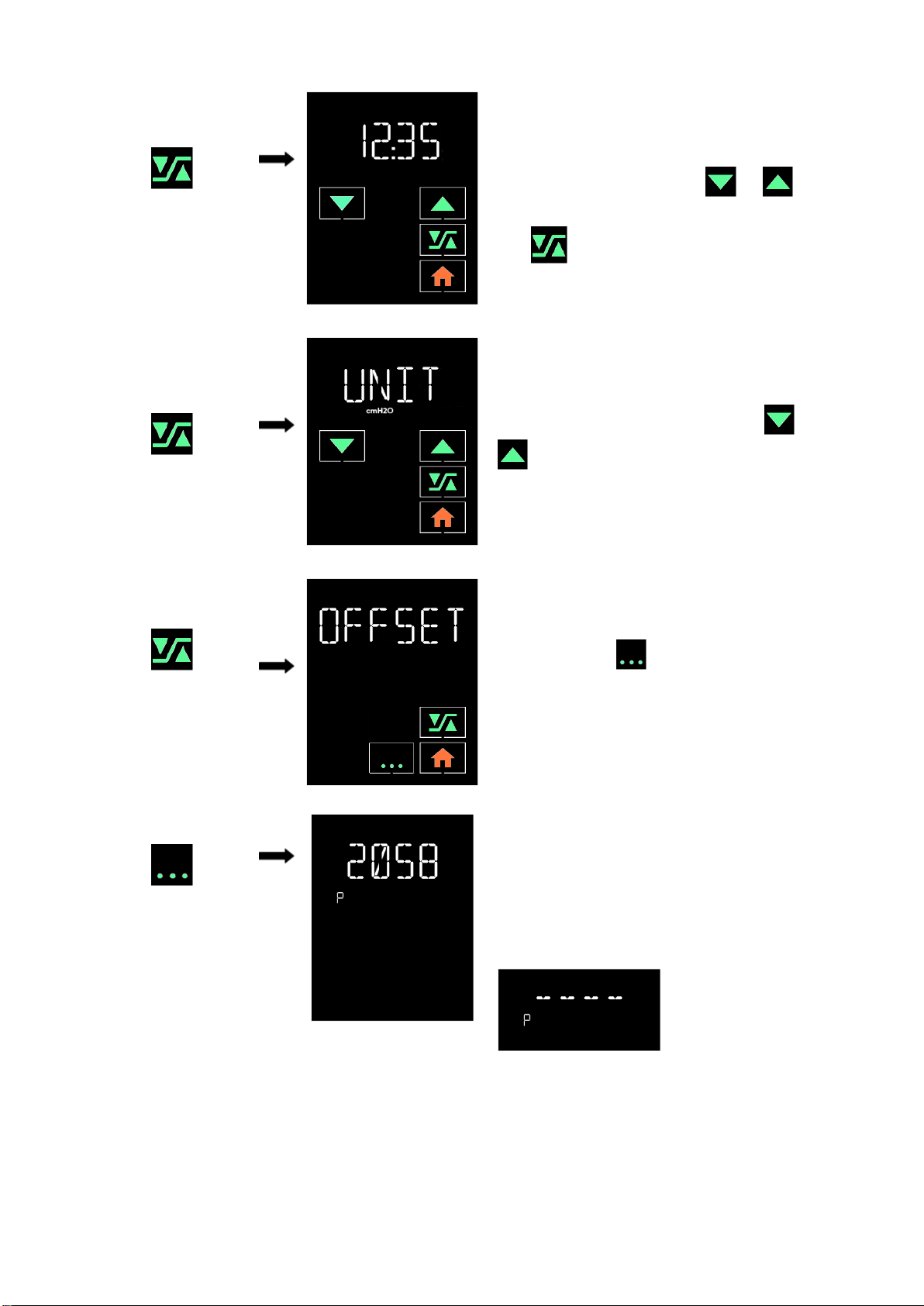

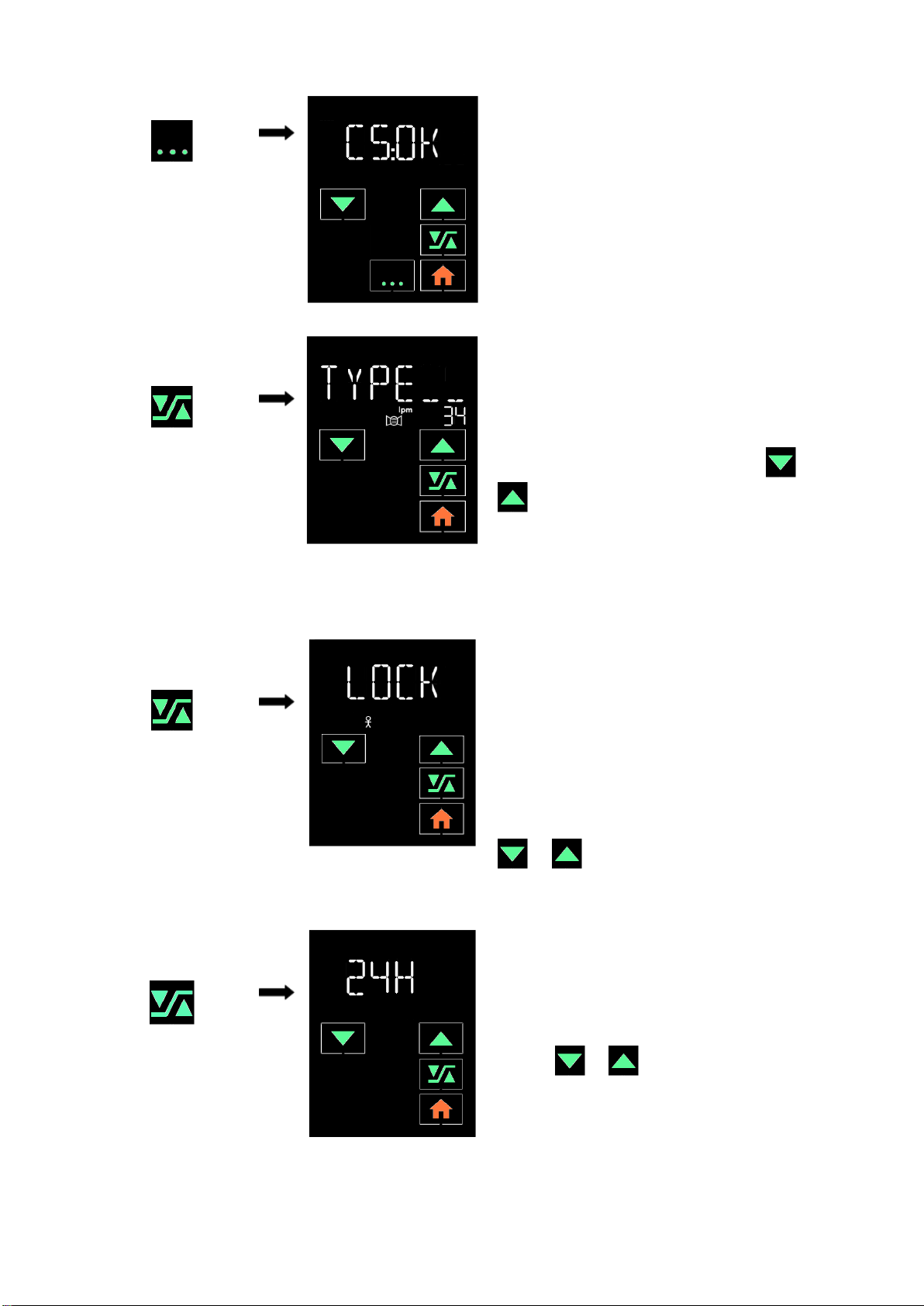

Views of the display:
Mode of operation
You can change the displayed mode by
tapping the key or .
Possible settings: CPAP or APAP (Auto-
CPAP).
for two seconds in
standby mode.
❷
Tap the touch key
Maximum pressure if the APAP (Auto-
CPAP) mode was selected.
You can decrease or increase the
displayed value by tapping repeatedly the
key or .
Possible settings: from the minimum
pressure to 20 cm H2O.
Tap the touch key
Minimum pressure if the APAP (Auto-
CPAP) mode was selected.
You can decrease or increase the
displayed value by tapping repeatedly the
key or .
Possible settings: from 4 cm H2O to the
maximum Pressure.

Sefam S.Box Information and settings 15
or
❷
Tap the touch key
Views of the display:
Pressure level if the CPAP mode was
selected.
You can decrease or increase the displayed
value by tapping repeatedly the key or
.
Possible settings: from 4 cm H2O to
20 cm H2O.
❸
Tap the touch key
Ramp selection
You can change or deactivate the selected
ramp by tapping the key or .
Possible settings: I RAMP, T RAMP and OFF.
or
If you selected T RAMP Time ramp
the displayed value on the right corresponds
to the maximum ramp time.
You can decrease or increase the displayed
value by tapping repeatedly the key or
.
Possible settings: from 5 to 45 minutes.
❹
Tap the touch key
Ramp pressure (ramp start pressure)
In CPAP mode, this setting is displayed only
if the ramp was selected (ramp ≠ OFF).
You can decrease or increase the displayed
value by tapping repeatedly the key or
.
Possible settings:
from 4 cm H2O to the maximum
pressure adjusted in APAP mode (Auto-
CPAP).
from 4 cm H2O to the prescribed
pressure in CPAP mode.

16 Information and settings Sefam S.Box
❺
Tap the touch key
Views of the display:
CC+ (Comfort Control Plus)
You can change or deactivate the selected
function by tapping the key or as
many times as necessary.
Possible settings:
during the ramp (R.1, R.2, R.3)
during the entire treatment (1, 2, 3)
deactivating: OFF.
❻
Tap the touch key
IS (Intelligent Start)
You can activate (ON) or deactivate (OFF)
this function by tapping the key or .
Possible settings: ON and OFF.
❼
Tap the touch key
Circuit Select (pneumatic calibration)
Tapping repeatedly the touch key or
, you can choose the pneumatic
calibration adapted to the pneumatic circuit
(tube and mask) of the patient.
Possible settings:
15 (tube 15 mm in diameter)
22 (tube 22 mm in diameter)
CS (Circuit Select).
or
If you select Circuit Select CS, the touch key
is displayed on the screen. Tap it to run
the specific calibration.

Sefam S.Box Information and settings 17
Tap the touch key
Views of the display:
A progress bar indicates the status of the
calibration until the specific calibration is
effective and confirmed on the display.
Refer to paragraph "5. Circuit Select:
specific calibration of the pneumatic
configuration" page 22.
❽
Tap the touch key
Mask select: theoretical leak in the mask
You can enter the value of the theoretical
leak in the mask at 12 cm H2O (given in
the corresponding instructions for use of
the mask) by tapping the touch key or
as many times as necessary.
Possible settings: from 20 to 60 lpm by
steps of 2 lpm.
Three possible types of masks: A, B and C
(refer to the corresponding list).
❾
Tap the touch key
Locking access to the group of three
following settings by the patient:
Ramp pressure
CC + Comfort Control Plus
IS Intelligent Start.
You can lock (or unlock) access by patient
to these three settings in selecting LOCK
(or UNLOCK) by tapping the touch key
or .
Possible settings: LOCK and UNLOCK.
❿
Tap the touch key
Choosing the format of time display
The time display is set to 24 hours by
default.
You can select another format by tapping
the key or .
Possible Settings: 24H and 12H.

18 Information and settings Sefam S.Box
⓫
Tap the touch key
Views of the display:
Clock
The hour blinks on the display. You can set
it by tapping the touch key or as
many times as necessary.
Tap .
The minutes blink. Adjust the minutes the
same way as the hour.
⓬
Tap the touch key
Pressure unit
You can change the unit of the displayed
pressure by tapping the touch key or
.
Possible settings: cm H2O and hPa.
⓭
Tap the touch key
Offset of the pressure and flow sensor
The touch key visible on the screen
permits to run an automatic calculation of
the offsets of the sensors. It is also
possible to read the offset values of the
pressure and flow sensor.
Tap the touch key
The offset value of the pressure sensor is
displayed approximately two seconds
later.
Unchangeable value: from 1500 to 2500
(default value 2000).
If a offset problem occurs on the pressure
sensor, the value is no longer displayed :

Sefam S.Box Information and settings 19
Views of the display:
The offset of the flow sensor comes after.
Unchangeable value: from 1450 to 5450
(default value 3450).
If a offset problem occurs on the flow
sensor, the value is no longer displayed :
⓮
Tap the touch key
Delete of data
The touch key visible on the screen
permits, if you wish, to restore the
FACTORY configuration of the device.
CAUTION:
Restoring the FACTORY configuration erases all
of the data recorded in the device and on the SD
card, as well as the pairing with the installed
communicating accessory.
Tap the touch key
Tapping the touch screen or , you
can choose:
YES to go back to the factory
configuration
NO if you wish to keep all data and the
pairing of accessories.
⓯
Tap the touch key
Total machine hour counter
This counter calculates the operating time
of the device.

20 Information and settings Sefam S.Box
⓰
Tap the touch key
Views of the displays:
Total usage hour counter
This counter calculates the time during
which the patient has breathed into the
mask.
⓱
Tap the touch key
Software version
This is the version of the embedded
software of the device. It can be read but
not written.
Tap to exit the menu.
2. Settings accessible to the patient
The patient can access a settings menu of the device in standby mode (see patient manual). He/she
can also make the following adjustments using the touch keys displayed:
Tap
Displayed parameter:
Adjusted by
Available displays:
in standby or
operating mode
Heating power of the heated
tube (when S.Box heated
tube with ATC installed)
or
OFF, 01 to 05 and AUTO (if
humidifier installed)
in standby or
operating mode
Humidification level
(when humidifier installed)
or
OFF, 01 to 10
in standby mode
Mask Fit & Go: controls air
tightness of the mask
Readjustment
of the mask
LK: OK, LK: NOK
in operating mode
Display of the clock during
the treatment
Return to the delivered
pressure
Tap to exit the display.
