Starcomms LSP-3000 User manual

CDMA Fixed Wireless Telephone
User Guide
Model: LSP-3000

LGE CDMA Fixed Wireless Telephone
LSP-3000
3
REVISED HISTORY
DATE ISSUE CONTENTS OF CHANGES REMARK
2002/11 ISSUE1 Initial Release

LGE CDMA Fixed Wireless Telephone
LSP-3000
4
Blank Page

LGE CDMA Fixed Wireless Telephone
LSP-3000
5
CONTENTS
Highlights............................................................................................................................... 7
1. Important Information...................................................................................................... 8
1.1 Safety Information.................................................................................................. 8
1.2 Optimal Phone Performance.................................................................................. 8
1.3 Care and Service ...................................................................................................9
2. Introduction...................................................................................................................10
2.1 The View of the Telephone.................................................................................. 10
2.2 LCD Display ......................................................................................................... 12
2.3 Installation............................................................................................................ 13
2.4 Installation Steps.................................................................................................. 15
3. Basic Operation............................................................................................................... 16
3.1 Making a Call.......................................................................................................16
3.2 Redialing Last Outgoing Number........................................................................ 16
3.3 Receiving a Call................................................................................................... 17
3.4 Signal Strength..................................................................................................... 17
3.5 Missed Call Message........................................................................................... 17
4. List of Menu State............................................................................................................ 18
4.1 Volume / Ring...................................................................................................... 19
4.1.1 Ring Volume.............................................................................................. 19
4.1.2 Key Volume ............................................................................................... 19
4.1.3 Ear Volume................................................................................................ 19
4.1.4 Ring Select................................................................................................. 20
4.2 Additional feature................................................................................................. 20
4.2.1 Wake-up Time............................................................................................ 20
4.2.2 Minute Alert................................................................................................ 20
4.2.3 Set Rx call mode........................................................................................ 21
4.2.4 SIO baud rate............................................................................................. 21
4.2.5 Own number............................................................................................... 21
4.3 Dial features ........................................................................................................ 21
4.3.1 Hot Line...................................................................................................... 21
4.3.2 Hot Line Time............................................................................................. 22
4.3.3 Auto Time-out............................................................................................. 22
4.3.4 Speed Dial (enable / disable).....................................................................22
4.3.5 Key-tone Length......................................................................................... 23
4.4 Security Features................................................................................................. 23
4.4.1 Lock Mode Set.............................................................................................. 23
4.4.2 Clear Calls.................................................................................................. 24
4.4.3 Clear Memory............................................................................................. 24
4.4.4 Emergency Call.......................................................................................... 24

LGE CDMA Fixed Wireless Telephone
LSP-3000
6
4.4.5 Restriction Call Service.............................................................................. 25
4.4.5.1 Restrict set.............................................................................................25
4.4.5.2 Permit Memory....................................................................................... 26
4.4.5.3 Deny Memory......................................................................................... 26
4.4.6 New Lock Code.......................................................................................... 26
5. Functions while in a call................................................................................................... 27
5.1 Ear Volume .......................................................................................................... 27
5.2 MIC Volume ......................................................................................................... 27
5.3 Transmitting your own number............................................................................... 27
5.4 Memo...................................................................................................................... 28
5.5 Mute........................................................................................................................28
6. Searching, Editing & Dialing............................................................................................29
6.1 Retrieving Last Call History.................................................................................. 29
6.2 Retrieving Phone Number by Name ....................................................................30
6.3 Retrieving Phone Number by Address................................................................. 30
6.4 Retrieving Phone Number by NUMBER................................................................. 31
6.5 Fast Searching........................................................................................................ 32
7. SMS (Short Message Service) ........................................................................................32
7.1 Checking & Deleting Received Message............................................................. 32
7.1.1 Text Message............................................................................................. 32
7.1.2 Voice Message........................................................................................... 33
7.1.3 Erasing all Received Message................................................................... 34
7.2 MSG Notification tone select................................................................................ 34
7.3 Message Sending................................................................................................ 34
7.3.1 Sending a New Message........................................................................... 34
7.3.2 Sending the sent message or message after editing the sent message.... 35
7.3.3 Erasing a sent message............................................................................. 36
8. Beside Functions.............................................................................................................37
8.1 Redial................................................................................................................... 37
8.2 Finding Last Call History......................................................................................37
8.3 Flash .................................................................................................................... 37
8.4 Safe mode............................................................................................................ 37
9. Storing Phone Number....................................................................................................36
9.1 Storing/Editing Phone Numbers...........................................................................37
9.1.1 Storing Phone Numbers............................................................................. 37
9.1.2 Erasing Stored Phone Numbers................................................................ 39
9.2 Finding Stored Phone Numbers...........................................................................40
10. Speaker phone ..............................................................................................................40
11. Backlight........................................................................................................................ 40
12. General Information....................................................................................................... 41

LGE CDMA Fixed Wireless Telephone
LSP-3000
7
Highlights
Congratulations on your purchase of the LSP-3000 Fixed Wireless Telephone. This
telephone has been designed to operate on the latest digital mobile communications
technology. This technology has greatly enhanced voice clarity and can provide various
advanced features.
The telephone provides:
z3-line LCD Display with status indicator
zA choice of 10 ring sounds
zA menu driven interface with prompts for easy operation
zLast Number Redial
zSpeed Dialing with a 99-number memory
zDial tone
zROH (Receiver Off-Hook) tone
zAdjustable Ring Volume
zInternal Back-up Battery Pack
zAC Power Supply
zDipole Antenna
zDB9 Data Port for service and repair
zBack light
zSpeaker phone

LGE CDMA Fixed Wireless Telephone
LSP-3000
8
1. Important Information
1.1 Safety Information
Warning
To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
Do not use this product near swimming pools or other bodies of water.
IMPORTANT
Before installing or operating this product read this information.
1.2 Optimal Phone Performance
zDo not operate your product when holding the antenna, or when someone is within four
inches (ten centimeters) of the antenna. Holding the antenna affects call quality and may
cause the telephone to operate at a higher power level than needed.
zFor the best call quality, keep the antenna free from obstructions and point the antenna
straight up.
zDo not use the unit with a damaged antenna. Have your antenna replaced by a qualified
technician immediately. Use only a manufacturer-approved antenna. Non-approved
antennas, modifications, or attachments could impair call quality, damage the phone.
zRF energy may affect improperly installed or inadequately shielded personal medical
devices such as pace markers, hospital monitor. Consult the manufacturer of any
personal medical devices to determine if they are adequately shielded from external RF
energy. Turn your terminal OFF in health care facilities when any regulations posted in
the areas instruct you to do so. Hospitals or health care facilities may be using equipment
that could be sensitive to external RF energy.
zIf this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna
- Increase the distance between the radio or television and the telephone.
- Connect the equipment into an outlet on a circuit different from that to which the
terminal is connected.
- Consult you Authorized LGIC Dealer of an experienced radio/TV technician for help.
zUse only the battery, antenna and AC power supply provided by LGIC. Using any other
type will invalidate the warranty.
zOnly authorized personnel should service the phone and its accessories. Faulty
installation or service any be dangerous and may invalidate the warranty.
zDo not use the unit in designated “no cellular phone use” area.
zAvoid exposure to high temperature or humidity.
zAvoid wetting the unit with any liquids. If the unit gets wet, turn the power off immediately
and remove the backup battery and AC power supply. If the unit is inoperable, then return
to the service agent for service.
zAvoid shock or impact.

LGE CDMA Fixed Wireless Telephone
LSP-3000
9
zWe recommend you to charge the backup battery before initial use. Backup battery may
be discharged during delivery.
1.3 Care and Service
zUnplug the telephone from the wall outlet and remove antenna (or disconnect antenna
cable) before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for
cleaning.
zIf the unit fails for any reason, do not attempt to disassemble; contact the telephone
service provider for assistance.
zIf any of the following conditions exist; unplug the unit at the wall plug, remove battery,
and call the service provider.
- The power supply cord is damaged or frayed.
- Liquid has been spilled into the unit.
- The unit has been exposed to rain or water.
- The unit has been dropped or damaged.
- The unit does not work normally by following the operating instructions.
zThis product is designed for being used in 0 - 50℃. When specially used in outdoor, it
may not work in below 0℃or over50℃.
zThis product is designed for being used within humidity 85%. Avoid of area in water and
excessive humidity.
zThis product is designed for being used within commercial power AC 100V-250V and
50/60 Hz. In other voltage area, please install voltage stability device and use it.
zWhen struck by lightning, unplug to protect terminal from lightning damage and fire.
zWhen installing battery, be careful of polarity.
zDon't touch adapter with wet hands.
zDon't disassemble or modify this product deliberately.
zDon't install this product near other electronic appliance.
zDon't install this product in dusty area.
zAvoid areas near sunlight, heating apparatus, vibration
zInstall in indication of green signal.
zWhen used in wall, set up terminal type near it.
zUse only an approved adapter.
Notice

LGE CDMA Fixed Wireless Telephone
LSP-3000
10
2. Introduction
2.1 The View of the Telephone
1. Menu / Softkey 1 :Activate MENU state (also MENU state in the call state)
2. Message: Activate SMS state
3. End: Deactivate a STATE – No store a value (also activate MUTE state )
4. Recall / Softkey 2 : Activate RECALL state / Choose NEXT state .
5. Navigation Left(Í): Volume – (also function as a cursor in the Edit state)
6. Navigation Up (Ï) : Shift to a upper state in the MENU state (also Function as a cursor in the
EDIT state).
7. Delete the last digit/dial number(also Exit without storing in the MENU state).
8. Navigation Right(Î) : Volume＋(also Function as a cursor th the EDIT state)
9. Navigation Down(Ð) : Shift to a lower state in the MENU state(also Function as a cursor in the
EDIT state).
10. Redial: Press to dial the last dialed number or display its own number.
11. Flash: flash function in the call state.
12. MIC
13. Speaker Phone

LGE CDMA Fixed Wireless Telephone
LSP-3000
11
14. Antenna TNC Connector
15. RS-232C: Used for data communication or service personnel.
16. AC Power supply connector
17. Battery Switch: when use with battery, turn on the battery switch.
18. Handset Connector

LGE CDMA Fixed Wireless Telephone
LSP-3000
12
2.2 LCD Display
The LCD shows icons on the top of the LCD screen.
Different indicator appears based on the phone's operating mode.
1) RSSI indicator : Indicates the signal strength in the service area.
2) No service : The phone is not receiving system signal.
3) In use : Displayed when call is in progress or the phone is in off-hook and dial tone
heard.
:Noservice :Inuse
4) Text message : Displayed when a text message is received.
5) Voice message : Displayed when a voice message is received.
6) Alarm : Displayed when wake up alarm time was setting.
7) Caller ID : Displayed when caller ID is received.
8) OUT : Going out.
9) Battery charge level : Indicates charged battery level.

LGE CDMA Fixed Wireless Telephone
LSP-3000
13
2.3 Installation
You should follow each step carefully as shown below in order to guarantee proper
operation of CDMA Fixed Wireless Telephone.
STEP I. Check Components
zFixed Wireless Terminal is supplied with the following standard unit and accessories;
1. LSP-3000 Main Unit with Handset -1EA-
2. Dipole Antenna -1EA-
3. Backup Battery -1EA-
4. User Guide -1EA-
5. AC/DC Power Adapter -1EA-
6. Power Cord(Only SMPS Adapter) -1EA-
zPlease make sure that these components are present before you begin the unit
installation. And then compare the following figures and components. If components
are missing or damage is found, contact the store where you purchased the unit
immediately.
STEP II. Place the Terminal
zPlace the terminal on the stable flat secure surface area (desk, table, etc.). Serious
damage may result if the unit falls. Do not place the unit on, or within 1 meter of
heaters or radiators. This unit is designed for desktop usage. Avoid direct exposure to
the sun lights and damp area.
zRead the SAFETY INFORMATION located at the first part of this document before you
place the terminal
STEP III. Connect Components (See the figures in “Installation Steps”.)
zConnect the antenna to the TNC antenna connector located at the top side of the
terminal. If you placed the terminal on the flat surface, bend the antenna up right.
zConnect curl cord of handset assembly to the RJ-11C port located at the left side of
the terminal.
zOpen the battery case, securely connect the battery cord, place the backup battery
pack and close the case.
zConnect the AC/DC Adapter cable to the DC input port located at the topside of the
terminal.
-. If it is good, beep tone is heard.
-. If it is not good(Booting is fail or beep tone is not heard), you have to connect the
adapter or backup battery, again.
zPlease follow the below to get better voice quality;
1. Keep away from electrical appliances such as TV, computer, radio and so on.
2. Keep terminal in a high and central location with no obstructions, such as metal
walls.
3. Raise the integral antenna of terminal to get maximum strength of receive signal
as shown figure at the next page.

LGE CDMA Fixed Wireless Telephone
LSP-3000
14
STEP IV. Check the LCD Display
zAfter you follow the installation instruction step I to step III, please check the LCD for
normal operation.
zIf you may not see status of service, please repeat the 5th instruction of step III. And
conform Fixed Wireless Telephone to get the proper signal strength from service
operator system.
※
The adapter type(with power cord) may be different by country adaptation.

LGE CDMA Fixed Wireless Telephone
LSP-3000
15

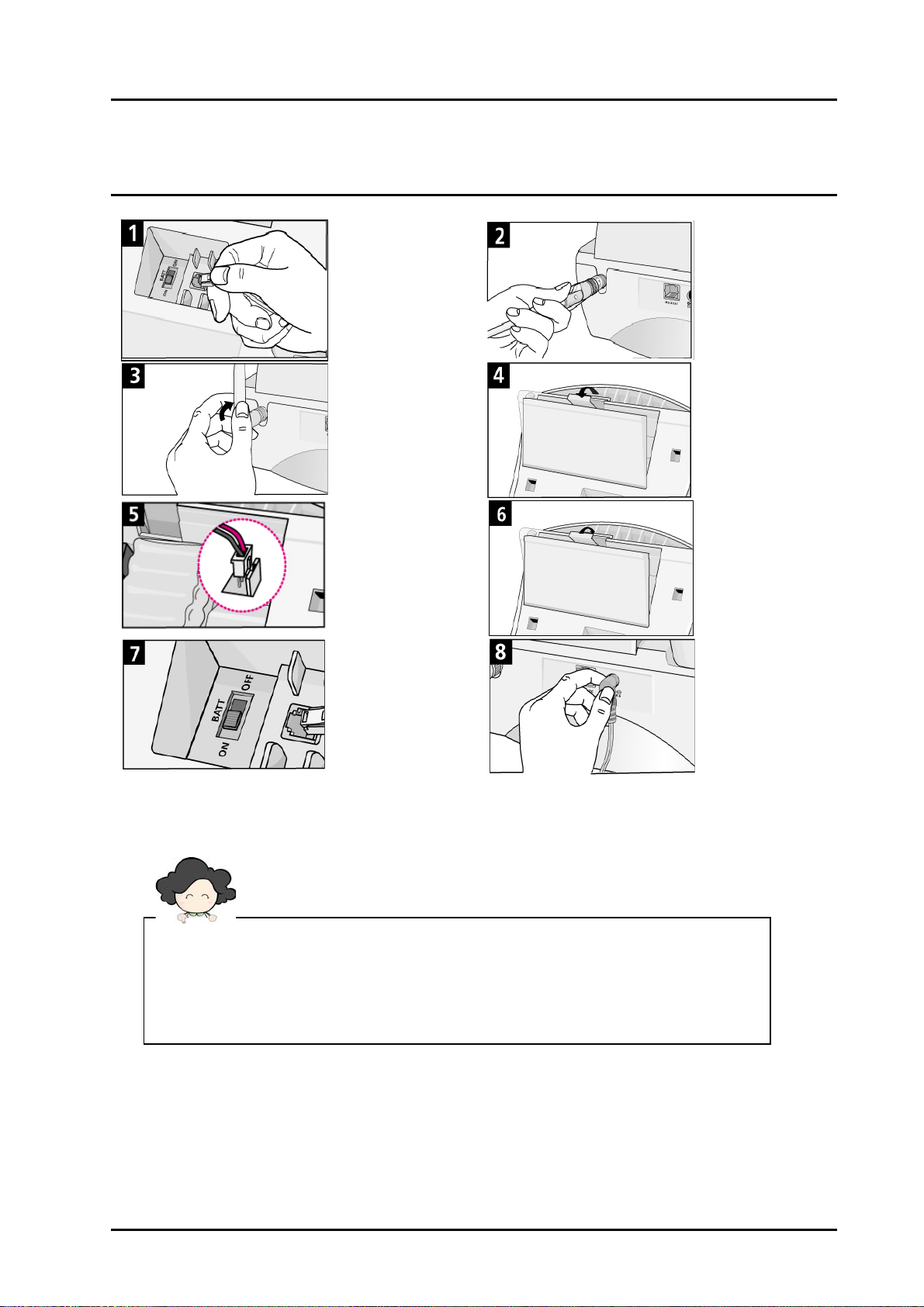

2.4 Installation Steps
Please follow the below procedure to install the unit properly.
Connect Base-
handset to the
handset connector
in the back of the
housing lower.
Connect the
antenna to the
TNC connector
(Turn right).
Bend the antenna
up right. Open the battery cover
at the bottom
of the unit.
Insert back-up
battery in the
bottom of the unit.
(give care to
polarity)
When you use
terminal first, please
Turn “on” the battery
switch.
Replace the
battery cover.
Connect the AC
power supply.
1
2
Notice
Before using the terminal, please check battery switch is on.
After switching on it, use the phone.
When charging the battery, check that battery switch is “on”.
Battery is charged only when battery switch is on.

LGE CDMA Fixed Wireless Telephone
LSP-3000
16
1234567
1234567
Calling...
3. Basic Operation
3.1 Making a Call
1. Pick up the handset or press button.
2. Listen for dial tone.
3. Enter the phone number with area code if needed.
4. Wait for the Auto Time-out.
5. The call is connected and you can start conversation.
6. To disconnect the call, replace the handset or press button.
3.2 Redialing Last Outgoing Number
1. Pick up the handset or press button.
2. Listen for dial tone.
3. Press Redial button. The last number that you called will be re-dialed.
zCorrecting dialing mistakes
1. Press Clear button shortly to erase the most recent digit.
2. Press and hold Clear button for at least one second.
zIf the phone is locked, enter the Lock Code
zIf the call did not go through, press the hook switch and dial again.
zFlashing / Hook Switch
1. While in the middle of a call, pressing the hook switch for less than 1 second will be
treated as a flash. After 1 second, the call will be terminated.
2. Very briefly pressing the hook switch will be ignored.
zBattery icon is displayed only when the terminal is operating by battery without AC power.

LGE CDMA Fixed Wireless Telephone
LSP-3000
17
Incoming Call!
10:23 AM
08 May, Sat
MENU RECALL
3.3 Receiving a Call
1. When bell rings, pick up the handset.
2. Start conversation.
3. To disconnect the call, replace the handset.
3.4 Signal Strength
The quality of calls depends on the signal strength in your
area. The stronger the signal, the better the call quality.
The signal strength icon indicates the current strength as
a number of bars. You can see the antenna and bars
according to the strength of received signal in the upper-
left part.
3.5 Missed Call Message
If a call is received and not answered for user’s absence,
You are informed that you have missed a call. The latest
missed call time and number of missed call is displayed.
Press [OK] to erase “Missed call” message.
10:51 AM
Missed 1 call
OK
[MENU][MUTE]
Time: 0:23

LGE CDMA Fixed Wireless Telephone
LSP-3000
18
4. List of Menu State
Main Menu Sub-Menu Setting Value Default
1. Ring Volume 4 steps
2. Key Volume 4 steps +silent
3. Ear Volume 4 steps
1. Select Volume
4. Ring Select - 10 types
1. Wake-up time Off/Once/Always
2 .Minute alert Enable/Disable
3.Rx call mode Voice / Fax for next / Always
Fax / Modem for next / Always
modem
4.SIO baud rate 19200/38400/57600/115200
/230400
2. Additional
5.Own Number Display own number
1. Hot Line Off/On
2. Hot Line Time 2-9 Sec.
3. Auto time-out 2-9 Sec.
4. Speed Dialing Enable/Disable
3. Dialing features
5. Key tone length normal/Long
1. Set Lock mode Never/on power up/Always
2. Clear calls Enable/Disable
3. Clear memory No/Yes
4. Emergency call Local(3.ea)
5. Restrict call
5.1 restrict set No restriction/restriction
/emergency only
5.2 permit memory Local(10.ea)
5.3 Deny memory Local(10.ea)
6. new code Create new lock code
4. Security

LGE CDMA Fixed Wireless Telephone
LSP-3000
19
MAIN MENU
2:Additional
1:Volume / Ring
RING VOLUME
OK NEXT
EAR VOLUME
NEXTOK
4.1 Volume / Ring
This menu allows you to adjust the various different volumes.
4.1.1 Ring Volume
The received tone when you receive a call can be adjusted.
zFrom the MENU
1. Press [MENU] + 1(Volume/Ring)+ 1(Ring Volume) in on-hook state.
2. Press Volume button or [NEXT] to adjust ring volume.
3. Press [OK].
zBy the Volume button
1. Press Volume button to adjust ring volume in on-hook
state.
4.1.2 Key Volume
The tone when you press a key can be adjusted.
1. Press [MENU] + 1(Volume/Ring) + 2(Key Volume) in
on-hook state.
2. Press Volume button or [NEXT] to adjust key volume.
3. Press [OK] .
4.1.3 Ear Volume
The voice of the other party can be adjusted in on-hook state.
1. Press [MENU] + 1(Volume/Ring) + 3(Ear Volume) in
on-hook state.
2. Press Volume button or [NEXT] to adjust ear piece
volume
3. Press [OK]
9Press Volume button to adjust volume during conversation.
KEY VOLUME
NEXTOK

LGE CDMA Fixed Wireless Telephone
LSP-3000
20
Wake-up Time
_1:23 AM
OKAM/PM
MINUTE ALERT
NEXT
OK
On
4.1.4 Ring Select
You can select the various ring types.
1. Press [MENU] + 1(Volume/Ring) + 4(Ring Type)
in on-hook state.
2. Select a desired ring type with Volume button or
[NEXT].
9There are 10 different ring types.
9Those are Standard, Option 1,Option 2, Option 3, Option 4, Habanera, Deutsch
song, La Primavera, Oh! susanna, Beethoven.
3. Press [OK] to save and exit.
4.2 Additional feature
4.2.1 Wake-up Time
This function allows you to adjust Wake-up Time.
1.Press [MENU] + 2(ADDITIONAL) + 1(Wake-up Time)
In on – hook State.
2.Select Off, Once or Always by [NEXT] and press [OK].
3.Press [EDIT] and set the time.
4.Select A.M. or P.M. by [AM/PM].
5.If you want to modify the wrong time, press Clear button
and set again.
6.Press [OK] to save and exit.
4.2.2 Minute Alert
Alerts you every minute during a call.
1. Press [MENU] + 2(ADDITIONAL) + 2(Minute Alert)
In on – hook State.
2. Select On or Off by [NEXT] or Volume button.
3. Press [OK] to save and exit.
MAIN MENU
1:VOLUME/RING
2
.ADDITIONAL
[OK][NEXT]
RINGER TYPE
Standard
[OK][NEXT]
Alarm Time Always

LGE CDMA Fixed Wireless Telephone
LSP-3000
21
DATA BAUDRATE
NEXTOK
19200
OWN NUMBER
OK
000-000-0000
DIAL FEATURES
2:Hot Line Time
1:Hot Line
Hot Line
NEXT
OK
On
RX CALL MODE
NEXTOK
voice
4.2.3 Set Rx call mode
1.Press[MENU] + 2(ADDITIONAL) + 3(RX Call Mode)
in on – hook State.
2. Select Voice, Fax for next, Always Fax, Modem for
next by Volume or [NEXT] button.
3. Press [OK] to save and exit.
4.2.4 SIO baud rate
1. Press [MENU] + 2(ADDITIONAL) + 4(SIO Baud Rate)
in on – hook State.
2. Select 19200, 38400, 57600, 115200, 230400 by
Volume or [NEXT] button.
3. Press [OK] to save and exit.
4.2.5 Own number
1. Press [MENU] + 2(ADDITIONAL) + 5(Own Number)
in on – hook Sate.
2. Press [OK] to exit
4.3 Dial features
4.3.1 Hot Line
1. Press [MENU] + 3(DIAL FEATURES) + 1(Hot Line)
In on – hook State.
2. Select On or Off by [NEXT] or Volume button and
press [OK] to select.
3. Press [EDIT] to input Hot Line phone number.
4. Enter the Hot Line phone number.
5. Press [OK] to save and exit.
[OK][QUIT]
119
