StarEcho PT0248A2S User manual

ASSEMBLY INSTRUCTIONS
Item No.:PT0248A2S
10 x 10 ft Gazebo
Thank you for your purchase!
We are pleased that you have chosen StarEcho for your outdoor gazebo purchase.
We hope that you enjoy the unmatched quality, comfort, and style of your new patio
item. Every piece is meticulously considered all the way down to the smallest details,
exclusively for you, by our world class design team. We know you have a choice when
it comes to your patio gazebo needs, so from our team to yours, thank you for letting
us be a part of your outdoors.
Made in China

SAFE INFORMATIONS
WARNING:
When assembling and using this product, basic safety precautions should always be
followed to reduce the risk of personal injury and damage to equipment. Please read all
instructions before assembly and usage.
Some parts may contain sharp edges, wear protective gloves if necessary.
This unit is heavy! Do not assemble this item alone. At least two or more people are
recommended for safe assembly.
Keep all children and pets away from assembly area.
Begin assembly not less than 6feet from any obstruction such as fence, garage, house,
overhanging branches, laundry line or electrical wires.
Install on level ground. This gazebo cannot be permanently staked or attached to
concrete floor or platform. The provided stakes are for soft ground use only. If
assembling on ahard surface like adeck or concrete, other forms of attachment must
be used such as expansion bolts that can be purchased locally.
This gazebo is intended for decorative and sunshade purposes only and is not meant to
withstand inclement weather including high winds, rain and snow. Gazebo fabric is
water resistant, not water proof and may leak during exposure to precipitation.
Please lay out all parts before assembling, checking to make sure all parts are there. If
expedited to you.
Do not leave the gazebo where there is arisk of high wind, as possible damage will
occur to the structure. Remove all excess snow from the roof.
Do not climb on top of the gazebo. Falling off the gazebo can result in serious injury.
KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS GAZEBO FABRIC. This Gazebo
is made with fabric that meets CPAI-84specifications for flame resistance. It is not fire
proof. The fabric will burn if left in continuous contact with any flame source. The
application of any foreign substance to the gazebo fabric may render the flame-
resistant properties ineffective.

Parts List
Upper Post
Lower Post
Cross beam
Cross beam
Upper Top
Slant Bar
Lower Top
Slant Bar
Middle Top Bar
Lower Middle
Top bar
Extension
Tube
Ring
Stake
Screw
Mosquito
Netting
Small
Canopy
Big
Canopy
Short
Extension tube
Top
Connector
Two person

ASSEMBLY STEPS

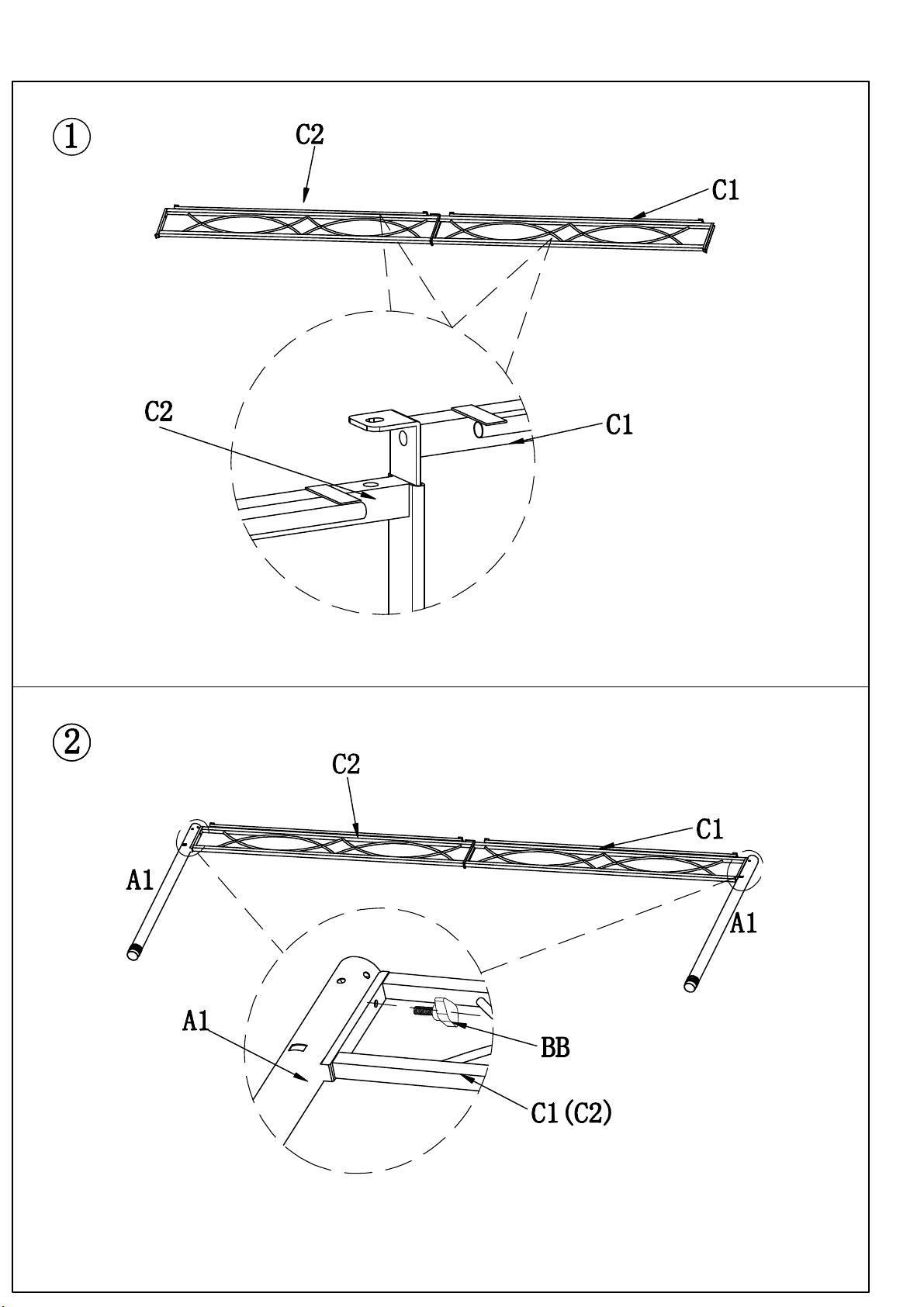

STEP 1: Connect Cross Beam (C1) and Cross beam (C2).
STEP 2: Attach Upper post (A1) to assembed Cross Beam (C1,C2),then fix by
using
.
screw (BB)
(Attention: lay flat cross beam on ground and upward the mosquito netting bar.)
ASSEMBLY OF TOP BEAM (LONGSIDE) x 2
ASSEMBLY OF UPPER POST x 4

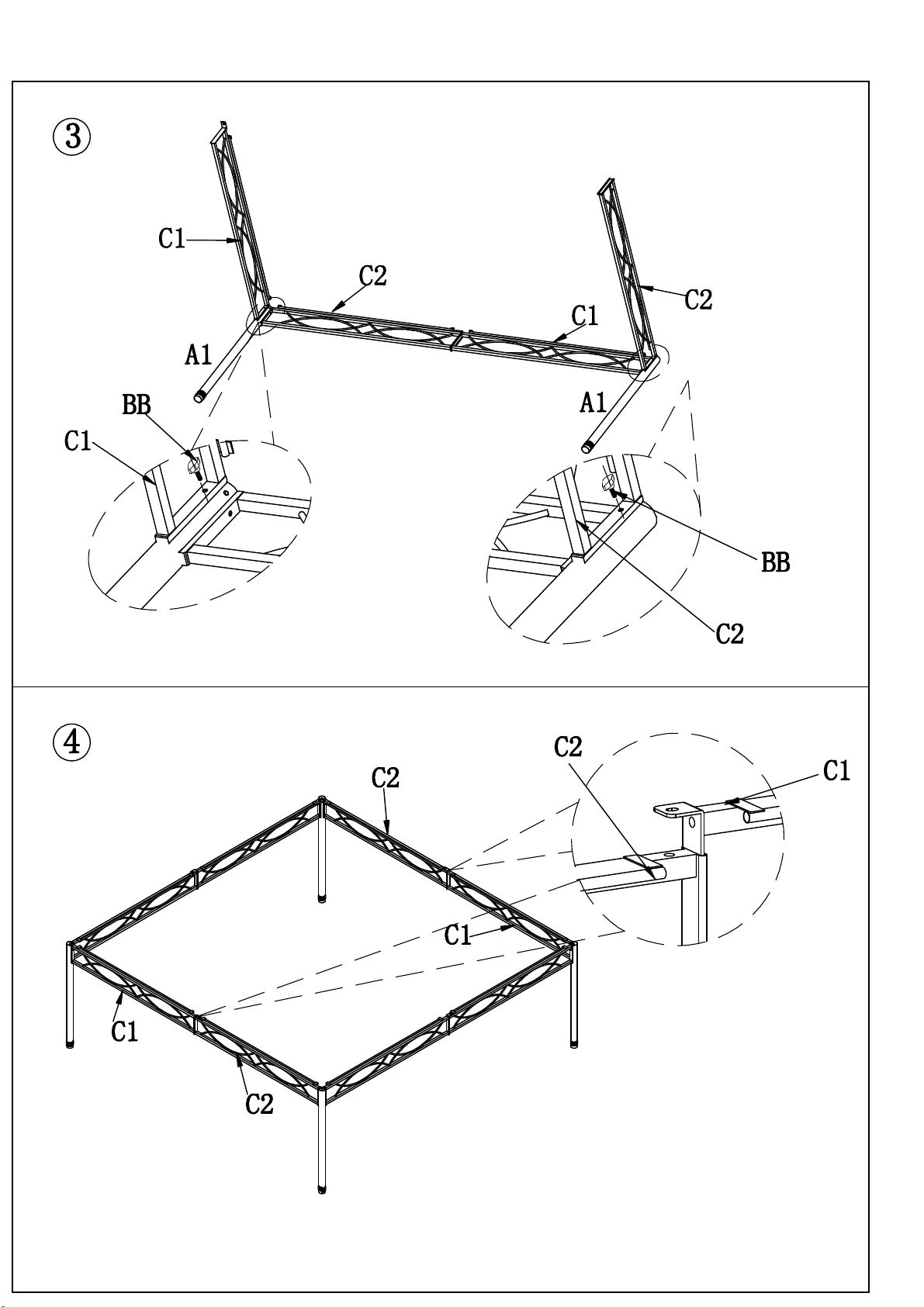

Step 3: Attach Across Beam (C1,C2)to Upper Post (A1), then fix by using Screw (BB) .
Step 4: Connect Side Across Beam (C1) and side across beam (C2).
ASSEMBLY OF ACROSS BEAM SIDE x 2 (Part 2)
ASSEMBLY OF ACROSS BEAM SIDE x 2(Part 1)

Step 5: Connect
upper slant bar (G1)
and
lower slant bar (G2),
Connect upper middle bar (H1)
and lower middle bar (H2)
ASSEMBLY OF ROOF FRAME
ASSEMBLY OF TOP CANOPY SLANT BAR
x 4
Step 6: Insert roof middle Top bar (H1) to
Roof Connector (J);
Connect Lower middle Top Bar (H2) and
Across Beam (C1,C2),fix by using Screw (BB)

ASSEMBLY OF ROOF FRAME
Step 7: Insert Top Slant Bar (G1)
to Roof Connector(J);
insert Lower Slant (G2) to
Upper Post (A1).
ASSEMBLY OF ROOF CANOPY
Step 7: Attach Big Canopy (01) to assembled big roof.

ASSEMBLY OF ROOF FRAME EXTENSION TUBE

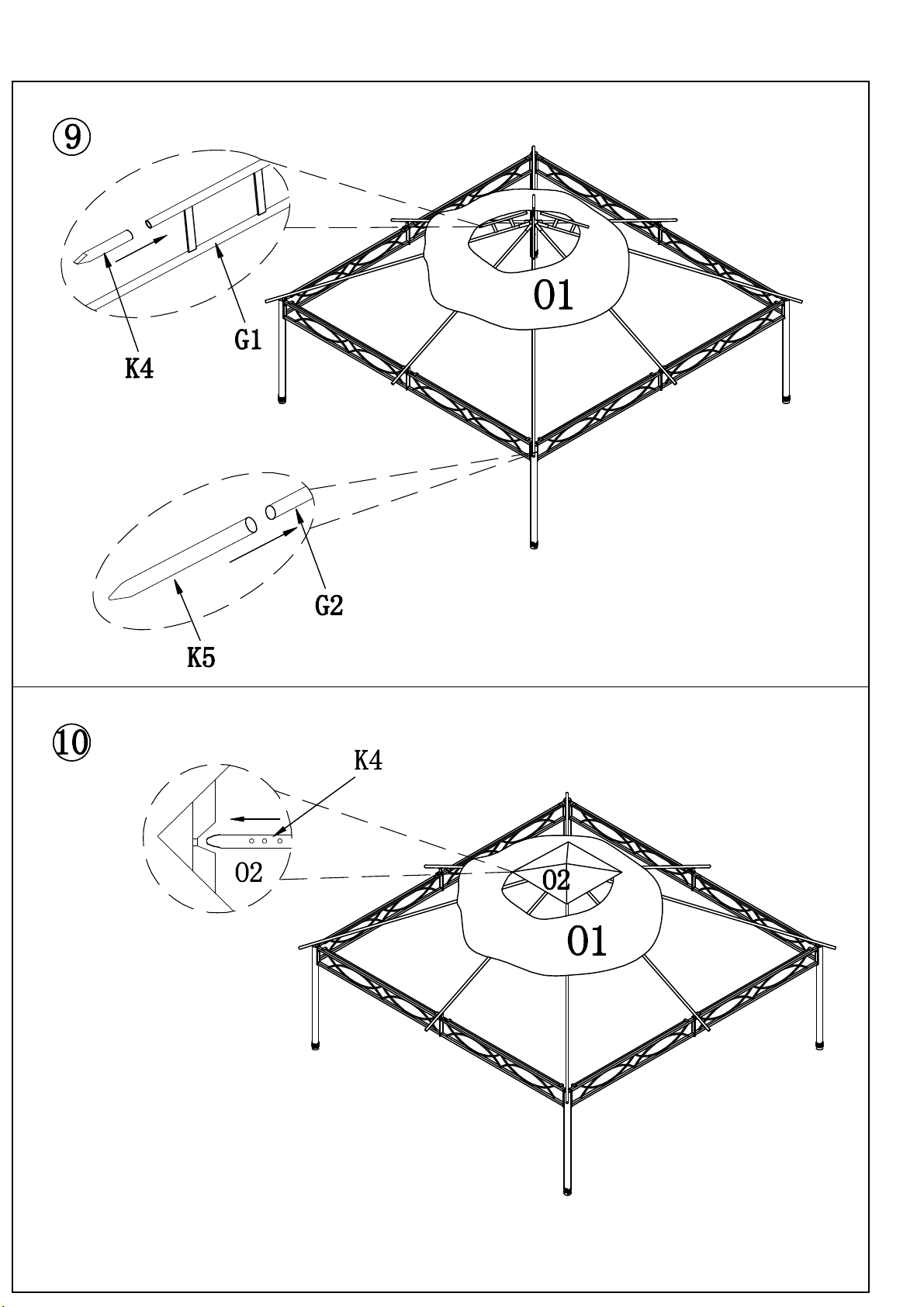

Step 9: Insert Top Slant Bar (G1) to
Extension Tube (K4);
insert Lower Top Slant Bar (G2)
to Short Extension Tube(K5)
ASSEMBLY OF ROOF SMALL CANOPY
Step 10: Put Small Canopy (02) on small roof frame, fix four corner to
Small Roof Extension Tube (K4), then adjust the tube
length make canopy fitted.

ASSEMBLY OF BIG ROOF CANOPY
ASSEMBLY OF POST
Step 11:Insert Top Middle Bar (H2) into
Big Canopy pocket (01);
Insert Slant Bar Extension Tube
(K5) into Big Canopy Four
Corner Pocket, adjust tube length,
make big canopy fitted.
Step 12:Attach Lower Post (A2) to
Upper Post (A1)
(two or more person is needed )

SETTING OF NETTING
FIX GAZEBO ON GROUND

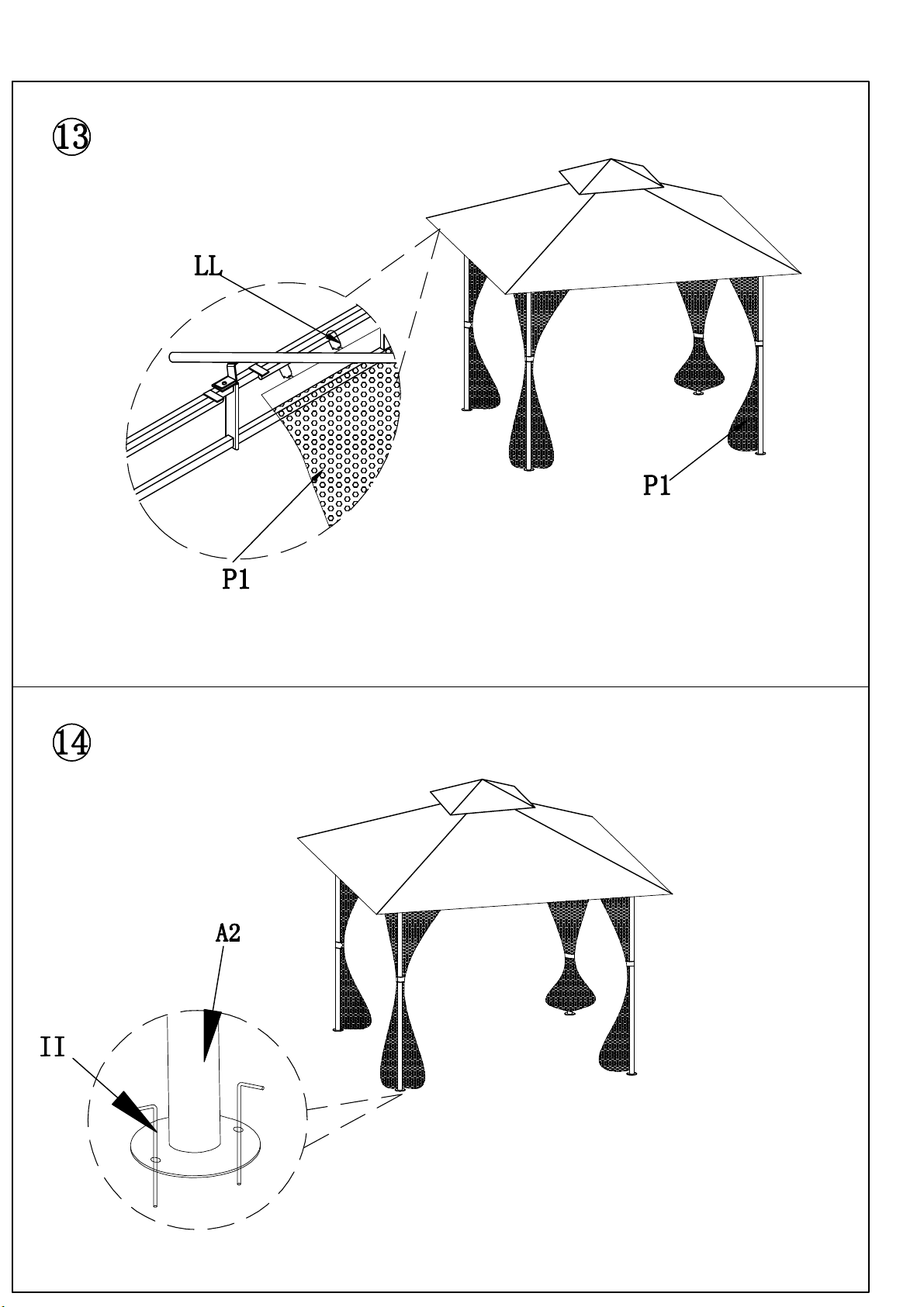

Step 14: Fix assembled gazebo Bottom of Post (A2), on ground by using Stake (II)
Step 13: Hang Netting (P1) on netting tube by using Ring(LL).

CARE AND MAINTENANCE
Our steel components for garden accessories and furniture are treated with rust
inhibiting paint that protects it from rusting. However, due to the nature of steel,
surface oxidation (rusting) will occur once these protective coatings are
scratched. This is not a defect and thus not covered by the warranty.
To minimize this condition, we recommend care when assembling & handling the
product to prevent scratching the paint. Should any scratching or damage
occur, we recommend immediate touch‐up with rust inhibiting paint.
Surface rust can also be easily removed with a very light application of common
cooking oil. If surface oxidation (rusting) occurs and if no measure is taken to prevent
this, the oxidation may start dripping on to deck or patio and caused damaging stains
which may be difficult to remove.
This can be prevented if the above-mentioned measures are taken to keep the product
from oxidizing.
Use damp cloth to wipe off the stains as quickly as possible.
If necessary, wash with a mild solution of soap and water; rinse thoroughly and dry
completely.
Periodically check and ensure that all bolts are well‐tighten during use.
LIMITED MANUFACTURER’S WARRANTY:
The item is warranted to be free from defects in workmanship and materials for a period of
(1) year from the date of purchase, provided the item was factory-sealed at the time of
purchase and is maintained with care and used only for personal, residential purposes.
Should any manufacturing defect arise within this warranty period, StarEcho will replace (at
our option) any defective merchandise or parts upon proof of purchase; however,
transportation and delivery costs, as well as payments to athird party for assembly or
disassembly of the item, remain the responsibility of the purchaser. Apurchaser of an
"open box," previously-returned, or "clearance" item, as well as original purchasers outside
of the warranty period, may obtain replacement parts from StarEcho for products in current
production, at nominal cost.
EXCLUSIONS:Items used for commercial, contract, or other non-residential purposes, or
items damaged due to acts of nature, vandalism, misuse, or improper assembly are not
covered. Corrosion or rusting of hardware is not covered. Proof of purchase (dated register
receipt) is required for warranty claims. Warranty is to the original purchaser and is non-
transferable. Any replacement of warranted items will be in the original style and color, or a
similar style and color ifthe original is unavailable or has been discontinued. As some
states do not allow exclusions or limitations on an implied warranty, the above exclusions
and limitations may not apply. This warranty gives you specific rights, and you may also
have other rights, which vary from state to state.
