StarEcho PT0138C2S User manual

ASSEMBLY INSTRUCTIONASSEMBLY INSTRUCTIONASSEMBLY INSTRUCTION
ITEM NO.: PT0138C2S

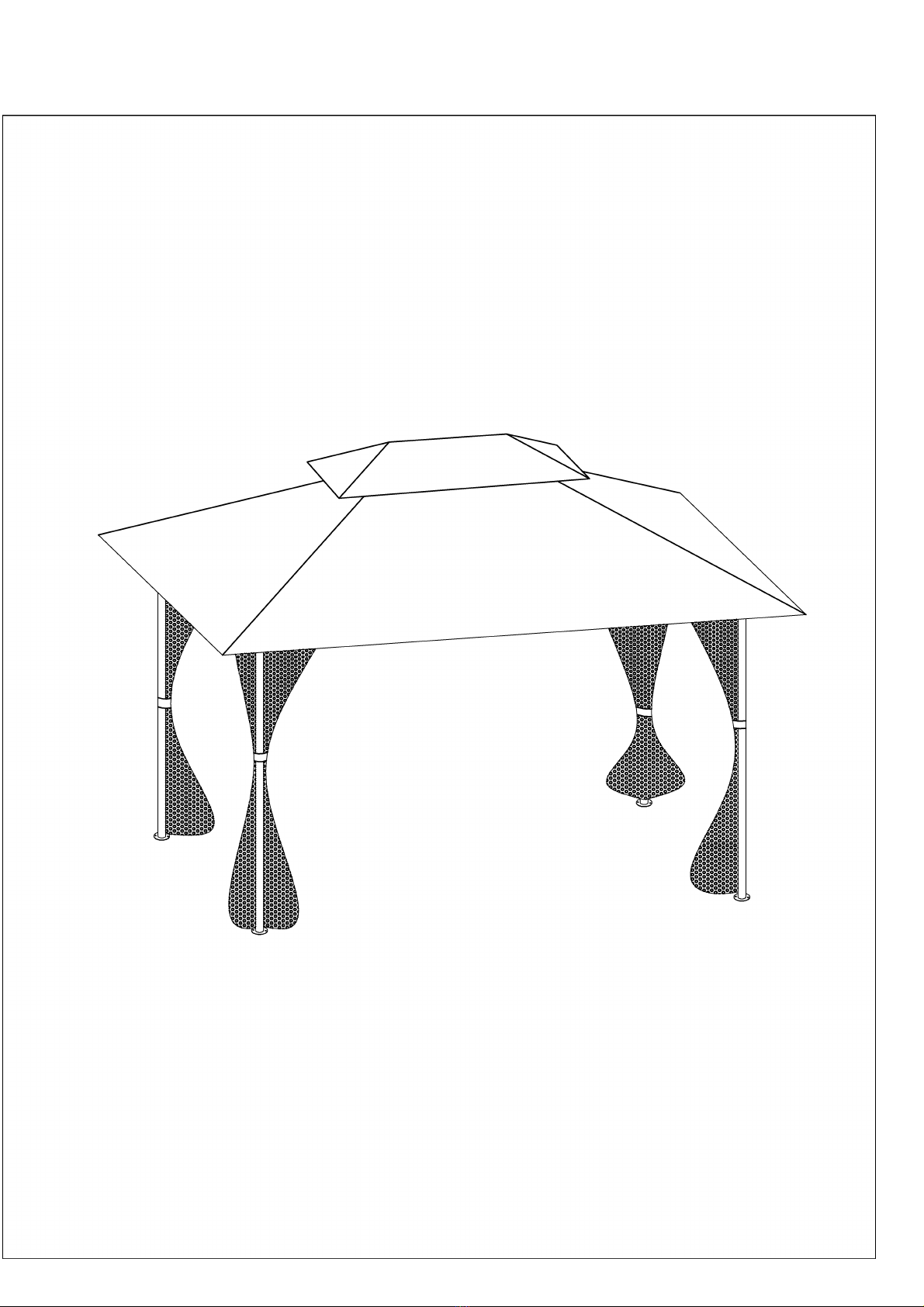

10 ft x 13 ft Gazebo
Thank you for your purchase!
We are pleased that you have chosen StarEcho for your outdoor gazebo purchase.
We hope that you enjoy the unmatched quality, comfort, and style of your new patio
item. Every piece is meticulously considered all the way down to the smallest details,
exclusively for you, by our world class design team. We know you have a choice when
it comes to your patio gazebo needs, so from our team to yours, thank you for letting
us be a part of your outdoors.
Made in China

SAFE INFORMATIONS
WARNING:
When assembling and using this product, basic safety precautions should always be
followed to reduce the risk of personal injury and damage to equipment. Please read all
instructions before assembly and usage.
Some parts may contain sharp edges, wear protective gloves if necessary.
This unit is heavy! Do not assemble this item alone. Atleast two or more people are
recommended for safe assembly.
Keep all children and pets away from assembly area.
Begin assembly not less than 6feet from any obstruction such as fence, garage, house,
overhanging branches, laundry line or electrical wires.
Install on level ground. This gazebo cannot be permanently staked or attached to concrete
floor or platform. The provided stakes are for soft ground use only. If assembling on ahard
surface like adeck or concrete, other forms of attachment must be used such as expansion
bolts that can be purchased locally.
This gazebo is intended for decorative and sunshade purposes only and is not meant to
withstand inclement weather including high winds, rain and snow. Gazebo fabric is water
resistant, not water proof and may leak during exposure to precipitation.
Please lay out all parts before assembling, checking to make sure all parts are there. If any
parts are missing, please email [email protected] and parts will be expedited to
you.
Do not leave the gazebo where there is arisk of high wind, as possible damage will occur
to the structure. Remove all excess snow from the roof.
Do not climb on top of the gazebo. Falling off the gazebo can result in serious injury.
KEEP ALL FLAME AND HEAT SOURCES AWAY FROMTHIS GAZEBO FABRIC. This Gazebo is
made with fabric that meets CPAI-84 specifications for flame resistance. It is not fire proof.
The fabric will burn if left in continuous contact with any flame source. The application of
any foreign substance to the gazebo fabric may render the flame-resistant properties
ineffective.

Parts
Name













  ··) 
归 
z ， ＿ 
， 二
乙i 二
乙
二
-
一刁

 
气
三
竺

飞7
l0门冒30门胃3

 
 奇
.
 一
1血·
 － 
 尸
 / 
 丈
 
翠八戮 
cc 俨©

 @ 
8
 妒©

 u 8
 [ 
 二
Parts list
Parts
No. Image Qty Parts
Name
Parts
No. Image
Qty
Upper
Leg Post
Middle
Rod
Small roof
Connector
Top
Connect Bar
Big Roof
Connector
Big
Canopy
Small
Canopy
Netting
Lower Leg
Post
Short side
Beam
Short side
Beam
Long side
Beam
Middle
Beam
Upper
Slant Bar
Lower
Slant Bar
Middle Top
Bar
Middle
Top Bar
Long
Extension
Tube
Short
Extension
Tube
Side Rod
Bolt
M6x15mm
Bolt
M6x20mm
Bolt
M5x15mm
Stake
Wrench
Ring
Hammer not included 2 person

ASSEMBLY STEPS
ASSEMBLY OF LONG SIDE BEAM x 2

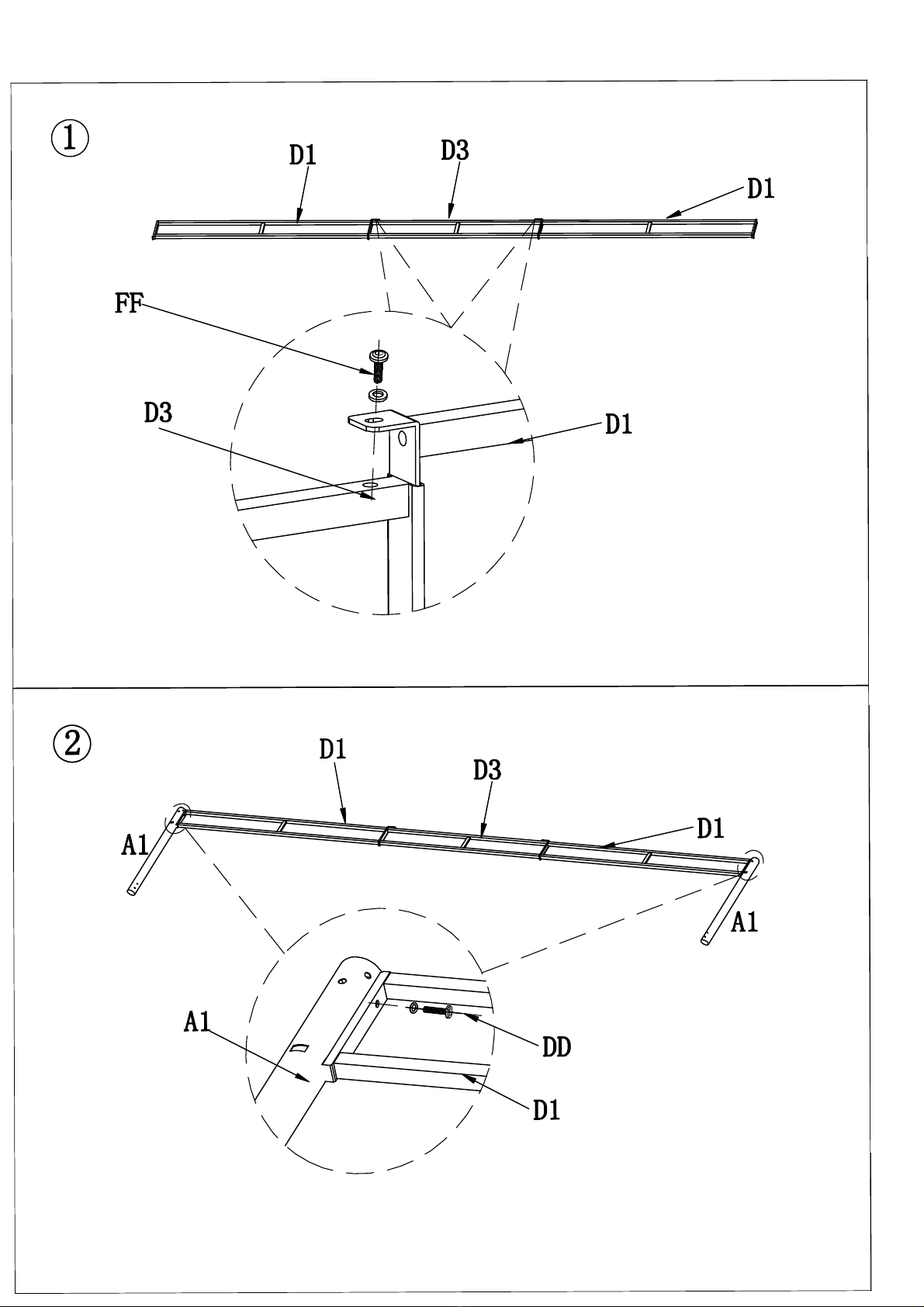

Step 1: Connect Long side Beam (D1) to Middle Long Side beam both end (D3).
fix by using Bolt (FF).
ASSEMBLY OF THE UPPER POST TO LONG SIDE BEAM x 2
Step 2: Connect Upper Post (A1) to assembled Long Side Beam(D1),
fix by using Bolt (DD).

ASSEMBLY OF SHORT SIDE BEAM TO UPPER POST x 2
Step 3: Connect Short Side Beam (C1 )and (C2) to assembled Upper Post (A1),
fix by using Bolt (DD).
ASSEMBLY OF ACROSS BEAM x 2
Step 4: Connect assembled Short Side Beam (C1 )and Short Side Beam(C2).

ASSEMBLY OF NETTING ROD TO LONG SIDE FRAME x 2
Step 5:Insert Long Side Netting Rod (E1)to Middle Rod (E2).then attach assembled
Netting Rod(E1,E2) to assembled Beam (D1),fix by using Bolt (FF).
ASSEMBLY OF SMALL ROOF FRAME
Step 6: Insert Top Connect Bar (T1)into Small Top Cconnector (J), connect other
end of top connect bar (T1) and Big Top Connector (T2),by using Bolt (CC).

ASSEMBLY OF MIDDLE ROOF FRAME x 4
ASSEMBLY OF SHORT SIDE ROOF BAR TO ACROSS BEAM
Step 7: Insert Upper Slant Bar (G2) into Lower Slant Bar (G1);
Insert Middle Top Bar (H2) into Middle Upper Bar(H1).
Step 8: Attach Upper Top Bar(H1) to
Top Connector ( J); attach
Lower Top Bar (H2) to
assembled Short Side Beam
(C1,C2), fix by using Bolt (FF).
(Attention: Assemble this step require 2 person, one of person fix top connector position.)

ASSEMBLY OF LONG SIDE ROOF BAR TO ACROSS BEAM
ASSEMBLY OF TOP FRAME

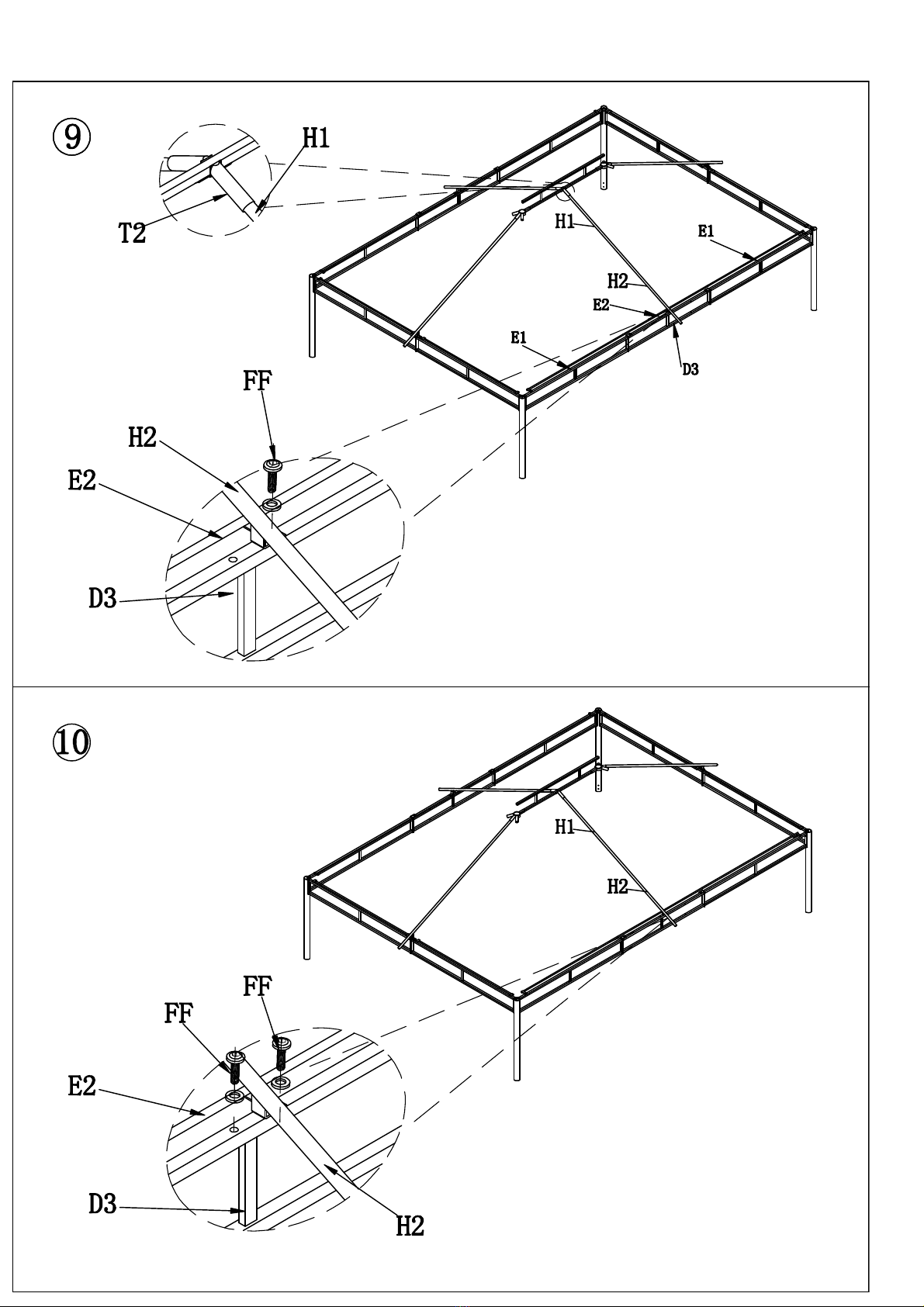

Step 9: Attach Upper Top Bar(H1) to Big
Top Connector ( T2); attach Lower
Top Bar (H2) to assembled Long Side
Beam (D3) and Middle Long Side Netting
Rod(E2) together, by using Bolt (FF).
Step 10: If assembled Middle Netting bar
(E2) incorrect direction, Attach Middle
Netting Rod (E2) to Middle Beam (D3)
by Using one Bolt (FF).

ASSEMBLY OF TOP SLANT BAR
SETTING OF BIG CANOPY ON ROOF
Step 11: Insert Upper Slant Bar (G1) into Small Top Connector (J); connect Lower
Slant bar (G2) and Upper Post (A1).
Step 12: Put Big Canopy (01) on frame.

ASSEMBLY OF ROOF EXTENSION TUBE
SETTING OF SMALL CANOPY ON ROOF FRAME
Step 13: Insert Slant Bar(G1) into Short Extension Tube(K4);
insert Slant bar (G2) into Long Extension Tube(K5).
Step 14: Put Small Canopy (02) on Top frame,fix four corner to Short Extension
Tube (K4), then adjust Tube to suitable length.

SETTING OF BIG CANOPY ON ROOF FRAME
ASSEMBLY OF GAZEBO POST

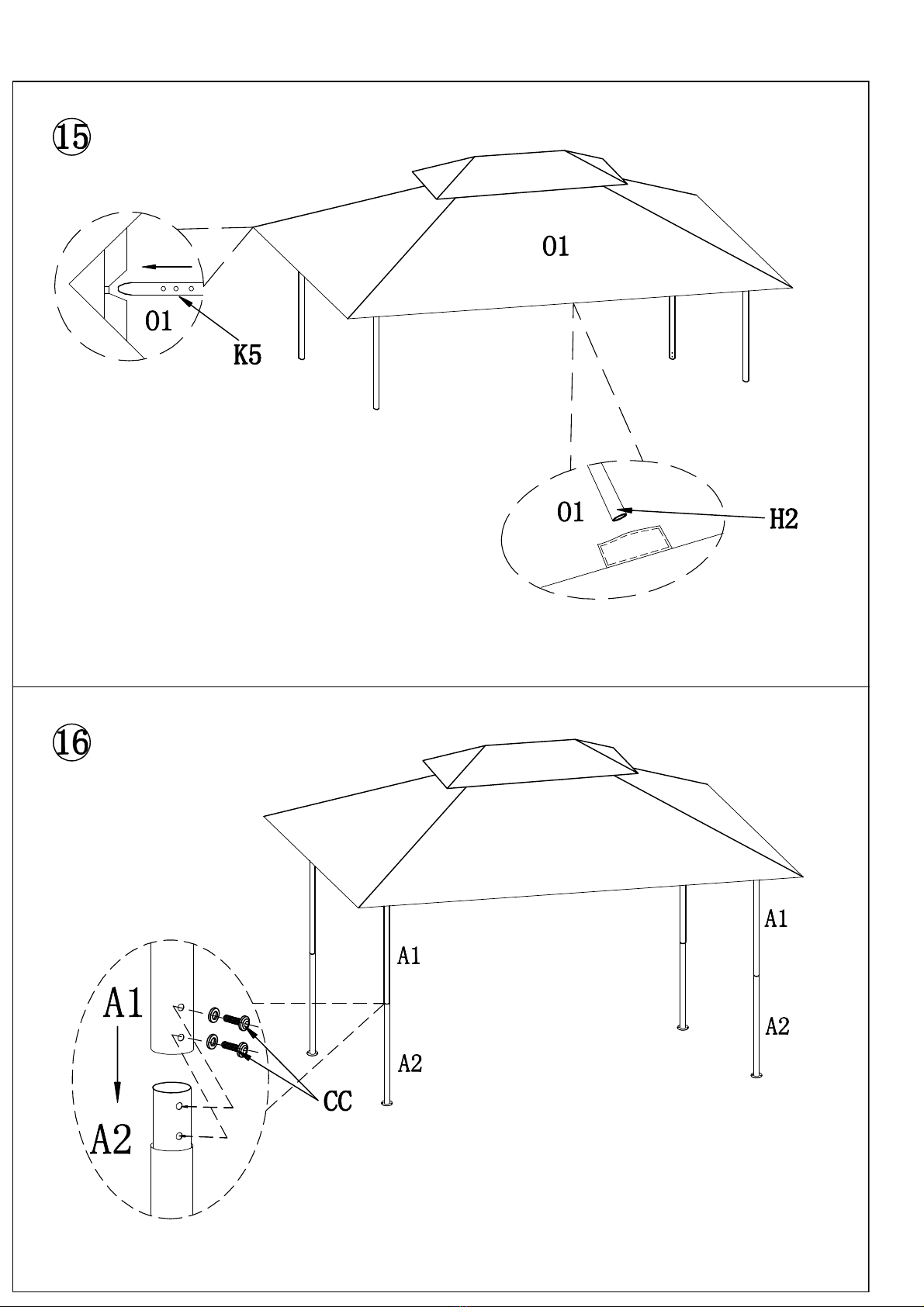

Step 15: Insert Middle Top Bar(H2) into Big Canopy edge pocket(01),then fix Big
Canopy four corner to Long Extension Tube (K5), adjust Tube to suitable length.
Step 16: Connect Lower Post (A2) and Upper Post (A1), fix by using Bolt (CC).

SETTING OF NETTING
ASSEMBLY ASSEMBLED GAZEBO ON GROUND

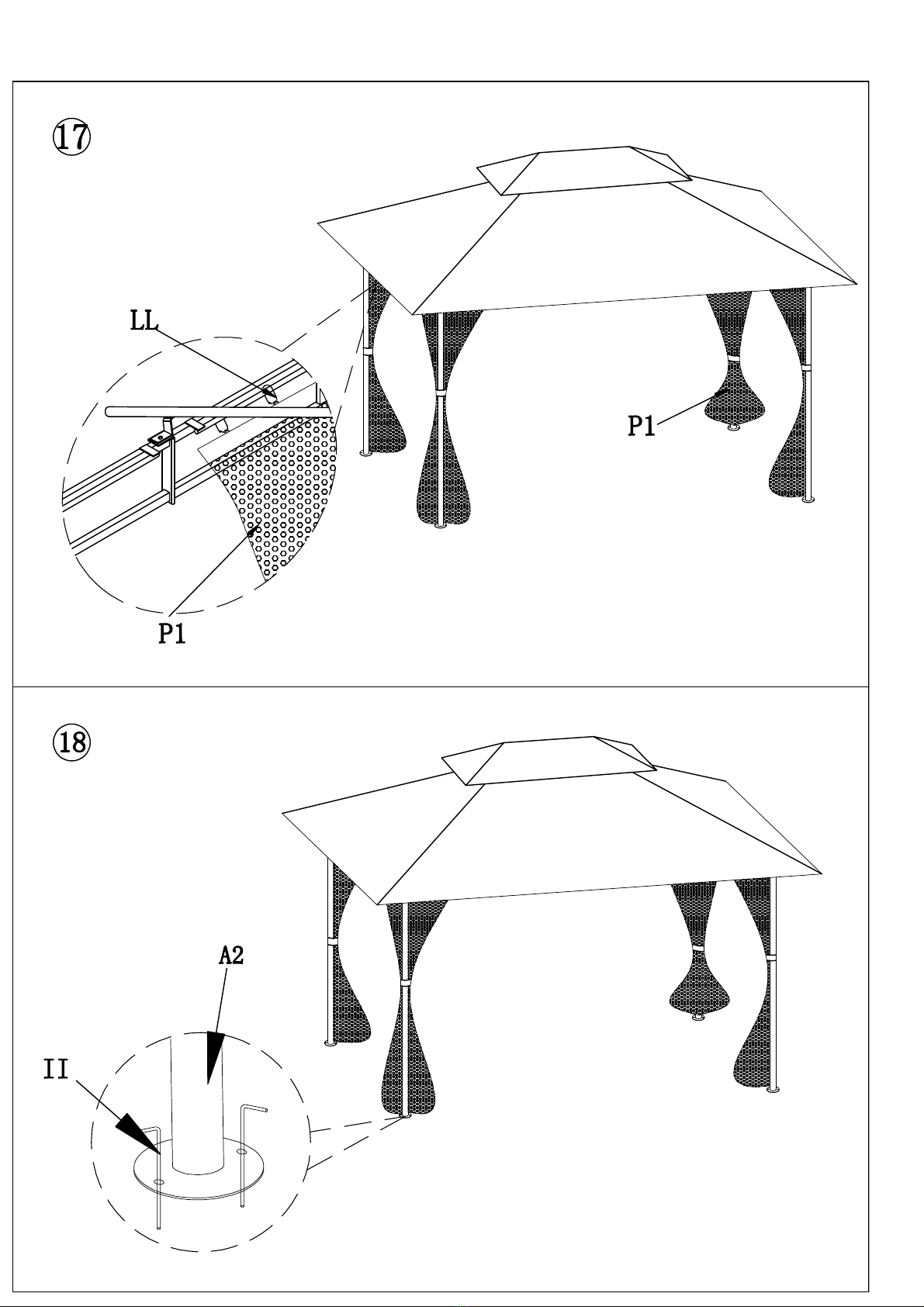

Step 17: Hang Netting (P1) on Netting Bar(E1,E2), by using Ring (LL).
Step 18: Fix assembled gazebo Lower Post (A2)on ground by using Stake (II).

CARE AND MAINTENANCE
Our steel components for garden accessories and furniture are treated with rust inhibiting
paint that protects it from rusting. However, due to the nature of steel, surface oxidation (rusting)
will occur once these protective coatings are
scratched. This is not a defect and thus not covered by the warranty.
To minimize this condition, we recommend care when assembling & handling the product to
prevent scratching the paint. Should any scratching or damage
occur, we recommend immediate touch‐up with rust inhibiting paint.
Surface rust can also be easily removed with a very light application of common cooking oil. If
surface oxidation (rusting) occurs and if no measure is taken toprevent this, the oxidation
may start dripping on to deck orpatio and caused damaging stains which may be difficult to
remove.
This can beprevented if the above-mentioned measures are taken to keep the product from
oxidizing.
Use damp cloth to wipe off the stains as quickly as possible.
If necessary, wash with a mild solution of soap and water; rinse thoroughly and dry
completely.
Periodically check and ensure that all bolts are well‐tighten during use.
LIMITED MANUFACTURER’S WARRANTY:
The item is warranted to be free from defects in workmanship and materials for a period of
(1) year from the date of purchase,providedthe item was factory-sealed at the timeof purchase
and is maintainedwithcare and usedonly for personal,residential purposes. Shouldany
manufacturing defect arise within this warrantyperiod, StarEcho will replace (at our option) any
defective merchandise or parts upon proof of purchase; however, transportation and delivery
costs, as well as payments toathirdparty for assembly or disassemblyofthe item,remain the
responsibilityof the purchaser.Apurchaser ofan "openbox," previously-returned, or "clearance"
item,as well as original purchasers outside of the warranty period,may obtainreplacement parts
from StarEcho for products in current production, at nominal cost.
EXCLUSIONS:Items usedfor commercial, contract, or other non-residential purposes,or items
damageddue to acts ofnature,vandalism,misuse,or improper assembly are not covered.
Corrosionor rustingofhardware is not covered. Proof of purchase (datedregister receipt) is
required for warrantyclaims.Warranty is tothe original purchaser and is non-transferable. Any
replacement of warranteditems will be in the original style and color,or a similar style and color
if the original is unavailable or has beendiscontinued. As some states do not allow exclusions or
limitations on animpliedwarranty, the above exclusions and limitations maynot apply. This
warrantygives you specific rights,and youmay also have other rights, whichvaryfrom state to
state.
