Dear STARING Customer,
STARING MEGA 300, is a pan mixer of the most advanced design in the market
and easily meeting all site requirements of today. The maximum performance and
the simple, easy operation of the STARING MEGA 300 are results of our recent
development work within the mixer technology field.
In order to achieve safe handling of the STARING MEGA 300, we ask you to read
the following instruction manual carefully.
>> Mega Mixer 300
1. Technical Data. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .4
2. Safety and Prevention of Accidents . .. .. .. .. .. .. .. .. .. .. .. .. .5
3. Special Safety Equipment . .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .7
4. Transport .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .7
5. Starting Procedure .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .8
6. Using the Mixer .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .9
7. Optimum Mixing . .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..10
8. Adjustment of Discharge Height. .. .. .. .. .. .. .. .. .. .. .. .. .. ..10
9. Adjustment af Mixer Blades . .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 11
10. Cleaning and Maintence of the Mixer.. .. .. .. .. .. .. .. .. .. .. ..12
11. Spare Parts .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..13
12. Spare Part List .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..13
13. Guarentee . .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..14
14. EC Declaration of Conformity.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..15
>>
Contents

>> 4 • Instruction manual • Staring Mega 300
Mixer Type. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .Mega 300
Mixer Weight. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 520 kg
Gross Volume.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 300 l
Net Volume .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. approx 180L
Pan Diameter .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..1200 mm
RPM.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..40 (l/min)
No. of Mixer Arms .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 3
Discharge Height .. .. .. .. .. .. .. .. .. .. .. .. .. adjustable from 600 to 900 mm
Electric Moter Output .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 4,5 - 5,0 or 7,5 kW
Protection .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. IP 54
Voltage .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. . 3x380V
Power Consumption . .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 9 - 12 or 16A
Frequency . .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. . 50 Hz
Noise Level at the Working Place (Mixing) .. .. .. .. .. .. .. .. .. .. .. .. 78 dB(A)
Noise Level at the Working Place (Idling).. .. .. .. .. .. .. .. .. .. .. .. .. 58 dB(A)
Mixer Noise Level (Mixing) .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. <68 dB(A)
Mixer Noise Level (Idling).. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. <66 dB(A)
Identification:
The Manufacturer’s type sign states the mixer type. No. in the first field. The second field consists
of seven figures of which the first three figures state the machine No., the next two figures the
building year and the last two figures the month of the building year. The third field states the net
weight in kg of the mixer.
>> 1. Technical Data

Instruction manual • Staring Mega 300 • 5 <<
Instruction Manual All persons dealing with the use, installation, operation,
maintenance and repair must have read and understood
the Instruction Manual.
Persons Responsible The operator of the mixer is responsible for the fact that
only persons who are qualified and have been instructed
in the operation of the machine operate, maintain or repair
the mixer.
Purposeful Use Mixers are machines for production of concrete, mortar
and for processing of refractory materials. The mixer can
handle solid materials without adding water or aggregates.
The mixer may only be used in accordance with the inten
ded purpose and may not be used for mixing of inflamma
ble or explosive materials. The mixer is not suitable for
mixing of foodstuffs.
Power Supply The mixer may not be connected to wall sockets. The con
nection requires being wired into the supply provided.
Cabling with a cross section of 5 x 1,5 mm2 and 2,5 mm2
for 7,5 kW electric motor and approved socket outlet and
plug must be used.
If the cables are defective the mixer may not be operated.
Defective cables can be a danger to life. Use only cables
and plugs which are fault free.
Danger to Persons
an Equipment If the mixer is operated incorrectly and not in accordance
with the intended purpose, damage to persons or equip
ment may result. Therefor any incorrect use of
the mixer is not allowed!
>> 2. Safety and Prevention of Accidents

>> 6 • Instruction manual • Staring Mega 300
Safety Equipment The mixer should only be operated using the safety
equipment which is recommended. The mixer should
only be operated whit complete and undamaged safety
equipment.
Maintenance and Repair Work All work at power equipment should only be carried out by
specialists observing the relevant safety requirements.
The machine should be checked daily by the operator for
correct operation.
This is especially important for:
movable parts
screw joints
safety equipment
protection equipment
cables, plugs and switches
excessive soiling
In connection with maintenance and repair work the power
supply must be disconnected and arrangement made so
that it is not possible to engage the mixer again.
Declaration of Conformity The mixer is in conformity with the provisions in the
Council Directive of 14. June 1989 on mutual approxima
tion of the laws of the Member States on the safety of
machines (89/392/EEC as amended by Directives 91/368/
EEC, 93/44/EEC and 93/68/EEC)with special reference to
Annex 1 of the Directive on essential safety and health
requirements in relation to the construction and
manufacture of machines.
>> 2. Safety and Prevention of Accidents

Instruction manual • Staring Mega 300 • 7 <<
The mixer will be delivered with either a securely fastened
or electrical secured safety cover and with safety screen
under the discharge port.
Furthermore, we have for safety reasons installed a
thermal relay. The thermal relay protects the electric
motor when overheating occurs. The mixer is protected
against automatic restarting and the thermal relay needs
to be reset before the mixer can be used again.
The rated power is stated on the electric motor
machine sign. In accordance with EN 60204-1 the machine
is equipped with a main switch.
When the mixer is transported by means of secured hoists
it must only be lifted by the three lifting points.
Note
Pay attention that there is enough lifting capacity in the
hoist being used.
Risk
Incorrect lifting of loads as well as damaged chains an
ropes may cause serious accidents.
The mixer can be transported by means of forklift trucks.
Then the forks must be level (horizontally arranged) under
the mixer pan in order to avoid any damage and that the
mixer tips over.
Never lift the mixer from the discharge side with
forklift truck.
>> 3. Special Safety Equipment
>> 4. Transport

>> 8 • Instruction manual • Staring Mega 300
Before the mixer is started the following instructions should
be followed:
1. Check that the power cable is not damaged, if so,
replace it.
2. Check the mixer and remove all major foreign matters.
3. Check that the mixer blades are correctly fastened in
order to avoid damage to the mixer.
4. Place the mixer on a surface which is as level as
possible.
>> 5. Starting Procedure

Instruction manual • Staring Mega 300 • 9 <<
The mixer is started on the switch as follows:
Green pushbutton = Start
Red pushbutton = Stop
After the engagement the direction of rotation should
always be checked.
The mixer blades must rotate clockwise.
Fig. 2.
Where wrong rotation occurs this requires adjustment of
two of the three phases. This work must be carried out by
a qualified electrician.
If the machine is equipped with a directional plug the
direction of rotation can be changed by turning the
terminals with a screwdriver.
Fig. 3.
Whenever the mixer has been moved to another place,
the direction of rotation should be checked.
Filling and discharge of the mixer should only take place
when the mixer is running so, hat damage to the mixer
is avoided.
>> 6. Using the Mixer
Fig. 3
Fig. 2
Fig. 3

>> 10 • Instruction manual • Staring Mega 300
The optimum mixing (mixing time) is achieved by filling
water directly through the centre cover of the mixer.
In this way the water will be equally distributed in the mixer
pan during the mixing.
For the adjustment of the required discharge height please
follow the instructions below:
The discharge height of the mixer should be set at the
required height before starting the mixer. Then the mixer
is lifted by means of a crane or a forklift truck in order to
relieve the telescope legs. The cotter pins and bolts on the
4 telescope legs are then removed and the mixer is lifted
or lowered to the required height. After the discharge the
cotter pins and bolts are tightened again.
>> 7. Optimum Mixing
>> 8. Adjustment of Discharge Height

Instruction manual • Staring Mega 300 • 11 <<

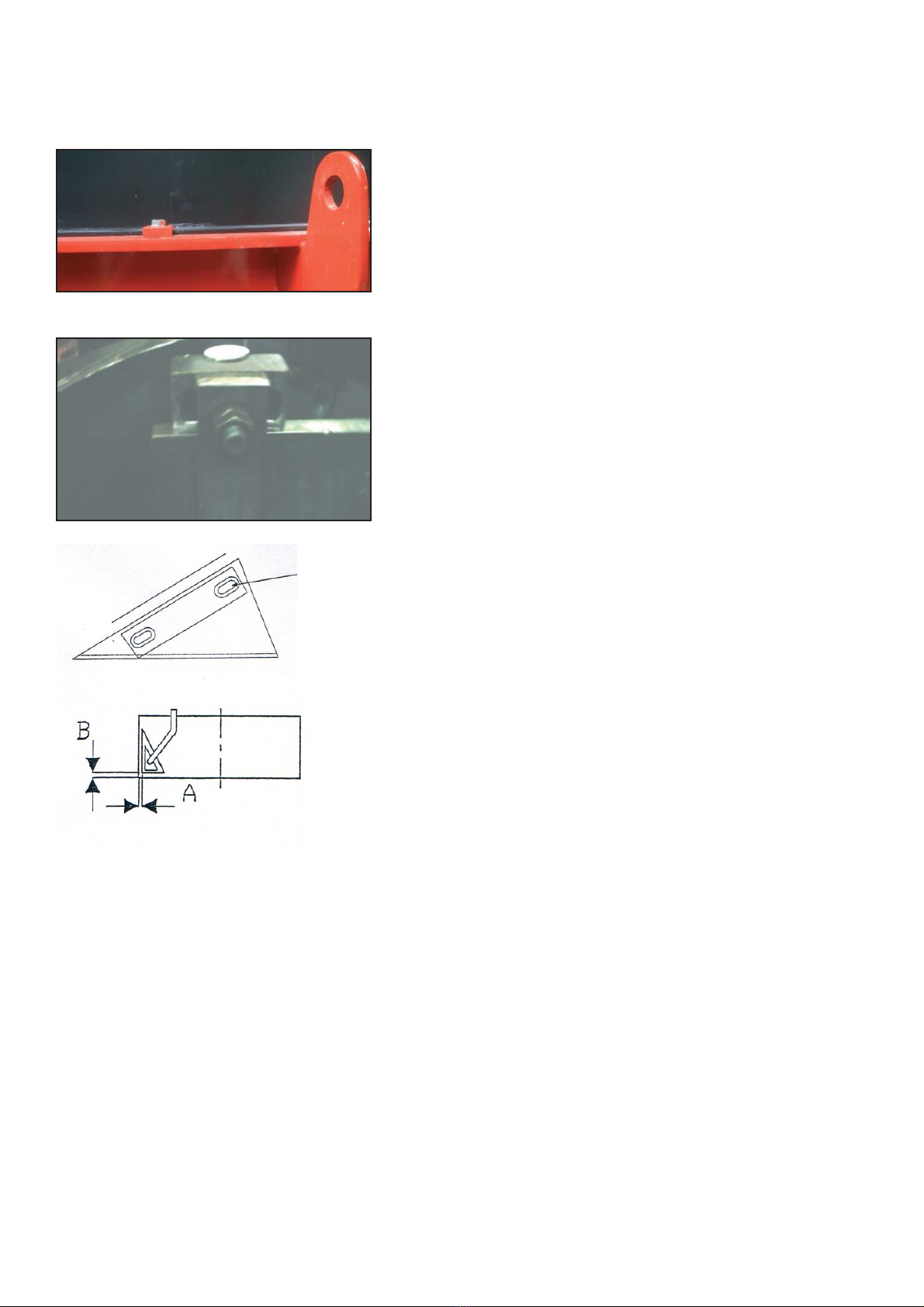

For an optimum adjustment of the mixer blades please
follow the instructions below:
1. Disconnect the mixer from the power supply and ensure
that it is not possible to engage it again.
2. Loosen the screws in the safety cover and remove
the cover.
Fig. 4a.
3. Remove the centre cover.
Fig. 4b.
4. Loosen the four screws in the clamping device.
Fig. 4c.
5. Set the blades as below:
Dimension A = 0 – 2 mm and
Dimension B = 2 – 5 mm
and tighten the screws. Fig. 4d
6. Insert the centre cover.
7. Place the safety cover and tighten the screws.
8. Restart the mixer.
>> 9. Adjustment of Mixer Blades
Fig. 4b
Fig. 4d
Fig. 4a
Fig. 4c
A

>> 12 • Instruction manual • Staring Mega 300
For the cleaning and maintenance of the mixer please fol
low the instructions and recommendations below:
Cleaning Recommendation;
1. Adding of gravel will improve the cleaning effect.
2. Let the mixture run for a few minutes.
3. Empty the mixer.
Disconnect the mixer from the power supply and ensure
that it is not possible to engage it again.
4. Clean with water.
Never direct the jet of water directly at the plug or
control panel.
The gearbox of the mixer requires no maintenance.
If the mixer pan is damaged it will be difficult to clean it.
Fig. 6
>> 10. Cleaning and Maintenance of the Mixer
Fig. 6

Instruction manual • Staring Mega 300 • 13 <<
Only approved STARING spare parts should be used for the mixer. The warranty will be void if
spurious spare parts are used.
No. Name Spare Part No. Quantity
1 Cover 0310 2010 1
2 Centre Bracket 0310 5300 1
3
4 Mixer Head Bolts, Leroy Gear 9625 1
4 Mixer Head Bolts, Benzler Gear 9553 1
5 Mixer Head Washe, Leroy Gear 0310 9170 1
5 Mixer Head Washe, Benzler Gear 0310 9171 1
6 Power Transmission 0310 1720 1
7 Rubber Block 0014 5210 6
8 Mixer Arm Hub 0310 1740 1
9 Rubber Sleeve 9863 2
10 External Mixer Arm 0310 1310 1
11 Centre Mixer Arm 0310 1320 1
12 Internal Mixer Arm 0310 1330 1
13 Mixer Paddle, centre/internal 0290 1520 2
14 Mixer Paddle, external 0290 1510 1
15 Mixer Pan. complete 0310 5000 1
16 Gear – Benzler 0310 3010 1
16 Gear – Leroy Somer 0310 3011 1
17 Telescope Legs 0310 6200 4
18 Motor Protection, 5,5 kW – 3x380 V 0310 4010 1
18 Motor Protection, 7,5 kW – 3x380 V 0310 4020 1
18 Motor Protection, 11,0KW – 3x380V 0510 4009
19 Contactor 0310 4040 1
20 Termal Relay 0310 4030 1
21 Motor Protection Box 9125 1
22 Clutch 0310 3500 1
23 Plug 0310 4250 1
24 Electric Motor, 5,5 kW – 3x380 V 9034 1
24 Electric Motor, 7,5 kW – 3x380 V 9035 1
25 Lock Bolt 0310 6210 4
26 Cotter Pin 9877 4
27
28
29
30 Safety Screen 0310 9400 1
>> 11. Spare Parts
>> 12. Spare Part List

>> 14 • Instruction manual • Staring Mega 300
1. There will be a guarantee of 12 months from date of delivery.
2. The guarantee cover all operational failures due to material or fabrication defects.
3. The manufacturer can choose freely to remedy the damage by compensation,
replacement or repair.
4. The costs of dispatch are on the account of the buyer.
5. Replaced parts belong to Staring Maskinfabrik A/S.
6. The manufacturer will undertaker no responsibility with regard to consequential damages
and possible loss of production.
7. In order for the guarantee to be complied with the defect must be reported immediately after
it has occurred.
THE GUARANTEE DOES NOT COVER
1. Damages due to incorrect connection.
2. Repair executed by others.
3. Damage as a result of wrong operation, negligent treatment or transportation damages.
4. Natural wear and tear.
5. Only use approved Staring spare parts.
Where a complaint is forthcoming Staring Maskinfabrik A/S should be informed in writing together
with all relevant information regarding the machine. Additionally, an, defective symptoms or cause
must be informed.
>> 13. Guarantee

Instruction manual • Staring Mega 300 • 15 <<
Manufacturer
Company Name: Staring Maskinfabrik A/S
Address: Starengvej 9-11
9700 Brønderslev
Danmark
Tel: [phone]
hereby declare that;
Machine: STARING
Type: STARING Mega 300
Serial no.:
- is in conformity with:
- the COUNCIL DIRECTIVE of 14 June 1989 on mutual approximation of the laws of the Member
States on the safety of machines (89/392/EEC as amended by directives 91/368/EEC, 93/44/EEC
and 93/68/EEC) with special reference to Annex 1 of the Directive on essential safety and health
requirements in relation to the construction and manufacture of machines.
Company:
Name:
Position:
Date Signature
>> 14. EC Declaration of Conformity

>> 16 • Instruction manual • Staring Mega 300
Staring Maskinfabrik A/S
Starengvej 9-11
DK-9700 Brønderslev
Tlf.: [phone]
Fax: [phone]
www.staring.dk
[email protected]
CVR.nr. DK 2767 2701
