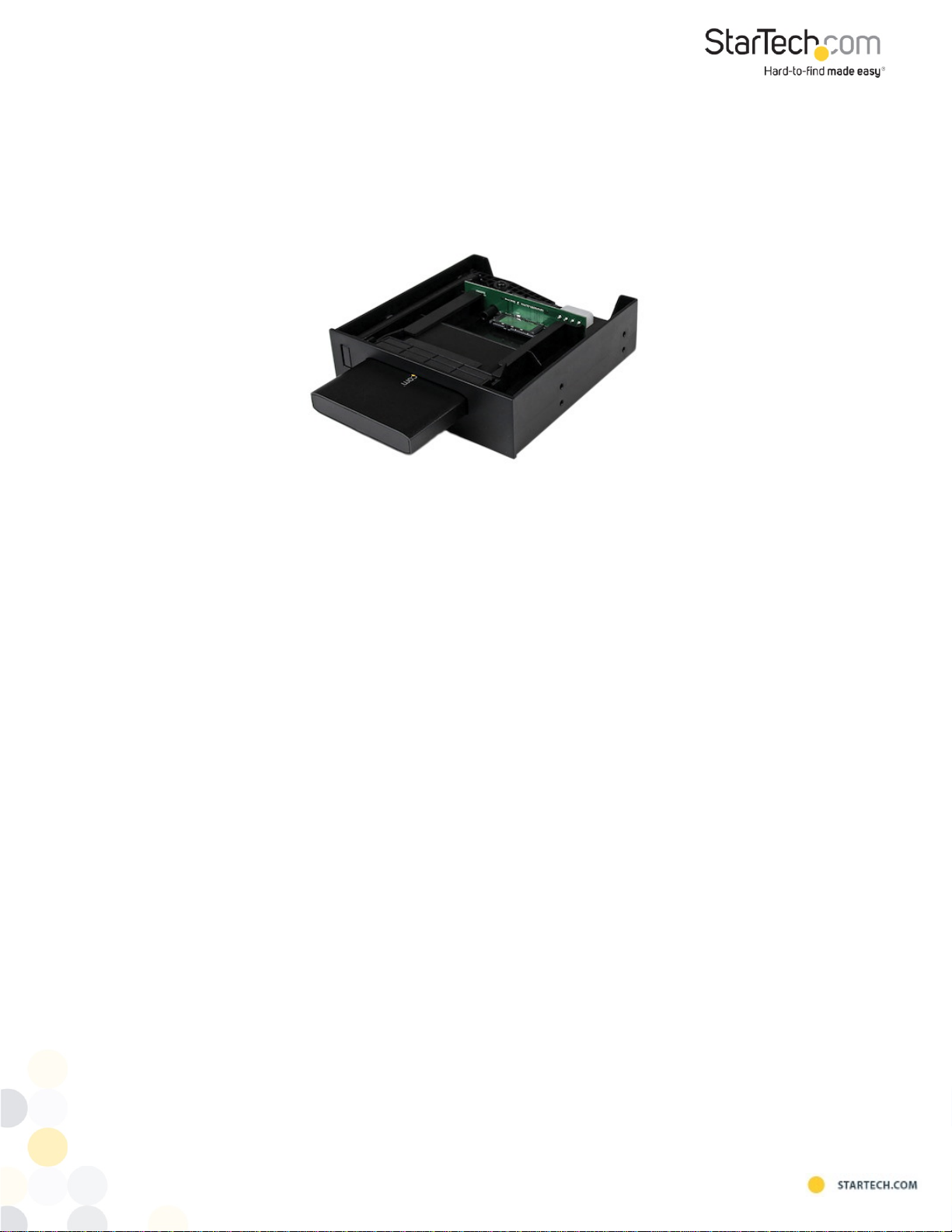

StarTech.com S2510U33RUSM User manual

5.25” USM Storage Bay with 2.5” SATA USM / USB 3.0 Hard Drive Enclosure
Product ID: S2510U33RUSM
The S2510U33RUSM USM Removable Storage Bay and Enclosure turns a 5.25" front computer bay into a
hot-swappable USM interface for you to connect a 2.5” SATA hard drive (HDD) or solid state drive (SSD), using the
included USM enclosure. Both the bay and enclosure are compatible with Seagate GoFlex and other USM interface
devices, and support SATA III transfer speeds up to 6.0 Gbps.
USM (Universal Storage Module) is a portable drive standard that interfaces with SATA and enables you to hot-swap
drives between multiple host devices, such as PCs, notebooks, DVRs and many others.
Using the included USM to USB 3.0 adapter, the enclosure can also be connected externally to non-USM host
devices via USB. Plus, with support for UASP, the enclosure performs up to 70% faster than conventional USB when
paired with a UASP-enabled host controller, to utilize the full potential of your SATA III hard drives. See our UASP
testing results below for further details.
For even more versatility, StarTech.com offers the S2510U33USM, an additional 2.5in USM SATA Hard Drive
Enclosure, which offers the option to swap multiple drives in and out of the main computer as needed.
The USM removable hard drive bay interfaces with SATA, and can be mounted into any 5.25" front bay, to provide a
hot-swappable mobile rack. The bay features push-button ejection allowing drives to easily be installed and removed
from the computer system, providing a convenient method of creating backups that can then be removed for safe
keeping, archiving or external portable access.
To ensure compatibility with your computer system, the S2510U33RUSM supports all of the leading operating
systems, including: Microsoft Windows (8/7/Vista/XP/Server 2008/Server 2003), Apple OSX (10.9/10.8/10.7/10.6),
Linux, and Google Chrome OS.
The S2510U33RUSM is backed by a StarTech.com 2-year warranty and free lifetime technical support.
UASP is supported in Windows 8, Mac (OSX 10.8 or above), and Linux. In testing UASP performs with a 70% faster
read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.

Testing results were obtained using an Intel Ivy Bridge system, a UASP enabled StarTech.com enclosure, and a
SATA III solid state drive.
Certifications, Reports and Compatibility
Applications
• Add a hot-swap bay to a server or workstation computer, for a removable backup solution
• Switch between fast internal storage and portable external storage
• Environments where storage drives need to be replaced/removed regularly
Features
• Compatible with Seagate GoFlex, and other USM devices
• UL94 V0 Flammability rating
• Included 2.5” External USM Enclosure w/ USB 3.0 UASP Adapter
• Supports 2.5" form factor SATA hard drives (HDD) and solid state drives (SSD)
• Front-mount 5.25” drive bay design
• UASP Compliant
• Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps)
• Plug-and-Play and Hot-Swap compatible
• Push-button drive ejection
Hardware
Warranty
2 Years
Front Door Key Lock
No

Interface
SATA
USB 3.2 Gen 1 (5Gbps)
Number of Drives
1
Drive Size
2.5in
Drive Installation
Removable
Chipset ID
ASMedia - ASM1053 - 6G
Performance
Type and Rate
USB 3.0 - 5 Gbit/s
UASP Support
Yes
Type and Rate
SATA III (6 Gbps)
General Specifications
UL94 V0 Flammability rating
Connector(s)
Connector Type(s)
1 - USM (22 pin SATA Data & Power)
Host Connectors
1 - SATA Data & Power Combo (7+15 pin)
1 - USB 3.0 Micro-B (10 pin, SuperSpeed)
Software
OS Compatibility
OS independent; No software or drivers required
Indicators
LED Indicators
1 - HDD Power/Activity (Enclosure)
Environmental
Operating Temperature
0C to 40C (32F to 104F)
Storage Temperature
-20C to 70C (-4F to 158F)
Humidity
10% ~ 90% RH
Physical
Characteristics
Color
Black
Material
Aluminum and Plastic

Product Length
6.0 in [15.2 cm]
Product Width
5.8 in [14.8 cm]
Product Height
1.6 in [4.1 cm]
Weight of Product
9.7 oz [275 g]
Packaging
Information
Package Quantity
1
Package Length
9.2 in [23.4 cm]
Package Width
7.0 in [17.9 cm]
Package Height
2.6 in [65 mm]
Shipping (Package)
Weight
17.7 oz [502 g]
What's in the Box
Included in Package
1 - USM 5.25” Installation Bay
1 - 2.5” USM HDD Enclosure
1 - USM to USB 3.0 interface adapter
1 - Micro USB 3.0 Cable
1 - Installation Screw Kit
1 - Instruction Manual
*Product appearance and specifications are subject to change without notice.
