StarTech.com SV565FXDUSA User manual

KVM Console Extender
USB, DVI KVM Console
Extender with Serial and Audio
over Multi-Mode Fiber - 2km
SV565FXDUSA
Instruction Manual

FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.•
Increase the separation between the equipment and receiver.•
Connect the equipment into an outlet on a circuit different from that to which the receiver•
is connected.
Consult the dealer or an experienced radio/TV technician for help.•
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only
and do not represent an endorsement of a product or service by StarTech.com, or an
endorsement of the product(s) to which this manual applies by the third-party company
in question. Regardless of any direct acknowledgement elsewhere in the body of
this document, StarTech.com hereby acknowledges that all trademarks, registered
trademarks, service marks, and other protected names and/or symbols contained in this
manual and related documents are the property of their respective holders.

i
Table of Contents
Introduction..................................................................... 1
Packaging Contents.....................................................................1
System Requirements .................................................................1
Front View....................................................................................2
Rear View ....................................................................................2
Installation....................................................................... 3
Preparing Your Site......................................................................3
Installing the Computer Unit ........................................................4
Installing the Console Unit...........................................................4
Driver Installation.........................................................................5
Using the KVM Extender ................................................ 6
Using the Computer Unit .............................................................6
Mask Hotkey Switch ....................................................................7
Using the Console Unit................................................................9
Serial Device Setup.....................................................................11
Fiber Cable Limitations .................................................. 11
Specifications.................................................................. 12
Technical Support........................................................... 14
Warranty Information...................................................... 14

1
Introduction
The StarTech.com USB, DVI, serial and audio KVM Console Extender
lets you control a server, computer or multiple computers (through a
KVM switch) over a multi-mode fiber link, at distances of up to 2000m
(6562 ft). By transmitting the digital DVI video (or HDMI with a DVI-to-
HDMI adapter) over a multi-mode optical fiber link, there is no signal
loss so the video is as sharp and vivid as it would be if the monitor was
connected directly to the PC.
Packaging Contents
1 x Computer Extender Unit•
1 x Console Extender Unit•
2 x DVI, USB and Audio KVM cable•
1 x Power Adapter•
1 x Set of rubber feet•
1 x Instruction Manual•
System Requirements
USB enabled computer or KVM switch•
DVI-D enabled computer or KVM switch•
DVI-D enabled display device•
Standard 104-key wired USB keyboard•
Standard 3-button wired USB mouse•
Multi-Mode fiber cable (50/125 or 62.5/125)•
Available electrical outlet at both locations•

2

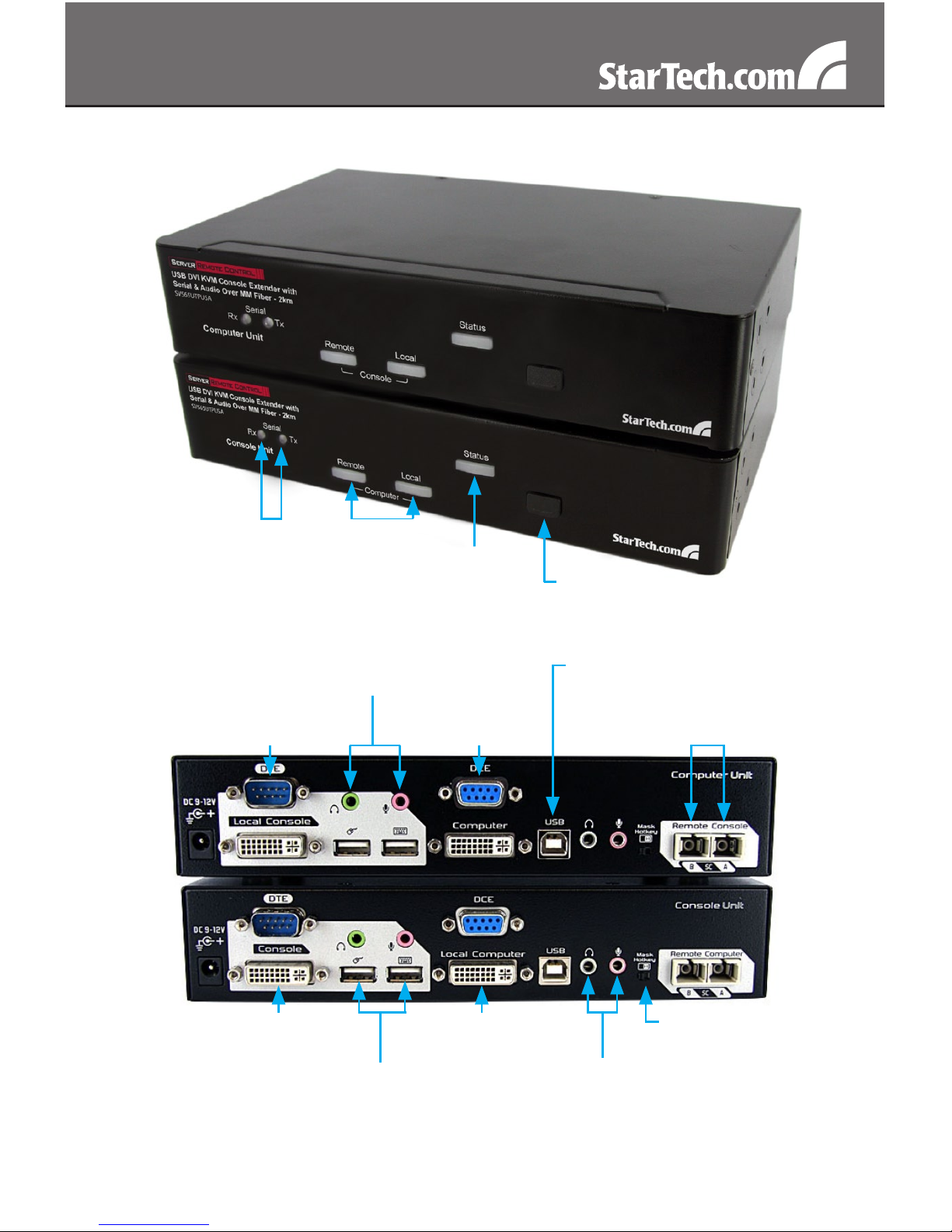

Front View
Rear View
Selection
LED Selection
button
Serial Tx/Rx
LEDs Status
LED
Console DVI
connector
Computer DVI
connector
Console USB
keyboard/mouse
connectors
Computer 3.5mm
Audio connectors
Mask Hotkey
switch
Console
Serial port
Computer
Serial port
Computer USB
connector
SC fiber
connectors
Console 3.5mm
Audio connectors

3
Installation
Preparing Your Site
Before you can install the product, you need to prepare your site.
Determine where the1. host computer will be located and set up the
computer.
Determine where the console devices (mouse, keyboard, monitor)2.
will be located and place them appropriately.
a) If you are using surface cabling, ensure you have enough Multi-3.
Mode Fiber network cabling to connect the Computer Unit to the
Console Unit’s location, and that each end is terminated with an
SC connector. The cabling should not go through any networking
equipment (i.e. router, switch).
OR
b) If you are using premise cabling, ensure that the Multi-Mode Fiber
network cabling between the Computer Unit and the Console Unit
has been properly terminated in a wall outlet in each location and
there is a patch cable long enough to connect the Console Unit and
the Computer Unit to their respective outlets. The cabling should not
go through any networking equipment (i.e. router, switch).
Console
Unit
Computer
Unit
*optional
Local Console
(optional)
Host computer
Remote
Console

4
Installing the Computer Unit
Place the1. Computer Unit near the computer that needs to be
controlled.
Switch off the computer and disconnect any connected devices.2.
OPTIONAL: If you wish to have console access locally to the Host
computer, connect a USB mouse, keyboard, and DVI monitor to the
connectors marked as “Console” on the Computer Unit.
Connect the power adapter from an AC electrical outlet to the unit.3.
Using the provided StarTech.com USB, DVI, Audio KVM cable,4.
connect the Host computer system to the KVM Extender’s
“Computer” connectors. Reconnect any necessary peripheral
devices to the Host computer, removed in Step 2.
OPTIONAL: If you wish to have the Host computer to have access to
a serial device, connect a DB9 serial cable from the Host computer to
the Computer DB9 connector (DCE) on the Computer Unit. You may
connect a serial device locally, by plugging the serial device into the
Console DB9 connector (DTE).
Connect the fiber cable to the SC fiber connectors on the5. Computer
Unit. Connect the opposite end to a terminated wall outlet (if you are
using premise cabling) or directly to the Console Unit.
Power on the6. Host computer system.
Installing the Console Unit
Place the Console Unit near the remote keyboard/mouse/display.1.
Connect a USB keyboard and mouse, and a DVI monitor to the2.
connectors marked as “Console” on the Console Unit.
OPTIONAL: If the serial connection was setup on the Computer Unit,
connect the serial device to the Console DB9 connector (DTE) on the
Console Unit.

5
Connect the power adapter from an AC electrical outlet to the unit.3.
Connect the fiber cable connection to the SC fiber connector on the4.
Console Unit. Connect the opposite end to a terminated wall outlet
(if using premises cabling) or directly to the Computer Unit.
OPTIONAL: If connecting a computer system to the Console Unit,
switch off the computer and disconnect any existing devices. Using
the provided StarTech.com integrated USB, DVI, Audio KVM cable,
connect the computer system to the Console Unit’s “Computer”
connectors. Reconnect any necessary peripheral devices to the Host
computer, removed previously.
Driver Installation
The KVM Extender is a complete hardware solution so no software or
driver installation is required on any computer system.

6
Using the KVM Extender
This section details how to use your KVM extender at both the local
and remote locations.
Using the Computer Unit
The Computer Unit allows users connected to the Computer and
Console units to share control of devices (computers, KVM Switches)
connected to it.
The Computer Unit has three modes that control which user may
access the Host system (Computer A) at a given time: Auto (the KVM
extender looks for keyboard or mouse activity from both Local and
Remote and automatically accepts input from the active console), Local
(only the user seated at the Computer Unit can access the system),
and Remote (only the user at the Console Unit can access the system).
You can use either keyboard shortcuts (if there is a keyboard and
mouse attached) or the mode switch on the front of the Computer
Unit to control which user has access to devices connected to the
Computer Unit, by pressing the button in sequence.
By default, the Computer Unit operates in Auto mode, and switches to
the next mode in sequence each time the switch is pressed as follows:
Having a keyboard and mouse attached to the Console ports on the
Computer Unit is recommended, since it offers access to a number of
extended features.
LED Indicators
Mode Local Remote
Auto (Auto senses activity) Flashing Flashing
Local (User at Computer Unit has exclusive control) On (solid) Off
Remote (User at Console Unit has exclusive control) Off On (solid)
Auto Local Remote

7
Keyboard Shortcut Command Sequences
Standard Command With Compatibility
Mode Enabled Description
[Ctrl] - [Ctrl] - [T] [Ctrl] - [Ctrl] - [T]
Toggles control of Computer
A between Auto, Local, and
Remote modes
[Ctrl] - [Ctrl] - [Esc] [Ctrl] - [Ctrl] - [Esc] Cancels the hotkey sequence
[Ctrl] - [Ctrl] - [Alt]+[E] [Ctrl] - [Ctrl] - [Alt]+[E]
Enables (2 beeps) or disables
(1 beep) Compatibility Mode
so that the KVM extender
will work with a KVM switch
that also uses a [Ctrl] hotkey
sequence
[Ctrl] - [Ctrl] - [1] [Ctrl] - [Ctrl] - [E] - [1]
Local Mode: Allows the user
at Computer Unit Aexclusive
access to the system; remote
access from Console Unit B
is disabled
[Ctrl] - [Ctrl] - [2] [Ctrl] - [Ctrl] - [E] - [2]
Remote Mode: Allows the
console at Console Unit B
exclusive access to Computer
A; access to the computer
from the Computer Unit is
disabled
[Ctrl] - [Ctrl] - [3] [Ctrl] - [Ctrl] - [E] - [3] Auto Mode: Wait for console
activity

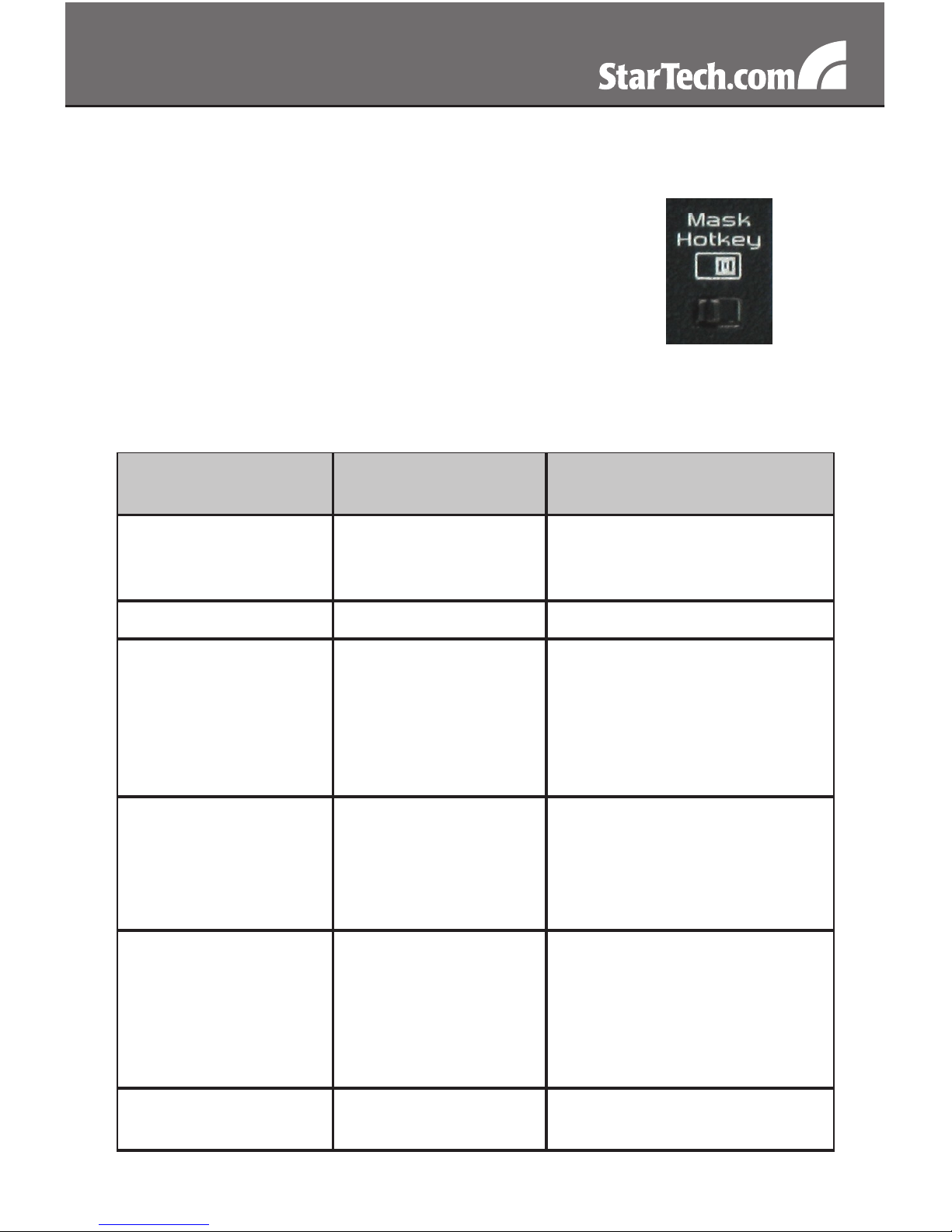

Mask Hotkey Switch
The Mask Hotkey switch on the rear panel
of both the Computer and Console Units is a
feature for use when a KVM switch is being
used. Setting the switch to ON or OFF will Mask
(disable) the units built in hotkey detection,
allowing the controls keys to be sent directly to
the KVM switch.
ONOFF

8
Standard Command With Compatibility
Mode Enabled Description
[Ctrl] - [Ctrl] - [F3] [Ctrl] - [Ctrl] - [E] - [F3]
Sets the interval of inactivity
in seconds that the Computer
Unit will wait before returning
to Auto Mode after a Unit has
assumed control
Beep Codes
Some of the keyboard command sequences you issue to the Computer
Unit have multiple possible settings. The unit will beep to indicate what
setting you have selected for the command you issued. (A short beep
followed by a long beep indicates an invalid command.)
[Ctrl] - [Ctrl] - [Alt]+[E] (Compatibility Mode)
1 beep: disabled
2 beeps: enabled
[Ctrl] - [Ctrl] - [F3] (Inactivity Interval for Auto Mode)
1 beep: 5 seconds
2 beeps: 15 seconds
3 beeps: 30 seconds
4 beeps: 60 seconds
Note: Commands described in the [Key] - [Key] format are keys that
must be pressed in order on the keyboard. Commands described in
the [Key]+[Key] format must be pressed simultaneously.
Note: If the Num Lock, Caps Lock, and Scroll Lock lights are flashing
in unison on the keyboard, the other Unit has control of the Host
computer. You will not be able to use the computer or issue commands
until the other unit has finished using the computer.
Note: If the Extender is operating in Compatibility Mode ([Ctrl] - [Ctrl] -
[E] hotkey sequence), you must enter [Ctrl] - [Ctrl] - [E] - [E] to access
port E on the attached KVM switch.

9
Using the Console Unit
The Console Unit allows a user at the Console Unit to assume control
of devices connected to the Computer Unit (Computer A), if the
Computer Unit is set to Auto or Remote mode. It also permits the user
at the Console Unit to use any directly connected system (Computer B)
as though the KVM Extender was transparent.
You can use either keyboard shortcuts or the mode switch on the front
of the Console Unit to alternate control between A and B. Unlike the
Computer Unit, however, the switch on the front of the Console Unit
only offers two selectable modes:
LED Indicators
Keyboard Shortcut Command Sequences
Mode Remote Local
Remote Access (Computer A) On (solid) Off
Local Access (Computer B) Off On (solid)
Standard Command With Compatibility Mode
Enabled Description
[Ctrl] - [Ctrl] - [T] [Ctrl] - [Ctrl] - [T]
Toggles console control
between Computer A
and Computer B
[Ctrl] - [Ctrl] - [Esc] [Ctrl] - [Ctrl] - [Esc] Cancels the hotkey
sequence
[Ctrl] - [Ctrl] - [Alt]+[E] [Ctrl] - [Ctrl] - [Alt]+[E]
Enables (2 beeps)
or disables (1 beep)
Compatibility Mode so
that the KVM extender
will work with a KVM
switch that also uses a
[Ctrl] hotkey sequence
Local Remote

10
Standard Command With Compatibility Mode
Enabled Description
[Ctrl] - [Ctrl] - [1] [Ctrl] - [Ctrl] - [E] - [1] Switches control to
Computer B
[Ctrl] - [Ctrl] - [2] [Ctrl] - [Ctrl] - [E] - [2]
Switches control to
Computer A (input
allowed only if the
Computer Unit is in
Remote or Auto mode)
[Ctrl] - [Ctrl] - [F2] [Ctrl] - [Ctrl] - [E] - [F2]
Toggles console control
between Computer A
and Computer B
Note: Commands described in the [Key] - [Key] format are keys that
must be pressed in order on the keyboard. Commands described in
the [Key]+[Key] format must be pressed simultaneously.
Note: If the Num Lock, Caps Lock, and Scroll Lock lights are flashing
in unison on the keyboard, the other Unit has control. You will not be
able to control the Host computer system until the other Unit releases
access to that computer.
Note: If the Extender is operating in Compatibility Mode ([Ctrl] - [Ctrl] -
[E] hotkey sequence), you must enter [Ctrl] - [Ctrl] - [E] - [E] to access
port E on the attached KVM switch.
Beep Codes
Some of the keyboard command sequences you issue to the Console
Unit have multiple possible settings. The Unit will beep to indicate what
setting you have selected for the command you issued. (A short beep
followed by a long beep indicates an invalid command.)
[Ctrl] - [Ctrl] - [Alt]+[E] (Compatibility Mode)
1 beep: disabled
2 beeps: enabled

11
Serial Device Setup
This KVM Extender provides DB9 serial ports on both the Computer
and Console Units, which can be connected to serial devices such as
POS, Barcode Scanners, Card Readers, and Touch screens. The KVM
Extender units provide a passageway for data transmission without any
baud rate limitation or configuration required.
The serial terminal baud rate setting must match the serial baud rate of
the connected serial device, as figure shown below:
Console
Unit
Computer
Unit
Fiber Cable Limitations
Fiber Diameter (micron) 50/125 62.5/125
Maximum Video Resolution 1080i 1080p 1080i 1080p
Maximum Cable Length (meter) 2000 1000 700 350

12
Specications
Connectors (Computer Unit)
2 x SC fiber
1 x DC Power
Console:
1 x 29-pin DVI-I female
1 x DB9 serial male
2 x USB type A
2 x 3.5mm audio mini-jack
Computer:
1 x 29-pin DVI-I female
1 x DB9 serial female
1 x USB type B
2 x 3.5mm audio mini-jack
Connectors (Console Unit)
2 x SC fiber
1 x DC Power
Console:
1 x 29-pin DVI-I female
1 x DB9 serial male
2 x USB type A
2 x 3.5mm audio mini-jack
Computer:
1 x 29-pin DVI-I female
1 x DB9 serial female
1 x USB type B
2 x 3.5mm audio mini-jack
LEDs
1 x Status
2 x Serial Tx/Rx
1 x Remote
1 x Local
Maximum Cable Length 2000m / 6562ft
Maximum Video Resolution 1920x1200 / 1080p

13
HDCP Support Yes
Audio Support Yes
Control Methods Front Push-button, Hot-keys
Power Adapter 12VDC, 1500mA, type M plug
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Humidity 0 ~ 80% RH
Dimensions (LxWxH) 135.0mm x 220.0mm x 44.0mm
Weight 1030g (each)

14
Technical Support
StarTech.com’s lifetime technical support is an integral part of our
commitment to provide industry-leading solutions. If you ever need
help with your product, visit www.startech.com/support and access
our comprehensive selection of online tools, documentation, and
downloads.
Warranty Information
This product is backed by a one year warranty.
In addition, StarTech.com warrants its products against defects in
materials and workmanship for the periods noted, following the initial
date of purchase. During this period, the products may be returned
for repair, or replacement with equivalent products at our discretion.
The warranty covers parts and labor costs only. StarTech.com does
not warrant its products from defects or damages arising from misuse,
abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA
LLP (or their officers, directors, employees or agents) for any damages
(whether direct or indirect, special, punitive, incidental, consequential, or
otherwise), loss of profits, loss of business, or any pecuniary loss, arising
out of or related to the use of the product exceed the actual price paid
for the product. Some states do not allow the exclusion or limitation of
incidental or consequential damages. If such laws apply, the limitations
or exclusions contained in this statement may not apply to you.

StarTech.com has been making “hard-to-find easy” since 1985,
providing high quality solutions to a diverse IT and A/V customer
base that spans many channels, including government, education
and industrial facilities to name just a few. We offer an unmatched
selection of computer parts, cables, A/V products, KVM and Server
Management solutions, serving a worldwide market through our
locations in the United States, Canada, the United Kingdom and
Taiwan.
Visit www.startech.com today for complete information about all
our products and to access exclusive interactive tools such as the
Cable Finder, Parts Finder and the KVM Reference Guide.
