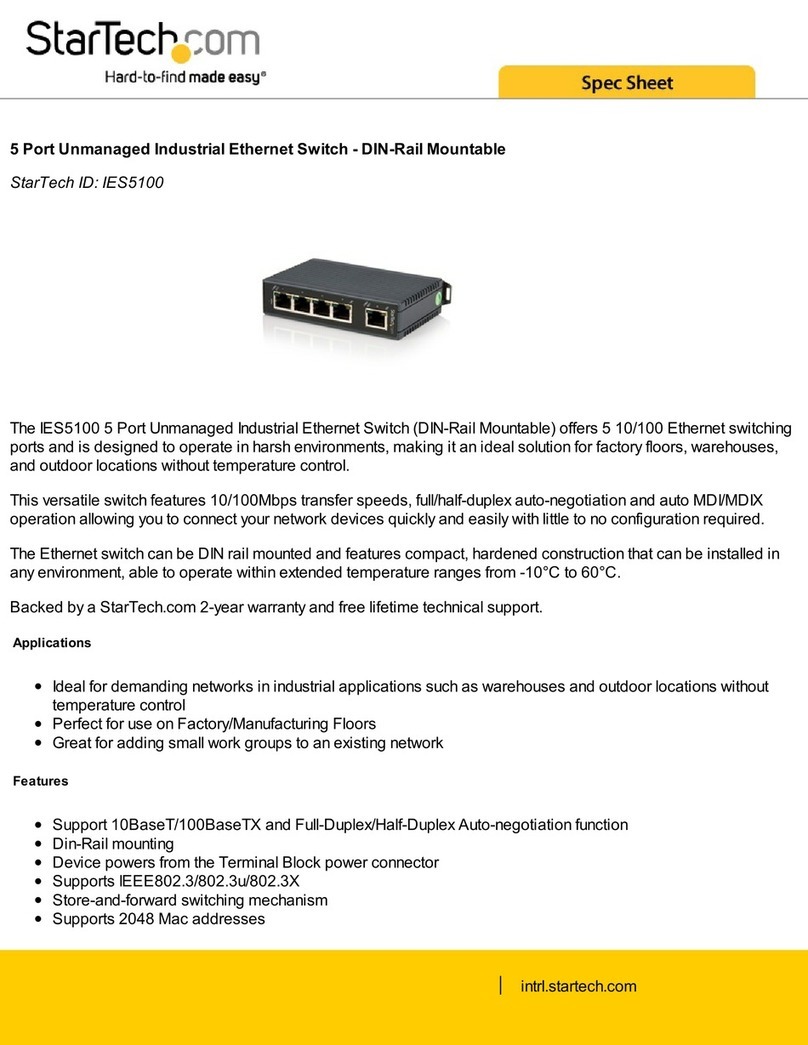

StarTech.com IES5100 User manual

IES5100
5 Port Industrial Ethernet
Switch
Instruction Manual

FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide rea-
sonable protection against harmful interference in a residential installation. This equip-
ment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio com-
munications. However, there is no guarantee that interference will not occur in a particu-
lar installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.•
Increase the separation between the equipment and receiver.•
Connect the equipment into an outlet on a circuit different from that to which the receiver•
is connected.
Consult the dealer or an experienced radio/TV technician for help.•
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and
do not represent an endorsement of a product or service by StarTech.com, or an en-
dorsement of the product(s) to which this manual applies by the third-party company in
question. Regardless of any direct acknowledgement elsewhere in the body of this doc-
ument, StarTech.com hereby acknowledges that all trademarks, registered trademarks,
service marks, and other protected names and/or symbols contained in this manual and
related documents are the property of their respective holders.

Instruction Manual
i
Instruction Manual
Table of Contents
Introduction .................................................................... 1
Features......................................................................................1
Package Contents .....................................................................1
Installation....................................................................... 2
DIN Rail Mounting......................................................................2
Connecting to Power.................................................................2
Network Connection..................................................................2
LED Displays ................................................................... 3
Specifications.................................................................. 4
Technical Support........................................................... 6
Warranty Information...................................................... 6

Instruction Manual
1
Introduction
Thank you for purchasing the StarTech.com IES5100 5-Port Industrial
Ethernet Switch. This 5 port (unmanaged) Industrial Ethernet Switch is
designed to operate in harsh environments, making it an ideal solution
for factory floors, warehouses, and outdoor locations without temperature
control.
Features
Device powers from the Terminal Block power connector•
Din-Rail mounting•
Store-and-forward mechanism•
Supports 10BaseT/100BaseTX and Full-Duplex/Half-Duplex Auto-•
negotiation function
Supports 10/100BaseTX and Full-Duplex/Half-Duplex Auto-negotiation•
function
Supports 2048 Mac addresses•
Supports IEEE802.3/802.3u/802.3X•
Package Contents
1 x IES5100 5 Port Ethernet Switch•
1 x Instruction Manual•

Instruction Manual
2
Installation
DIN Rail Mounting
Lower the IES5100 onto the DIN Rail from above using the free slot.1.
Push the front of the switch onto the mount until a click is heard.2.
Connecting to Power
Connect the DC power cord to the terminal block connector on the rear1.
of the IES5100. Connect the power cord to a standard wall outlet.
Network Connection
Ensure that both the IES5100 and any devices that are to be con-1.
nected to it are powered off.
Prepare the necessary cabling for each device that is to be attached to2.
the IES5100. Use the following chart as reference for cabling types:
Speed Connector
Port Speed-
Half/Full
Duplex
Cable Max.
Distance
10Base-T RJ-45 10/20 Mbps
2-pair UTP/
STP Cat.
3, 4, 5
100 m
100Base-TX RJ-45 100/200
Mbps
2-pair
UTP/STP
Cat. 5
100 m
100Base-FX SC, ST 100/200
Mbps
MMF (50
or 62.5μm) 2 km
100Base-FX SC, ST 100/200
Mbps
SMF (9 or
10μm)
15, 40, or
75 km

Instruction Manual
3
Connect the cable to both the IES5100 and attached devices and turn3.
them on.
Check to ensure that both devices are transmitting and receiving data4.
by checking their LED displays. (See next section for details)
LED Displays
The IES5100 has LED indicators for each of the ports on the switch to
show information on network connections.
LED State Indication
LNK/ACT
Steady Valid network con-
nection established
Flashing Transmitting or
receiving data
100
Steady Port is transferring
at 100Mbps
Off
Port is transferring
at 10Mbps or is not
transferring

Instruction Manual
4
Specications
Applicable Standards IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX/FX
Switching Method Store-and-Forward
Forwarding Rate
10Base-T:
100Base-TX/FX:
10 / 20Mbps half / full-duplex
100 / 200Mbps half / full-duplex
Performance 148,80pps for 10Mbps
148,810pps for 100Mbps
Cable
10Base-T:
100Base-TX:
100Base-FX:
2-pair UTP/STP Cat. 3, 4, 5
2-pair UTP/STP Cat. 5
Up to 100m (328ft)
MMF (50 or 62.5μm), SMF (9
or10μm
LED Indicators
Per unit – Power status (PWR)
Per port – 10/100TX or 100FX -
LNK/ACT (Green), 100 (Yellow)
Dimensions
26mm (W) × 70mm (D) ×
110mm (H)
(1.02” (W) × 2.76” (D) × 4.33”
(H)
Net Weight 0.2Kg (0.44lb.)
Power Terminal Block: 12-48VDC
Power Consumption 2.4W Max.

Instruction Manual
5
Operating Voltage &
Max. Current Use
0.2A @ 12VDC, 0.1A @ 24VDC,
0.05A @ 48VDC
Operating Temperature -10° C to 60° C (14° F to 140 ° F)
Storage Temperature -25° C to 85° C (-13 °F to 185 °F)
Humidity 5%-95% non-condensing
Safety UL60950-1, EN60950-1,
IEC60950-1
EMI
FCC Part 15, Class A
EN61000-6-3:
EN55022, EN61000-3-2,
EN61000-3-3
EMS
EN61000-6-2:
EN61000-4-2 (ESD Standard)
EN61000-4-3 (Radiated RFI
Standards)
EN61000-4-4 (Burst Standards)
EN61000-4-5 (Surge Standards)
EN61000-4-6 (Induced RFI
Standards)
EN61000-4-8 (Magnetic Field
Standards)
EN61000-4-11 (Voltage Dips
Standards)
Environmental Test
Compliance
IEC60068-2-6 Fc (Vibration
Resistance)
IEC60068-2-27 Ea (Shock)
IEC60068-2-32 Ed (Free Fall)

Instruction Manual
6
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commit-
ment to provide industry-leading solutions. If you ever need help with your
product, visit www.startech.com/support and access our comprehensive
selection of online tools, documentation, and downloads.
Warranty Information
This product is backed by a one year warranty.
In addition, StarTech.com warrants its products against defects in materi-
als and workmanship for the periods noted, following the initial date of
purchase. During this period, the products may be returned for repair,
or replacement with equivalent products at our discretion. The warranty
covers parts and labor costs only. StarTech.com does not warrant its
products from defects or damages arising from misuse, abuse, alteration,
or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA
LLP (or their officers, directors, employees or agents) for any damages
(whether direct or indirect, special, punitive, incidental, consequential, or
otherwise), loss of profits, loss of business, or any pecuniary loss, arising
out of or related to the use of the product exceed the actual price paid
for the product. Some states do not allow the exclusion or limitation of
incidental or consequential damages. If such laws apply, the limitations or
exclusions contained in this statement may not apply to you.
