StarTech.com PEX4M2E1 User manual

Quick start guide
FR: Guide de l’utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l’uso - it.startech.com
Manual Revision: 09/10/2019
For the latest information, technical specications, and support for
this product, please visit www.startech.com/PEX4M2E1.
Packaging contents
• 1 x PCI Express® adapter card to M.2 NVMe PCIe SSD
• 1 x low-prole bracket
• 1 x full-prole bracket (pre-installed)
• 1 x SSD stando and installation screw
• 1 x quick start guide
System requirements
• PCI Express M.2 NGFF SSD
• Computer system with a x4 or larger slot
• Phillips head screwdriver
• Small set of pliers
The PEX4M2E1 is OS independent and doesn’t require any additional
drivers or software.
Note: Some drives are not compatible with certain operating
systems. Before you install a drive in the adapter, check with the
drive manufacturer to make sure that the drive is compatible with
the OS that your computer system is running.
System requirements are subject to change. For the latest
requirements, please visit www.startech.com/PEX4M2E1.
PEX4M2E1
x4 PCIe Expansion Card to M.2 PCIe SSD Adapter
*actual product may vary from photos
Product diagram
Mounting bracket
(full-prole bracket pictured)
SSD stando and
installation screw
PCIe x4
connector
Drive installation holes
M.2 NGFF connector
Install a drive in the adapter
Warning! Drives and adapters should be handled carefully,
especially when they’re transported. If you’re not careful with your
drives, you may lose data as a result. Always handle storage devices
with caution. Make sure that you’re properly grounded by wearing
an anti-static strap when you install any computer component. If an
anti-static strap isn’t available, touch a large grounded metal surface
for several seconds to discharge any built-up static electricity.
1. Depending on the length of the drive that you want to install, you
may need to move the preinstalled SSD stando and installation
screw. Place your drive next to the adapter and note the drive
installation hole that matches the height of your drive. If the SSD
stando and installation screw are already installed in the correct
position, proceed to step 6.
2. On the back of the PEX4M2E1, use a small set of pliers to remove
the nut that is holding the SSD stando and installation screw in
place.
3. On the front of the adapter, remove the SSD stando and
installation screw.
4. Place the SSD stando in the drive installation hole that matches
the length of your drive.
5. Replace the nut that you removed in step 2 and tighten it in place.
6. Gently slide the M.2 connector on the drive into the
corresponding connector on the adapter and press the drive
down toward the adapter until the drive is in place.
Note: The connector on your drive is keyed so that it only ts in the
adapter one way.
7. Insert the installation screw into the SSD stando and tighten it
into place.
Install the low-prole bracket
The PEX4M2E1 can be mounted in both low-prole and full-prole
computer systems. The full-prole bracket comes preinstalled in the
adapter but you can install the low-prole bracket instead.
1. Use a Phillips head screwdriver to remove the two bracket screws
from the PEX4M2E1.
2. Remove the full-prole bracket from the adapter.
3. Line up the low-prole bracket with the bracket holes on the back
of the adapter.
4. Insert the two bracket screws you removed in step 1 and tighten
them in place.
Bracket
screws
Install the adapter in a computer
1. Turn o the computer that you want to install the PEX4M2E1 into.
2. Remove the case from your computer. For more information
about how to properly do this, consult the documentation that
came with your computer system.
3. Place the adapter into an available expansion slot.
4. Insert a computer case screw (not included) into the case-
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void the user’s authority to operate the
equipment.
Industry Canada Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.
CAN ICES-3 (B)/NMB-3(B)
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)
to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all
trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and
access our comprehensive selection of online tools, documentation, and downloads.
For the latest drivers/software, please visit www.startech.com/downloads
Warranty Information
This product is backed by a two-year warranty.
StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for
repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from
misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,
consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not
allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
mounting hole on the bracket and turn it clockwise to tighten it
into place.
5. Replace the cover on your computer system and turn on your
computer.
When you install the adapter into your computer and the OS
automatically installs the necessary software, the drive is accessible
as though it’s installed internally in the system. Before you use the
drive, you need to prepare it for use and format it according to the
requirements of your OS. For more information, see the Prepare a
drive for use topic.
Prepare a drive for use
Windows® OS
If you install a drive that already has data on it, after you insert the
drive, it appears under My Computer or Computer with a drive letter
assigned to it. If you install a brand-new drive that doesn’t contain
any data, you must prepare the drive for use.
Warning! When you complete the following steps, all of the data
on your drive will be deleted. If your drive has data on it that you
require, you should create a backup le or use a dierent drive.
1. Depending on the version of OS that you’re running, do one of
the following:
• On your desktop, right-click My Computer and click Manage.
• On your desktop, right-click Computer and click Manage.
• Click the Start button or Windows icon. Enter compmgmt.msc
and press Enter.
2. On the Computer Management screen, click Disk Management.
3. A dialog window appears that asks you to initialize the drive.
Depending on the version of Windows that you’re running, you
have the option to create either an MBR or a GPT disk.
Note: GPT (GUID partition) is required for drives that are larger
than 2 TB, but GPT isn’t compatible with some earlier versions of
operating systems. MBR is supported by both earlier and later
versions of operating systems.
4. Locate the disk that is labeled as Unallocated. To conrm that the
drive is the correct one, check the drive capacity.
5. Right-click the section of the window that says Unallocated and
click New Partition.
6. To initialize the drive in the format of your choice, complete
the on-screen instructions.
When the drive is successfully installed, it appears under My
Computer or Computer with a drive letter assigned to it.
Mac OS
Warning! When you complete the following steps, all of the data
on your drive will be deleted. If your drive has data on it that you
require, you should create a backup le or use a dierent drive.
1. Do one of the following:
• In Spotlight, enter Disk Utility.
• Open Finder. Navigate to Applications and click Utilities. Open
Disk Utility.
2. Select the new drive and click the Partition tab.
3. Enter a name for the partition.
4. Click Apply.
The drive should now appear on your desktop and be accessible in
Finder.

Other StarTech.com PCI Card manuals

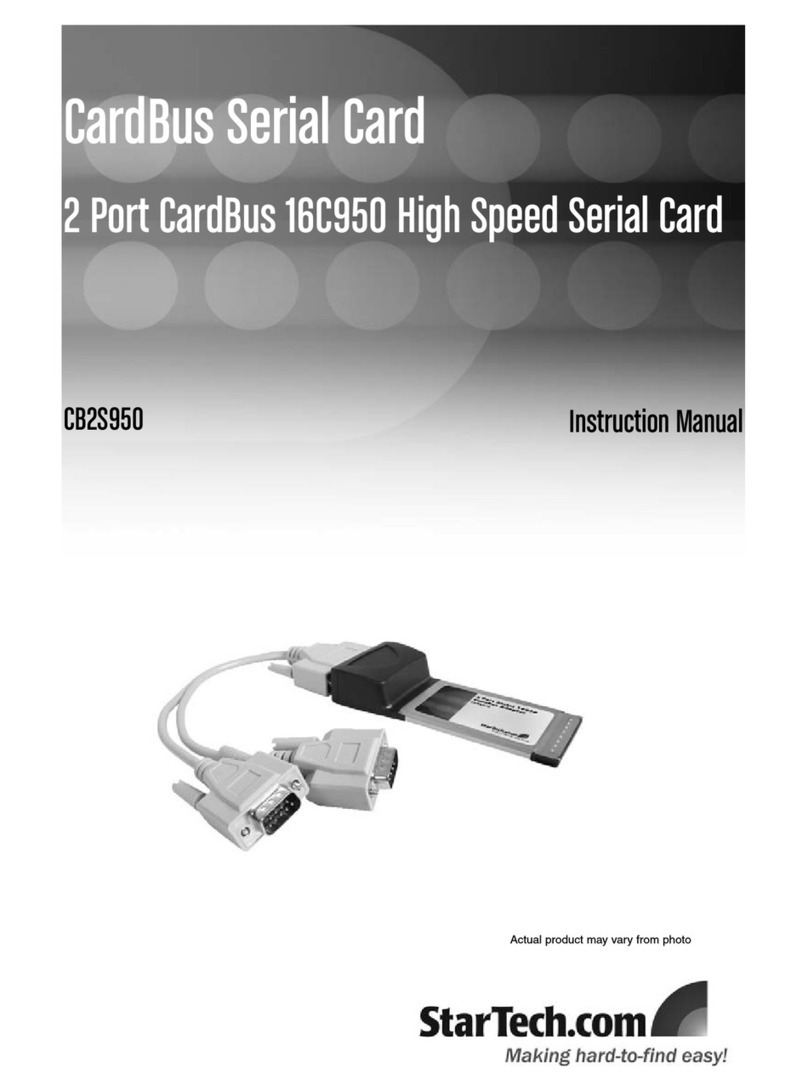

StarTech.com CB2S950 User manual

StarTech.com

StarTech.com CB2S950 User manual

StarTech.com ST10GSPEXNB User manual

StarTech.com

StarTech.com ST10GSPEXNB User manual

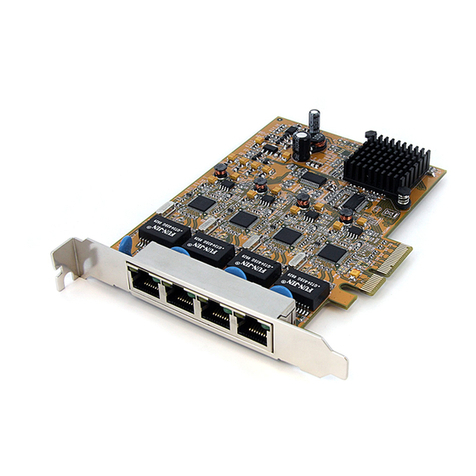

StarTech.com ST1000SPEX4 User manual

StarTech.com

StarTech.com ST1000SPEX4 User manual

StarTech.com PCI1P_LP User manual

StarTech.com

StarTech.com PCI1P_LP User manual

StarTech.com PCI4S422ISO Manual

StarTech.com

StarTech.com PCI4S422ISO Manual

StarTech.com 8STPEXUSB3S25 User manual

StarTech.com

StarTech.com 8STPEXUSB3S25 User manual

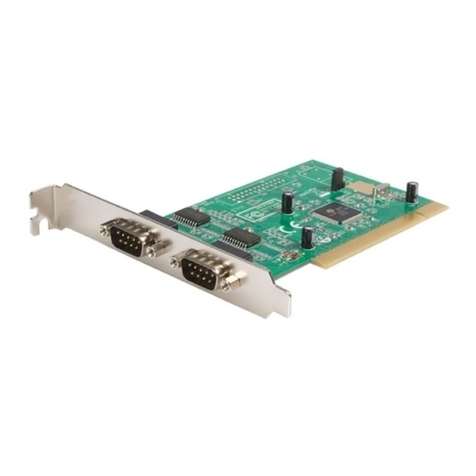

StarTech.com PCI2S950 User manual

StarTech.com

StarTech.com PCI2S950 User manual

StarTech.com ISA2S550 Manual

StarTech.com

StarTech.com ISA2S550 Manual

StarTech.com PCI1P2 User manual

StarTech.com

StarTech.com PCI1P2 User manual

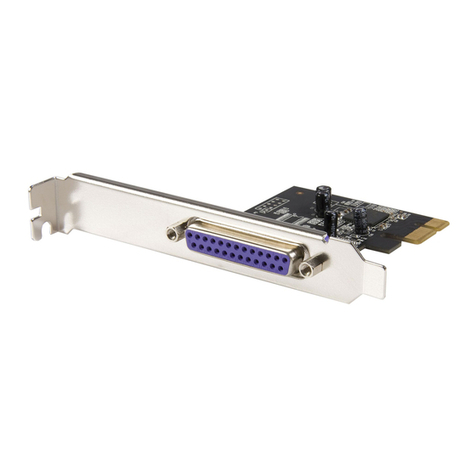

StarTech.com PEX1PECP User manual

StarTech.com

StarTech.com PEX1PECP User manual

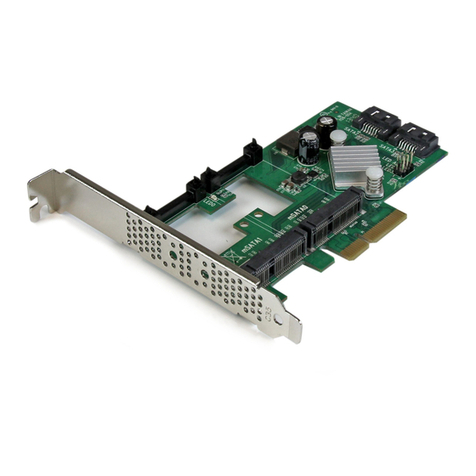

StarTech.com PEXMSATA3422 User manual

StarTech.com

StarTech.com PEXMSATA3422 User manual

StarTech.com PEXUSB3S7 User manual

StarTech.com

StarTech.com PEXUSB3S7 User manual

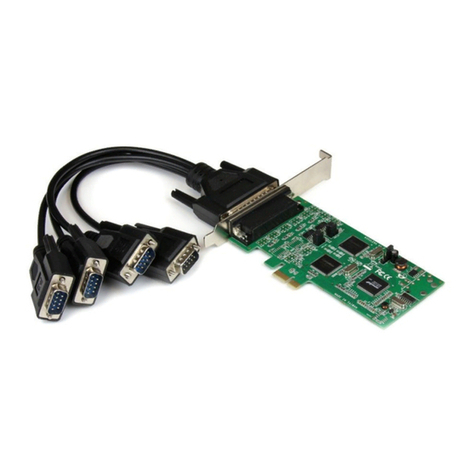

StarTech.com PEX4S232485 User manual

StarTech.com

StarTech.com PEX4S232485 User manual

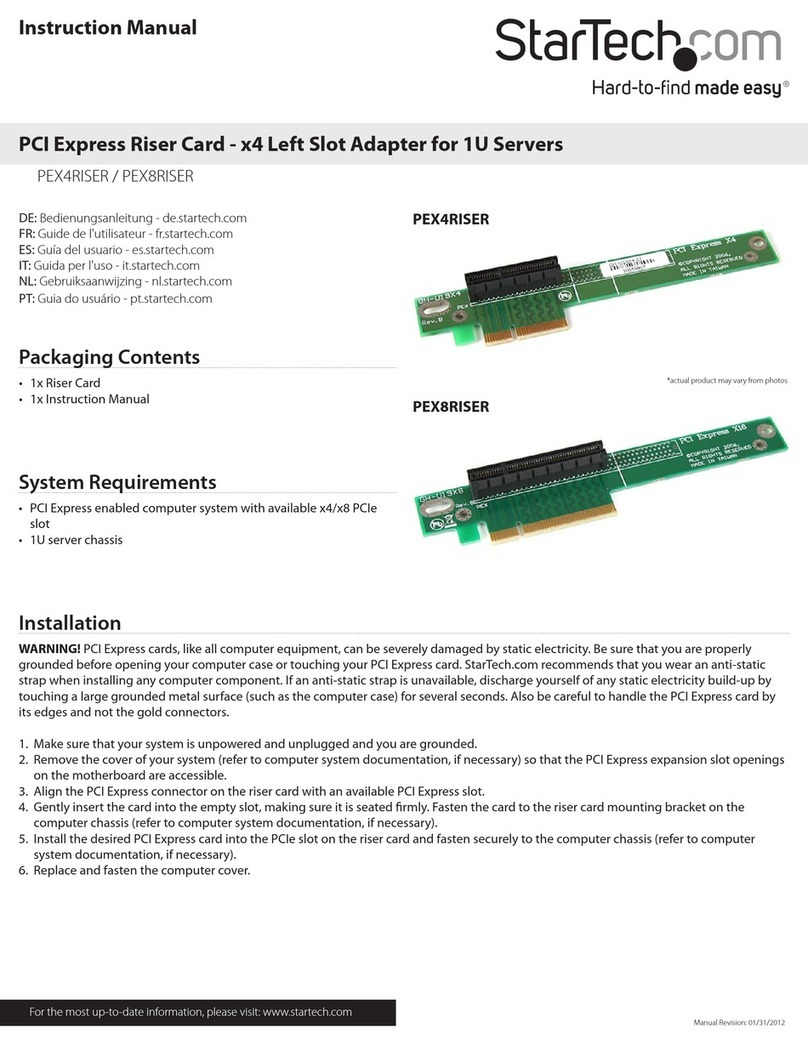

StarTech.com PEX4RISER User manual

StarTech.com

StarTech.com PEX4RISER User manual

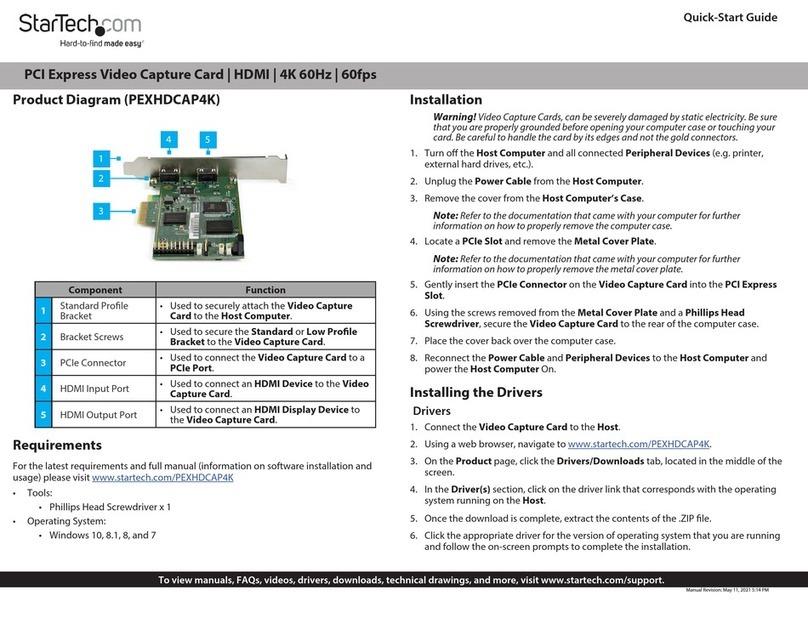

StarTech.com PEXHDCAP4K User manual

StarTech.com

StarTech.com PEXHDCAP4K User manual

StarTech.com PEXESAT322I User manual

StarTech.com

StarTech.com PEXESAT322I User manual

StarTech.com USB2HDCAPM User manual

StarTech.com

StarTech.com USB2HDCAPM User manual

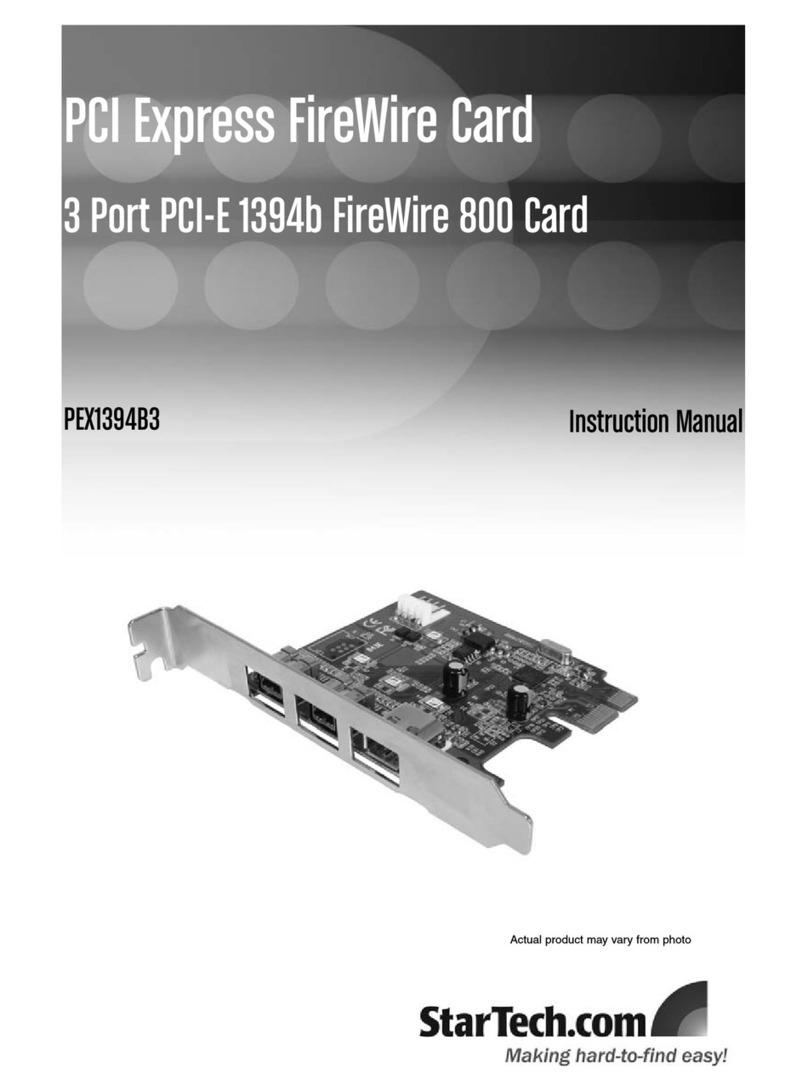

StarTech.com PEX1394B3 User manual

StarTech.com

StarTech.com PEX1394B3 User manual

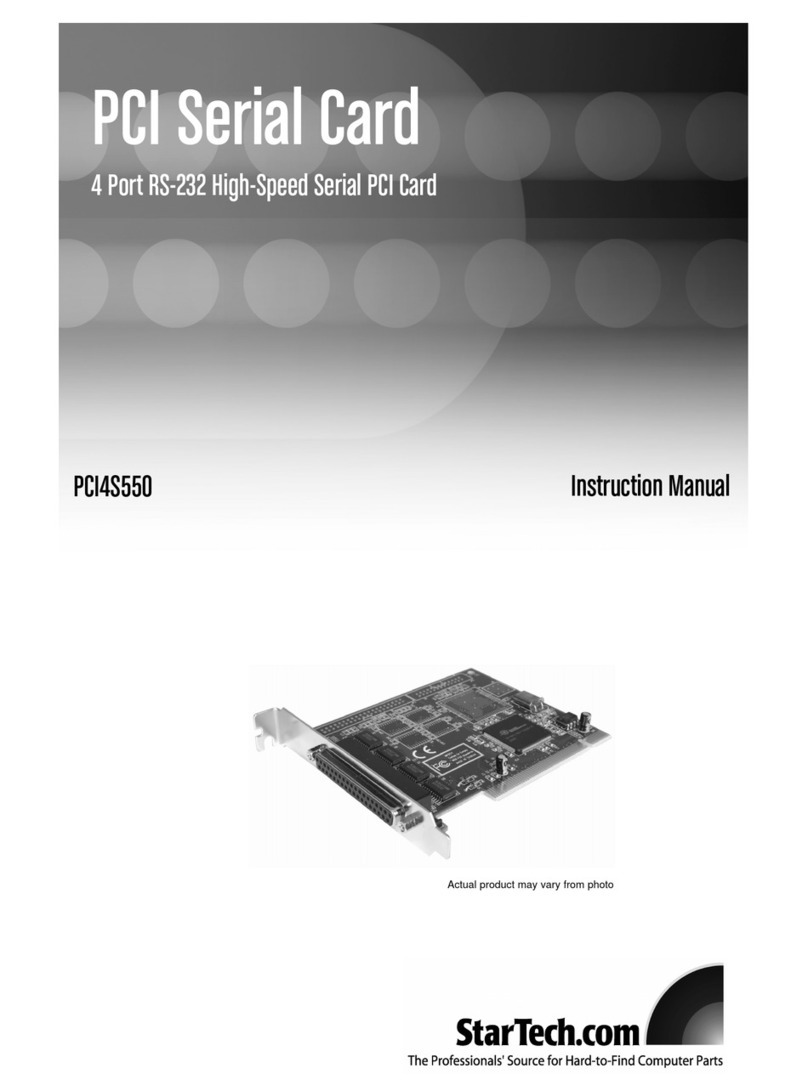

StarTech.com PCI4S550 User manual

StarTech.com

StarTech.com PCI4S550 User manual

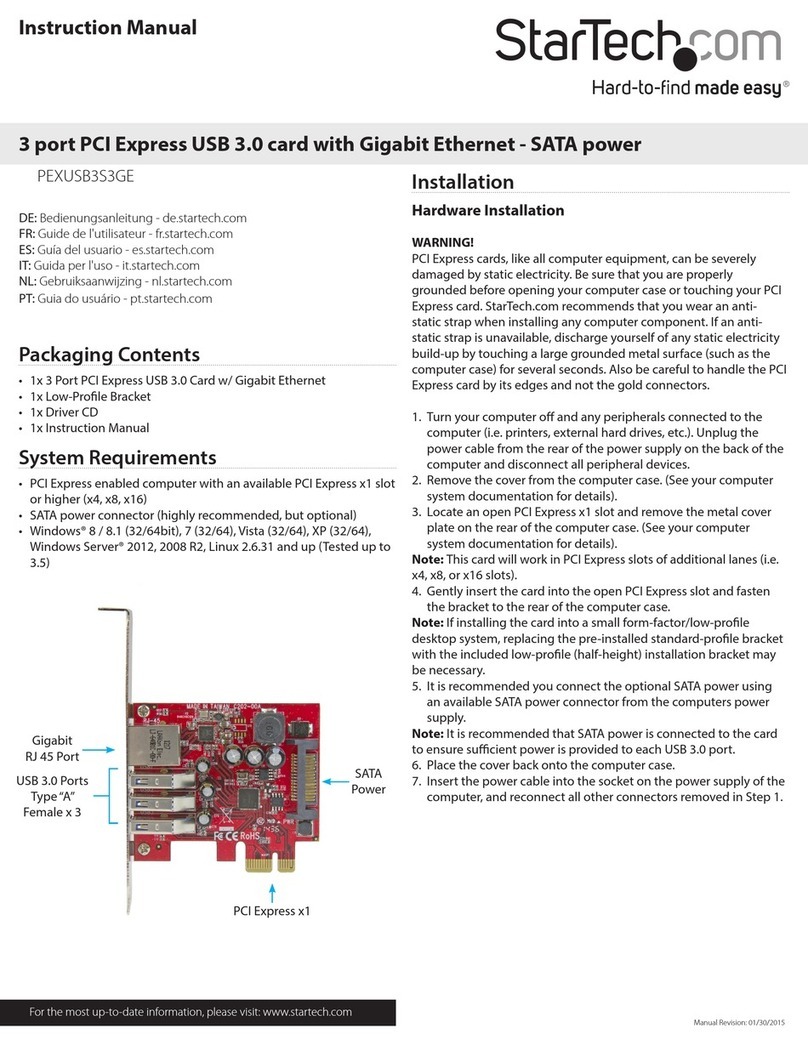

StarTech.com PEXUSB3S3GE User manual

StarTech.com

StarTech.com PEXUSB3S3GE User manual

StarTech.com USB32HDCAPRO User manual

StarTech.com

StarTech.com USB32HDCAPRO User manual

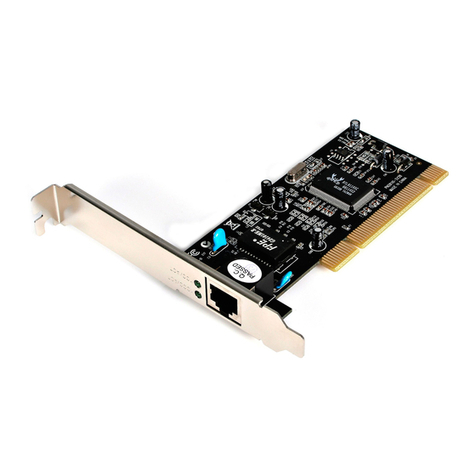

StarTech.com ST1000BT32 User manual

StarTech.com

StarTech.com ST1000BT32 User manual

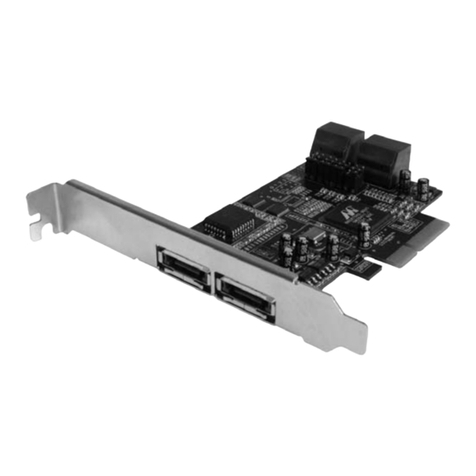

StarTech.com PEXSATA24E User manual

StarTech.com

StarTech.com PEXSATA24E User manual

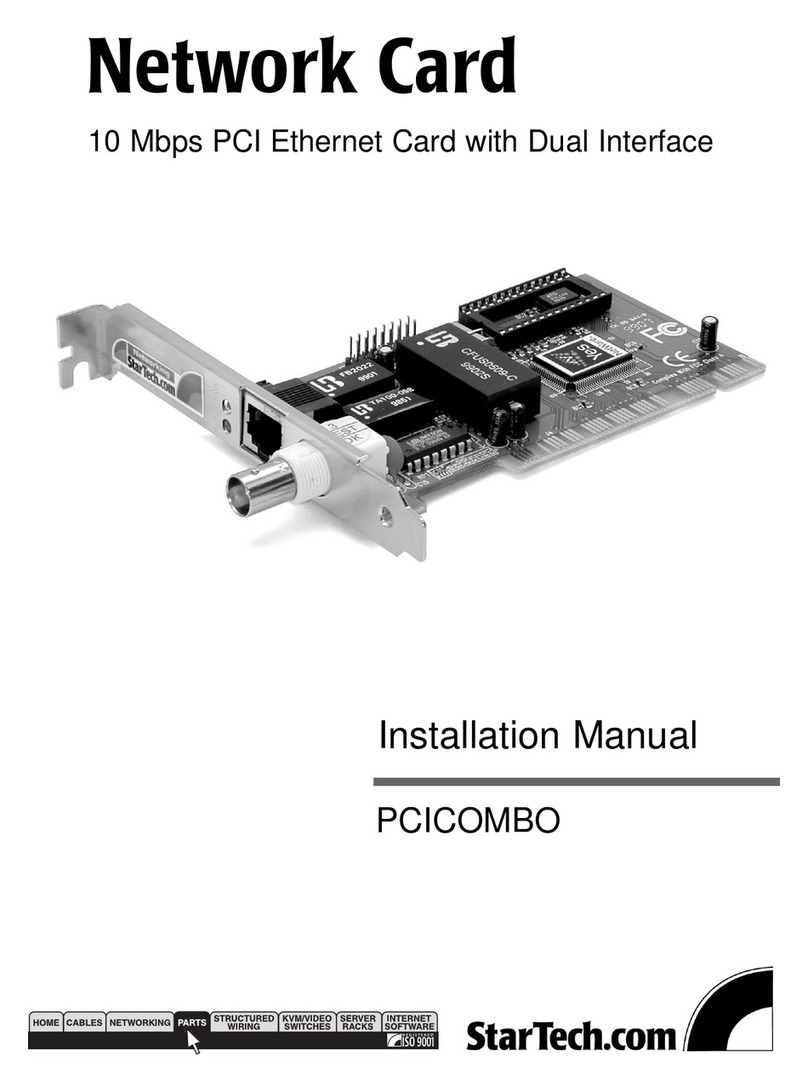

StarTech.com PCICOMBO User manual

StarTech.com

StarTech.com PCICOMBO User manual

Popular PCI Card manuals by other brands

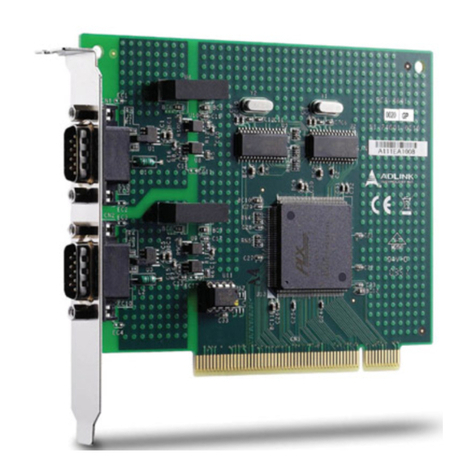

ADLINK Technology NuCOM PCI-7841 user manual

ADLINK Technology

ADLINK Technology NuCOM PCI-7841 user manual

Avermedia LIVE STREAMER ULTRA HD GC571 Reviewer's guide

Avermedia

Avermedia LIVE STREAMER ULTRA HD GC571 Reviewer's guide

NETGEAR FA311 - 10/100Mbps PCI Ethernet Interface... installation guide

NETGEAR

NETGEAR FA311 - 10/100Mbps PCI Ethernet Interface... installation guide

AAxeon USB2.0 installation guide

AAxeon

AAxeon USB2.0 installation guide

HP 673642-B21 specification

HP

HP 673642-B21 specification

Microhard Systems pMDDL2350 operating manual

Microhard Systems

Microhard Systems pMDDL2350 operating manual

General Standards Corporation PCIe-24DSI32 Reference manual

General Standards Corporation

General Standards Corporation PCIe-24DSI32 Reference manual

Sun Microsystems FASTETHERNET 6U Installation and user guide

Sun Microsystems

Sun Microsystems FASTETHERNET 6U Installation and user guide

Vantec UGT-ST310R user manual

Vantec

Vantec UGT-ST310R user manual

Digitus DS-30000-1 manual

Digitus

Digitus DS-30000-1 manual

Comtrol RocketPort 485 Series Hardware Installation Card

Comtrol

Comtrol RocketPort 485 Series Hardware Installation Card

ParkerVision miniPCI1500 user guide

ParkerVision

ParkerVision miniPCI1500 user guide

IEI Technology IVCE-C604 user manual

IEI Technology

IEI Technology IVCE-C604 user manual

ANTAIRA MSC-208A installation guide

ANTAIRA

ANTAIRA MSC-208A installation guide

Socionext M820L user manual

Socionext

Socionext M820L user manual

Advantech PCI-1243U user manual

Advantech

Advantech PCI-1243U user manual

HP 4X - DDR InfiniBand Mezzanine HCA Read this first

HP

HP 4X - DDR InfiniBand Mezzanine HCA Read this first

Boca Systems BOCALANcard-PCI installation guide

Boca Systems

Boca Systems BOCALANcard-PCI installation guide

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
