Staxi Boarding Chair Guide

Boarding Chair
Owner’s Manual and Maintenance Instructions
Before using the staxi®Boarding Chair,
read this manual and follow all instructions and warnings.
Patent No.(US) 6,315,306 Patent No.(US) 6,161,848 Patent No.(US) 6,412,795 Patent No.(CAN) 2250184 Patent No.(EUR) P11385GBEP Patent No.(UK) EP0889709
Safest to UseHardest to StealStrongest Design Rolling out Excellence
Wow-Care™: Toll Free Phone [phone]
or +1 866 WOW 1463 Email: Wow[email protected]
Website: www.staxi.com

Contents
Contents 2
Introduction 3
Pre-Use Inspection Checks 4
Features 5
Safety Instructions 6
Cleaning & Maintenance 8

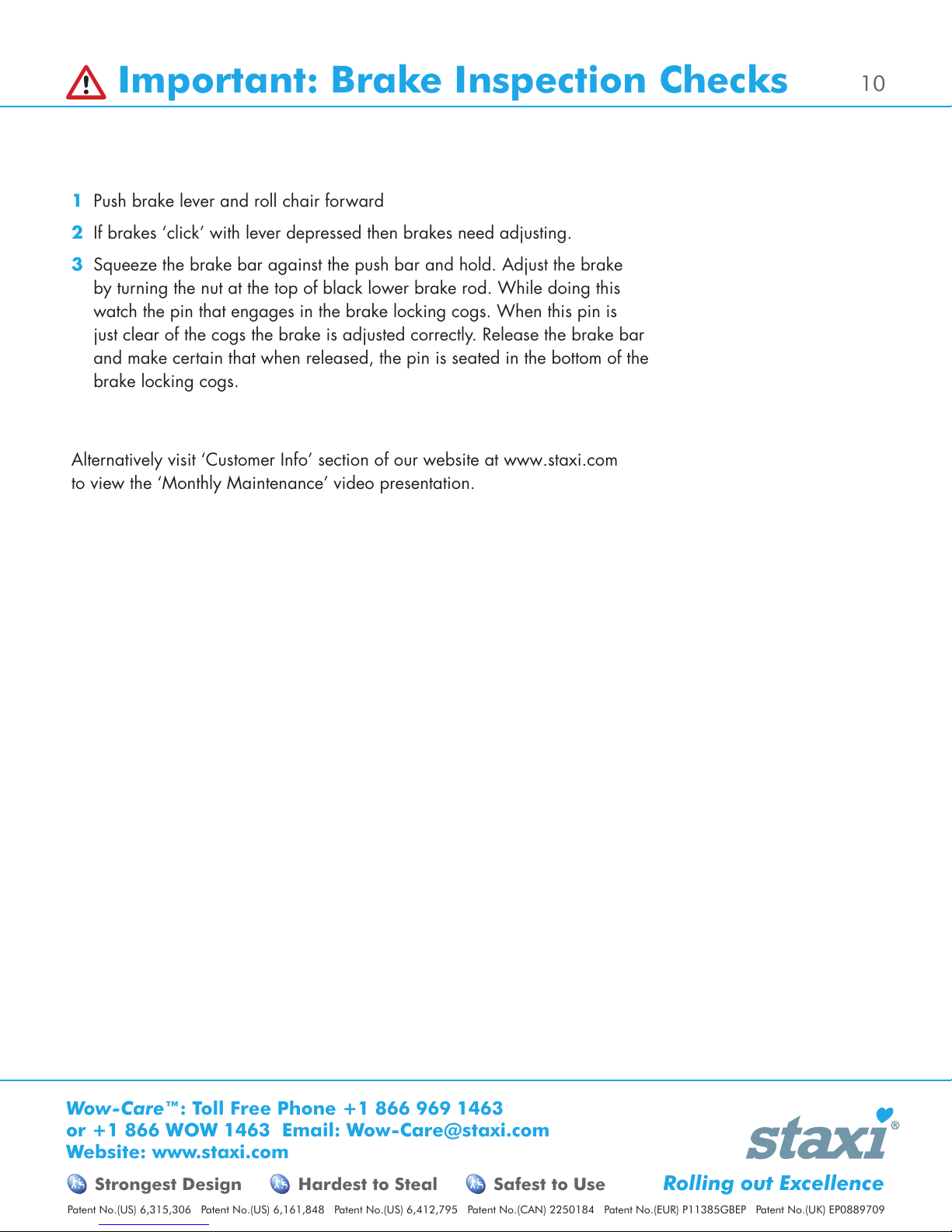

Brake Inspection Checks 10

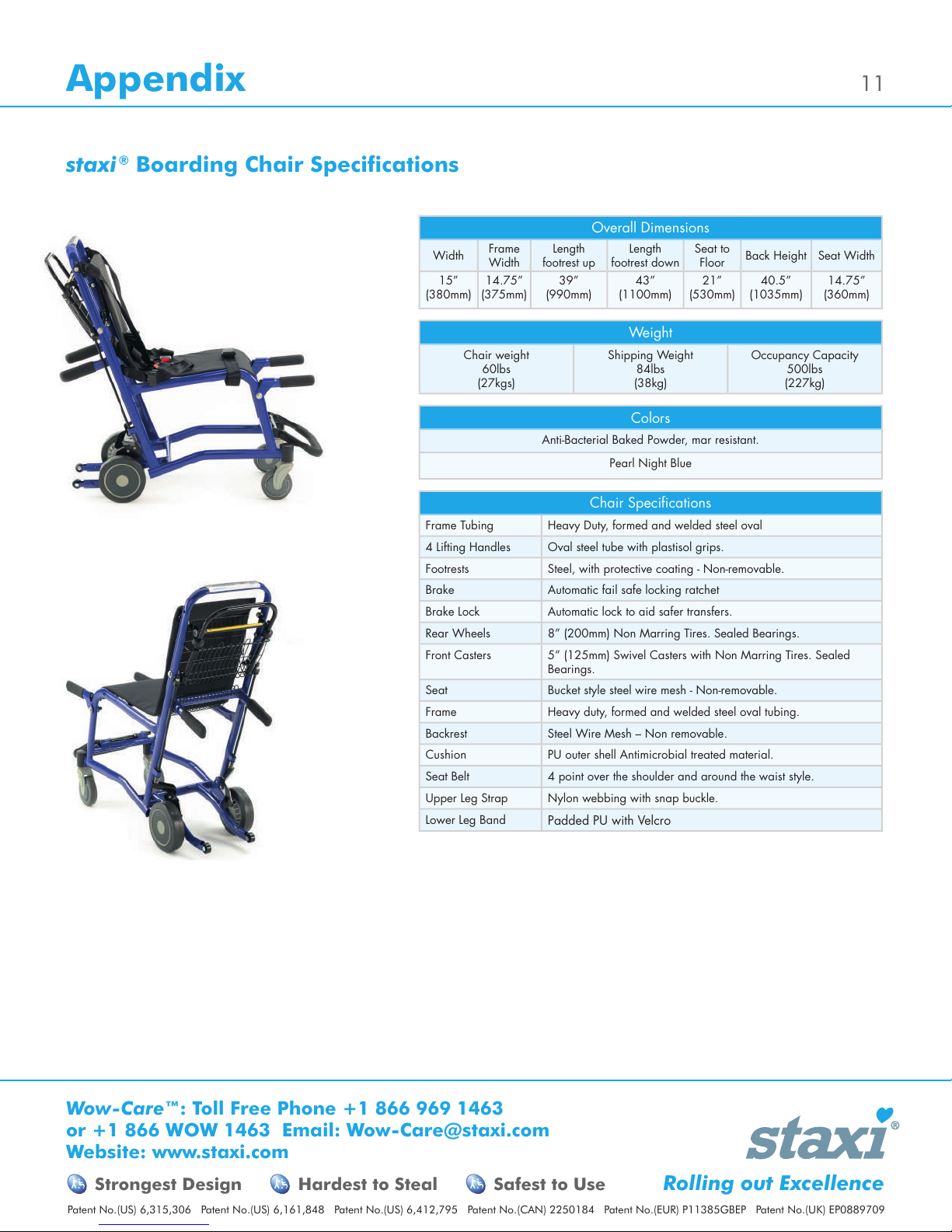

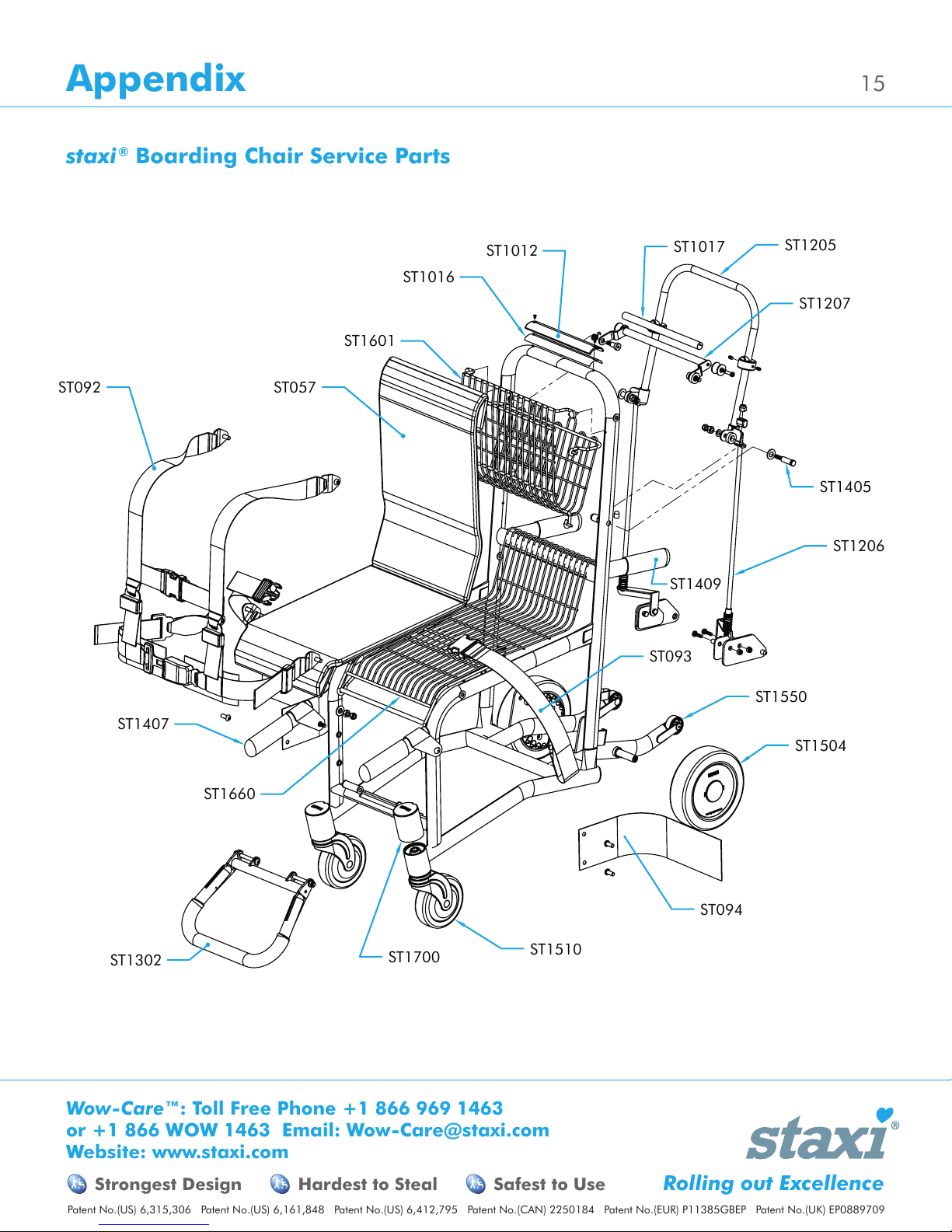

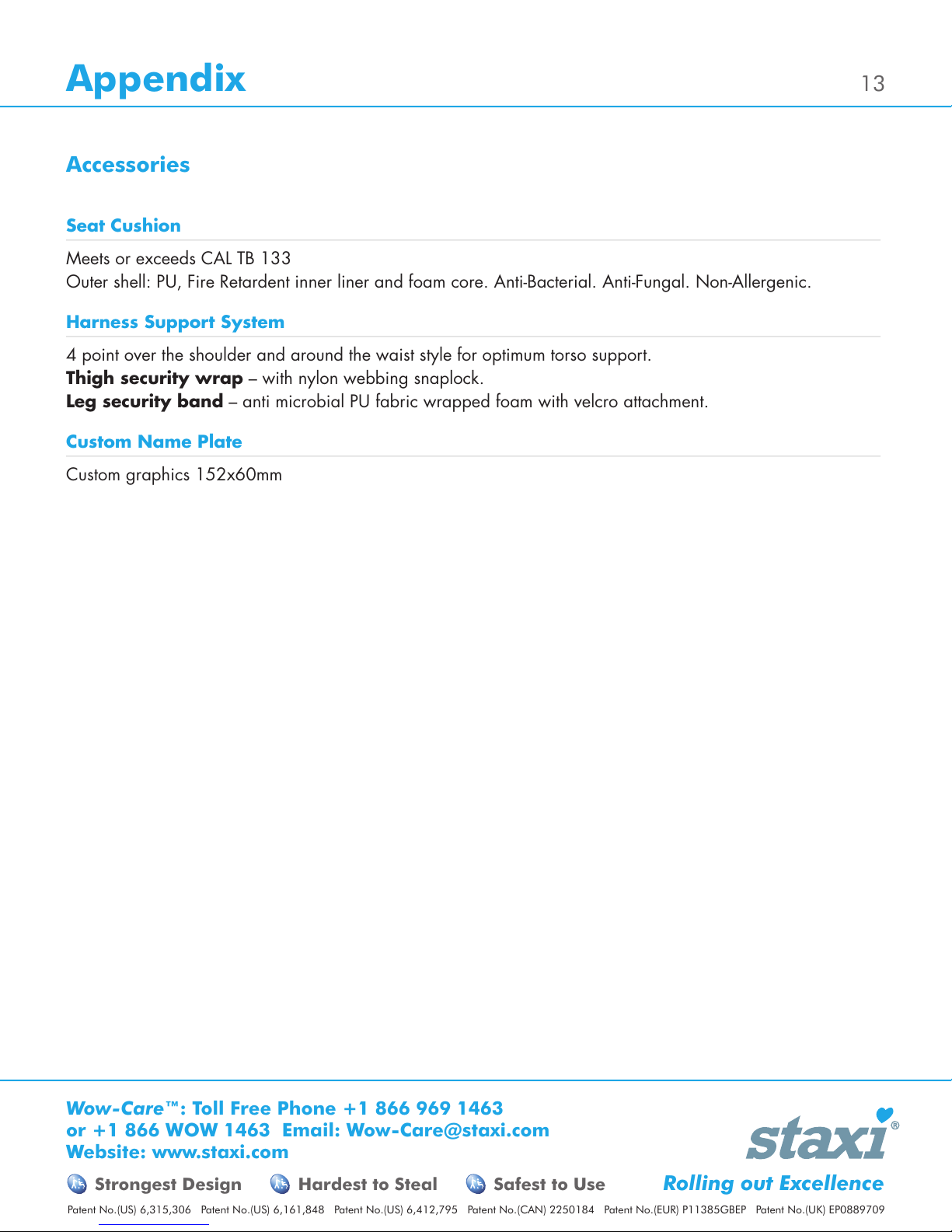

Appendix 11

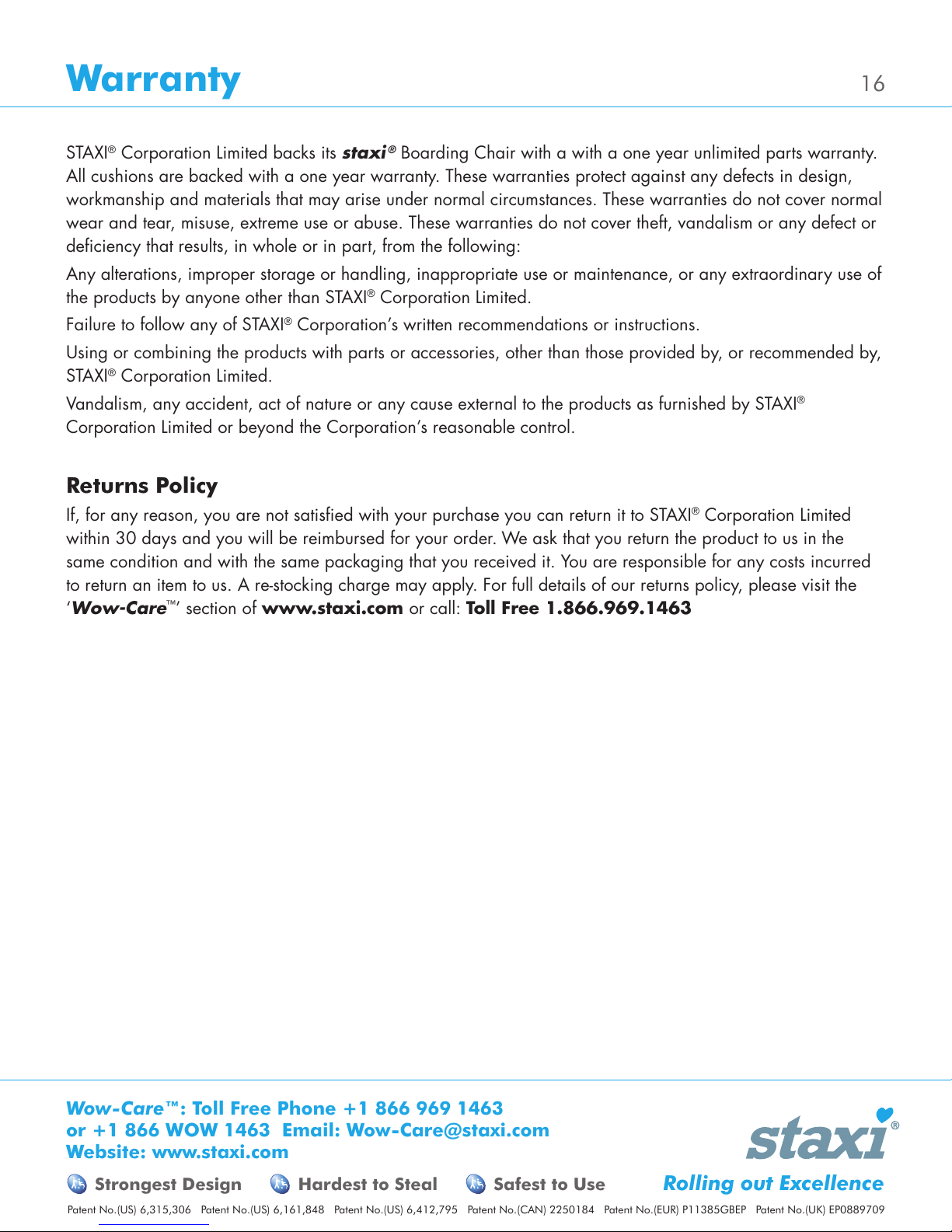

Warranty 16

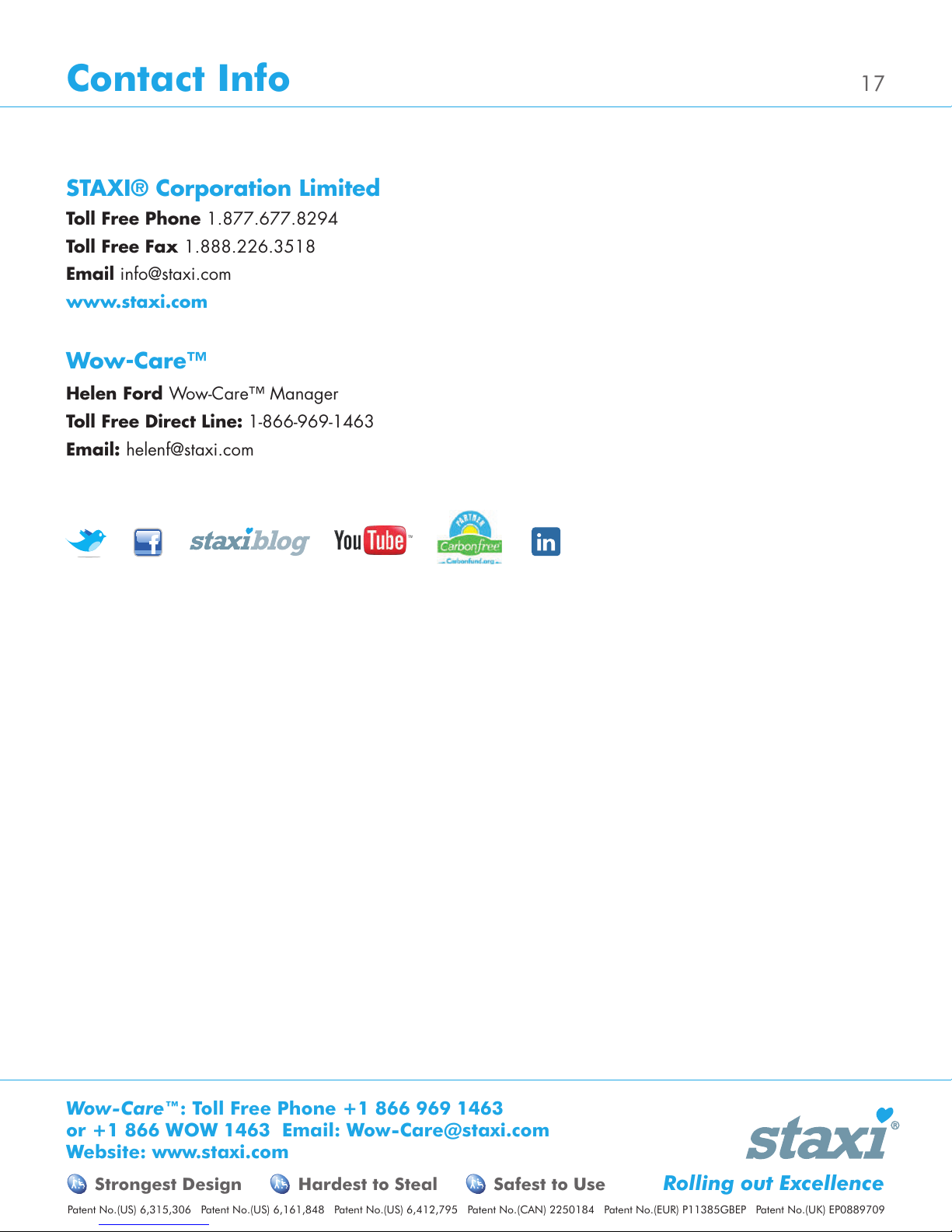

Contact Info 17
2
Patent No.(US) 6,315,306 Patent No.(US) 6,161,848 Patent No.(US) 6,412,795 Patent No.(CAN) 2250184 Patent No.(EUR) P11385GBEP Patent No.(UK) EP0889709
Safest to UseHardest to StealStrongest Design Rolling out Excellence
Wow-Care™: Toll Free Phone [phone]
or +1 866 WOW 1463 Email: Wow[email protected]
Website: www.staxi.com

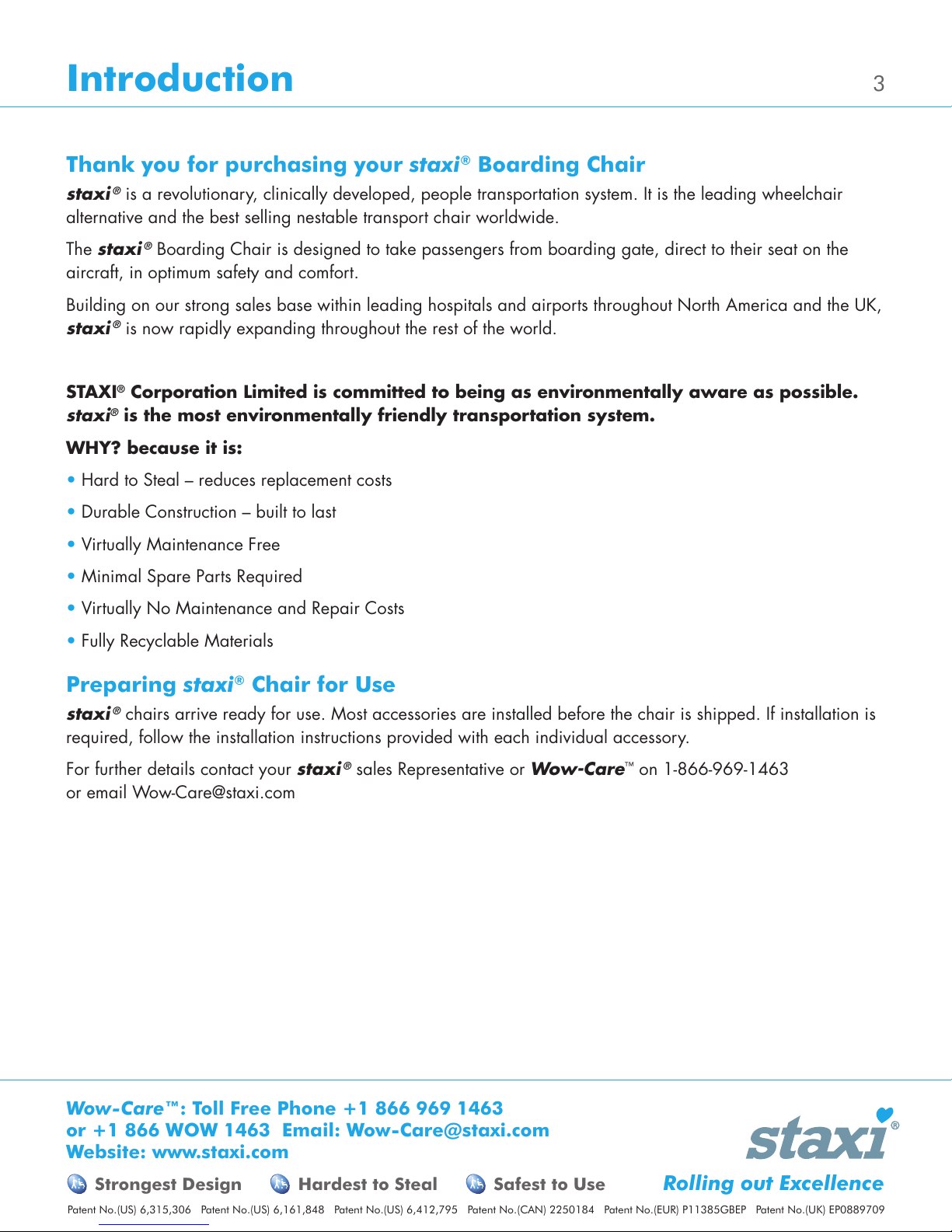

Introduction
Thank you for purchasing your staxi®Boarding Chair
staxi ®is a revolutionary, clinically developed, people transportation system. It is the leading wheelchair
alternative and the best selling nestable transport chair worldwide.
The staxi ®Boarding Chair is designed to take passengers from boarding gate, direct to their seat on the
aircraft, in optimum safety and comfort.
Building on our strong sales base within leading hospitals and airports throughout North America and the UK,
staxi ®is now rapidly expanding throughout the rest of the world.
STAXI®Corporation Limited is committed to being as environmentally aware as possible.
staxi®is the most environmentally friendly transportation system.
WHY? because it is:
•Hard to Steal – reduces replacement costs
•Durable Construction – built to last
•Virtually Maintenance Free
•Minimal Spare Parts Required
•Virtually No Maintenance and Repair Costs
•Fully Recyclable Materials
Preparing staxi®Chair for Use
staxi ®chairs arrive ready for use. Most accessories are installed before the chair is shipped. If installation is
required, follow the installation instructions provided with each individual accessory.
For further details contact your staxi ®sales Representative or Wow-Care™on 1-866-969-1463
or email W[email protected]
3
Patent No.(US) 6,315,306 Patent No.(US) 6,161,848 Patent No.(US) 6,412,795 Patent No.(CAN) 2250184 Patent No.(EUR) P11385GBEP Patent No.(UK) EP0889709
Safest to UseHardest to StealStrongest Design Rolling out Excellence
Wow-Care™: Toll Free Phone [phone]
or +1 866 WOW 1463 Email: Wow-[email protected]
Website: www.staxi.com

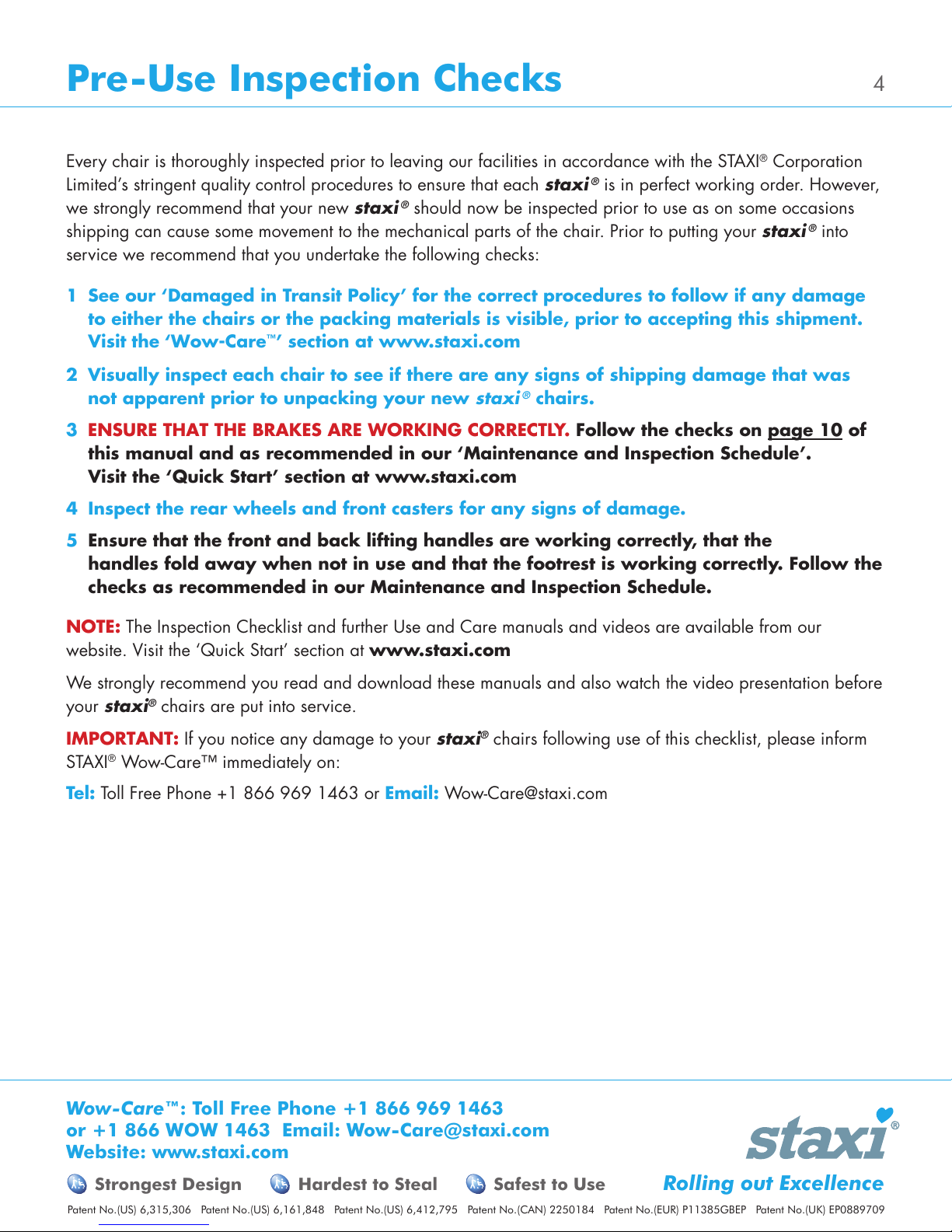

Pre-Use Inspection Checks
Every chair is thoroughly inspected prior to leaving our facilities in accordance with the STAXI®Corporation
Limited’s stringent quality control procedures to ensure that each staxi ®is in perfect working order. However,
we strongly recommend that your new staxi ®should now be inspected prior to use as on some occasions
shipping can cause some movement to the mechanical parts of the chair. Prior to putting your staxi ®into
service we recommend that you undertake the following checks:
1 See our ‘Damaged in Transit Policy’ for the correct procedures to follow if any damage
to either the chairs or the packing materials is visible, prior to accepting this shipment.
Visit the ‘Wow-Care™’ section at www.staxi.com
2 Visually inspect each chair to see if there are any signs of shipping damage that was
not apparent prior to unpacking your new staxi ®chairs.
3ENSURE THAT THE BRAKES ARE WORKING CORRECTLY.Follow the checks on page 10of
this manual and as recommended in our ‘Maintenance and Inspection Schedule’.
Visit the ‘Quick Start’ section at www.staxi.com
4 Inspect the rear wheels and front casters for any signs of damage.
5 Ensure that the front and back lifting handles are working correctly, that the
handles fold away when not in use and that the footrest is working correctly. Follow the
checks as recommended in our Maintenance and Inspection Schedule.
NOTE: The Inspection Checklist and further Use and Care manuals and videos are available from our
website. Visit the ‘Quick Start’ section at www.staxi.com
We strongly recommend you read and download these manuals and also watch the video presentation before
your staxi®chairs are put into service.
IMPORTANT: If you notice any damage to your staxi®chairs following use of this checklist, please inform
STAXI®Wow-Care™ immediately on:
Tel: Toll Free Phone [phone] or Email: W[email protected]
4
Patent No.(US) 6,315,306 Patent No.(US) 6,161,848 Patent No.(US) 6,412,795 Patent No.(CAN) 2250184 Patent No.(EUR) P11385GBEP Patent No.(UK) EP0889709
Safest to UseHardest to StealStrongest Design Rolling out Excellence
Wow-Care™: Toll Free Phone [phone]
or +1 866 WOW 1463 Email: Wow-[email protected]
Website: www.staxi.com

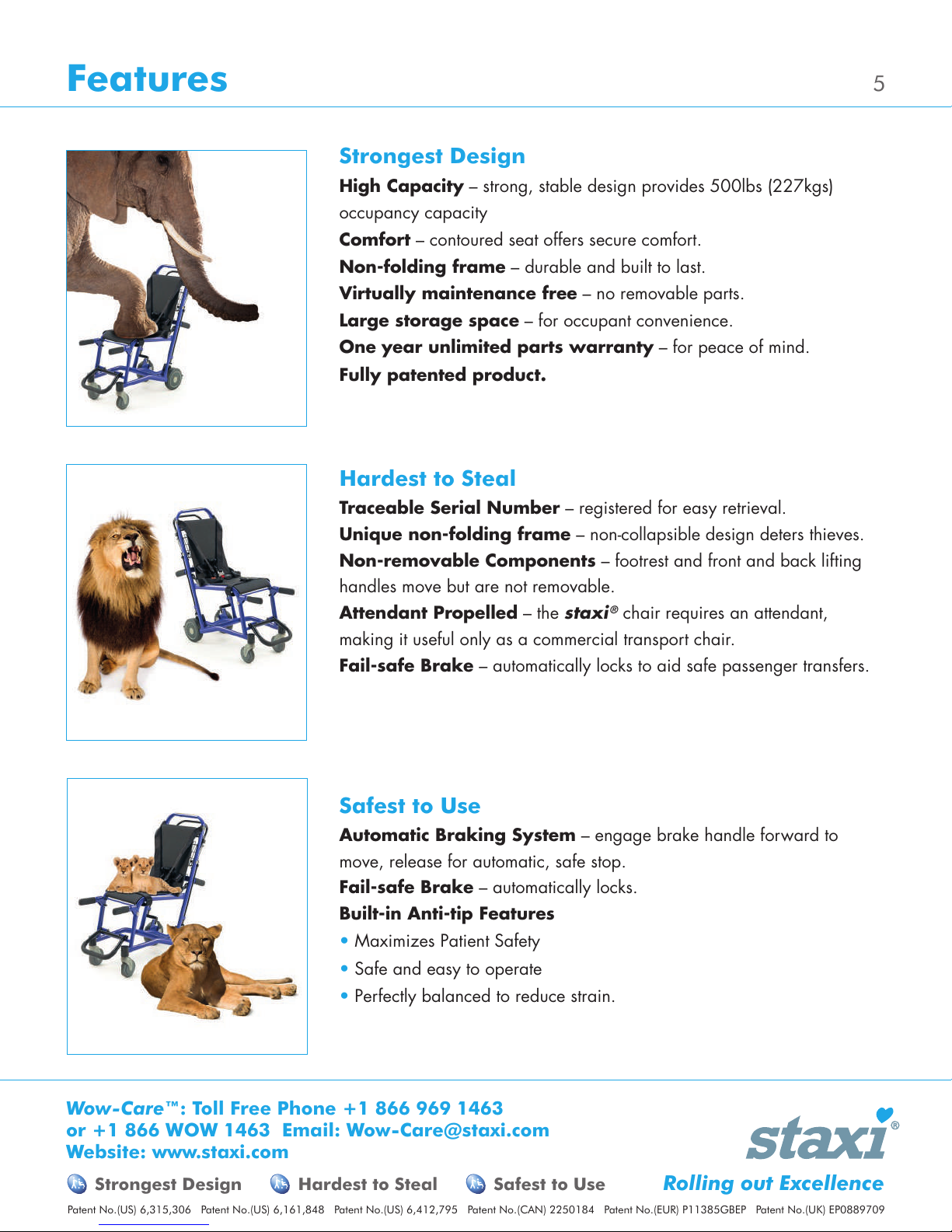

Features
Strongest Design
High Capacity – strong, stable design provides 500lbs (227kgs)
occupancy capacity
Comfort – contoured seat offers secure comfort.
Non-folding frame – durable and built to last.
Virtually maintenance free – no removable parts.
Large storage space – for occupant convenience.
One year unlimited parts warranty – for peace of mind.
Fully patented product.
Hardest to Steal
Traceable Serial Number – registered for easy retrieval.
Unique non-folding frame – non-collapsible design deters thieves.
Non-removable Components – footrest and front and back lifting
handles move but are not removable.
Attendant Propelled – the staxi®chair requires an attendant,
making it useful only as a commercial transport chair.
Fail-safe Brake – automatically locks to aid safe passenger transfers.
Safest to Use
Automatic Braking System – engage brake handle forward to
move, release for automatic, safe stop.
Fail-safe Brake – automatically locks.
Built-in Anti-tip Features
•Maximizes Patient Safety
•Safe and easy to operate
•Perfectly balanced to reduce strain.
5
Patent No.(US) 6,315,306 Patent No.(US) 6,161,848 Patent No.(US) 6,412,795 Patent No.(CAN) 2250184 Patent No.(EUR) P11385GBEP Patent No.(UK) EP0889709
Safest to UseHardest to StealStrongest Design Rolling out Excellence
Wow-Care™: Toll Free Phone [phone]
or +1 866 WOW 1463 Email: Wow-[email protected]
Website: www.staxi.com

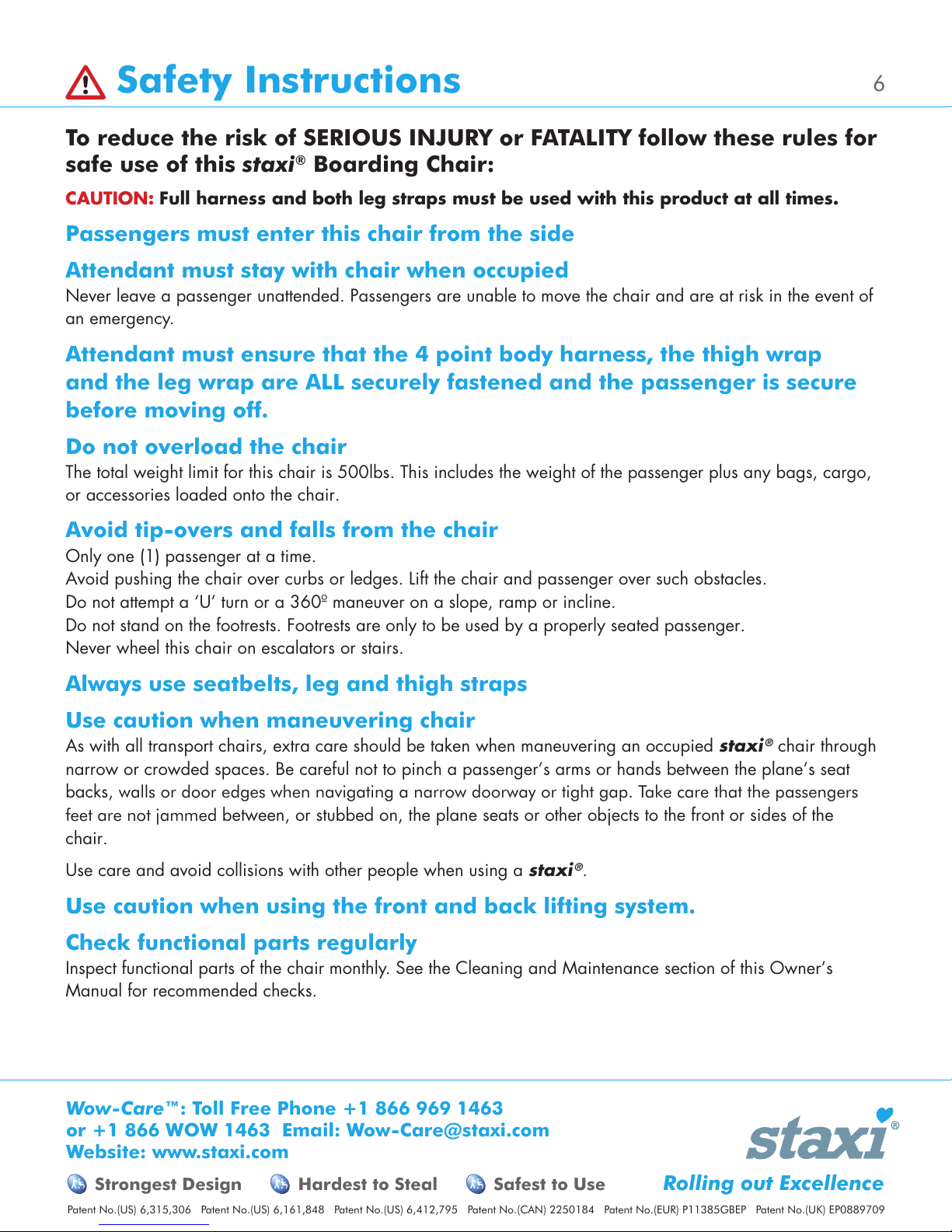

Safety Instructions
To reduce the risk of SERIOUS INJURY or FATALITY follow these rules for
safe use of this staxi®Boarding Chair:
CAUTION: Full harness and both leg straps must be used with this product at all times.
Passengers must enter this chair from the side
Attendant must stay with chair when occupied
Never leave a passenger unattended. Passengers are unable to move the chair and are at risk in the event of
an emergency.
Attendant must ensure that the 4 point body harness, the thigh wrap
and the leg wrap are ALL securely fastened and the passenger is secure
before moving off.
Do not overload the chair
The total weight limit for this chair is 500lbs. This includes the weight of the passenger plus any bags, cargo,
or accessories loaded onto the chair.
Avoid tip-overs and falls from the chair
Only one (1) passenger at a time.
Avoid pushing the chair over curbs or ledges. Lift the chair and passenger over such obstacles.
Do not attempt a ‘U’ turn or a 360º maneuver on a slope, ramp or incline.
Do not stand on the footrests. Footrests are only to be used by a properly seated passenger.
Never wheel this chair on escalators or stairs.
Always use seatbelts, leg and thigh straps
Use caution when maneuvering chair
As with all transport chairs, extra care should be taken when maneuvering an occupied staxi ®chair through
narrow or crowded spaces. Be careful not to pinch a passenger’s arms or hands between the plane’s seat
backs, walls or door edges when navigating a narrow doorway or tight gap. Take care that the passengers
feet are not jammed between, or stubbed on, the plane seats or other objects to the front or sides of the
chair.
Use care and avoid collisions with other people when using a staxi ®.
Use caution when using the front and back lifting system.
Check functional parts regularly
Inspect functional parts of the chair monthly. See the Cleaning and Maintenance section of this Owner’s
Manual for recommended checks.
6
Patent No.(US) 6,315,306 Patent No.(US) 6,161,848 Patent No.(US) 6,412,795 Patent No.(CAN) 2250184 Patent No.(EUR) P11385GBEP Patent No.(UK) EP0889709
Safest to UseHardest to StealStrongest Design Rolling out Excellence
Wow-Care™: Toll Free Phone [phone]
or +1 866 WOW 1463 Email: Wow-[email protected]
Website: www.staxi.com

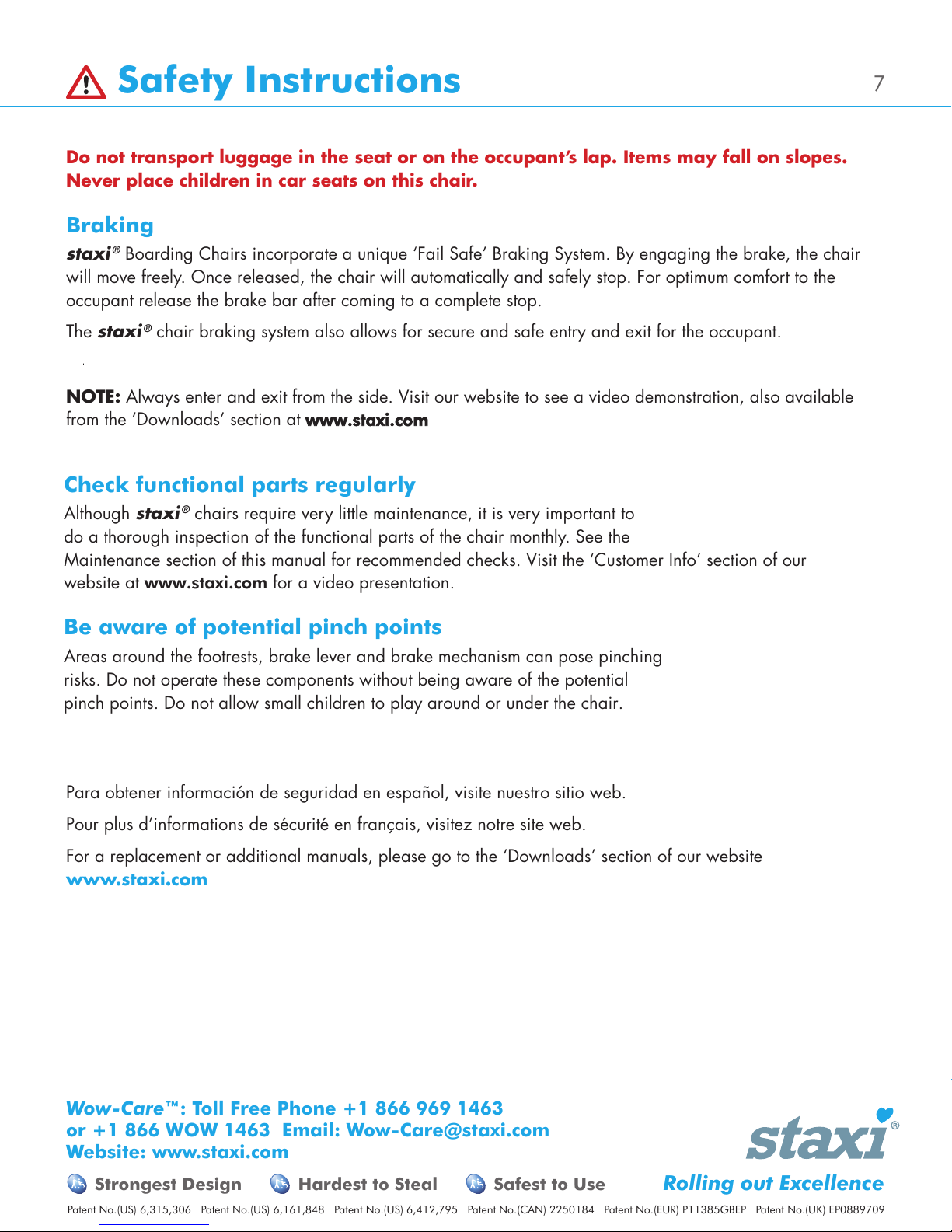

Safety Instructions
Do not transport luggage in the seat or on the occupant’s lap. Items may fall on slopes.
Never place children in car seats on this chair.
Braking
staxi ®Boarding Chairs incorporate a unique ‘Fail Safe’ Braking System. By engaging the brake, the chair
will move freely. Once released, the chair will automatically and safely stop. For optimum comfort to the
occupant release the brake bar after coming to a complete stop.
The staxi ®chair braking system also allows for secure and safe entry and exit for the occupant.
NOTE: Always enter and exit from the side. Visit our website to see a video demonstration, also available
from the ‘Downloads’ section at www.staxi.com
Check functional parts regularly
Although staxi ®chairs require very little maintenance, it is very important to
do a thorough inspection of the functional parts of the chair monthly. See the
Maintenance section of this manual for recommended checks. Visit the ‘Customer Info’ section of our
website at www.staxi.com for a video presentation.
Be aware of potential pinch points
Areas around the footrests, brake lever and brake mechanism can pose pinching
risks. Do not operate these components without being aware of the potential
pinch points. Do not allow small children to play around or under the chair.
Para obtener información de seguridad en español, visite nuestro sitio web.
Pour plus d’informations de sécurité en français, visitez notre site web.
For a replacement or additional manuals, please go to the ‘Downloads’ section of our website
www.staxi.com
7
Patent No.(US) 6,315,306 Patent No.(US) 6,161,848 Patent No.(US) 6,412,795 Patent No.(CAN) 2250184 Patent No.(EUR) P11385GBEP Patent No.(UK) EP0889709
Safest to UseHardest to StealStrongest Design Rolling out Excellence
Wow-Care™: Toll Free Phone [phone]
or +1 866 WOW 1463 Email: Wow-[email protected]
Website: www.staxi.com

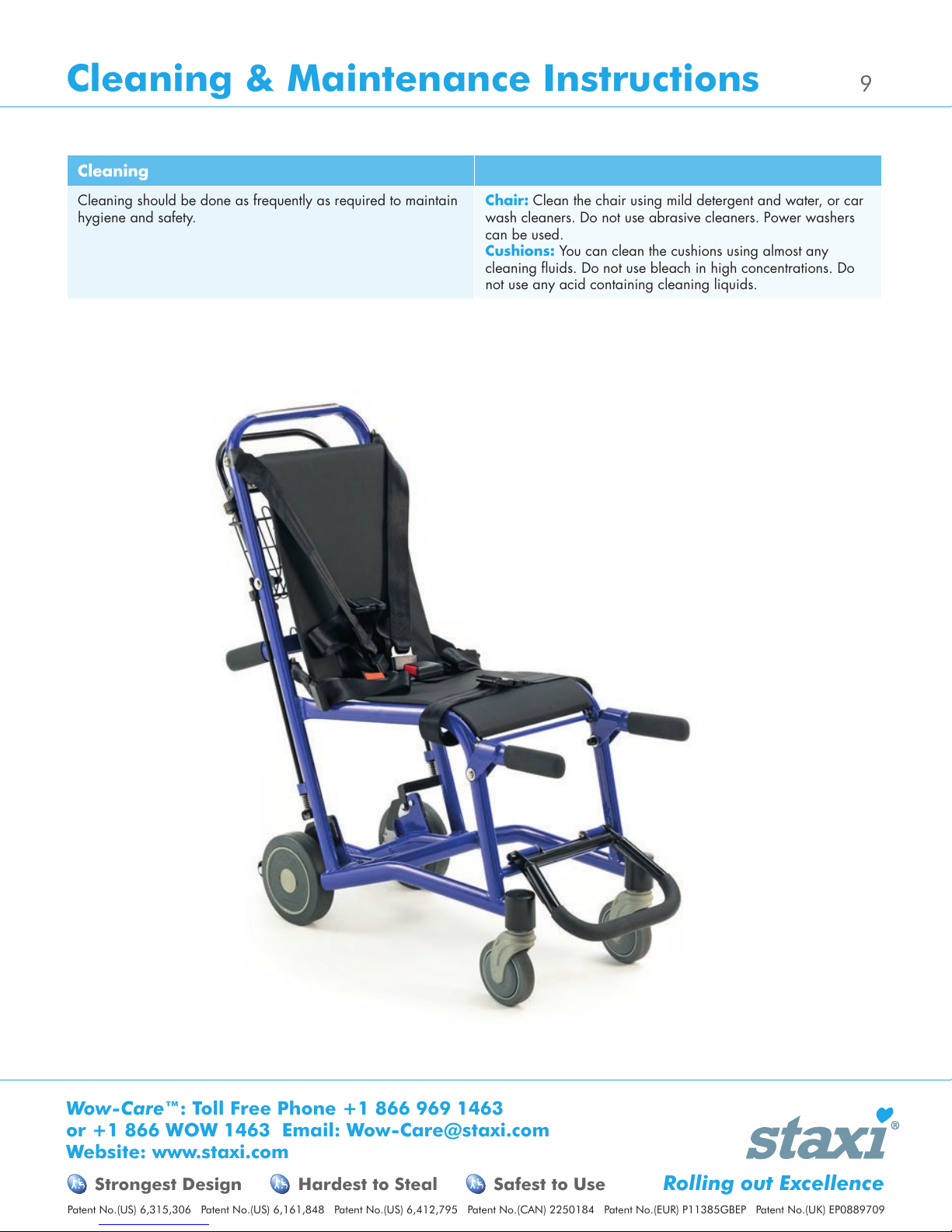

Cleaning & Maintenance Instructions
Check functional parts regularly
Although staxi ®chairs require very little maintenance, it is very important to do
a thorough inspection of the functional parts of the chair on a regular basis. See
the Maintenance Schedule below for recommended checks or go to the ‘Quick
Start’ section of our website at www.staxi.com for a video presentation.
Monthly Inspection Checklist Quarterly Maintenance and as required
Brake
The brake is an automatic fail-safe system. When new the
brake maybe a little stiff, but this will ease with use.
1. Does the brake operate smoothly?
2. Do the brake pins that engage in the brake locking cogs
move smoothly in and out of the locking cogs when the
brake is operated?
3. Do the pins bottom out in the locking cogs when the brake is
released?
4. Does the brake make a clicking sound when the chair is
pushed with the brake off?
If you answer NO to any of questions 1, 2or 3, the brakes
need adjusting.
If you answer YES to question 4the brakes need adjusting.
5. Brake lock check...
Lubricate:
Apply lubricant on and between the moving parts. Synthetic
lubricants are recommended. Other lubricants such as WD40
can also be used.
Adjust:
Squeeze the brake bar against the push bar and hold. Adjust
the brake by turning the nut at the top of the black lower brake
rod. While doing this watch the pin that engages in the brake
locking cogs. When this pin is just clear of the cogs the brake
is adjusted correctly. Release the brake bar and make certain
that when released, the pin is seated in the bottom of the brake
locking cogs. Please do not over-tighten or over-adjust the
brake.
Rear Wheels and Front Casters
Inspect for wear. If either shows any signs of excessive
wear, replace them. Make sure that the screws that hold the
rear wheels on are tight. Make sure that the front casters are
fully screwed into the chair frame, and are tight.
The rear wheel and front caster bearings are sealed and need
no maintenance.
Footrest
1. Do they lift smoothly?
2. Are they secure?
3. Do they stay upright when moved into the upright position?
If you answered NO to any of these questions the footrests
need adjusting.
Adjust:
Adjust by tightening or loosening the nut on the footrest pivot.
Be sure that the footrest will move smoothly, and stay upright
when moved to the upright position.
8
Patent No.(US) 6,315,306 Patent No.(US) 6,161,848 Patent No.(US) 6,412,795 Patent No.(CAN) 2250184 Patent No.(EUR) P11385GBEP Patent No.(UK) EP0889709
Safest to UseHardest to StealStrongest Design Rolling out Excellence
Wow-Care™: Toll Free Phone [phone]
or +1 866 WOW 1463 Email: Wow-[email protected]
Website: www.staxi.com

Cleaning & Maintenance Instructions
Cleaning
Cleaning should be done as frequently as required to maintain
hygiene and safety.
Chair: Clean the chair using mild detergent and water, or car
wash cleaners. Do not use abrasive cleaners. Power washers
can be used.
Cushions: You can clean the cushions using almost any
cleaning fluids. Do not use bleach in high concentrations. Do
not use any acid containing cleaning liquids.
9
Patent No.(US) 6,315,306 Patent No.(US) 6,161,848 Patent No.(US) 6,412,795 Patent No.(CAN) 2250184 Patent No.(EUR) P11385GBEP Patent No.(UK) EP0889709
Safest to UseHardest to StealStrongest Design Rolling out Excellence
Wow-Care™: Toll Free Phone [phone]
or +1 866 WOW 1463 Email: Wow-[email protected]
Website: www.staxi.com

Important: Brake Inspection Checks
1Push brake lever and roll chair forward
2If brakes ‘click’ with lever depressed then brakes need adjusting.
3Squeeze the brake bar against the push bar and hold. Adjust the brake
by turning the nut at the top of black lower brake rod. While doing this
watch the pin that engages in the brake locking cogs. When this pin is
just clear of the cogs the brake is adjusted correctly. Release the brake bar
and make certain that when released, the pin is seated in the bottom of the
brake locking cogs.
Alternatively visit ‘Customer Info’ section of our website at www.staxi.com
to view the ‘Monthly Maintenance’ video presentation.
10
Patent No.(US) 6,315,306 Patent No.(US) 6,161,848 Patent No.(US) 6,412,795 Patent No.(CAN) 2250184 Patent No.(EUR) P11385GBEP Patent No.(UK) EP0889709
Safest to UseHardest to StealStrongest Design Rolling out Excellence
Wow-Care™: Toll Free Phone [phone]
or +1 866 WOW 1463 Email: Wow-[email protected]
Website: www.staxi.com

Appendix
staxi®Boarding Chair Specifications
Overall Dimensions
Width Frame
Width
Length
footrest up
Length
footrest down
Seat to
Floor Back Height Seat Width
15”
(380mm)
14.75”
(375mm)
39”
(990mm)
43”
(1100mm)
21”
(530mm)
40.5”
(1035mm)
14.75”
(360mm)
Weight
Chair weight
60lbs
(27kgs)
Shipping Weight
84lbs
(38kg)
Occupancy Capacity
500lbs
(227kg)
Colors
Anti-Bacterial Baked Powder, mar resistant.
Pearl Night Blue
Chair Specifications
Frame Tubing Heavy Duty, formed and welded steel oval
4 Lifting Handles Oval steel tube with plastisol grips.
Footrests Steel, with protective coating - Non-removable.
Brake Automatic fail safe locking ratchet
Brake Lock Automatic lock to aid safer transfers.
Rear Wheels 8” (200mm) Non Marring Tires. Sealed Bearings.
Front Casters 5” (125mm) Swivel Casters with Non Marring Tires. Sealed
Bearings.
Seat Bucket style steel wire mesh - Non-removable.
Frame Heavy duty, formed and welded steel oval tubing.
Backrest Steel Wire Mesh – Non removable.
Cushion PU outer shell Antimicrobial treated material.
Seat Belt 4 point over the shoulder and around the waist style.
Upper Leg Strap Nylon webbing with snap buckle.
Lower Leg Band Padded PU with Velcro
11
Patent No.(US) 6,315,306 Patent No.(US) 6,161,848 Patent No.(US) 6,412,795 Patent No.(CAN) 2250184 Patent No.(EUR) P11385GBEP Patent No.(UK) EP0889709
Safest to UseHardest to StealStrongest Design Rolling out Excellence
Wow-Care™: Toll Free Phone [phone]
or +1 866 WOW 1463 Email: Wow-[email protected]
Website: www.staxi.com

Appendix
Components
Brake
Automatic fail safe “on”; push chair brake bar to release.
Brake lock automatic fail-safe system. Release lock to operate the chair.
Casters and Wheels
Non-marking tires.
Sealed bearings.
Caster: 5” dia. (125mm)
Rear Wheel: 8” dia. (200mm)
Footrest
Steel with protective dip coating.
Front and Rear Lifting System
Painted steel with plastisol cover.
Brake Bar
Painted steel.
Seat
Bucket style wire mesh permanently fixed to frame.
Backrest
Wire mesh; permanently fixed to frame.
Integrated storage basket and bag hooks.
12
Patent No.(US) 6,315,306 Patent No.(US) 6,161,848 Patent No.(US) 6,412,795 Patent No.(CAN) 2250184 Patent No.(EUR) P11385GBEP Patent No.(UK) EP0889709
Safest to UseHardest to StealStrongest Design Rolling out Excellence
Wow-Care™: Toll Free Phone [phone]
or +1 866 WOW 1463 Email: Wow-[email protected]
Website: www.staxi.com

Appendix
Accessories
Seat Cushion
Meets or exceeds CAL TB 133
Outer shell: PU, Fire Retardent inner liner and foam core. Anti-Bacterial. Anti-Fungal. Non-Allergenic.
Harness Support System
4 point over the shoulder and around the waist style for optimum torso support.
Thigh security wrap – with nylon webbing snaplock.
Leg security band – anti microbial PU fabric wrapped foam with velcro attachment.
Custom Name Plate
Custom graphics 152x60mm
13
Patent No.(US) 6,315,306 Patent No.(US) 6,161,848 Patent No.(US) 6,412,795 Patent No.(CAN) 2250184 Patent No.(EUR) P11385GBEP Patent No.(UK) EP0889709
Safest to UseHardest to StealStrongest Design Rolling out Excellence
Wow-Care™: Toll Free Phone [phone]
or +1 866 WOW 1463 Email: Wow-[email protected]
Website: www.staxi.com

Appendix
staxi®Boarding Chair Service Parts
Code Description
ST057 Boarding Chair Cushion
ST092 Boarding Chair 4 Point Seat Belt Kit
ST093 Boarding Chair Upper Thigh Wrap Kit
ST094 Boarding Chair Lower Leg Wrap Kit
ST1012 Boarding Chair Handle Bar Label Kit
ST1016 Boarding Chair Handle Bar Label Sticker
ST1017 Boarding Chair Brake Lock Label Sticker
ST1205 Boarding Chair Upper Brake Kit
ST1206 Boarding Chair Lower Brake Kit Left & Right
ST1207 Boarding Chair Brake Lock Kit
ST1302 Main Footrest - Commercial, Max and Boarding Chair
ST1401 Boarding Chair Lifting Handles Sleeve Kit
ST1405 Boarding Chair U Frame & Brake Bolt Kit
ST1407 Boarding Chair Front Lifting Handle & Bolt Kit Left & Right
ST1504 Boarding Chair Rear Wheel Kit
ST1510 Front Caster and Cover Mount Kit
ST1550 Anti Tip Wheel Kit - All Chairs
ST1601 Boarding Chair Seat Back Kit
ST1660 Boarding Chair Seat Kit
ST1700 Caster Mount Cover Kit
ST1905 Boarding Chair Small Parts Kit
ST1906 Boarding Chair Plastic Parts Kit
14
Patent No.(US) 6,315,306 Patent No.(US) 6,161,848 Patent No.(US) 6,412,795 Patent No.(CAN) 2250184 Patent No.(EUR) P11385GBEP Patent No.(UK) EP0889709
Safest to UseHardest to StealStrongest Design Rolling out Excellence
Wow-Care™: Toll Free Phone [phone]
or +1 866 WOW 1463 Email: Wow-[email protected]
Website: www.staxi.com
ST1409Boarding Chair Rear Lifting Handle & Bolt Kit Left & Right

Appendix
staxi®Boarding Chair Service Parts
ST1205
ST1409
ST1504
ST1700
ST1302
ST057
ST1510
ST1407
ST094
ST1206
ST1405
ST1012
ST092
ST1601
ST1660
ST1207
ST1017
ST1016
ST1550
ST093
15
Patent No.(US) 6,315,306 Patent No.(US) 6,161,848 Patent No.(US) 6,412,795 Patent No.(CAN) 2250184 Patent No.(EUR) P11385GBEP Patent No.(UK) EP0889709
Safest to UseHardest to StealStrongest Design Rolling out Excellence
Wow-Care™: Toll Free Phone [phone]
or +1 866 WOW 1463 Email: Wow-[email protected]
Website: www.staxi.com

Warranty
STAXI®Corporation Limited backs its staxi ®Boarding Chair with a with a one year unlimited parts warranty.
All cushions are backed with a one year warranty. These warranties protect against any defects in design,
workmanship and materials that may arise under normal circumstances. These warranties do not cover normal
wear and tear, misuse, extreme use or abuse. These warranties do not cover theft, vandalism or any defect or
deficiency that results, in whole or in part, from the following:
Any alterations, improper storage or handling, inappropriate use or maintenance, or any extraordinary use of
the products by anyone other than STAXI®Corporation Limited.
Failure to follow any of STAXI®Corporation’s written recommendations or instructions.
Using or combining the products with parts or accessories, other than those provided by, or recommended by,
STAXI®Corporation Limited.
Vandalism, any accident, act of nature or any cause external to the products as furnished by STAXI®
Corporation Limited or beyond the Corporation’s reasonable control.
Returns Policy
If, for any reason, you are not satisfied with your purchase you can return it to STAXI®Corporation Limited
within 30 days and you will be reimbursed for your order. We ask that you return the product to us in the
same condition and with the same packaging that you received it. You are responsible for any costs incurred
to return an item to us. A re-stocking charge may apply. For full details of our returns policy, please visit the
‘Wow-Care™’ section of www.staxi.com or call: Toll Free 1.866.969.1463
16
Patent No.(US) 6,315,306 Patent No.(US) 6,161,848 Patent No.(US) 6,412,795 Patent No.(CAN) 2250184 Patent No.(EUR) P11385GBEP Patent No.(UK) EP0889709
Safest to UseHardest to StealStrongest Design Rolling out Excellence
Wow-Care™: Toll Free Phone [phone]
or +1 866 WOW 1463 Email: Wow-[email protected]
Website: www.staxi.com

Contact Info
STAXI® Corporation Limited
Toll Free Phone [phone]
Toll Free Fax [phone]
Email [email protected]
www.staxi.com
Wow-Care™
Helen Ford Wow-Care™ Manager
Toll Free Direct Line:1-866-969-1463
Email: [email protected]
17
Patent No.(US) 6,315,306 Patent No.(US) 6,161,848 Patent No.(US) 6,412,795 Patent No.(CAN) 2250184 Patent No.(EUR) P11385GBEP Patent No.(UK) EP0889709
Safest to UseHardest to StealStrongest Design Rolling out Excellence
Wow-Care™: Toll Free Phone [phone]
or +1 866 WOW 1463 Email: Wow-[email protected]
Website: www.staxi.com
