Stealth JAP230 User manual

AI R P U RIFIER
M o del:JAP230
U SER M A N U AL
REA D A N D SAVE THESE INSTR UCTIO NS
W arning: Not suitablefor use with solid-state speed controls and unplug or
disconnect the appliance fro m the po wer supply before servicing.

A b o ut Air Purifying
The powerful suction of a high air flow rate captures dust, pollen, etc.
The purifying capacityimproves as the airflow rateincreases.
The air permeates the room
at a high airflow rate.
Po w erful suction
from 360°all-round
Effective against pollen
With the high air flow rate, even pollen thatreadily settles because of itslarge particle sizeis quickly caught.
Pr ofessional Filtratio n System
TRUE HEPA AIR PURIFIER
HEPA filter mates with excllent airflow, make your room far away allergens
TRUE HEPA
M ultiple folding
Eliminates dust,smoke particles,
m old spores,pollen,dander,dust
mites and other P M2.5 particles
Deodorising catalyst
Pre-Filter
Activated Carbon
Catches pet dander,
lint,fibers,hair
Re move s moke,odors,
fumes,VOCs

S afety preca u tions
·1··2·
·3·
P a c king List
Air purifier
User manual
W arranty Card
M odel
Adapter
S p e ci fic ation
Product name
Rated voltage/frequency
Po wer
Air Purifier
JAP230
100-240V~ 50/60Hz
36 W
Product size
22*22*34cm
1.8kg
Net weight
Applicable area
Fuselage materials
323 sq.ft(30m²)
ABS , PP
<55dB(Sleep
mode <24dB)
Noise
O p eration prep aration
Installed on atable or the floor
100cm from ceiling
Airflow
50cm from wall
10cm from wall
50cm from wall
Airflow
Hintsfor smartinstallation
If you installthe air purifier oppositethe air conditioner,
the circulation effectis enhanced. The unitcontrols
unevennessin the room temperature whilecleaning
the air during heating or cooling operation.
·4·

O p eratio n prep aration(co ntin u e)
Re move the filters plastic bag and then pack it back the same way it came out without
plastic. Place the filters back to the air purifier.
Re move plastic wrappers from products and store them out of reach of
Notice
infants or children or throw them away.If you turn over, you risk choking.
1. Take outthe
transparent packaging
bag and properly putit;
2. Turn the bottom cover
counterclockwise and
remove the filter;
3. Open the packaging bag
of the filter and putit back
into the filter according to
the direction;
4. Installthe bottom
cover clockwise;
5. Place the product on
a flat surface,insertthe
adapter and connectthe
power supply.
·5·

H o w to use
Wind speed
gearindicator
1
9
2
8
P M2.5 value display /
Timer value
3
7
4
6
5
Function button description:
1. Sleep: the machine operates in silent mode;
2. Turbo:the machine operates at the highest speed;
3. Filterreset:remind to resetthe filter replacement;
4. Childlock:lock the control panelto prevent accidentaltouch;
5. Power :turn on/off;
6. Timer: Timing shutdown function;
7. Light: controlthe light on/off of the machine;
8. Auto:the machine runs automatically according to the air quality;
9. Speed: manual adjustment of wind speed;
·6·

H o w to use
P O W E R
After connecting the power supply,
touch the "Power" button, and the
machine defaultsto automatic mode at initial startup. Afterrunning for 5
seconds,the machine runs normally,the digitaltube displays the current
air qualityindex, and the air quality indicator shows the current airquality.
A U T O M O D E
In the startup state,touch the "Auto" button,the
machine enters the
automatic mode,the wind speed is automatically adjusted according to
the current opening quality, and the automatic gear wind speed is up to
3 gears.
AQI Light
Blue
0~75
Orange
76~150
Red
150
P M2.5(μg/m³)
M A N U A L M O D E
In the startup state,touch the "Speed" button and the machine willenter
the state of manually adjusting the wind speed. The user can adjustthe
wind speed according to needs, and switch the wind speed before the first,
second and third gears.
S L E E P M O D E
In the startup state, touch the "Sleep" button,the machine enters sleep
m ode. Exceptforthe sleep indicator,the otherindicators are all off.Press
the "sleep" button again or press other mode buttons to exitthe sleep state.
T U R B O M O D E
In the startup state, touch the "Turbo" button,the machine enters the turbo
mode. The machine operates at the highest speed.
TI M E R
In the startup state,touch the "timing" button, and the machine willturn on
the timing shutdown function. The digitaltube displays the timing tim e, the
setting range is:1~8 hours. Afterthe timing setting is successful,the digital
tube restores P M2.5 display, and then the digitaltube displays the current
remaining time every 1 hour untilthe countdown ends.
Canceltiming function: Afterthe settingis successful,the timing indicator
light willbe on for along time.If you need to cancelthe timing function, you
can press and hold the timer button for 3 seconds, and theindicatorlight
will go outto cancelthe timing function.
·7·

H o w to use
L O C K
In the startup state,long press the "Lock" button for 5 seconds,the lockindicator
willlight up, and the lock function will be activated. At thistime, any button
touch on the operation panelis invalid. Long press the "Lock" button again for 5
seconds,the lock indicatorlight goes out, and other buttons resume normal
operation.
FILTE R R E S E T
In the startup state, when the filterlifetime is over,the air qualitylight willflash
red, prompting the userto replace the filter. Afterthe user replaces the filter,
long press the "Reset" button,the filterreplacement stop prompts, and the filter
resetis successful.
LI G H T
In the startup state, touch the "Light" button, exceptforthe light button
indicator,the otherlights are off,and the machine is operating normally.
Perform other operations on the machine afterit is turned off,and thelights of
the machine willreturn to the state beforeit is turned off.
·8·

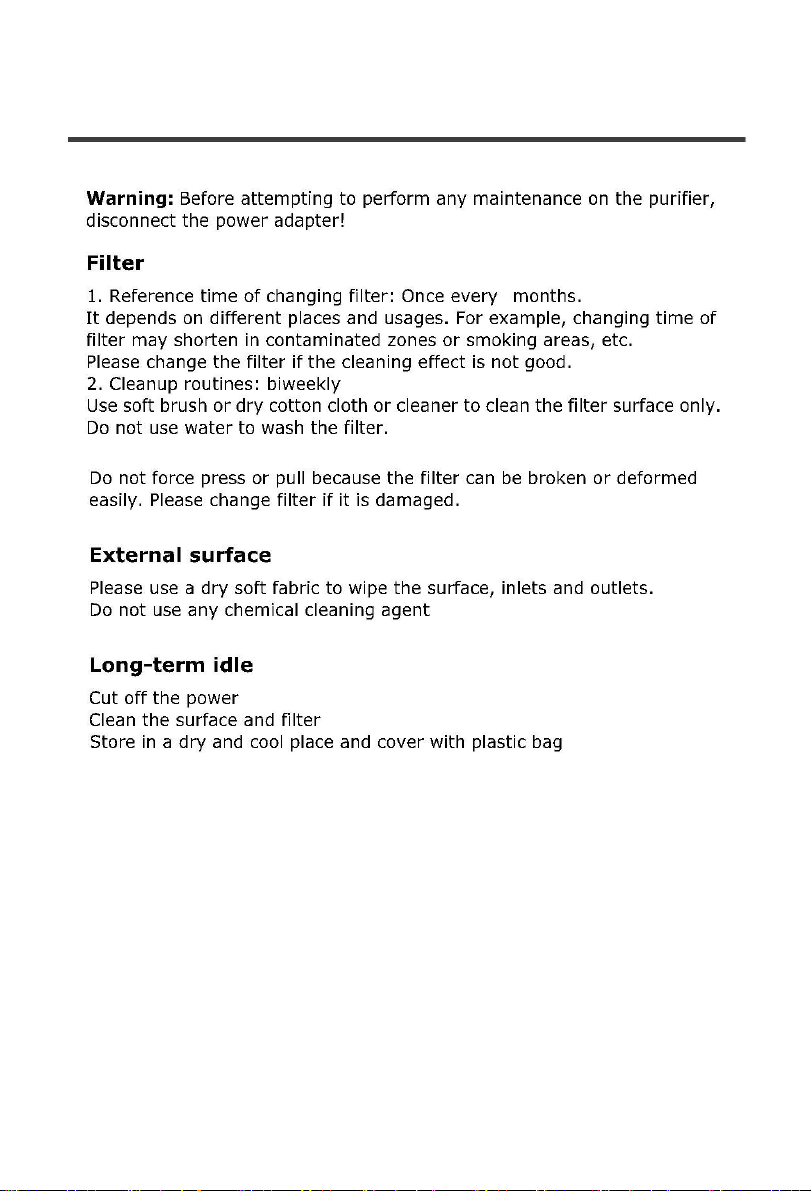

M ai nte n a n c e
6
·9·

Tro u blesh o otin g
QUESTION
POSSIBLE SOLUTIONS
You ignored the reminderto replace the filter. When the filterindicator starts flashing,
you do nottimelyreplace the filter; You must replace the filter and press the reset
button for 5 seconds. After the reset,the indicatorwill go out, and then the product
can be started normally.
Productfailed to start
There's no air coming
out of the vent
The productis not plugged in. Please pluginto the power socket and turn on the
product.
So me kind of filter may not be inside the product.M ake sure the filters areinstalled
in the correct sequence
The product has been
running for along time
and the air quality has
notimproved significantly
Indoor humidityis too high, because thisformed condensation 7 green do not put
the productin the place of high humidity such as: bathroom, toilet
Obstacles around the product affectthe purification effect.
The room where the productis locatedis toolarge.
Excessive product noise
Before running, make surethe strainer has been removed from the packing bag.
Every time it is powered on,the product runs in intelligent purification mode by default,
and the purification speed is automatically adjusted by the machine according to indoor
air quality.If you want to adjustthe running state at will,please press manual mode to exit
theintelligent mode.
The purification speed
cannot be adjusted after
power supply
It may be the childlockfunction thatlocksthe product. Please press the button of the
childlock for 3 seconds,theindicator will go out, and the child lock function will be
cancelled, and you can do what you want.
W hen running,the keys
do not respond
The airis dirty, butthe air
qualityis good
Please confirm whether it is a difficult place forinhalation of pollutants.
It is dif ficultto remove dirt
from the air
Is the dust filter dirty? If there is stillno improvement after maintenance, please
replace the filter.
The air flow in the outlet
is significantlyreduced
High density filter screen is dirty, please clean the filter screen, see the maintenance
method.
Is it used where the smellis strong? If use under strong smellsuch as cigarette and
roast meat,theinner net can produce odorfor several weeks or days, please replace
the filter, and always keep the ventilation.
The wind from the air
outlet smells bad
I have changed the filter,
why is it stillnot on
M aybe you didn't pressthe reset button. Long press the reset button for 5 seconds.
Afterthe reset,the indicator will go out, and then startthe air purifier normally.
·10·

A L T O N I N D U S T R Y LT D. G R O U P
643 Innovation Drive West Chicago,IL 60185
https://w w w.altonindustries.co m
info @ altonindustries.co m
1-888-899-0146
M A DE IN CHINA
