Steel mate PTS800V8 User manual

PTS800V8
Manual
Front & rear
Parking assist system
BRM061
Blue LCD display and precise
detection up to 0.01m

01
User's Manual
Parking assist systems help to provide assistance
when driving forward or reversing. Driving skills,
such as slowing down, use of mirrors etc. are always
essential.
1. This unit is for vehicles with 12V DC.
2. Unit should be installed by a professional auto
technician.
3. Route wiring harness away from heat sources
and electrical components.
4. It is strongly recommended to check the position
of the sensors before the actual drilling of the holes.
5. Perform test after finishing the installation.
The parking assist system is designed as a driver
assistance device, and should not be used as a
substitute for safe parking practices. You must
constantly check the outside circumstance while
parking.
Its distributors do not guarantee or assume liability
for collisions or damages while parking your vehicle.
Important notice
Disclaimer
01
01
02
02
02
03
04
05
06
07
11
11
13
14
14
15
21
22
23
24
Important notice ----------------------------------------
Disclaimer -----------------------------------------------
About the product -------------------------------------
Key features --------------------------------------------
Technical specifications ------------------------------
LCD display ---------------------------------------------
Voice and volume adjustment ----------------------
Self-test function ---------------------------------------
Learning function for cars with tow-bar or spare
wheel -----------------------------------------------------
How does the system work -------------------------
Attention -------------------------------------------------
Sensor maintenance ----------------------------------
Brief installation diagram ----------------------------
Packing list ----------------------------------------------
Installation tools ----------------------------------------
Sensor installation -------------------------------------
Display installation ------------------------------------
Wire connection ----------------------------------------
Function test after installation ----------------------
Troubleshooting ----------------------------------------
User's Manual Installation Manual
Contents

02 03
Parking assist system is an ultrasonic distance
monitoring system. It electronically detects the
area in front of and/or at rear of your vehicle while
parking, and alerts you with audio and visual
warnings. It assists the driver when in parking
and manoeuvring situation.
PTS800V8 is a front and rear parking assist system
with blue LCD display. All the detachable sensors
are water-resistance and can be easily changed.
Combined with the anti-interference and anti-false
alert technology, the system can detect obstacles
in any weather conditions and response quickly.
The system has intelligent detection, which is
ideal for cars with tow-bar or spare tire.
Every piece of our products has passed the most
stringent test before releasing to the market. It is
reliable at a wide temperature range ( -40°C ~
+80°C/-40°F~ 176°F) and becomes very useful
when you are parking at a raining day, snowing
day or at night etc. With the help of parking assist
system, you can enjoy a comfortable, relaxed and
safer parking experience.
lComplete front & rear protection
l0.08s response time
lCan be used as 6 sensor system
( 2 front and 4 rear)
lAnti-false alert technology
lBlue LCD display with precise detection up
to 0.01m/0.1ft
lSelf-test function
lVoice / beep alert selectable
lIntelligent detection for cars with tow-bar,
spare tire or other protrusion
lInput voltage: 9 ~ 16VDC
lWorking current: < 300mA
lStatic current: < 80mA
lOperation temperature: -40°C ~ +80°C
-40°F~ +176°F
lBeep volume: 70~90dB
lDetection range:
Front: 0.10~0.99m/0.3~3.2ft
0.10~0.69m/0.3~2.2ft (reversing)
Rear: 0.10~2.59m/0.3~8.4ft
lDisplay range:
Front: 0.30~0.99m/1.0~3.2ft
0.30~0.69m/1.0~2.2ft (reversing)
Rear: 0.3~2.59m/1.0~8.4ft
About the product Key feature
Technical specifications

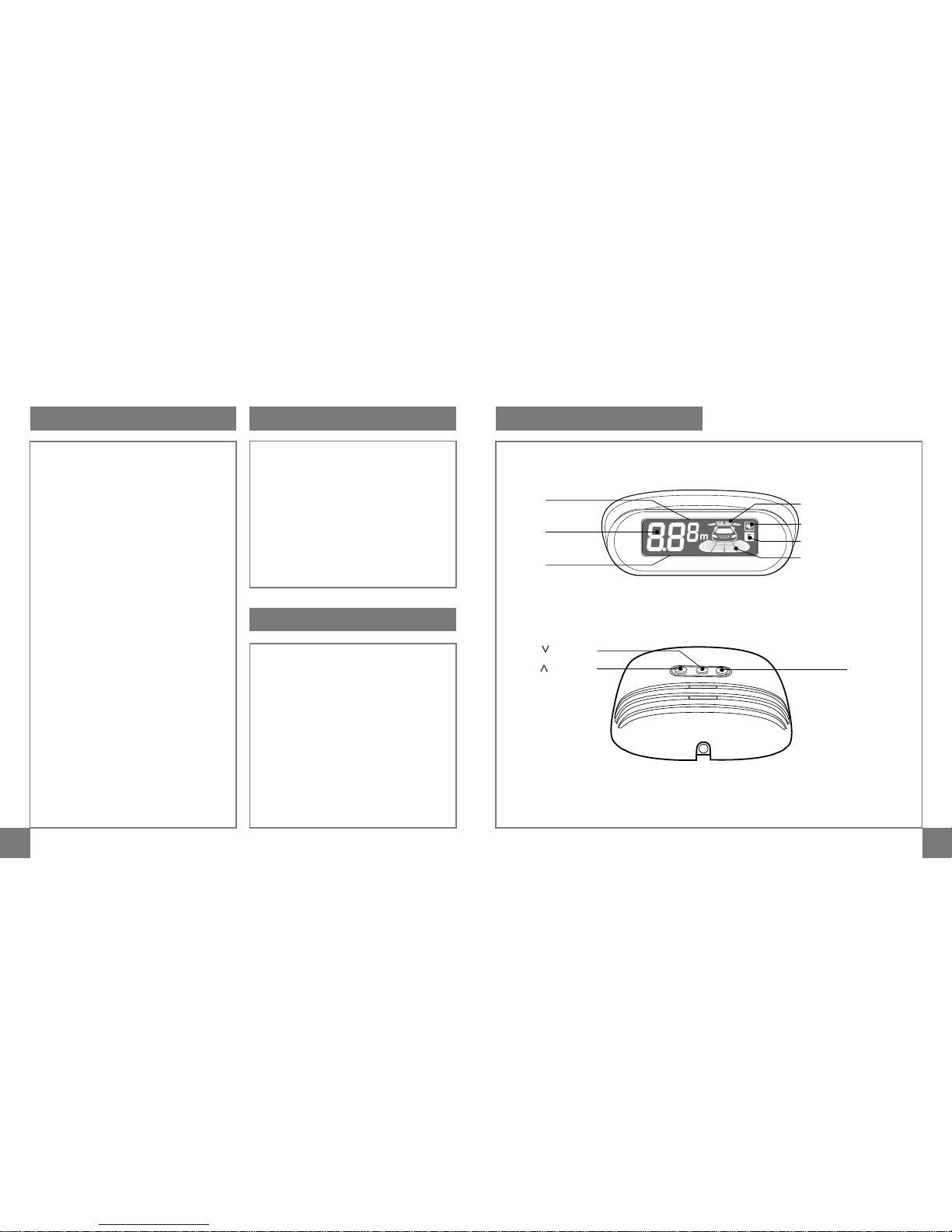

LCD display
(Rear view)
SET
SET
" " Volume +
"" Volume -
(Front view)
ft Damaged sensor indication
Matrix indication (front)
Meter
Distance
Matrix indication (rear)
Voice alert
Feet

04 05
Be...Be...Be...
Number of damaged
sensors
Damaged sensor
locations
Voice and volume adjustment
1. Once the ignition is turned on, the system will test the 4 front sensors E,F,G and H automatically.
1) All sensors are working. 2) Damaged sensors are detected.
lBeep three times
lThe number and locations of
the damaged sensors are shown
on the display
lOther sensors keep working
normally
3) Once the self-test procedure is completed, the system will detect the obstacle in front of the car
for 5 seconds.
Number of damaged
sensors
Damaged sensor
locations
2. When the reverse gear is selected, the system will test the 4 rear sensors A, B, C, D and 2 front
sensors E and H automatically.
1) All sensors are working.
Beep once
lBeep three times
lThe number and locations of
the damaged sensors are shown
on the display
lOther sensors keep working
normally
Beep once
2) Damaged sensors are detected.
Self-test function
Be
Be
Voice alert turned off
Voice alert turned on
START
ACC ON
OFF
START
ACC ON
OFF
Press the " "/ " " button to increase or decrease the volume.
Press "SET" button
3 seconds.
Medium volume
High volume
1 2
Turning ON/OFF voice alert
Volume adjusting
Low volume
Ignition on
Ignition on
Press "SET" once
Press "SET" once
SET
SET
SET
SET
Be...Be...Be...

06 07

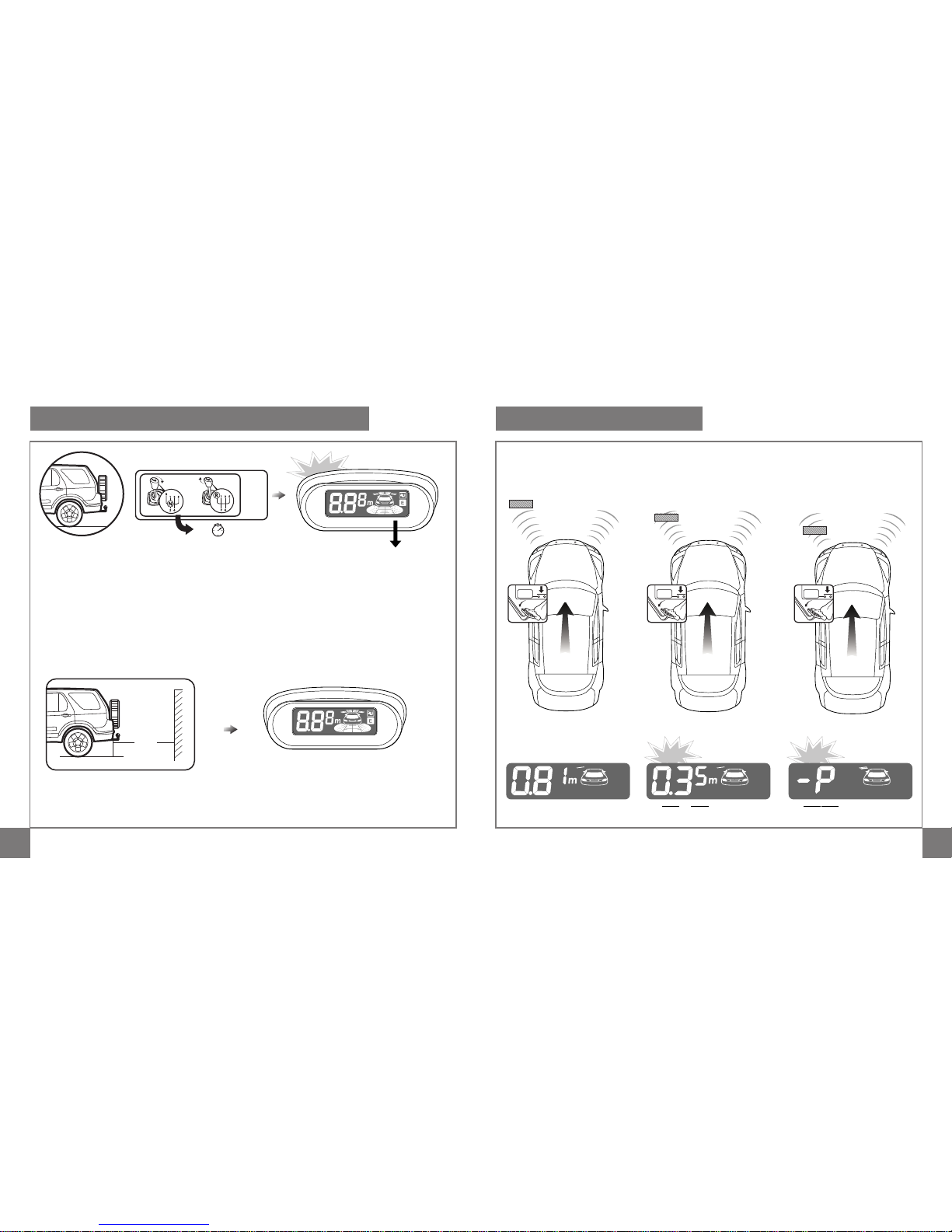

Learning function for cars with tow-bar or spare wheel How does the system work
Be
ft
ft
Flash
X10
+
1"
0.5 m/
1.6ft
When the learning function is activated,
the system will ignore the tow-bar or
spare wheel and only detect other
objects behind the vehicle.
The display will flash 3 times then beep
once, this indicates that the learning
function is successful and the system
will not warn for tow-bar or spare wheel.
Ignition on, shift the gear from "N" to "R" and shift back in 1
second and repeat for 10 times. At the 10th time stay at "R"
position for 6 seconds to achieve the learning function.
Ignition on, shift the gear from "N" to "R" and shift back in 1
second and repeat for 12 times. At the 12th time stay at "R"
position for 8 seconds to clean the learning function.
Note: If you forget the shift-times, please stay at "R" position
for 2 seconds to clean the memory and next time will be the
first time.
Note: If the vehicle does not have tow-bar or spare wheel, you do not need to use this function.
Driving forward (6 sensor)
0.81m/2.7ft 0.35m/1.1ft Stop(<0.30m/1.0ft)
No beep Be Be Be
+12V +12V +12V

08 09
Driving forward (8 sensor)
0.81m/2.7ft 0.40m/1.3ft Stop(<0.30m/1.0ft)
No beep Be Be Be
1.21m/4.0ft 0.60m/2.0ft Stop(<0.30m/1.0ft)
Be---Be---Be--- Be
Reversing
+12V +12V +12V

10 11
After installation, please fully test the system
before use.
Dirty or damaged sensors can cause incorrect
detection.
Ensure that the self-test procedure is completed
and all sensors are functioning before use.
Do not wash the sensor with squirt gun or
swab them forcibly.
Please wash car with low-pressure water.
water.
Please melt the ice with warm water when the
sensors are covered by ice.
Please clean the sensors with cloth or low-
pressure water when the sensors are covered
by mud or snow.
0.30m/1.0ft Stop! (<0.30m/1.0ft)
Zigzag reversing
Be-Be-Be-Be- Be
False detection may occur in the following situations:
Attention Sensor maintenance

12 13
Installation Manual
Brief installation diagram
SET
ECU
Display

14 15
30' ~ 60'
Packing list
Installation tools
Sensor installation
L1 L2 L1
H
H > 40cm/1.3ft
H < 60cm/2.0ft
H < 40cm/1.3ft
H > 60cm/2.0ft
35cm/1.1ft <L1< 45cm/1.5ft
50cm/1.6ft <L2< 76cm/2.5ft
40cm/1.3ft <H< 60cm/2.0ft
Pls adjust the sensor angle according to sensor height and bumper angle, avoid detecting to ground.
0.9m
/3.0ft
0.6m
/2.0ft
Manual
The actual sensor may vary from the image shown above
ft 1

16 17
2
Check the size of the hole saw packed in
the product to be matching the diameter
of the sensors before drilling any holes.
H > 45cm/1.5ft
H < 65cm/2.1ft
H < 45cm/1.5ft
H > 65cm/2.1ft =1/8L
=2/8L
=1/8L
< 45cm/1.5ft
a
b
c
2.5m
/0.8ft
1.5m
/0.5ft
c b a a b c
< 45cm/1.5ft < 45cm/1.5ft
45cm/1.5ft <H< 65cm/2.1ft
2

18 19
A
B
CD
E
F
G
H
ABCD
E
F
G
H
3
5
4 6

20 21
2
Display installation
Check the size of the hole saw packed in the product to be matching
the diameter of the sensors before drilling any holes.
Power
Reversing light +
SET
SET
7

22 23
ft
2.5m/8.2ft

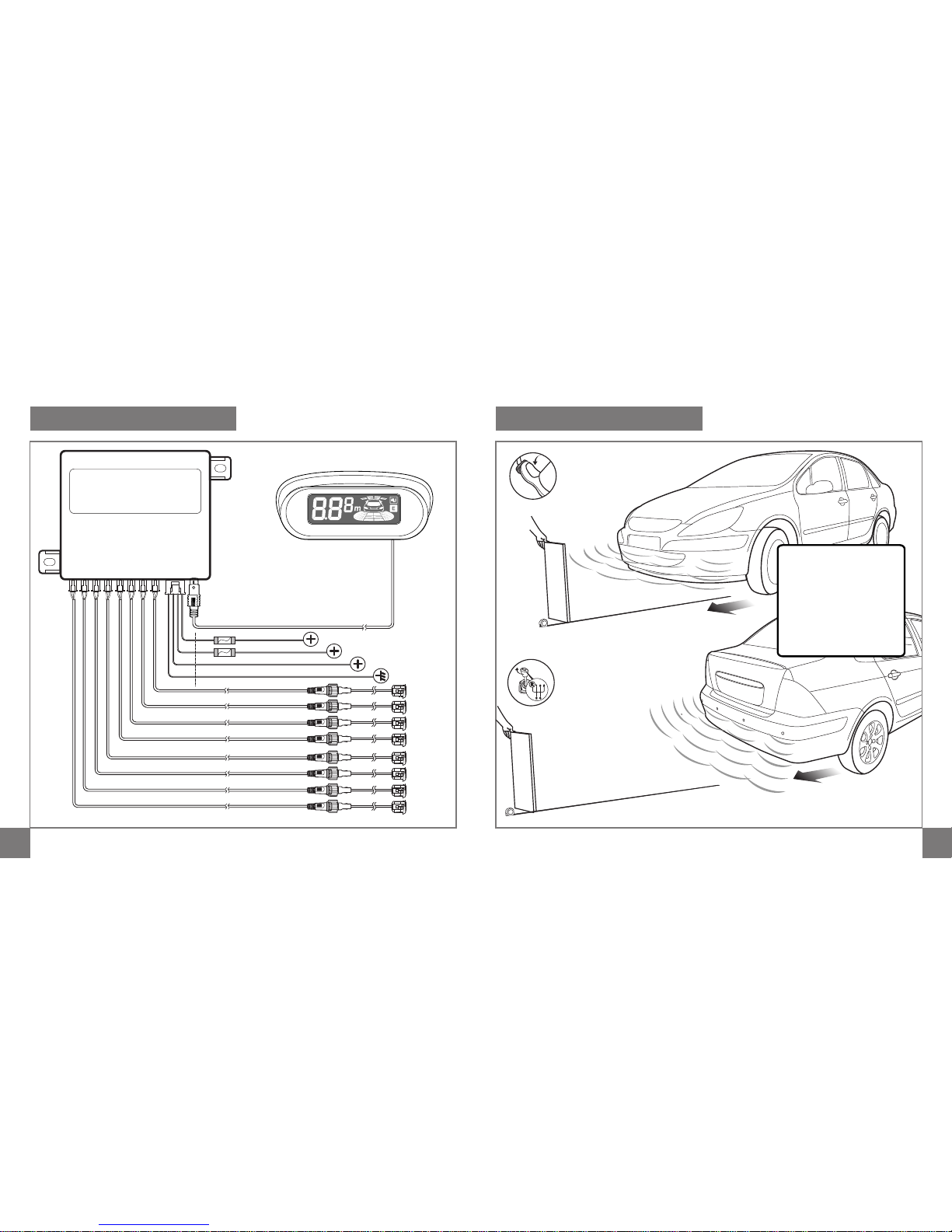

Wire connection Function test after installation
0.9m/3.0ft
Function test is possible by
holding a wooden board (0.3x
1m/1.0x3.2ft) standing at the
front/ rear of the car, and drive
the car forward and backward
to test each function
respectively as shown in this
manual.
Display
ECU
Black wire
White
Ground
ACC
Reversing light
Red
Footbrake light
Pink
EFGHABCD
E
F
G
H
A
B
C
DSensor D
Sensor C
Sensor B
Sensor A
Sensor H
Sensor G
Sensor F
Sensor E

24 25
Troubleshooting
After installation, the display doesn’t work
a) Are all wires connected properly?
b) Is the ignition turned on?
c) Is the reverse gear selected or is the footbrake
pressed?
Damaged sensor detected
a) Are all sensors plugged into the ECU correctly
and tightly?
b) Is the sensor wire broken?
c) Is the sensor covered by mud or snow?
d) Is the sensor damaged?
The object position does not correspond to
the correct indicator on the blue digital display.
a) Are the sensor cables connected to the control
unit (ECU) in the correct position?
False warning
a) Are all sensors plugged into the ECU in the
correct position tightly?
b) Does any sensor detect the ground?
Warning sound is too low or too high
a) Press the "Volume" buttons to adjust the volume
to a suitable level.
No voice warning
a) Check whether the voice warning is switched
on.
The display always shows 0.4/15.7ft~0.
6m/23.6ft.
a) Are sensors mounted too low or detecting the
ground?
b) Check whether the sensor is installed up-side-
down.
c) Unplug 1 sensor at a time to check for root
cause.
If the problem persists, please follow these
steps
a) For consumers: contact your dealer or nearby
service centre.
b) For installer or dealer : check system according
to "Checking flow chart" from.
