MWE6004
Parking aid
Installation and Operating Manual. . . . . . . . 3
Einparkhilfe
Montage- und Bedienungsanleitung . . . . . 16
Aide au stationnement
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . .30
Sistema de ayuda para aparcar
Instrucciones de montaje y de uso . . . . . . .43
Sistema de ajuda de parqueamento
Instruções de montagem e manual de
instruções . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Ausilio per il parcheggio
Istruzioni di montaggio e d’uso . . . . . . . . .69
Inparkeerhulp
Montagehandleiding en
gebruiksaanwijzing . . . . . . . . . . . . . . . . . . .82
Parkeringshjælp
Monterings- og betjeningsvejledning. . . . 95
Parkeringshjälp
Monterings- och bruksanvisning . . . . . . . 108
Parkeringshjälp
Monterings- og bruksanvisning . . . . . . . . 121
Parkkitutka
Asennus- ja käyttöohje . . . . . . . . . . . . . . . 134
Парковочный радар
Инструкция по монтажу и эксплуатации 147
System parkowania
Instrukcja montażu i obsługi. . . . . . . . . . . 160
Parkovací asistent
Návod na montáž a uvedenie
do prevádzky. . . . . . . . . . . . . . . . . . . . . . . 173
Parkovací asistent
Návod k montáži a obsluze . . . . . . . . . . . 186
Parkolósegéd
Szerelési és használati útmutató . . . . . . . 199
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
SAFETY & SECURITY
MAGICWATCH
MWE6004-IO-16s.book Seite 1 Dienstag, 3. April 2018 1:37 13

MWE6004-IO-16s.book Seite 2 Dienstag, 3. April 2018 1:37 13

EN
MWE6004
3
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2 Safety and installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
6 Instructions before installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
7 Fitting the parking aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
8 Connecting the parking aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
9 Detection range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
10 Setting the system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
11 Performing a functional test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
12 Using the parking aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
13 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
14 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
15 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
16 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
MWE6004-IO-16s.book Seite 3 Dienstag, 3. April 2018 1:37 13

EN
Explanation of symbols MWE6004
4
1 Explanation of symbols
!
A
I
2 Safety and installation instructions
The following texts are only a supplement to the illustrations on the sup-
plementary sheet. They do not contain the full installation and operating
instructions. Please observe the illustrations on the supplementary sheet.
Pleaseobservetheprescribed safetyinstructionsand stipulations fromthe
vehicle manufacturer and service workshops.
Observe the applicable legal regulations.
The manufacturer accepts no liability for damage in the following cases:
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
MWE6004-IO-16s.book Seite 4 Dienstag, 3. April 2018 1:37 13

EN
MWE6004 Safety and installation instructions
5
!WARNING!
•Secure the parts of the parking aid which are installed in the vehicle in
such a way that they cannot become loose under any circumstances
(sudden braking, accidents) and cause injuries to the occupants of
the vehicle.
•Do not install the parts of the parking aid anywhere in the vehicle
where an airbag may open. This could cause injury if the airbag
deploys.
•The parking aid is intended as an additional aid, which means it does
not relieve you of the obligation to take due care when manoeuvring.
ANOTICE!
•Installing the parking aid can cause problems on vehicles with LED tail
lights.
•If you would like to install the sensors on metal bumpers, we advise
you to use the adapter (ref. no. 9101500015, not included in the
scope of delivery).
•Do not expose the control electronics to dampness.
•Do not install the control electronics near any other control modules.
•The sensors may not cover signal lamps.
•When fitting the sensors, make sure there are no objects fixed to the
vehicle that are in the detection range of the sensors.
MWE6004-IO-16s.book Seite 5 Dienstag, 3. April 2018 1:37 13

EN
Scope of delivery MWE6004
6

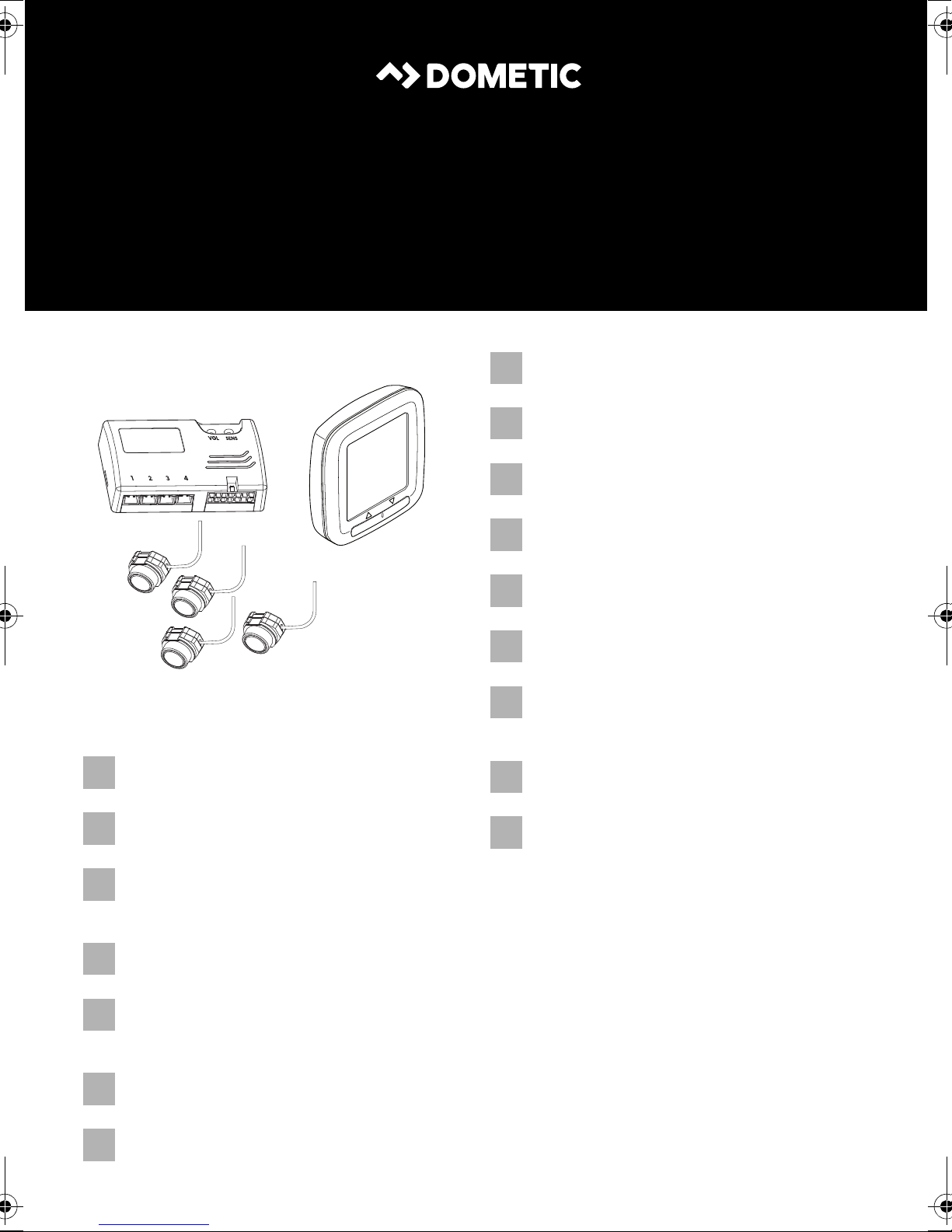

3Scopeofdelivery
See fig. 1
4Accessories
Available as accessories (not included in the scope of delivery):
No. Quantity Description Ref. no.
1 1 Control electronics
2 4 Sensor connection cable 2.5 m
3 4 Ultrasonic sensors 9600000657
4 4 0° sensor holder with cover ring
5 4 10° sensor holder with cover ring
6 1 Terminal for display
7 4 Sensor holder 0° (mounted from inside)
8 4 Sensor holder 10° (mounted from inside)
9 1 Control electronics connection cable
10 1 Display
11 1 Display holder
12 1 Adhesive pad for control electronics
13 1 Adhesive pad for monitor bracket
– 1 Connecting and fastening material
Description Ref. no.
Sensor holder for metal bumper 9101500015
Subframe sensor holder (fig. c1) 9101500078
Rubber sensor holder for surface mounting (fig. c2) 9101500071
MWE6004-IO-16s.book Seite 6 Dienstag, 3. April 2018 1:37 13

EN
MWE6004 Intended use
7
5 Intended use
Dometic MWE6004 (ref. no. 9101500081) is a parking aid based on ultrasound.
When manoeuvring, it monitors the space behind the vehicle and provides an
audible and visible warning signal for any obstacles it detects.
MWE6004 is designed for installation in commercial vehicles.
6 Instructions before installation
6.1 Painting the sensors
See fig. 2
I
6.2 Determining the place of installation for the sensors
See fig. 3to fig. 5
I
Note the following during installation:
•The area around the sensors must be free from other objects.
•The distance from the sensors to the ground should be at least 45 cm and a
maximum of 60 cm (fig. 3). The optimum height is 50 cm.
•Note that the installation angle depends on the installation height.
Select the right sensor holder and the appropriate drill diameter by consulting
the table in fig. 3.
Supplementary to fig. 5
➤Observe the intervals between sensors.
NOTE
The sensors may be painted. The manufacturer recommends having the
sensors painted by a specialist workshop.
NOTE
The sensors must be correctly aligned for the device to work properly.
If they point to the ground, irregularities and bumps on the surface may
be interpreted as obstacles. If they point too far up, obstacles will not be
detected at all.
MWE6004-IO-16s.book Seite 7 Dienstag, 3. April 2018 1:37 13

EN
Fitting the parking aid MWE6004
8
7 Fitting the parking aid
See fig. 6to fig. a
Supplementary to fig. 7
A
➤Push the sensor holders into the holes until they lock into place.
Supplementary to fig. 8
I
Supplementary to fig. 0
A
➤Mount the monitor bracket at one of the positions shown here.
NOTICE! Risk of malfunction!
Align the sensor holders so that the fastening lugs are horizontal. Other-
wise there is no guarantee the parking aid will function correctly.
NOTE
The manufacturer recommends applying some grease to the sensor
plug connections (not on the control module).
NOTICE! Risk of malfunction!
Align the monitor bracket so that the driver can look vertically at the
monitor or down onto it at a 45° angle. Otherwise the monitor contrast
will be poor.
MWE6004-IO-16s.book Seite 8 Dienstag, 3. April 2018 1:37 13

EN
MWE6004 Connecting the parking aid
9
8 Connecting the parking aid

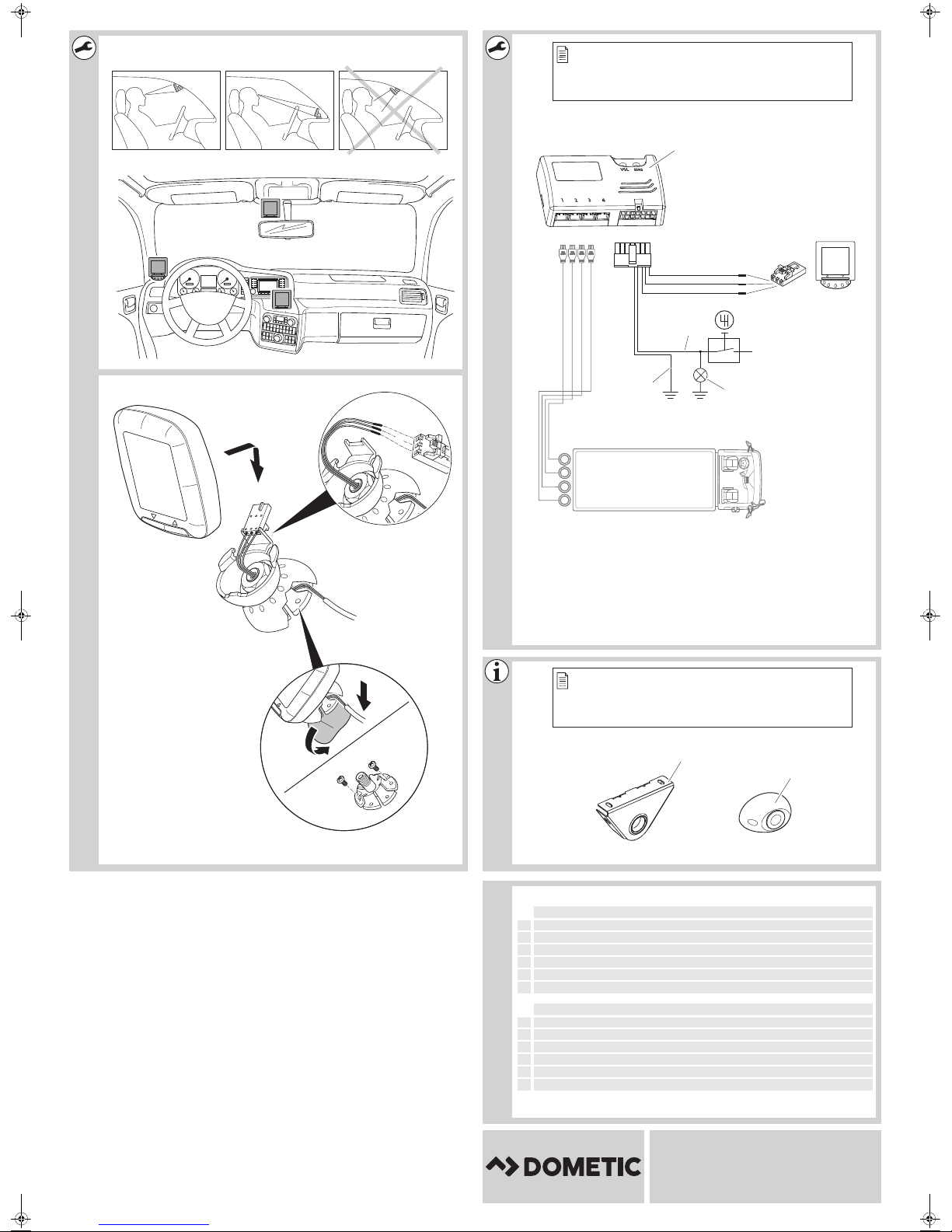

See fig. b
INOTE
On some vehicles, the reversing light only works when the ignition is
switched on. In this case, you must switch on the ignition to identify the
positive and earth cables.
No. Description
Slot for plug
on MWE6004
control
module
1 Control electronics –
2 Black/blue, brown and black/yellow wires to display –
3 Blue/black cable: connection to the reversing light 10
4 Brown cable: Connection to earth 3
5 Sensors Slot
1 to 4
MWE6004-IO-16s.book Seite 9 Dienstag, 3. April 2018 1:37 13

EN
Detection range MWE6004
10
9Detectionrange
See fig. d
The detection range of the parking aid is divided into four zones:
•Zone 1
This zone is the first limit range. Small objects or those with poor reflective char-
acteristics may not be detected here.
•Zone 2
Nearly all objects in this zone are displayed.
•Zone 3
Virtually all objects are displayed in this zone, but some objects may end up in the
blind spot of the sensors.
•Stop zone (4)
If there are objects in this zone, the parking aid emits a continuous tone warning
you to stop.
Virtually all objects are displayed in this zone, but some objects may end up in
the blind spot of the sensors.
There must be no objects in the detection range of the sensors, as this would
result in an incorrect display.
The display of fixed objects such as, e.g. a trailer can be suppressed
(Parameter 13).
MWE6004-IO-16s.book Seite 10 Dienstag, 3. April 2018 1:37 13

EN
MWE6004 Setting the system
11
10 Setting the system
See fig. dto fig. g
!
The device has the following control elements:
Supplementary to fig. g
Configurable parameters:
•No. 01: Speaker volume
•No. 03: Detection range for centre sensors
•No. 05: Detection range for outer sensors
•No. 07: Stop zone
•No. 09: Acoustic signal for obstacles
•No. 11: Mirror sensors
•No. 12: Colour of background lighting
•No. 13: Suppression of objects permanently mounted to vehicle
(e.g. trailer hitch)
•No. 17: Sensor sensitivity
I
Restoring the factory settings
➤Press both buttons below the display until the reset is acknowledged with a brief
sound.
WARNING!
Incorrect settings can impair the operational safety.
No. in fig. eDescription
1 LC display F SET Factory settings activated
2, 3 Buttons for setting the system
NOTE
•To save the settings, disengage and engage the reverse gear and
wait for 2 s.
•To stop setting the parameters without saving your changes, or
to stop the entire set-up: Do not press any button for a while.
MWE6004-IO-16s.book Seite 11 Dienstag, 3. April 2018 1:37 13

EN
Performing a functional test MWE6004
12
Define acoustic signal for obstacles
➤Set parameter 09 as required:
–1:Signal sound for approaching objects only
–5or 10:for stationary or moving objects for 5 or 10 seconds
–99:Signal sound for all objects
11 Performing a functional test
Conduct the functional test of the sensors as follows:
➤Switch on the ignition and engage the reverse gear.
Be very careful when you operate the device for the first time, and make sure that you
familiarize yourself with the various sequences of beeps.
!
12 Using the parking aid
The sensors are activated automatically when you engage the reverse gear with the
ignition on or the engine running. An activation signal is emitted (two short tones).
As soon as there is an obstacle within the detection range, a repeated signal tone is
emitted.
As you approach, the tone sequence changes, depending on the zone in which the
obstacle is, thereby indicating the distance.
Be very careful the first time you use the system, until you are familiar with the various
sequences of beeps.
!
WARNING!
In zone 4, some obstacles may not be detected, because they are no
longer within range of the sensors (design-related characteristic).
WARNING!
Stop the vehicle immediately and investigate the situation (getting out if
necessary), if the following happens while you are manoeuvring:
the device first indicates an obstacle and the tone sequence speeds up
normally (e.g. from slow to medium) when manoeuvring. the signal tone
suddenly slows down, or no obstacle is indicated at all.
This means that the original obstacle is in the blind spot of the sensors
(construction-related characteristic), and there is still a potential for colli-
sion.
MWE6004-IO-16s.book Seite 12 Dienstag, 3. April 2018 1:37 13

EN
MWE6004 Troubleshooting
13
13 Troubleshooting
The device shows no function.
The cables to the reversing light are not connected or are not properly connected.
The plugs for the sensors are not connected or are not correctly plugged into the
control electronics.
➤Check the plugs and make sure they lock into place.
Flashing segments on display
Faulty sensors are indicated on the display by flashing segments that are immediately
in front of the affected sensor. The system continues to operate with the remaining
sensors.
A
No acoustic signals
The speaker is switched off.
➤Check whether the loudspeaker is switched on.
➤Check whether the loudspeaker is connected correctly.
➤Set parameter 01 to a value of 1or 2(see chapter “Setting the system” on page 11).
Device indicates obstacles incorrectly
False alarms may have the following causes:
•Dirt or frost on the sensors.
➤Clean the sensors.
•The sensors were incorrectly installed.
➤Adjust the position of the sensors (fig. 3).
➤If necessary, use parameters 17 to set the sensitivity of the sensors (see chapter
“Setting the system” on page 11).
NOTICE!
The system does not work correctly if one or more sensors are defective.
Replace the faulty sensor as soon as possible.
MWE6004-IO-16s.book Seite 13 Dienstag, 3. April 2018 1:37 13

EN
Warranty MWE6004
14
•The sensors are in contact with the chassis.
➤Separate the sensors from the chassis.
Objects on the vehicle (e.g. trailer) cause false alarms
➤Adjust the stop zone using parameter 7to match the object (see chapter “Setting
the system” on page 11).
14 Warranty
The statutory warranty period applies. If the product is defective, please contact the
manufacturer's branch in your country (see the back of the instruction manual for the
addresses) or your retailer.
For repair and guarantee processing, please send the following items:
•Defect components
•A copy of the receipt with purchasing date
•A reason for the claim or description of the fault
15 Disposal
➤Place the packaging material in the appropriate recycling waste bins wherever
possible.
MIf you wish to finally dispose of the product, ask your local recycling centre
or specialist dealer for details about how to do this in accordance with the
applicable disposal regulations.
MWE6004-IO-16s.book Seite 14 Dienstag, 3. April 2018 1:37 13

EN
MWE6004 Technical data
15
16 Technical data
I
MWE6004
Ref. no.: 9101500081
Detection range: approx. 0.10 m up to 3 m
Ultrasound frequency: 58 kHz
Input voltage: 9 – 30 V
Current: max. 200 mA
Operating temperature: –30 °C to 80 °C
Certification:
NOTE
The sensors may be painted. The manufacturer recommends having the
sensors painted by a specialist workshop.
E8
MWE6004-IO-16s.book Seite 15 Dienstag, 3. April 2018 1:37 13

DE
MWE6004
16
Bitte lesen Sie diese Anleitung vor Einbau und Inbetriebnahme sorgfältig
durch und bewahren Sie sie auf. Geben Sie sie im Falle einer Weitergabe
des Produktes an den Nutzer weiter.
Inhaltsverzeichnis
1 Erklärung der Symbole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
2 Sicherheits- und Einbauhinweise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
3 Lieferumfang . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
4 Zubehör. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
5 Bestimmungsgemäßer Gebrauch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
6 Hinweise vor dem Einbau. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
7 Einparkhilfe montieren . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
8 Einparkhilfe anschließen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
9 Erfassungsbereich. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
10 System einstellen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
11 Funktion testen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
12 Einparkhilfe benutzen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
13 Fehler suchen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
14 Gewährleistung. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
15 Entsorgung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
16 Technische Daten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
MWE6004-IO-16s.book Seite 16 Dienstag, 3. April 2018 1:37 13

DE
MWE6004 Erklärung der Symbole
17
1 Erklärung der Symbole
!
A
I
2 Sicherheits- und Einbauhinweise
DiefolgendenTexteergänzen dieAbbildungenaufdemBeiblatt lediglich.
Sie alleine sind keine vollständigen Einbau- und Bedienhinweise! Bitte
beachten Sie unbedingt die Abbildungen auf dem Beiblatt!
Beachten Sie die vom Fahrzeughersteller und vom Kfz-Handwerk
vorgeschriebenen Sicherheitshinweise und Auflagen!
Beachten Sie die geltenden gesetzlichen Vorschriften.
Der Hersteller übernimmt in folgenden Fällen keine Haftung für Schäden:
•Beschädigungen am Produkt durch mechanische Einflüsse und Über-
spannungen
•Veränderungen am Produkt ohne ausdrückliche Genehmigung vom Hersteller
•Verwendung für andere als die in der Anleitung beschriebenen Zwecke
WARNUNG!
Sicherheitshinweis: Nichtbeachtung kann zu Tod oder schwerer
Verletzung führen.
ACHTUNG!
Nichtbeachtung kann zu Materialschäden führen und die Funktion des
Produktes beeinträchtigen.
HINWEIS
Ergänzende Informationen zur Bedienung des Produktes.
MWE6004-IO-16s.book Seite 17 Dienstag, 3. April 2018 1:37 13

DE
Sicherheits- und Einbauhinweise MWE6004
18
!WARNUNG!
•Befestigen Sie die im Fahrzeug montierten Teile der Einparkhilfe so,
dass sie sich unter keinen Umständen (scharfes Abbremsen, Verkehrs-
unfall) lösen und zu Verletzungen der Fahrzeuginsassen führen
können.
•Montieren Sie die im Fahrzeug montierten Teile der Einparkhilfe nicht
im Wirkungsbereich eines Airbags. Sonst besteht Verletzungsgefahr,
wenn der Airbag auslöst.
•Die Einparkhilfe soll Sie zusätzlich unterstützen, d. h. das Gerät
entbindet Sie nicht von Ihrer besonderen Vorsichtspflicht beim
Rangieren.
AACHTUNG!
•Bei Fahrzeugen mit LED-Rücklichtern kann der Einbau der Einparkhilfe
zu Störungen führen.
•Wenn Sie die Sensoren in Metall-Stoßfänger montieren möchten,
empfehlen wir den Adapter (Art.-Nr. 9101500015, nicht im Liefer-
umfang enthalten).
•Die Steuerelektronik darf keiner Feuchtigkeit ausgesetzt sein.
•Die Steuerelektronik darf nicht in der Nähe von anderen Steuer-
modulen montiert werden.
•Die Sensoren dürfen keine Signallampen verdecken.
•Achten Sie bei der Montage der Sensoren darauf, dass sich keine am
Fahrzeug festangebauten Objekte im Erfassungsbereich der
Sensoren befinden.
MWE6004-IO-16s.book Seite 18 Dienstag, 3. April 2018 1:37 13
