Steelcraft HB 5300 Series User manual

Series HB 5300
KEEP INSTRUCTIONS FOR FUTURE REFERENCE
Suitable for use with Cruiser Infant Carrier (sold separately)

ALWAYS FOLLOW THE MANUFACTURERS INSTRUCTIONS.
READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY AND USE
OF THIS STROLLER.
THE CORRECT USE AND MAINTENANCE OF THIS PRODUCT IS
ESSENTIAL.
• USE GREAT CARE WHEN USING THE STROLLER ON STAIRS,
ESCALATORS,TRAVELATORS OR OTHER MOVING SURFACES.
• IT IS RECOMMENDED TO REMOVE THE CHILD FROM THE STROLLER
BEFORE GOING UP OR DOWN STAIRS OR ESCALATORS.
• DO NOT LIFT THE STROLLER BY THE ARM BAR OR TRAY (IF
SUPPLIED) BECAUSE IT MAY DISENGAGE.
• DO NOT ALLOW CHILDREN TO STAND ON THE SEAT.
• DO NOT HANG BAGS OR GOODS FROM THE HANDLE AS THIS
COULD CAUSE THE STROLLER TO TIP OVER.
• DO NOT LEAVE THE STROLLER AND ITS ACCESSORIES NEAR AN
OPEN FIRE OR EXPOSED FLAME.
• DO NOT PLACE MORE THAN 4 KG IN THE BASKET, OR 1KG IN THE
CANOPY POCKET (IF SUPPLIED).
IMPORTANT NOTES:
IMPORTANT NOTES
2

WARNINGS: TO AVOID INJURY OR DEATH:
ALWAYS APPLY THE BRAKES WHENEVER THE STROLLER IS
STATIONARY.
• DO NOT LEAVE CHILDREN UNATTENDED.
• SECURE THE CHILD IN THE HARNESS AT ALL TIMES.
• DO NOT CARRY EXTRA CHILDREN OR BAGS ON THIS STROLLER.
• MAKE SURE CHILDREN ARE CLEAR OF ANY MOVING PARTS IF
YOU ADJUST THE STROLLER.
• DO NOT USE ANY ACCESSORIES OTHER THAN THOSE
APPROVED FOR USE WITH THIS STROLLER BY BRITAX.
• IT IS UNSAFE TO USE ACCESSORIES NOT APPROVED FOR USE
WITH THIS STROLLER.
• THE MAXIMUM WEIGHT OF THE CHILD USING THIS STROLLER
IS NOT TO EXCEED 20 KG.
This CAUTION Symbol is shown at certain steps in
this Instruction Manual to highlight the danger
of being injured by moving parts.
CAUTION
FOR IMPORTANT NOTES AND WARNINGS ON ACCESSORIES -
REFER TO THEIR INDIVIDUAL SECTIONS IN THIS BOOK. THE
MAXIMUM WEIGHT VARIES FOR EACH ACCESSORY.
WARNINGS
3

The SMART lifting technique
This technique can be used to pick up small light loads from low
levels.
Size up the Load
• Assess the load (size, shape and weight).
• Assess whether the load needs to be moved;
• Where is it going to be placed” Check that there are no obstructions;
• Assess whether mechanical or human assistance is required.
Move the Load as close to the body as possible
• A load is heavier to lift or carry if it is not close to the body.
• The whole hand should be used to ensure a firm grip.
Always bend your knees
• Maintain balance.
• Keep feet apart and in a comfortable position.
• Minimise lower back bending.
• Bend knees preferable at as large an angle as possible but not at a
right angle - use a semi squat in preference to a full squat.
Raise the load with your legs
• Achieve the lift smoothly and without jerkiness.
• Maintain the normal curvature of the spine to allow the force of the
load to be distributed evenly from the spine to the pelvis.
Turn your feet in the direction that you want to move the load.
• Avoid unnecessary bending, twisting and reaching.
• Change direction by turning your feet and not your back.
• To set the load down, squat down, keep your head up and let
• Let your legs do the work.
Remember to ‘THINK TALL’ chest lifted, shoulders relaxed, chin
tucked in and head level.
MANUAL HANDLING TECHNIQUES
4

STROLLER FEATURES
Canopy
Handle
Handle release moulding
Seat folding button
Seat release button
Frame lock
Sun visor
Seat liner
Arm bar
Leg support adjuster button
Seat Adjuster lever
Safety Tether strap
Basket frame release buttons
Brake
Front wheel release tab
Front swivel wheel lever
5

A1 x Stroller Frame & Basket
B1 x Seat
C1 x Canopy
D1 x Arm bar
E2 x Rear Wheels
F2 x Front Wheels
G1 x Padded seat liner
HShoulder pads
EFGH
B
CD
A
PARTS LIST
6

CAUTION:
• RELEASE THE STORAGE LATCH WITH DUE CARE AND OPEN THE
FRAME.
• WHEN OPENING OR FOLDING THE STROLLER , BE AWARE OF THE
DANGER OF BEING INJURED BY MOVING PARTS AND LOCKING DEVICES
DURING THIS PROCESS. KEEP ALL HANDS AND LIMBS CLEAR OF THESE
PARTS AND IN PARTICULAR BE AWARE TO KEEP CHILDREN AWAY FROM
ANY DANGER.
• OPEN THE STROLLER SLOWLY AND BE CAREFUL WHERE YOU PLACE
YOUR HANDS. KEEPING YOUR HANDS ON THE HANDLE IS THE BEST WAY
TO FOLD OR UNFOLD THE STROLLER.
IMPORTANT NOTES:
PLEASE REFER TO PAGE 4 FOR SMART LIFTING TECHNIQUES.
1. OPEN THE FRAME
7

AStand the frame on its side on
a flat, clean surface.
BLocate the frame lock , press and
hold down.Then move the handle
slightly forward so the frame is
unlocked.
CWith each hand holding the
handle and rear leg frame continue
to open all the way until the handle
is locked in position.
DNow stand the frame upright.
EWhile holding the handle push
down the top of the basket until
frame is completely open and locked
in position.
1. OPEN THE FRAME
8
CAUTION
CAUTION

2.TO FIT AND REMOVE THE REAR WHEELS
NOTE:The axle has a flat surface and needs to be aligned correctly
into the wheel housing.
AAlign the flat surface of the axle with the
flat surface of the wheel housing and
insert the wheel until it locks in. Pull on
the wheel to confirm it is locked in.
If not locked in , repeat the procedure.
Then repeat the rear wheel installation
for the other side.
BTo remove the rear wheels , locate the
spring loaded lever ( on the underside of
the wheel housing. Pull the lever down
and at the same time remove the wheel.
Repeat for the other side.
9

WARNING: ALWAYS APPLY THE BRAKES
WHENEVER THE STROLLER IS STATIONARY.
3.TO USE THE BRAKES
AWith your foot, press down the RED
brake lever to lock the wheels. Gently push
the stroller forwards and backwards a few
times to make sure the brake is engaged.
BTo release the brake, lift the brake
lever up.
NOTE: It is recommended to leave the
brake locked for the remainder of the
Stroller assembly.
10

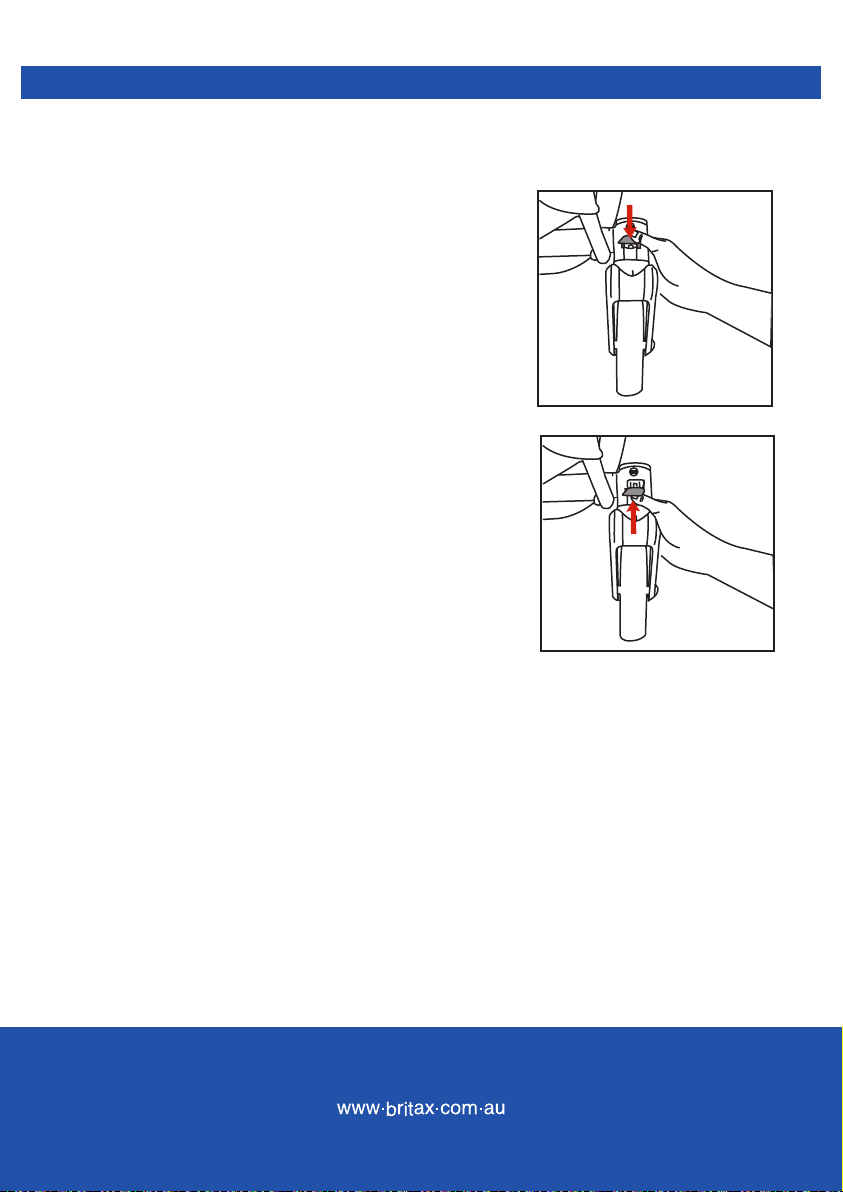

4.TO FIT AND REMOVE THE FRONT WHEELS
ATake one front wheel at a time and
insert the post into the front wheel housing.
Push in until it locks into place. Pull on the
front to confirm it is locked in. If not locked
in , repeat the procedure.
BTo remove the front wheels , locate the
silver tab behind the front wheel housing.
Push in and hold and remove the front
wheel. Repeat for the other side.
11

5. FRONT SWIVEL WHEEL LOCKS
NOTE:The swivel wheel locks are located behind the wheel housing.
ATo lock the front swivel wheels , press
down each front wheel lever to the locked
position.The swivel wheels will lock
automatically when the wheels turn to a
straight position.
BTo unlock the wheels , raise both
levers up until the wheels are in swivel
mode.
CRotate the Stroller frame into the
standing position.
12

6.TO OPEN THE SEAT
AHold down the bottom of the seat
with one hand.
BRotate the top of the seat open and
into the locked position. Confirm it
has locked open. If not locked ,
repeat the procedure.
7.TO FIT THE SEAT IN THE FORWARD FACING POSITION
AOn each side , locate the seat
mouldings over the frame
mouldings as shown.
BPush down on both sides until
you hear the seat lock onto the
frame. Pull up on each side to
confirm they are locked. If not
locked onto the frame , push down
again to lock. Pull up on the seat to
confirm engagement. Repeat again
if necessary.
13
CAUTION

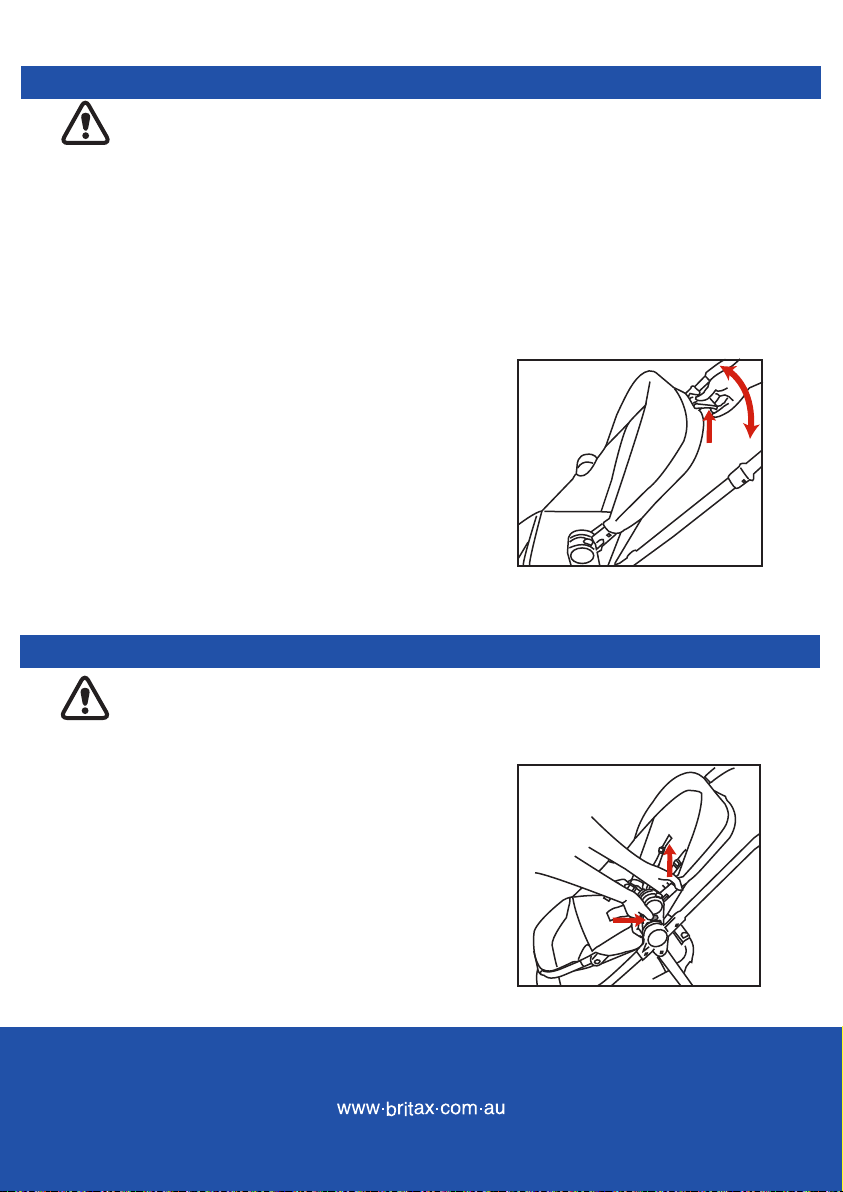

8.TO ADJUST THE BACKREST
ATo adjust the seat up or down to one
of three positions , lift the spring loaded
lever behind the top of seat , all the way
up until the seat can rotate freely.
BAs the seat rotates , continue to hold
the lever but allow the lever to close.The
seat will lock into the next recline or
upright position.
WARNING:
9.TO REMOVE THE SEAT
ARelease one side at at time. Hold the
side of the seat , press in the seat release
button and lift the side up. Repeat for the
other side and once both sides are
released , remove the seat from the frame.
WARNING:
• THE UPRIGHT POSITIONS ARE NOT SUITABLE FOR A CHILD
UNDER 6 MONTHS OLD.
• THE LOWEST RECLINE POSITION SHOULD BE USED TO
TRANSPORT BABIES.THE BACKREST CAN BE ADJUSTED TO
A MORE UPRIGHT POSITION AS THE CHILD GROWS OLDER
AND IS ABLE TO SUPPORT ITS HEAD WITHOUT ASSISTANCE.
DO NOT REMOVE THE SEAT FROM THE FRAME WHILE YOUR CHILD
IS STILL IN THE STROLLER.
14

10.TO FIT THE SEAT IN THE REARWARD FACING POSITION
AOn each side , locate the seat
mouldings over the frame
mouldings as shown.
BPush down on both sides until
you hear the seat lock onto the
frame. Pull up on each side to
confirm they are locked. If not
locked onto the frame , push down
again to lock. Pull up on the seat to
confirm engagement. Repeat again
if necessary.
15
CAUTION

16
WARNING:
11.TO FIT THE ARM BAR
WHEN A CHILD IS IN THE STROLLER, KEEP THE ARM BAR ATTACHED
TO THE FRAME AT ALL TIMES.
NOTE: Make sure the CAUTION notice is facing up.
AAlign the arm bar mouldings on each
side , with the Stroller frame receiver
mouldings.
BPress each side into the frame mouldings
until they lock in. Pull on each side to
confirm engagement. Repeat procedure if
not locked in.
CThe Arm bar can be removed.
Press in hold the one or both tabs on the
sides of the arm bar to release one or both
sides.
DThe Arm bar can be released on one or
both sides to allow for easier child access.

17
12.TO ATTACH AND USE THE CANOPY
IMPORTANT NOTE:
• THE SUN IS VERY STRONG. DO NOT LEAVE YOUR CHILDREN
EXPOSED TO THE SUN.
• THE CANOPY OR HOOD ON THIS PRODUCT WILL NOT GIVE YOUR
CHILD TOTAL PROTECTION FROM THE HARMFUL RAYS OF THE SUN.
AAlign the canopy mouldings to each
side of the Stroller frame as shown. Push
each canopy moulding onto the frame
and fix into position.
BFit the rear section of the canopy to
the top of the seat. Attach the hook strips
on underside of the canopy to the loop
strips around the top section of the seat.
CTo adjust the pivotal canopy , push
forward or pull back on the canopy and
adjust to the desired position.
DThe canopy has a clear visor section.
Fold under the front section or extend as
required.

18
13.TO ADJUST THE LEG SUPPORT
IMPORTANT NOTE:
• THE LEG SUPPORT FEATURE IS PROVIDED FOR YOUR CHILD'S
COMFORT.
• THE LEG SUPPORT IS NOT DESIGNED TO SUPPORT EXTRA WEIGHT.
• DO NOT ALLOW CHILDREN TO STAND OR SIT ON THE LEG SUPPORT.
IT MAY DISENGAGE IF EXTRA WEIGHT IS APPLIED.
A The leg support has 4 positions.
To lower the leg support , press in and
hold both the left and right buttons , and
adjust to the desired position.
B To raise the leg support , just hold it
and lift up to desired position.
EThe canopy window is secured by a
hidden magnet.To open the canopy
window flap , lift the cover.To close the
canopy window flap and attach it to
the hidden magnet in the centre section
on the bottom of the canopy window.

• ENSURE YOUR CHILD IS IS SECURED WITH A CORRECTLY
ADJUSTED HARNESS.
• THE ADJUSTED HARNESS SHOULD CLOSELY FIT THE CHILD.
• NEVER LEAVE THE HARNESS BUCKLED WHEN NOT FITTED TO
A CHILD IN THE STROLLER , BECAUSE THE HARNESS CAN FORM
LOOPS WHICH MAY CAUSE A STRANGULATION HAZARD.
• A five point harness is provided to restrain your child.
• Buckle tongues separate for added safety.
• To reconnect buckle tongues and to secure the child in the
harness please follow the steps below carefully.
WARNING: USE THE HARNESS AT ALL TIMES.
APosition the shoulder strap tongue (A) on the top of the waist
buckle tongue (B) on both sides.
Crotch strap
Waist
strap
Waist
strap
Shoulder strap
A
BB
A
Buckle
housing
C
IMPORTANT NOTES:
Apply the brake before putting the child in the stroller and
removing the child from the stroller.
19
14. TO SECURE YOUR CHILD IN THE HARNESS

20
BPush both buckle tongues (A+B) into the buckle housing
(C) until the buckle tongues lock into position.
DTighten or loosen the waist straps,
hold and lift the 4 bar slider and then pull
the harness strap, to adjust to the desired
fit.The waist strap needs to fit firmly
around the child.
ETighten or loosen the shoulder straps,
slide the 3 bar slider up or down to
adjust to the desired fit. Always adjust
the harness strap when changing the
seating position of the child.
Waist
strap
Shoulder
strap
Shoulder
strap
Buckle
housing
Crotch strap
AB
+AB
+
C
4 bar
slider
