Steinbach 061205 User manual

Originalbetriebsanleitung / Original owner's manual / Notice originale / Istruzioni originali / Manual original / Původní
návod k používání / Eredeti használati utasítás / Izvirna navodila / Pôvodný návod na použitie / Instrukcja oryginalna /
Instrucțiuni originale / Originalne upute / Оригинална инструкция / Orijinal kullanım talimatları
Schwimmbadreiniger
Poolrunner Battery Basic
de
Schwimmbadreiniger......................................... 4
fr
Nettoyeur de piscine........................................49
es
Limpiafondos de piscina..................................95
hu
Úszómedence tisztító.....................................140
sk
Čistič bazénu.................................................. 185
ro
Dispozitiv de curățare a piscinei.................. 230
bg
Уред за почистване на басейни................ 275
en
Pool cleaner......................................................27
it
Pulitore per piscina...........................................72
cs
Čistič bazénů...................................................118
sl
Čistilnik bazena..............................................163
pl
Odkurzacz basenowy...................................207
hr
Čistač bazena................................................253
tr
Yüzme havuzu temizleyicisi.......................... 298

7
5
6
4
1
2
3
2

A
8
15
914
13
12
10
11
Lieferumfang/Geräteteile
1
Oberteil
2
Filtereinheit
3
Unterteil
4
Segel
5
Schwimmgri inkl. Nylonschnur
6
Haken
7
Ladegerät
8
Gri
9
Wasserauslassdüse
10
Rad
11
Schmutzklappe
12
Verschlussclip
13
Schalter ON/OFF
14
Ladebuchse
15
Reinigungslippe
Betriebsanleitung (ohne Abbildung)
3

Package contents/components
1
Top part
2
Filter unit
3
Boom part
4
Sail
5
Floang handle incl. nylon cord
6
Hook
7
Charger
8
Handle
9
Water discharge nozzle
10
Wheel
11
Dirt slot
12
Clip
13
ON/OFF switch
14
Charging socket
15
Cleaning strip
Operang instrucons (without
illustraon)
26

Contents
Overview.......................................................................................................................2
Package contents/components....................................................................................26
General Informaon.................................................................................................... 28
Explanaon of Symbols............................................................................................... 28
Safety.......................................................................................................................... 29
Unpacking and checking the package contents............................................................ 33
Descripon..................................................................................................................33
Descripon of the pool cleaner.................................................................................... 33
Basic sengs...............................................................................................................34
Charging the rechargeable baery...............................................................................34
Aaching the oang handle....................................................................................... 34
Aaching the sail.......................................................................................................... 35
Adjusng the wheels.................................................................................................... 35
Aaching the cleaning strips........................................................................................ 36
Detaching the cleaning strips....................................................................................... 37
Operaon....................................................................................................................37
Cleaning the pool......................................................................................................... 37
Switching o the device............................................................................................... 39
Cleaning...................................................................................................................... 40
Storage........................................................................................................................41
Troubleshoong.......................................................................................................... 42
Technical data..............................................................................................................44
Spare parts..................................................................................................................45
Declaraon of Conformity........................................................................................... 47
Disposal...................................................................................................................... 47
27

General Information
Read and keep the operating instructions
These operang instrucons are part of the Pool Runner Baery Basic pool
cleaner (in the following also called "device"). It contains important
informaon about startup and operaon.
Read the operang instrucons and especially the safety instrucons carefully before
using the device. Non-observance of these operang instrucons can lead to severe
injuries or damage to the device.
The operang instrucons are based on the standards and regulaons in eect in the
European Union. Also observe country-specic direcves and laws abroad.
Keep the operang instrucons for further use. If you pass on the device to a third party,
you must pass on these operang instrucons as well.
Intended use
This device is exclusively designed to clean private pools. The device is not suited for
pools with liners with a liner thickness of less than 0.4 mm.
This product is exclusively intended for private use and not suited for the commercial
sector. Only use the device as described in these operang instrucons. Any other use is
considered inappropriate and may lead to material damage or even injury. The device is
not a toy.
The manufacturer or retailer will not assume any liability for damage caused by
inappropriate or incorrect use.
Explanation of Symbols
The following symbols are used in these operang instrucons, on the device or on the
packaging.
This symbol provides you with useful addional informaon on handling
and use.
Products marked with this symbol meet all the applicable Community
regulaons of the European Economic Area.
Never use a sharp knife or other pointed object to open the packaging.
You may damage the contents.
28

UN 3481
Lithium ion baeries in equipment or lithium ion baeries packaged with
equipment.
Weight of the packaging unit.
Dimensions of the packaging unit.
Only use the charger indoors
This symbol idenes devices that belong to the protecon class II.
Safety
The following signal words are used in this user manual.
WARNING! This signal symbol/word denotes a hazard with an
average risk level that could lead to death or severe
injury if it is not avoided.
CAUTION! This signal symbol/word denotes a hazard with a low
risk level that could lead to mild or moderate injury if
it is not avoided.
NOTICE! This signal word provides a warning about potenal
material damage.
General safety instructions
WARNING!
Risk of electric shock!
Faulty electric installaon or excess mains voltage can cause an
electric shock.
- Only connect the power cable if the mains voltage of the socket
matches that on the type plate.
29

- Only connect the power cable to an easily accessible socket so
that you can quickly disconnect it in the case of a fault.
- Only connect the power cable to a grounded socket.
- Only operate the device on a grounded socket secured with at
least 16A.
- The device must be powered via a residual current device with a
rated residual current of at most 30 mA.
-Do not operate the device if it shows visible damage or if the
power cable is defecve.
-Do not open the device; leave repairs to an expert. Contact the
service address on the back of the instrucon manual for this
purpose. All liability and warranty claims will be void in the case
of arbitrary repairs, improper connecon or wrong operaon.
- Never touch the power cable with wet hands.
-Never pull the power cable out of the socket by the cable; always
hold it by the plug.
-Never use the power cable as a carrier handle.
-Keep the device and the power cable away from naked ames
and hot surfaces.
- Do not place any objects on the power cable.
- Do not bury the power cable.
-Route the power cable such that no one can trip over it.
- Do not kink the power cable and do not place it over sharp
edges.
- Do not use the device during a thunderstorm. Switch it o and
pull the power cable out of the socket.
-Always switch o the device and disconnect it from the power
supply if you are not using the device, when cleaning it or in the
case of a fault.
- Only components that meet the original device data must be
used for repair. There are electric and mechanical components in
this device that are indispensable for hazard protecon.
30

- Only use spare parts and accessory parts supplied or
recommended by the manufacturer. All warranty claims will be
void when using third-party components.
- Do not operate the device with an external mer or a separate
remote system.
NOTICE!
-Never let the device run outside of the water as this can cause
damage even aer a short me.
Safety instructions for persons
WARNING!
Danger to children and persons with reduced physical, sensory or
mental capacies (such as parally disabled persons/older persons
with reduced physical and mental capacies) or persons lacking
experience and knowledge (such as older children).
Improper handling of the device can lead to severe injury or damage
to the device.
-Only allow others to access the device aer they have read and
comprehended the enre manual or have been instructed about
the intended use and the associated risks.
- Never let persons with reduced physical, sensory or mental
capacies (such as children or drunk people) or a lack of
experience and knowledge unsupervised near the device.
- Never allow children and persons with limited physical, sensory
or mental capacies or persons lacking the respecve experience
and knowledge to operate the device.
- Do not let children clean or service the device.
- Children are not allowed to play with the device or with the
power cable.
- Do not operate the device under the inuence of drugs, alcohol
or medicaon or if you are red.
31

WARNING!
Risk of injury through insucient qualicaon!
Insucient experience or skills for handling the required tools and
insucient knowledge of regional or normave regulaons for the
required work can lead to severe injuries or material damage.
-Assign all work whose risks you cannot esmate due to
insucient personal experience to a qualied expert.
Additional safety instructions for chargers
Use and handling of the charger
- Only connect the charger if the mains voltage of the socket matches that on the type
plate.
- Only connect the charger to an easily accessible socket so that you can quickly
disconnect it in the case of a fault.
- Always ensure sucient venlaon while charging the rechargeable baery. Gases
might be released.
- Only use the charger to recharge rechargeable baeries approved by the
manufacturer.
- Do not recharge non-rechargeable baeries.
- A cracked or otherwise damaged rechargeable baery must not be connected to the
charger.
- Protect the charger from any kind of moisture.
- Only use the charger indoors. Never operate it in damp rooms or in the rain.
- Never use the charger in environments with explosive or ammable materials. Risk
of re and explosion.
- Do not place any objects on the charger and do not cover the charger.
- Do not install the charger close to a heat source.
- Regularly check the charger for damage.
- Do not use a damaged charger unl it has been repaired.
- Do not take the charger apart. Repairs must only be carried out through a licensed
technical customer service.
- Do not use the charger if it has been subjected to blows or knocks or if it was
dropped.
- Disconnect the charger from the mains aer each use.
- Disconnect the charger from the mains before cleaning, servicing, storing and
transporng it and let it cool down completely.
32

Unpacking and checking the package contents
NOTICE!
Careless opening of the packaging, especially with the help of sharp
or pointed objects, may cause damage to the device.
-Open the packaging very carefully.
- Do not penetrate the packaging with sharp or pointed objects.
WARNING!
Packaging materials pose a risk of suocaon!
Catching your head in the packaging foil or swallowing other
packaging materials can cause death. There is a higher risk for
children and mentally challenged persons who cannot esmate the
hazard potenal due to lack of knowledge and experience.
- Prevent children and mentally challenged persons from playing
with the packaging materials.
NOTICE!
There is a higher risk of damage to the device if it is stored or
transported without the packaging.
- Do not dispose of the packaging.
- In the case of damage, substute the packaging with an at least
similar box.
Checking the delivery for completeness and damage
1. Open the packaging carefully.
2. Take all parts out of the packaging.
3. Check the completeness of the delivery.
4. Check the delivery for damage.

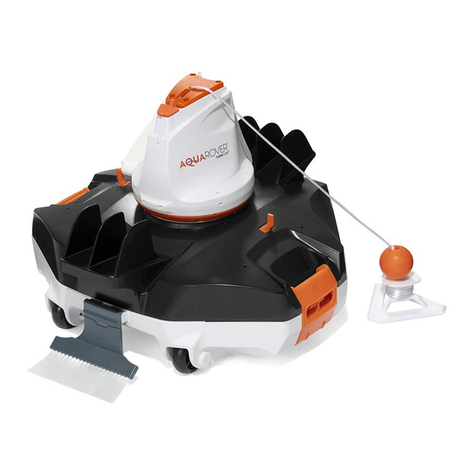

Description
Description of the pool cleaner
The baery-operated pool cleaner cleans your lled pool in automac mode.
33

The sail
4
lets the pool cleaner turn automacally as soon as it touches the pool wall.
The posions of the wheels
10
inuence the travel path of the pool cleaner.
The removable lter unit
2
lters the water and collects deposits in the pool.
The oponal cleaning strips
15
can improve the cleaning result depending on the degree
of soiling.
When the rechargeable baery is drained, the pool cleaner stops cleaning.
Basic settings
Charging the rechargeable battery
WARNING!
Risk of re!
Charging at a temperature below 10 °C leads to chemical damage to
the cell and can cause a re.
- Charge the rechargeable baery at room temperature.
NOTICE!
The sail might become damaged if the device is stored on its head.
-Never set down the device on its head.
1. Switch o the device before charging.
2. Connect the charger to the device.
3. Plug the charger into a socket.
The charge control indicator is lit red.
The rechargeable baery is charging.
4. When the charge control indicator is lit
green, disconnect the charger from the
power supply and the device.
The rechargeable baery is charged.
Attaching the floating handle
Aach the oang handle so you can place the device in the pool and take it out of the
pool in a controlled manner.
1
34

1. Guide the end of the nylon cord of the
oang handle
5
through the eyelet
on the handle
8
.
2. Shorten the nylon cord to a length that
roughly corresponds to the depth of
your pool and e it in a knot.
The oang handle is aached.
Attaching the sail
1. Aach the sail
4
on the side of the
water discharge nozzle
9
.
The sail is installed.
Adjusting the wheels
You can adapt the working radius by adjusng the wheels.
We recommend the following sengs:
C-A
(Seng for most pools (standard seng)
2
8
5
3
4
9
4
35

B-C
(Seng for large pools)
B-A
(Seng for small pools)
1. Press the retaining lugs away from the half axle and pull o the wheel.
2. Insert in the wheel with the catch so that it snaps into place at the respecve leer
for the selected seng.
The wheels are set.
Attaching the cleaning strips
1. Insert the cleaning strips
15
into the
sucon channels on the boom of the
boom part
3
.
2. Make sure that the cleaning strips
15
have properly engaged and have a ght
t.
The cleaning strips are aached.
5
6
Only aach the cleaning strips if they can assist cleaning (e.g. for removing a biolm). In
the case of an inclinaon, unevenness, too much dirt on the oor or cold water
temperature, the cleaning strips might have an adverse eect on the cleaning result.
7
3
15
36

Detaching the cleaning strips
1. Pull on the frames of the cleaning strips
15
and take them out of the boom
part
3
.
The cleaning strips are detached.
Operation
Check the following before each use:
- Is there visible damage on the device?
- Is there visible damage on the control elements?
- Do all individual parts funcon?
- Are the accessories in perfect condion?
- Are all cables in perfect condion?
Do not start up a damaged device or damaged accessories. Have them checked by the
manufacturer or its customer service or a qualied service technician.
Cleaning the pool
Observe the following before cleaning your pool:
- We recommend thoroughly cleaning the device before using it for the rst me.
- Remove any cover or lm from the pool.
- Remove obstacles (such as a ladder) from the pool.
- Switch o the lter system at least one hour before the start of cleaning so that
parcles in the water can sele on the oor.
- Never let the device run outside of the water as this can cause damage even aer a
short me.
Proceed as follows to clean your pool:
1. Insert the lter unit.
2. Place the device in the pool and switch it on.
8
3
15
37

Inserting the filter unit
1. Make sure that the dirt slots
11
are
closed before inserng the lter unit.
2. Insert the lter unit
2
into the boom
part
3
in the correct posion with the
guide lugs poinng upwards.
3. Place the top part
1
in the correct
posion on the boom part
3
. In doing
so, pay aenon to the guide lugs on
the marked locking points.
4. Close all clips
12
.
The lter unit is inserted.
Placing the device in the pool and starting cleaning
CAUTION!
Risk of injury!
The device can hurt persons in the pool.
-Make sure no one is in the pool while the device is in the water.
NOTICE!
The pump of the device can be damaged if it is switched on or o
outside of the water.
- Only switch the device on or o when it is located below the
water surface.
9
2
11
3
10
1
3
12
38

1. Hold the device by the handle and
lower it slowly into the water unl all
the air has escaped. The device should
run at a right angle to the pool wall.
2. Press the ON/OFF switch
13
on the
boom unl it snaps into place.
The device beeps if it is switched on outside of the water.
The device starts approximately 15 seconds aer the switch has been
pressed.
3. Aerwards, carefully lower the device on the nylon cord of the oang handle
5
to
the boom.
The device is in the pool and starts cleaning with a me delay.
Cleaning stops automacally when the rechargeable baery is drained.
Press the ON/OFF switch
13
to stop cleaning and switch the device o before
the cleaning me is up.
Switching off the device
Proceed as follows to switch o the device:
1. Li the device out of the pool and switch it o.
2. Clean the lter unit and the device.
11
12
13
39

Lifting the device out of the pool
NOTICE!
The pump of the device can be damaged if it is switched on or o
outside of the water.
- Only switch the device on or o when it is located below the
water surface.
1. Slowly pull the device to the surface by the oang handle
5
and the nylon cord
unl you can reach the handle
8
and press the ON/OFF
13
switch on the boom
unl it snaps into place.
If the oang handle is out of reach, use the supplied hook
6
together with an
extensible rod (not part of the package contents).
The device is switched o.
2. Slowly li the device out of the water by the handle and hold it above the water
surface for 10 to 15 seconds so that most of the water can ow back into the pool.
3. Set down the device next to the pool.
The device is lied out of the pool.
Clean the device aer each use to ensure connued fault-free operaon.
Cleaning
NOTICE!
Improper cleaning might damage the device.
- Clean the surface of the device with plain tap water aer each
use.
- Do not use any aggressive cleaning agents.
-Do not use any sharp or metal objects such as knives, hard
scrapers or similar.
-Do not use any cleaning brushes.
- Do not use a high-pressure cleaner.
40

1. Open all clips
12
.
2. Take the top part
1
o.
3. Remove the lter unit
2
.
4. Thoroughly rinse the lter unit with plain
tap water.
5. Rinse the device aer each use with plain
tap water inside and out.
The device is clean.
Storage
1. Thoroughly clean the device (see secon "Cleaning").
2. Let all parts dry completely.
3. Fully charge the device.
Recharging is required aer at latest 3 months due to self-discharge.
4. Then store the device and its accessories in a dry and frost-free place (≥ +5 °C)
without direct sunlight.
13
1
12
14
2
15
41

Troubleshooting
Fault descripon Cause Remedy
The device cannot be switched
on.
The rechargeable baery is
drained.
Charge the rechargeable
baery.
The rechargeable baery is
defecve.
Contact customer service.
It takes about 15 seconds aer
the ON/OFF switch is pressed
before the device starts.
Wait approximately 15 seconds
unl the device starts.
The charge control indicator is
not lit.
The charger is defecve. Contact customer service.
The device beeps. The device is out of the water. Place the device in the water.
The device connues beeping
aer it has been placed in the
water.
The device is defecve. Contact customer service.
The device cannot reach all
spots.
The wheel seng does not t
the pool size.
Adjust the wheels to t the
pool size.
The pool has a special shape. Adjust the wheels. Select the
seng for small pools.
The water circulaon of the
pool is switched on.
Switch o the lter system of
the pool.
The device does not turn
around at the pool wall.
The sail, the water discharge
nozzle or the cleaning strip is
stuck.
Remove the obstrucon,
remove the cleaning strips or
contact customer service.
The device oats up or turns in
a circle on the pool oor.
Too much air in the housing. Let all air escape.
The pH value and the chlorine
quanty are not properly set.
Adjust the pH value to the
correct value. See secon
"Technical data".
The salt content is too high
and the device has more
buoyancy.
Set the correct salt content.
See secon "Technical data".
42
