stellar labs MK-16RGBWT User manual

www.stellarlighting.co.uk
email: [email protected]
1

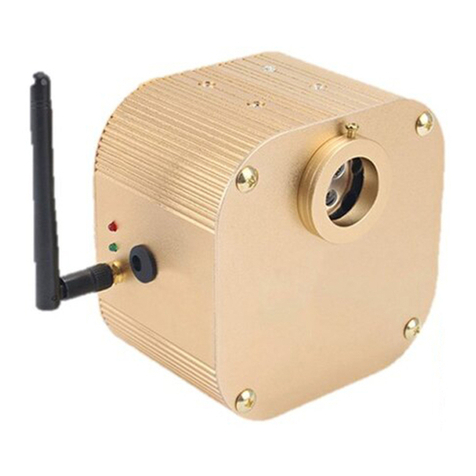

MK-16 RGBWT / MK-50 RGBWT
User manual
MK-16 RGBWT
MK-27 RGBWT
MK-50 RGBWT
Technical specification
Model
MK-16RGBWT
MK-27RGBWT
MK-50RGBWT
Programs
Speed, brightness, 20 colour changing programs, twinkling wheel speed, on/off
Remote controller
Yes, RF, and Bluetooth app
Light source type
LED
CRI (Ra>):
70
IP rating
IP33
Light colour mode
RGBW
Working voltage
DC12V
DC 24 V
DC 24 V
Power
16 W
27 W
50 W
Material of housing
Aluminium
Light engine dimensions
110 mm (L) x 80 mm
(W) x 110 mm (H)
150 mm (L) x 80 mm
(W) x 150 mm (H)
150 mm (L) x 80 mm
(W) x 150 mm (H)
Net weight
0.64 kg
0.8 kg
1.0 kg
Remote control dimensions
105 mm x 60 mm x 8 mm; wall mounting bracket: 105 mm x 62 mm x 14 mm
Fibre optic port diameter
20 mm
30 mm
30 mm
Maximum number offibre optic
bundles at 0.75 mm diameter
550
1100
1100
Lifetime
50,000 hours
Warranty
2 years
Package dimensions (excluding
fibre optic bundle)
210 mm (L) x 120 mm
(W) x 90 mm (H)
300 mm (L) x 200 mm
(W) x 145 mm (H)
300 mm (L) x 200 mm
(W) x 145 mm (H)
Weight with packaging
0.75 kg
1.6 kg
1.8 kg

www.stellarlighting.co.uk
email: [email protected]
2
MK-16 RGBWT / MK-50 RGBWT
User manual
Safety notices
Electrical work safety advice and tips
●Make sure the input voltage is correct.
●Avoid placing the light engine in the rain or in moist areas. Please ensure that the light engine has
sufficient ventilation and is not placed in a completely sealed area.
●Do not open the LED light engine for inspection or re-wire the electronic circuits if you are not a
professional. Opening the light engine might void your warranty.
●Avoid any debris on top or around the light engine as it can cause poor heat dissipation.
●Avoid using the device above 40 C temperature.
DIY tips and safety advice
●This task will involve working at height. A safe system of work should be established and maintained, in
order to prevent injury.
●Consider your safety! Think about the potential risks and dangers of the work and the steps you should
take to avoid them.
●Personal protective equipment. Make sure that you are equipped with suitable and sufficient personal
protectiveequipment.Thiscouldincludeeye protection,facemask,protectiveoveralls,safetyfootwear
and gloves.
●Ensure that the work area is sufficiently illuminated.
●Check that the tools you will be working with are in a good operating condition. For the installation,
you will need a cordless drill, epoxy glue, side cutters or scissors and drill bits.

www.stellarlighting.co.uk
email: [email protected]
3
MK-16 RGBWT / MK-50 RGBWT
User manual
Connection method between optical fibres and the light engine
Your fibre optic bundle will come with the
connector fittings ready to connect to the
light engine. However, if you need to adjust
your bun
follow the steps below.
1. Align all the optical fibre ends and fasten with tapes which can resist temperature over 130℃
2. Pass the fibres through the connector and fasten the rotary tensioner until the fibres are tightened.
3. Cut the fibre bundle to a flat surface with a heat-knife or blade.
4. Make sure that the optical fibre bundle head is smooth and clean toensure even light distribution.
5. he . Fasten the bundle with
the screw on the top of the .

www.stellarlighting.co.uk
email: [email protected]
4
MK-16 RGBWT / MK-50 RGBWT
User manual
RF Touch remote controller guide
The light engine can be controlled by the remote controller and the Bluetooth App at the same time.
The remote uses CR2025. Please note that the battery is not included!
Programme modes
•7 colour fade
•RGB fade
•Seven colour breathe
•RGB breathe
•Red & green fade
•Red & blue fade
•Green & blue fade
•Seven colour jump
•RGB jump
•7 colour flash
•RGB flash
•Red flash
•Green flash
•Blue flash
•Yellow flash
•Purple flash
•Cyan flash
•White flash
•Yellow & purple flash
•Purple & cyan flash

www.stellarlighting.co.uk
email: [email protected]
5
MK-16 RGBWT / MK-50 RGBWT
User manual
Troubleshooting for remote controller connection issues:
•
•Check if the battery is operational in the remotecontroller: Press a button on the remote and the
indicator light should flash
the remote or the battery needs replacing.
•light engine flashes up, when a button is pressed on the remote. If the indicator light is not flashing up,
try re-pairing the remote
controller with the light engine. If the pairing didn t work, please contact your supplier.
•Pairing your remote controller with the light engine:
1. Make sure the light engine is switched off
2. Press and hold down the "Motor Slow" button of the remote controller and power on the light
source
3. The light engine should flash 3 times if the pairing was successful.
Bluetooth App control guide
1. Download the Bluetooth App
Option 1: QR code:
•Both Android and Apple phones can scan the QR code to download the
app
Option 2: App store:
•
download the App
•For Android system: go to the Google Play S
2. Connect your Bluetooth device with the app
a. Turn on Bluetooth on your mobile phone
b. Power on the light engine
c. Open the App on your mobile phone

www.stellarlighting.co.uk
email: [email protected]
6
MK-16 RGBWT / MK-50 RGBWT
User manual
d. The App will automatically connect to light engine
Important notes
•Do not connect your mobile phone manually
Bluetooth settings
•One mobile phone can connect to andcontrol multiple light engines, but one light engine can
only be connected to and controlled by one mobile phone at a time
3. Operation and modes

www.stellarlighting.co.uk
email: [email protected]
7
MK-16 RGBWT / MK-50 RGBWT
User manual
Static mode
Dynamic mode
Music mode
Twinkling mode
Meteor mode*
*
4. Bluetooth connection settings
a.
b. Rename connected devices in the App

www.stellarlighting.co.uk
email: [email protected]
8
MK-16 RGBWT / MK-50 RGBWT
User manual
c. Group devices in the App

www.stellarlighting.co.uk
email: [email protected]
9
MK-16 RGBWT / MK-50 RGBWT
User manual
5. Troubleshooting for Bluetooth connection issues
•Check that the light engine is powered on.
•Check that the Bluetooth is turned on the mobile device.
•Check if another mobile phone is already connectedto the light engine. If another mobile
phone is already connected to the light engine, disconnect it first.
•If necessary, reconnect the mobile phone with the light engine: (1) exit the App,(2) turn off
Bluetooth on the mobile phone, (3) turn on Bluetooth on the mobile phone, (4) Re-open the
App. The App should automatically connect to the light engine.
