Stellar Lighting MK-S16 RGBW-T User manual
www.stellarlighting.co.uk
1
MK-S16 RGBW-T / MK-S20 RGBW-T
User manual
MK-S16 RGBW-T
MK-S20 RGBW-T
Model
MK-S16 RGBW-T
MK-S20 RGBW-T
Programs
Speed, brightness, 20 colour changing programs, music sync mode, twinkling wheel
speed, on/off
Remote controller
Yes, RF remote and Bluetooth app (RF remote dimensions: 105 mm x 58 mm x 9 mm)
Light source type
RGBW LED
CRI (Ra>):
70
IP rating
IP20
Working voltage
DC 12 V
Power
16 W
20 W
Material of housing
Aluminium
Light engine dimensions
84 mm (L) x 84 mm (W) x 42 mm (H)
91 mm (L) x 87 mm (W) x 64 mm (H)
Net weight
0.24 kg
0.32 kg
Fibre optic port diameter
20 mm
2 x 20 mm
Maximum number of fibre optic
bundles at 0.75 mm diameter
550
2 x 550
Lifetime
50,000 hours
Warranty
2 years
Package dimensions (excluding
fibre optic bundle)
190 mm (L) x 123 mm (W) x 56 mm (H)
220 mm (L) x 157 mm (W) x 86 mm (H)
Weight with packaging
0.4 kg
0.5 kg
www.stellarlighting.co.uk
2
MK-S16 RGBW-T / MK-S20 RGBW-T
User manual
Safety notices
Electrical work safety advice and tips
●Make sure the input voltage is correct.
●Avoid placing the light engine in the rain or in moist areas. Please ensure that the light engine has sufficient
ventilation and is not placed in a completely sealed area.
●DonotopentheLEDlight engineforinspectionorre-wirethe electronic circuits ifyou arenotaprofessional.
Opening the light engine might void your warranty.
●Avoid any debris on top or around the light engine as it can cause poor heat dissipation.
●Avoid using the device above 40 C temperature.
DIY tips and safety advice
●This task will involve working at height. A safe system of work should be established and maintained, in order
to prevent injury.
●Consider your safety! Think about the potential risks and dangers of the work and the steps you should take
to avoid them.
●Personal protective equipment. Make sure that you are equipped with suitable and sufficient personal
protective equipment. This could include eye protection, face mask, protective overalls, safety footwear and
gloves.
●Ensure that the work area is sufficiently illuminated.
●Check that the tools you will be working with are in a good operating condition. For the installation, you will
need a cordless drill, epoxy glue, side cutters or scissors and drill bits.
www.stellarlighting.co.uk
3
MK-S16 RGBW-T / MK-S20 RGBW-T
User manual

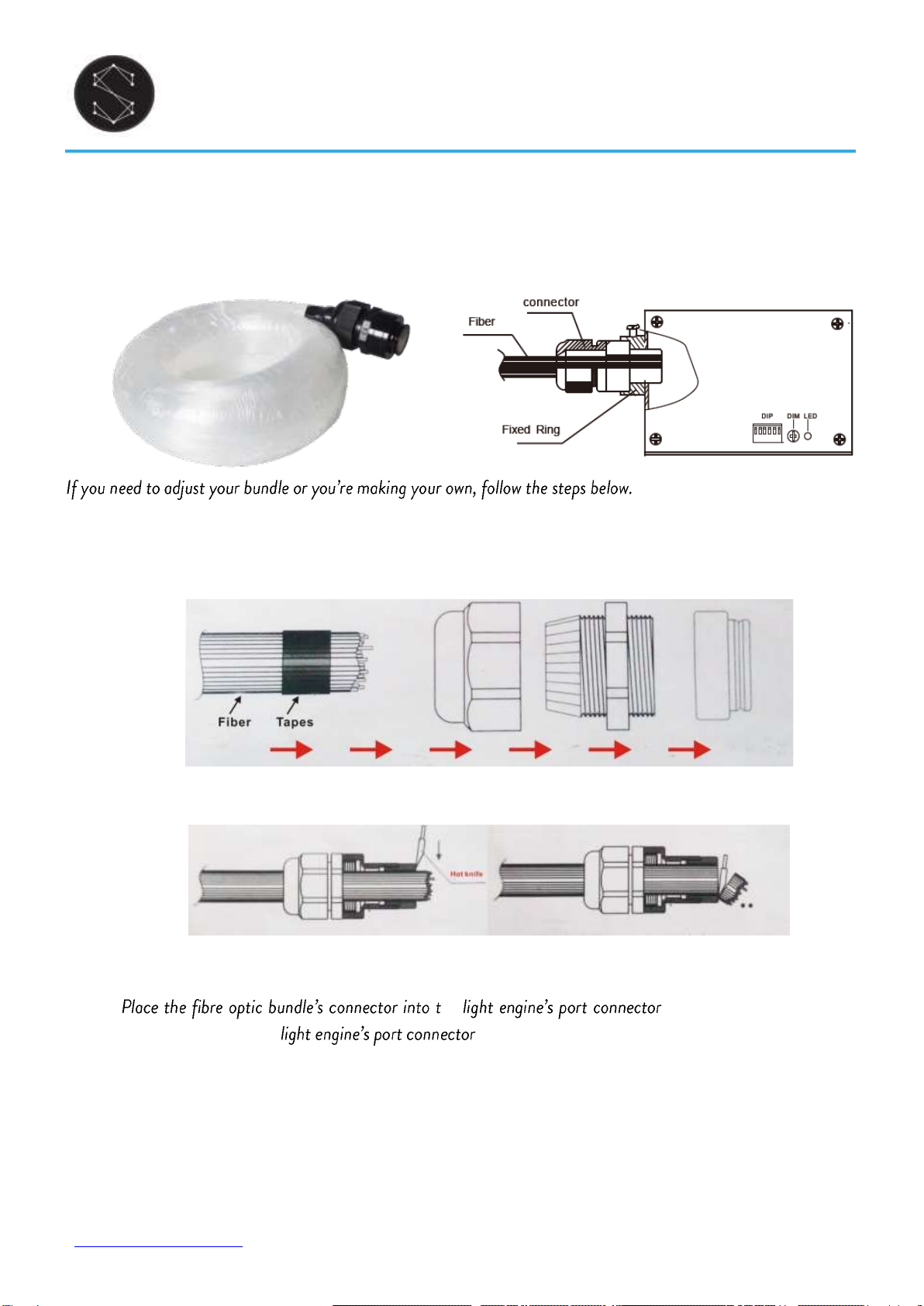

Connection method between optical fibres and the light engine
Your fibre optic bundle will come with the connector fittings ready to connect to the light engine.
1. Align all the optical fibre ends and fasten with tapes which can resist temperature over 130℃
2. Pass the fibres through the connector and fasten the rotary tensioner until the fibres are tightened.
3. Cut the fibre bundle to a flat surface with a heat-knife or blade.
4. Make sure that the optical fibre bundle head is smooth and clean to ensure even light distribution.
5. he . Fasten the bundle with the
screw on the top of the .
www.stellarlighting.co.uk
5
MK-S16 RGBW-T / MK-S20 RGBW-T
User manual

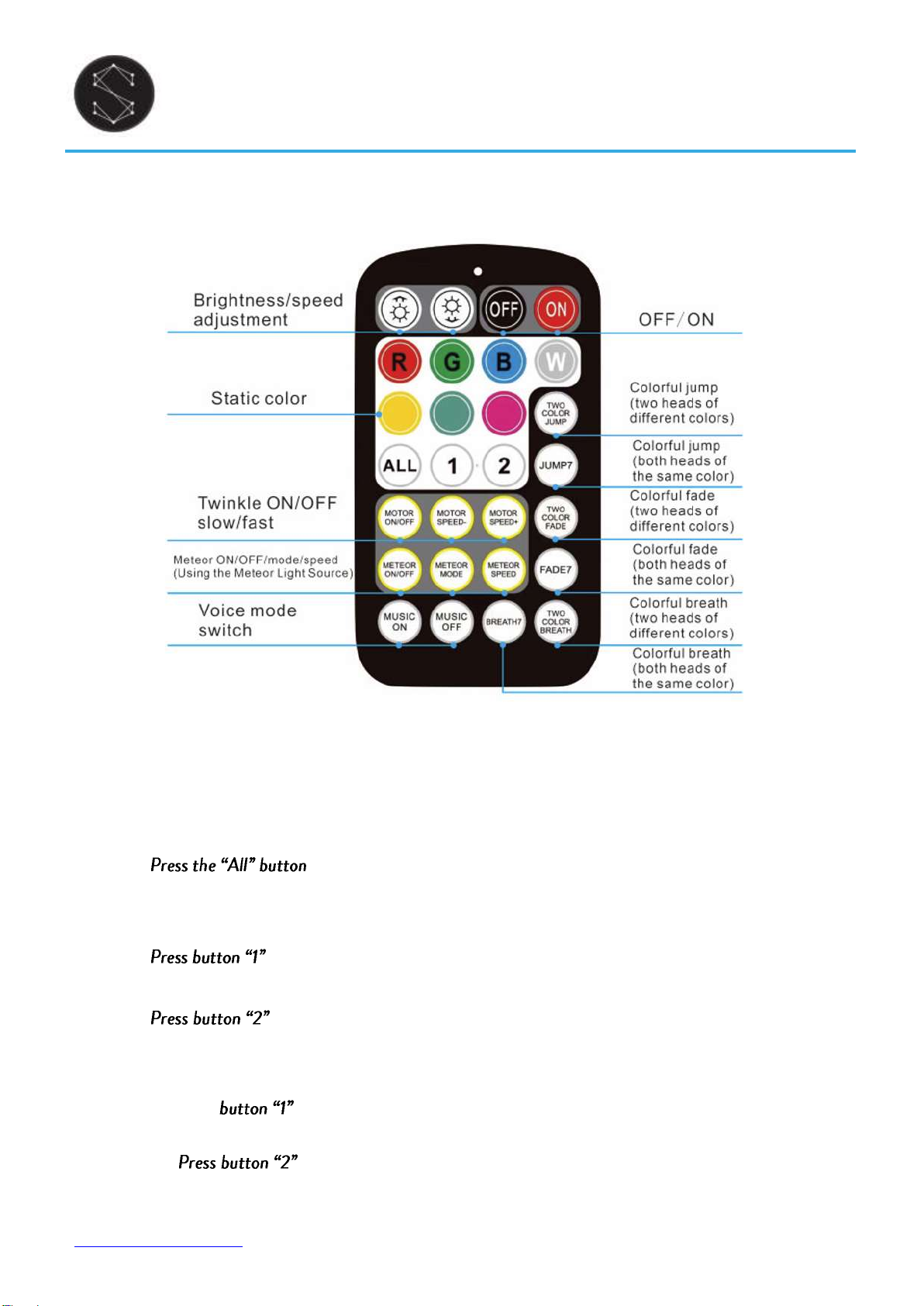

Remote controller operation (MK-S20 RGBW-T)
Notes: The device can be controlled by the RF remote and the Bluetooth App at the same time.
Dual-port independent control:
1. Control both ports at the same time:
•
•Press the preferred mode: a static colour or a dynamic mode
2. Independent control for both ports on static colour
•
•Press the static colour of your preference
•
•Choose the static colour of your preference
3. One port static, one port dynamic (static colour needs to be selected first)
•Press
•Press the static colour of your preference
•
•Press the dynamic mode of your choice
www.stellarlighting.co.uk
6
MK-S16 RGBW-T / MK-S20 RGBW-T
User manual
Troubleshooting for remote controller connection issues:
•
•Check if the battery is operational in the remote controller: Press a button on the remote and the indicator
t there is either no battery in the remote or
the battery needs replacing.
•engine flashes up, when a button is pressed on the remote. If the indicator light is not flashing up, restart the
-pairing the remote controller with the
www.stellarlighting.co.uk
7
MK-S16 RGBW-T / MK-S20 RGBW-T
User manual
Bluetooth App control guide
1. Download the Bluetooth App
Option 1: QR code:
•Both Android and Apple phones can scan the QR code to download the app
Option 2: App store:
•My smartLED
download the App
•My
SmartLed
2. Connect your Bluetooth device with the app
a. Turn on Bluetooth on your mobile phone
b. Power on the light engine
c. Open the App on your mobile phone
d. The App will automatically connect to light engine
Important notes
•
settings
•One mobile phone can connect to and control multiple light engines, but one light engine can only
be connected to and controlled by one mobile phone at a time
www.stellarlighting.co.uk
10
MK-S16 RGBW-T / MK-S20 RGBW-T
User manual
4. Troubleshooting for Bluetooth connection issues
•Check that the light engine is powered on.
•Check that the Bluetooth is turned on the mobile device.
•Check if another mobile phone is already connected to the light engine. If another mobile phone is
already connected to the light engine, disconnect it first.
•If necessary, reconnect the mobile phone with the light engine: (1) exit the App, (2) turn off
Bluetooth on the mobile phone, (3) turn on Bluetooth on the mobile phone, (4) Re-open the App.
The App should automatically connect to the light engine.
www.stellarlighting.co.uk
11
MK-S16 RGBW-T / MK-S20 RGBW-T
User manual
Compliance notes
United Kingdom
Waste Electrical and Electronic Equipment Regulations 2013
The waste electrical and electronic equipment regulations in the UK promote the purpose of recycling, recovering
and reuse of products and components, thereby, intending to reduce the amount of electrical and electronic waste
from being disposed off at landfill sites.
The WEEE logo on the box or on the product signifies the collection and the intent of recycling the product, as
shown in the logo below.
For disposing of the electrical and electronic equipment, please contact your local waste disposal services for correct
disposal.
Regulations on restriction of Hazardous substances
The product complies with the requirements of the restriction of the use of certain hazardous substances in electrical
and electronic equipment regulation 2012.
European Union
Waste Electrical and Electronic Equipment
The directive of waster electrical and electronic equipment serves for the purpose of promoting the recycling, reuse
and other means of recovery or restoration of such waste so as to reduce the disposal. The product or packaging of
the product marked with the WEEE logo indicating the collection of electrical and electronic equipment has the logo
as shown below.
The symbol indicates to not dispose this product into the normal household waste. Instead, the product shall be
disposed of properly at the designated collection points. For more information, please contact your local waste
disposal services.
RoHS compliance
The product is in compliance with the RoHS directive 2011/65/EU where the restriction of use of hazardous
substances has been adhered to.
