Steren USB-115 User manual


2
USB-115
Gracias por la compra de este producto Steren.
Este manual contiene todas las indicaciones necesarias para manejar su
nueva Unidad externa USB 2.0 para discos duros de 3,5”.
Por favor, revíselo completamente para estar seguro de cómo utilizar
apropiadamente el producto.
Para apoyo, compras y todo lo nuevo que tiene Steren,
visite nuestro sitio web:
www.steren.com.mx
UNIDAD EXTERNA USB 2.0 PARA
DISCOS DUROS DE 3,5”
La información que se muestra en este manual sirve únicamente
como referencia sobre el producto. Debido a actualizaciones pueden
existir diferencias.
Por favor, consulte nuestra página web (www.steren.com.mx) para
obtener la versión más reciente del instructivo.

3
IMPORTANTE
- Al manipular el disco duro, utilice una pulsera antiestática para enviar las descargas
eléctricas de su cuerpo a tierra física.
- No use ni almacene este equipo en lugares donde existan goteras o salpicaduras de agua.
- Siempre utilice un paño suave, limpio y seco para limpiar el equipo.
1. CONTROLES 4
2. INSTALACIÓN DEL DISCO DURO 5
3. INSTALACIÓN DE DRIVERS 6
4. MODO DE USO 6
5. ESPECIFICACIONES 7
ÍNDICE

4
1. Encendido / Apagado
Enciende o apaga la unidad externa.
2. Indicador LED
Enciende cuando el equipo está en uso.
3. Entrada de alimentación
Permite conectar el adaptador de corriente suministrado.
4. Conector USB
Entrada para cable USB 2.0. Permite conectar la unidad externa a una computadora.
5. Conector eSATA
Permite conectar un cable eSATA a la computadora.
1. CONTROLES

5
3. Coloque el disco en el soporte haciendo
coincidir los conectores SATA. Asegúrese
de que queden bien conectados.
2. INSTALACIÓN DEL DISCO DURO
1. Retire la cubierta trasera de la unidad, quitando los tornillos.
2. Jale el soporte hacia la parte delantera.
6. Vuelva a colocar los tornillos de la cubierta trasera para asegurarla.
En caso de que no tenga conocimientos acerca de modicaciones en el disco duro, se
recomienda acudir con un técnico especialista. De otra forma podría dañar el equipo.
4. Asegure el disco a la base usando los tornillos.
5. Coloque la base en el interior de la caja haciendo
coincidir la pestaña con el riel.

6
3. INSTALACIÓN DE DRIVERS
4. MODO DE USO
Si tiene instalado Windows ME, 2000, XP, Vista o 7 en su computadora, no necesita instalar
controladores.
Una vez que ha realizado las conexiones internas correspondientes, podrá comenzar a
utilizar su nueva unidad externa para disco duro.
1. Inserte el cable USB B en la entrada de la unidad externa; el extremo contrario conéctelo
a un puerto USB 2.0 disponible en la computadora.
2. Conecte el adaptador de corriente suministrado a la unidad externa y a un tomacorriente
casero.
USB 2.0 DC 12V

7
5. Su disco duro aparecerá como un Dispositivo de Almacenamiento Masivo USB y será
identicado con una letra (F o G normalmente, pero podría aparecer otra).
6. Para realizar la transferencia de archivos entre diversas unidades, simplemente copie y
pegue los archivos utilizando el Explorador de archivos.
7. Cuando desee retirar el equipo, presione el botón izquierdo del ratón sobre el ícono “ ”
o “ ” y seleccione Extracción Segura. Cuando en la pantalla aparezca el mensaje “Es
seguro retirar el hardware”, podrá desconectarlo con toda seguridad.
3. Encienda la unidad de disco duro externa. El
LED indicador se encenderá y la computadora
detectará el nuevo equipo y comenzará un proceso
de actualización automática.
4. Una vez que termine este proceso, aparecerá el
mensaje de que el equipo estará listo para usarse.
5. ESPECIFICACIONES
Alimentación: 12V - - - 2 A
Convertidor
Alimentación: 100 - 240 V~ 50 - 60 Hz 0,8 A
Salida: 12V - - - 2 A
El diseño del producto y las especicaciones pueden cambiar sin previo aviso.

8
Producto: Unidad externa USB 2.0 para discos duros de 3,5”
Modelo: USB-115
Marca: Steren
F12231P1081CZ
PÓLIZA DE GARANTÍA
Esta póliza garantiza el producto por el término de un año en todas sus partes y mano de obra, contra
cualquier defecto de fabricación y funcionamiento, a partir de la fecha de entrega.
CONDICIONES
1.- Para hacer efectiva la garantía, presente esta póliza y el producto, en donde fue adquirido o en
Electrónica Steren S.A. de C.V.
2.- Electrónica Steren S.A de C.V. se compromete a reparar el producto en caso de estar defectuoso sin
ningún cargo al consumidor. Los gastos de transportación serán cubiertos por el proveedor.
3.- El tiempo de reparación en ningún caso será mayor a 30 días, contados a partir de la recepción del
producto en cualquiera de los sitios donde pueda hacerse efectiva la garantía.
4.- El lugar donde puede adquirir partes, componentes, consumibles y accesorios, así como hacer válida esta
garantía es en cualquiera de las direcciones mencionadas posteriormente.
ESTA PÓLIZA NO SE HARÁ EFECTIVA EN LOS SIGUIENTES CASOS:
1.- Cuando el producto ha sido utilizado en condiciones distintas a las normales.
2.- Cuando el producto no ha sido operado de acuerdo con el instructivo de uso.
3.- Cuando el producto ha sido alterado o reparado por personal no autorizado por Electrónica Steren S.A.
de C.V.
El consumidor podrá solicitar que se haga efectiva la garantía ante la propia casa comercial donde adquirió
el producto. Si la presente garantía se extraviara, el consumidor puede recurrir a su proveedor para que le
expida otra póliza, previa presentación de la nota de compra o factura respectiva.
DATOS DEL DISTRIBUIDOR
Nombre del Distribuidor __________________________
Domicilio ______________________________________
Producto ______________________________________
Marca ________________________________________
Modelo _______________________________________
Número de serie ________________________________
Fecha de entrega ________________________________
ELECTRÓNICA STEREN S.A. DE C.V.
Camarones 112, Obrero Popular, 02840, México, D.F.
RFC: EST850628-K51
STEREN PRODUCTO EMPACADO S.A. DE C.V.
Biólogo Maximino Martínez No. 3408 Int. 3 y 4, San
Salvador Xochimanca, México, D.F. 02870,
RFC: SPE941215H43
ELECTRÓNICA STEREN DEL CENTRO, S.A. DE C.V.
Rep. del Salvador 20 A y B, Centro, 06000, México. D.F.
RFC: ESC9610259N4
ELECTRÓNICA STEREN DE GUADALAJARA, S.A.
López Cotilla No. 51, Centro, 44100, Guadalajara, Jal.
RFC: ESG810511HT6
ELECTRÓNICA STEREN DE MONTERREY, S.A.
Colón 130 Pte., Centro, 64000, Monterrey, N.L. RFC:
ESM830202MF8
ELECTRÓNICA STEREN DE TIJUANA, S.A. de C.V.
Calle 2a, Juárez 7636, Centro, 22000, Tijuana, B.C.N.
RFC: EST980909NU5
En caso de que su producto presente alguna
falla, acuda al centro de distribución más
cercano a su domicilio y en caso de tener alguna
duda o pregunta por favor llame a nuestro Centro
de Atención a Clientes, en donde con gusto le
atenderemos en todo lo relacionado con su
producto Steren.
Centro de Atención a Clientes
01 800 500 9000


22
Thank You on purchasing your new Steren product.
This manual includes all the feature operations and troubleshooting necessary
to install and operate your new Steren´s 3.5” SATA HHD enclosure.
Please review this manual thoroughly to ensure proper
installation and operation of this product. For support, shopping,
and everything new at Steren, visit our website:
www.steren.com.mx
USB-115
3.5” SATA HHD ENCLOSURE
The instructions of this manual are for reference about the product. There may
be differences due to updates.
Please check our web site (www.steren.com.mx) to obtain the latest version of
the instruction manual.

33
IMPORTANT
- Before to manipulate the HDD, use an anti-static bracelet to send electric discharges from
your body to the physical ground.
- Do not use it or store near wet places. Clean only with a soft, dry cloth.
1. CONTROLS 4
2. HDD INSTALLATION 5
3. SOFTWARE INSTALLATION 6
4. HOW TO USE 6
5. SPECIFICATIONS 7
INDEX

44
1. On / Off
Power on / off the enclosure.
2. LED indicator
It lights on when the device is in use.
3. Power Supply
Power supply connector.
4. USB connector
USB cable input.
5. eSATA connector
Allows you to connect an eSATA cable into the computer.
1. CONTROLS

55
3. Place the disk in the bracket matching
SATA connectors and make sure that they
are securely connected.
2. HDD INSTALLATION
1. Remove the rear cover of the unit by removing the screws.
2. Pull the bracket toward the front.
6. Replace the rear cover using the screws to secure it.
If you have not enough knowledge about changing the HDD internal conguration, we
recommend that you ask a technician, otherwise may cause several damages in the equipment.
4. Secure the drive to the base using the screws.
5. Place the base on the inside of the box by aligning
the tab with the rail.

66
3. SOFTWARE INSTALLATION
4. HOW TO USE
If you use Windows ME, 2000, XP, Vista or 7, you don’t need to install any driver.
Once you have made the right internal connections, you can start to use your new USB to
SATA 3.5” HDD enclosure.
1. Plug the USB cable into the USB B jack to the enclosure, then, insert the opposite side into
an available USB 2.0 port in the computer.
2. Plug the AC power adaptor to the enclosure and connect it into an AC household outlet.
USB 2.0 DC 12V

77
Input: 12V - - - 2 A
Power converter
Input: 100 - 240 V~ 50 - 60 Hz 0.8 A
Output: 12V - - - 2 A
5. The external HDD appears as USB Mass Storage Device and you can identify it by a letter
(usually by letter F or G, but it could be another one).
6. If you want to transfer any kind of les between different drives, just click and drag the
desired ones using Windows Explorer.
7. When you want to remove the device, click on the icon in the system tray “ ” or
“ ”using the left button of the mouse and choose Safety Remove.
When the message: “you may safely remove this device” displays on the screen, you can
unplug the equipment from the computer.
3. Turn the enclosure on. The LED indicator will
light on and the PC will detect the new hardware, an
updating process begins.
4. Once the process nished, the next message
displays on the screen: “your new hardware is
correctly installed”. This message means that you
can start to use the new hardware.
5. SPECIFICATIONS
Product design and specications are subject to change, without notice.

88
WARRANTY
This Steren product is warranted under normal usage against defects in workmanship
and materials to the original purchaser for one year from the date of purchase.
CONDITIONS
1. This warranty card with all the required information, invoice, product box or
package, and product, must be presented when warranty service is required.
2. If the product is in the warranty time, the company will repair it free of charge.
3. The repairing time will not exceed 30 natural days, from the day the claim was
received.
4. Steren sell parts, components, consumables and accessories to customer, as well
as warranty service, at any of the addresses mentioned later.
THIS WARRANTY IS VOID IN THE NEXT CASES:
If the product has been damaged by an accident, acts of God, mishandling, leaky
batteries, failure to follow enclosed instructions, improper repair by unauthorized
personnel, improper safe keeping, among others.
a) The consumer can also claim the warranty service in the purchase establishment.
b) If you lose the warranty card, we can reissue it, if you show the invoice or purchase
ticket.
RETAILER INFORMATION
Name of the retailer
Address
Product
Brand
Part number
Serial number
Date of delivery
Product: 3.5” SATA HHD enclosure
Part number: USB-115
Brand: Steren
In case your product fails
or have questions, please
contact your nearest dealer.
If you are in Mexico, please
call to our Call Center.
01 800 500 9000

99

Other manuals for USB-115
1
Table of contents
Languages:
Other Steren Enclosure manuals
Popular Enclosure manuals by other brands

CAD Audio

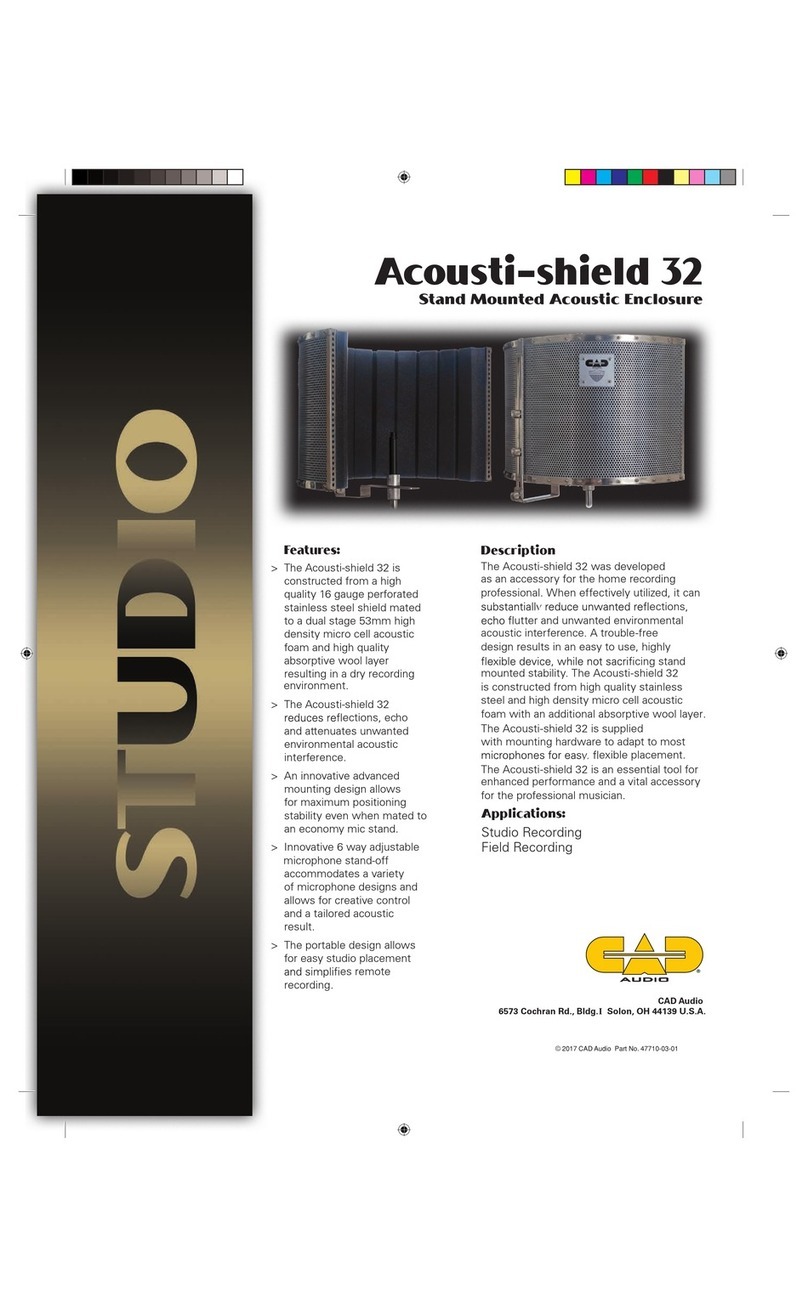

CAD Audio Acousti-shield 32 user guide

Dell
Dell PowerVault 114x datasheet

DDN Storage
DDN Storage StorageScaler8460 manual

Thermaltake
Thermaltake Urban T81 user manual

Avid Technology

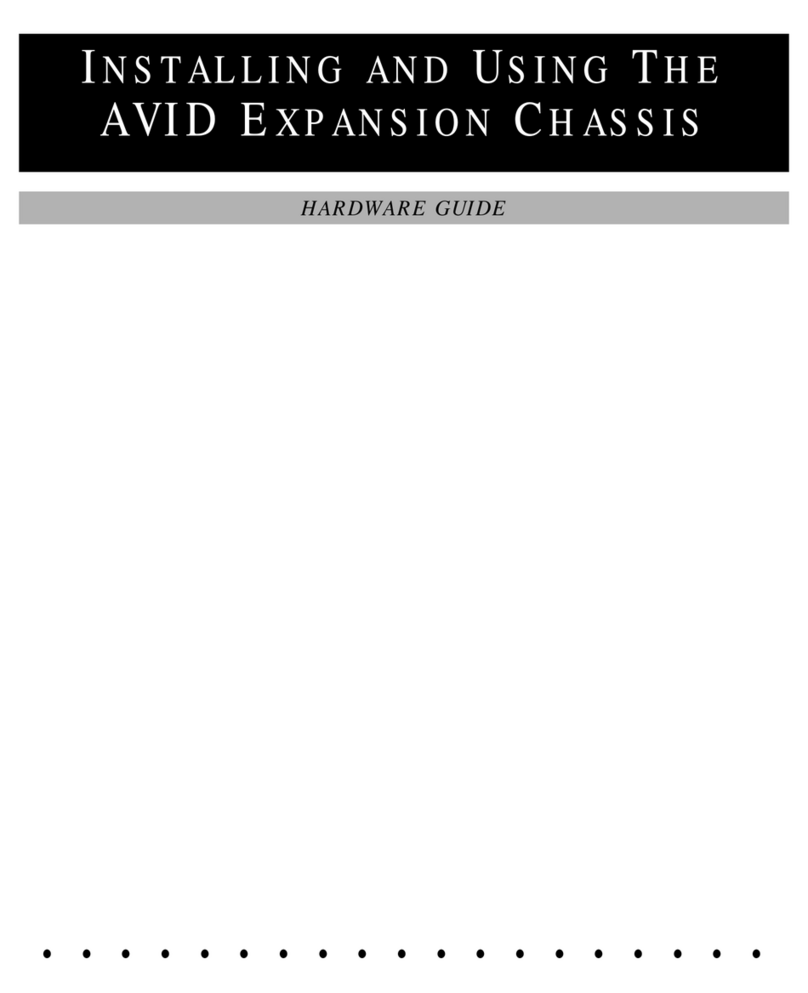

Avid Technology EXPANSION CHASSIS Instructions for installing and using

Martin Audio
Martin Audio Wavefront W8CT Specification sheet
