Steren BAF-1280 User manual

Before using your new Speaker Box with amplifier, please read this
instruction manual to prevent any damage. Put it away in a safe
place for future references.
INSTRUCTIONS
Before connecting the speaker, make sure the system is off and the
controls on the minimum level. Otherwise the system could presents
damages.
1.- Plug the polarized cable to electric power and to the speaker.
2.- Plug the Microphone on the “MIC” input with a 6,3mm or Cannon
connector.
3.- Plug an auxiliary system (CD, DECK, MP3, DVD, etc) in “LINE IN”
input
4.- Turn on the systems. A green LED light up in the speaker to indicate
that is on
5.- Set the volume on the middle level in the MIC and LINE IN inputs
6.- Gradually increase the master volume (place on the right side of
LINE OUT connector)
7.- Set TREBLE and BASS controls to equalize the sound.
8.- A red LED light up when the system detects an overload. You must
diminish the volume level.
Caution
Do not place the microphone near to the speaker, it can cause
feedback echo and could damage the system.
ENGLISH
ENGLISH-02
Before usin
g
y
our new Speaker Box with amplifier, please read this
i
nstruction manual to prevent an
y
dama
g
e. Put it awa
y
in a safe
p
lace for future references
.
D
o not
p
lace the micro
p
hone near to the s
p
eaker, it can cause
f
eedback echo and could dama
g
e the s
y
stem
.

Used wisely, your new sound equipment will provide a lifetime of fun
and enjoyment. Since hearing damage from loud noise is often
undetectable until it is too late.
Steren recommend you avoid prolonged exposure to excessive noise.
This list of sound levels is included for your protection.
The following noises can be dangerous under constant exposure:
ENGLISH
ENGLISH-03
90 Subway, motorcycle, lawn mower
100 Pneumatic drill, garbage truck
120 Rock band concert in front of speakers, thunderclap
140 Gunshot blast, jet plane
180 Rocket launching pad
Level
(
Decibels
)
Exam
p
le
30 Quiet library, soft whispers
40 Living room, refrigerator, bedroom
50 Light traffic, normal conversation, quiet office
60 Air conditioner at 20ft, sewing machine
70 Vacuum cleaner, hair dryer, noisy restaurant
80 Average city traffic, alarm clock at two feet

ENGLISH
EXTRA FUNCTIONS
6,3mm and Cannon connectors marked as LINE OUT can support an
amplifier or even another BAF-1280 / BAF-1580.
At the bottom of the speaker there is a hole to place a stand.
FEATURES
Polarized input to plug the power supply.
Balanced and unbalanced input for the microphone (Cannon and
6,3mm).
Two inputs: RCA and Cannon like auxiliary.
6,3 mm connector (jack) and a male Cannon connector as output.
LEDS to indicate power on (green) and overload power (red)
On and off switch
Auxiliary and microphone volume controls
Master volume control
Bass and treble controls
Protective fuse
Power cord supplied
CAUTIONS
Do not place near water, neither expose to leaks or splashes
Keep it on fresh places
Do not use it in places with humidity
Do not hold drinks on it.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
ENGLISH-04

ENGLISH
ENGLISH-05

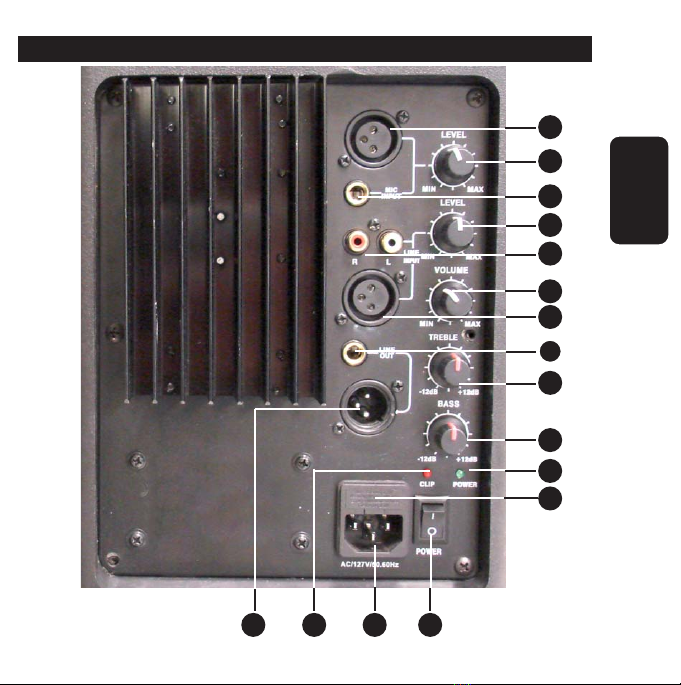

CONTROLS BAF-1280
1a
1a
1b
1b
1c
1c
2a
2a
2b
2b
2c
2c
3
4
5
6a
6a
7
8 9
6b
6b
10
10
11

ENGLISH
ENGLISH-06
1a) Microphone 1 input
Allows you to connect a microphone with a 6,3mm connector
1b) Balanced microphone 1 input
Connector for a balanced microphone
1c) Microphone control
Use this control to set the volume level of the microphone 1 (6,3mm or
balanced)
2a) RCA Line-In
Allows you to connect an external audio device (CD, radio, DVD, etc.),
with RCA connectors.
2b) Cannon Line-In
Allows you to connect an external audio device (CD, radio, DVD, etc.),
with a Cannon connector.
2c) Control
Use this control to set the volume level of the Line-In signal
3) Volume control
Set the volume level
4) Treble
Use it to set the treble level

ENGLISH
ENGLISH-07
5) Bass
Use it to set the bass level
6a) Signal output
Use this jack to connect other amplifier or even a BAF-1280
in cascade, using a 6,3mm connector
6b) Signal output
Use this jack to connect other amplifier or even a BAF-1280
in cascade, using a Cannon connector
7) Fuse
8) AC power
Use it to connect the AC power cord
9) On / Off power switch
Press to power on / off the speaker box
10) Overload indicator
11) Power indicator

ENGLISH
ENGLISH-05

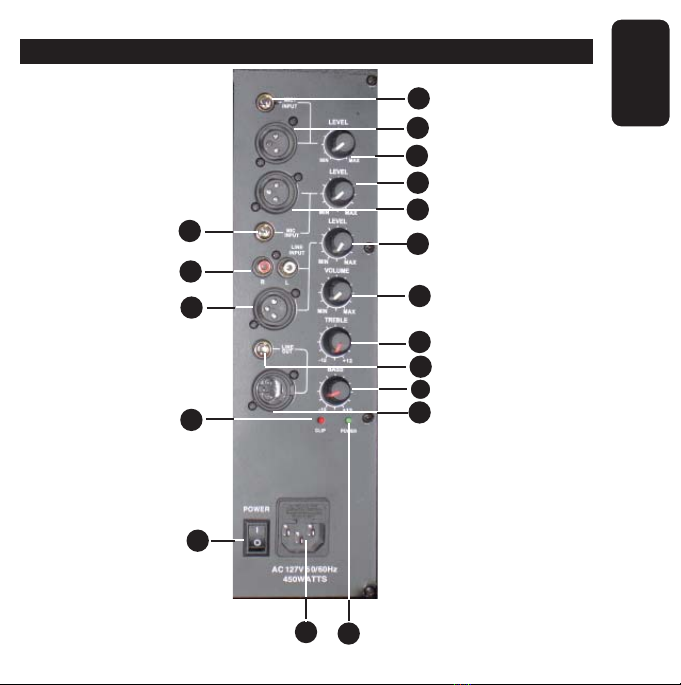

CONTROLS BAF-1580
1a
1a
1b
1b
1c
1c
2a
2a
2b
2b
2c
2c
4
5
6
7
8
9
10
10
11
3a
3a
3c
3c
3b
3b
12
12

ENGLISH
ENGLISH-06
1a) Microphone 1 input jack
Allows you to connect a microphone with a 6,3mm connector
1b) Balance microphone input jack 1
Allows you to connect a microphone with a Cannon type connector
1c) Microphone 1 control
Use this control to set the microphone volume level
2a) Microphone 2 input jack
Allows you to connect a microphone with a 6,3mm connector
2b) Balance microphone input jack 2
Allows you to connect a microphone with a Cannon type connector
2c) Microphone 2 control
Use this control to set the microphone volume level
3a) RCA input jacks
Use this jacks to plug an external audio device (such as CD, or DVD
player, radio, etc)
3b) Line in control
3c) Cannon type input
Use this jacks to plug an external audio device (such as CD, or DVD
player, radio, etc)

ENGLISH
ENGLISH-07
4) Volume level general control
5) Treble control
6) Bass control
7) Output signal connector
Use it to connect other amplifier or another BAF-1580, in cascade, using
a Cannon type connector
8) Output signal connector
Use it to connect other amplifier or another BAF-1580 in cascade, using
a 6,3mm connector
9) In-use indicator
10) Overload indicator
11) AC input
Use it to plug the supplied power cord
12) On / Off switch
Press to turn the device on / off
