STERNO HOME SHME1065 User manual

Landscape Lighting Installation Instructions
Attach the smaller black
ground stakes to the hubs.
Insert the bulb and attach
the top to the stem.
Insert the bulb and attach
the top to the stem.
Step 1- Assemble Parts
1) Remove the top
IMPORTANT PLEASE READ!
These are installation instructions for landscape lighting kits and individual products such as spot lights,
path lights, bulbs, transformers, and hubs. The products you purchased may be dierent than those
represented in this instruction sheet, but will function the same.
Stake
Hub
2) Install Bulb
3) Reinstall Top
To p
Bulb
Stake
Stem
Bulb
To p
Pathlights
Hubs Spotlights
Step 2- Develop a Plan
• Position the light xtures as desired near plants, trees, walkways or structures
located within 25 feet of the hubs.
• Position each of the hubs so that they’re centrally located among the xtures
per the plan developed.
Bulb
To p
Stake
Stem

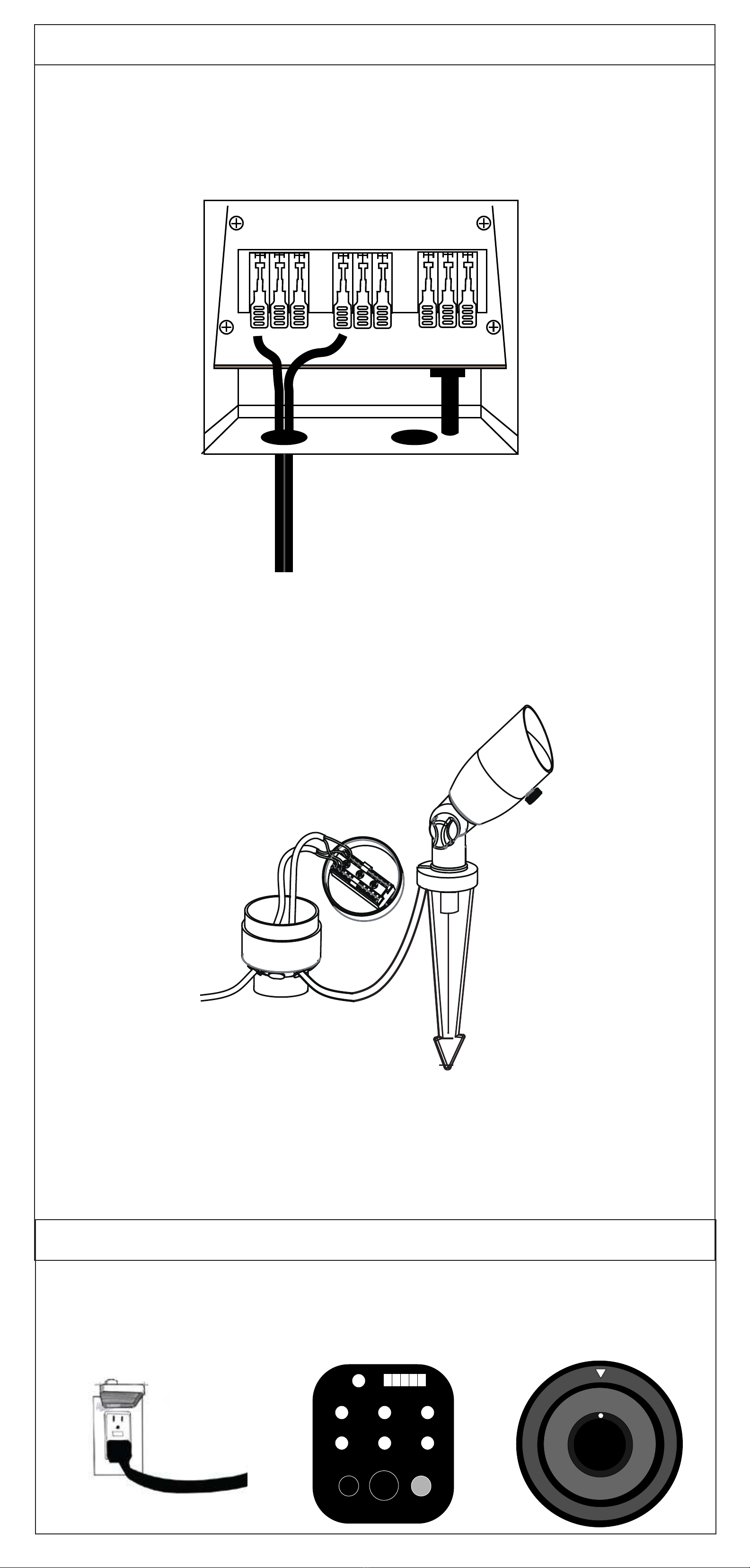

A. NOTE: Please make sure the transformer is ‘OFF’ before making any new
wire connections. Insert main supply wire into the wire exits on the bottom of
the transformer. Then connect one end of the main supply wire to one lever
terminal on the “COM” tap by simply lifting the lever up, inserting the wire and
ipping the lever down. Then, connect the other end of the supply wire to the
12V lever terminal for shorter runs or 15V terminal for longer runs.
Step 3- Set Up Wiring
COM 12V 15V
Supply
Wire
B. Run the supply wire to the centrally located hubs and insert the wire through the
rubber grommets on the bottom of the hub. Then, ip one of the terminal levers
open, insert one end of the stripped supply wire, and ip the lever closed to make
your connection. Last, ip the lever open that is directly opposite from the rst
connection, on the other side of the terminal block, and insert the other end of
the supply wire and ip the lever closed to make the connection.
C. Run the xture wire to the hub and insert the wire through the rubber grommets
on the bottom of the hub. Then, ip one of the terminal levers open, insert
one end of the stripped xture wire, and ip the lever closed to make your
connection. Last, ip the lever open that is directly opposite from the rst xture
wire connection, on the other side of the terminal block, and insert the other end
of the xture wire and ip the lever closed to make the connection.
Supply
Wire
Fixture
Wire
Step 4- Test Lights
A. Check your transformer to ensure the green pilot light is on; this guarantees the
transformer is receiving power from the wall outlet. Manually switch the timer to
the “ON” position and verify the xtures light up.
B. Once you have veried the xtures light up, turn the timer to the desired
settings.
2Hrs 4Hrs
SETRESET SENSOR
8Hrs
OFF
POWER LOAD
DUSK-DAWN ON
4
H
r
s
6
H
r
s
8
H
r
s
1
0
H
r
s
O
F
F
O
N
2
H
r
s
D
a
w
n
D
u
s
k
-
