stex S25E User manual

S25E Elliptical
Customer Support Services
Service manual

< 2 >
General Contents
1. Introduction
2. Component identification
3. Parts manual
4. Assembly instructions

< 3 >
1. Introduction
This manual is applicable to STEX Elliptical, S25E//S25EX//S25EXi. Information represents typical configuration and
may differ slightly from actual. But this service manual provides recommendation for safe and efficient approaches to
problem situations.
// In assembly mode
Refer to Chapter 4 - Assembly instructions. Accompanying parts, identification listing and the step by step assembly
procedures have been assembled to make the set-up of the STEX Elliptical as quickly and easy as possible.
// If you have any problem ~~~
If you have any problem for STEX exercise new Elliptical, please contact our sales dealer or our service center by phone
or E-mail. In order to speed our response to your particular situation, please have the following information available
1. Model number
2. The serial number
3. The symptom of the problem
4. The part (or assembly) name and number of order
※Refer to Chapter 3. Parts manual

< 4 >
3. Part manual
3-1 Leveller assembly (#1) –S25E Series
3-1 Description
No
Parts
Parts No.
Q’TY
Remark
1
Leveling foot
301002
4 ea
2
Ass’y wheel BRK
201087
2 ea
3
Moving wheel
301003
2 ea
4
Hex. Head
300034
2 ea
M10 x 45L
5
Nut Nylon Insert lock
300024
2 ea
M10
6
Socket button head
300115
4 ea
M8 x 20L (SEMS)

< 5 >
3-2 Crank shaft / Pulley assembly (#2) –S25E Series
3-2 Description
No
Parts
Parts No.
Q’TY
Remark
1
Crank pulley
301204
1 ea
2
Crank shaft ass’y
301205
1 ea
3
Crank shaft bracket 2
301206
1 ea
4
Hex. Socket head
300084
3 ea
M8 x 35L (SEMS)
5
Bearing
300162
2 ea
UCP 205
6
Snap ring
300152
1 ea
Shaft 25
7
Poly V-Belt
301207
1 ea
510J
8
Hex. Head
300036
4 ea
M12 x 90L
9
Crank pillar strapped plate
301208
2 ea
10
Nut Nylon Insert lock
300025
4 ea
M12

< 6 >
3-3 Motor / Idler assembly (#3) –S25E Series
3-3 Description
No
Parts
Parts No.
Q’TY
Remark
1
Hybrid Generator
301211
1 ea
2
Hex. Socket head
300089
4 ea
M6 x 15 (SEMS)
3
BRK Ellip. Idler
301212
1 ea
4
Roller Idler 0001
32M2-MS031
1 ea
5
Ball bearing
300160
1 ea
6203ZZ
6
Bush_ Idler 0001
32M2-MS041
1 ea
7
Socket Flat head
300123
1 ea
M8 x 35L
8
Washer Flat
300011
1 ea
M10
9
Nut Nylon Insert lock
300023
1 ea
M8
10
Bush Idler 0002
301013
3 ea
11
Flat head
300067
3 ea
M5 x 16L
12
Spring Idler
301014
1 ea

< 7 >
3-4 Power board assembly (#4) –S25E Series
3-4 Description
No
Parts
Parts No.
Q’TY
Remark
1
BRK Power board
301139
1 ea
2
Power board
201006
1 ea
3
Machine pan head
300057
4 ea
M4 x 8L (SEMS)
4
Machine pan head
300040
2 ea
M5 x 12L (SEMS)

< 8 >
3-5 Crank link assembly (#5) –S25E Series
3-5 Description
No
Parts
Parts No.
Q’TY
Remark
1
Crank link 01
301217
2 ea
2
Paralley key
301218
2 ea
8 x 7 x 15L
3
Set screw
300131
2 ea
M6 x 8L
4
Hex. Socket head
300108
2 ea
M8 x 60L
5
Nut Nylon Insert lock
300023
2 ea
M8
6
PL_ Crank cover
301220
2 ea
7
Socket button head
300117
2 ea
M8 x 15L
8
Crank link 02 ass’y
301219
2 ea
9
Hex. Socket head
300108
6 ea
M8 x 60L

< 9 >
3-6 Rocker arm assembly (#6) –S25E Series
3-6 Description
No
Parts
Parts No.
Q’TY
Remark
1
Shoulder housing stopper
301222
2 ea
2
Hex. Socket head
300096
2 ea
M8 x 20L
3
Ass’y Rocker arm frame(L / R)
301224 / 301223
1 ea / 1ea
4
Shoulder housing bush 02
32M2-E80K3
2 ea
5
Oilless bearing
301225
2 ea
Shaft 30
6
Shoulder housing bush 01
32M2-E80J2
2 ea
7
Oilless bearing
301225
2 ea
Shaft 30
8
Shoulder shaft washer
301228
2 ea
9
Hex. Socket head
300099
2 ea
M10 x 20L

< 10 >
3-7 Extension mold assembly (#7) –S25E Series
3-7 Description
No
Parts
Parts No.
Q’TY
Remark
1
Ass’y Extrusion molding E001
201118
1 ea
2
Tapping pan head
3000989
6 ea
M5 x 12L

< 11 >
3-8 Front cover & Crank link cover assembly (#8) –S25E Series
3-8 Description
No
Parts
Parts No.
Q’TY
Remark
1
Mold_ Front cover R
301243
1 ea
2
Ass’y Ext. Input board
201120
1 set
3
Mold_ Front cover L
301244
1 ea
4
Tapping pan head
300071
5 ea
M5 x 10L
5
Mold_ Crank link cover
301221
2 ea
6
Socket button head
300117
4 ea
M8 x 15L

< 12 >
3-9 Pedal link assembly (#9) –S25E Series
3-9 Description
No
Parts
Parts No.
Q’TY
Remark
1
Ass’y Slide link frame(L / R)
301230 / 301229
1 ea / 1 ea
2
Slide link pedal
301232
2 ea
3
Pedal insert bushing
301234
8 ea
4
Machine truss head
300062
8 ea
M5 x 16L (SEMS)
5
Oilless bearing
301231
4 ea
Shaft 20
6
Crank link housing stopper
301237
2 ea

< 13 >
3-10 Slide roller & Stroke link assembly (#10) –S25E Series
3-10 Description
No
Parts
Parts No.
Q’TY
Remark
1
Slide roller ass’y
201094
2 ea
2
Hex. Socket head
300098
4 ea
M8 x 80L
3
Nut Nylon Insert lock
300023
4 ea
M8
4
Stroke link ass’y(L / R)
201096 / 201095
1 ea / 1 ea
5
Socket button head
300118
2 ea
M8 x 35L
6
Nut Nylon Insert lock
300023
4 ea
M8

< 14 >

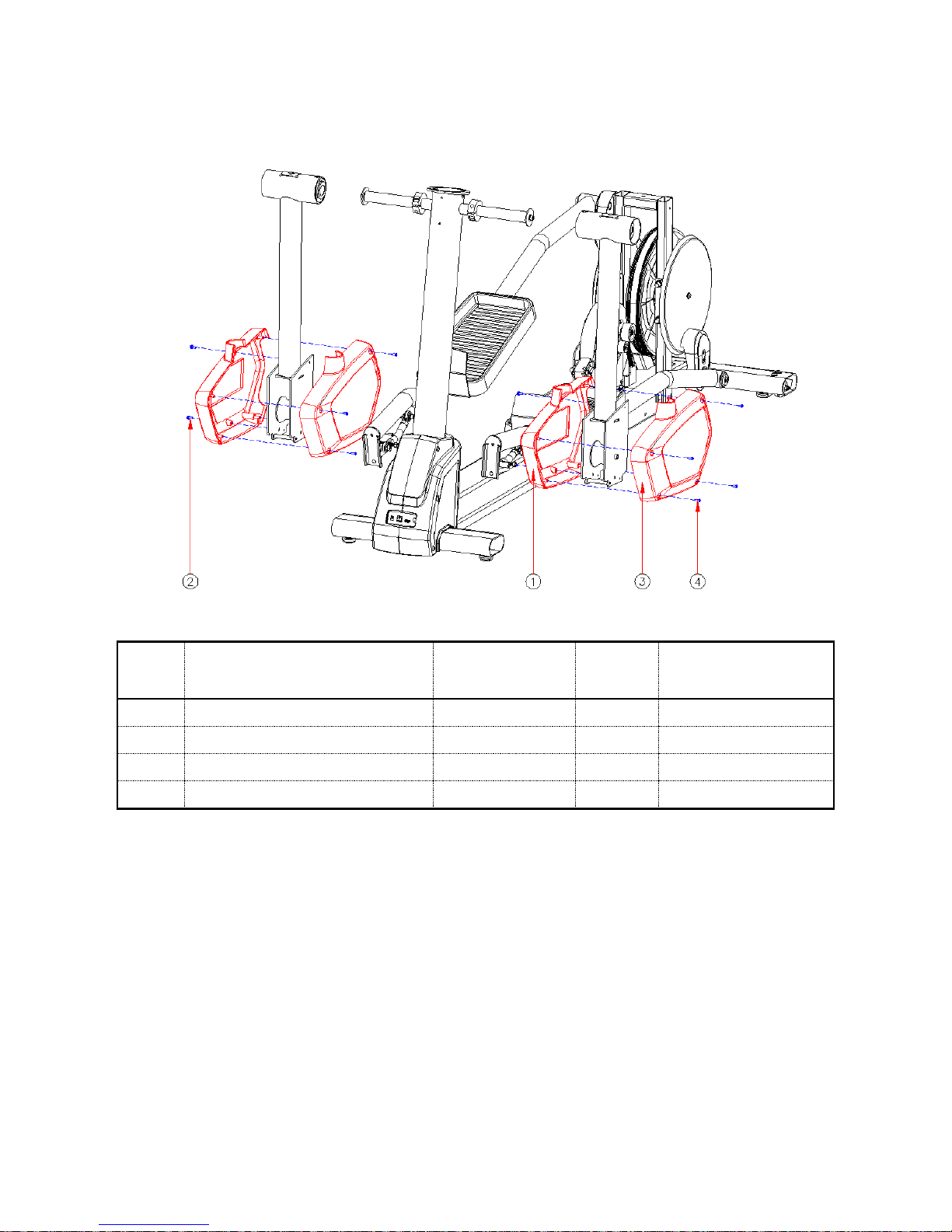

3-11 Shoulder cover aseembly (#11) –S25E Series
3-11 Description
No
Parts
Parts No.
Q’TY
Remark
1
Ass’y Shoul. Link bottom cover R
201098
2 ea
2
Machine pan head
300040
2 ea
M5 x 12L (SEMS)
3
Ass’y Shoul. Link bottom cover L
201101
2 ea
4
Tapping pan head
300071
8 ea
M5 x 10L

< 15 >
3-12 Main cover & Crank link shaft cap & Foot cover aseembly (#12) –S25E Series
3-12 Description
No
Parts
Parts No.
Q’TY
Remark
1
Mold_ Main cover side
301240
1 ea
2
Mold_ Main cover side
301240
1 ea
3
Tapping pan head
300071
4 ea
M5 x 10L
4
Mold_ Main cover L
301242
1 ea
5
Mold_ Main cover R
301241
1 ea
6
Machine pan head
300040
4 ea
M5 x 12L (SEMS)
7
Tapping pan head
300071
4 ea
M5 x 10L
8
Crank link shaft cap
301238
2 ea
9
Socket button head
300117
4 ea
M8 x 15L
10
Rubber Foot cover
301202
4 ea
11
Cup holder
301107
1 ea
12
Machine pan head
300040
4 ea
M5 x 12L (SEMS)

< 16 >
3-13 Rotating handle assembly (#13) –S25E Series
3-13 Description
No
Parts
Parts No.
Q’TY
Remark
1
Ass’y Rotating handle R
201106
1 set
2
Ass’y Rotating handle L
201107
1 set
3
Socket button head
300116
8 ea
M8 x 20L (SEMS)

< 17 >
3-14 Display console assembly (#14) –S25E Series
3-14 Description
No
Parts
Parts No.
Q’TY
Remark
1
Ass’y_ D Console supp. Frame(Ellip)
201104
1 ea
2
Ass’y Display conlsole
(S25E / S25EX / S25EXi)
201033 / 201035 /
201114
1 set
3
Machine pan head
300065
5 ea
M5 x 12L (SEMS)
4
Mold_ Console rear cover
301266
1 ea
5
Tapping pan head
300071
4 ea
M5 x 10L
6
Mold_ Fast Track bottom
301061
1 ea
7
Machine pan head
300065
2 ea
M5 x 12L (SEMS)
8
Ass’y Fixed handle
201105
1 set
9
Hex. Socket head
300089
4 ea
M6 x 15L (SEMS)
10
Mold_ Fast Track top
301079
1 ea
11
Machine pan head
300065
4 ea
M5 x 12L (SEMS)

< 18 >
3-15 Shoulder link cover assembly (#15) –S25E Series
3-15 Description
No
Parts
Parts No.
Q’TY
Remark
1
Mold_ Neck cover back
301276
1 ea
2
Machine pan head
300065
5 ea
M5 x 12L (SEMS)
3
Machine pan head
300065
5 ea
M5 x 12L (SEMS)
4
Mold_ Neck cover front
301275
1 ea
5
Mold_ Shoulder link top cover back
301274
2 ea
6
Ass’y_ Shoulder link top cover front
201108
2 ea
7
Machine pan head
300065
5 ea
M5 x 12L (SEMS)

< 19 >
3-16 Display console assembly (#16-1) –S25E
3-16 Description
No
Parts
Parts No.
Q’TY
Remark
1
Mold_ Console front cover 01
301084
1 ea
2
Display board
201039
1 ea
3
Tapping pan head
300051
6 ea
M4 x 8L
4
Mold_ Front board cover 0002
201066
1 ea
5
BRK Front board
301103
1 ea
6
Front board
201044
1 ea
7
Machine pan head
300057
2 ea
M4 x8L (SEMS)
8
Machine pan head
300040
2 ea
M5 x 12L (SEMS)
9
Tapping pan head
300071
2 ea
M5 x 10L
10
Mold_ Console middle cover
301104
1 ea
11
BRK Comm board
301105
1 ea
12
Communication board
201047
1 ea
13
Machine pan head
300051
2 ea
M4 x 8L (SEMS)
14
Tapping truss head
300080
2 ea
M4 x 8L
15
Machine pan head
300040
8 ea
M5 x 12L (SEMS)

< 20 >
3-17 Display console assembly (#16-2) –S25EX
3-17 Description
No
Parts
Parts No.
Q’TY
Remark
1
Mold_ Console front cover 03
301085
1 ea
2
Mold_ Front board cover 0002
201066
1 ea
3
BRK Front board
301103
1 ea
4
Multi board
201126
1 ea
5
Machine pan head
300057
2 ea
M4 x8L (SEMS)
6
Machine pan head
300040
2 ea
M5 x 12L (SEMS)
7
Tapping pan head
300071
2 ea
M5 x 10L
8
15”LCD Panel
301629
1 ea
9
15”LCD Guide panel
300328
1 ea
Acryl
10
Ass’y LCD Panel BRK
300487
1 ea
11
Machine pan head
300042
4 ea
M3 x 6L(SEMS)
12
LCD Inverter board
300335
1 ea
13
Interface board
201040
1 ea
14
Joint board
201041
1 ea
15
Scaler board
300333
1 ea
16
Machine pan head
300042
14 ea
M3 x 6L(SEMS)
17
Tapping truss head
300080
8 ea
M4 x 8L
18
BRK Comm board
301105
1 ea
19
Communication board
201047
1 ea
20
Machine pan head
300051
2 ea
M4 x 8L (SEMS)
21
Tapping truss head
300080
2 ea
M4 x 8L
22
Mold_ Console middle cover
301104
1 ea
23
Machine pan head
300040
8 ea
M5 x 12L (SEMS)
