INSTALLATION
General information
8| WPKI-HKM E | WPKI-HK E
1. General information
This document is intended for contractors.
Note Read these instructions carefully before using the ap-
pliance and retain them for future reference.
Pass on the instructions to a new user if required.
 This symbol indicates that you have to do something. The
action you need to take is described step by step.
Relevant documents
Operating and installation instructions for system
components
2. Safety
Only a qualied contractor should carry out installation, com-
missioning, maintenance and repair of this compact installa-
tion.
2.1 General safety instructions
We guarantee trouble-free function and operational reliability
only if original accessories and spare parts intended for the
appliance are used.
2.2 Instructions, standards and regulations
Note Observe all applicable national and regional regula-
tions and instructions.
3. Product description
The heating compact installations WPKI-HK E and WPKI-HKM E
are specically designed for buer cylinders SBP 200 E, SBP 400
E and SBP 700 E. In conjunction with the pipe set WPKI RB, they
oer heating contractors a clear and easy means of connecting
the heating system to the SBPE buer cylinder.
The return ball valve contains a gravity brake to prevent unin-
tentional natural circulation. The gravity brake can be opened
manually by turning the handle approx. 45° to its end stop.
The compact heating installation WPKI-HK E is suitable for op-
erating a heating circuit without mixer.
The compact heating installation WPKI-HKM E is suitable for
operating a heating circuit with mixer. The standard delivery
includes a 3-way mixer with servomotor.
3.1 Standard delivery
The WPKI-HK E and the WPKI-HKM E are factory-sealed and
comprise:
- high eciency circulation pump DN 25, height 180mm
with 2 m connecting cable
- tow-way ball valve with manual gravity brake in the re-
turn, complete with handle
- tow-way ball valve in the ow, complete with handle
- two thermometers, ø 63 mm, display range 0-120 °C (red
or blue facia ring for identifying the ow and return)
- pump ball valve with ange and 1 ½ “ male (only
WPKI-HKE)
- three-way mixer with variable bypass (only WPKI-HKME)
- return pipe
- EPP insulation
- 2 xing screws with washers and rawl plugs (in the pack)
3.2 Further accessories
- WPKI-HKV
The distributor, with 2 connection pairs respectively to the top
and bottom, is designed for the connection of two heating
circuits in conjunction with the heating compact installations
WPKI-HK E and WPKI-HKM E.
4. Settings
4.1 WPKI-HKM E

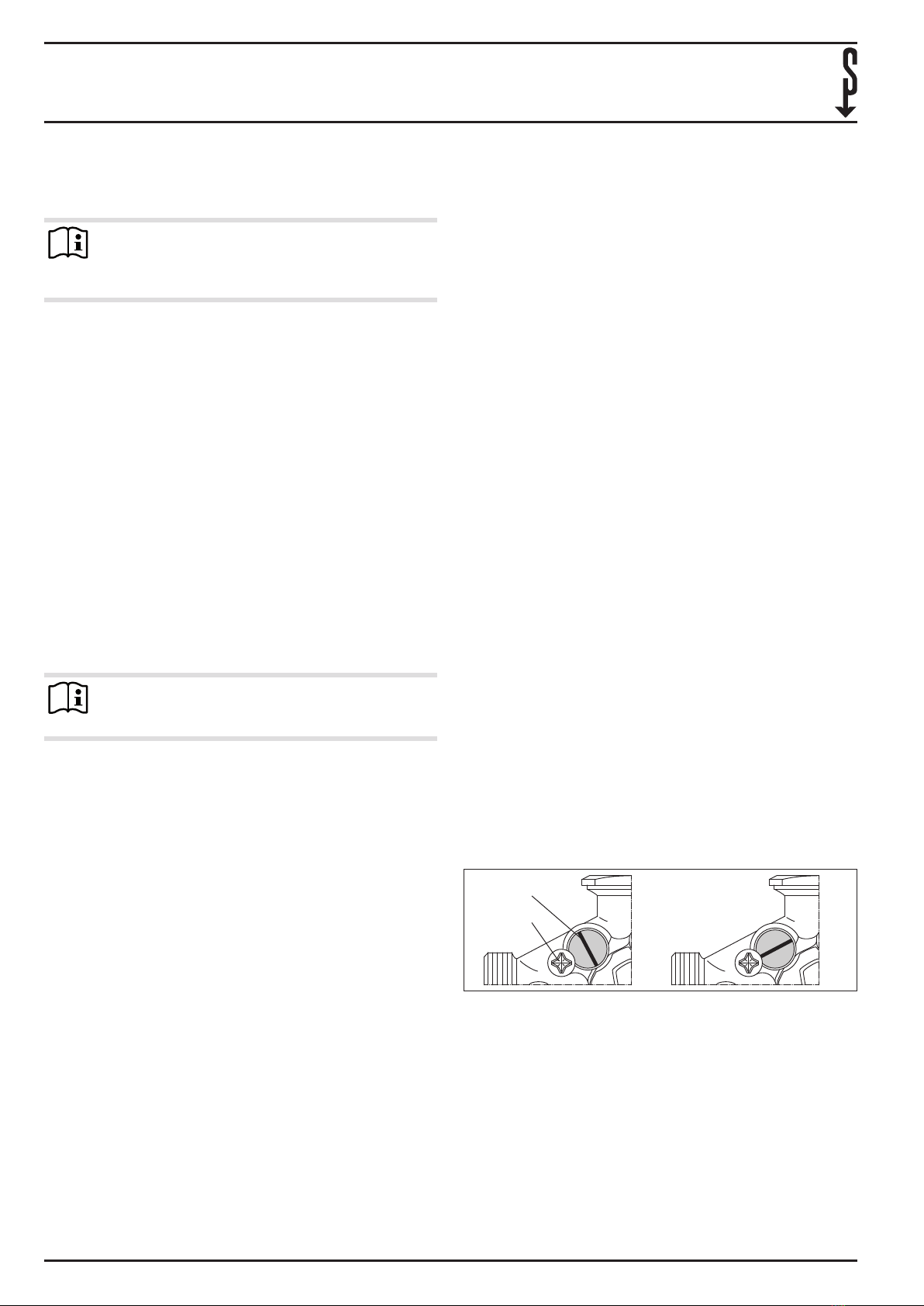

3-way mixer
A bypass can be used to reduce the ow temperature by mix-
ing in return water. The bypass can be innitely adjusted with
the adjusting screw. For that, undo locking screw approx. 1
mm. Tighten the locking screw again after completing the
adjustment. The mixer is regulated via the servomotor. In the
delivered condition, both mixer and bypass are closed, and the
locking screw is tight.
D0000041963
1
2
1 Adjusting screw
2 Locking screw

INSTALLATION
Installation
WPKI-HKM E | WPKI-HK E |9
ENGLISH
Servomotor
The angle of rotation is electrically limited to 90°. Upon reach-
ing its end stops, the drive will be switched o and switched to
zero volt. The servomotor can be switched to manual control
via the rotary selector on the casing.
Manual mode Automatic mode
26_03_01_0601
5. Installation
5.1 Circulation pump installation position
!Material losses
 Observe the circulation pump installation and op-
erating instructions.
!Material losses
 Do not install the circulation pump on the ceiling
or horizontally on the oor.
D0000059537
5.2 Installation example for wall mounting
0
2
4
D0000041956
3
12
54
1 WPKI-HK E
2 WPKI-HKM E
3 WPKI-HKV (not part of the standard delivery)
4 Return
5 Flow
26_03_01_0595
Fit the compact installation with the insulation to the ex-
isting pipework.
Tighten the ttings by hand.
Mark the edges of the compact installation on the wall.
 Remove the compact installation from the wall.
26_03_01_0596
 Mark the holes to be drilled.
 Drill the holes.
 Insert the rawl plugs into the holes.
26_03_01_0597
 Secure the lower insulation shell with the screws and
washers supplied.

INSTALLATION
Power supply
10 | WPKI-HKM E | WPKI-HK E
5.3 Installation example for cylinder
mounting
D0000041958
1
6
5
4
3
2
1 Return
2 Flow
3 WPKI-HK E
4 WPKI-RB (not part of the standard delivery)
5 SBP E (not part of the standard delivery)
6 Pipe bend with twin connector (not part of the standard
delivery; to be used in connection with the buer cylinder
SBP 700 E)
6. Power supply
CBA
1 2 3
L1 L1N
~
M
D0000041959
1 brown (left-turning)
2 blue (N)
3 white (right-turning)
7. Specication
7.1 Output diagrams
High eciency circulation pump
Δp = v (variable)
Δp-v
max.
max.
0 0,5 1,0 1,5 2,0 2,5 3,0
0 0,5 1,0 1,5 2,0 2,5 3,0
0
1
2
3
4
5
6
7
0
20
40
D0000042967
X Flow rate [m³/h]
Y Delivery head [m]
Z Power consumption [W]

WPKI-HKM E | WPKI-HK E | 11
ENGLISH
INSTALLATION | GUARANTEE | ENVIRONMENT AND RECYCLING
Specication
High eciency circulation pump
Δp = c (constant)
Δp-c
max.
max.
0 0,5 1,0 1,5 2,0 2,5 3,0
0 0,5 1,0 1,5 2,0 2,5 3,0
0
1
2
3
4
5
6
7
0
20
40
D0000042907
X Flow rate [m³/h]
Y Delivery head [m]
Z Power consumption [W]
7. 2 Data table
WPKI-HK E WPKI-HKM E
233602 233603
Application limits
Max. permissible temperature °C 95 95
Max. permissible pressure MPa 0.6 0.6
Hydraulic data
Flow capacity m³/h 9.2
Flow capacity assembly 6.2
Flow capacity mixer 7.4
Gravity brake opening pressure MPa 0.02 0.02
Energy data
Energy Efficiency Index EEI 0.20 0.20
Versions
Circulation pump type Yonos Para RS
25/6 RKA
Yonos Para RS
25/6 RKA
Dimensions
Height mm 420 420
Width mm 250 250
Depth mm 269 269
Connections
Connection above G 1 G 1
Connection below G 1 1/2 A G 1 1/2 A
Values
Head m6.2 6.2
Max. flow rate m³/h 3.3 3.3
7. 3 Servomotor data table
Rated voltage 230 V 50/60 Hz
Connection cable 3 x 1.5 mm², 2 m long
Rotational direction optional acc. to wiring
Position indicator reversible scale plate
Runtime 140 sec
Safety category II (double insulated, without earth
conductor)
IP rating IP 40
Ambient temperature 0 °C to 50 °C
Test symbols CE
GUARANTEE
ENVIRONMENT AND RECYCLING
Guarantee
The guarantee conditions of our German companies do not
apply to appliances acquired outside of Germany. In countries
where our subsidiaries sell our products a guarantee can only
be issued by those subsidiaries. Such guarantee is only grant-
ed if the subsidiary has issued its own terms of guarantee. No
other guarantee will be granted.
We shall not provide any guarantee for appliances acquired in
countries where we have no subsidiary to sell our products.
This will not aect warranties issued by any importers.
Environment and recycling
We would ask you to help protect the environment. After use,
dispose of the various materials in accordance with national
regulations.
