Stihl TS 700, TS 800 User manual

STIH)
STIHL TS 700, 800 2012-06

1TS 700, TS 800
q
© ANDREAS STIHL AG & Co. KG, 2012
Contents
RA_376_00_01_04
1. Introduction 2
2. Safety precautions 3
3. Specifications 4
3.1 Power unit 4
3.2 Fuel system 4
3.3 Ignition system 4
3.4 Abrasive wheels 5
3.5 Special accessories 5
3.6 Tightening torques 6
4. Troubleshooting 8
4.1 Clutch 8
4.2 Rewind starter 9
4.3 Ignition system 10
4.4 Carburetor 11
4.5 Power unit 14
5. Abrasive wheel drive 15

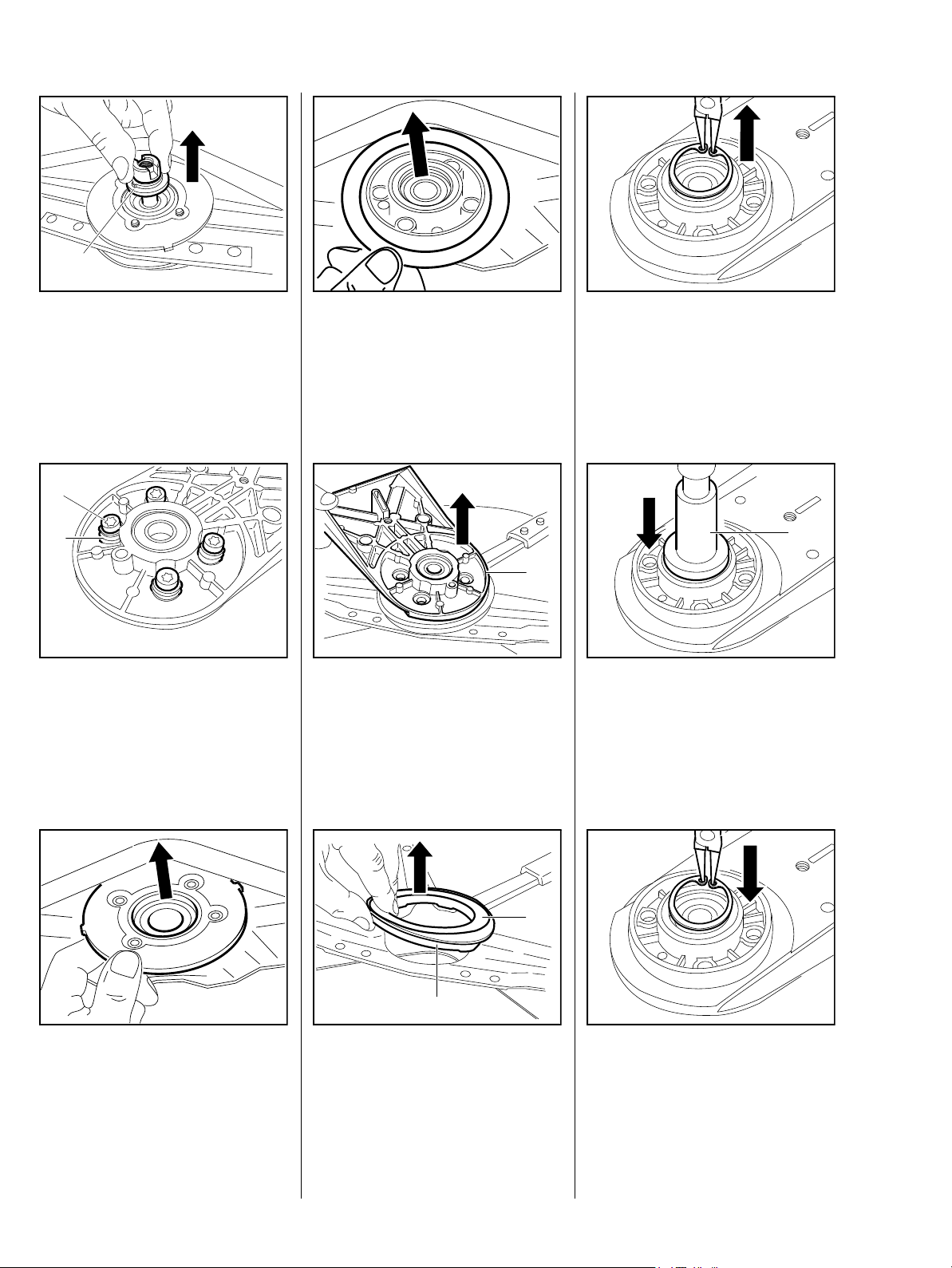

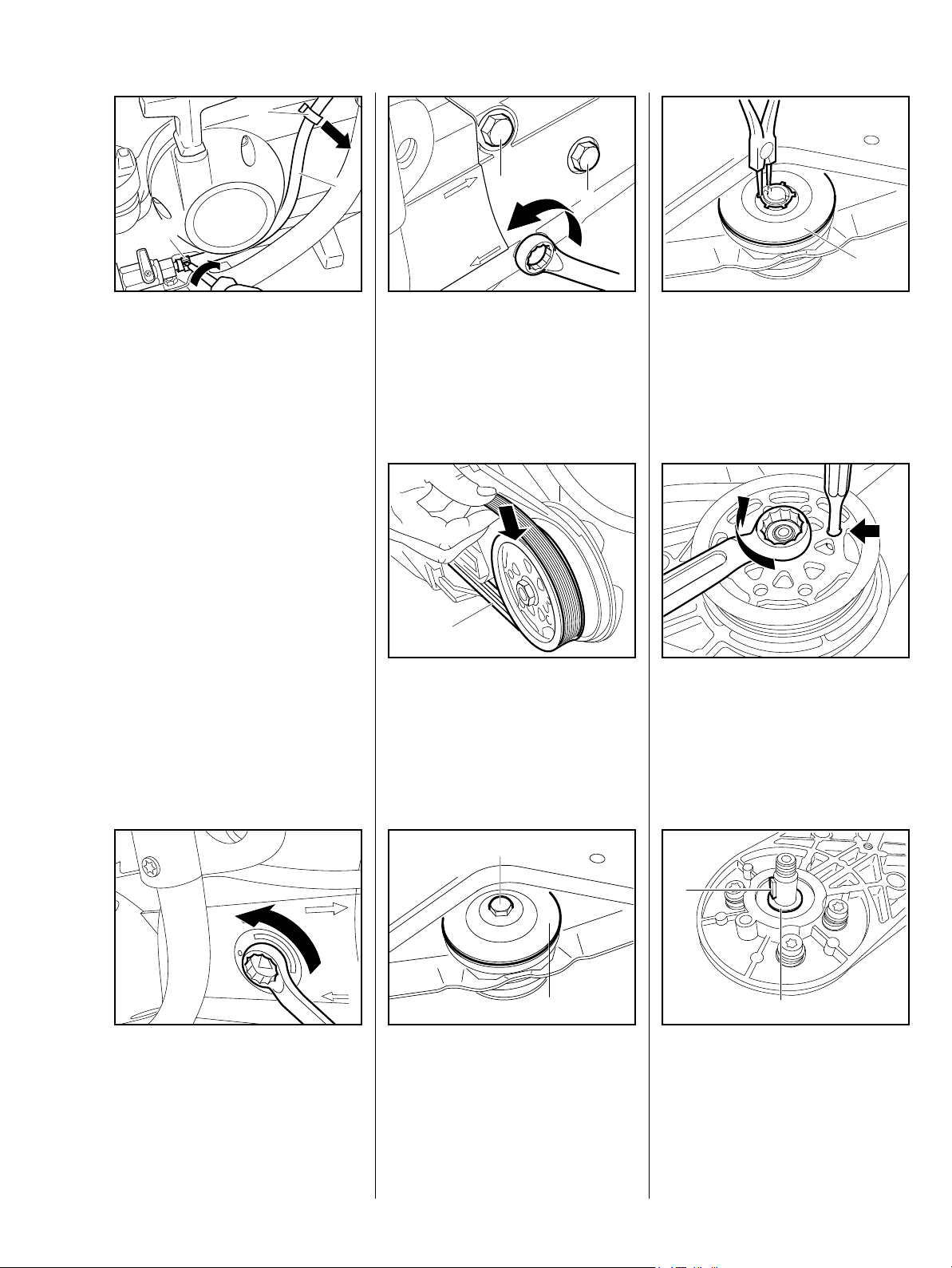

5.1 Bearing with guard 15

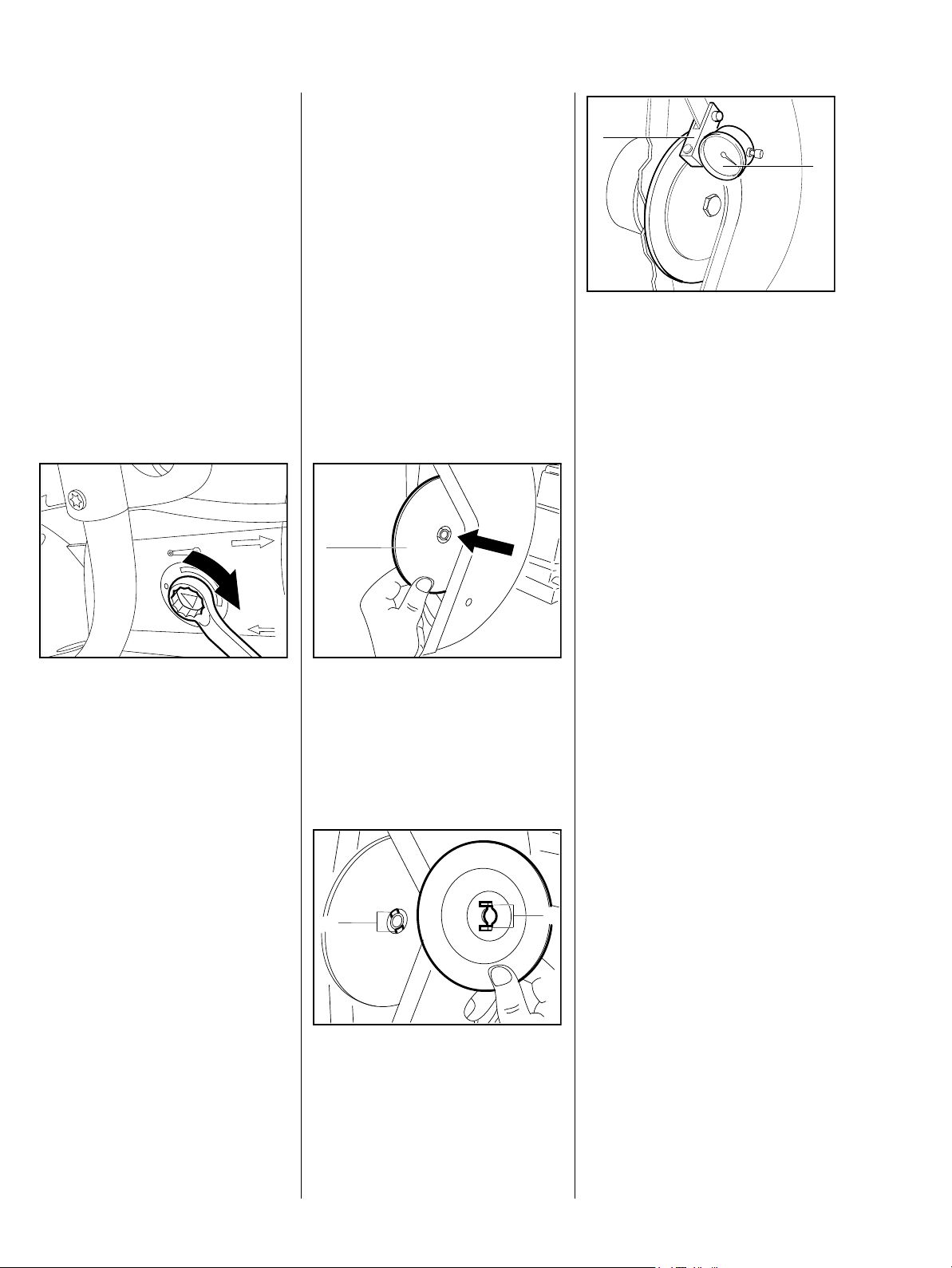

5.2 Testing radial and axial
truth of running 18
5.3 Ribbed V-belt 20
5.4 Starter cup 20
5.5 Belt pulley /
clutch drum 21
5.6 Tensioner 21
6. Clutch 22
7. Power unit 24
7.1 Muffler 24
7.2 Leakage test 24
7.2.1 Preparations 25
7.2.2 Pressure test 26
7.2.3 Vacuum test 26
7.3 Oil seals 27
7.4 Remove shroud 28
7.5 Expose cylinder 29
7.6 Cylinder and piston 30
7.6.1 Removal 30
7.6.2 Installation 31
7.6.3 Diaphragm, stratified
scavenging 34
7.7 Piston rings 34
7.8 Crankcase /
crankshaft 35
7.8.1 Removal 35
7.8.2 Installation 37
7.9 Decompression valve 41
8. Ignition system 42
8.1 Ignition module 42
8.1.1 Removal / installation 42
8.2 Ignition timing 43
8.3 Testing the ignition
module 44
8.4 Ignition lead /
spark plug boot 45
8.5 Removing and installing
the flywheel 46
8.6 Short circuit wire 47
8.6.1 Testing 47
8.6.2 Removal / installation 48
8.7 Troubleshooting chart,
ignition system 50
9. Rewind starter 53
9.1 General 53
9.2 Removal / installation 53
9.3 Pawls 53
9.4 Rope rotor 54
9.5 Starter rope / grip 55
9.6 Tension the
rewind spring 56
9.7 Replacing the
rewind spring 57
9.8 Starter rope
guide bushing 58
10. Repairing the
AV system 58
10.1 Rubber buffer between
front handle and
crankcase 59
10.2 Rubber buffer between
crankcase and tank
housing 59
10.3 Spring between
crankcase and tank
housing 61
10.4 Rubber buffers 62
10.5 Front handle 62
11. Actuating levers 63
11.1 Switch shaft,
stop switch 63
11.2 Throttle trigger /
interlock lever 64
12. Fuel system 66
12.1 Air filter 66
12.1.1 Air filter base 67
12.2 Carburetor 68
12.2.1 Removal / installation 68
12.2.2 Leakage testing 70
12.3 Carburetor repair 70
12.3.1 Metering diaphragm 70
12.3.2 Inlet needle 71
12.3.3 Fixed jet 72
12.3.4 Pump diaphragm 72
12.3.5 Choke shaft /
choke shutter 73
12.3.6 Throttle shaft /
throttle shutter 75
12.3.7 Air flap shaft / air flap 77
12.3.8 Air flap rod 78
12.3.9 Adjusting the
air flap rod 80
12.3.10 Sealing rings of choke
and air flap shaft 82
12.3.11 Adjusting screws 82
12.4 Carburetor adjustment 83
12.4.1 Basic setting 83
12.4.2 User setting 84
12.5 Removal and installation
of the manifolds 86
12.5.1 Intake manifold 86
12.5.2 Removal and installation
of the manifold 87
12.5.3 Impulse hose 88
12.6 Tank vent 88
12.6.1 Testing 88
12.6.2 Removal / installation
of the tank vent 89
12.7 Fuel intake 90
12.7.1 Pick-up body 90
12.7.2 Fuel hose 91
12.7.3 Fuel filler cap 92
12.7.4 Removal / installation
of the tank housing 93
13. Special tools 94
14. Service accessories 96

2TS 700, TS 800
This service manual contains
detailed descriptions of all the
typical repair and servicing
procedures for this cut-off machine
series.
Service procedures on
standardized parts and assemblies
which are used in several STIHL
power tool series are summarized in
separate service manuals.
Reference is made to these at the
appropriate points in this manual.
Refer to the illustrated spare parts
lists during all repair work. These
lists show the installation position
and order in which the individual
parts and modules should be
assembled.
Refer to the latest edition of the
relevant parts list to check the part
numbers of any replacement parts
required.
A fault on the machine may be due
to several causes. To help locate
the fault, consult the chapter on
"Troubleshooting" and the "STIHL
Service Training System" for all
function groups.
Refer to the "Technical Information"
bulletins for engineering changes
which have been introduced since
publication of this service manual.
Technical information bulletins also
supplement the parts list and
service manual until an updated
edition is issued.
The special tools mentioned in the
descriptions are listed in the chapter
"Special tools" of this manual. Use
the part numbers to identify the
tools in the STIHL Special Tools
manual.
It lists all the special servicing tools
currently available from STIHL.
To help you use this manual and
understand it more clearly, the text
and illustrations are marked by
graphic symbols as follows:
In the text:
:= Action to be taken
as shown in the illustration
above the text
– = Action to be taken
but not shown in the illustration
above the text
In the illustrations:
AItem pointer (short)
aDirection of movement
(long arrow)
b4.2 = Reference to another
chapter, i.e. to chapter 4.2
in this case.
Service manuals and technical
information bulletins are intended
exclusively for the use of properly
equipped repair shops. They must
not be passed on to third parties.
Servicing and repairs are made
considerably easier if the clamp (3)
5910 890 2000 is used to mount the
machine on assembly stand (2)
5910 890 3100 so that one clamp
screw engages the inner 10 mm
hole (1) in the assembly stand.
123
376RA000 TG
To service the underside of the
machine (e.g. remove the front
handle), turn the machine upside
down and mount it so that one
clamp screw engages the outer
10 mm hole (1) in the assembly
stand.
Always use original STIHL
replacement parts.
They can be identified by the
STIHL part number, the STIH)
logo and the STIHL parts
symbol ( . The symbol may also
appear alone on small parts.
1. Introduction

3TS 700, TS 800
Specific national safety regulations
and the safety instructions in the
instruction manual must be
observed if the machine has to be
started up during maintenance or
repair work.
Petrol is highly inflammable and can
also be explosive under certain
conditions.
Improper handling may result in
burns and other serious injuries.
Important!
Do not bring any fire, flame, spark or
other source of heat near the fuel.
All work with fuel must be performed
outdoors only. Spilled fuel must be
wiped away immediately.
2. Safety precautions

4TS 700, TS 800
3. Specifications
3.1 Power unit
TS 700, TS 800
Displacement: 98.5 cm3
Bore: 56 mm
Stroke: 40 mm
Engine power to ISO 7293: 5.0 kW (6.8 HP)
at 9300 rpm
Nominal spindle speed 4620 rpm
Idle speed: 2200 rpm
Clutch: Centrifugal clutch without linings
Clutch engages at: 3200 rpm
Crankcase leakage test
at excess pressure: pü= 0.5 bar
under vacuum: pu= 0.5 bar
3.2 Fuel system
Carburetor leakage test at
excess pressure: pü= 0.8 bar
Operation of tank vent at
excess pressure: pü= 0.3 bar
Fuel: as specified in instruction
manual
3.3 Ignition system
Air gap between ignition
module and fanwheel: 0.15...0.3 mm
Spark plug (interference
suppressed):
Bosch WSR 6F
NGK BPMR 7 A
Electrode gap: 0.5 mm

5TS 700, TS 800
3.4 Abrasive wheels
TS 700
Composite and diamond abrasive wheels Diameter 350 mm
Cutting depth approx. 123.5 mm
TS 800
Composite and diamond abrasive wheels Diameter 400 mm
Cutting depth approx. 143 mm
3.5 Special accessories
Cart FW 20
Cutting direction indicator
Water container kit
Pressurized water container kit

6TS 700, TS 800
3.6 Tightening torques
Screws can be removed and installed as often as necessary without impairing the strength of the screwed
assembly, provided that the specified tightening torque is observed.
For this reason, it is essential to use a torque wrench.
Fastener Thread
size
For component Tightening
torque (Nm)
Remarks
Screw IS-M 5x20 Starter cover / crankcase 6.0
Screw IS-M 5x58x22 Clamp / handlebar holder 5.0
Screw IS-P 4x14 Bearing, switch shaft / tank housing 2.5
Screw IS-M 5x21 Filter cover and spark plug cover 3.5
Screw IS-M 5x20 Crankcase 9.0
Nut M5 Filter base / carburetor 3.5
Screw IS-M 5x16 Cover, tensioner / cast arm 4.0
Screw IS-P 6x19 Handlebar / tank housing 6.0
Screw IS-M 5x20 Air guide shroud / crankcase 4.0
Screw IS-M 5x20 Muffler / crankcase 10.0 1)
Screw IS-M 5x20 Muffler / cylinder 10.0
Screw IS-M 4x8 Short-circuit lead / crankcase 3.0
Screw IS-P 6x19 Filter base / tank housing 5.0
Screw IS-M 5x35x12 Filter housing / filter base 3.0
Screw IS-P 5x19 Shroud / tank housing 6.0
Screw M 10x1 L Belt pulley / shaft 40.0
Screw IS-M 5x20 Fan cover / crankcase 6.0
Screw IS-M 5x20 Starter cover / crankcase 6.0
Screw IS-M 6x35 Cylinder / crankcase 12.0 1)
Screw IS-M 4x10 Cylinder / support plate diaphragm 3.0 1)
Screw IS-M 5x20 Ignition module / crankcase 8.0 2)
Screw IS-P 6x32.5 Support / handlebar / tank housing 6.0
Screw IS-M 6x16 Holder for shutoff valve / water
connection
4.0
Screw IS-M 6x35 AV element rubber buffer / front handle 6.0
Screw IS-P 6x19 AV element rubber buffer / ignition side 6.0
Screw IS-P 6x19 AV element rubber buffer / clutch side 6.0
Screw IS-M 5x20 Bearing plug / spring 6.0
Screw IS-P 3x6 Rewind spring / starter cover 0.5
Screw IS-M 3x20 Hose clip / manifold 0.8
Screw IS-D 5x16 Rubber buffer / support 6.0
Nut M 10x1 Flywheel 40.0
Nut M 10x1 Starter wheel 45.0
Carrier M 14x1 L Clutch 50.0
M 14x1.25 Spark plug 28.0
Nut M 10x1 L Belt pulley / bearing 40.0
Screw IS-M 6x28 Bearing flange / guard 8.0
Screw M 10x18 Thrust washer / abrasive wheel 20.0
Nut M 10x18 Abrasive wheel 30.0
M 10x1 Decompression valve 14.0

7TS 700, TS 800
Remarks:
1) Secure screw with Loctite 270.
2) Place a washer under the screw head.
Note:
Screwdriver speed when used in plastic material: Plastoform screws max. 600 rpm.

8TS 700, TS 800
4. Troubleshooting
4.1 Clutch
Problem Cause Remedy
Abrasive wheel stops under load at
full throttle
Clutch shoes badly worn Install new clutch
Clutch drum badly worn Install new clutch drum
Abrasive wheel rotates at idle
speed
Idle speed too high Readjust with idle speed screw LA
(anticlockwise)
Clutch springs stretched or fatigued Replace clutch springs or install
new clutch
Clutch spring hooks broken Replace clutch springs
Loud noises Clutch springs stretched or fatigued Replace all clutch springs
Deep groove ball bearing on belt
pulley damaged
Replace deep groove ball bearing
Clutch shoe retainer broken Fit new retainer
Clutch shoes and carrier worn Install new clutch

9TS 700, TS 800
4.2 Rewind starter
Problem Cause Remedy
Starter rope broken Rope pulled out too vigorously as
far as stop or over edge, i.e. not
vertically
Fit new starter rope
Normal wear Fit new starter rope
Starter rope does not rewind Rewind spring broken Fit new rewind spring
Spring insufficiently tensioned Check rewind spring and increase
tension
Very dirty or corroded Clean or replace rewind spring
Starter rope cannot be pulled out
far enough
Rewind spring overtensioned Check rewind spring and reduce
tension
Starter rope can be pulled out
almost without resistance
(crankshaft does not turn)
Guide peg on pawls or pawls
themselves are worn
Fit new pawls
Spring clip fatigued Fit new spring clip
Starter rope is difficult to pull and
rewinds very slowly
Starter mechanism is very dirty Thoroughly clean complete starter
mechanism
Lubricating oil on rewind spring
becomes viscous at very low
outside temperatures (spring
windings stick together)
Coat rewind spring with a little
standard solvent-based degreasant
(containing no chlorinated or
halogenated hydrocarbons), then
pull rope carefully several times
until normal action is restored

10 TS 700, TS 800
4.3 Ignition system
Important:
Exercise extreme caution while
carrying out maintenance and repair
work on the ignition system. The
high voltages which occur can
cause serious or fatal accidents.
Problem Cause Remedy
Engine runs roughly, misfires,
temporary loss of power
Spark plug boot is loose Press boot firmly onto spark plug
and fit new spring if necessary
Spark plug sooted, smeared with oil Clean the spark plug or replace if
necessary
Incorrect air gap between ignition
module and flywheel
Set air gap correctly
Flywheel cracked or has other
damage or pole shoes have turned
blue
Install new flywheel
Ignition timing wrong, flywheel out
of adjustment, key in flywheel has
sheared off
Install new flywheel
Weak magnetization in flywheel -
pole shoes have turned "blue"
Install new flywheel
Irregular spark Check operation of master control
lever and ignition module
Faulty insulation on ignition lead or
short circuit wire. Use ohmmeter to
check ignition lead for break. If
break is detected or high resistance
measured, fit a new ignition lead
Check operation of spark plug
Clean the spark plug or replace if
necessary
Crankcase damaged (cracks) Replace crankcase

11TS 700, TS 800
4.4 Carburetor
Problem Cause Remedy
Carburetor floods; engine stalls Inlet needle not sealing - impurities
in valve seat or cone damaged
Remove and clean or replace the
inlet needle, clean the fuel tank,
pick-up body and fuel line if
necessary
Inlet control lever sticking on
spindle
Restore easy movement of inlet
control lever
Helical spring not located on nipple
of inlet control lever
Remove the inlet control lever and
refit it correctly
Perforated disc on diaphragm is
deformed and presses constantly
against the inlet control lever
Fit a new metering diaphragm
Inlet control lever too high (relative
to correct installed position)
Set inlet control lever flush with top
edge of housing
Poor acceleration Idle jet too lean Turn low speed screw L
anticlockwise (richer), no further
than stop
Main jet too lean Turn high speed screw H
anticlockwise (richer), no further
than stop
Inlet control lever too low (relative
to correct installed position)
Set inlet control lever flush with top
edge of housing
Inlet needle sticking to valve seat Remove inlet needle, clean and
refit
Diaphragm gasket leaking Fit new diaphragm gasket
Metering diaphragm damaged or
shrunk
Fit new metering diaphragm
Impulse hose damaged or kinked Fit new impulse hose

12 TS 700, TS 800
Problem Cause Remedy
Engine will not idle, idle speed too
high
Throttle shutter opened too wide by
idle speed screw LA
Reset idle speed screw LA
correctly
Oil seals / crankcase leaking Seal or replace oil seals /
crankcase
Engine stops when idling Idle jet bores or ports blocked Clean the carburetor
Idle jet too rich or too lean Set low speed screw Lcorrectly
Setting of idle speed screw
incorrect - throttle shutter
completely closed
Reset idle speed screw LA
correctly
Small plastic plate in valve jet
does not close
Clean or renew valve jet

13TS 700, TS 800
Problem Cause Remedy
Engine speed drops quickly under
load - low power
Air filter dirty Clean the air filter
Throttle shutter not opened fully Check linkage
Tank vent faulty Clean tank vent or replace if
necessary
Fuel pick-up body dirty Clean the pick-up body, fit a new
filter
Fuel strainers dirty Replace the fuel strainers
Leak in fuel line between tank and
fuel pump
Seal connections or install a new
fuel line
Setting of high speed screw Htoo
rich
Turn the high speed adjusting
screw Hclockwise (leaner) – max.
up to the stop.
Main jet bores or ports blocked Clean the carburetor
Pump diaphragm damaged or
fatigued
Fit new pump diaphragm
Impulse hose damaged or kinked Fit new impulse hose

14 TS 700, TS 800
4.5 Power unit
Always check and, if necessary,
repair the following parts before
looking for faults on the engine:
– Air filter
– Fuel system
– Carburetor
– Ignition system
Problem Cause Remedy
Engine does not start easily, stalls
at idle speed but operates normally
at full throttle
Oil seals in crankgear damaged Replace the oil seals
Crankcase leaking or damaged
(cracks)
Seal or replace the crankcase
Engine does not deliver full power
or runs erratically
Piston rings worn or broken Replace piston rings
Muffler / spark arresting screen
carbonized
Clean the muffler (inlet and
exhaust), replace spark arresting
screen, replace muffler if necessary
Air filter dirty Replace air filter
Fuel / impulse hose severely kinked
or damaged
Fit new hoses and route them
without kinks
Decompression valve sticking Replace the decompression valve
Engine overheating Insufficient cylinder cooling. Air
inlets in fan housing blocked or
cooling fins on cylinder very dirty
Thoroughly clean all cooling air
openings and the cylinder fins

15TS 700, TS 800
– Test radial and axial truth of
running, b5.2
:Release hose clip (1), remove
hose retainer (2) and disconnect
hose (3).
During installation, ensure that the
2
1
3
376RA001 TG
hose clip (1) does not touch the
handlebar.
:Relax the ribbed V-belt by turning
the hexagon of the tensioner
anticlockwise until the arrow
points to the left (to "0").
376RA003 TG
:Remove screws (1) from bearing
and remove guard.
376RA004 TG
11
:Unhook the ribbed V-belt (1) from
the belt pulley and remove the
bearing with guard.
1
376RA017 TG
:Remove screw (1) from the thrust
washer (2).
– Remove the thrust washer.
2
338RA005 VA
1
:Remove axial clamping ring from
the shaft.
:Remove thrust washer (1).
1
376RA016 TG
:Block the belt pulley (arrow).
:Unscrew the nut (left-hand
thread) and remove the belt
pulley.
376RA018 TG
:Remove the key (1) from the
groove in the shaft.
:Remove the washer (2) from the
shaft.
2
1
376RA012 TG
5. Abrasive wheel drive
5.1 Bearing with guard

16 TS 700, TS 800
:Draw the shaft (1) out of the deep
groove ball bearings.
1
376RA011 TG
:Unscrew the four screws (1) and
remove them with the
compression springs (2) and
sleeves.
1
2
376RA013 TG
:Remove the flange.
338RA011 VA
:Remove the washer with rubber
ring.
338RA012 VA
:Pull the bearing (1) out of the
rubber ring.
1
376RA014 TG
:Remove the washer (1) and
rubber ring (2).
1
2
376RA015 TG
:Remove the circlips in front of the
deep groove ball bearings from
the grooves on both sides.
Note:
Use pliers with short rounded tips.
376RA009 TG
:Press both deep groove ball
bearings and the ring out of the
bearing with a drift pin (1)
4224 893 7200.
– Reassemble the parts in reverse
order.
1
376RA006 TG
Note:
Particular attention must be paid to
the following steps.
:Fit a circlip in a groove in the
bearing.
376RA010 TG

17TS 700, TS 800
– Align the deep groove ball
bearings with the closed sides
facing outwards.
:Slide the first deep groove ball
bearing (1), the ring (2) and the
second deep groove ball
bearing (3) onto the shaft.
123
376RA019 TG
:Position the deep groove ball
bearings and press them home
with the drift pin (1)
4224 893 7200 until they make
contact with the circlip.
– Draw the assembly pin out of the
deep groove ball bearings.
1
376RA007 TG
– Fit the second circlip in the
groove in the bearing.
Note:
The seal on the deep groove ball
bearing must not be damaged.
:Lay the washer (1) over the
bearing.
– Insert the bearing in the rubber
bearing from the outside.
1
376RA008 TG
:Lay a washer over the flange.
– Insert the flange from the inside.
Note:
The rubber rings must also be
aligned with the contours of the
guard.
338RA022 VA
:Slide the sleeve (1) and spring (2)
onto the screw (3).
– Insert and tighten down the
screws.
338RA023 VA
213
– Slide the washer onto the shaft
and fit the key.
:Slide the belt pulley (1) onto the
shaft with the longer collar
(arrow) first.
– Fit the washer and nut, screw the
1
376RA002 TG
nut down tightly.
– Tightening torques, b3.6
:Fit the thrust washer so that the
groove (arrow) is aligned with the
lug.
– Fit the axial clamping ring.
338RA025 VA

18 TS 700, TS 800
– Fit the ribbed V-belt on the belt
pulley of the bearing, mount the
guard and loosely turn in the
fastening screws.
:Turn the hexagon on the
tensioner clockwise.
:The tensioner is engaged by the
force of the spring after roughly 1/
8 of a turn. The hexagon is now
turned on by the spring tension
until the belt is tight.
376RA005 TG
Note:
The hexagon must not be forced, as
the belt tension is obtained through
the spring tension.
– Tighten down all three fastening
screws, starting with the one at
the back.
– Tightening torques, b3.6
Since the radial truth of running of
the abrasive wheel changes if the
shaft diameter changes (due to
scoring, etc.), it is sufficient to
carefully inspect the shaft around
the mount for the abrasive wheel.
The axial truth of running, on the
other hand, depends on the
condition of several parts and
should therefore be determined by
measurement.
– Undo the screw and remove the
thrust washer,
see b5.1
:Fit a test wheel (1).
338RA027 VA
1
:Fit the thrust washer so that the
locking lugs (1) engage the
grooves (2) in the shaft.
338RA028 VA
1
2
– Insert and tighten down the
screw.
:Secure a dial gauge holder (1)
with fitted dial gauge (2) on the
guard so that the axial truth of
running can be determined for a
diameter of approx. 130 mm over
1
2
338RA029 VA
a full revolution of the wheel, see
test table.
– Remove the test equipment after
testing.
5.2 Testing radial and axial
truth of running

19TS 700, TS 800
Test sequence
Sequence Actual condition Possible causes Remedy
Radial truth of running:
Visual inspection
Spindle (shaft)
Wear marks or scoring
around the mount for the
abrasive wheel
Operation with loose
fastening screw, use of the
wrong abrasive wheels
(mount dia. > 20 mm or
> 22 mm)
Replace spindle (shaft)
Axial truth of running:
Axial truth of running is
tested with a
STIHL test wheel or
diamond abrasive wheel
(on 130 mm diameter)
Axial runout
< 0.15 mm
> 0.15 mm
Damage or unevenness in
the mating faces of the
thrust washers (particularly
the inner thrust washer),
mating faces are not plane,
use of parts which are not
original STIHL parts
Dirt, incorrectly fitted thrust
washers or abrasive wheel,
use of force when cutting or
during transport
None
Replace the thrust
washers
Spindle (shaft) damaged Incorrect handling, use of
force
Replace spindle (shaft)
Tangible radial backlash in
the bearing seat → spindle
bearing faulty
Deep groove ball bearings
damaged by dust and/or
bearing seat worn at the
spindle
Replace spindle and
deep groove ball
bearings
