STILLA PADDINGTON User manual

1 PADDINGTON [8x6] V4—2023
PADDINGTON [8x6]
USER MANUAL
IMPORTANT
Read carefully. Retain for future refence

2 PADDINGTON [8x6] V4—2023

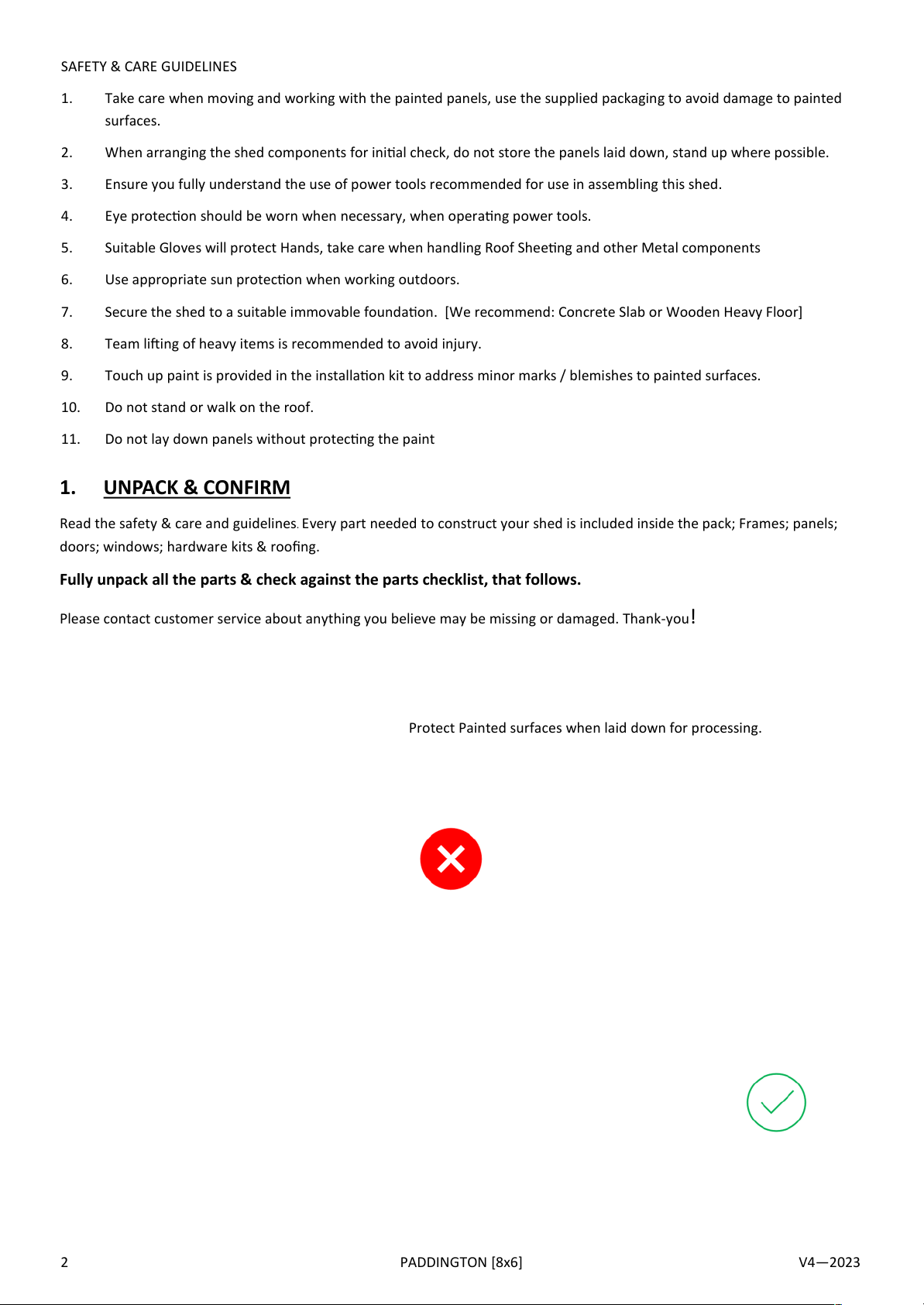

SAFETY & CARE GUIDELINES
1. Take care when moving and working with the painted panels, use the supplied packaging to avoid damage to painted
surfaces.
2. When arranging the shed components for inial check, do not store the panels laid down, stand up where possible.
3. Ensure you fully understand the use of power tools recommended for use in assembling this shed.
4. Eye protecon should be worn when necessary, when operang power tools.
5. Suitable Gloves will protect Hands, take care when handling Roof Sheeng and other Metal components
6. Use appropriate sun protecon when working outdoors.
7. Secure the shed to a suitable immovable foundaon. [We recommend: Concrete Slab or Wooden Heavy Floor]
8. Team liing of heavy items is recommended to avoid injury.
9. Touch up paint is provided in the installaon kit to address minor marks / blemishes to painted surfaces.
10. Do not stand or walk on the roof.
11. Do not lay down panels without protecng the paint
1. UNPACK & CONFIRM
Read the safety & care and guidelines.Every part needed to construct your shed is included inside the pack; Frames; panels;
doors; windows; hardware kits & roong.
Fully unpack all the parts & check against the parts checklist, that follows.
Please contact customer service about anything you believe may be missing or damaged. Thank-you!
Protect Painted surfaces when laid down for processing.

3 PADDINGTON [8x6] V4—2023
TOOLS REQUIRED
Light coloured crayon/chinagraph pencil white/yellow.
Phillips Bit (PH2), Baen Screw Bit, Phillips Bit #2, 5/16” Hex driver, Drill Bits 3mm & 4mm, Countersink Bit (or Combina-
on.)
This product requires a minimum of 2 persons to assemble.
For external access during assembly,
ensure there is adequate space around
the perimeter of the shed assembly
space.
Assemble in order presented in this manual. Do not skip any processes.
or
Preparing your site
The installaon locaon needs to be at, level and solid. Pavers or a solid material that will not be
aected by weather can be used to perfectly level the shed by placing under the oor frame where
required, make sure all members are supported. If the locaon is sloped we recommend making level
with a slab or Timber oor.
If you are installing your shed on a Slla oor, this can be placed on unlevelled surfaces and levelled
up by using the 100x100 stumps provided. A separate detail is provided for Floor Installaon.

4 PADDINGTON [8x6] V4—2023
SHED COMPONENTS
Carefully unpack all the items from shipping carton. Layout in a clean and safe area. Please check you have all compo-
nents and they have no defects before proceeding.
WALL —BOTTOM PLATE
[2] [2] [36]
FS295T2,Frame Sill,70mm x
45mm x 295mm Tenon both Ends.
FS1130T2,Frame Sill,70mm x 45mm x
1130mm Tenon both Ends
FB20MO/SM Sch Screw #6 x
20mm, Flat Buon Head, Panel Fixing to
Sill
[4]
FS877T2,Frame Sill,70mm x
45mm x 877mm Tenon both Ends
WALL —UPRIGHTS
[4] [1]
CP1926 Pine,70mm x 70mm x 1926mm, Corner Post, Plain Ends DG1130 Pine,70mm x 45mm x 1130mm, Double Groove, Plain End
[1]
DG1217A1 Pine, 70mm x 45mm x 1217mm, Double Groove, Apex Angle top.
[2]
SG1926A1 Pine 70 x 45 x 1926mm, Single Groove. Miter Top
[2]
DG1926 Pine 70x45x1926mm, Double Groove Plain ends
[160 ]
PS32CSK, Phillips Screw #6 x 32mm, Countersunk. Panel Fixing to Frame
Door Assembly
[2]
Door Assy, Door pre assembled

5 PADDINGTON [8x6] V4—2023
ROOF—Gable Frame
[1] [4] [44]
DG421A Pine 70 x 45 x 421mm, Apex
angle cut
SG1299A,Pine, 70 x 45 x 1299mm, Single Groove Angled cut (x4) PS32CSK, Phillips Screw #6 x
32mm, Countersunk. Panel Fixing
to Door Frame
[2] [2]
GPR, Gable Panel Right, 1095 x 454 x 9.5mm, 22.5 Degree PitchGPL, Gable Panel Le, 1095 x 454 x 9.5mm, 22.5 Degree Pitch
WALL —TOP PLATE
[1] [2]
SG1740A2 , Pine,70mm x 45mm x 1740mm, Single Groove, Miter Ends. DG1130T2, Pine,70mm x 45mm x 1130mm, Double Groove, Tenon Ends.
[4] [2]
SG877T2, Pine,70mm x 45mm x 877mm, Single Groove, Tenon Ends. DG295T2, Pine,70mm x 45mm x 295mm, Double Groove, Tenon Ends.
WALL -PANELS
[2] [2]
P1130, Weathertex Panel 1130 x 1824 x
9.5mm, Grooved
WP1130x1824 [Oponal replaces
P1130x1824]
P295, Weathertex Panel 295 x 1824 x
9.5mm, Grooved
[4]
P877, Weathertex Panel 877 x
1824 x 9.5mm, Grooved
WP877x1824 [Oponal replaces
P877x1824]

6 PADDINGTON [8x6] V4—2023
FACIA
[4] [12] [12] [12]
F1500, Painted Facia, 100 x 19 x 1500mm, 22.5
Degree.
FB112, Painted Block 70 x 45
x 112mm, Facia Spacing Block
PS32, Phillips Csk Screw #6
x 32mm Treated Pine, Fix
F1500 to FB145 .
BS100, Bugle Baen Screw
100mm Galvanized, Fix
FB140 to Gable.
MISCELLANEOUS
[1] TU MO/SM, Paint Touchup
Monument / Surfmist 500ml
[1] Sil-MO/SM, Silicone sealant 300ml –
coloured
ROOF FRAME
[4]
RF1797, Roof Frame, Pine 70 x 45 x 1707mm.
[6]
RF1125, Roof Frame, Pine 70 x 45 x 1125mm.
[6] [2] [12]
RD-AS2MO/SM, Rivet
AS2.
[44]
BS75, Baen Screw
75mm Galvanized.
RS1400 MO/SM, 6 Rib Roof Sheet
1400mm.
RC1200 MO/SM, Ridge Cap (A) 1200mm .
[4] [68]
CH1200 MO/SM, Channel 1200mm. RS50MO/SM, Roong Screw, #8 x 50mm
Neoprene Sealing.
FURNITURE
[1] [4] [1]
THB, “T” Handle Black with
xings, Keys and Locking
Quadrant
TH150B, “T” Hinge 150mm,
Black with xings
DS1820x90, Doorstop, Wethertex Panel 1820 x 90 x 9.5mm
[2]
BB100SS, Barrel Bolt, SS, 100mm
plus Hinge Screws [12]
[20]
FB20MO/SM,Sch Screw #6 x
20mm, Flat Buon Head, DS Fixing to
Door (x8)
[1]
DST1800, Door Stop Top, Weathertex 1800 x 83mm

7 PADDINGTON [8x6] V4—2023

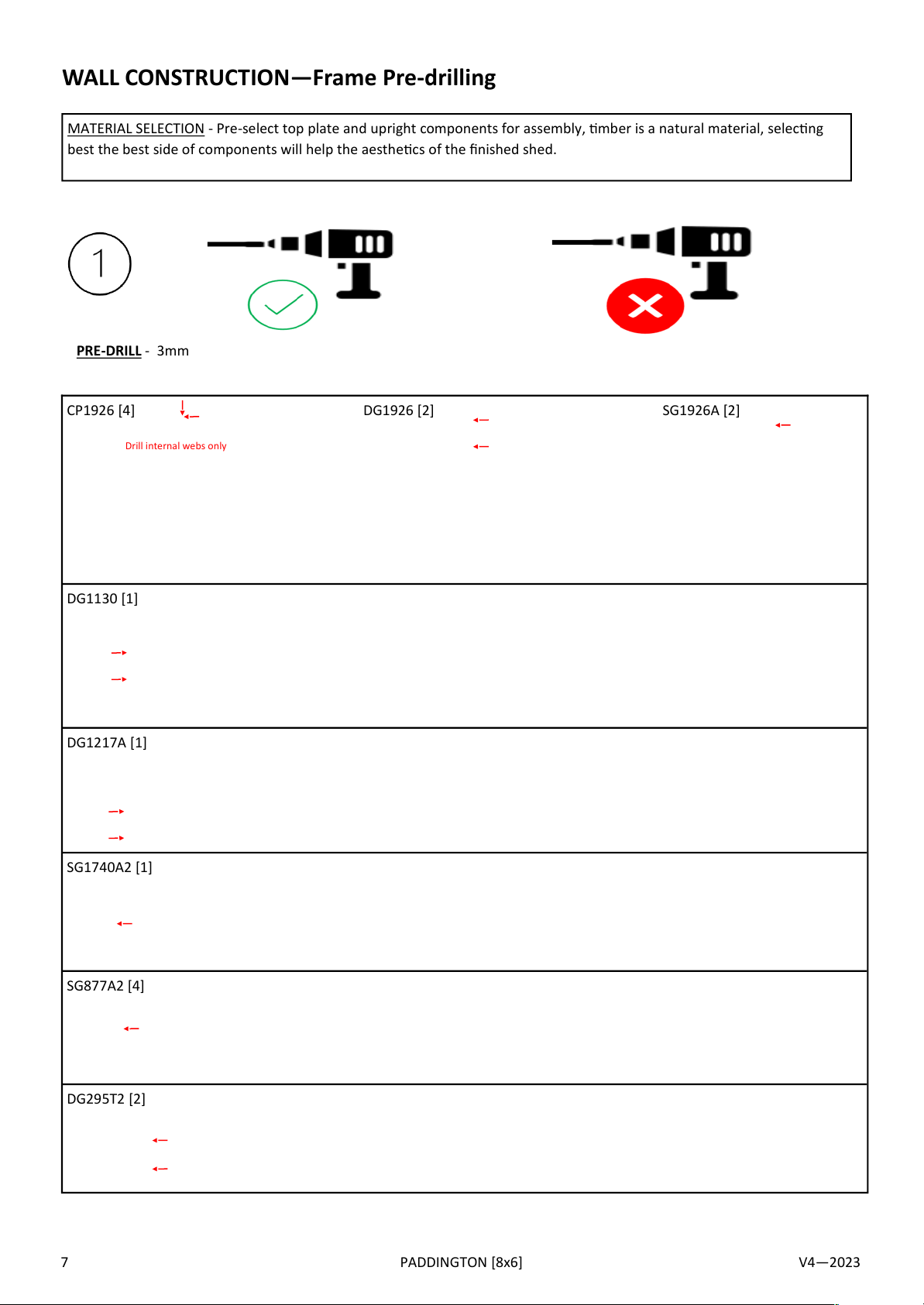

WALL CONSTRUCTION—Frame Pre-drilling
MATERIAL SELECTION -Pre-select top plate and upright components for assembly, mber is a natural material, selecng
best the best side of components will help the aesthecs of the nished shed.
PRE-DRILL -3mm
CP1926 [4] DG1926 [2] SG1926A [2]
DG1130 [1]
DG1217A [1]
SG1740A2 [1]
SG877A2 [4]
DG295T2 [2]
Drill internal webs only

8 PADDINGTON [8x6] V4—2023
FB20, [2]
[2]
P1130x1824
[4]
P877x1824
[2]
FS1130
[12]
FB20 MO/SM
[4]
FS877T2
[4]
SG877T2
[2]
DG1130T2
[24]
PS32CSK

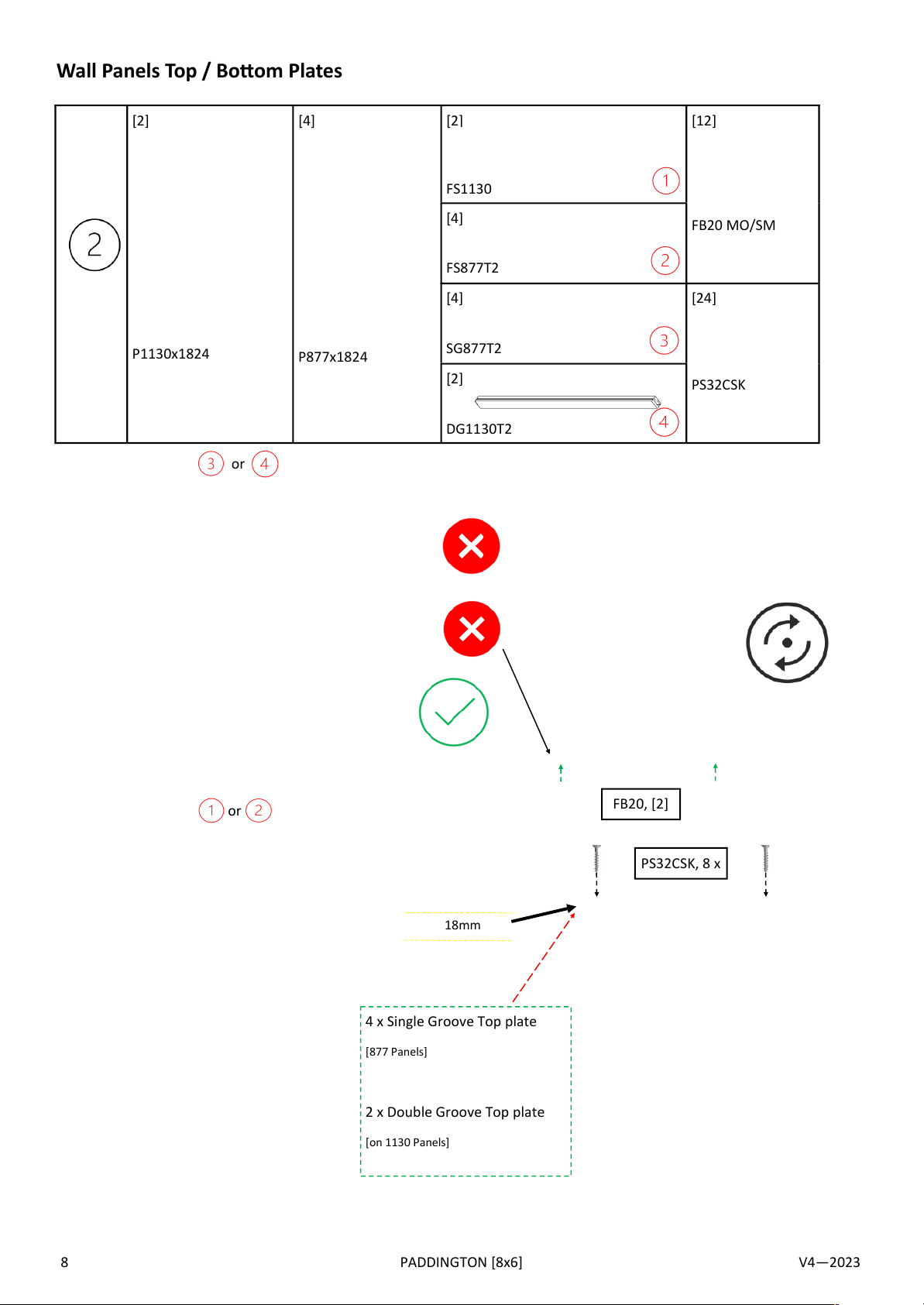

Wall Panels Top / Boom Plates
or
18mm
PS32CSK, 8 x
4 x Single Groove Top plate
[877 Panels]
2 x Double Groove Top plate
[on 1130 Panels]
or

9 PADDINGTON [8x6] V4—2023
NOTE: Window posion in shed, will determine Top Plate conguraon.
If to be on the Back wall [Opposite doors]. DG1130T2 should be ed.
If to be placed in side walls SG877T2 is required.
Back
OPTIONAL: OPENING WINDOW PANEL [1130 or 877]
Overall height of panels should be equal to vercal beams [1926mm].
CP1926 or DG1926 can be used as a gauge to ensure ideal panel height of the
top plate component.

10 PADDINGTON [8x6] V4—2023
PS32CSK [6]
FB20 MO/SM [6]
Note: Front Panel Groove is oset. Check
[2] [2] [6]
DG295T2 FS295T2 FB20 MO/SM
[6]
PS32CSK
[2]
P295x1824

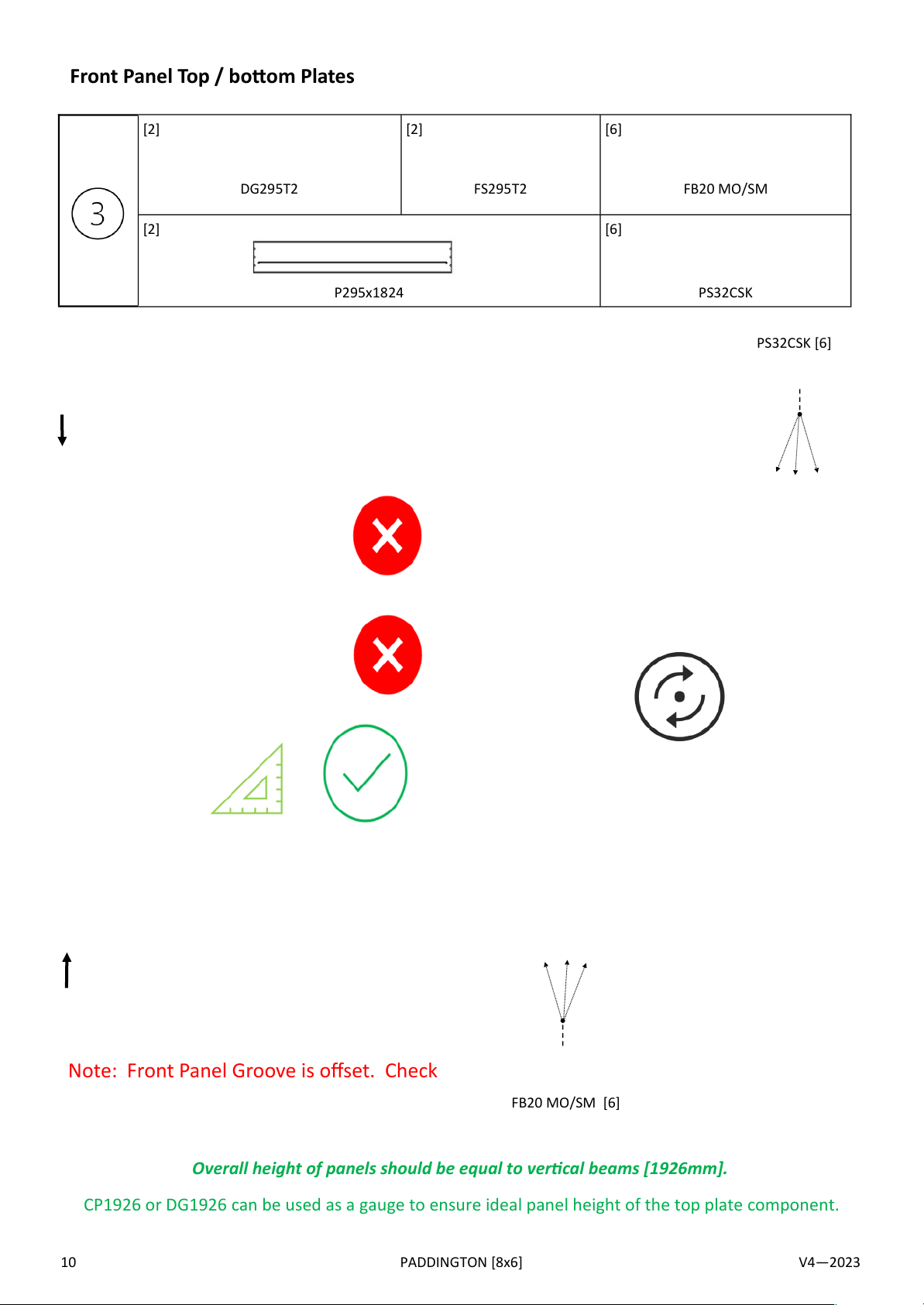

Front Panel Top / boom Plates
Overall height of panels should be equal to vercal beams [1926mm].
CP1926 or DG1926 can be used as a gauge to ensure ideal panel height of the top plate component.

11 PADDINGTON [8x6] V4—2023
[1] [1] [2]
877 Panel Assy Or WP Assy CP1924 PS32CSK
Note: Layout Lines
18mm
2mm Gap
Construct a panel with Corner
post on Right Rear face
[as per image >]
With SG top Rail [for Side wall]
Fit Corner Post [1]

12 PADDINGTON [8x6] V4—2023
[1] [4]
1130 Panel Assy + DG Top +CP PS32CSK
[1]
877 Panel Assy + SG Top
1130mm DG Top
877mm SG Top

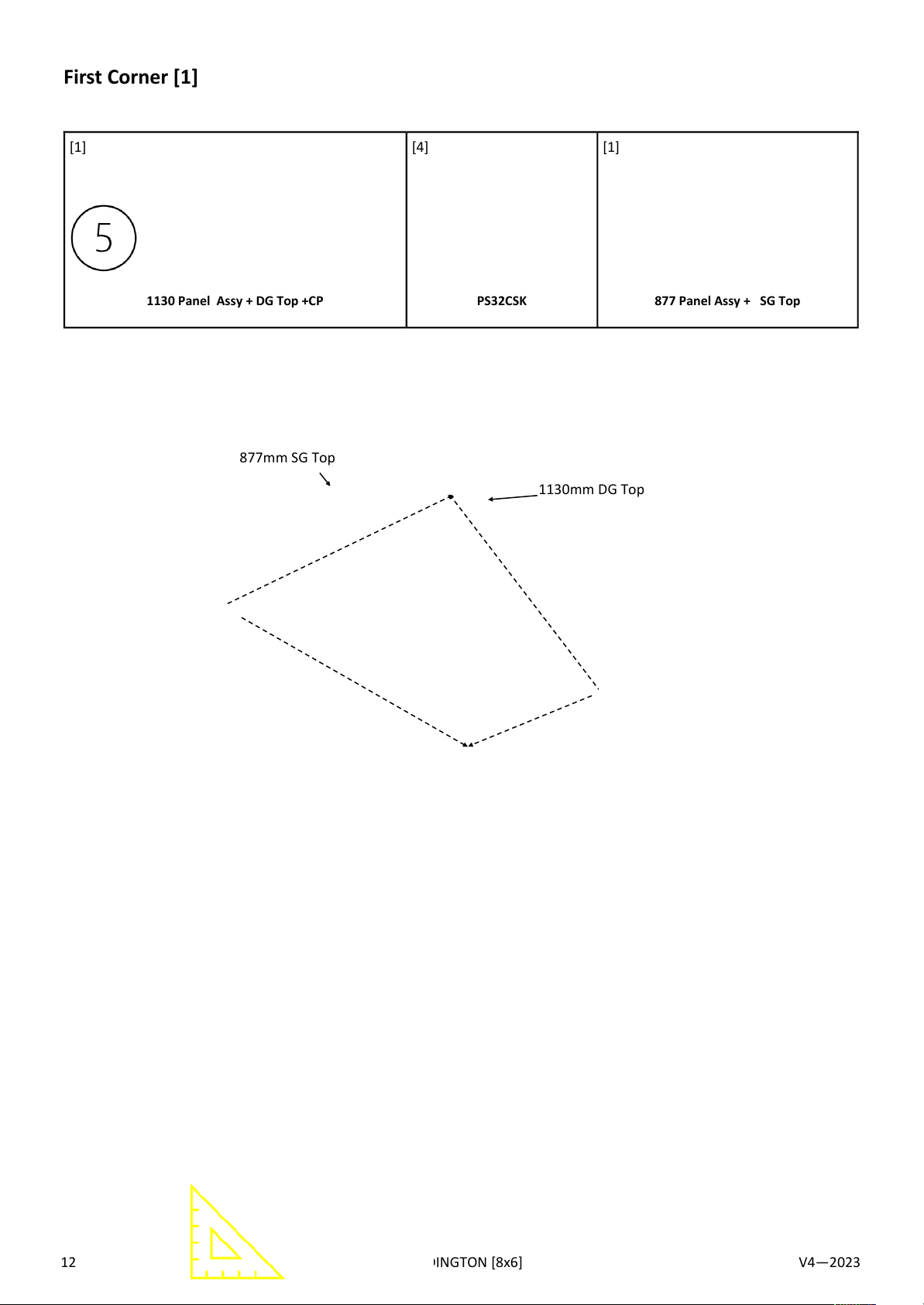

First Corner [1]

13 PADDINGTON [8x6] V4—2023
[1] [1]
DG1130 DG1217A1
[1] [1]
1130mm Panel Assy [DG Top] CP1924
[4]
PS32CSK
Angle cut to TOP
FB32CSK [4]

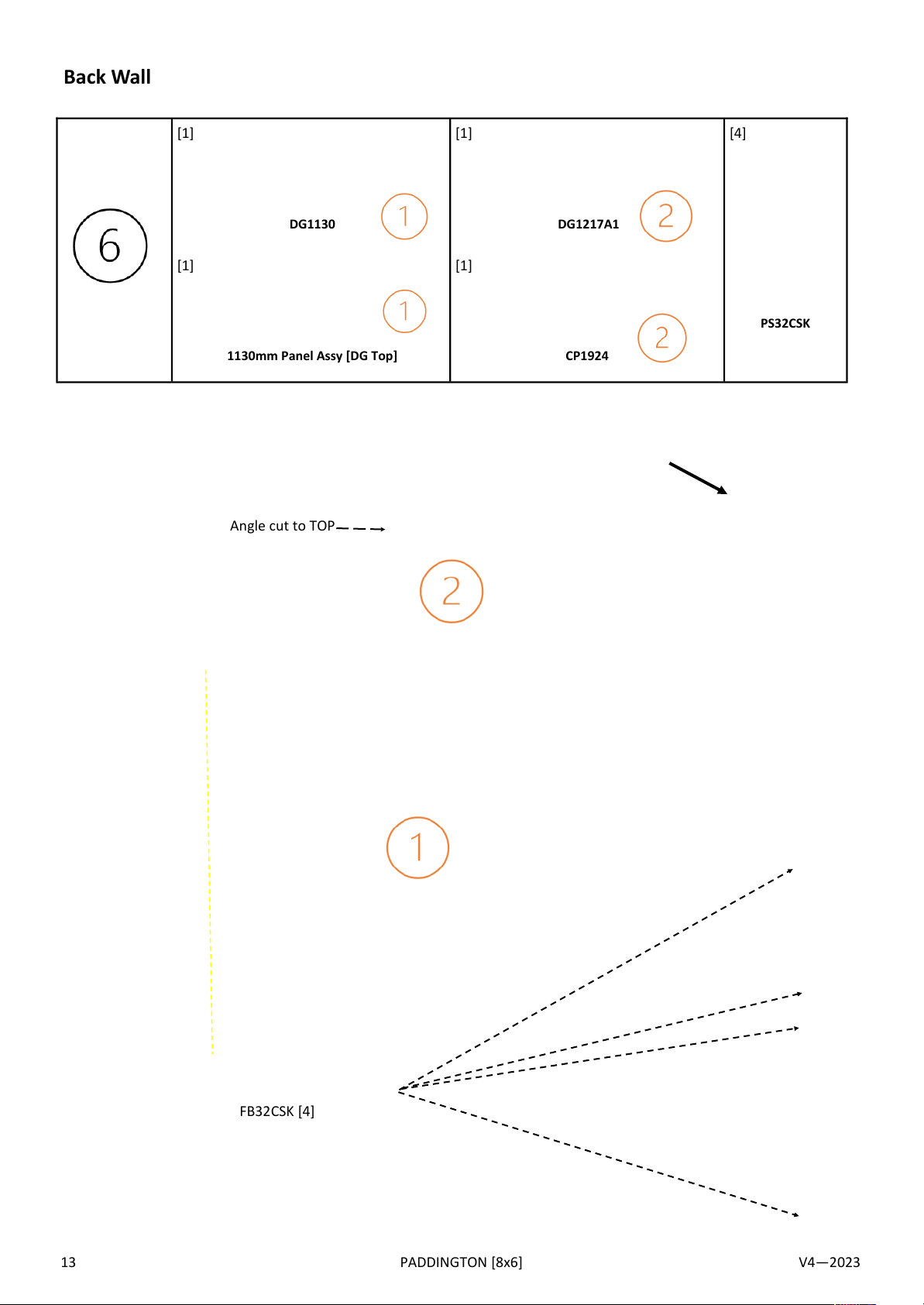

Back Wall

14 PADDINGTON [8x6] V4—2023
PS32CSK [4]

15 PADDINGTON [8x6] V4—2023
7
[3] [1] [4]
877mm Panel Assy [SG Top] CP1924 PS32CSK

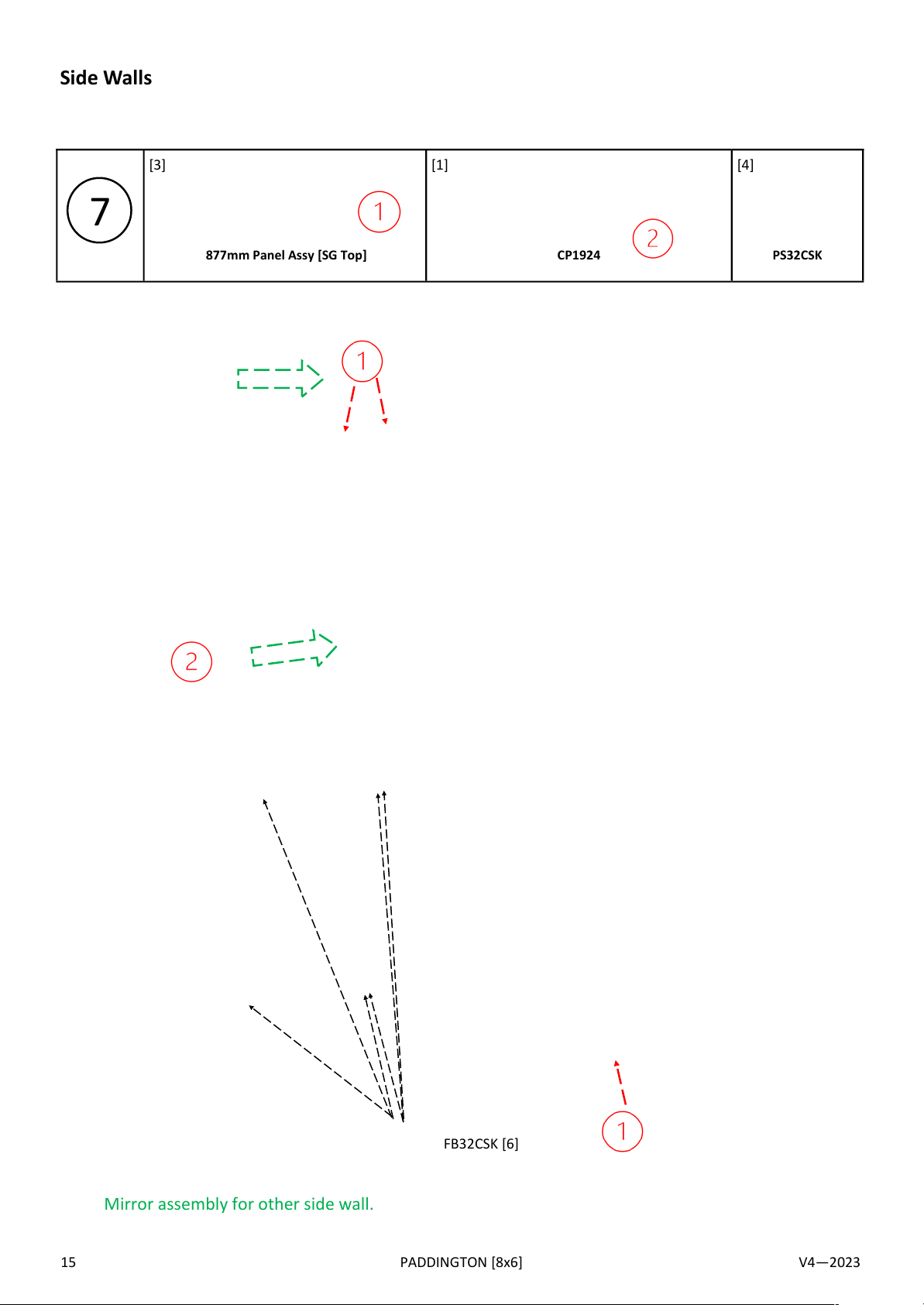

Side Walls
FB32CSK [6]
Mirror assembly for other side wall.

16 PADDINGTON [8x6] V4—2023

17 PADDINGTON [8x6] V4—2023
PS32CSK
Rear panels hidden for clarity
[2] [4]
Front Panel Assy PS32CSK

18 PADDINGTON [8x6] V4—2023
Door Head
FB20MO/SM [13]
[1]
SG1740A2
[14]
FB20MO/SM
[1]
DST1800
9

19 PADDINGTON [8x6] V4—2023
CHECK structure for Square, once conrmed, t remaining Screws to panels
FB20MO/SM x 24
PS32CSK x 100

20 PADDINGTON [8x6] V4—2023
10
[4]
SG1299A2
[1]
DG451A2
PRE-DRILL -3mm
18mm
18mm
?

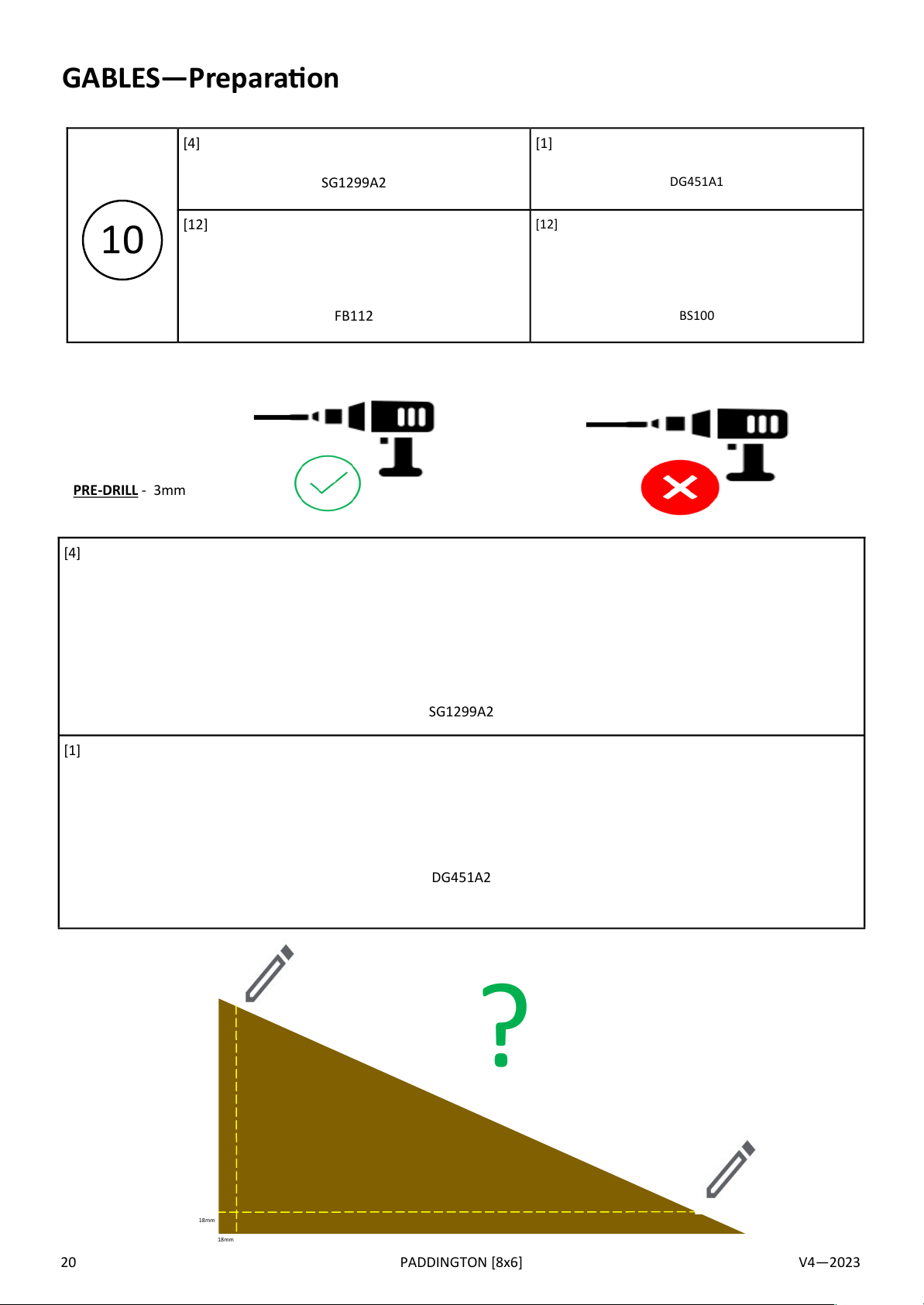

GABLES—Preparaon
[4] [1]
SG1299A2 DG451A1
[12] [12]
FB112 BS100
