STILLA S3105 User manual

STILLA
ASSEMBLY INSTRUCTIONS
‘Acacia’8x3
S3105
Every part needed to construct your shed is included inside the pack; cedar
panels, doors, windows, hardware kits & roof sheeting. Please ensure you fully
unpack all the parts & check against the parts checklist before contacting
customer service about anything you believe may be missing. Thank-you!

1 | P a g e
Caution
Please be careful when handling all components, some parts have sharp metal edges.
Always wear work gloves, eye protection and long sleeves when assembling or maintaining
your shed.
Tools required for assembly
•Level
•Drill
•Hammer
•Ladder
•Phillips head drive
•Hex Head Drive (5/16’)
•Safety glasses
•Gloves
Before assembly
•Remove all parts from packages and place in a safe place close to assembly area.
•Review all instructions; continue to refer to instructions throughout assembly –step
by step.
Preparing your site
•If you are installing your shed on the Stilla rebated floor we recommend finding a
place in your yard that is very close to level. Pavers or a solid material that will not be
affected by weather can be used to perfectly level the shed by placing under the
floor frame where required, make sure all members are supported.
•If you are installing your shed on the Stilla heavy duty floor, this can be placed on
unlevelled surfaces and levelled up by using the 100x100 stumps provided.

2 | P a g e
ACACIA 8x3 PARTS CHECKLIST
Part Code
Checked
Part Description
Qty
P
Cedar Clad Panel 1200x1890mm
2
LP
Tapered Panel (Left) 900x1875mm
1
RP
Tapered Panel (Right) 900x1875mm
1
FP
Cedar Clad Front Panel 495x1805mm
2
D
8x3 Door 700x1770mm (Full Cedar)
2
CP
Corner Post (2 x 1890mm - 2 x 1805mm)
4
CS
Cover Strip 1890x40x7mm
1
DS
Door Step 1410x42x19mm
1
RS
1040mm Roof Sheeting
4
DH
6x3 Door Head 1800mm
1
DH
8x3 Door Head (300mm pcs)
2
RS
1040mm Roof Sheeting
4
L
1040mm L Flashing –ZINC
2
C
1283mm Channel - ZINC
2
L
1300mm L Flashing –ZINC
2
HK
8x3 Hardware Kit
1
IM
8x3 Instruction Manual
1
Floor Kit –Option
Floor Frame - 140x38mm
Part Code
Checked
Part Description
Qty
EP
End Plate 1242x140x38mm
4
DJ
Double Joist 824mm
2
SJ
Single Joist 824mm
6
FN
Floor Nogs 376x42x35mm
3
L
Logs 750mm
6
FB
1798mm x 485mm
1
FB
598mm x 485mm
1
FB
1798mm x 326mm
1
FB
598mm x 326mm
1

3 | P a g e
If no floor option was purchased, go to step 2.0 (Wall Assembly)
SKIP TO BACK FOR IMAGES TO HELP WITH FLOOR INSTALL
STEP 1.0
FLOOR KIT
1.0 –FLOOR KIT (1 of 2 floor frames)
PART CODE
QTY
DESCRIPTION
EP
2
End Plate 1242mm
SJ
3
Single Joist 824mm
DJ
1
Double Joist 824mm
100BS
18
100mm Batten Screw
1.0 –FLOOR FRAME (1 of 2 floor frames)

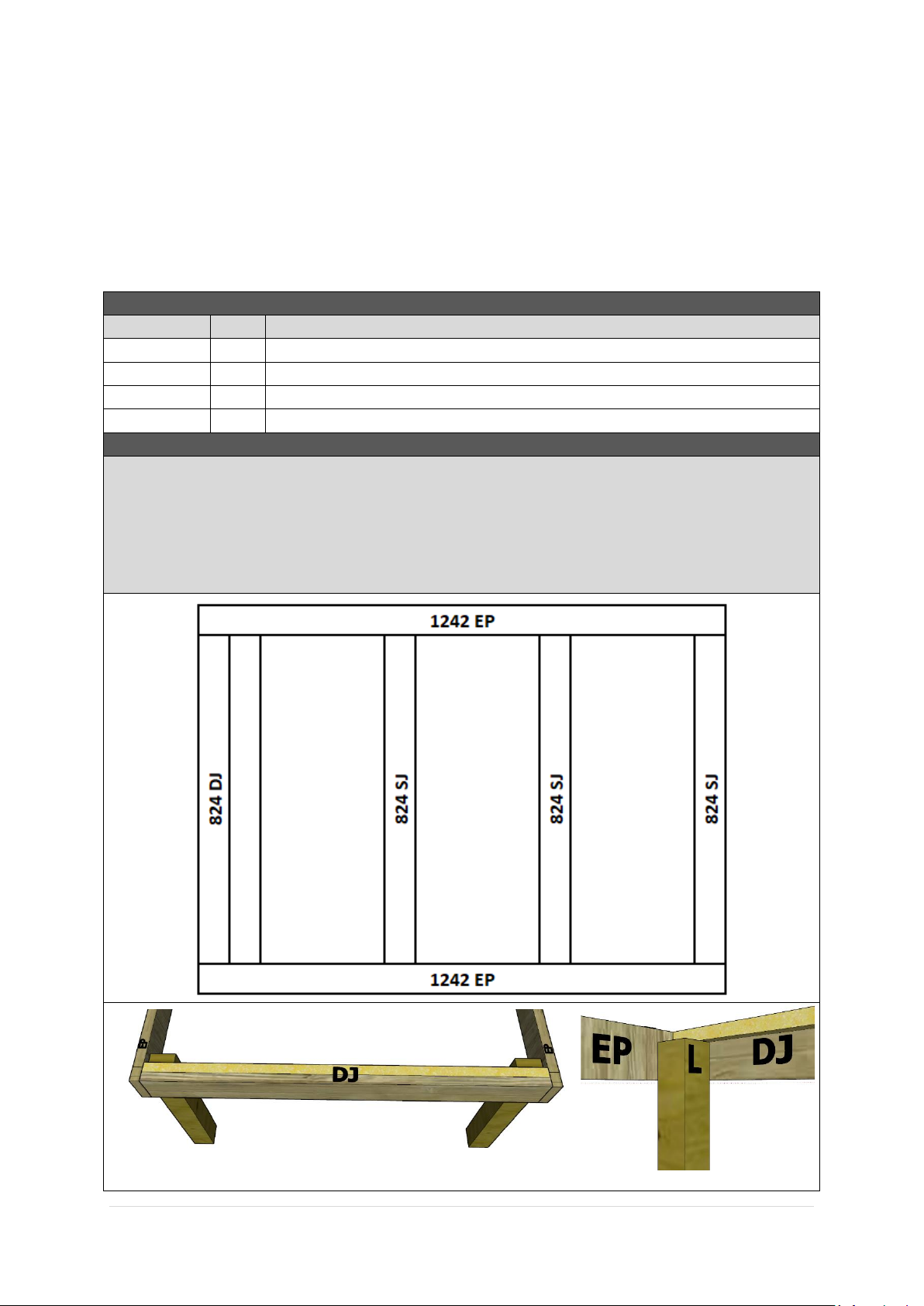

Fasten floor frame together as indicated in diagram below, using lines and predrilled holes.
Screw through EP into DJ using 3x 100BS.
Screw through EP into SJ using 2 x 100BS per join.
Ensure frame is square by measuring from corner to corner diagonally, frame will be square
when both diagonal measurements equal the same.
REPEAT THIS PROCESS FOR FASTENING 1 MORE FLOOR FRAME.
ENSURE 42x35 side of the DJ sits at top.

4 | P a g e
STEP 1.1
FLOOR FRAME INSTALLATION
The 8x3 floor frame comes in two parts. Install first floor frame in desired position at
desired height and fasten to logs once level and square, then join and fasten next frame
and repeat.
1.1 –FLOOR FRAME INSTALLATION
PART CODE
QTY
DESCRIPTION
L
6
Logs 750x100x100mm
100BS
24
100mm batten screws
65BS
6
65mm Batten Screws
1.1 –FLOOR FRAME INSTALLATION

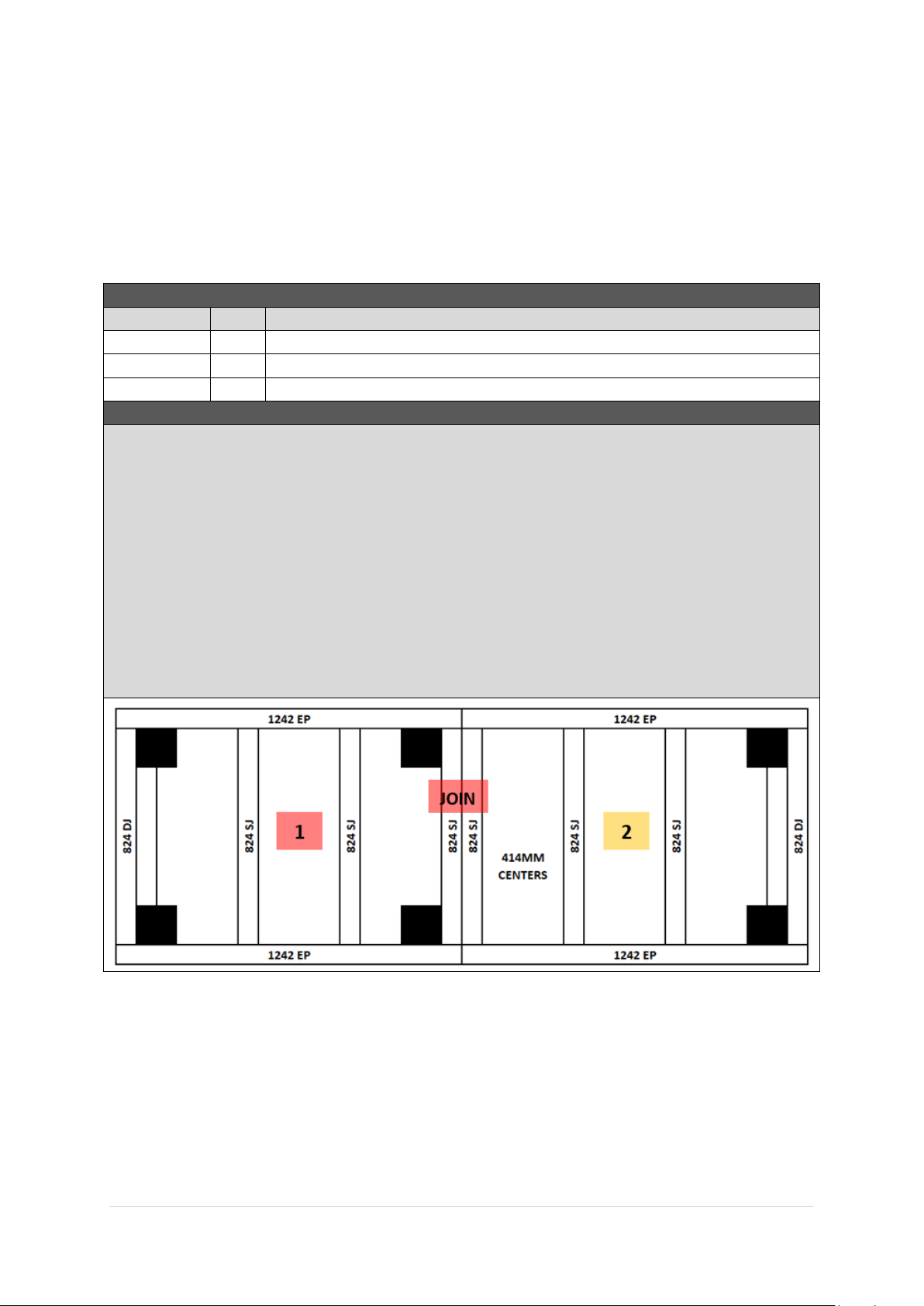

Repeat the steps below for each floor frame, joining the floor frames together as you go in
order displayed in diagram below.
1. Lay out frame in desired position and mark holes to dig, as indicated on diagram
below (use shovel or marking paint).
2. Dig and place logs in holes (using concrete if you wish).
3. Fasten floor frame to logs at desired height, using 4x 100BS per log, ensuring frame is
level*.
4. Butt next floor frame into last installed frame and join using 6x 65BS evenly spaced
along SJ.
5. Repeat process until all frames are joined.
* Fasten frame to logs when roughly level and then critique by hammering in or adding dirt
(or concrete) to corners until perfectly level at every post.

5 | P a g e
STEP 1.2
FLOOR NOG INSTALLATION
1.2 –FLOOR NOG INSTALLATION
PART CODE
QTY
DESCRIPTION
FN
3
Floor Nog 376x42x35mm
65HHS
6
65mm Hex Head Screws
1.2 –FLOOR NOG INSTALLATION

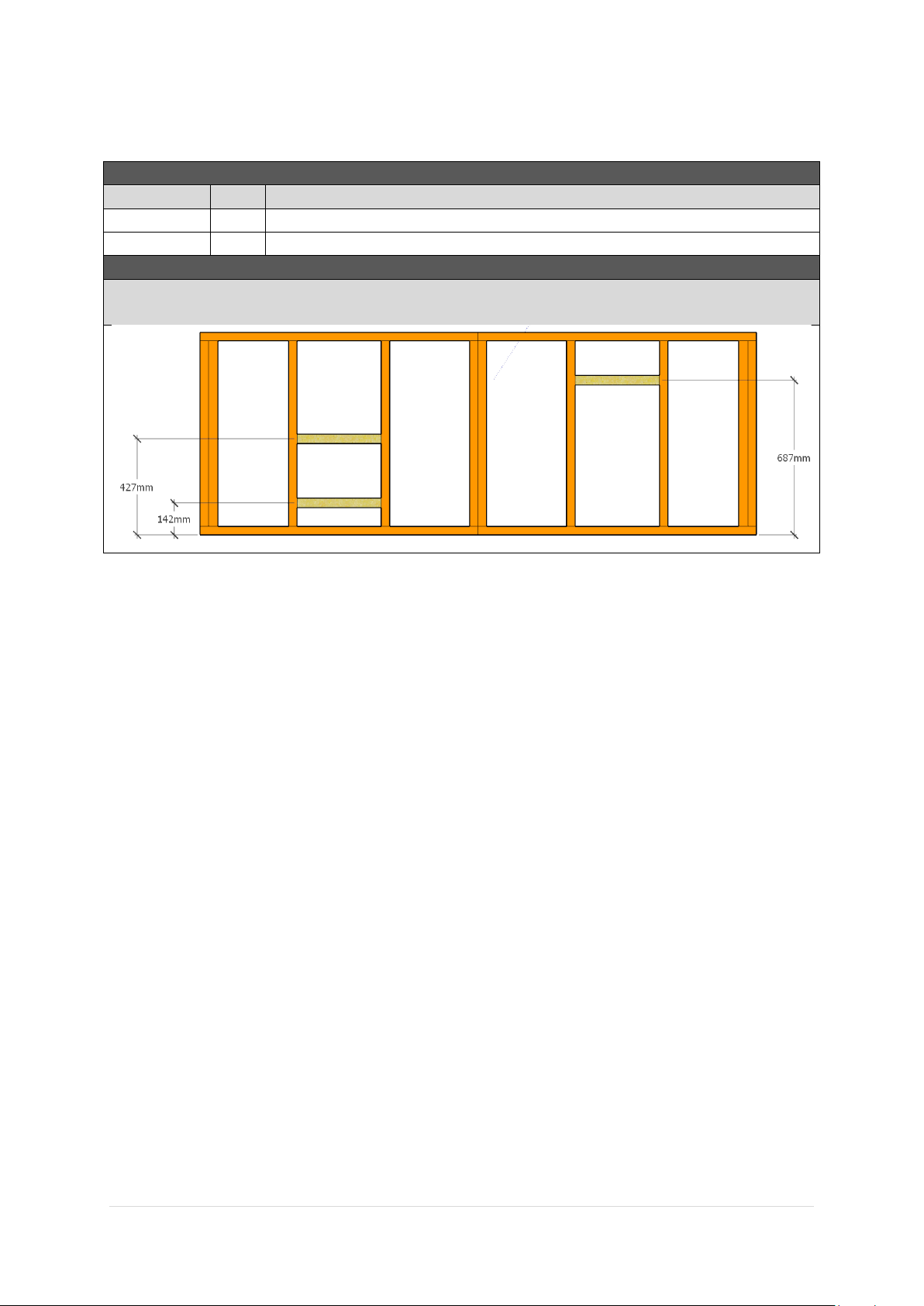

Mark out measurements shown below (centre of nog). Fasten Floor Nogs (FN) in positions
shown in diagram below using 1x 65HHS per join.

6 | P a g e
STEP 1.3
FLOOR INSTALLATION
1.3 –FLOORING INSTALLATION
PART CODE
QTY
DESCRIPTION
FB
1
Floor Board 1798x485mm
FB
1
Floor Board 598x485mm
FB
1
Floor Board 1798x326mm
FB
1
Floor Board 598x326mm
50PS
34
50mm Philips Screw
1.3–FLOORING INSTALLATION

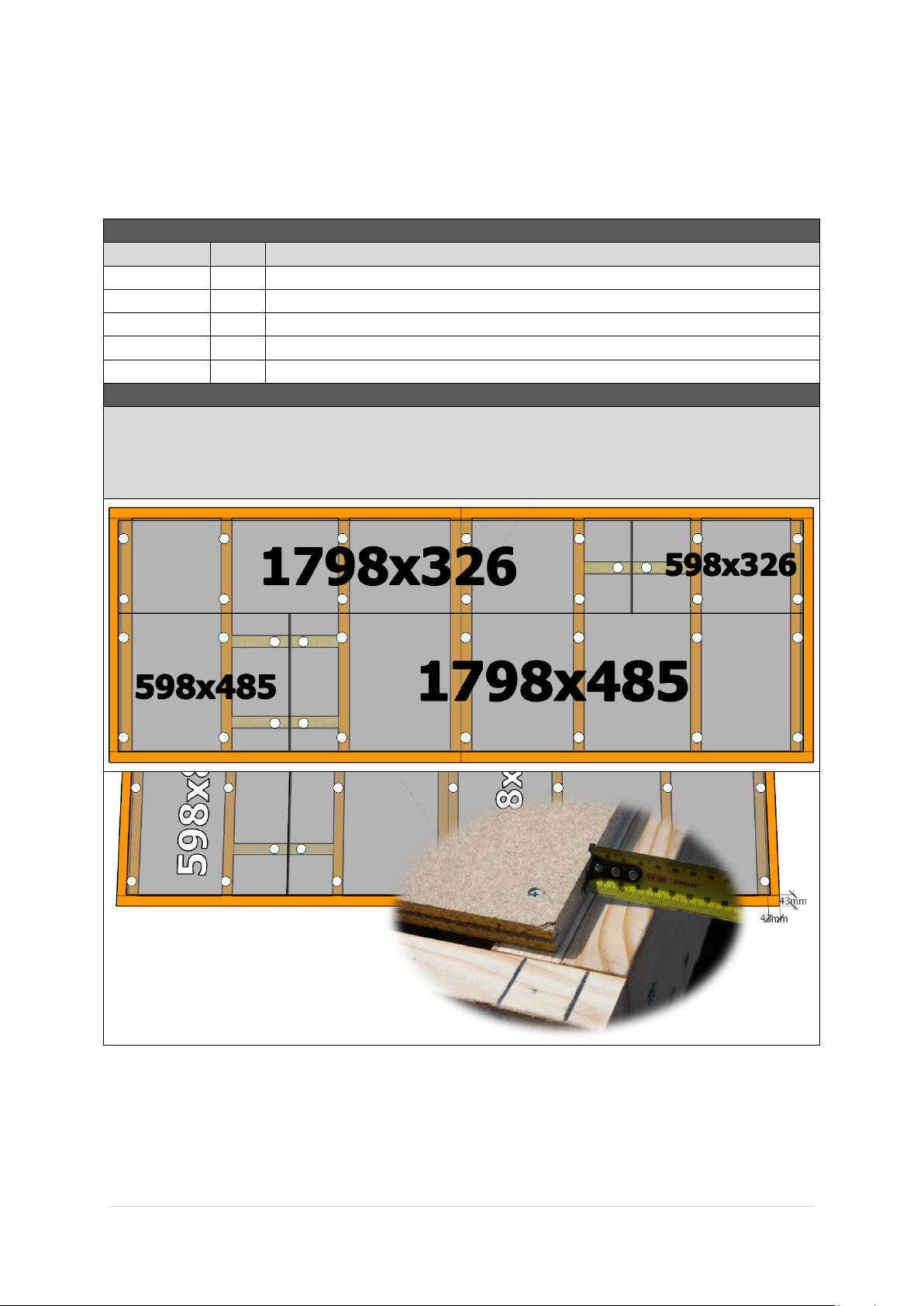

Fasten floor sheets to floor frame as shown in diagram below using 50PS.
Bring Floor sheets in 43mm on all 4 sides from the outside of the floor frame.
Note- The x marked on the floor sheets do not line up with out joists.

7 | P a g e
STEP 2.0
WALL ASSEMBLY
2.0 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
FP
1
Front panel
LP
1
Tapered panel left
65HHS
3
65mm hex head screw
1.0 - ASSEMBLY –WALL ASSEMBLY

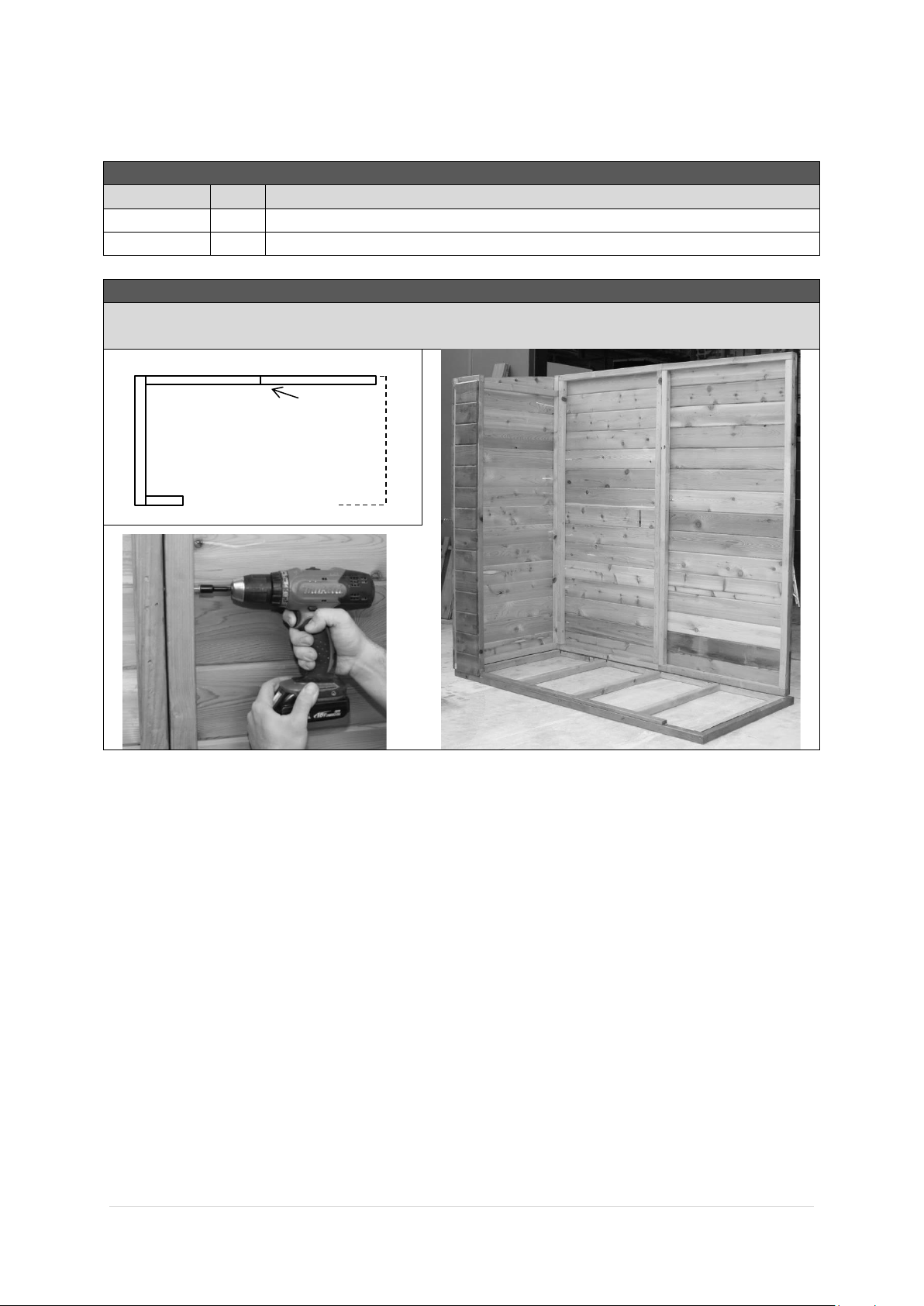

Screw through FP into LP (top, centre & bottom) using 3 x 65HHS. (Holding studs flush on
the outside)Note –ensure tongue of cedar cladding is at the top on all panels.
LP
Screw 3 x 65HHS (Top,
centre & bottom)
FP

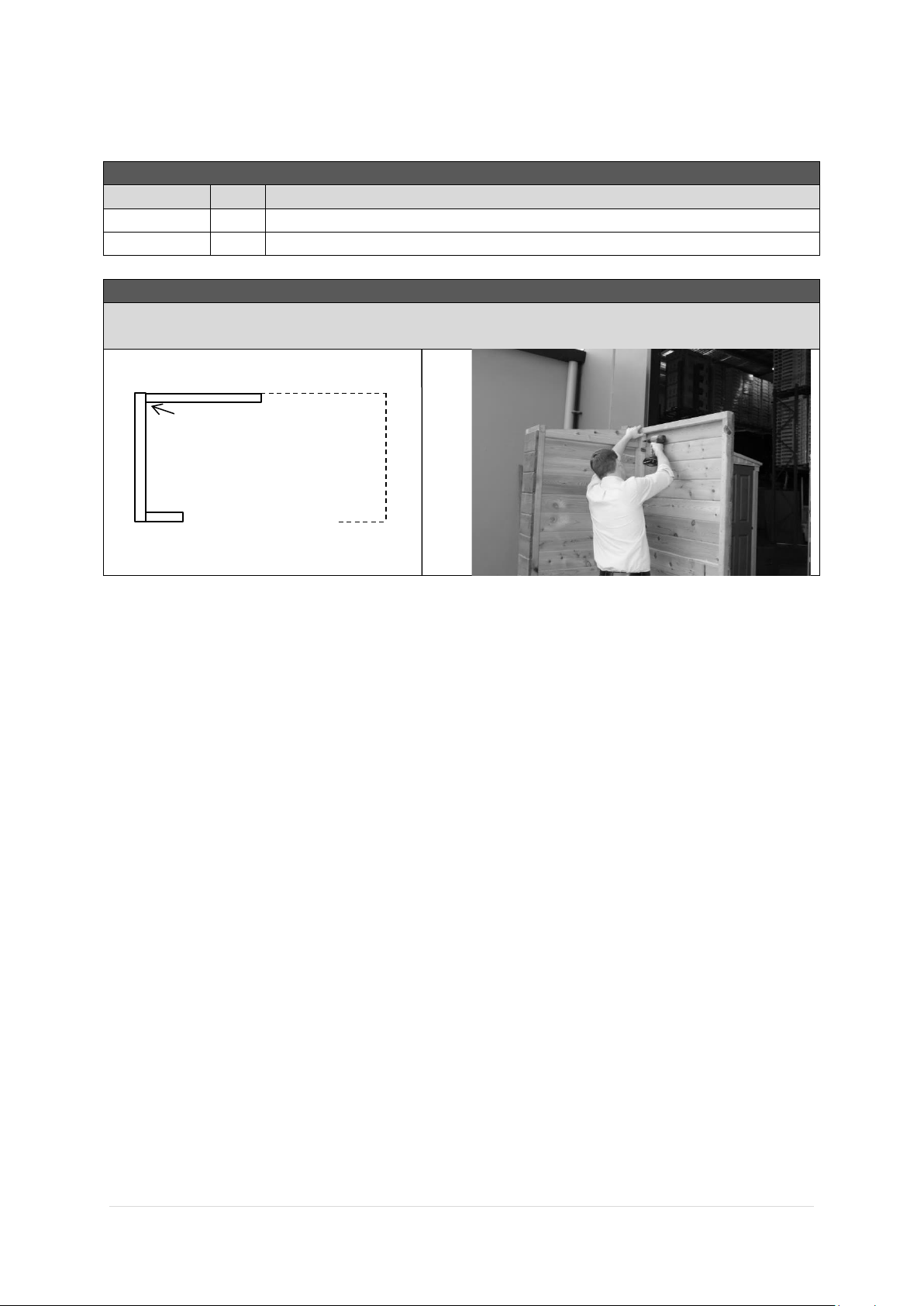

When screwing the four corners together please make sure the studs are flush on the
outside (not the inside) as per image below.

8 | P a g e
STEP 2.1
WALL ASSEMBLY
2.1 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
P
1
1200mm panel
65HHS
3
65mm hex head screw
2.1 - ASSEMBLY –WALL ASSEMBLY
Screw through P into LP (Top, centre & bottom) using 3 x 65HHS, holding studs flush on the
outside.
P
LP
Screw 3 x 65HHS (Top,
centre & bottom)

9 | P a g e
STEP 2.2
WALL ASSEMBLY
2.2 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
P
1
1200mm panel
65HHS
3
65mm hex head screw
2.2 - ASSEMBLY –WALL ASSEMBLY
Screw through P into P (Top, centre & bottom) using 3 x 65HHS, holding studs flush on the
inside.
P
Screw 3 x 65HHS (Top,
centre & bottom)
P

10 | P a g e
STEP 2.3
WALL ASSEMBLY
2.3 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
RP
1
Tapered panel right
65HHS
3
65mm hex head screw
2.3 - ASSEMBLY –WALL ASSEMBLY
Screw through P into RP (top, centre & bottom) using 3 x 65HHS holding studs flush on the
outside.
STEP 2.4
WALL ASSEMBLY
2.4 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
FP
1
Front panel
65HHS
3
65mm hex head screw
2.4 - ASSEMBLY –WALL ASSEMBLY
Screw through FP into RP (top, centre & bottom) using 3 x 65HHS holding studs flush on the
outside.
P
Screw 3 x 65HHS (Top,
centre & bottom)
P
RP
P
Screw 3 x 65HHS
(Top, centre &
bottom)
P
FP
RP

11 | P a g e
STEP 2.5
DOOR HEAD INSTALLATION
2.5 - ASSEMBLY PARTS –DOOR HEAD INSTALLATION
PART CODE
QTY
DESCRIPTION
DH
1
6x3 Door Head 1800mm
DH
2
8x3 Door Head (300 pieces)
40N
8
40mm Nail
2.5 - ASSEMBLY –DOOR HEAD INSTALLATION
Place DH in position and fasten through DH into FP using 2 x 40N at each end.
Position 300 pieces at ends of DH and fasten into FP using 2x 40N per piece.

12 | P a g e
STEP 2.6
DOOR STEP INSTALLATION
2.6 - ASSEMBLY PARTS –DOOR INSTALLATION
PART CODE
QTY
DESCRIPTION
DS
1
Door Step
40N
3
40mm Nail
2.6 - ASSEMBLY –DOOR INSTALLATION
Nail through DS into floor frame (if floor option was not chosen fasteners are not supplied)
DS

13 | P a g e
STEP 3.0
ROOF ASSEMBLY
3.0 - ASSEMBLY PARTS –ROOF ASSEMBLY
PART CODE
QTY
DESCRIPTION
RS
4
1040mm roof sheet
3.0 - ASSEMBLY –ROOF ASSEMBLY

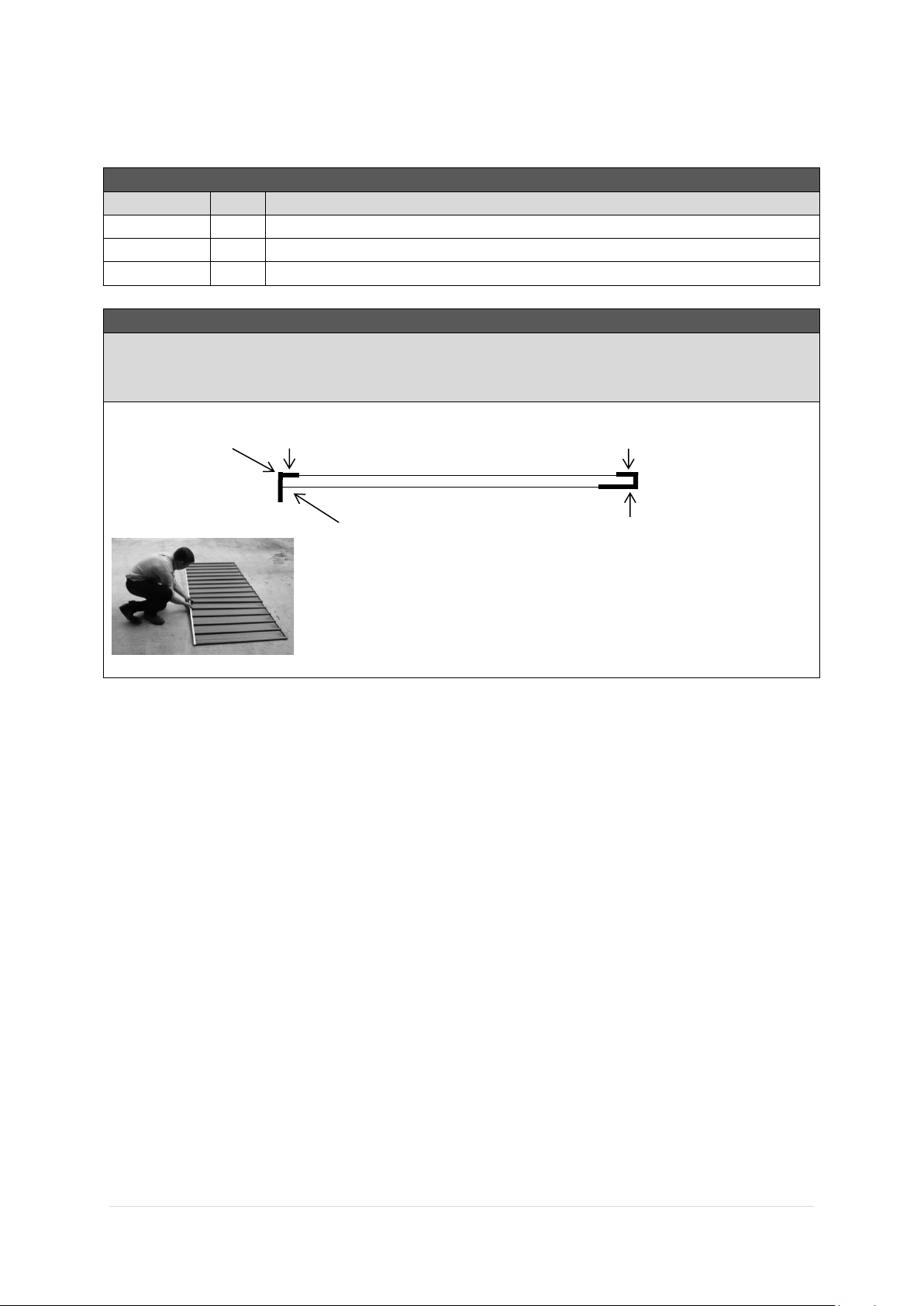

Lay RS x 3 down on a flat hard surface and overlap until full measurement is 2565mm.
Bent up edge goes at the back of the shed.

14 | P a g e
STEP 3.1
ROOF ASSEMBLY
3.1 - ASSEMBLY PARTS –ROOF ASSEMBLY
PART CODE
QTY
DESCRIPTION
L
2
1300mm L flashing
C
2
1283mm C channel
ST
12
Self-tapping screw
3.1 - ASSEMBLY –ROOF ASSEMBLY
Place L on RS (Roof Sheets) as shown in picture. Screw through top, 1 Rib in from each end
and into each join of sheet (6 times all up) using ST x 4.
Slide C into place and repeat process.
Screw
Screw
Back
Front
Bent up edge
L
C

15 | P a g e
STEP 3.2
ROOF ASSEMBLY
3.2 - ASSEMBLY PARTS –ROOF ASSEMBLY
PART CODE
QTY
DESCRIPTION
L
2
1040mm L flashing
ST
6
Self-tapping screw
3.2 - ASSEMBLY –ROOF ASSEMBLY
Place L into position, as shown in picture. Screw through L into L at back and C at front.
Screw threw 1040L into roof sheet (RS) in centre. (repeat at both ends of the roof)
Screw
Screw
(Note: This drawing does not show the right number of ribs)
L
L

16 | P a g e
STEP 3.4
ROOF INSTALLATION
3.4 - ASSEMBLY PARTS –ROOF INSTALLATION
PART CODE
QTY
DESCRIPTION
1
Assembled Roof
40RS
36
40mm Roof screw
3.4 - ASSEMBLY –ROOF INSTALLATION

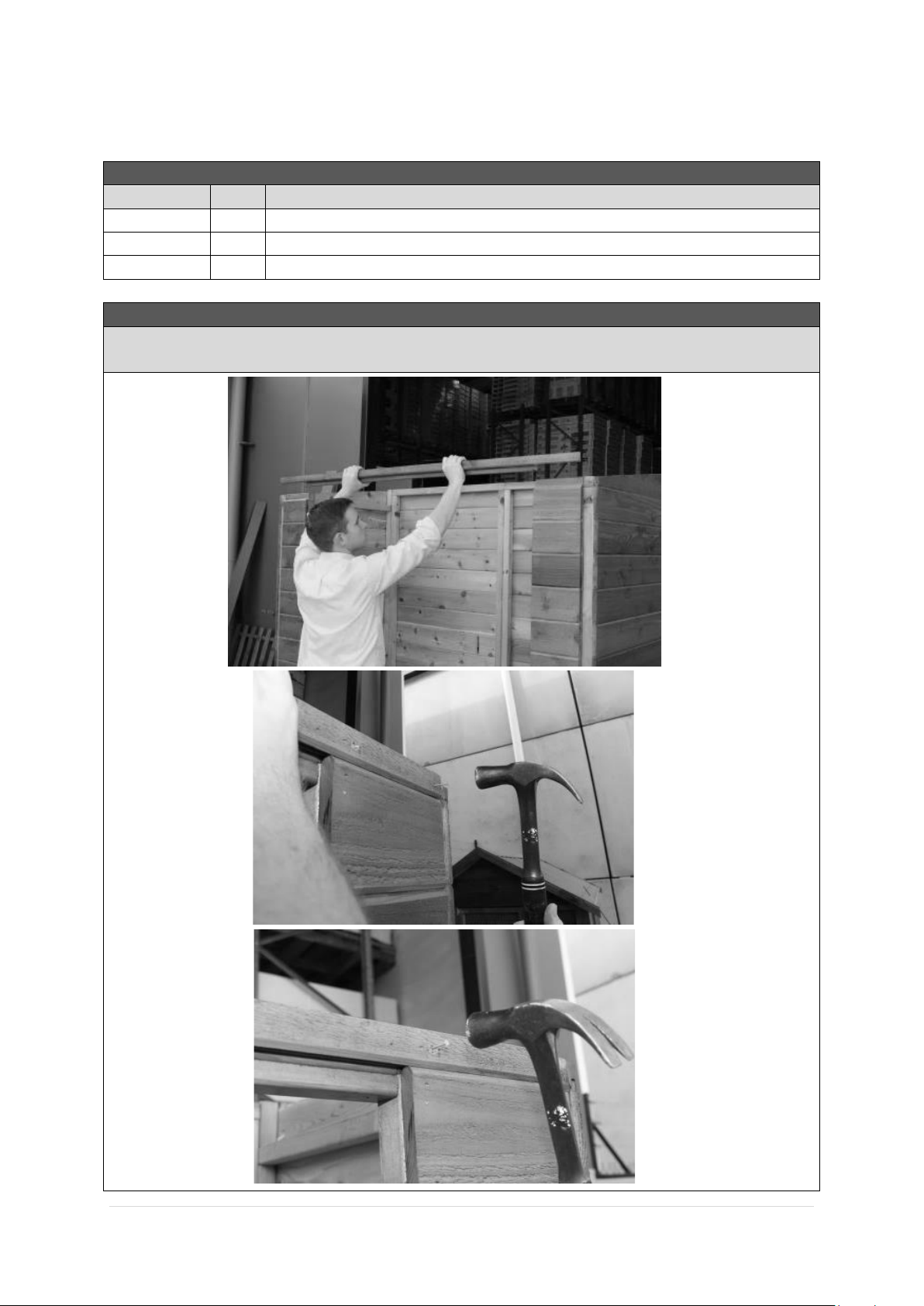

Slide roof into position with L at back. Roof must hang over back walls by 20mm and even
hangover on side walls. Screw through roofing rib into top plate of front and back wall
panels starting in four corners on 2nd rib in.
Note: Use a straight edge to keep screws in line.

17 | P a g e
STEP 4.0
DOOR HINGE ASSEMBLY
4.0 - ASSEMBLY PARTS –DOOR HINGE ASSEMBLY
PART CODE
QTY
DESCRIPTION
H
4
Hinge
HS
12
Hinge Screw
D
2
Door

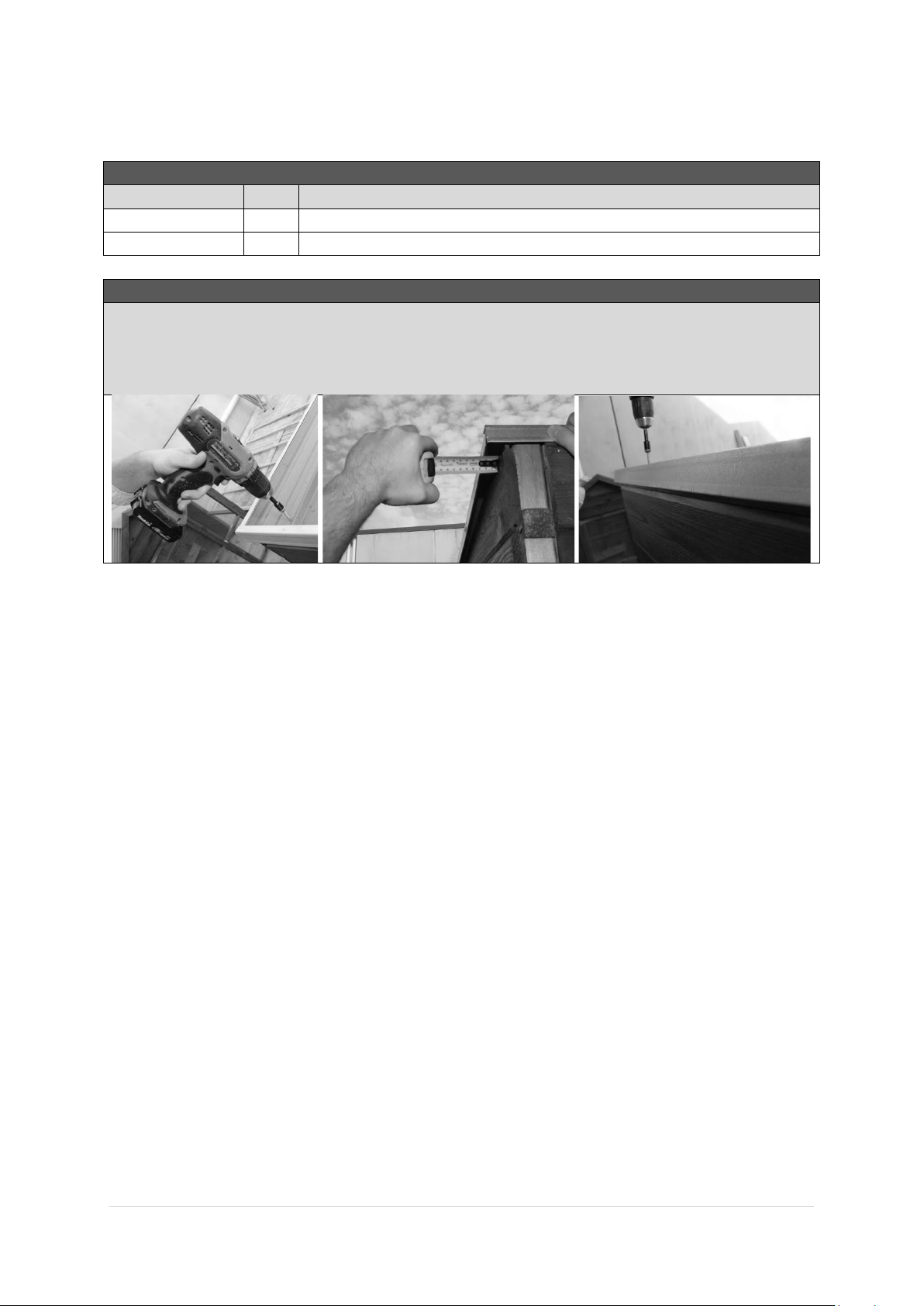

4.0 - ASSEMBLY –DOOR HINGE ASSEMBLY

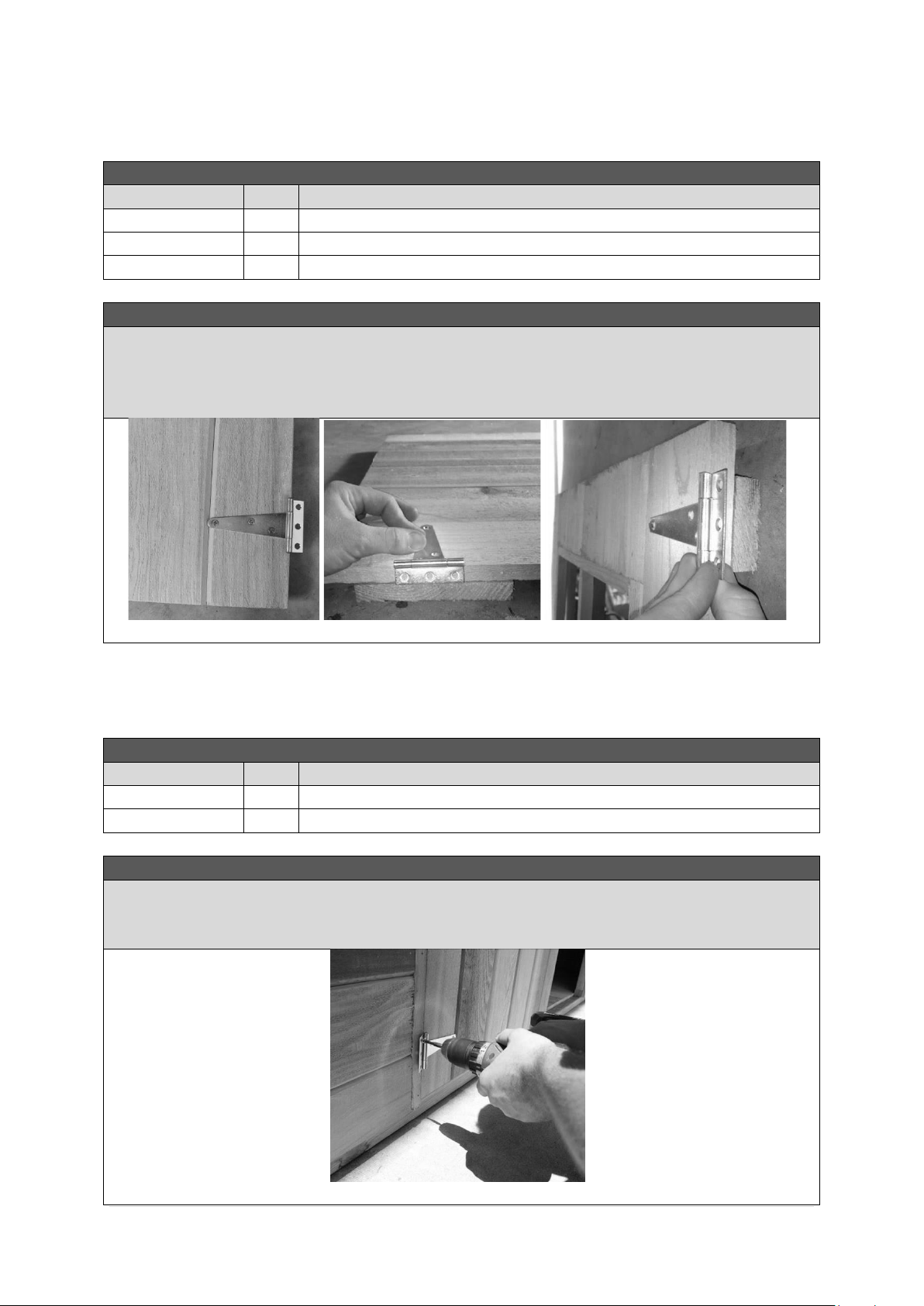

Place door on back and hold hinge (H) in position. Fasten hinges to door using 3 x hinge
screws (HS) per hinge.
Position: Hinges are to be placed at top and bottom of door. They are to be centralised over
bracing on back of door (as per second and third image below)
STEP 4.1
DOOR INSTALLATION
4.1 - ASSEMBLY PARTS –DOOR INSTALLATION
PART CODE
QTY
DESCRIPTION
D
2
Door
HS
12
Hinge screw
4.1 - ASSEMBLY –DOOR INSTALLATION
Hold door in position, 3mm down from top. Front of the door when closed will be flush with
front of VJ cladding.
Screw through hinge into front wall (as pictured).

18 | P a g e
STEP 4.2
PAD BOLT INSALLATION
4.2 - ASSEMBLY PARTS –PAD BOLT INSTALLATION
PART CODE
QTY
DESCRIPTION
PB
2
Pad bolt
4.2 - ASSEMBLY –PAD BOLT INSTALLATION

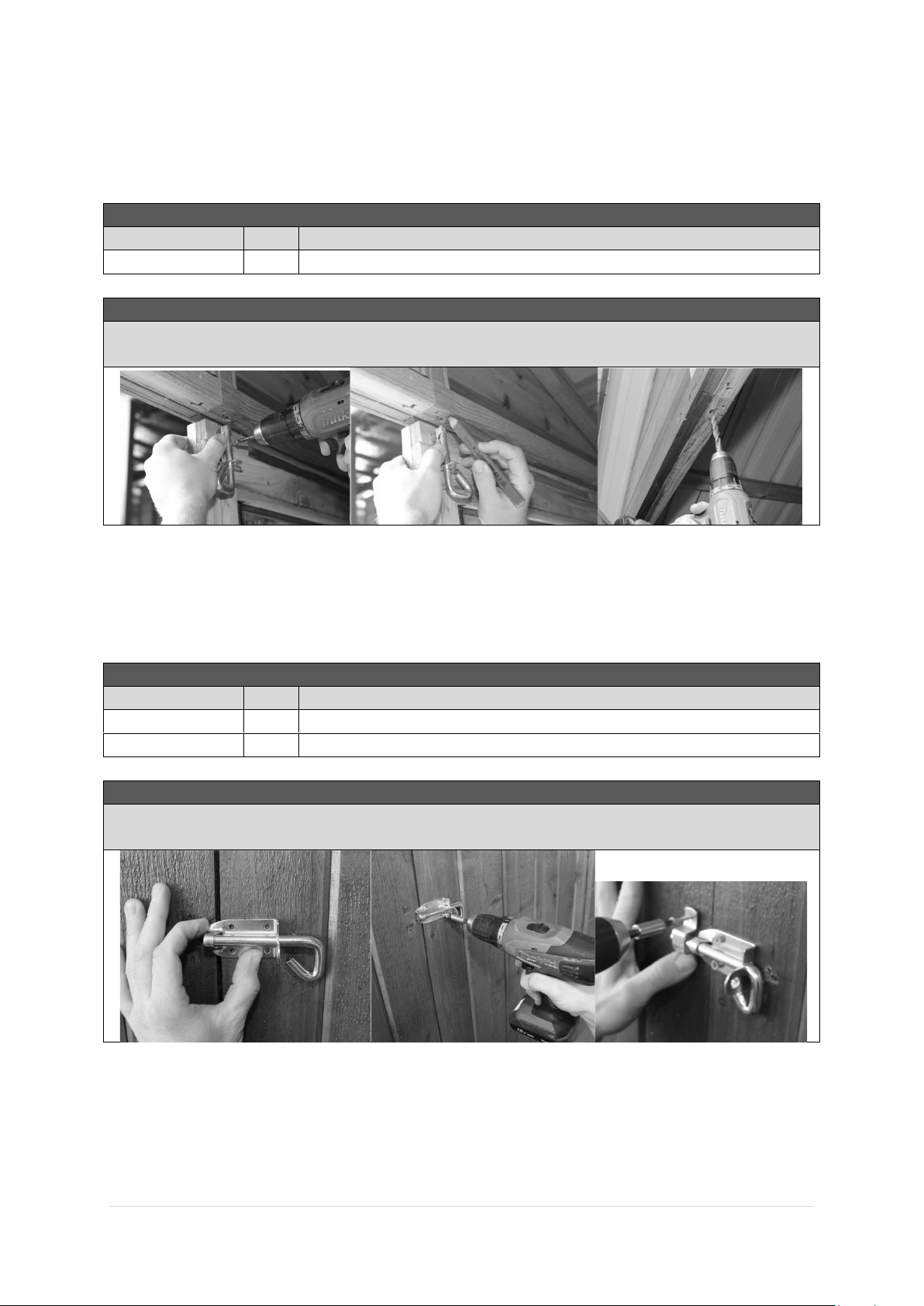

Hold PB in position and fasten to door. Mark centre of bolt (while closed) and drill 12mm
hole in marked position. Repeat for bottom pad bolt. Fasten Padbolts to door
STEP 4.3
PAD BOLT INSALLATION
4.3 - ASSEMBLY PARTS –PAD BOLT INSTALLATION
PART CODE
QTY
DESCRIPTION
PB
1
Pad bolt (fasten to door that is not pad bolted inside)
HS
6
Hinge Screw
4.3 - ASSEMBLY –PAD BOLT INSTALLATION
Holding doors in closed position. Hold PB centre of the door as shown in picture. Screw
through PB into door. Hold clasp in position and fasten to door.

19 | P a g e
STEP 5.0
CORNER POST ASSEMBLY
5.0 - ASSEMBLY PARTS –CORNER POST ASSEMBLY
PART CODE
QTY
DESCRIPTION
CP
2
1890mm Corner Post
CP
2
1805mm Corner Post
40N
24
40mm Nail
5.0 - ASSEMBLY –CORNER POST ASSEMBLY
Hold corner post (CP) in position, nail through CP into wall stud using 6x 40N evenly
spaced along CP. 2x 1805 CP at the front and 2x 1890 CP at the back.
Note: Before nailing CPs, we recommend running a bead of silicone down the lines seen
below.
Recommended: Run a bead of
silicone down these two lines
before nailing CPs
Nail 6x 40N evenly
spaced along CP
