STMicroelectronics STEVAL-ILL022V1 User manual

September 2010 Doc ID 14469 Rev 2 1/18
UM0512
User manual
STEVAL-ILL022V1 solar-LED streetlight controller with 25 W LED
lamp driver and 80 W battery charger based on the STM32F101Rx
Introduction
The solar-LED streetlight controller consists of one 80 W battery charger and one 25 W LED
driver. During the daytime, when there is sufficient sunlight, the charger converts the
electricity from the solar panel and charges the battery. At nighttime, the battery powers on
the LED lamp as streetlight.
If it is rainy or cloudy for several continuous days, the battery will gradually run out of power.
The controller then resorts to the AC mains supply to power on the LED until the battery has
had time to fully charge again.
Main features of the solar-LED streetlight controller
■Maximization of electricity conversion efficiency from solar panel by way of maximum
power point tracker (MPPT)
■Automatic day/night/weather detection
■Automatic battery/mains switch over
■Constant current control for LED lamp
■Battery charge control
■Optional LED lighting duration mode
■Easy system monitoring via debug LED indicators
■Full protection function for OTP, OCP and UVP

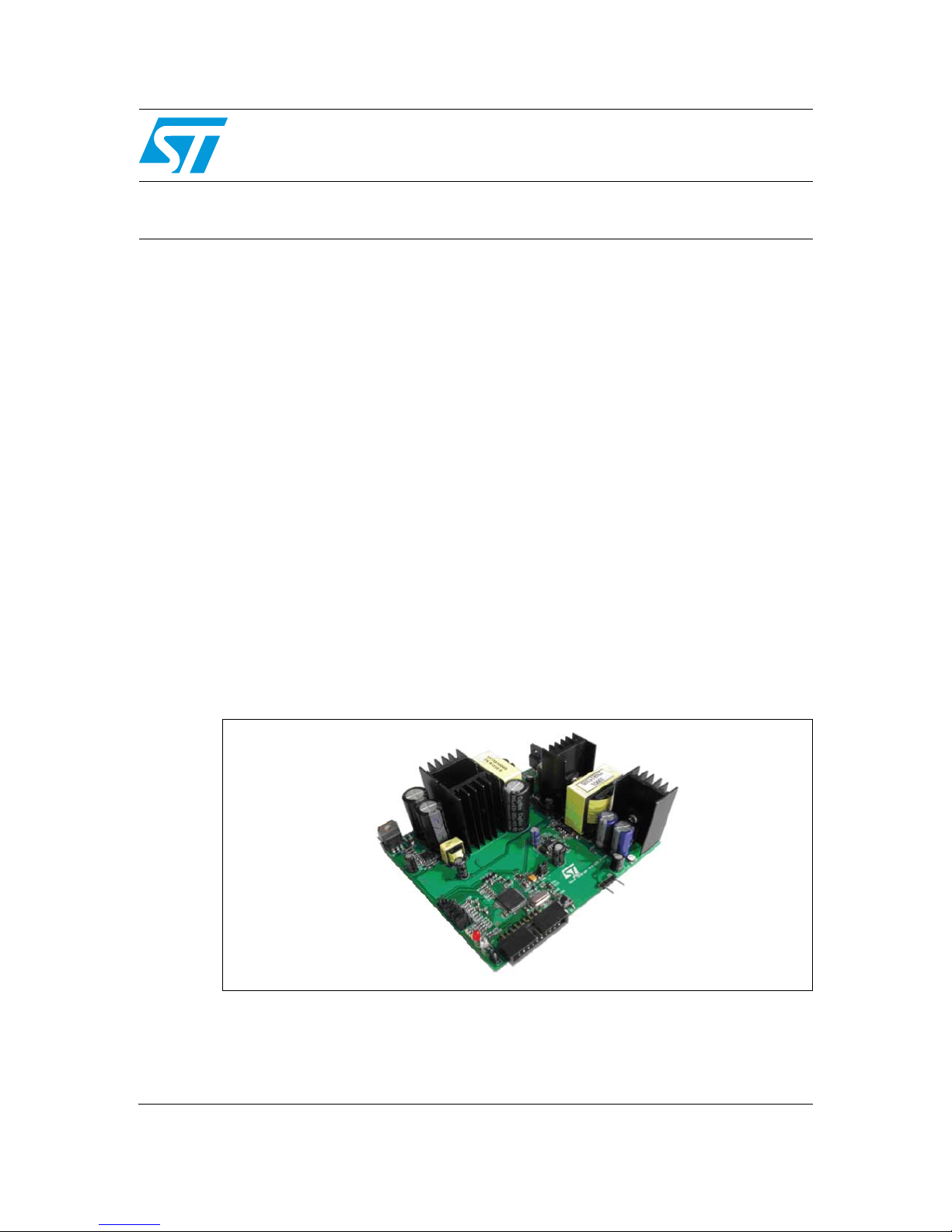

Figure 1. Snapshot of the solar-LED streetlight controller
!-V
www.st.com
Downloaded from Elcodis.com electronic components distributor

Contents UM0512
2/18 Doc ID 14469 Rev 2
Contents
1 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.3 Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.4 Board operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 General description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3 Hardware description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.1 Board description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.2 Controller characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4 Operating instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4.1 Hardware installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4.2 Recommended peripheral parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4.2.1 Solar panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4.2.2 Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4.2.3 LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4.2.4 Mains switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.3 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5 DIP selection and LED indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.1 DIP selection switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.2 LED indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6 Schematic and bill of materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
7 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Downloaded from Elcodis.com electronic components distributor

UM0512 List of tables
Doc ID 14469 Rev 2 3/18
List of tables
Table 1. Description of functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Table 2. Recommended electrical parameters for solar panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Table 3. Recommended electrical parameters for battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Table 4. Recommended electrical parameters for LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Table 5. Symptoms and corrective action. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Table 6. DIP switch for LED lamp light-on time selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Table 7. LED indicator and error message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Table 8. BOM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Table 9. Pin strip header. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Table 10. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Downloaded from Elcodis.com electronic components distributor

Safety instructions UM0512
4/18 Doc ID 14469 Rev 2
1 Safety instructions
Warning: The demonstration board must be used in a suitable
laboratory by qualified personnel only, familiar with the
installation, use and maintenance of electrical systems.
1.1 Intended use
The demonstration board is a component designed for demonstration purposes only, and
shall not be used for domestic or industrial installations. The technical data and information
concerning the power supply and working conditions must be taken from the documentation
provided with the delivery, and must be strictly observed.
1.2 Installation
The installation instructions of the demonstration board must be taken from the present
document and strictly observed. The components must be protected against excessive
strain. In particular, no components are to be bent, or isolating distances altered, during the
transportation, handling or use. The demonstration board contains electro-statically
sensitive components that are prone to damage through improper use. Electrical
components must not be mechanically damaged or destroyed (to avoid potential risks and
health injury).
1.3 Electrical connection
Applicable national accident prevention rules must be followed when working on the mains
power supply. The electrical installation must be completed in accordance with the
appropriate requirements (e.g. cross-sectional areas of conductors, fusing and PE
connections).
1.4 Board operation
A system architecture that supplies power to the demonstration board must be equipped
with additional control and protective devices in accordance with the applicable safety
requirements (e.g. compliance with technical equipment and accident prevention rules).
Downloaded from Elcodis.com electronic components distributor

UM0512 General description
Doc ID 14469 Rev 2 5/18
2 General description
The solar-LED streetlight controller is the key element of the system, also comprising the
solar panel, battery and LED streetlight (lamp). Figure 2 shows the structure of the system.

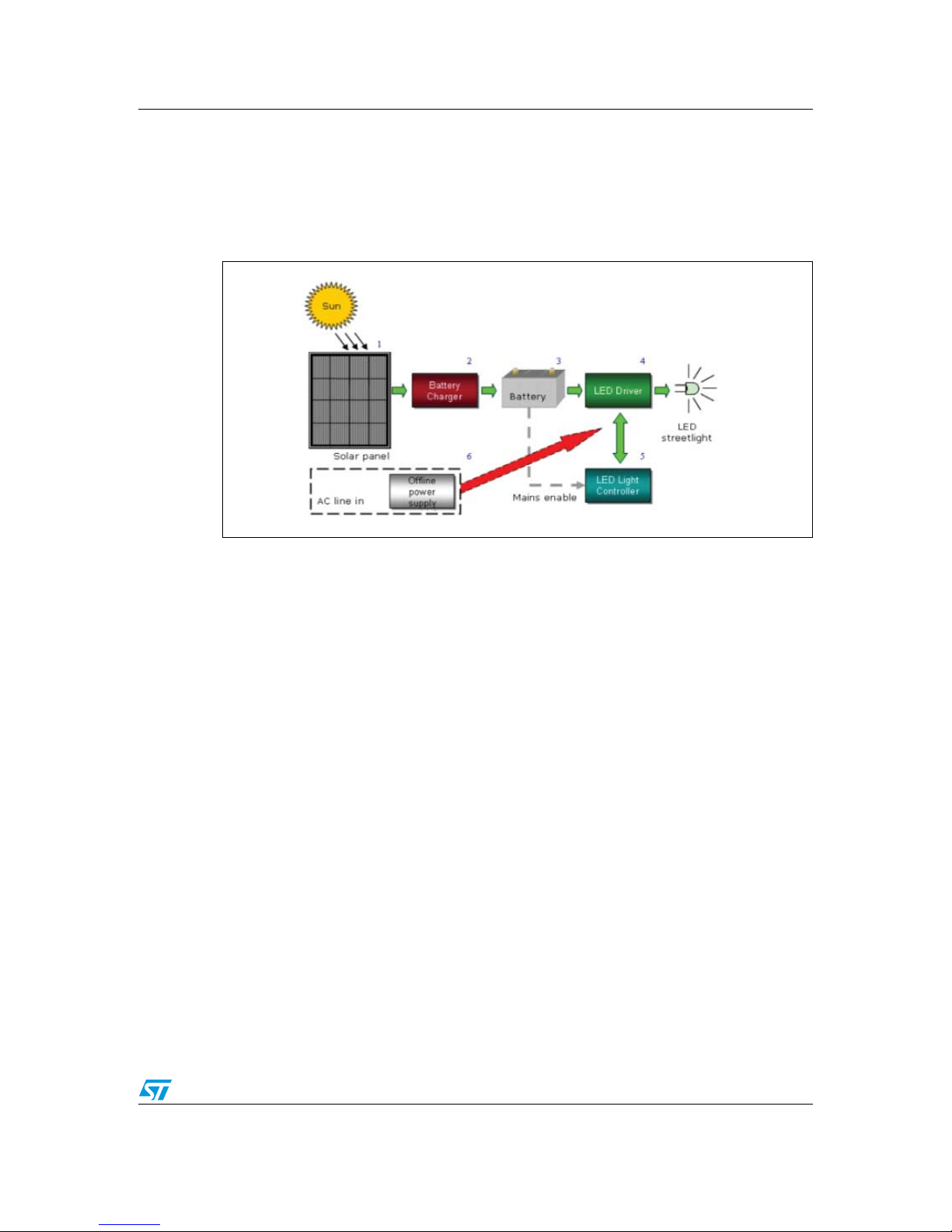

Figure 2. System block diagram
Each block’s function is described below.
●The sunlight delivers pockets of photons (solar energy) to the solar panel (also called
photovoltaic or PV module). The photons (energy) are absorbed by the PV module and
electrons are released.
●The electrons flow along the metal contact of the PV module and create electricity. The
battery charger then converts the electrical energy and charges the battery.
●The battery stores the electricity supplied by the battery charger. The controller
monitors the status of the battery.
●The LED lamp (LED streetlight) is activated by the LED driver. The LED light controller
monitors the system and controls the light-on and light-off in daytime and nighttime.
●When the battery goes low, the controller sends an enable signal to the mains switch
and the AC offline power supply is enabled.
The AC offline power supply (not covered in this document) acts as a backup source to
power the LED streetlight.
The solar-LED streetlight controller plays the key role in the system for electricity (solar
energy) storage control and LED lamp light-on/-off control.
!-V
Downloaded from Elcodis.com electronic components distributor

Hardware description UM0512
6/18 Doc ID 14469 Rev 2
3 Hardware description
3.1 Board description
Tabl e 1 describes the various functions of the controller’s demonstration board. Figure 3
provides the top view of the board.
Table 1. Description of functions
Category Index Designator Description
System
connectors
1 P1 Solar panel connector
2 P4 Battery temperature sensor connector (connected to NTC)
3 P5 LED lamp temperature sensor connector (connected to NTC)
7 P6 Mains enable output
10 P3 LED lamp connector
11 P2 Battery connector
HMI
4 SW1~SW4 DIP switch (1): mode selection
5 LED1~LED4 Debug indicators(2)
6
LED5, LED6
LED 5 (red) ON: battery charged
OFF: battery not charged
LED 6 (white) ON: battery full
OFF: battery not full
9 PB1 Reset
ICP interface 8 CN1 JTAG
1. Refer to Table 6 for dip selection mapping.
2. Refer to Table 7 for debug message mapping.
Downloaded from Elcodis.com electronic components distributor

UM0512 Hardware description
Doc ID 14469 Rev 2 7/18
Figure 3. Top view of demonstration board
3.2 Controller characteristics
The controller has the following characteristics.
●Battery operation voltage:
– 13.8 V max./11 V min. for 12 V system
●Charger:
– input voltage range ≤50 VDC
– output power ≤80 W
●LED lamp driver:
– output current 2.45 A
– output power ≤25 W
●Dimensions:
– 113 mm x 98 mm x 50 mm
!-V
Downloaded from Elcodis.com electronic components distributor

Operating instructions UM0512
8/18 Doc ID 14469 Rev 2
4 Operating instructions
4.1 Hardware installation
The following steps are to install the hardware.
1. Connect an NTC resistor (battery temperature sensor) to P4 (refer to Section 3.1).
2. Connect an NTC resistor (LED lamp temperature sensor) to P5 (refer to Section 3.1).
3. Connect the mains switch controller enable input to P6 (refer to Section 3.1).
4. Set SW1~SW4 according to DIP selection mapping table (Ta b l e 6 ).
5. Connect P3 (refer to Section 3.1) to LED lamp.
6. Connect P2 (refer to Section 3.1) to battery.
7. Connect P1 (refer to Section 3.1) to solar panel.
4.2 Recommended peripheral parameters
4.2.1 Solar panel
4.2.2 Battery
4.2.3 LED
Table 2. Recommended electrical parameters for solar panel
Parameters Symbol Typ Unit Condition
Maximum power Pmax 80 W
Irradiance: 1000 W/m2
Module temperature: 25°C
Maximum power voltage Vpm 17.8 V
Maximum power current Ipm 4.52 A
Open circuit voltage Voc 21.82 V
Short circuit current Isc 5.01 A
Module efficiency ηm13.42 %
Table 3. Recommended electrical parameters for battery
Parameters Typ Unit
Nominal capacity 50 Ah
Nominal voltage 12 V
Table 4. Recommended electrical parameters for LED
Parameters Typ Unit
Nominal power 25 W
Nominal current 2.45 A
Downloaded from Elcodis.com electronic components distributor

UM0512 Operating instructions
Doc ID 14469 Rev 2 9/18
4.2.4 Mains switch
When the battery is low, a high logic level output is generated by the MCU, which then
enables the mains power.
4.3 Troubleshooting
Table 5. Symptoms and corrective action
Symptom Corrective action
None of the LED(s) is
powered on. The
LED(s) include LED
lamp, debug LED and
battery status LED
– Set-up the system as per the hardware installation procedure described in Section 4.1.
– Check the mains enable signal on P6. A high logic level indicates that the battery
voltage is too low to power the LED light. This status will persist until the battery is fully
charged.
– Reset the system by pressing the reset button (PB1).
– Check the battery type and polarity. Only 12 V battery can be applied to this system. If
the battery has previously been connected reversely, replace the fuse (F1) with a new
one.
– Check that the LED lamp is available.
Battery status LED fails
to light during daytime
– Set-up the system as per the hardware installation procedure described in Section 4.1.
– Reset the system by pressing the reset button (PB1).
– Check that it is not too dark to enable the solar panel’s output.
– Check that the solar panel is available.
Dim LED lamp – Try to cool down the LED lamp.
– Check that the LED lamp’s lifecycle is still valid.
Downloaded from Elcodis.com electronic components distributor

DIP selection and LED indicator UM0512
10/18 Doc ID 14469 Rev 2
5 DIP selection and LED indicator
5.1 DIP selection switch
The DIP switches DIP1, DIP2, DIP3 and DIP4 are used to define the LED lamp’s on time
after the "switch on" signal has been received from the MCU. Ta b l e 6 describes the jumper
positions of each switch. The positions 'L' and 'H' are shown in Ta b l e 1 .
5.2 LED indicator
The demonstration board has four LED indicators, LED1, LED2, LED3 and LED4, which are
used to indicate any error messages during operation. Table 7 describes each type of error
message. The messages are there to assist technicians in their troubleshooting and
maintenance tasks.
Table 6. DIP switch for LED lamp light-on time selection
Status DIP 1 DIP 2 DIP 3 DIP 4 Mode description
1 L L L L Switch on LED for 5 minutes, then turn-off
2 H L L L Switch on LED for 2 hours during nighttime
3 L H L L Switch on LED for 4 hours during nighttime
4 H H L L Switch on LED for 6 hours during nighttime
5 L L H L Switch on LED for 8 hours during nighttime
6 H L H L Switch on LED for 10 hours during nighttime
7 L H H L Switch on LED for 12 hours during nighttime
8 H H H L Always switch on LED
9 - - - H Always switch on LED at nighttime
Table 7. LED indicator and error message
LED1LED2LED3LED4 Errormessage
No error
Battery charger overheat
Battery overheat
LED driver overheat
LED overheat
Incorrect solar panel polarity
Downloaded from Elcodis.com electronic components distributor

UM0512 DIP selection and LED indicator
Doc ID 14469 Rev 2 11/18
Battery over-voltage or under-voltage
Battery overcurrent
LED over-voltage
Abnormal LED driving current
Short-circuit in LED driver
Table 7. LED indicator and error message (continued)
LED1LED2LED3LED4 Errormessage
Downloaded from Elcodis.com electronic components distributor

Schematic and bill of materials UM0512
12/18 Doc ID 14469 Rev 2
6 Schematic and bill of materials
Figure 4. Board schematic
AM03453v1
C1
1uF
2
1
3
Q2
STP75NF75FP
R12 10
R13 10K
C19 220uF 1
3
8 10
T1
33uH
2
1
3
Q4
STP75NF75FP
R28 10 R29
10K
12
D8
STPS1H100A
12
D9
SMAJ24A-TR
C30
220uF
F1
10A 125V
R20 0.1
R46 0.1
R3 0.1
GND
GND
GND
GND
OUT 1
GND
2
GND
3
NC 4
NC
5
GND 6
GND 7
IN
8
U6
L78L12ABD-TR
C23
330nF
GND
12V
3.3V
Vba
Vba
4
51
2
3
OutGndVp
Vm Vcc
U9
TSC101AILT
R4 0.1
R35
24
C28
220pF
C26 220pF
1
2
3
D10
STPS20H100CFP
C22 22uF C34
22uF
2
1
3
Q1
STP40NF10
R6
10K
R5 10
D2 15V
R33
33m
R23
10
C17
560pF
R25 1.8K
12V
D12 15V
R52 120
C42
100nF
3
1
2
Q6
MMBT
4 8
6
5
7
U7B
LM193D
2 3
4
1
8
U7A LM193D
R40 10 C39
100nF
GND
GND
R48 10K
R45 10K
3
1
2
Q5
MMBT
R36 10K
R37
12K
3.3V
R38
4.7K
C29
100pF
LED_P rotection
LED_P rotection
R43 9.1K
R41
10K
R49 10K
R39 4.7K R51
330K
C32
100pF
Gate_Input
Gate_Input
V_LED
GND
C41
100nF R53
10
12V
I_LEDV_Battery
GND
12V
I_BatteryGND
C2 100nF
R7
10
12V I_Solar
C18
220uF
C20 1uF
C25
220pF
C35 1uF
C33 220uF
R47 0.1
R34 1K
C27
100pF
R30 33m
12V
R31
10 C24
100nF
D7 3.9V
D11 BAT46
C4
470uF
C5
470uF
C6
1uF
R1 0.1 R2 0.1
D1
BAT46
C77
100nF
C13
470uF
C10
220pF
C11 220pF
1
2
3
D4
STPS20H100CFP
C15 1uF
3
1
2
Q3
MMBT
R21 330
D3 15V
C14 100nF
4
51
2
3
Out Gnd Vp
VmVcc U3
TSC101AILT
R15 10
C12
100nF
R19 0.1 R18 0.1
R17 0.1
D13
BAT46
C36 100nF
R54
33m
V+_Solar
V-_Solar
R55 0.1
3
1
2
Q7 MMBT
3
1
2
Q8 BC807
R57 3.3K
R56
47K
3
1
2
Q9
BC807
PC13/TAMPER/RTC 2
PC14/OSC32_IN 3
PC15/OSC32_OUT 4
OSC_IN 5
OSC_OUT 6
NRST 7
PC0 8 PC1 9
PC2 10 PC3 11
PA0-WKUP
14
PA1
15
PA2
16
PA3
17
PA4
20
PA5
21
PA6
22
PA7
23
PC4 24 PC5 25
PB0
26
PB1
27
PB2/BOOT1
28
PB10
29
PB11
30
PB12
33
PB13
34
PB14
35
PB15
36
PC6 37
PC7 38 PC8 39 PC9 40
PA8
41
PA9
42
PA10
43
PA11
44
PA12
45
PA13/JTMS/SWDIO
46
PA14/JTCK/SWCLK
49
PA15/JTDI
50
PC10 51
PC11 52
PC12 53
PD2 54
PB3/JTDO
55
PB4/JNTRST
56
PB5
57
PB6
58
PB7
59
BOOT0 60
PB8
61
PB9
62
U10A STM32F101RxT6
VBAT
1
VSSA 12
VDDA
13
VSS_4 18
VDD_4
19
VSS_1 31
VDD_1
32
VSS_2 47
VDD_2
48
VSS_3 63
VDD_3
64
U10B STM32F101RxT6
GND
JP1
C46 100nF
L5
Bead
GND
L6
Bead
C47
10uF
C48
100nF
C49 100nF
C50
100nF
C51
100nF
C52
100nF
C53
1uF
VDD
VDD
3.3V
VDD
DIP1
DIP2
DIP3
DIP4
1
2 3 4
5
6 7
8
9 10
11 12 13
14 15
16
17 18
19
20
CN1 JTAG
VDD
TRST
TDI
TMS
TCK
RTCK
TDO RESET#
DBGRQ
DBGACK
PWM_Charger
PWM_Driver
VS-
IS VB IB
TDO TRST TDI TCK TMS
C55 20pF
C54 20pF
X1
8MHz
1
43
2
B1 RESET
VDDA
C56 100nF
RESET#
T_LED
T_Battery T_Driver
T_Charger
ILED
VLED
1 2
LD1 Blue
1 2
LD2 Blue
1 2
LD3 Blue
1 2
LD4 Blue
BAT_LED DEBUG_LED1
DEBUG_LED2 DEBUG_LED3 DEBUG_LED4
1 2
LD5 Red
VDD
R70 330 R71 330 R72 330 R73 330 R74 330
R69 10K
R67 10K
R66 1M
R68
1.8K
R59
10K
R60
10K
R61
10K
R62 10K
R65
10K
R63 10K
R64 10K
R75 150K
C57
100nF
D18
BAT46
D19
BAT46
D22
BAT46
D23
BAT46
R76 10K
R79
10
GND
VDDA
C59
330nF
GND
VDDA
V+_Solar I_Solar
VS+ PWM_Input
LED_Fault
R77 82K
C58 100nF
D20
BAT46
D21
BAT46
R78
10K
GND
VDDA
V-_Solar
R80 82K
C60 100nF
D24
BAT46
D25
BAT46
R81 10K
GND
VDDA
V_Battery
D26
BAT46
D27
BAT46
GND
VDDA
I_Battery
R83
39K
C62
100nF
D30
BAT46
D31
BAT46
R84 10K
GND
VDDA
V_LED
D33
BAT46
D34
BAT46
GND
VDDA
I_LED
D36
BAT46
D37
BAT46
C64 100pF
GND
VDDA
D29
BAT46
D28
BAT46
GND
VDDA
LED_Fault
D17
BAT46
GND
VDD
PWM_Charger
PWM_Input
D32
BAT46
D35
BAT46
VDD
PWM_Driver
C65 100nF
C66 100nF
C67
100nF
C68
100nF
VDDA
R44 3.3K VDDA
R89 3.3K VDDA
R93 3.3K
VDDA
R91 3.3K
Charger Thermal LED Driver Thermal Battery Thermal LED Thermal
1 2
P4
CON_B
1
2
P5
CON_L
DE
LI
D
EL
V
B
IBV
SI
-
S
V
+
SV
DEL_T
y
r
e
t
t
a
B
_T
r
ev
irD_
T
r
egrah
C_T
R9 0.1
R101 10 VDDA
VDDA
GND
12V
C8
1uF
R10 10
GND
R14
1.2K
R98 1K
R11 10K
C7 1uF
4
2
1
3 5
GND
POS
OUTNEG
VCC
U2 TS391ILT
GND
1
2
3
D14
STPS2045CFP
1
3
8
6
T2 DRIVER TRANS
1
2D16
STPS1L60A
C3 100nF
R24
10
12V
3
1
2
Q11
MMBT
3
1
2
Q13
BC807
R58 47K
12V
C73 1uF
R16 10
R27
1.2K
R99 1K
R95 10K
C38
1uF
4
2
13
5
GND
POS
OUTNEG
VCC U4
TS391ILT
GND
GND
GND
R26
10
12V
3
1
2
Q12 MMBT
3
1
2
Q14 BC807
R96 47K
12V
C74
1uF
R22
10
R50 1.2K
R100 1K
R97 10K
C45 1uF
4
2
13
5
GND
POS
OUTNEG
VCC U8
TS391ILT
GND
GND
GND
VDR
VDR
Vba 2 1
3
Q10
TYN616RG
GND
R8 0.2
C75
22uF
C76
22uF
C9 22uF
1 2
LD6 Green
R106 330
Mains_Enable
BAT_FULL
15
24
L2
39uH
2
3
1
A
84
U1A
LM258D
5
6
7
B
84
U1B
LM258D
R108
1K
R107
1K
GND R109
20K
R111
10K
R110
10K
R112
10K
C83
100pF
2 3
1
A
84
U5A
LM258D
5
6
7B
84
U5B
LM258D
R116 1K
R115 20K
GND
GND
R113 10K R114 10K
R117 10K
U7VCC
U7VCC
GND
12V
U1VCC
U1VCC
GND
U5VCC
U5VCC
GND
1
2
P6 CON_B
GND
R105 10K
R118
10K
R102
560
R42 560
1
2
P1
Solar Cells
1
2
P2 Battery
1 2
P3
LED
R104 10K
R103 1K
R82 10
R85 10
R86
10
R87 10 R90 10
R92
10
R94
10
C61
330nF
C63 330nF
C69 330nF
C70
330nF
C71
330nF
C72
330nF
R119
10K
R120
10K
R121
10K
5 6 7
1 2
3
8
4
Gnd VoGnd
Vin
NC
Inhibit Gnd Gnd
U11
L4931ABD33-TR
C80
22uF
C44
22uF
C79 100nF
C43
100nF
12
D5
SMAJ24A-TR
1
2
3
4 5
6 7 8
S1
SW-DIP4
R125
10K
R124 10K
R123 10K
R122 10K R32
10K NTC
R88 10K NTC
Downloaded from Elcodis.com electronic components distributor

UM0512 Schematic and bill of materials
Doc ID 14469 Rev 2 13/18
Table 8. BOM
Reference Value / generic part number Package /class
B1 One way 6x6 mm (SMD), 4.3 mm(H), tactile switch
C1, C6 1 µF (1210), 100 V, ceramic capacitor
C2, C3, C12, C14, C24, C36, C39,
C41, C42, C43, C46, C48, C49,
C50, C51, C52, C56, C57, C58,
C60, C62, C65, C66, C67, C68,
C77, C79
100 nF (0603), 50 V, ceramic capacitor
C4, C5, C13 470 µF 63 V, Al-cap electrolytic capacitor
C7, C8, C35, C38, C45, C53, C73,
C74 1 µF (0805), 25 V, ceramic capacitor
C9, C22, C34, C44, C75, C76, C80 22 µF 50 V, Al-cap electrolytic capacitor
C10, C11, C25, C26 220 pF (0805), 50 V, ceramic capacitor
C15, C20 1 µF (1206), 50 V, ceramic capacitor
C17 560 pF (0603), 50 V, ceramic capacitor
C18, C19, C30, C33 220 µF 50 V, Al-cap electrolytic capacitor
C23, C59, C61, C63, C69, C70,
C71, C72 330 nF (0805), 50 V, ceramic capacitor
C27, C29, C32, C64, C83 100 pF (0603), 50 V, ceramic capacitor
C28 220 pF (0603), 250 V, ceramic capacitor
C47 10 µF (3528-21), 16 V, tantalum
C54, C55 20 pF (0603), 50 V, ceramic capacitor
CN1 20-way Box header (Right angle mounting), JTAG connector
D1, D11, D13, D17, D18, D19, D20,
D21, D22, D23, D24, D25, D26,
D27, D28, D29, D30, D31, D32,
D33, D34, D35, D36, D37
BAT46JFILM (SOD323), small signal Schottky diode
D2, D3, D12 15 V (SOD 80C), Zener diode
D4, D10 STPS20H100CFP (TO-220FPAB), power Schottky rectifier
D5, D9 SMAJ24A-TR (SMA or DO-214AC), 24 V 400 W
TransilTM (TVS)
D7 3.9 V (SOD 80C), Zener diode
D8 STPS1H100A (SMA or DO-214AC), power Schottky
rectifier
D14 STPS2045CFP (TO-220FPAB), power Schottky rectifier
D16 STPS1L60A (SMA or DO-214AC), power Schottky
rectifier
F1 10 A (2.54 x 7.2 mm, axial lead), 251 series
fuse
JP1 (see Ta bl e 9 ) 0.64x0.64 mm, 2 way 2.54 mm pitch, pin strip header
Downloaded from Elcodis.com electronic components distributor

Schematic and bill of materials UM0512
14/18 Doc ID 14469 Rev 2
L2 (see Ta bl e 9 ) 39 µH Inductor
L5, L6 600 Ω@ 100 MHz (0603), Chip ferrite bead, 25%, 200mA
max.
LD1, LD2, LD3, LD4 80 mcd, yellow (0603), LED
LD5 45 mcd, red (3.0, diffused, radio lead), LED
LD6 10 mcd, green (3.0, undiffused, radio lead), LED
P1, P2, P3 Terminal block 2 Terminal, pitch 7.5mm
P4, P5, P6 Header, 2 pin HDR1x2, pitch 2.54mm
Q1 STP40NF10 (TO-220), N-channel MOSFET
Q2, Q4 STP75NF75FP (TO-220FP), N-channel MOSFET
Q3, Q5, Q6, Q7, Q11, Q12 MMBTA42 (SOT-23), NPN bipolar transistor
Q8, Q9, Q13, Q14 BC807 (SOT-23), PNP bipolar transistor
Q10 TYN616RG (TO-220AB), Triac
R1, R2, R3, R4, R9, R17, R18,
R19, R20, R46, R47, R55 0.1 Ω(1206), 1%, resistor
R5, R7, R10, R12, R15, R16, R22,
R23, R24, R26, R28, R31, R40,
R53, R101
10 Ω(0805), 1%, resistor
R6, R13, R29 10 kΩ(0805), 5%, resistor
R8 0.2 Ω(Axial lead), cement, 2W, resistor
R11, R45, R48, R49, R59, R60,
R61, R62, R63, R64, R65, R67,
R69, R95, R97, R104, R105, R110,
R111, R112, R113, R114, R117,
R118, R119, R120, R121, R122,
R123, R124, R125
10 kΩ(0603), 5%, resistor
R14, R27, R50 1.2 kΩ(0805), 5%, resistor
R21, R70, R71, R72, R73, R74,
R106 330 Ω(0603), 5%, resistor
R25 1.8 kΩ(0603), 5%, resistor
R30, R33, R54 33 mΩ(1210), 1%, resistor
R32, R88 NTC, 10 kΩ(0805), NTC resistor
R34, R107, R108, R116 1 kΩ(0603), 1%, resistor
R35 24 Ω(1206), 5%, resistor
R36, R41 10 kΩ(0603), 1%, resistor
R37 12 kΩ(0603), 1%, resistor
R38, R39 4.7 kΩ(0603), 5%, resistor
R102 560 Ω(1206), 5%, resistor
Table 8. BOM (continued)
Reference Value / generic part number Package /class
Downloaded from Elcodis.com electronic components distributor

UM0512 Schematic and bill of materials
Doc ID 14469 Rev 2 15/18
Note: STM32F101R4, STM32F101R6, STM32F101R8, STM32F101RB, STM32F101RC
STM32F101RD and STM32F101RE are all equivalent for the purpose.
\
R43 9.1 kΩ(0603), 1%, resistor
R44, R89, R91, R93 3.3 kΩ(0603), 1%, resistor
R51 330 kΩ(0603), 5%, resistor
R52 120 Ω(0603), 5%, resistor
R56, R58, R96 47 kΩ(0603), 5%, resistor
R57 3.3 kΩ(0603), 5%, resistor
R66 1 MΩ(0603), 1%, resistor
R68 1.8 kΩ(0603), 1%, resistor
R75 150 kΩ(0805), 1%, resistor
R76, R78, R81, R84 10 kΩ(0805), 1%, resistor
R77, R80 82 kΩ(0805), 1%, resistor
R79, R82, R85, R86, R87, R90,
R92, R94 10 Ω(0603), 5%, resistor
R83 39 kΩ(0805), 1%, resistor
R98, R99, R100, R103 1 kΩ(0603), 5%, resistor
R109, R115 20 kΩ(0603), 1%, resistor
S1 DIP switch 4 Position DIP Switch
T1 (see Tab le 9 ) 33 µH EER25.5, transformer
T2 (see Tab le 9 ) 1 mH Driver transformer
U1, U5 LM258D (SO8 narrow), dual operational
amplifiers
U2, U4, U8 TS391ILT (SO), single voltage comparator
U3, U9 TSC101AILT (SO), current sense IC
U6 L78L12ABD-TR (SO8 narrow), positive voltage regulator
U7 LM193D (SO8), dual voltage comparator
U10 STM32F101RXT6 (LQFP64), 32-bit microprocessor
U11 L4931ABD33-TR (SO8 narrow), linear regulator
X1 8 MHz (3 x 8), crystal oscillator
Reference Value / generic part number Package /class
Table 8. BOM (continued)
Reference Value / generic part number Package /class
Downloaded from Elcodis.com electronic components distributor

Schematic and bill of materials UM0512
16/18 Doc ID 14469 Rev 2

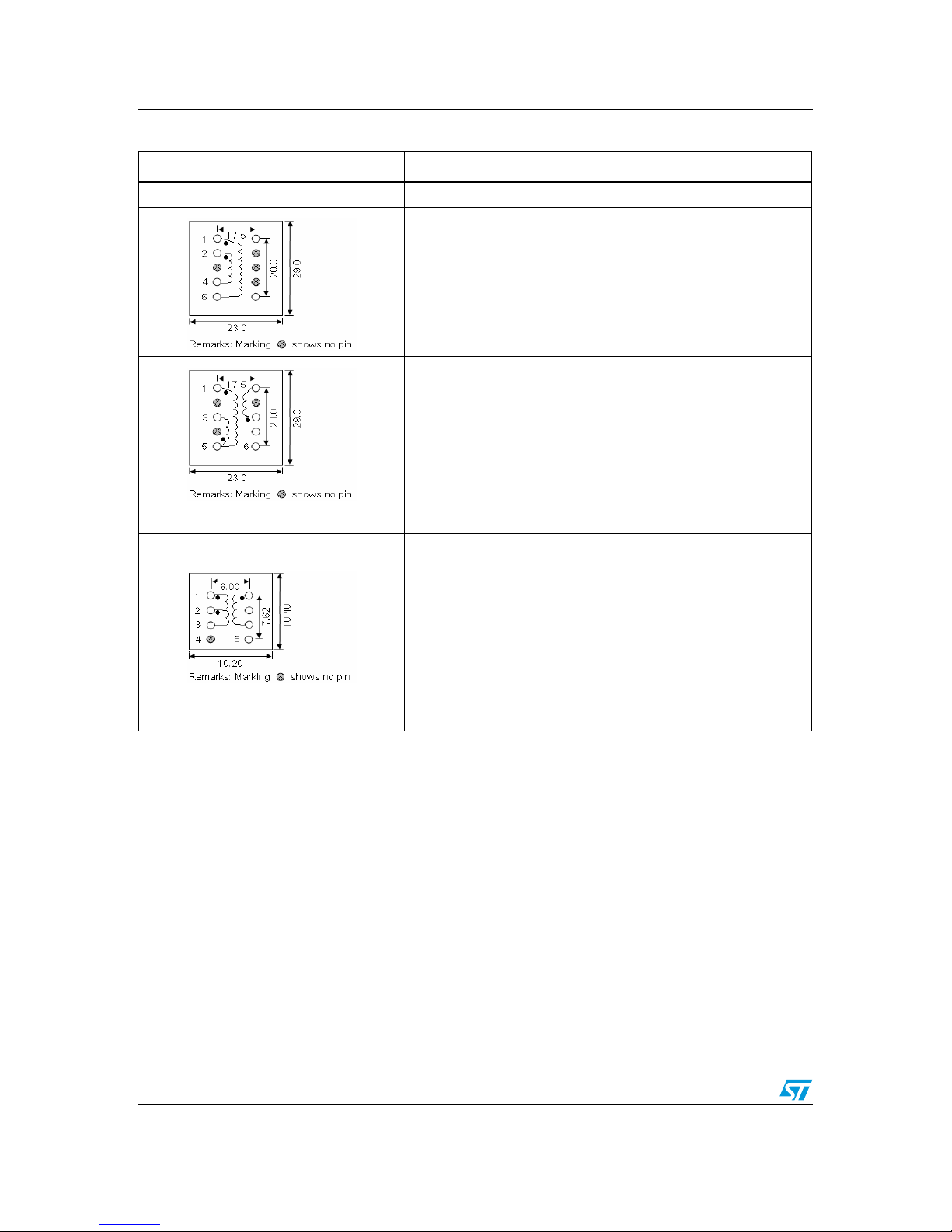

Table 9. Pin strip header
Figure Description
Accessory for JP1 M20 series jumper socket
L2
– 1: 39 µH +/- 4% (W1//W2 and twisted)
– 2: Winding 1: pin 1 to pin 5 (18 turns CCW)
– 3: Winding 2: pin 2 to pin 4 (18 turns CCW)
– 4: Wire gage: AWG31*20
– 5: Core: EER28-Z-PC40
– 6: Bobbin: BEER28-1110CPFR
T1
– 1: 33 µH +/- 4% (W1+W3 at 50 kHz, 1 Vrms)
– 2: Leakage < 0.1 µH (W2 short-circuit)
– 2: Winding 1: pin 1 to pin 5 (5 turns CCW)
– 3: Winding 2: pin 8 to pin 10 (10 turns CCW)
– 4: Winding 3: pin 5 to pin 3 (5 turns CCW)
– 4: Wire gage: AWG31*20
– 5: Core: EER28-Z-PC40
– 6: Bobbin: BEER28-1110CPFR
T2
– 1: 1 mH (W1+W3 at 50 kHz, 1 Vrms)
– 2: Leakage < 10 µH (W2 short-circuit)
– 3: No air-gap is required
– 2: Winding 1: pin 1 to pin 2 (17 turns CCW)
– 3: Winding 2: pin 8 to pin 6 (34 turns CCW)
– 4: Winding 3: pin 2 to pin 3 (17 turns CCW)
– 4: Wire gage: AWG31
– 5: Core: EE10/11-Z-PC40
– 6: Bobbin: BE10-118CPSFR
Downloaded from Elcodis.com electronic components distributor

UM0512 Revision history
Doc ID 14469 Rev 2 17/18
7 Revision history
Table 10. Document revision history
Date Revision Changes
08-Jan-2010 1 Initial release
28-Sep-2010 2
– Changed: connectors
1: P1: solar panel connector
2: P2: battery connector
3: P3: LED lamp connector
4: SW1~SW4: mode selection DIP switch
– Battery use only 12VDC type
–Figure 1 changed due to the connectors outline changed
– Re-new the connectors' location in Figure 3 which is based on the
description in Ta b l e 1
–Figure 4, the schematic is updated
–Ta b le 8 , the BOM is updated
Downloaded from Elcodis.com electronic components distributor

UM0512
18/18 Doc ID 14469 Rev 2
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2010 STMicroelectronics - All rights reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
Downloaded from Elcodis.com electronic components distributor
