Owner’s
MANUAL
FOR STOTT PILATES®REFORMERS
Please review this important assembly, safety and warranty information about
your new STOTT PILATES®Reformer and keep it handy for future reference.
◗PROFESSIONAL REFORMER™
◗REHAB REFORMER™
◗RACK & ROLL REFORMER
◗SPX MAX™REFORMER*
◗SPX MAX PLUS™REFORMER*
◗V2 MAX PLUS™REFORMER*
◗V2 MAX PLUS™REHAB REFORMER*
◗REHAB REFORMER WITH VERTICAL FRAME

Rehab Reformer
with Vertical Frame
includes Retractable Rope System
with Traditional Vertical Frame

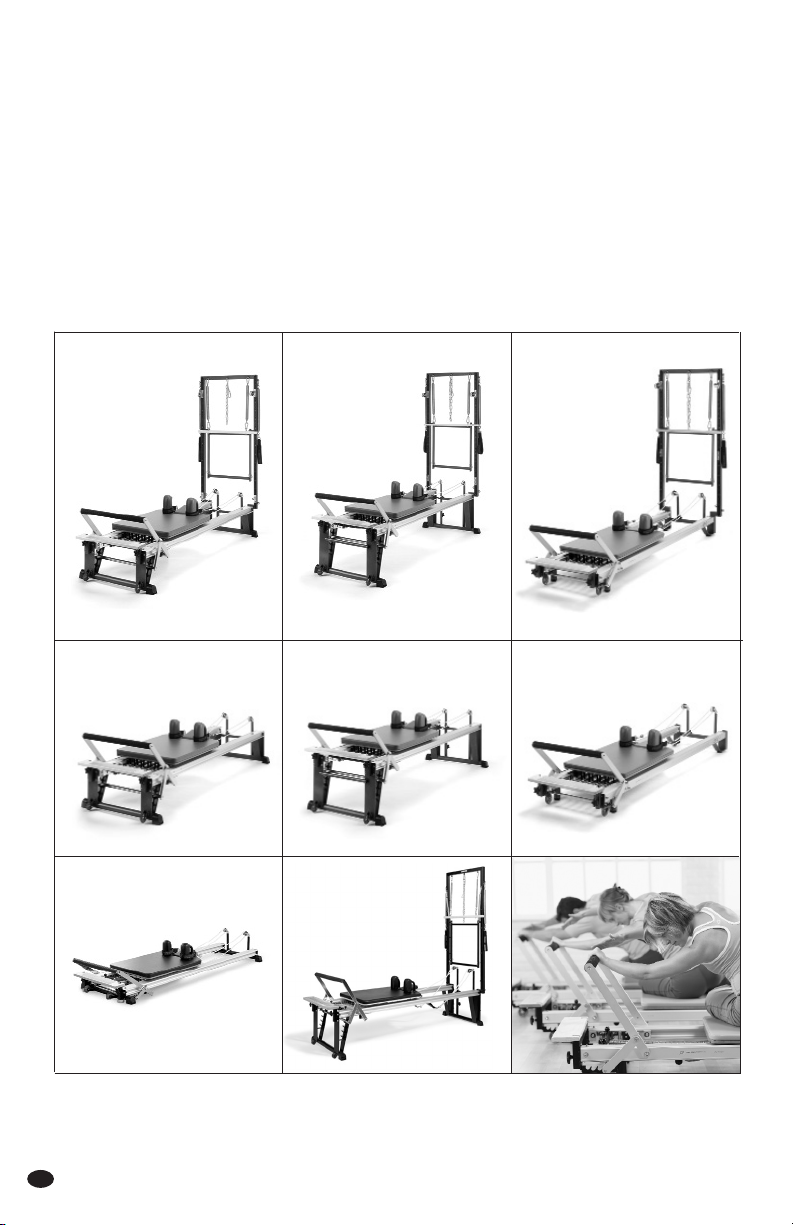

The STOTT PILATES®Family of Reformers
V2 Max Plus™
Reformer*
Professional
Reformer™
includes
Retractable Rope System and
Vertical Frame with Traveling Pulley System
V2 Max Plus™
Rehab Reformer*
includes
Retractable Rope System and
Vertical Frame with Traveling Pulley System
SPX Max Plus™
Reformer*
includes
Retractable Rope System and
Vertical Frame with Traveling Pulley System
includes
Retractable Rope System
Rehab
Reformer™
includes
Retractable Rope System
SPX Max™
Reformer*
includes
Retractable Rope System
STOTT PILATES Reformers are favored among Pilates professionals for their
superior adaptability, versatility, craftsmanship and smooth carriage ride.
All of our units feature easy adjustments to accommodate different sizes
and abilities. The unique spring resistance of this machine helps generate
smooth muscular contractions that develop strength without bulk.
2
Rack & Roll Reformer
includes
Traditional Rope System

3
User’s Guidelines
The STOTT PILATES Reformer is a sophisticated
piece of equipment that, when used properly,
can facilitate many Pilates exercises safely and
effectively. However, care and caution must be
taken as there are some inherent dangers when
using any exercise equipment – especially
when spring resistance is involved.
For inexperienced or first-time users,
the STOTT PILATES Reformer should only
be used under the supervision of
a trained professional.
This manual includes general guidelines for setup
and usage. To get the most out of your Reformer,
STOTT PILATES offers a full range of instructional
DVDs and manuals. Personalized training is offered
through our Licensed and Corporate Training Centers.
For more information, visit merrithew.com.
For questions or technical assistance, please email
[e-mail].
IMPORTANT!
This manual contains important assembly, safety
and warranty information. Read the manual carefully
before using your new STOTT PILATES Reformer
and keep the manual handy for future reference.
UNSAFE OR IMPROPER USE OF THIS EQUIPMENT
BY FAILING TO READ AND COMPLY WITH ALL
REQUIREMENTS AND WARNINGS COULD RESULT
IN SERIOUS INJURY.
It is impossible to predict every situation and
condition which can occur while using your Reformer.
Merrithew Health & Fitness™makes no representation
about the safe use of the Reformer under all conditions.
There are risks associated with the use of any exercise
equipment which cannot be predicted or avoided,
and you assume the responsibility for that risk.
Merrithew Health & Fitness recommends cautious
assembly and usage and wishes you many hours of
safe and effective exercise.
Safety Check
Proper maintenance and timely replacement of your
equipment or component parts is your responsibility.
Conduct a regular weekly inspection of the following:
◗Replace springs every 24 months, or as needed
within that period if deformation occurs.
◗Check wear on single, locking and double-ended
spring clips and replace every 12 months.
◗Ensure footbar is securely fastened.
◗Ensure swing arm support is securely fastened.
◗Ensure carriage stopper is fully inserted in one
of the six positions at all times.
◗Ensure all nylon locknuts and spring bolts are
securely fastened.
◗Check wear on all star knob threads, replace as needed.
◗Check wear on ropes, straps and spring clips,
replace as needed with 12 month period.
◗Ensure shoulder rests are inserted completely.
◗Check that nylon locknuts, spring bolts and
spring balls are securely fastened.
◗Inspect the retractable rope system to confirm the
ropes are in position and the threaded bolts of the
cleats and pulley blocks are secure (if applicable).
◗Check that all hex bolts on the Reformer’s two
vertical frame receptacles are tight and that the
vertical frame is securely anchored (if applicable).
Refer to the assembly section in this manual for
initial assembly instructions and part labeling.
REPLACE ALL SPRINGS EVERY 24 MONTHS AND SPRING
CLIPS EVERY 12 MONTHS OR AS NEEDED WITHIN THAT
PERIOD. FAILURE TO PERFORM RECOMMENDED SAFETY
CHECKS, OR USING THE MACHINE WITH IMPROPERLY
ADJUSTED, BROKEN OR WORN PARTS COULD RESULT
IN SERIOUS BODILY INJURY.
Care & Cleaning
Wipe vinyl surfaces with a mixture of water and tea
tree oil, a natural disinfectant. Add 1tsp of tea tree oil
to a 1L or 1qt spray bottle of water. A mixture of mild
soap and water may be used to remove more persistent
dirt. Ensure cleaner does not leave an oily residue,
or make surfaces slippery.
Clean c-channels and rollers weekly with a damp cloth.
Avoid spraying liquid directly onto surfaces.
CAUTION: Never use oil lubricants as they
may damage rollers.

4

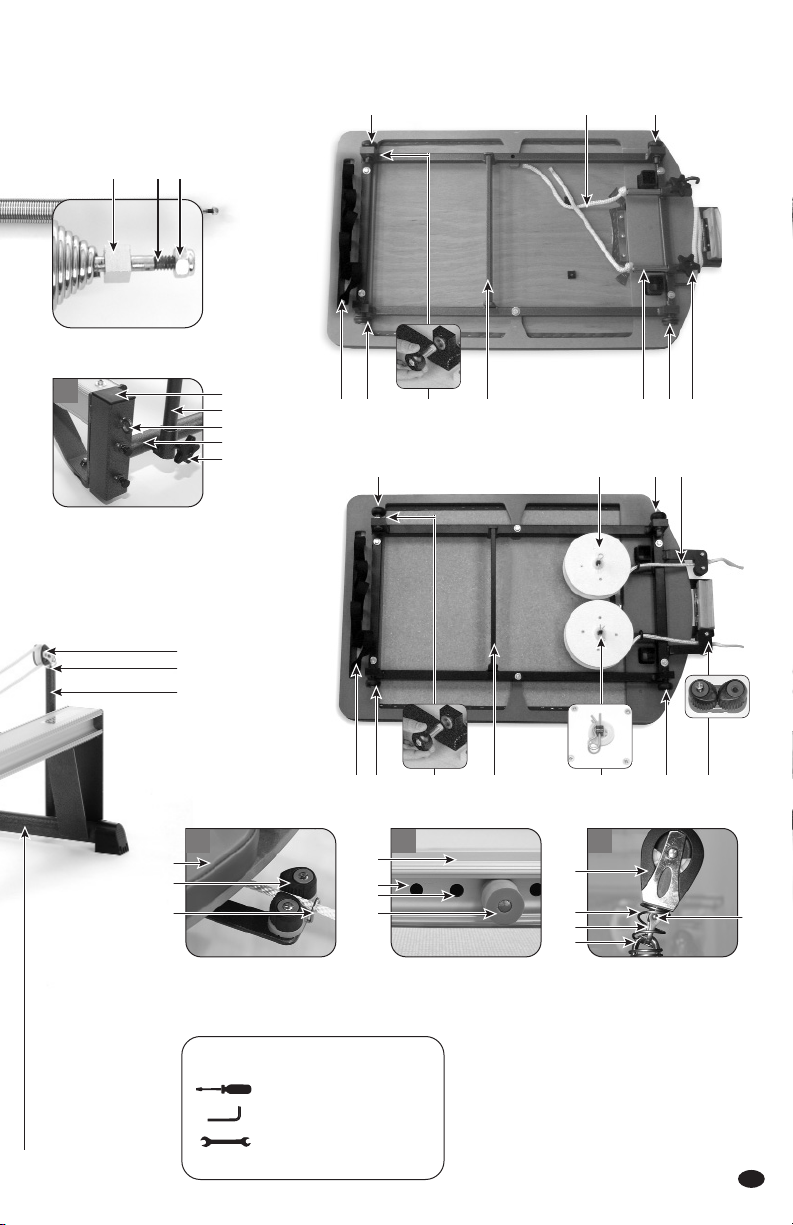

Part Identification for STOTT PILATES®Reformers
4
26 Rope Retaining Hook [fig. G]
RETRACTABLE ROPE SYSTEM
27 Socket Head Cap Screw
28 C-channel [fig. C]
29 Carriage Stopper Position [fig. H]
30 Carriage Stopper [fig. C & H]
31 Small Swing Arm Bar
32 Large Swing Arm Bar
33 Aluminum Rail [fig. H]
34 Soft Reformer Loop
35 Carriage [fig. E, F & G]
36 Headrest
37 Padded Shoulder Rest
38 Double-Ended Swivel Spring Clip
RETRACTABLE ROPE SYSTEM
39 Serial Number [fig. C]
40 Pulleybar Receptacle
41 Rope [fig. E & F]
42 Horizontal Metal Bar
PRO &REHAB
43 Horizontal Metal Frame [fig. D]
44 Pulley [fig. I]
45 Pulley Spring [fig. I]
46 Eyehook [fig. D & I]
47 Pulleybar [fig. D]
48 Receptacle Cap
49 3/8” Star Knob [fig. D & E]
1234 5 67 10811 17 27 31 32 3433
1 Wooden Standing Platform
2 Plastic Foot
PRO & REHAB
3 1/2” Star Knob
4 Easy-Roll Wheel
5 Accessory Board Receptacle
6 Footbar Adjustment Cradle
7 Swing Arm Support
8 Gearbar Slot [fig. B]
9 Gearbar [fig. B]
10 Footbar
11 Spring [fig. A & B]
12 Spring Ball
13 Spring Coil [fig. A]
14 Fixed Cube Nut [fig. A]
15 Spring Bolt [fig. A]
16 Nylon Locknut [fig. A]
17 Spring Holding Loop [fig. B, E & F]
18 Floating Roller [fig. E & F]
19 Fixed Roller [fig. E & F]
20 Bronze Bushing [fig. E & F]
21 Spring Anchoring Bar [fig. E & F]
22 Chrome Tube [fig. E]
TRADITIONAL ROPE SYSTEM
23 Rope Housing Reel [fig. F] RETRACTABLE ROPE SYSTEM
24 Cotter Pin [fig. F] RETRACTABLE ROPE SYSTEM
25 Self-Locking Cleat [fig. F & G]
RETRACTABLE ROPE SYSTEM
35 36 37 38 40 41 42
FIG A – SPRING
12 13
11
12
8.
17 B
9.
FRONT OF
REFORMER
GEARBAR & SPRINGS
12 13
BALL END OF SPRING
C
SERIAL NUMBER STICKER
39
39.
28.

5
REQUIRED TOOLS:
ONE FLAT-HEAD SCREWDRIVER
ONE 1/4" (6MM) HEX KEY (SUPPLIED)
ONE OPEN-END WRENCH (SUPPLIED):
1/2" (13MM) X7/16" (11MM)
17 21
FIG F – RETRACTABLE ROPE SYSTEM CARRIAGE [35]
19
18
H
44
45
47
I
23
20 24
44.
45.
17 21
FIG E – TRADITIONAL ROPE SYSTEM CARRIAGE [35]
19
18 41
20
G
25.
26.
46.
PULLEY BLOCK
BACK OF
REFORMER
CARRIAGE STOPPING SYSTEMCLEAT SYSTEM
35.
29.
30.
28.
33.
D
VERTICAL FRAME
RECEPTACLE & STAR KNOB
47
48
49
43
43
NOTE: Parts may not be exactly
as shown. Photo shown is a
Professional Reformer. Part IDs are
the same for other Reformer models
(SPX Max, Rehab and V2 Max Plus).
14 15 16
BOLT END OF SPRING
46
58.
2519
18
19
18
4922
41
57

6

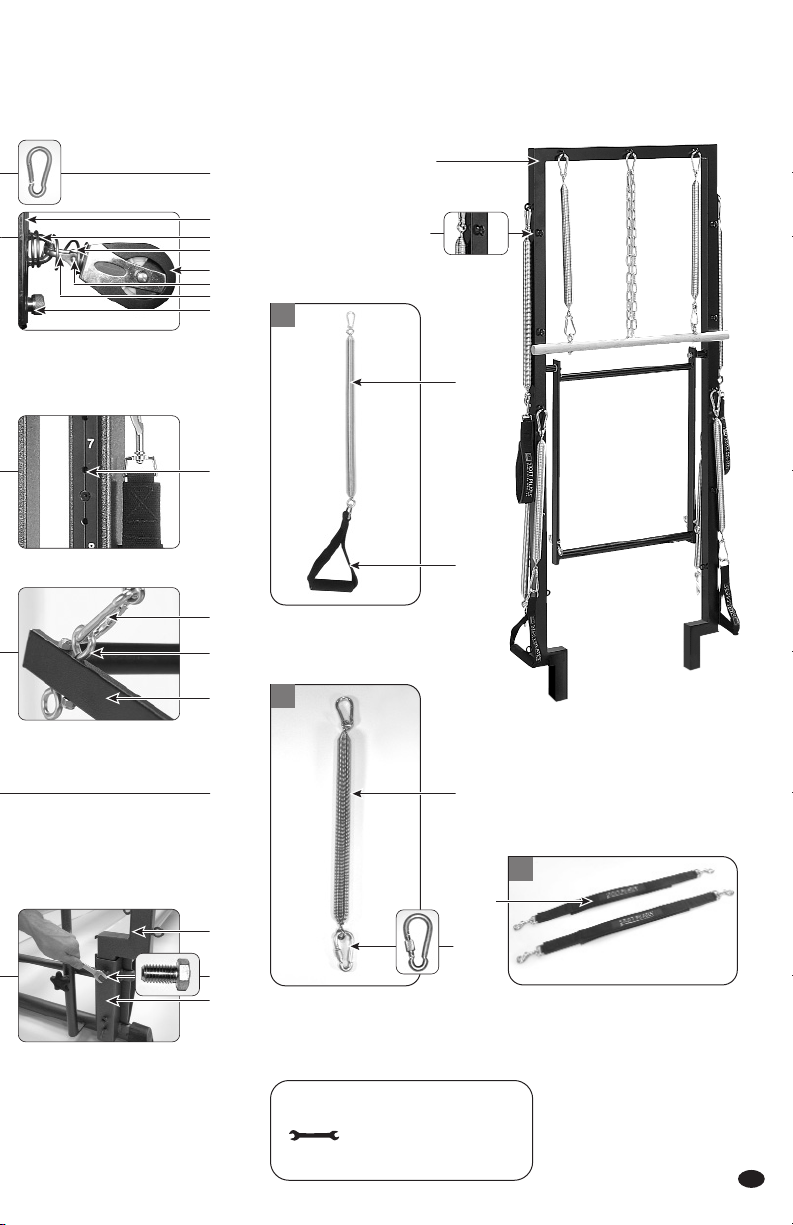

Part Identification for STOTT PILATES®Vertical
50 Vertical Frame [fig. J]
51 Spring Clip
52 Vertical Sliding Track
PLUS-STYLE
53 Traveling Pulley PLUS-STYLE
54 Traveling Pulley Eyehook
55 Pulley Spring
56 Pulley
57 Threaded Bolt
58 Swivel Harness
59 Spring-Loaded Stopper
PLUS-STYLE
60 Stopper Position PLUS-STYLE
61 Leg Spring, white
62 Safety Chain
63 Roll-Down Spring, black
64 Roll-Down Bar
65 Padded Long Spine Strap
66 Push-Thru Bar
67 Traveling Spring Hook
68 Fixed Eyehook [fig. J]
69 Light Arm Spring, yellow [fig. K]
70 Foam-Grip Handle [fig. K]
71 Hex Bolt
72 Vertical Frame Receptacle
73 Push-Thru Spring, blue [fig.L]
74 Extension Strap [fig. M]
75 Locking Spring Clip [fig. L]
NOTE: Parts may not be exactly
as shown. Photo shown is a
Professional Reformer. Part IDs are
the same for other Reformer models
(SPX Max, Rehab and V2 Max Plus).
52.
50.
61.
63.
62.
64.
67.
65.
66.
53.
PLUS-STYLE VERTICAL FRAME

56
57
54
55
58
59
7
51
FIG J – TRADITIONAL VERTICAL FRAME
71
72
60
VERTICAL FRAME RECEPTACLE
51
68
SPRING CLIP ON PUSH-THRU BAR
L
75
PUSH-THRU SPRING WITH
LOCKING SPRING CLIP
M
74.
EXTENSION STRAPS
K
70
LIGHT ARM SPRING WITH
FOAM-GRIP HANDLE
68.
69
50
50
66
68
REQUIRED TOOLS:
ONE OPEN-END WRENCH (SUPPLIED):
1/2" (13MM) X9/16" (14MM)
Frames
TRAVELING PULLEY ON
MAX PLUS FRAME
52
73

8

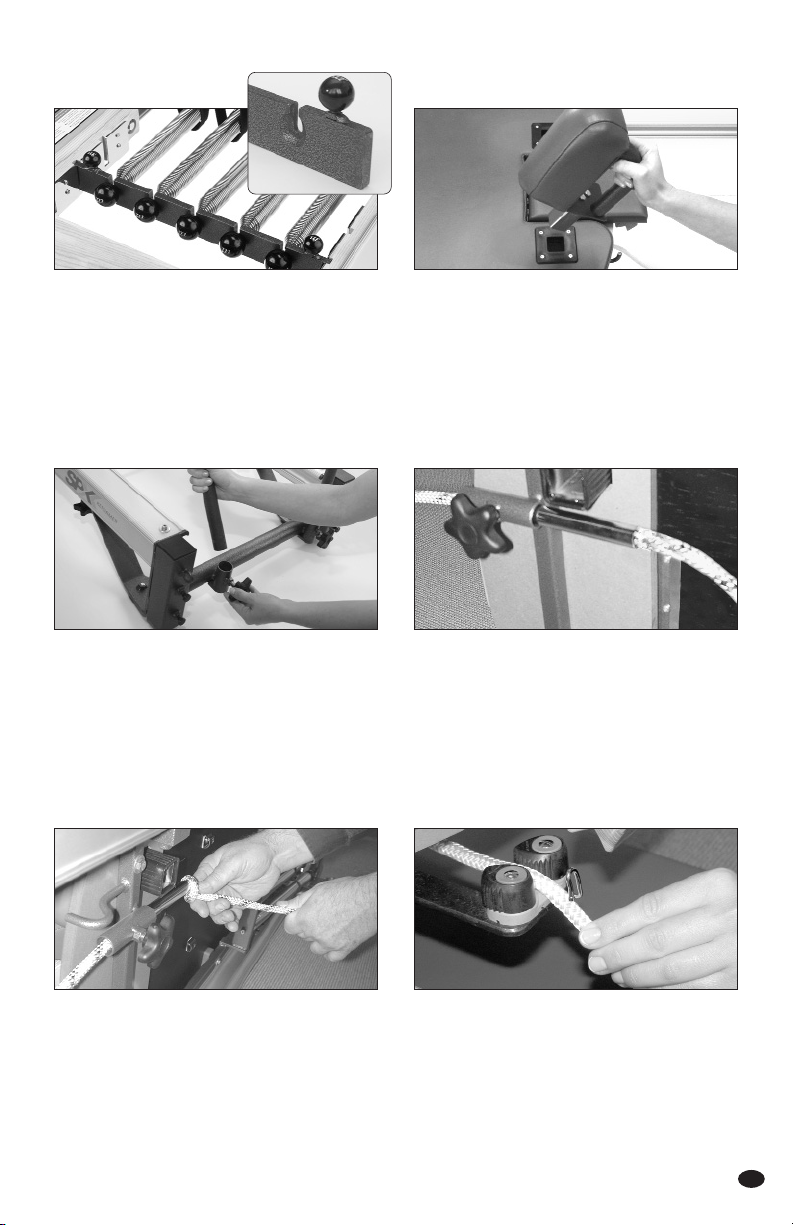

1Place metal plate of wooden standing platform [1]
on threaded bolts on front of Reformer and
fasten with 5/16" lock nuts and washers.
CAUTION: If you are using a ratchet system
to tighten nuts, be careful not to over-tighten.
NOTE: Steps 1 to 7 are complete upon
delivery for all SPX Max™models.
3 Fasten footbar [10] to top of large swing arm
bars [32] with socket head cap screws [27].
NOTE: To help ensure proper alignment, do not
tighten completely until all components of
footbar are assembled. Apply pressure to footbar
before tightening all socket head cap screws.
4 On Reformer carriage, insert floating rollers [18] into
bronze bushings [20].
2Place swing arm support [7] in one of the footbar
adjustment cradles [6] and fasten to small swing arm
bars [31] with socket head cap screws [27].
6Align fixed rollers with c-channels, then adjust
floating rollers as necessary before guiding
carriage into rails.
CAUTION: We strongly advise that two people
perform this operation to prevent damaging rollers.
5Wipe c-channels [28], with a damp cloth to
remove dust and dirt. Insert carriage stopper [30]
in one of six positions.
CAUTION: The carriage stopper must be inserted
into one of the six positions AT ALL TIMES. Never
use oil lubricants as they may damage rollers.
Assembly Instructions

9
7Insert gearbar [9] into the middle gearbar slots [8]
with the concave indentations [inset above] facing
the wooden standing platform [1].
8Insert shoulder rests [37] into receptacles with
handles facing pulleybars and closest to outside
edges of carriage.
9Insert pulleybars [47] into receptacles [40] at
back of Reformer and tighten star knobs [3].
Ensure eyehooks [46] on top of pulleybars are
parallel to rails [33].
PROFESSIONAL & REHAB MODELS:Align top of pulleys
with top of shoulder rests.
11 TRADITIONAL ROPE SYSTEM: Tie a knot, leaving 6-8"
tails to prevent ropes from passing back through
chrome tubes.

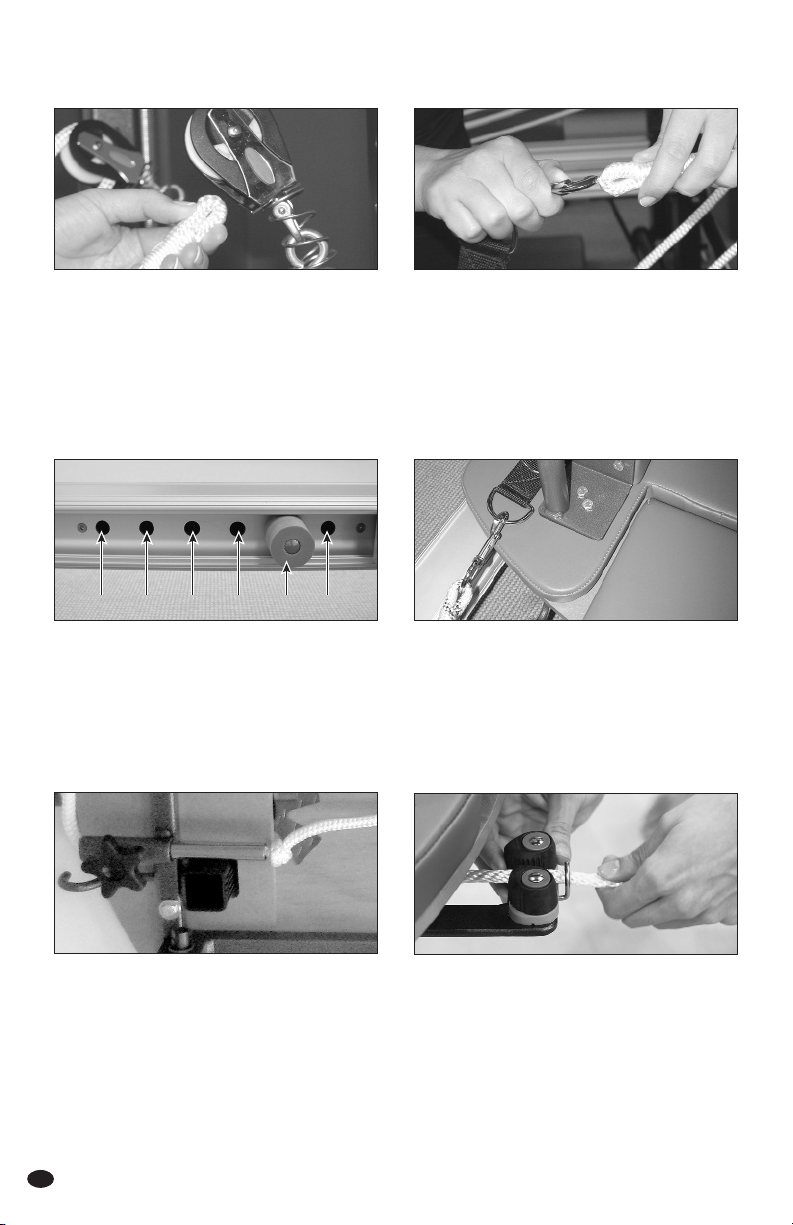

12 RETRACTABLE ROPE SYSTEM [FIG F]: To extend ropes,
depress below rope retaining hooks [26] and lift
out of self-locking cleats [25]. Reel out length
of rope required.
10 TRADITIONAL ROPE SYSTEM [FIG E]: Insert free end
of ropes [41] through back of pulleys [44], then
through chrome tubes [22] underneath carriage.

10
13 RETRACTABLE ROPE SYSTEM [FIG F]: Remove
double-ended swivel spring clips [38], pinch end
loop of ropes [41] and insert through the front
of pulleys [44].
16 Place soft Reformer loops on carriage to line up
fixed D-rings on straps with end of metal plate of
shoulder rests [37].
14 RETRACTABLE ROPE SYSTEM: Reattach double-ended
swivel spring clips and soft Reformer loops [34].
17 TRADITIONAL ROPE SYSTEM [FIG E]: Subtle adjustments
can be made to rope length by sliding chrome
tubes [22]. Secure by tightening star knobs [3].
Assembly Instructions CONT’D
18 RETRACTABLE ROPE SYSTEM: Once rope length has
been established, reset ropes in self-locking cleats
[25] then set fully into rope retaining hooks [26].
15 BOTH ROPE SYSTEMS:To determine correct
length of ropes, set carriage stopper [30] in the
second position. Attach springs to gearbar [9]
to ensure carriage [35] does not move.
#6 #5 #4 #3 #2 #1

11
21 Remove receptacle caps [48] with a flat-head
screwdriver. Slide vertical frame into receptacles
[72]. For plus-style models, position pulley system
facing carriage. For traditional models, position
highest eyehooks facing carriage. Tighten all four
hex bolts [71]. Attach springs, roll-down bar
and safety chain as illustrated on page 7.
22 PLUS-STYLE: To use traveling pulleys [53] extend
ropes and detach double-ended swivel spring clips
[38] and soft Reformer loops [34]. Pinch end loop
of ropes and insert through the bottom of traveling
pulleys. Re-attach double-ended spring clips and
soft reformer loops.
23 To alter the height of traveling pulleys, pull out
spring-loaded stoppers [59]. Shift the traveling
pulleys up or down vertical sliding tracks [52]
and release spring-loaded stoppers. Shake
pulleys to confirm they are fully locked into
stopper positions [60].
24 For exercises using arm [69] or leg springs [61],
attach springs to traveling spring hooks [67], and
adjust height in the same way as traveling pulleys.
After changing position, shake spring hooks to
confirm they are fully locked into stopper positions.
19 RETRACTABLE ROPE SYSTEM: To shorten length slightly,
pinch ropes [41] between carriage [35] and
self-locking cleats [25] and pull toward carriage.
Grasp ropes at retaining hooks [26] and tug
to engage cleats.
20 Carefully lift Reformer and slide on plastic foot [2].
Ensure they sit flat on floor.
NOTE: Not necessary on SPX Max models.
Assembly Instructions VERTICAL FRAME

12
Safety & Usage
IMPROPER USE OF EXERCISE EQUIPMENT MAY
CAUSE SERIOUS BODILY INJURY. TO REDUCE RISK,
PLEASE READ THE FOLLOWING:
◗Before starting any exercise program,
consult a physician.
◗Use equipment for intended exercises only.
◗NEVER stand with both feet on wooden
standing platform of an SPX Max™Reformer. Step
onto secured carriage first before placing one foot
onto wooden standing platform. Always keep
one foot on secured carriage.
◗Before moving a STOTT PILATES®Reformer,
ensure ropes do not drag and springs are attached
so carriage is secure.
◗Ensure the equipment is properly adjusted for
your size and ability level.
◗Stop exercising immediately if you experience
chest pain, feel faint, have difficulty breathing
or experience any discomfort.
◗Keep body, clothing and hair free from all moving parts.
◗Do not use if equipment appears worn,
broken or damaged.
◗Do not attempt to repair equipment yourself.
◗Do not allow children to use or be around
equipment without adult supervision.
◗For optimal performance, allow at least
two feet of clear space on either side of
a STOTT PILATES Reformer.
◗When springs are used on the vertical frame,
ensure spring clips are fully closed at both
ends of springs. A spring clip that is only
half closed risks coming undone and
detaching with high force.
◗When using the push-thru bar with springs
attached from below, a trained professional
must keep a hand on the bar at all times,
and the safety chain must be attached.
(See Safety & Usage on page 16.)
GETTING ON THE REFORMER
SUPINE POSITION (LYING ON BACK)
◗Sit on Reformer carriage, facing side.
◗Reach hand nearest the footbar across your
body and place it onto the shoulder rest.
◗Tuck opposite shoulder under arm and roll
onto back, lowering head onto headrest.
◗Bring legs up and place feet on footbar,
lowering arms by sides.
STANDING OR KNEELING POSITIONS
The carriage is a moving platform. Special attention
must always be paid to maintaining balance and
stability, especially when performing kneeling
or standing exercises.
◗Before you begin, ensure one or more springs
are engaged in the gearbar to secure the carriage.
For SPX Max™Reformers:
◗NEVER stand with both feet on
wooden standing platform.
◗Place one foot on secured carriage.
◗Carefully place other foot onto the wooden standing
platform. A gripper mat may be used to prevent
slipping. (See Safety & Usage on page 19.)
◗Chemical-based cleansers used around Reformer feet
may cause permanent marking on floors. Our warranty
does not cover this damage. We highly recommend
avoiding chemical-based products and suggest
placing a non-slip mat under the machine.
For all other STOTT PILATES Reformers:
◗Place one foot on wooden standing platform.
◗Carefully place other foot onto the secured carriage.
A gripper mat may be used to prevent slipping.
(See Safety & Usage on page 19.)
All models of Reformers:
◗When standing on the carriage with two feet, it is
advisable to have a spotter to steady the carriage.
KEEP HANDS & FEET SECURE
Whenever placing hands or feet on the footbar,
shoulder rests or headrest, ensure they will not
slip during exercise. Gripper mats may be used.
SITTING OR LYING ON A BOX
Always place Reformer box in a stable position on the
Reformer and sit directly in the middle to avoid tipping
(see Safety & Usage on page 18). When using footstrap,
ensure it is underneath the wooden standing platform
and securely clipped together.
CAUTION
STOP! Before getting on, ensure that the
carriage stopper is inserted and at least one
spring is securely attached to the gearbar!

13
GEARBAR
The gearbar position determines the amount of
initial tension on the springs. The slot closest to the
wooden standing platform is referred to as position
#1, the next is position #2, the last is position #3.
Adjusting the gearbar
◗Do not sit on carriage while adjusting.
◗Remove all springs while holding gearbar in place.
◗Place gearbar in desired position.
◗Ensure gearbar slides fully into slots.
◗Face concave indentations toward Footbar.
Position gearbar relative to the carriage stopper to
create initial tension on the springs, i.e. the gearbar
should not be in position #3 if the carriage stopper
is in position #1 or #2 as there will not be
any initial spring tension.
#1
#2
#3

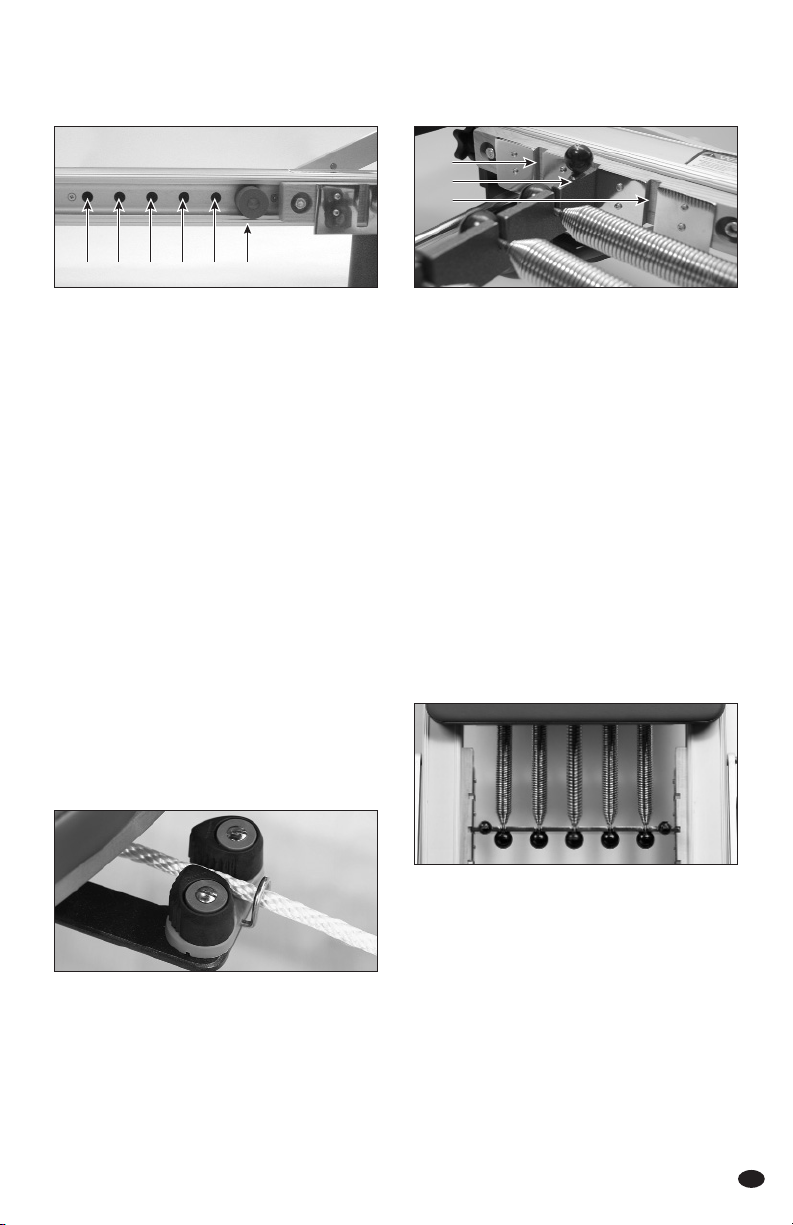

CARRIAGE STOPPER
The carriage stopper position determines how close
the carriage slides in toward the wooden standing
platform and dictates the body’s range of motion.
The hole closest to the wooden standing platform is
referred to as position #1; the next is position #2, etc.
Adjusting the carriage stopper
◗Do not sit on carriage while adjusting.
◗Remove all springs from gearbar.
◗Insert carriage stopper in one of six positions.
◗Ensure carriage stopper is completely inserted.
The carriage stopper position should be chosen
to give the optimal range of motion based on the
exercise and the individual performing it. It will
also affect the initial tension on the springs in
relation to the gearbar.
NOTE: The carriage stopper must be inserted in
one of the six positions AT ALL TIMES. USING THE
REFORMER WITHOUT THE CARRIAGE STOPPER
MAY CAUSE DAMAGE TO THE GEARBAR
BLOCK AND ROLLERS.
#6 #5 #4 #3 #2 #1
SPRINGS
The number of springs attached to the gearbar
determines the total amount of resistance. Reformers
are equipped with either one 50% and four 100%-
tension springs OR one 25%, one 50%, and three
100%-tension springs. (See page 24 for more details.)
Adjusting springs
◗Take care when attaching and detaching springs.
◗For safety, place one hand on gearbar.
◗Firmly grasp spring, (not spring ball), and stretch
it to hook to or unhook from gearbar.
◗Ensure ball rests securely in concave
indentations of gearbar.
RETRACTABLE ROPE SYSTEM
Prior to use, confirm that the retractable rope system
is in good order and rope is secured through
self-locking cleats and rope retaining hook.
(See Assembly Instructions on page 9 and 10.)

14
FOOTBAR
The footbar can be set at four different heights to
facilitate various Reformer exercises and to accommodate
physical differences and abilities. The cradle closest
to the gearbar is position #1, the cradle farthest away
is position #4.
Adjusting the footbar
◗The footbar can be adjusted while standing
beside the Reformer or sitting on the carriage.
◗Gently pull footbar up and lift swing arm
support out of footbar adjustment cradle.
◗Lift or lower footbar to the desired height and place
swing arm support securely into nearest cradle.
HEADREST
The headrest adjusts to three positions: flat,
half-raised or fully raised. It should be adjusted on
an individual basis to ensure neck and shoulders
are comfortable and tension-free when lying supine.
In exercises where the hips are lifted higher than
the shoulders, the headrest should be flat – even
when beginning from a supine position. In some
exercises it is raised to provide a brace for the feet.
Adjusting the headrest
◗With no weight on headrest, lift it and hinge
adjustment block to rest securely onto wooden
edge of carriage.
PULLEYBARS
SPX MAX AND RACK &ROLL REFORMER ONLY: Pulleybars
detach for storage without disengaging ropes.
To remove, loosen star knobs and remove pulleybars
from receptacles.
When replacing pulleybars, ensure they are firmly
within the receptacles. Ensure eyehooks on top
of pulleybars are parallel to aluminum rails.
Tighten star knobs securely.
Safety & Usage CONT’D
SHOULDER RESTS
Shoulder rests are removable to allow storage of the
Reformer and to facilitate the use of a mat converter.
Attaching the shoulder rests
◗Slide square posts into receptacles in the carriage.
Padded sides face footbar and handles are
positioned closest to edges of carriage.
◗To remove, pull directly up on handles.
Adjustment Block
#4 #3 #2 #1
#2
#3
#4
Professional and Rehab
SPX Max and Rack & Roll

15
STORING SHOULDER RESTS
SPX MAX REFORMERS ONLY: When stacking, shoulder
rests slide conveniently into brackets affixed to the
underside of the rail.
STORING PULLEYBARS
SPX MAX REFORMERS ONLY: When stacking, pulleybars
can be removed without disengaging ropes and stored
in receptacles under Reformer.
STACKING REFORMERS
STOTT PILATES offers two stackable Reformer models.
Up to five SPX Max™or Rack & Roll Reformers can
be stacked on the optional rolling base or a maximum
of six on a level floor without the rolling base.
CAUTION: Do not stack Reformers higher than
your height comfortably allows lifting them.
Stacking SPX Max Reformers
◗Lower footbar, insert carriage stopper into third
position and engage two springs to secure carriage.
◗Remove shoulder rests and insert onto brackets
under the rail. Remove pulleybars without
disengaging ropes and insert into receptacles
under the frame.
◗Stacking requires two people. The stronger
person should take the front (footbar) end.
◗Hold the steel plate beneath
wooden standing platform.
◗Hold the back end by gripping
horizontal metal frame.
Stacking Rack & Roll Reformers
OPTIONAL PURCHASE
◗The addition of custom-made wooden
blocks are required to stabilize Rack & Roll
Reformers when stacked.
◗Each stacking block has compartments
to safely store and protect the pulleybars
and shoulder rests.
MOVING REFORMERS
The front end of all Reformers features easy-roll
wheels which make repositioning simple.
Preparing to reposition
◗Ensure ropes do not drag and springs are
attached to gearbar so carriage is secure.
◗Stand at the back of Reformer, grasp the horizontal
metal bar or frame and gently lift. Lift Reformer
high enough to engage easy-roll wheels.

16
Safety & Usage CONT’D

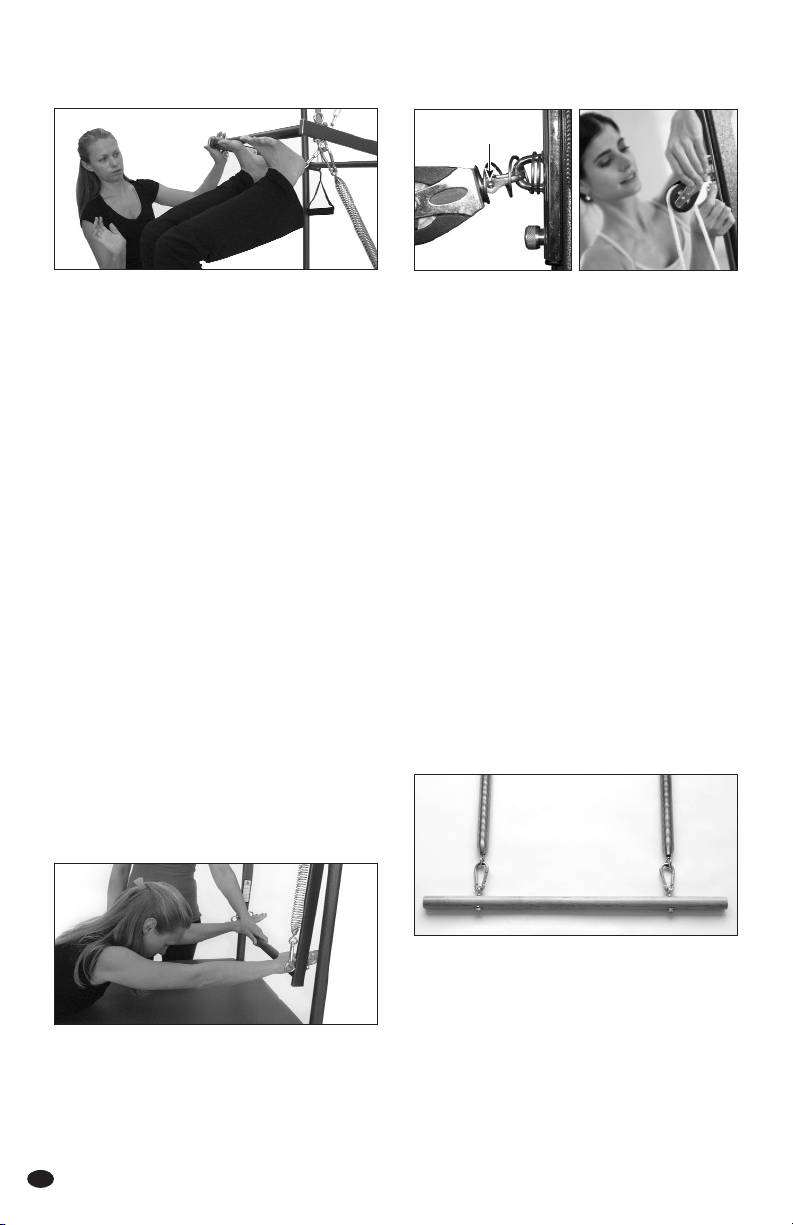

ROLL-DOWN BAR
Attach roll-down springs to roll-down bar, then
to the fixed eyehooks at the top of the vertical
frame (see page 7). Both springs must be attached.
To decrease or increase, spring tension, substitute
light arm springs or leg springs respectively.
CAUTION: Roll-down bar can release at high
velocity due to spring tension. Ensure a secure grip
at ALL times. Gripper mats may be used.
ADJUSTABLE PULLEY SYSTEM
PLUS-STYLE ONLY: The spring-loaded track system
provides adjustability for pulleys and spring hooks
throughout the range of the vertical frame.
Altering height of traveling pulleys
and traveling spring hooks
◗Pull out the spring-loaded stopper on traveling pulley.
◗Shift traveling pulley up or down the track and
release the spring-loaded stopper. The pulley will
spring-lock into the nearest stopper position.
◗Shake traveling pulley to confirm it is fully locked
into stopper position.
◗The same method applies to adjusting
traveling spring hooks.
◗Adjust rope length as necessary.
CAUTION: Prior to use, confirm that the traveling
pulley system is in good order and that the traveling
pulley’s threaded bolts are securely fastened.
PUSH-THRU BAR
SAFETY CHAIN
The Safety Chain must be attached when using the
push-thru bar with springs from below. Attach safety
chain first, from middle eyehook of vertical frame to
either upper eyehook of push-thru bar. Ensure spring
clips are completely closed and secure.
SPRINGS FROM BELOW
When using the push-thru bar with springs from below,
attach springs to eyehooks on lowest eyehooks on
vertical frame using locking spring clips. Then attach
one or two springs to eyehooks on lower side of bar,
ensuring spring clips are completely closed and secure.
A trained professional must keep a hand on the
bar at all times and safety chain must be used.
SPRINGS FROM ABOVE
A trained professional must keep a hand on the
push-thru bar for any exercises with the springs
attached from above.
CAUTION: To prevent accidental injury, never put
your face (or another body part) above the push-thru
or roll-down bar while spotting an exercise.
Locking spring clips must be used to attach push-thru
springs from below to the vertical frame. DO NOT use
non-locking spring clips.
Threaded Bolt

17
LIGHT ARM SPRINGS
Attach light arm springs to traveling spring hooks
or fixed eyehooks at desired height. Ensure spring
clips are completely closed and secure. Shown with
foam-grip handles attached.
EXTENSION STRAPS
The extension straps are valuable in supporting
the knees or legs in various exercises.
Attaching extension straps
◗Move traveling spring hook to desired height along
vertical frame and release spring-loaded stopper
or select desired fixed eyehook.
◗Attach leg springs, then attach extension straps
to springs and attach padded long spine straps or
Reformer loops to straps. Ensure all spring clips
are completely closed and secure.
◗Ensure spring tension on Reformer is sufficient
to return carriage completely.
SPRING CLIPS
Whenever springs are used, ensure the spring clips
at both ends are closed completely. If a spring clip is
only half closed and catches on the eyehook, it may
come undone and detach with high force.
CAUTION: Locking spring clips must be used
to attach push-thru springs from below to the
vertical frame. DO NOT use non-locking spring clips.
LEG SPRINGS
Attach leg springs to traveling spring hooks or
fixed eyehooks at desired height. Ensure spring
clips are completely closed and secure. Shown with
padded long spine straps attached.
Leg Springs
Extension Straps
Padded Long Spine Straps

18
Safety & Usage CONT’D
ACCESSORY BOARDS
OPTIONAL PURCHASE
Accessory boards can be added to further increase
exercise options. Currently available:
◗Jumpboard and Cardio-Tramp™for
plyometric exercises.
◗Rotational Diskboard™for controlled internal
and external rotation.
◗Rotational Diskboard Deluxe™allows greater
range and asymmetrical movements when
working in controlled rotation.
◗Soft footbar accommodates sensitive feet.
Installing accessory boards
◗Lower footbar to lowest position.
◗Insert accessory board into receptacles in wooden
standing platform, ensuring it slides down fully.
◗Tighten star knobs on receptacles, located under
wooden standing platform.
REFORMER BOX
OPTIONAL PURCHASE
Reformer boxes are used to facilitate or vary exercises.
There are a range of exercises in the Reformer
repertoire that require the use of a box.
Positioning the reformer box
◗Place Reformer box on top of carriage
with either long or short side pressed
against shoulder rests.
◗In the “short box” position, box can also
be placed over shoulder rests with the
headrest fully lowered.
FOOTSTRAP
INCLUDED WITH REFORMER BOX PURCHASE
The footstrap is used to secure the feet during
most “short box” exercises.
Attaching the footstrap
◗Loop footstrap around wooden standing platform
and adjust the length by attaching spring clip to
one of three D-rings.
◗Footstrap should be adjusted so that there is
tension with knees slightly flexed. It is important
to keep feet hooked securely under footstrap.
◗Gripper mat may be used.
MAT CONVERTER
OPTIONAL PURCHASE
The addition of a mat converter creates a safe,
stable surface for matwork or vertical frame work.
Installing the mat converter
◗Remove footstrap (if applicable), lower
Footbar completely and detach springs.
◗Slide carriage back against pulleybars,
ensuring ropes are out of the way.
◗Place mat converter on aluminum rails,
ensuring it is pressed completely into place.
◗Remove shoulder rests to create a clear mat surface.

19

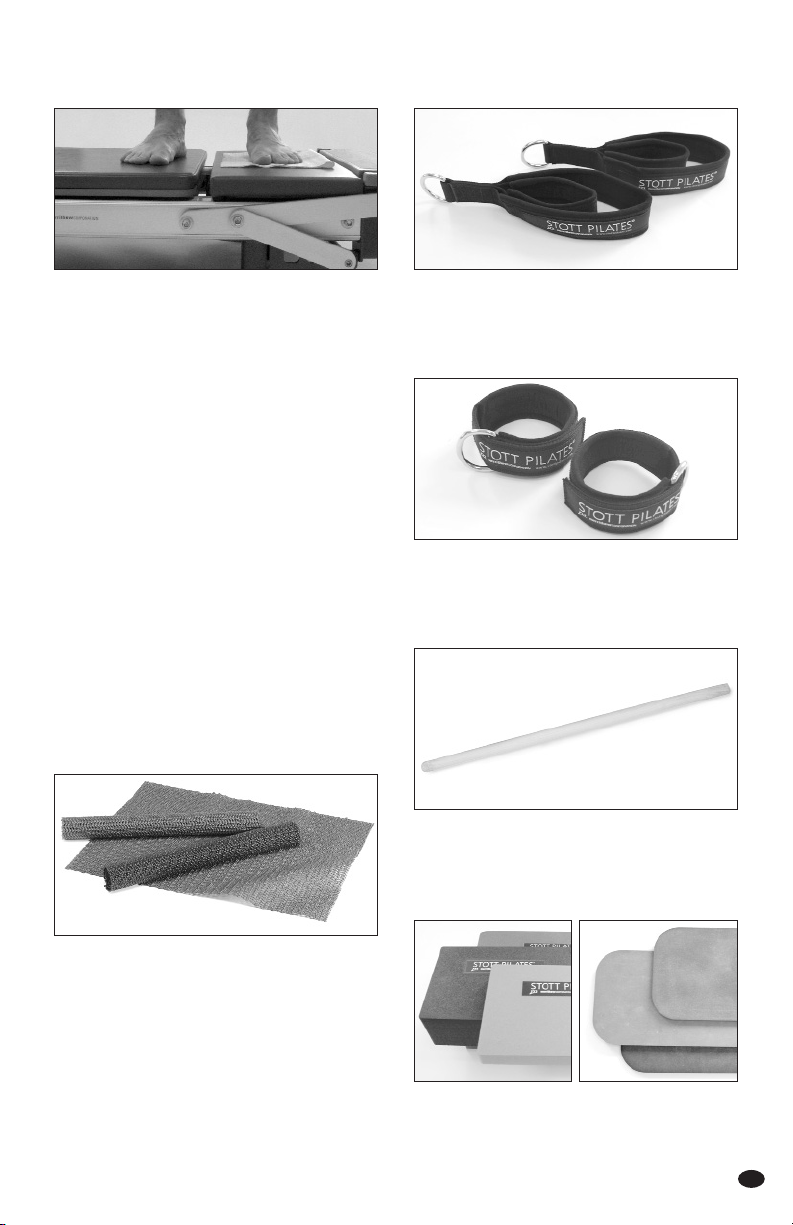

PADDED PLATFORM EXTENDER
OPTIONAL PURCHASE
This accessory extends the wooden standing platform
and can accommodate a variety of exercises, providing
added comfort and safety. It can also be used on the
carriage for seated exercises.
Installing the padded platform extender
◗Remove footstrap (if applicable) and
lower footbar completely.
◗Place desired springs in gearbar.
◗Place padded platform extender on aluminum rails.
Press it firmly against wooden standing platform
to ensure it does not move.
◗Gripper mats may be placed on carriage and
padded platform extender to prevent slipping.
(See page 12 for Safety & Usage: Caution getting
on the Reformer.)
◗Always remove padded platform extender
to change spring settings.
GRIPPER MATS
OPTIONAL PURCHASE
Versatile, non-slip rubber mats are handy to
increase traction and prevent slipping.
◗For standing exercises, gripper mats may be
placed under one foot.
◗A gripper mat can also be wrapped around footbar,
roll-down bar or elsewhere to increase traction.
DOUBLE LOOP STRAPS
OPTIONAL PURCHASE
Conveniently switch from arm work to leg work
without having to detach straps.
FOAM CUSHIONS & RUBBER PADS
OPTIONAL PURCHASE
Ideal to correct alignment and provide cushioned support.
ANKLE STRAPS
OPTIONAL PURCHASE
Attach to Reformer ropes and fasten around ankles
to provide a more secure connection for leg work.
MAPLE ROLL-UP POLE
OPTIONAL PURCHASE
Perfect to provide added scapular awareness,
it can be used with multiple Reformer exercises.

20

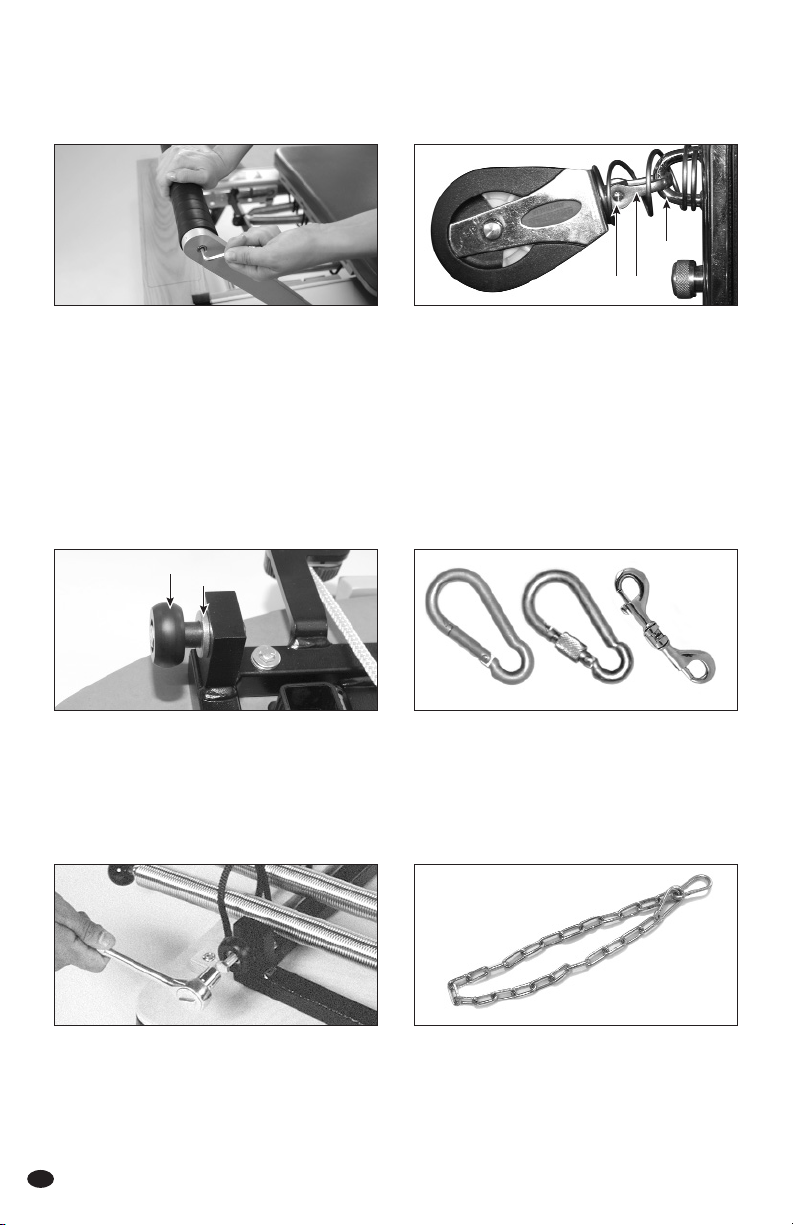

FLOATING ROLLERS
With carriage removed from aluminum rails,
(see page 22) slide floating rollers into bronze bushings.
Replace carriage (see page 28).
CAUTION: Never use oil lubricants as they
may damage rollers.
FIXED ROLLERS
Attach fixed rollers with the aid of a ratchet and
1/2" socket attachment.
CAUTION: Never use oil lubricants as they
may damage rollers.
FOOTBAR
With 1/4" hex key, fasten footbar to the large swing
arm bars with socket head cap screws. With footbar
in place, apply pressure to footbar before tightening
socket head cap screws. Tighten completely only
when both sides of footbar are attached to ensure
proper alignment.
NOTE: Socket head cap screws are attached to the
ends of the replacement footbar when it is shipped.
Floating Roller
Bronze Bushing
PULLEY BLOCK FIXED & TRAVELING
◗Unscrew threaded bolt [57] that passes through
end shaft of pulley block and the left and right arms
of the swivel harness [58].
◗Remove swivel harness from eyehook [54], and
remove pulley block and replace with new pulley block.
◗Pass swivel harness through eyehook.
◗Pass bolt through right side of swivel harness
and the center of the end shaft of pulley block.
◗Screw bolt through left side of swivel harness.
54
57
58
Replacement Parts
To place an order, visit merrithew.com/replacementparts or email [e-mail].
SPRING CLIPS
Replace spring clips every 12 months or earlier as needed.
CAUTION: Locking spring clips must be used to attach
push-thru springs to the vertical frame from below.
Do NOT use non-locking spring clips.
Non-Locking Spring Clip Locking Spring Clip
Double-Ended
Swivel Spring
Clip
SAFETY CHAIN
For use with push-thru bar.
