STOVES STBI900MF User manual

USER GUIDE
A commitment to:
Stoves BI 90 Elec
Part Number: 083770400

To contact Stoves about your appliance, please call:
Calls are charged at the basic rate, please check with your telephone service provider for exact charges
Alternatively general, spares and service information is available from
our website at: www.stoves.co.uk
Glen Dimplex Home Appliances, Stoney Lane, Prescot, Merseyside, L35 2XW
Warranty Registration
0800 952 1068
*Please call our Customer Care team for extended
warranty
Spares Store
0344 815 3745
Customer Care Helpline
0344 815 3740
In case of di󰀩culty within the UK
To contact us by email:
[email protected]
To register your appliance by mail:
Please complete the warranty
card and return to the address
supplied
To register your appliance online:
www.stoves.co.uk
Your new appliance comes with our 12-month guarantee, protecting you against electrical and
mechanical breakdown. To register, please complete the registration form included, register online
or by phone. For full terms & conditions of the manufacturer’s guarantee, please refer to the web-
site above. In addition, you may wish to purchase an extended warranty. A leaet explaining how to
do this is included with your appliance.
Our policy is one of constant development and improvement, therefore we cannot guarantee the
strict accuracy of all of our illustrations and specications. Changes may have been made subse-
quent to publishing.
GB - Great Britain þ
IE - Ireland þ
DE - Germany
ES - Spain
FR - France
IT - Italy
PL - Poland
NL - Netherlands
SE - Sweden
CN - China
NZ - New Zealand
AU - Australia
Countries of destination:

Thank you for buying this British-built appliance from us.
This user guide book is designed to help you through each step of owning your new product.
Please read it carefully before you start using your appliance, as we have endeavored to answer as
many questions as possible, and provide you with as much support as we can.
General information, spares and service information is available from our website.
If you should nd something missing from your product or have any questions that are not covered in
this user guide, please contact us (see contact information inside the front cover).
European Directives
As a producer and a supplier of cooking appliances we are committed to the protection of the environ-
ment and are in the compliance with the WEEE directive. All our electric products are labelled
accordingly with the crossed out wheeled bin symbol. This indicates, for disposal
purposes at end of life, that these products must be taken to a recognized collection points,
such as local authority sites/local recycling centres.
This appliance Complies with European Community Directives (CE) for household and similar electrical
appliances and Gas appliances where applicable.
This appliance conforms to European Directive regarding Eco design requirements for energy-related
products. Our policy is one of constant development and improvement, therefore we cannot guarantee
the strict accuracy of all of our illustrations and specications - changes may have been made subse-
quent to publishing.
Hereby, Glen Dimplex Home Appliances Ltd. declares that the radio equipment types ST BI900 EF and
ST BI900 MF are in compliance with Directive 2014/53/EU. The full text of the EU declaration of confor-
mity is available at the following internet address: www.stoves.co.uk
Disposal of Packaging Material
The packaging materials used with this appliance can be recycled. Please dispose of the packaging
materials in the appropriate container at your local waste disposal facilities.
UK ONLY GAS WARNING:
If you smell gas, Do not try to light any appliance. Do not touch any electrical switch.
Call the Gas Emergency Help line at 0800 111999
INTRODUCTION

WARNING
• During use the appliance becomes hot. Care should be taken to
avoid touching heating elements.
• Children less than 8 years of age shall be kept away unless
continuously supervised. This appliance can be used by children
aged from 8 years and above and persons with reduced
physical sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction
concerning the use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
• Do not use harsh abrasive cleaners or sharp metal scrapers to
clean the oven door glass or the hob, since they can scratch the
surface, which may result in shattering of the glass.
• Do not use a steam cleaner on any cooking range, hobs and oven
appliances.
• To avoid electric shock, ensure that the appliance is switched o󰀨
before replacing the lamp.
• Never put items directly on the base of the oven or cover the oven
with foil, as this can cause the base element to overheat.
• Accessible parts may become hot when the grill is in use. Children
should be kept away.
• Always switch o󰀨 your appliance and allow it to cool down before
you clean any part of it.
• Although every care has been taken to ensure this appliance has
no sharp edges. We recommend that you wear protective gloves
when installing and moving this appliance. This will prevent injury
• This appliance must be tted to a switch providing all pole
disconnection with a minimum contact separation of 3mm
• Connection should be made with a suitable exible cable with a
minimum temperature rating of 70°C.
CAUTION
• This appliance must not be installed behind a decorative door in
order to avoid overheating.
SAFETY

• The cooking process has to be supervised. A short term cooking
process has to be supervised continuously.
• The use of a gas cooking appliance results in the production of
heat, moisture and products of combustion in the room in which
it is installed. Ensure that the kitchen is well ventilated especially
when the appliance is in use: keep natural ventilation holes open
or install a mechanical ventilation device (mechanical extractor
hood). Prolonged intensive use of the appliance may call for
additional ventilation, for example opening of a window, or more
e󰀨ective ventilation, for example increasing the level of mechanical
ventilation where present.
• Ensure shelving is correctly installed, see the sections on shelf
runners and shelf location within this book.
• Fire Safety Advice
If you do have a re in the kitchen, don’t take any risks - get everyone out of your home and call the
Fire Brigade.
Ifyouhaveanelectricalreinthekitchen:
• Pull the plug out, or switch o󰀨 the power at the fuse box - this may be enough to stop the re imme-
diately
• Smother the re with a re blanket, or use a dry powder or carbon dioxide extinguisher
• Remember: never use water on an electrical or cooking oil re.
• Other Safety Advice
• Servicing should be carried out only by authorised personnel.
• Do not operate the appliance without the glass panel correctly tted.
• There is a risk of electric shock, so always make sure you have turned o󰀨 and unplugged your
appliance before starting. Always allow the product to cool down before you change a bulb.
• Do not modify the outer panels of this appliance in any way.
• This appliance must be earthed.
• The appliance must never be disconnected from the mains supply during use, as this will seriously
a󰀨ect the safety and performance, particularly in relation to surface temperatures becoming hot and
gas operated parts not working e󰀩ciently. The cooling fan (if tted) is designed to run on after the
control knob has been switched o󰀨.
• GAS WARNING! - If you smell gas: Do not try to light any appliance, Do not touch any electrical
switch. Contact your local gas supplier immediately.

USING YOUR APPLIANCE
Selector
O󰀨
Thermostat
Thermostat Indicator
Clock/Programmer
O󰀨
O󰀨
Thermostat Indicator
Top Oven/Grill Grill
Top Oven/Grill Grill Oven
Thermostat Indicator
Thermostat Indicator
O󰀨
O󰀨
Clock/Programmer
Getting to know your product
Note: Your appliance layout may di󰀨er depending on the model.
Control Panel (900EF)
Control Panel (900MF)

Oven / Grill functions
Note: Your oven may not have all of the functions shown here. We recommend for best cooking results,
please preheat for 15 minutes.
Use fanned oven setting for slow cooking. Do not try to slow cook using any of the other oven functions.
Defrost
Fanned Oven
Base Heat
Pizza Function
Lights only
Bread Proving Keep Warm
Conventional Grill
Conventional Oven
Oven Selector Control
Base Heat with fan
Intense Baking
Low Grill
Single Grill
Top Heat
Dual Grill
Fanned Grill
SSlow Cook
Selector (900MF) Thermostat (900MF)
180
200
220
240
80
120
140
160
260

Oven (900EF) Top Oven / Grill Grill
180
200
220
240
80
120
140
160
80
120
140
160
180
200
220
240
260
1
2
3
4
5
6
7
8
Oven/Grill
Selector and Grill Thermostat, Oven and Top Oven/Grill
When using the oven/grill, the red thermostat indicator will come on until the selected temperature is
reached. The thermostat indicator will cycle on and o󰀨 as the thermostat switches to maintain oven
temperature.
When the ovens or grill are switched on, the cooling fan comes on to keep the fascia and control knobs
cool during cooking/grilling. The fan may continue to operate for a period of 10 minutes after the oven
or grill has been switched o󰀨.
Important: Never put items directly on the base of the oven, or cover the oven base with foil, as this
may cause the element to overheat. Always position items on the shelf.

Grill
THE DOOR MUST BE OPEN WHEN THE GRILL IS USED FOR CONVENTIONAL GRILLING.
THE DOOR MUST BE CLOSED WHEN THE GRILL IS USED FOR FANNED GRILLING.

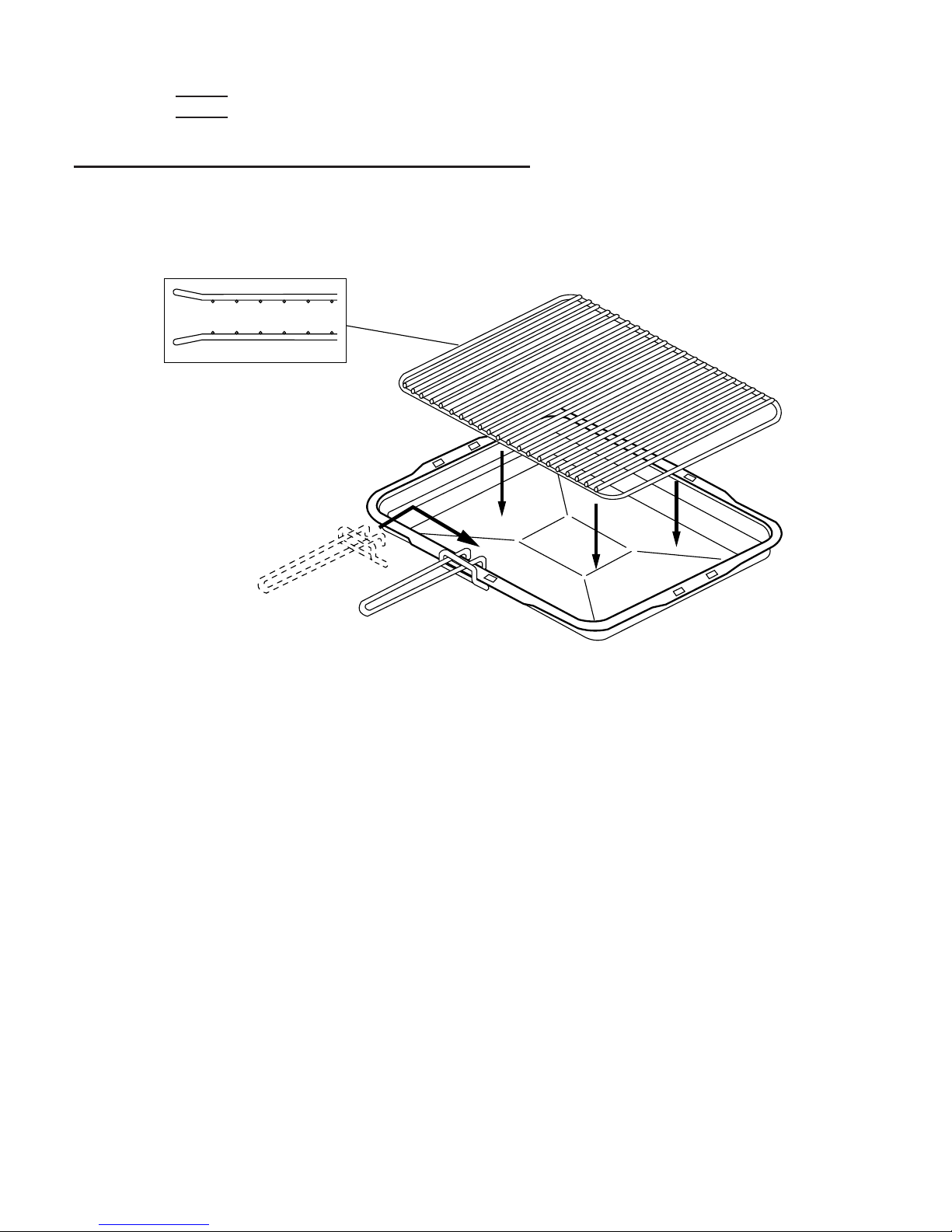

Grill pan, trivet and detachable grill pan handle
The grill trivet, inside the grill pan, can be inverted to give a high or low position, or it may be removed.
The speed of grilling can be controlled by selecting a higher or lower shelf position, or adjusting the grill
setting.
Inverted
Please be aware that only the main oven is controlled by the programmer.

Clock / Programmer
Note: Your clock / programmer may not have all these functions
Minute minder
MenuMinus Plus
Cooking time / Duration
End of cooking time
Time of day
Keylock
Auto cooking
Automatic mode
Bluetooth Connectivity
Manual mode
Volume level
7-segment display
Max. adjustable minute minder
Max. adjustable cooking time
Display hours:minutes
Display minutes:seconds
, ,
Using the touch controls
Menu - Scroll through to select a function
Plus - Increase time or volume
Minus - Decrease time or volume
When a function is selected and the time or volume is set, the chosen function will automatically start
seven seconds after setting.
Manual Mode
If the programmer is not in semi-automatic or full-automatic mode you can use oven functions manually.
The manual icon is also on the display.

Setting the time of day
By pressing menu, scroll through the functions until you reach ‘time of day’.
1Press the function button until the ‘time of day’
symbol appears
2Press the plus or minus buttons to set a time

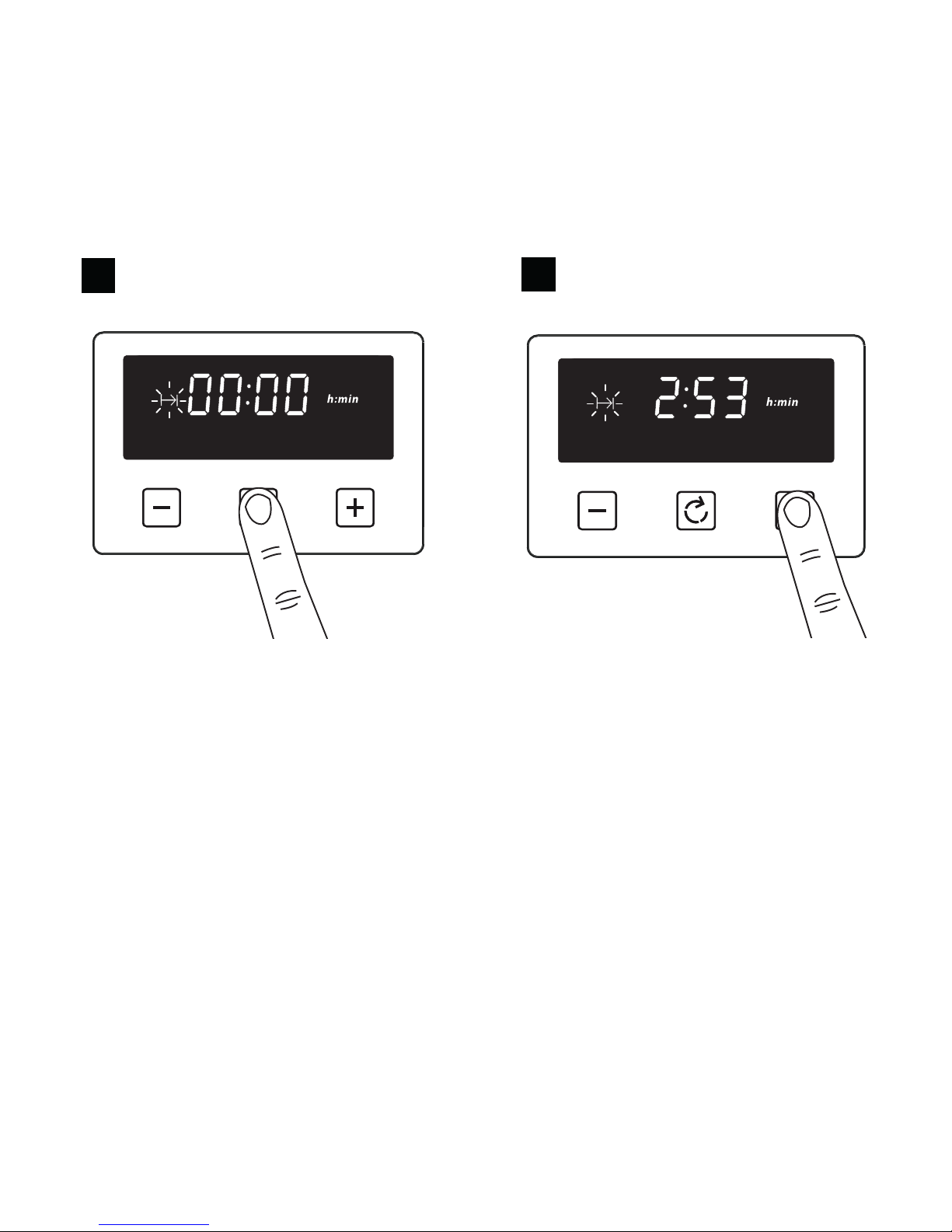

Setting the minute minder
The maximum cooking time that can be set is 99 minutes.
1Press the function button until the ‘minute
minder’ symbol appears
2Press the plus or minus buttons to set a time
Once set, the minute minder will start to countdown in steps of seconds. The display will show the
minute minder symbol and the remaining time. The countdown will continue in the background, if other
functions are being set.
When the set time for the minute minder has completed, an alarm is heard and the minute minder
symbol will ash on the display. Press any button to stop the alarm and the time of day is displayed.

To modify or cancel the minute minder
Return to the minute minder function and use either the plus or minus buttons to adjust the time. By
setting the time to ‘0.00’, this will cancel the countdown.

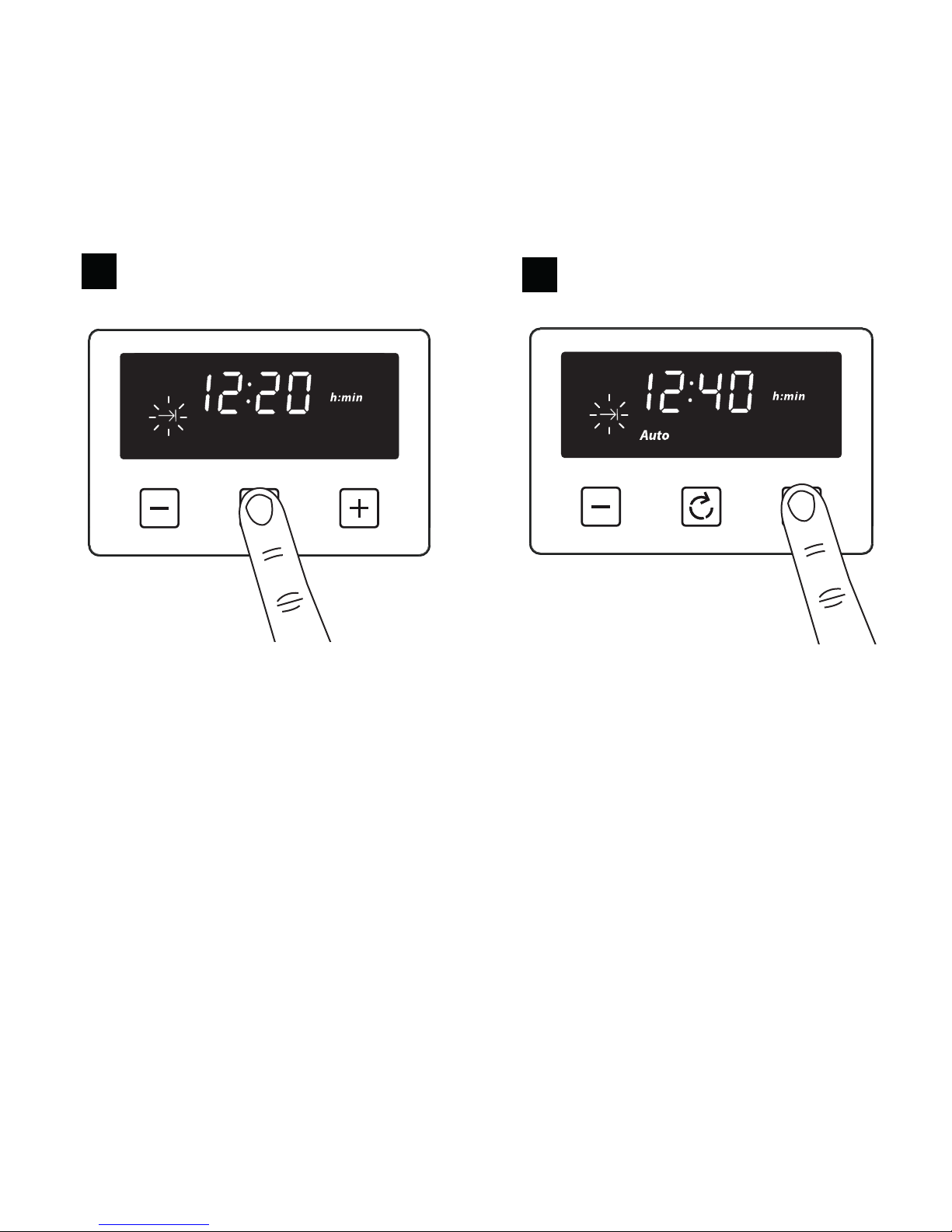

Setting the cooking time (the duration of time the oven will operate for) Semi Auto-
matic cooking
The maximum cooking time that can be set is 23 hours and 59 minutes.
1Press the function button until the ‘cooking
time’ symbol appears
2Press the plus or minus buttons to set a time
Once set, the automatic mode, auto cooking symbol and the time of day is displayed.
When cooking is completed, an alarm is heard and the manual mode symbol ashes on the display.
Press the Menu button to stop the alarm and then the ‘time of day’ will then be displayed. Pressing the
Menu button again will return to manual mode.
To modify or cancel the cooking time
Return to the ‘cooking time’ function and use either the plus or minus buttons to set the time. By setting
the time to ‘0.00’, this will cancel the countdown.

Settingtheendofcookingtime(tosetatimefortheoventoturno󰀨)FullyAuto-
matic
Enter cooking duration as described in ‘Setting the cooking time’ section.
The display shows the current ‘time of day’ plus the ‘end of cooking time’ symbol. The latest ‘end of
cooking time’ is limited to the current ‘time of day’ plus the maximum time that can be set (23 hours and
59 minutes).
1
Press the function button until the ‘end of
cooking time’ symbol appears
2Press the plus or minus buttons to set a time
The auto cooking symbol disappears from the display once the time, the required cooking settings and
temperature have been set. The appliance will not be switched on until the set cooking start time, that is
the di󰀨erence between the cooking end time and the cooking duration.
When cooking is completed, an alarm is heard and manual mode symbol ashes on the display. Press
the menu button to stop the alarm. Pressing the Menu button again will return to manual mode.
To modify or cancel the end of cooking time
Return to the ‘end of cooking time’ function and use either the plus or minus buttons to set the time. The
‘end of cooking time’ can be deleted by counting back using the minus button until it equals the current
time of day.

Setting the volume
Press the menu button until “LX” (X = 1, 2 or 3) ashes on the display. Use the plus or minus buttons to
select a tone.
Note: Default tone is L3
Activating / deactivating Key lock
1Press and hold the plus button for 3-5
seconds
2
Once the Key lock is active, the buttons will be inactive. A two beep signal will be heard if the buttons
are pressed.
To deactivate the Key lock
Press and hold the plus button for 3-5 seconds. The Key lock symbol will disappear and the appliance
can continue to be used.
Note: In case of main power loss for a short time (about 1.5 minutes), timer maintains its status.
Key lock status and buzzer tone are memorized independent of the power loss duration.

Bluetooth Connectivity
State of Connectivity Symbol
• When the connectivity symbol is not present, the appliance cannot be connected to.
• When the connectivity symbol is blinking, the appliance is ready to be paired with a smart device us-
ing the Zeus appliance app.
• When the connectivity symbol is solid, the appliance is connected to a smart device and can be set
using the Zeus appliance app.
Activating the Bluetooth Connectivity
1Press and hold the menu button for 2 seconds
until a beep is heard
2The connectivity symbol will start flashing. The
timer is now ready to be connected to a smart
device
Deactivating the Bluetooth Connectivity
1Press and hold the menu button for 2 seconds
until a beep is heard
2
The connectivity symbol will disappear

Pair cooker with Mobile device
Please refer to the website at the front of this guide for more information or download the Zeus
appliance app (Available on iPhone and Android)
How to read the 6-digit pairing code
1. When the smart device connects to the appliance through the Zeus appliance app, the app will ask
for a unique pairing code that will be displayed on the timer.
Note: Every time a new smart device connects though the Zeus appliance app to the appliance, a
di󰀨erent pairing code is displayed.
2. When prompted to enter the 6-digit code, the code will appear on the timer. The 6-digit code will
scroll across the timer display from the right to the left.
Note: Be aware that the display can only show four digits at a time.
Clear pairing information from the appliance
Note: If you clear the pairing information from your appliance, you also need to clear the pairing
information from your mobile device. You will not be able to connect until you pair the device again.
1
Press the menu and plus button at the same
time until a beep is heard.
Once the beep is heard, any paired data will be cleared.
Clear pairing information from your mobile device
Settings > Bluetooth > Oven > Forget This Device/Unpair

Removing Shelf Runners
Telescopic positions
(if fitted)
Telescopic positions
(if fitted)
Standard shelves
Front of appliance
2
Ensure the shelf is fully pushed
back towards the back of the
oven, until the shelf stopper is
reached.
Slightly raise the shelf and
insert in the chosen shelf
position
1

RemovingTelescopicshelves(iftted)
1
2
Grasp and lift shelf
Lift shelf from the
retaining tabs.
Front of appliance
Before removing the shelves completely, please make sure that the shelf is unclipped from the retaining
tabs.
Changing the light bulb
Not all appliances have the same number and type of bulbs. Before you replace your bulb, check to see
what type you have. Please remember that bulbs are not covered by your warranty.

19

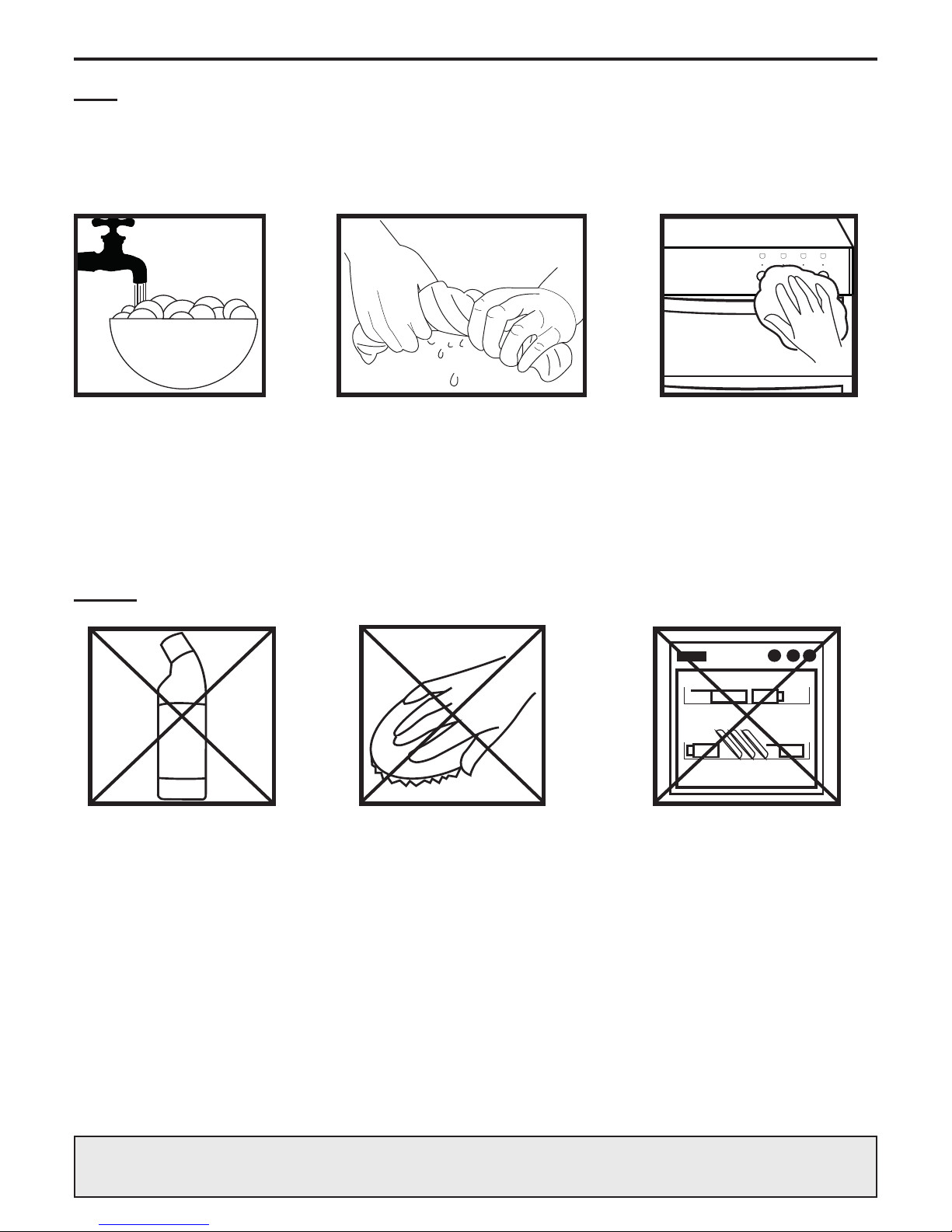

CLEANING YOUR APPLIANCE
Do’s
Note: Always switch o󰀨 your appliance and allow it to cool down before you clean any part of it.
Note: Please take extra care when cleaning over the symbols on the control panel, as this can lead to
them fading.
H
Tips: Some foods can mark or damage the metal or paint work e.g.; Vinegar, fruit juices and salt.
Always clean food spillages as soon as possible.
Dont’s
IT IS IMPORTANT TO CLEAN YOUR APPLIANCE REGULARLY AS A BUILD UP OF FAT CAN
AFFECT IT’S PERFORMANCE OR DAMAGE IT AND MAY INVALIDATE YOUR GUARANTEE.
IN ADDITION TO THE ABOVE, DO NOT USE METAL SCRAPERS TO CLEAN THE OVEN DOOR
GLASS.
• Undiluted bleaches
• Chloride products
• Warm, soapy water • Wipe with damp cloth
• Dry with a soft cloth
• Clean, wring out cloth
• Wire Wool
• Abrasive cleaners
• Nylon pads
• Steam cleaners
Do not place in the
dishwasher:
• Cast iron griddle
• Pan supports
We o󰀨er a great range of cleaning products and accessories for your appliance.
To shop, please visit our website located at the front of this User Guide.

Electric Built In
TECHNICAL DATA
Electrical supply / Load
Appliance Size (cm) Electrical supply Load (kW)
90EF 220 - 240V ~ 50Hz 4.1 - 5.0
90MF 5.0 - 6.0
Forthespecicpowerratingofyourmodel,refertothedatabadgeattherearofyourap-
pliance.
WARNING: This appliance must be earthed.
