Foreword
Thank you for your purchase of this Streacom product, every care has been taken to
ensure that it meets with the high standards that we have set for ourselves.
Should you have any questions that are not covered in this user guide, support can be
offered via email through our website at www.streacom.com
We sincerely hope that you enjoy using our product!
P2 - INDEX

Key Features
1...... Heatsink
2...... Air Vents
3...... Top Panel
4...... Power Switch
5...... Power LED
6...... ODD Loading Slot
7...... ODD Eject Button
8...... IR Window
9...... CPU Cooler Heatpipe
10.... Heatsink Connectors
11.... IO Shield Slot
12.... CPU Cooler
13.... Side USB PCB
14.... IR PCB (Optional)
15.... HDD/ODD Cage
16.... PCI Expansion Slot
17.... DC Power Jack Hole
18.... Power Button PCB
136
45
Specification
Chassis Material
Available Colours
Motherboard Compatibility
HDD Drive Support
ODD Drive Support
Cooling Method
Expansion Ports
Dimensions
Power Supply Support
IR Solution
Net Weight
Aluminum
Silver / Black - Sandblast Finish
Micro ATX, Mini ITX
3 x 2.5" + 2 x 3.5"
Slot loading drive, universal eject button
Passive - 4 x Heatpipe Direct Touch (Recommended 65W TDP*)
2 x Full Height (Riser Card Required)
435 × 319 × 100mm (W×D×H)
Optional NanoPSU DC power
Optional MCE Compatible IR Receiver & Remote
5.4KG
OVERVIEW - P3
8
7
11 12
10 14 15 18
9
16 17
13
2

Removing the Top Panel
The top panel is held in place with 4 screws, 2
each side of the case that are accessible
between the heatsink fins. Remove the screws,
then lift the top panel upwards and away from
the case. There is a recess either side of the
case to make lifting the top panel off easier.
P4 - PREPARING FOR ASSEMBLY
Installing the I/O Shield
Locate the I/O shield that is supplied with your
motherboard and firmly push it in place.
Ensure that it clicks in place fully otherwise the
motherboard will be difficult to fit.

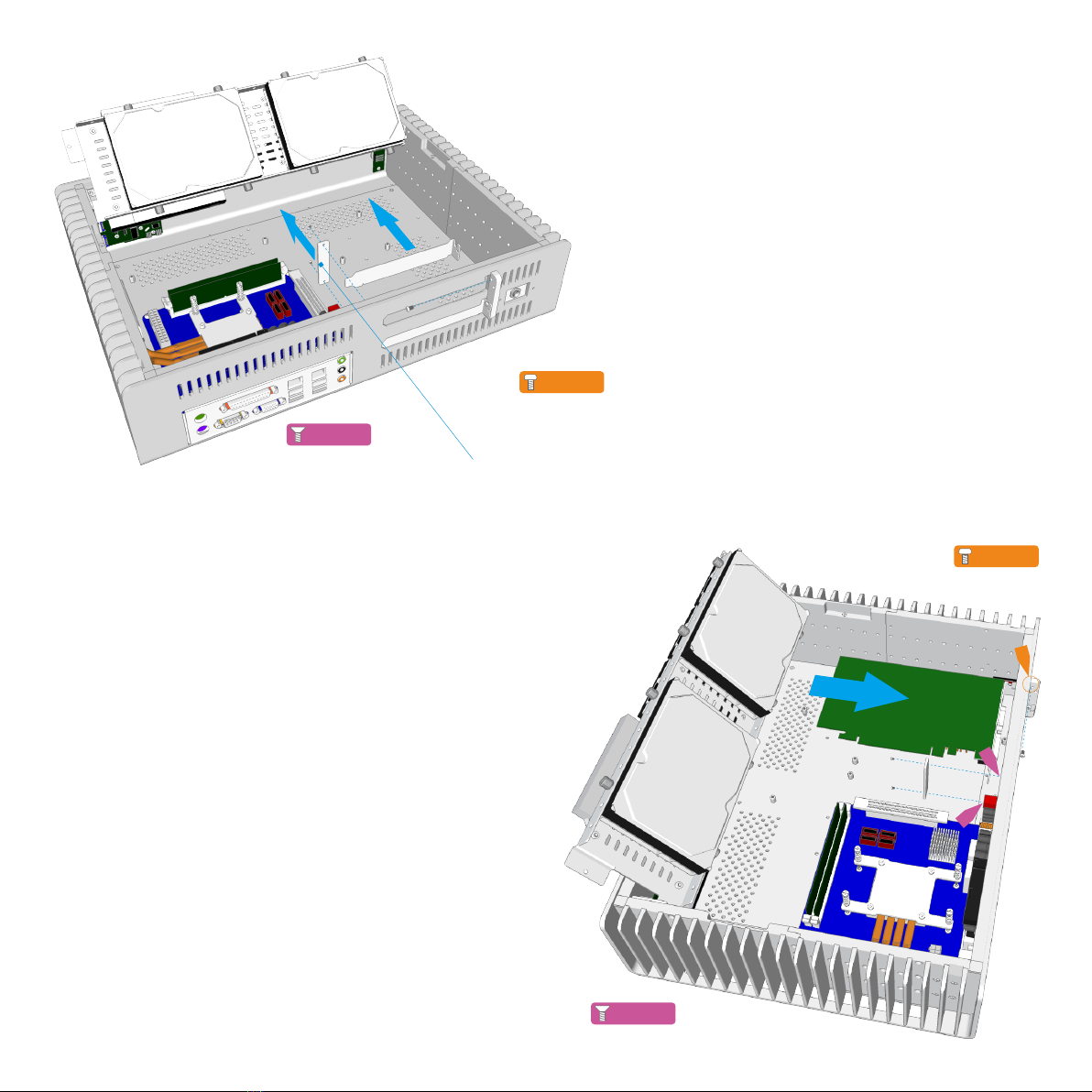

Open the HDD/ODD Cage
The HDD/ODD cage has a swivel design that
tilts upwards towards the front of the case.
Remove the 2 screws, 1 from either side, then
lift and rotate the cage until it makes contact
with the front of the case.
Lift from here
M3 x 5
M3 x 10

mITX
mATX
INSTALLING THE MOTHERBOARD - P5
Installing the Motherboard
The FC10 can accommodate either a mini-ITX
or micro-ATX or Full ATX motherboard. The
type of motherboard used will determine the
choice of other internal components such as
internal PSU. For mATX boards, additional
standoffs can be added to the positions shown
in red.
Fitting the CPU Cooler Mounting Nuts
The kit includes 4 mounting nuts which should be attached to the
motherboard prior to fitting it inside the chassis. The nuts are held in
place by adhesive pads and will be required later to mount the CPU
cooler.
With the motherboard upside down, located the
4 CPU cooler mounting holes. Peel the
protective label off the mounting nuts and stick
them to the underside of the motherboard
ensuring they correctly align with the holes.
The raised rim of the nut should fit inside the
motherboard hole.
CPU Cooler Mounting Nut
Adhesive Pad
Protective Label
mATX
ATX

Fitting the Motherboard
Carefully lower the motherboard into the chassis,
with the I/O port side leading so that the ports can fit
into the I/O shield.
When the motherboard is correctly in position, fix it
to the chassis stand-offs using the screws provided.
Ensure that all the holes correctly align before fully
tightening the screws.

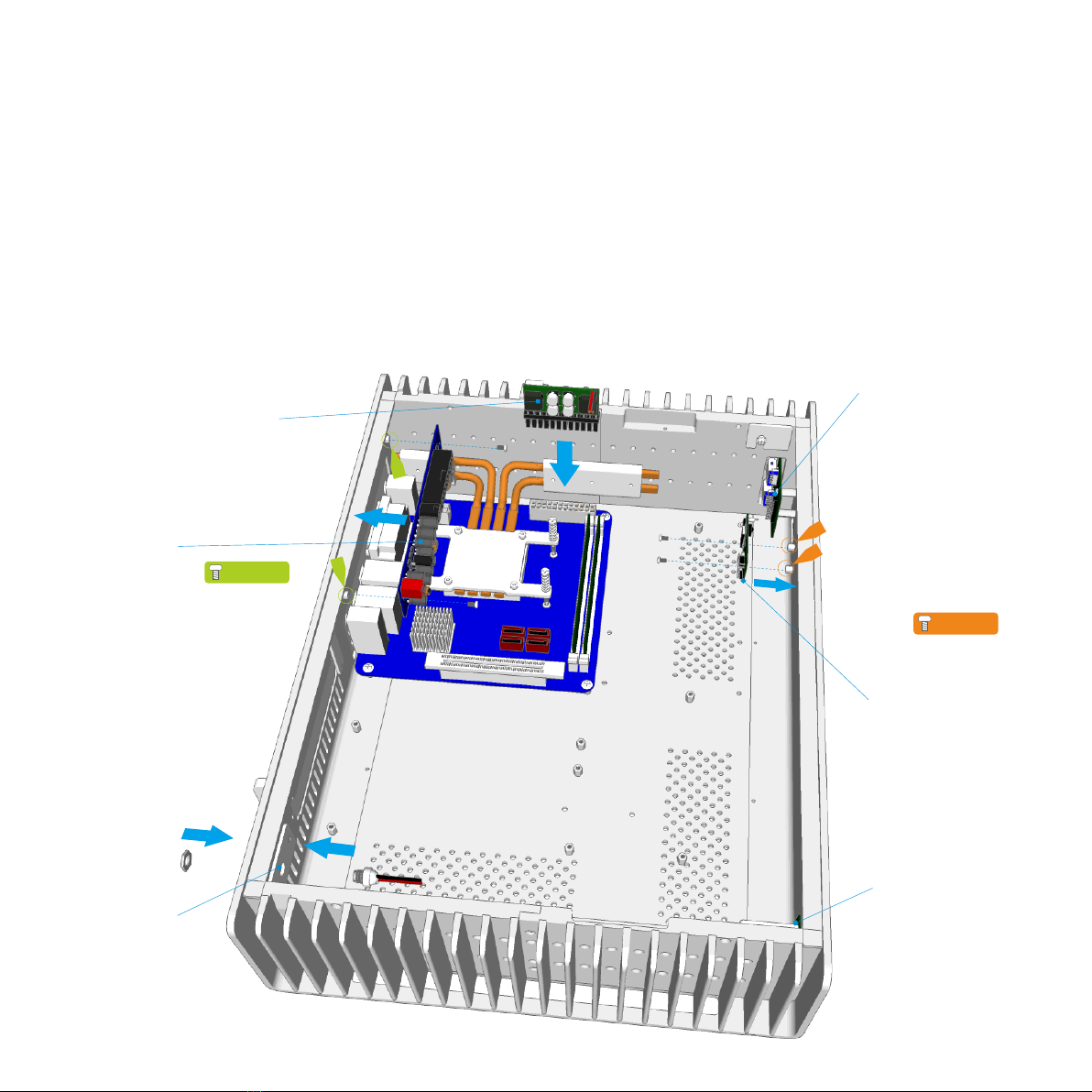

CPU Cooler Overview
The passive CPU cooler comprises of 3 main
parts. The CPU mount which fixes to the CPU &
motherboard, the heat pipes that transfer the
heat, and the heatsink connector blocks that fix
the heatpipes to the chassis side panel
(heatsink).
In order to ensure efficient heat transfer,
thermal paste should be applied to the
surfaces shown. Do not apply the thermal paste
until the parts are ready to be installed.
Heatsink Connector
Blocks
Lower CPU Mount
Upper CPU Mount
® ®
(Intel or AMD type)
Heat Pipes
P6 - INSTALLING THE MOTHERBOARD
M3 x 4

Affix the Lower CPU Mount
Apply a thin and even layer of thermal paste to
the surface of the CPU then carefully position
the lower CPU mount onto the CPU ensuring it
is centrally located. The heatpipe grooves
should be facing in the direction of the
heatsink.
Thermal paste can also be applied to the
heatpipe grooves in perpetration for the next
step.
INSTALLING THE CPU COOLER - P7
Assemble the Upper CPU Mount
Depending on which type of motherboard and
CPU socket you have purchased, you will either
® ®
need to assemble the Intel or AMD type upper
CPU mount. You do not need to assemble both.
The mount is assembled as shown with the long
CPU retention screws, springs and C clips
attached to the outer arms of the mount..
®
AMD Mount
®
Intel Mount

1B
2
Installing the CPU Cooler Assembly
1. Attach the heatsink connector blocks and heatpipes to the chassis. We recommend fitting one side at a
time (pairs of heatpipes). Secure the connector blocks with screws ensuring the heatpipes align and sit
accurately in the grooves of the lower CPU connector. Do not fully tighten the screws.
2. With all 4 heatpipes attached, position the upper CPU connector onto the lower CPU connector,
sandwiching the heatpipes between them and secure upper and lower parts together using the HEX
screws and allen key supplied. Do not fully tighten the screws.
3. Ensuring the 4 spring loaded screws correctly align with the CPU cooler mounting nuts (you installed
earlier under the motherboard), carefully tighten each screw (one turn each side, alternating sides) until
fully secured. You can now fully tighten all the screws.
Warning! Do not forget to use
thermal paste, as this can result
in poor heat transfer and
eventual CPU damage.
P8 - INSTALLING THE CPU COOLER
1A
M3 x 6
M3 x 10

GND
D+
D-
+5V
USBUSB
LED+
L E D -
PWS1
PWS1
LED+
L E D -
PWS2
PWS2
HDD+
HDD-
RESET1
RESET1
NC
Motherboard
Front USB Ports PCB
Chassis Power Switch PCB
Cable colours shown are for illustrative purposes only, actual colours will vary.
GND
D+
D-
+5V
NC/SHIELD
GND
D+
D-
+5V
USB 3.0 Connector
USB 2.0 Connector
WARNING: Never connect USB 2
& USB 3 cables at the same time.
USB 3.0 Cable (Sold Separately)
USB 3.0 Connector
USB 2.0 Cable x 2
WIRING DIAGRAM - P9

Connect the PSU, Optional IR & Other Cables
With the motherboard and CPU cooler in place, you can now connect the PSU and any other internal
connections such as the SATA cables in perpetration for installing the optical and hard drives. For
more details on installing the PSU and IRRC, see the user guides supplied with those accessories.
Connect the front USB ports and the power button switch to the motherboard. As the majority of
current motherboard do NOT support an INTERNAL USB3.0 header, this case is only supplied with
the USB2.0 cable. Customers that do purchase a USB3.0 compatible motherboard must purchase the
internal USB3.0 cable separately. See diagram on next page for wiring details.
Power
Button
USB2.0 & 3.0
Connectors
Optional
IRRC
Nano150
DC Jack
Nano180
M3 x 4
M3 x 4
P10 - INSTALLING PSU & CABLES

Installing the Hard Drives
The FC10 can hold 3 x 2.5" drives and 2 x 3.5". The 2.5" drives should be fitted first using 4 screws per
drive. Rubber pads are supplied and should be fitted to the mounting holes prior to fitting the drives.
The 3.5" drives are fitted to the cage using thumb screws either side of the drive. When using a single 3.5",
it can be located anywhere along the cage.
INSTALLING HARD DRIVES - P11
NOTE: You do not need to remove the cage from
the chassis to install the drive. The illustration
is shown without the case for clarity.
M3 x 6
M3 x 5

P12 - FITTING THE OPTICAL DRIVE
Fitting the Optical Drive
Before fitting the slot loading drive, affix a self
adhesive rubber pad (included in the accessory
bag) to the drives eject button. With left side
eject buttons, 2 pads may be required (one on
top of the other to increase the thickness).
The case is supplied with 2 mounting brackets
which fit to either side of the drive (pay attention
to the orientation as each side is different). Use
the 4 short screws supplied to fix the brackets
to the drive.
Self Adhesive
Rubber Pad
With the brackets fitted to the optical drive, you
can now fix it to the cage using 3 screws as
shown. Do not fully tighten the screws as your
will need to adjust the drive position to work
with the eject button.
M2 x 3.5
M3 x 4

Installing PCI Card (Optional)
The FC10 can accommodate 2 full height
expansion cards with the use of a riser card (not
supplied). To install the cards firstly remove the
blanking plate and lower PCI support plate
from the case.
Fit the PCI card into the opening and secure it in
place with the PCI bracket screw. Once both
cards are secured at the top, replace the lower
PCI support plate. You can now connect the
cards to you motherboard using a flexible riser
card.
INSTALLING PCI CARD - P13
Lower PCI Support Plate
M3 x 4
M3 x 4
M3 x 4
M3 x 4

P14 - CLOSING THE HDD/ODD CAGE & ADJUSTING THE OPTICAL DRIVE
Closing the HDD/ODD Cage
With all the components installed, you can now
close the HDD/ODD cage and secure it in place
with 2 screws as shown.
Adjust the Optical Drive
Ensure the HDD/ODD is securely fixed then
adjust the position of the optical drive so that it
makes light contact with the eject button bar.
You can test the operation of the eject button by
pressing the case eject button and listening or
feeling for a click from the optical drive button.
Once correctly adjusted, secure the drive in
place with the 3 screws as shown.
M3 x 5
M3 x 4

REPLACING THE TOP PANEL - P15
Replace the Top Panel
With all the components installed, the chassis
can now be closed. Prior to doing this, ensure
that all cables are connected and all
components are securely fitted. Replace the
top panel and secure it in place using 4 screws,
2 from either side of the case, between the
heatsink fins.
Connect Power & Other Cables
With the chassis now fully assembled, all that remains is to connect the
power and other cables.
When choosing a suitable place to position your chassis, please consider an
area with adequate air flow and a moderate room temperature.
M3 x 10

Melbournestraat 56,
3047 BJ Rotterdam,
The Netherlands
www.streacom.com V1.12.09
