Stromtank S 2500 User manual
TABLE OF CONTENTS
1
OWNER‘S MANUAL
S2500
TABLE OF CONTENTS
3
FOREWORD
Congratulations! You are about to install and use a device
from the Stromtank range. You have chosen a high-tech de-
vice that will play a central role to hear the excellent quality
of your audio components. Stromtank has been designed
to separate your hi-system completely from the grid to
supply clean, undisturbed grid power to achieve the next
level of music quality with your hi-system.
Time to make the best of
what you already own.
4
PRECAUTIONS
Important safety instructions. Read carefully and keep for future reference!
Persons not holding written authorisation from manufacturer are not permitted to proceed
with any change, modication or repairs that may be required. Only original parts may be used
for authorised modications or replacements.
The Stromtank is only designed for indoor use and must under no circumstances be subjected
to rain, snow or other humid or dusty conditions. The maximum specications of the device
shown on the type plate must be adhered to.
The weight of the Stromtank can be up to 265 Ibs /125 kg depending
upon the model. Use an appropriate lifting method as well as help from a
third party when installing the equipment.
When the Stromtank is running, it generates voltage that can be potenti-
ally lethal. Work on or close to the installation must only be carried out by
thoroughly trained and qualied personnel. Do not attempt to carry out
on-going maintenance of this product yourself. There are NO USER SER-
VICEABLE PARTS INSIDE the unit. Do not open the chassis or remove any
of its screws. In case of any service needs contact your Stromtank dealer.
When working on the electrical installation, it is important to be certain
that the source of DC voltage coming from the battery as well as the sour-
ce of AC voltage coming from a generator or electric circuit have been
disconnected from the electrical installation.
Even when the Stromtank has been disconnected from the supply sour-
ces (AC and DC), a dangerous voltage may remain at the outputs. To eli-
minate this risk you must switch the Stromtank OFF using the ON/OFF
button. After 10 seconds the electronics are discharged and interventi-
on may take place without any danger. All elements connected to the
Stromtank must comply with the applicable laws and regulations.
2
PRECAUTIONS
Important safety instructions. Read carefully and keep for future reference!
Persons not holding written authorisation from manufacturer are not permitted to proceed
with any change, modication or repairs that may be required. Only original parts may be used
for authorised modications or replacements.
The Stromtank is only designed for indoor use and must under no circumstances be subjected
to rain, snow or other humid or dusty conditions. The maximum specications of the device
shown on the type plate must be adhered to.
The weight of the Stromtank can be up to 265 Ibs /125 kg depending
upon the model. Use an appropriate lifting method as well as help from a
third party when installing the equipment.
When the Stromtank is running, it generates voltage that can be potenti-
ally lethal. Work on or close to the installation must only be carried out by
thoroughly trained and qualied personnel. Do not attempt to carry out
on-going maintenance of this product yourself. There are NO USER SER-
VICEABLE PARTS INSIDE the unit. Do not open the chassis or remove any
of its screws. In case of any service needs contact your Stromtank dealer.
When working on the electrical installation, it is important to be certain
that the source of DC voltage coming from the battery as well as the sour-
ce of AC voltage coming from a generator or electric circuit have been
disconnected from the electrical installation.
Even when the Stromtank has been disconnected from the supply sour-
ces (AC and DC), a dangerous voltage may remain at the outputs. To eli-
minate this risk you must switch the Stromtank OFF using the ON/OFF
button. After 10 seconds the electronics are discharged and interventi-
on may take place without any danger. All elements connected to the
Stromtank must comply with the applicable laws and regulations.
2
PRECAUTIONS
When the Stromtank is running, it generates voltage that can be potenti-
ally lethal. Work on or close to the installation must only be carried out by
thoroughly trained and qualied personnel. Do not attempt to carry out
on-going maintenance of this product yourself. There are NO USER SER-
VICEABLE PARTS INSIDE the unit. Do not open the chassis or remove any
of its screws. In case of any service needs contact your Stromtank dealer.
When working on the electrical installation, it is important to be certain
that the source of DC voltage coming from the battery as well as the
source of AC voltage coming from a generator or electric circuit have been
disconnected from the electrical installation.
Even when the Stromtank has been disconnected from the supply sources
(AC and DC), a dangerous voltage may remain at the outputs. To eliminate
this risk you must switch the Stromtank OFF using the ON/OFF button.
After 10 seconds the electronics are discharged and intervention may take
place without any danger. All elements connected to the Stromtank must
comply with the applicable laws and regulations.
The weight of Stromtank S2500 is 135 Ibs / 61 kg. Use an appropriate lifting
method as well as help from a third party when installing the equipment.
Persons not holding written authorisation from manufacturer are not permitted to proceed
with any change, modication or repairs that may be required. Only original parts may be
used for authorised modications or replacements.
The Stromtank is only designed for indoor use and must under no circumstances be sub-
jected to rain, snow or other humid or dusty conditions. The maximum specications of the
device shown on the type plate must be adhered to.
Important safety instructions. Read carefully and keep for future reference!
5
TABLE OF CONTENTS
Unpacking
Front view
Rear view
Rear Panel
Installation / Operation
Display Operation
Remote Control
Advanced Features
Maintenance
Storage
Specictions
Quality and Warranty
6
8
9
10
11
12
12
14
15
15
17
18
Important safety instructions. Read carefully and keep for future reference!
6
UNPACKING
ATTENTION: The weight of Stromtank S2500 is 135 Ibs / 61 kg. Use an appropriate lifting
method as well as help from a third party when installing the equipment.
While the Stromtank is still in its case, please move it to a location near the place where it will
be installed. Remove all jewelry including watches, rings and belts from your person to avoid
damage to the exterior of the Stromtank during removal and installation.
At rst remove the cardboard box. Then carefully unscrew the upper screws (Torx size T25) on
the wooden case [Fig. 1] and remove the top board [Fig. 2].
When unpacking, check that the equipment has not been damaged during transportation
and all items listed below are present. If anything is missing it has to be indicated immedia-
tely to your dealer. Check the packaging and the Stromtank carefully.
Package contents:
✓1 Stromtank unit ✓1 locking key
✓1 pair non-slip gloves ✓1 AC power cord
✓1 warranty card ✓1 owner manual
✓1 microbre cloth
After checking unscrew the screws (Torx size T25) on the front board to open it [Fig. 3].
ATTENTION: Do not hold the Stromtank unit on its front and do not lift it!
Push the unit from the rear side out of the case [Fig 4].
The nish of the Stromtank is extremely delicate. We suggest wearing the supplied gloves
when handling the Stromtank to avoid abrasion or ngerprints caused by oils from the skin,
etc.
Place the Stromtank on a level surface with an adequate ventilation. Make sure the surface
that will support this component can safely hold its weight of 135 Ibs / 61 kg. There should be
at least 3 inches of clearance space on each side and 3 inches of clearance at the top as well
as above the unit.
Remove the cloth that covers the Stromtank to protect its nish. Save the cloth in the box to
use it again if you ever need to ship the Stromtank.
7
1
3
2
4
8

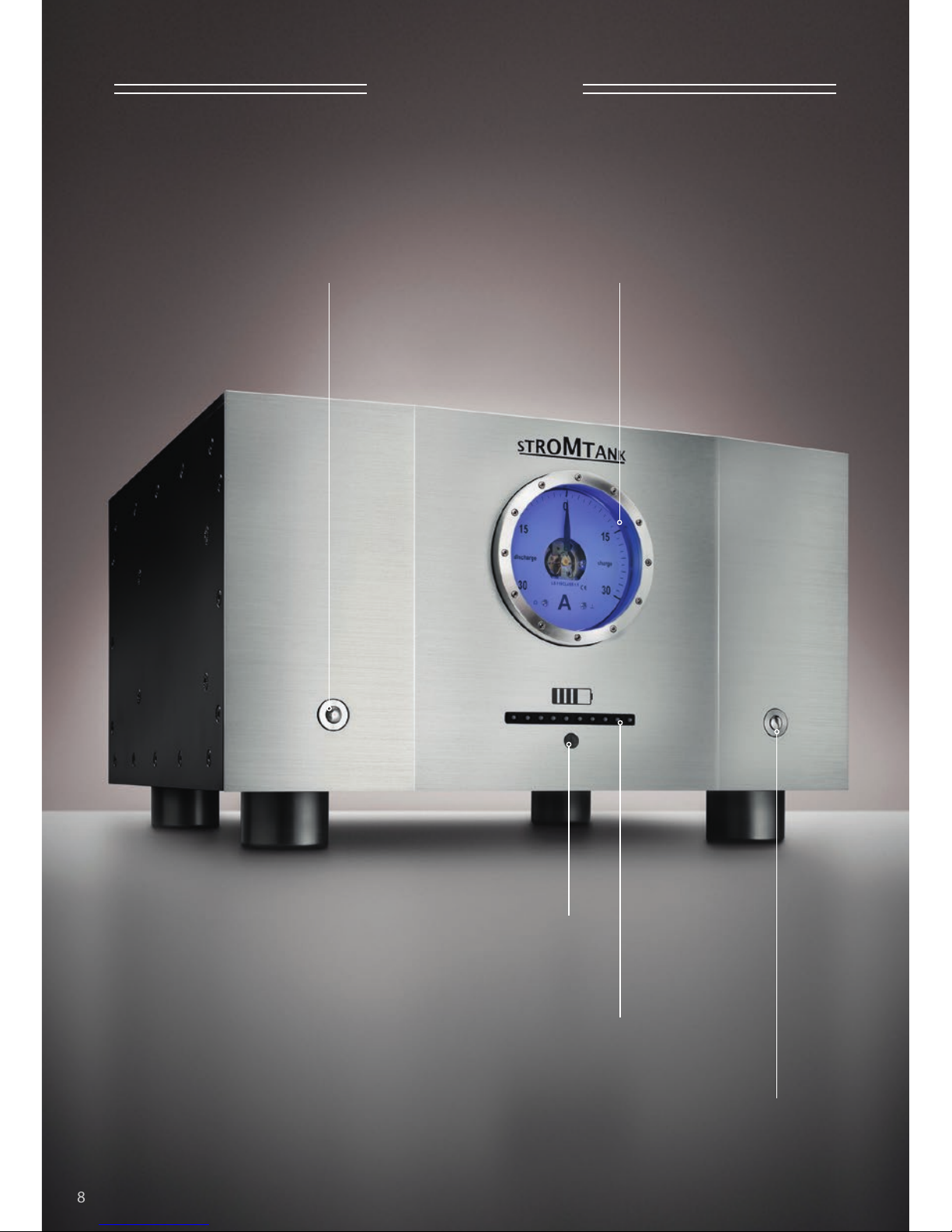

FRONT VIEW

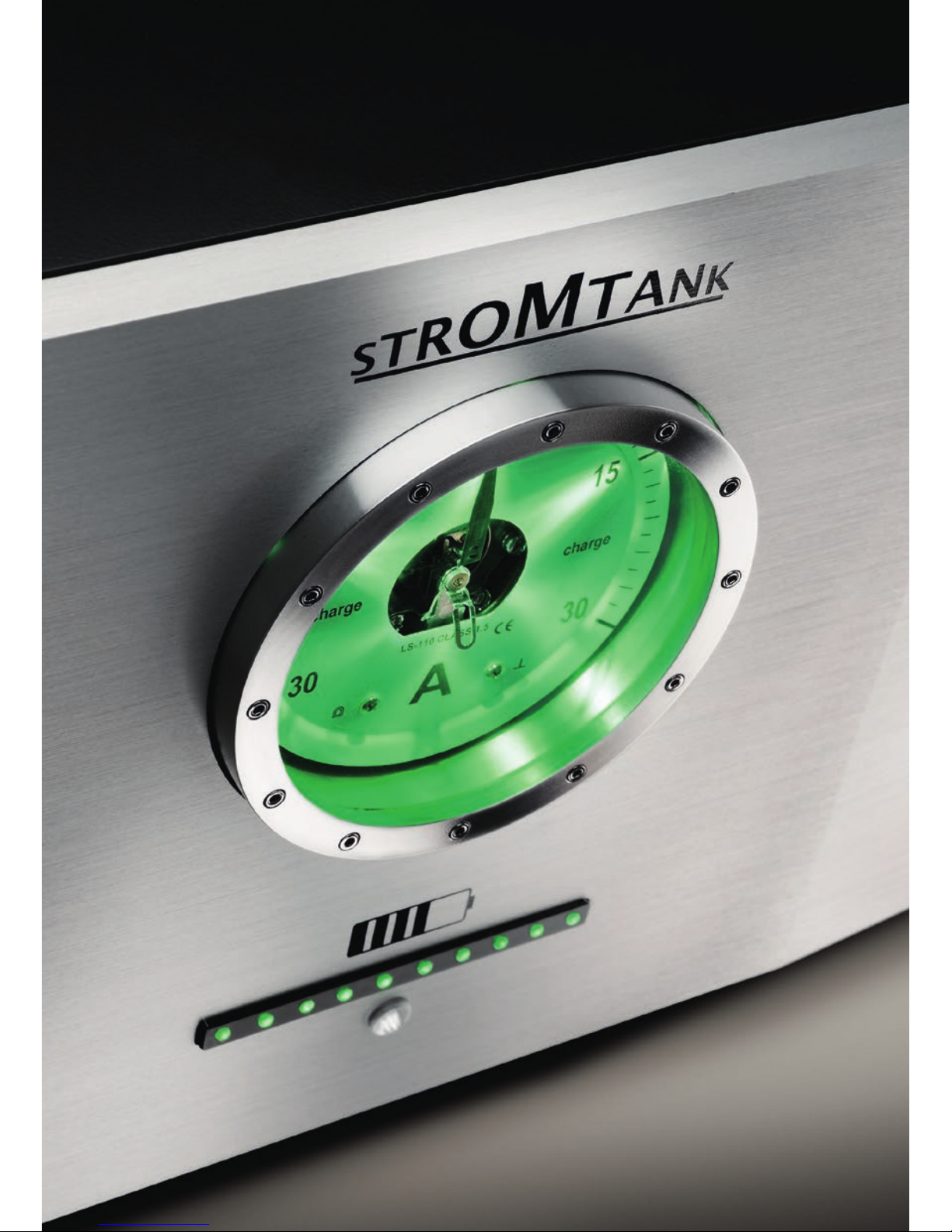

ampere meterON-grid / OFF-grid button
LED (lighting red when disconnected from grid)
LED bargraph (charge indicator)
brightness switch
8
9
REAR VIEW
connecting plate lock / unlock for transport safety
9
10

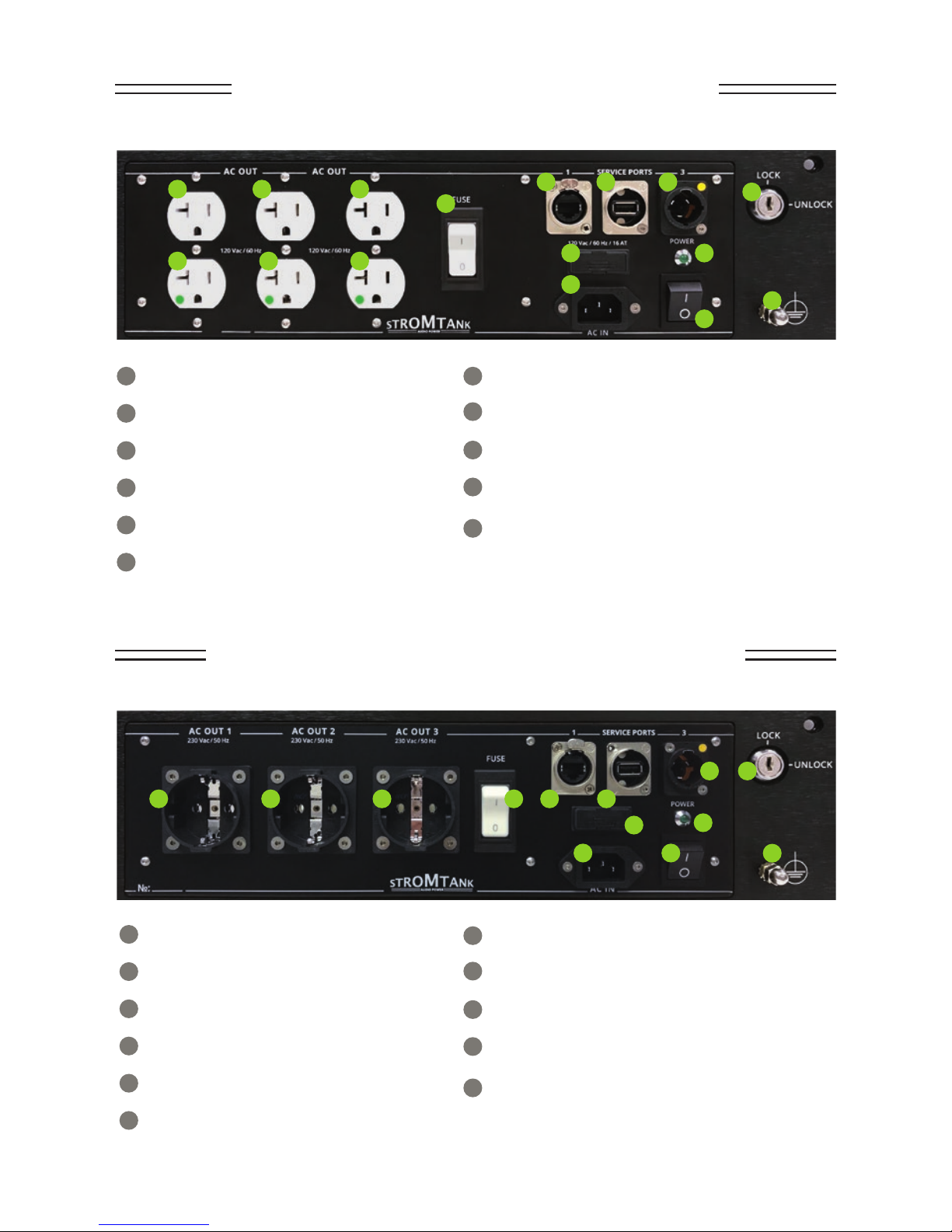

REAR PANEL – HUBBEL DUPLEX
REAR PANEL – SCHUCKO SOCKETS
power indicator
AC input
main switch ON / OFF
lock / unlock for transport safety
ground terminal
thermal magnetic fuse
converter port
BMS port
emergency charge input
AC outlets
fuse (10A - 230V/16A-120V
slow blowing)
7
8
9
10
11
1
2
3
4
5
6
6
6
8
8
5
2
2
555
5
1
111
55
3
3
4
4
7
7
9
9
11
11
10
10
power indicator
AC input
main switch ON / OFF
lock / unlock for transport safety
ground terminal
AC outlets
thermal magnetic fuse
converter port
BMS port
emergency charge input
fuse (10A - 230V/16A-120V
slow blowing)
7
8
9
10
11
1
2
3
4
5
6
11
INSTALLATION / OPERATION
Before you start with the installation take care that no audio parts are connected with the
Stromtank and the unit is not connected with the electric circuit.
To install the Stromtank and connect it with your audio equipment please follow the steps in
order.
1. Make sure that the position of the main switch at the rear is in OFF position.
2. Connect the AC input with a power cord to the next available grid outlet.
ATTENTION: Never connect Stromtank’s AC input with its AC outlets. This will cause
damage to the unit!
3. Insert the supplied key into the key switch, turn it into a horizontal position and remove
the key from the switch.
4. Push the main switch at the rear in ON position. The green LED above must light up now.
After a few seconds the ampere meter at the front is illuminated by a blue light.
5. Plug your audio AC cords into the AC outlets. It is important to make certain that all audio
units are in OFF position. For best sound results we recommend a cable length of AC-out
power connection between STROMTANK and hi equipment of max. 5 meters.
6. Switch on the fuse switch next to the AC outlets.
7. Turn on your connected audio equipment. ATTENTION: One after the other!
8. To select pure power OFF-grid mode and enjoy best music with stable AC amplitude, pure
sinewave and crystal controlled frequency push the left button at the front and the light of
the meter will change to a green illumination. Or go to grid mode (switch left button again)
for charging and on-grid music listening.
Turn on your audio system. To hear the best quality of your audio components it is recom-
mended to start with OFF-grid mode. This allows Stromtank to warm-up and shakedown the
system.
ATTENTION: Stromtank must always be connected with the ground of the power cord.
power indicator
AC input
main switch ON / OFF
lock / unlock for transport safety
ground terminal
12
DISPLAY OPERATION
REMOTE CONTROL

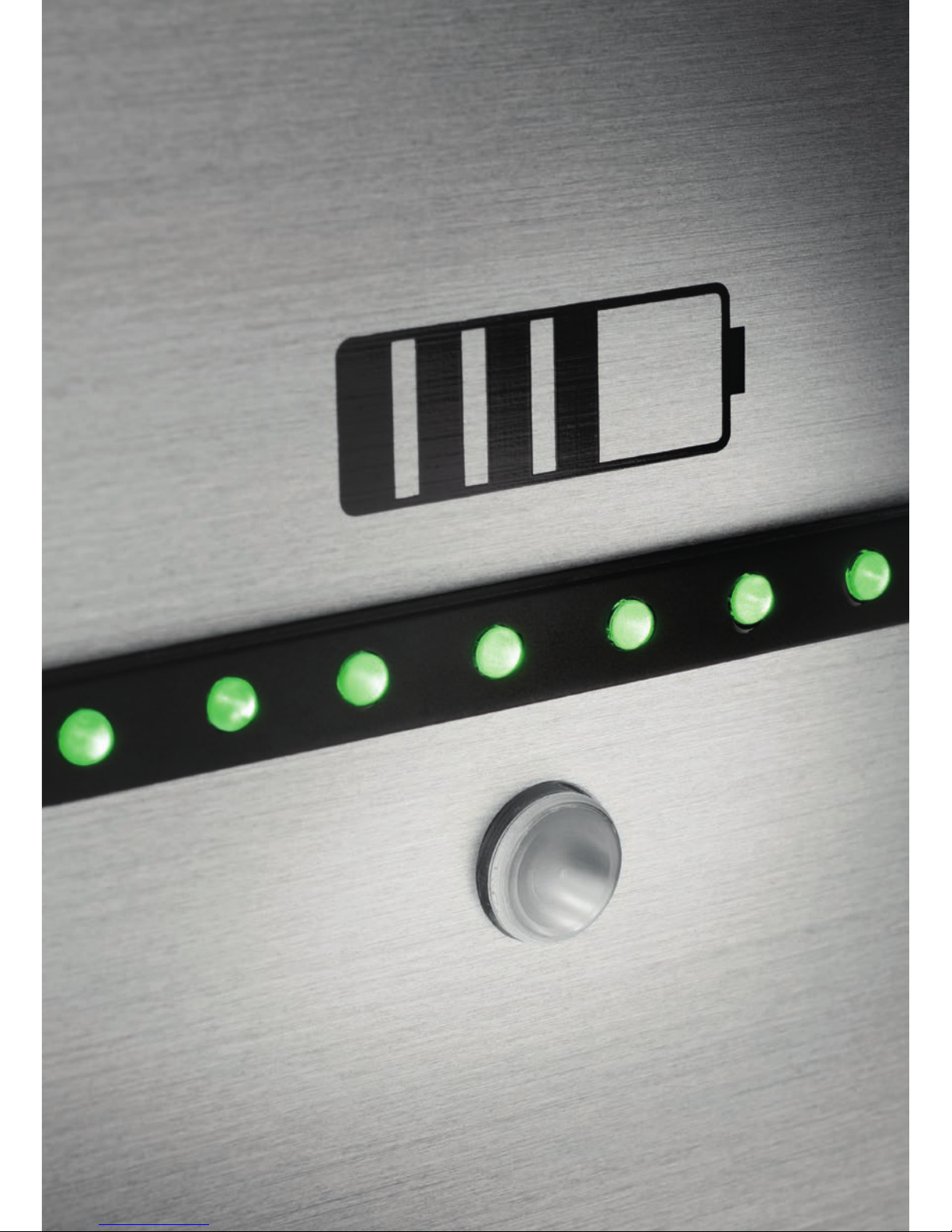

The LED bargraph at the front of Stromtank indicates the state of charging in 10 steps from 10 %
up to 100 %. When all 10 indicators are illuminated the unit is fully charged (100 %). If only one
indicator is shown the unit is nearly empty (state of charging: 10 %).
If Stromtank operates in battery-mode (green) and reaches a rest capacity of 10 % it automati-
cally switches back to blue mode (grid) charging the batteries. In an area up to 20% battery
capacity it is not possible to switch the unit manual back to battery-mode (green). If you are
not doing any activity the charging process goes on until the unit is fully charged and stops
automatically when the capacity reaches 100%.
This “security function” ensures that the battery cannot totally be discharged, e.g. if you forget
to switch the unit to charging-mode after a music session.
ATTENTION: Do not forget to switch back to ON-grid mode for charging the batteries.
If the you see a red lighting LED at the front check that the AC-in power cord of Stromtank
is connected properly to the electric circuit. The red LED also indicates that the AC-in fuse is
blown.
switch button ON-/OFF-grid brigthness control
12
1
2
13
14
ADVANCED FEATURES
Stromtank - Inverter
The Stromtank is equipped with a high-performance inverter, which supplies a perfect and
very precise sine wave. Any unit designed for the 230V –50 Hz / 115V – 60Hz electric circuit can
be connected to it without any problem, up to the rated power out of the Stromtank. The
Stromtank is protected against overloads and short-circuits.
Thanks to the largely over-dimensioned performance level, loads up to three times higher
than the Stromtank’s rated power can be faultlessly supplied for short periods (3 sec) of use,
thus allowing the load to be started up without any problem.
Automatic Load Detection (Load Search)
In order to save battery energy, the Stromtank stops and automatically goes into load search
mode when the detected load is lower than the sensitivity (2,5W). It automatically goes back
into operation when a power consumer greater than this value demands it.
In load search mode (standby), the system will thus consume minimal power from the battery.
Hybride Mode
In this mode the current taken on AC-Input is a sinusoid in phase with voltage. That means only
active power is taken from the generator. The Stromtank compensates harmonics and reactive
current from the source.
This function also avoids fast speed change on the generator due to loads jump.
Battery Undervoltage Protection
Stromtank switches o the AC-output group automatically in case the batteries reach under-
voltage level. Before it will be switch o there will be an acoustic alarm signal for approx. 1 mi-
nute. If the red LED at the front is lighting check if Stromtank is connected by AC-in power cord
to the electric circuit. When the red lighting of the LED at the front disappears the charging
mode started (front meter shows charge current). If the connection works and the red LED is
still on check the AC-input fuse.
15
MAINTENANCE
STORAGE
The Stromtank requires no user maintenance other than to keep it clean. Like a piece of furni-
ture the Stromtank has a ne, highly polished nish that can be easily damaged. Do not rub or
polish the nish and do not allow objects to come in contact with it.
To clean the Stromtank rst unplug the unit from the electric circuit. To wipe o ngerprints
and other grease spots spray a small amount of mild detergent dissolved in water onto the
supplied microber cloth and gently wipe the surface with the close.
Caution! The cloth must never be dripping wet! If water or other uids enter the cabinet, you
risk damaging the unit. Do not spray any liquid directly onto the Stromtank.
Never use scouring pads, steel wool, scouring powders or harsh chemical agents, alcohol, thin-
ners, benzine, insecticide or other volatile substances, as these can permanently scratch and
destroy the surface.
If you need to transport or ship the Stromtank, make sure to use the original packing material.
Allow the unit to cool down for at least one hour before you wrap or package it.
The equipment must be stored in a dry environment at an ambient temperature of between
10 °C (50 °F) and 45 °C (113 °F.)
16
17
SPECIFICATIONS
Input AC parameters on grid
Input voltage range 200 – 240 Vac or 90 – 130 Vac
Input frequency 45 to 65 Hz (auto sensing)
Input current max. 16 Aac (transfer relay)
Output AC parameters o grid
Output voltage 210 – 240 Vac or 100 – 130 Vac (pure sine wave +/- 2 %)
Output frequenzy 50 Hz/ 60 Hz +/- 0.05% (crystal controlled)
Harmonic distortion < 2%
Continues power @ 25°C 550 VA
Power 3 sec. @ 25°C 2,500 VA
Battery power unit
Battery type LFP - Lithium Iron Phosphate (LiFePO4)
Nominal battery voltage 48 / 50 Vdc
Nominal capacity 100 Ah
Terminal area
AC output receptacles 3x Furutech high performance schuko sockets
3x Hubbell duplex, Hospital spec. grade
AC output fuse 2x thermal – magnetic circuit breaker
AC input connection ICE 320 - C14 (fuse 10AT / 16 AT*)
Interface converter, BMS*, emergency Charger*
* only for use with Stromtank software and charger
Design and specications are subject to change without notice.
18
QUALITY AND WARRANTY
During the production and assembly of the Stromtank, each unit undergoes several professio-
nal checks and tests. These are carried out with strict adherence to the established procedures.
Each Stromtank owns a serial number allowing complete follow-up on the checks, according to
the particular data for each device. For this reason it is very important never to remove the type
plate which shows the serial number. The manufacture, assembly and tests for each Stromtank
are carried out in their entirety by its factory in Germany. The warranty for this equipment
depends upon the strict application of the instructions appearing in this manual.
Exclusion of warranty
No warranty claims will be accepted for damage resulting from handling, usage or pro-
cessing that does not explicitly appear in this manual. Cases of damage arising from the
following causes are notably excluded from the warranty:
• Surge voltage on the battery input
• Incorrect polarity of the battery
• The accidental ingress of liquids into the device or oxidation resulting from condensation
• Damage resulting from physical or mechanical shocks
• Modications carried out without the explicit authorisation of manufacturer
• Nuts or screws that have not been tightened suciently during the installation or
maintenance
• Damage due to atmospheric surge voltage (lightning)
• Damage due to inappropriate transportation or packaging
• Disappearance of original marking elements
19
Exclusion of liability
The placement, commissioning, use, maintenance and servicing of the Stromtank cannot
be the subject of monitoring by manufacturer. Therefore, we assume no responsibility and
liability for damage, costs or losses resulting from an installation that does not conform to
the instructions, defective functioning or decient maintenance. The use of a Stromtank is the
responsibility of the customer in all cases.
Manufacturer shall in no event be liable for consequential, incidental, contingent or special
damages, even if having been advised of the probability of such damages. This equipment is
neither designed nor guaranteed to supply installations used for vital medical care nor any
other critical installation carrying signicant potential damage risks to people or the environ-
ment.
Manufacturer assumes no responsibility for the infringement of patent rights or other rights of
third parties that result from using the Stromtank.
Manufacturer reserves the right to make any modications to the product without prior
notication.
Made in Germany
© 2017 stromtank.com. All rights reserved.
Table of contents
Other Stromtank Power Supply manuals
