ASSEMBLY INSTRUCTIONS
RHINO CART KICK TURNTABLE - TKT4020
TABLE OF CONTENTS:
• Specifications
• Part List
• Assembly Instructions
• Maintenance
• Safety
• Limited Warranty
SPECIFICATIONS
PN Tabletop Size Tabletop
Thickness
Hole
Diameter Grid Pattern Load
Capacity Weight
TKT4020 20" x 20"
508 x 508 mm
0.472"
12 mm
0.625"
15.88 mm
2" x 2"
50.8 x 50.8 mm
55 lb
25 kg
55 lb
25 kg
Assembly Instructions RHINO CART KICK TURNTABLE
PN: TKT4020
PART LIST
Unpack all parts and components and compare them to the parts list below. Read all assembly instructions before
beginning assembly. Pre-assembled parts might need some adjustment.
No. Item Name Qty. No. Item Name Qty.
A Receiving Tube Mount/Adapter 1 H Rotating Shaft Assembly 1
B Turntable Connecting Tube 1 I Foot Turntable w/ Straight Coupler 1
C Turntable Extension Arm 1 J Socket Head Screw M16 x 80 2
D Steel Tabletop, 20" x 20" 1
K
Nut M16 2
E Socket Head Screw M6 x 16 8 Flat Washer 2
F Jack Screw M5 x 12 1 Spring Washer 2
G Socket Head Screw M5 x 16 1 L Flat Head Screw M10 x 30 2
A
B
C
D
E
F
G
H
I
J
K
L
Assembly Instructions RHINO CART KICK TURNTABLE
PN: TKT4020
Tools required for assembly: Allen wrench, Phillips screwdriver and Pliers.
1 2
3 4
Use two Flat Head Screws (L) to affix the
ReceivingTube Adapter (A) on the Rhino Cart.
L
A
B
JA
Slide ConnectingTube (B) intoTube Adapter
(A) and align the holes before locking with
Screw (J), Nuts and Washers (K).
C
B
K
J
Slide Extension Arm (C) into Connecting
Tube (B), algin the holes and lock them with
Screws (J), Nuts and Washers (K).
Lock the SteelTabletop (D) onto Extension
Arm (C) with eight Screws (E).
D
C
E
K
Assembly Instructions RHINO CART KICK TURNTABLE
PN: TKT4020

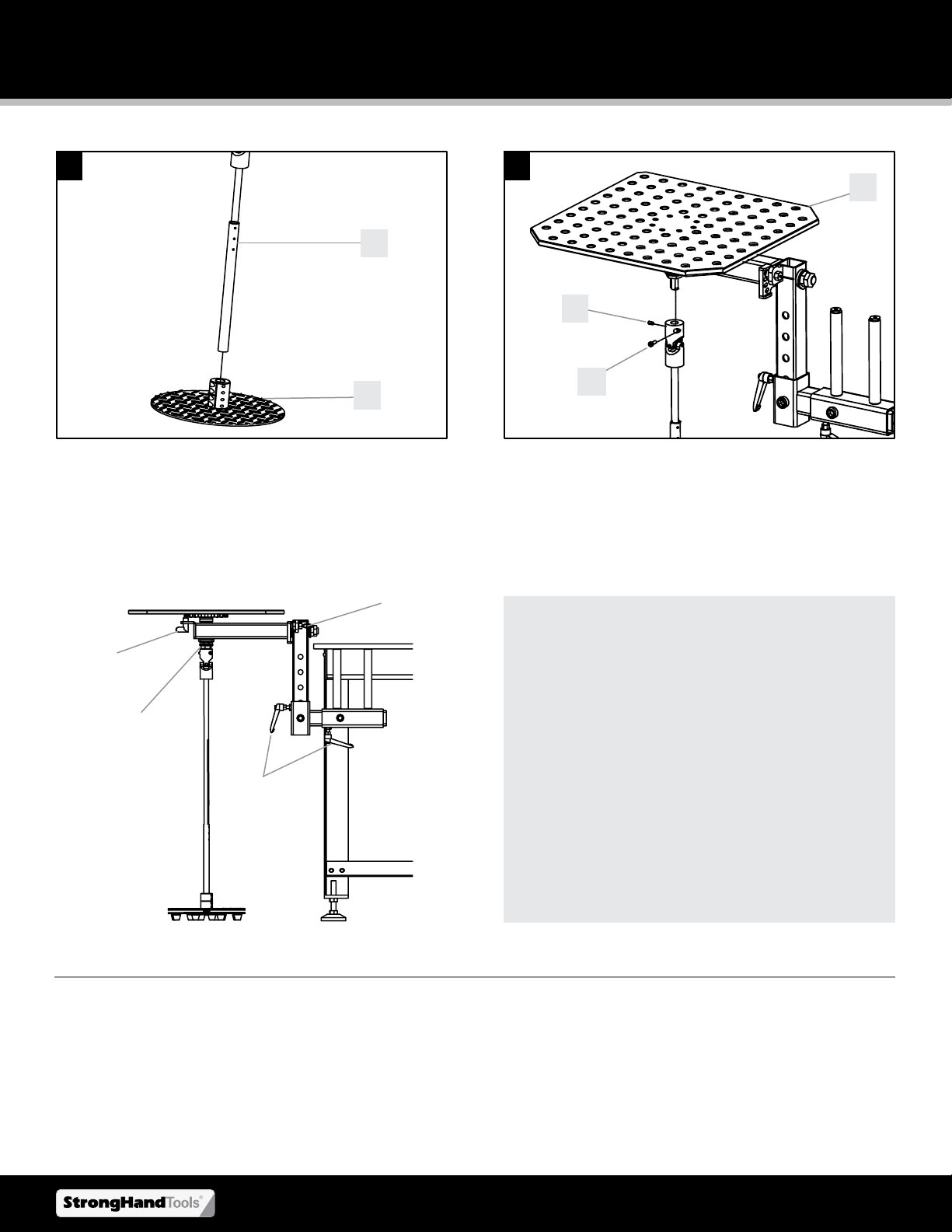

5 6
Install the Rotating Shaft Assembly (H) onto
the coupling on the FootTurntable (I).
Install the FootTurntable Assembly by
connecting the swivel coupling to the bottom
of theTabletop (D), then tighten Screws (F) &
(G) to secure coupling into place.
H
I
D
Loosen / tighten the Handle Screw
to adjust the height and extension of
the tabletop.
Tighten the Nut to adjust the rotation
tension / resistance of the tabletop.
Tilt the tabletop at 0°, 15°, 30°, and
45° by adjusting theTilt Locking Pin.
Lock the rotation angle of the
tabletop with the Rotary Locking Pin.
F
G
MAINTENANCE
Keep the Rhino Cart KICK Turntable clean
for optimal performance. Wipe away dust
and debris from the tabletop and legs.
SAFETY
ALWAYS wear safety goggles,
gloves, and other appropriate
safety items for protection.
LIMITED WARRANTY
Each STRONG HAND TOOL product is warranted to
be free from defects in material and workmanship.
Return to place of purchase for a replacement if
warranty applies.
Handle
Screw
Rotary
Locking Pin
Tilt Locking Pin
Adjusting Nut
