Structured Cable Products 960 User manual
HDMI EXTENDER OVER 5 COAXIAL CABLE
PART #960
OPERATING INSTRUCTIONS
HDMI EXTENDER OVER 5 COAXIAL CABLES PART# 960
2
Benets from using SCP’s 960:
1) The length of a HDMI cable is xed and unchangeable after is produced. The HDMI connector
can only be soldered or terminated by a professional worker in a factory environment. The user can
not reduce or increase the size by themselves if there was need for it. By using coaxial cables this
issue is resolved and length can be adjusted by the user or installer.
2) By using the SCP 960, the transmission distance for 1080P reaches 100 meters. In the
other hand, HDMI cables must be customized when the length reaches over 10 meters.
3) SCP’s HDMI Extender 960 has the ability to auto adjust the buering and amplifying. Series con-
nection oftheSCP960 achievelongdistance transmissionsof HDMI signals.Whentwopairsor more
SCP 960s are stacked together, they can be used to create a larger distribution or daisy chained.
4) The IR system can control the sources from the termination.
The HDMI Extender 960 oers various solutions for its use including digital entertainment centers,
HDTV, retail setups, show/convention sites, HDTV, STB, DVD, Projector factories, data center con-
trol, information distribution centers, conference room presentations, school and corporate training
environments.
Introduction
HDMI EXTENDER OVER 5 COAXIAL CABLES PART# 960 3
Contents
• Product Overview 4
• Features 4
• Package Contents 6
• Connections and Operations 6
• Specications 7
• Panel Descriptions 8
• Typical Application 9
• Maintenance 9
• Product Service 9
• Provided Service 9
• Mail-In Service 10
• Warranty 10
• Warranty Limits And Exclusions 10
HDMI EXTENDER OVER 5 COAXIAL CABLES PART# 960
4
FEATURES
PRODUCT OVERVIEW
• Very simple operation of the one pair as a full functional module.
• Use ve coaxial cables to substitute HDMI cable to achieve long distance transmissions.
• Transmission distance reaches up to 100 meters under 1080p video format.
• Auto-adjustment of feedback, equalization and amplication.
• HDMI® High Speed / HDMI v1.3b supported.
• HDCP compliant.
• Each port supports HDMI or DVI inputs.
• LED indicators show power and video signal status.
• ESD protection inside.
• Mounting ears supplied.
• Transfer Infrared control signal together with the HDMI signal.
• Capable of being cascaded.
!
!
HDMI EXTENDER OVER 5 COAXIAL CABLES PART# 960 5
Structured Cable Products reserves the right to make changes in the hardware, packaging
and any accompanying documentation without prior written notice.
Warning:
To reduce the risk of re, electric shock or product damage:
!
!
!
!
!
!
!
!
!
!
!
1. Do not expose this apparatus to
rain, moisture, dripping or
splashing and that no objects filled
with liquids, such as vases, shall be
placed on the apparatus.
6. Clean this apparatus
only with dry cloth.
2. Do not install or place this unit in
a bookcase, built-in cabinet or in
another confined space. Ensure the
unit is well ventilated.
3. To prevent risk of electric
shock or fire hazard due to
overheating, do not obstruct the
unit’s ventilation openings with
newspapers, tablecloths,
curtains, and similar items.
4. Do not install near any heat
sources such as radiators, heat
registers, stoves, or other apparatus
(including amplifiers) that produce
heat.
5. Do not place sources of naked
flames, such as lighted candles, on
the unit.
7. Unplug this apparatus
during lightning storms or
when unused for long
periods of time.
!"!"#$%&'%!%(&!)$*&#!'$#+!
,#$-!.&/01!*234&+!$0!$#!
)/0'(&+!)2#%/'532#36!2%!
)35178!
9. Only use attachments /
accessories specified by
the manufacturer.
10. Refer all servicing to
qualified service
personnel.
HDMI EXTENDER OVER 5 COAXIAL CABLES PART# 960
6
Package Contents
• Main unit. 960-A.
• Main unit. 960-B.
• Mounting ears.
• Operating instructions.
• 2x 5VDC power supply .(One for 960-A,one for 960-2).
• IR TX unit (IR emitter cable) for 960-A.
• IR RX unit (IR receiver cable) for 960-B.
Connections and Operations
1) Connect the HDMI input source ( such as HD-DVD, PS3, STB etc. )into SCP’s 960-A
2) Connect ve coaxial cables to both the outputs of 960-A and inputs of 960-B. Please pay attention
that the right connection of the two cables match the colors.
3) Connect the HDMI output such as HD-LCD, HD-DLP into 960-B.
4) Connect the IR TX UNIT into 960-A IR TX; Connect the IR RX UNIT into 960-B IR RX.
5) DIP switch description.
NOTE: DIP switch from left to right match Position 1, Position 2 in the table below. ON: 1, OFF: 0
Position.1
Position.2
Functions
0
0
Copy EDID from the specific sink (note1)
0
1
1080P stereo (Using Embedded EDID) (note2)
1
0
1080P 5.1 (Using Embedded EDID) (note3)
1
1
1080P 7.1(Using Embedded EDID) (note4)
Note1: In this mode, the EDID data of the sink device such as TV set will be passed to the HDMI source with-
out any changing.
Note2: The extender will use the embedded 1080P-stereo EDID when the DIP switch is in this mode. The
EDID will be 1080P video and stereo audio.
Note3: The extender will use the embedded 1080P-5.1 EDID when the DIP switch is in this mode. The EDID
will be 1080P video and 5.1 audio.
Note4: The extender will use the embedded 1080P-7.1 EDID when the DIP switch is in this mode. The EDID
will be 1080P video and 7.1 audio.
• Attention: Please insert and extract cables gently.
HDMI EXTENDER OVER 5 COAXIAL CABLES PART# 960 7
Operating Temperature Range
-5 to +35°C (-41 to +95 °F)
Operating Humidity Range
5 to 90 % RH (no condensation)
Input Video Signal
0.5-1.0 volts p-p
Input DDC Signal
5 volts p-p (TTL)
Video Format Supported
DTV/HDTV;
1080P/1080i/720P/576P/480P/576i/480i
Output Video
HDMI 1.3+HDCP�repeat the source to
the sink�,support 3D video of HDMI1.4,
support deepcolor.
Output Audio
Support DTS-HD, Dolby-HD�repeat the
source to the sink�
Maximum Transmission
Distance
100m
Power Supply
5VDC
Power Consumption
1.5Watts (Max.)
Dimensions
207mmH!71mmW!24mmD
/1.8’’W!3.3’’H!0.9’’D
Mass (Main unit)
0.8Kgs (Pairs)/1.16lb
IR frequency
30�60KHZ
Specications
NOTE: Specications are subject to change without notice. Mass and dimensions are approximate.
HDMI EXTENDER OVER 5 COAXIAL CABLES PART# 960
8

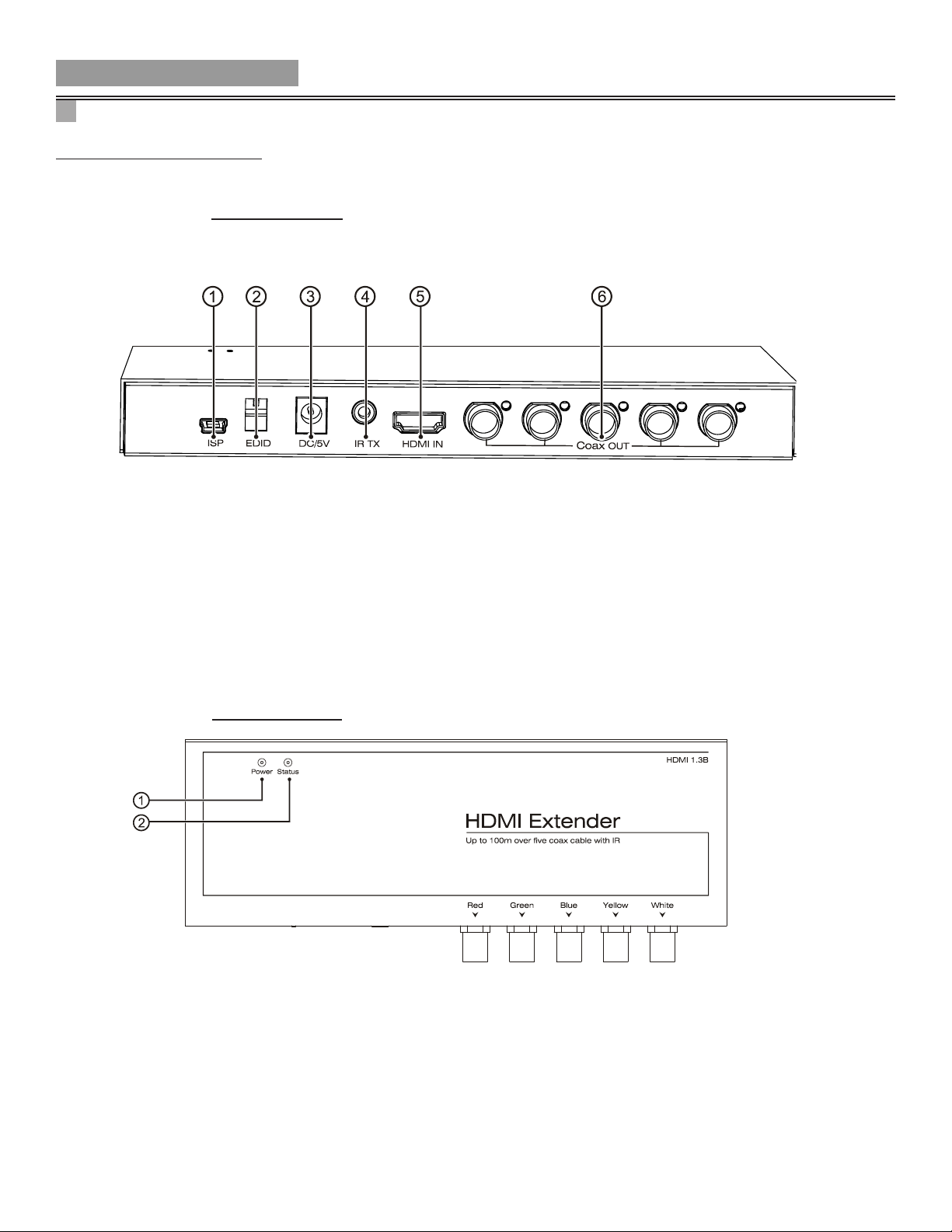

Panel Descriptions
Front Panel
Back Panel
!
!
1- ISP, for update the rmware of the product.
2. DIP switch, for EDID setting.
3. Power input, 5VDC .
4. IR TX output.
5. HDMI input.
6. Coaxial outputs.
1. Status of power input. When power input on, the LED inside lights.
2. Status of signal connection. When this works well, the LED inside lights.
!
!
HDMI EXTENDER OVER 5 COAXIAL CABLES PART# 960 9
Typical Application
Maintenance
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzine to clean this unit.
Product Service
Provided Service
1) Damage Requiring service: The unit should be serviced by qualied service personnel if:
• The DC power supply cord or AC adaptor has been damaged;
• Objects or liquids have gotten into the unit;
• The unit has been exposed to rain;
• The unit does not operate normally or exhibits a marked change in performance;
• The unit has been dropped or the cabinet damaged.
2) Servicing Personnel: Do not attempt to service the unit beyond that described in these operating instruc-
tions. Refer all other servicing to authorized servicing personnel.
3) Replacement parts: When parts need replacing ensure the service uses parts specied by the manufacturer
or parts that have the same characteristics as the original parts. Unauthorized substitutes may result in re,
electric shock, or other hazards.
4) Safety check: After repairs or service, ask the service to perform safety checks to conrm that the unit is in
proper working condition.
HDMI EXTENDER OVER 5 COAXIAL CABLES PART# 960
10
Mail-In Service
When shipping the unit, carefully pack and send it prepaid, adequately insured and preferably in the original
carton. Include a letter detailing the complaint and provide a daytime phone and/or email address where you
can be reached.
If repair is needed during the limited warranty period the purchaser will be required to furnish a sales receipt/
proof of purchase indicating date of purchase, amount paid and place of purchase. Customer will be charged
for the repair of any unit received without such proof of purchase.
Warranty
If your product does not work properly because of a defect in materials or workmanship, Structured Cable
Products, Inc (referred to as “the warrantor”) will, for the length of the period indicated as below, Parts (1)
YearLabor(90) Days which starts with the date of original purchase (“Limited Warranty period”), at its option
either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished prod-
uct. The decision to repair or replace will be made by the warrantor.
During the “Labor” Limited Warranty period there will be no charge for labor. During the “Parts” warranty pe-
riod, there will be no charge for parts. You must mail-in your product during the warranty period. This Limited
Warranty is extended only to the original purchaser and only covers product purchased as new. A purchase
receipt or other proof of original purchase date is required for Limited Warranty service.
Warranty Limits And Exclusions
1) This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES
NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COV-
ER damages which occurred in shipment, or failures which are caused by products not supplied by the
warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplica-
tion, alteration, faulty installation, set-up adjustments, maladjustment of consumer controls, improp-
er maintenance, power line surge, lightning damage, modication, or service by anyone other than
a Factory Service Center or other Authorized Service, or damage that is attributable to acts of God.
2) There are no express warranties except as listed under “limited warranty coverage”. The warrantor is not
liable for incidental or consequential damages resulting from the use of this product, or arising out of any
breach of this warranty. (As examples, this excludes damages for lost time, cost of having someone remove or
re-install an installed unit if applicable, travel to and from the service location, loss of or damage to media or
images, data or other recorded content. The items listed are not exclusive, but are for illustration only.)
3) Parts and service, which are not covered by this limited warranty, are your responsibility.
Thank you for your purchase.
We appreciate your business. Please contact us with any questions or comments you might have.
STRUCTURED CABLE PRODUCTS
6228 Hiatus Road, Tamarac FL 33321 USA
Tel: (954) 327-5770 - Fax: (954) 327-8176
Email: [email protected]om • http://www.scpcat5e.com
