TimeLine - User Manual ®
pg 2

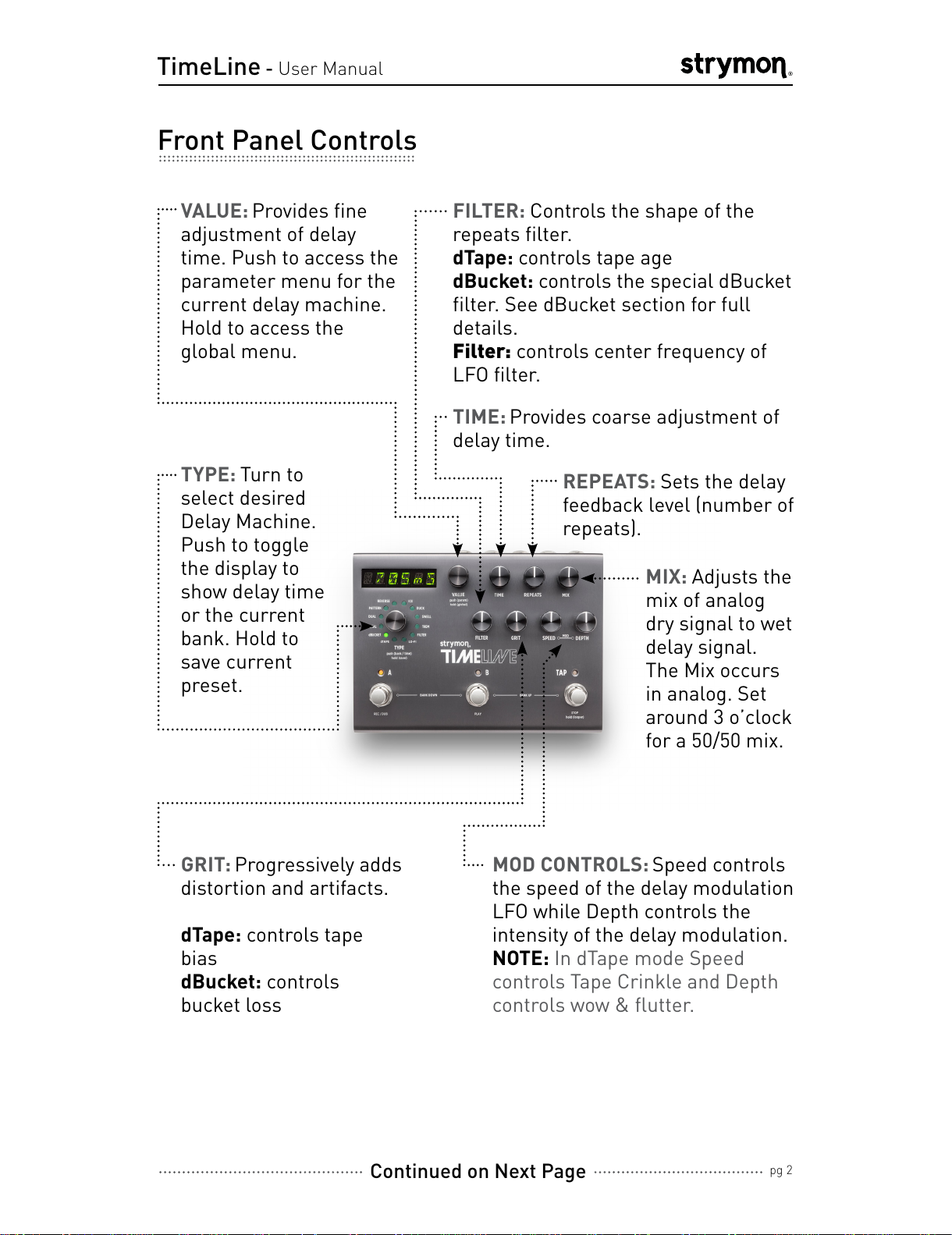

Front Panel Controls
VALUE: Provides fine
adjustment of delay
time. Push to access the
parameter menu for the
current delay machine.
Hold to access the
global menu.
FILTER: Controls the shape of the
repeats filter.
dTape: controls tape age
dBucket: controls the special dBucket
filter. See dBucket section for full
details.
Filter: controls center frequency of
LFO filter.
REPEATS: Sets the delay
feedback level (number of
repeats).
MOD CONTROLS: Speed controls
the speed of the delay modulation
LFO while Depth controls the
intensity of the delay modulation.
NOTE: In dTape mode Speed
controls Tape Crinkle and Depth
controls wow & flutter.
TYPE: Turn to
select desired
Delay Machine.
Push to toggle
the display to
show delay time
or the current
bank. Hold to
save current
preset.
GRIT: Progressively adds
distortion and artifacts.
dTape: controls tape
bias
dBucket: controls
bucket loss
Continued on Next Page
MIX: Adjusts the
mix of analog
dry signal to wet
delay signal.
The Mix occurs
in analog. Set
around 3 o’clock
for a 50/50 mix.
TIME: Provides coarse adjustment of
delay time.
All manuals and user guides at all-guides.com

TimeLine - User Manual ®
pg 3
BANK SELECT: Press A & B
to select a lower bank. Press
B & TAP to select a higher
bank. While the selected bank
is pending it is displayed as
“B.A.N.K.” After the desired
bank is selected, press A or B to
activate a preset from that bank.
FOOTSWITCH A: Press to
engage or bypass preset
A of the current bank.
Hold to activate infinite
repeats.
Looper Active: Activates
record if there is no loop
recorded or clears the
loop and starts recording
if the looper is stopped.
Overdubs if loop is
playing.
FOOTSWITCH B: Press to engage or bypass preset B of the current
bank. Hold to activate infinite repeats.
Looper Active: Starts playing loop. Restarts loop from beginning if
pressed while playing.
TAP: Tap to set the delay time.
Looper Active: Stops loop. Hold to
enter and exit looper.
Front Panel Controls Continued
All manuals and user guides at all-guides.com

TimeLine - User Manual ®
pg 4

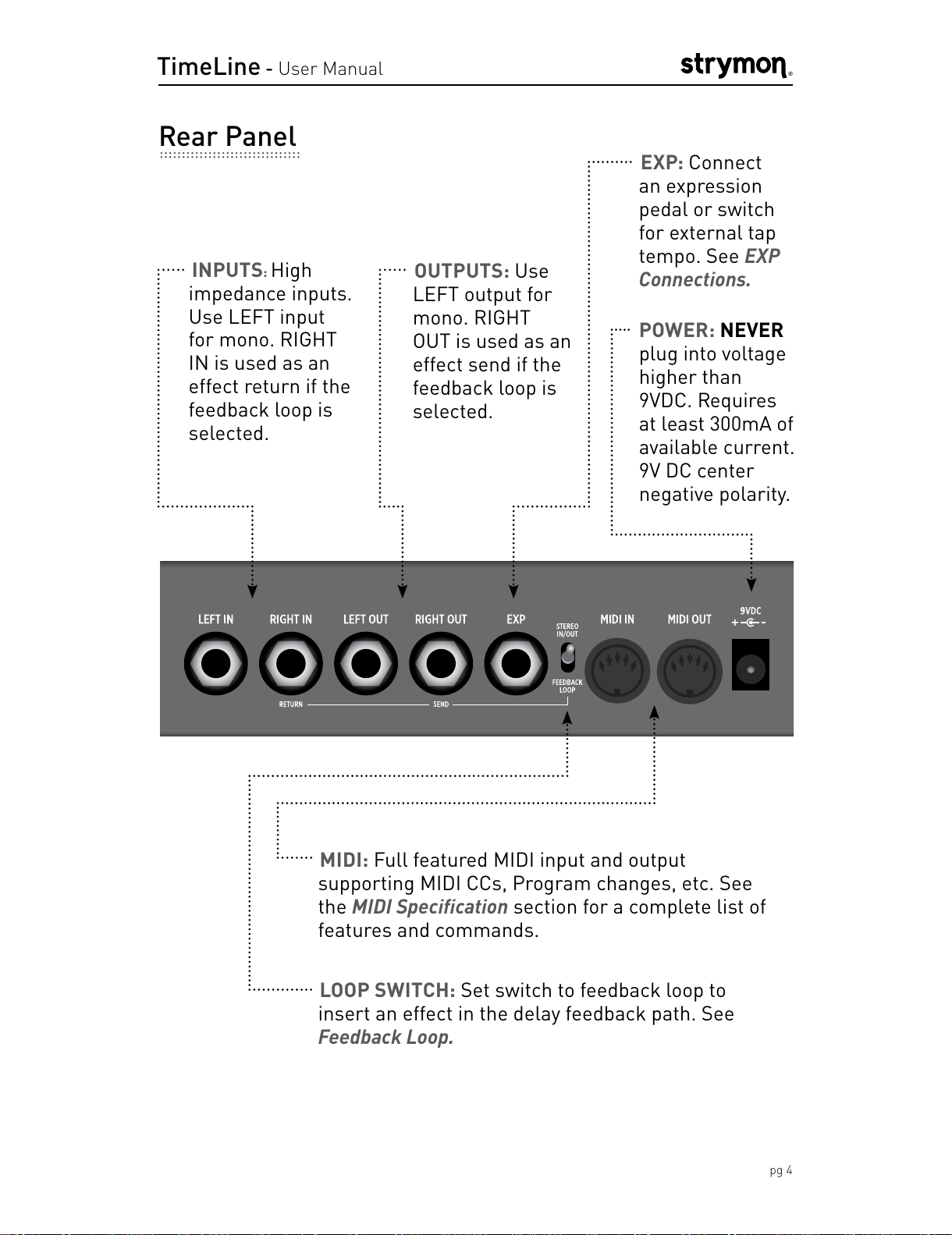

POWER: NEVER
plug into voltage
higher than
9VDC. Requires
at least 300mA of
available current.
9V DC center
negative polarity.
INPUTS: High
impedance inputs.
Use LEFT input
for mono. RIGHT
IN is used as an
effect return if the
feedback loop is
selected.
OUTPUTS: Use
LEFT output for
mono. RIGHT
OUT is used as an
effect send if the
feedback loop is
selected.
Rear Panel
EXP: Connect
an expression
pedal or switch
for external tap
tempo. See EXP
Connections.
LOOP SWITCH: Set switch to feedback loop to
insert an effect in the delay feedback path. See
Feedback Loop.
MIDI: Full featured MIDI input and output
supporting MIDI CCs, Program changes, etc. See
the MIDI Specification section for a complete list of
features and commands.
All manuals and user guides at all-guides.com

TimeLine - User Manual ®
pg 5
The Filter knob works in conjunction with the Grit knob to shape
the fidelity of the repeats. The brightest and cleanest repeats occur
when they are both set at the minimum position. NOTE: The below
descriptions are for the Digital, Dual, Pattern, Reverse, Ice, Duck,
Swell, Trem & Lo-Fi delay machines. To see how the Filter & Grit
knobs work for dBucket and dTape delay machines see their respective
sections.
GRIT: The intensity of the Grit control will depend
on the strength of the input signal. Hotter inputs will
intensify the effect of the Grit knob in all modes. The
volume of the wet signal may change as you increase
the Grit control (getting louder or softer depending
on the input signal strength). Use the MIX knob to
compensate accordingly.
REC / DUB PLAY STOP
TYPE
REVERSE
FILTER
DUAL
DIGITAL
dBUCKET
PATTERN
dTAPE
push (bank / time)
hold (looper)
hold (save)
push (param)
ICE
TREM
DUCK
SWELL
®
LO-FI
VALUE
FILTER GRIT SPEED DEPTH
BTAPA
TIME REPEATS MIX
MOD
BANK DOWN BANK UP
hold (global)
FILTER: At minimum setting, the Filter Function
provides a flat full-bandwidth response. As you turn
the knob up, the repeats get progressively darker.
Around 12:00, the filter is voiced to give an analog
delay EQ curve. The darkest repeats occur with the
Filter knob between 12:00 and 2:00 in these machine
types. As you continue to turn the Filter Knob, the
low end is progressively reduced, and some highs are
added back in to create an EQ curve similar to that of
a Tape delay when the knob is at maximum position.
REC / DUB PLAY STOP
TYPE
REVERSE
FILTER
DUAL
DIGITAL
dBUCKET
PATTERN
dTAPE
push (bank / time)
hold (looper)
hold (save)
push (param)
ICE
TREM
DUCK
SWELL
®
LO-FI
VALUE
FILTER GRIT SPEED DEPTH
BTAPA
TIME REPEATS MIX
MOD
BANK DOWN BANK UP
hold (global)
In Depth: Filter & Grit Controls
All manuals and user guides at all-guides.com

TimeLine - User Manual ®
pg 6
Digital, Dual, Pattern, Reverse,
Ice, Duck, Swell, Trem, Filter
Lo-Fi 2 mS - 2500mS
dBucket (RANGE = SINGLE) 40mS - 400mS
dBucket (RANGE = DOUBLE) 80mS - 800mS
dTape (TAPE SPEED = NORMAL) 60mS - 2500mS
dTape (TAPE SPEED = FAST) 30mS - 1250mS
to toggle the
display between
BANK & TIME
push the
TYPE
encoder
TIME can be displayed
in milliseconds or BPM
based on the MS/BPM
global parameter
Delay Time Ranges & Display
REC / DUB PLAY STOP
TYPE
REVERSE
FILTER
DUAL
DIGITAL
dBUCKET
PATTERN
dTAPE
push (bank / time)
hold (looper)
hold (save)
push (param)
ICE
TREM
DUCK
SWELL
®
LO-FI
VALUE
FILTER GRIT SPEED DEPTH
BTAPA
TIME REPEATS MIX
MOD
BANK DOWN BANK UP
hold (global)
60mS - 2500mS
All manuals and user guides at all-guides.com

TimeLine - User Manual ®
pg 7

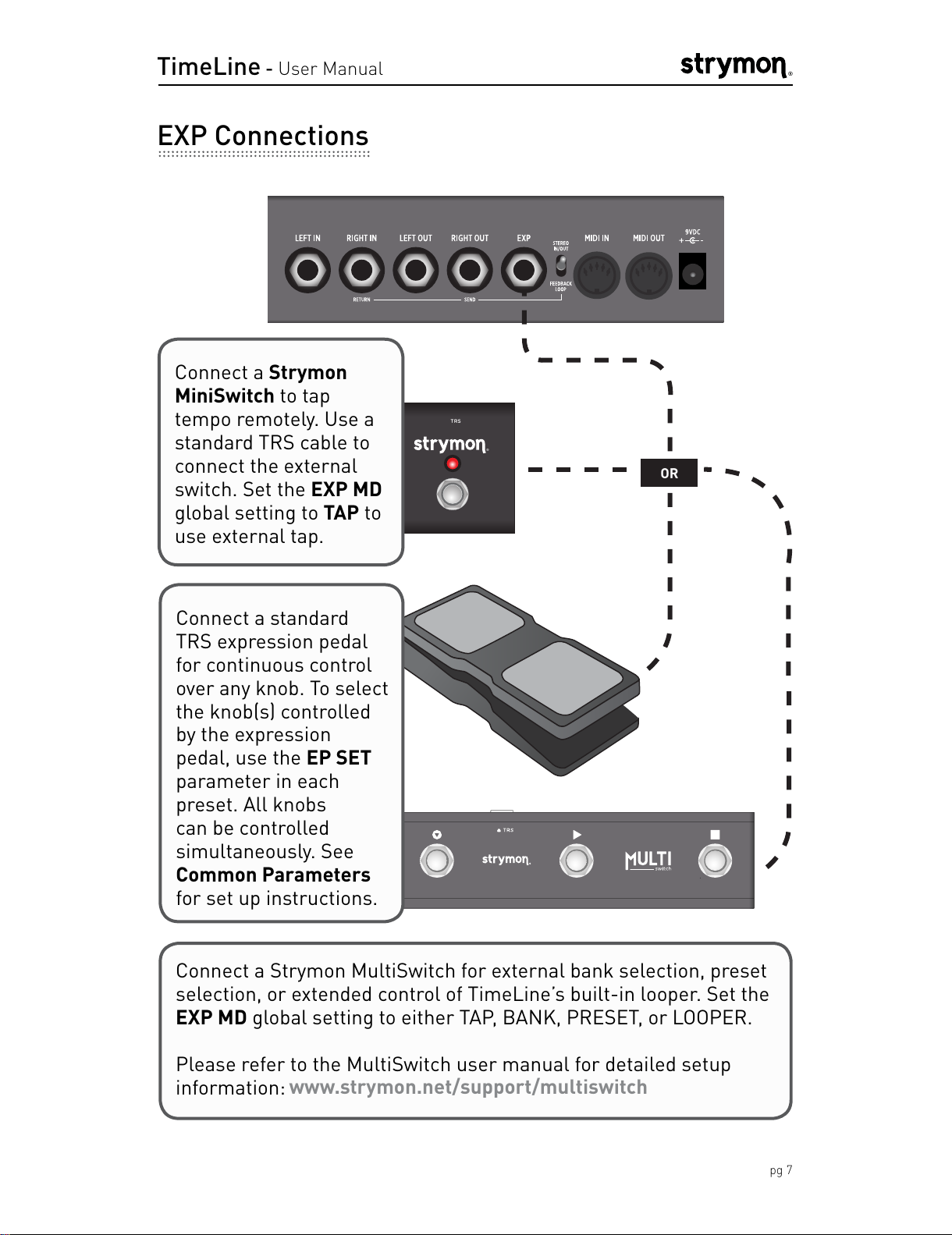

OR
®
TRS
®
TRS
Connect a standard
TRS expression pedal
for continuous control
over any knob. To select
the knob(s) controlled
by the expression
pedal, use the EP SET
parameter in each
preset. All knobs
can be controlled
simultaneously. See
Common Parameters
for set up instructions.
Connect a Strymon
MiniSwitch to tap
tempo remotely. Use a
standard TRS cable to
connect the external
switch. Set the EXP MD
global setting to TAP to
use external tap.
EXP Connections
Connect a Strymon MultiSwitch for external bank selection, preset
selection, or extended control of TimeLine’s built-in looper. Set the
EXP MD global setting to either TAP, BANK, PRESET, or LOOPER.
Please refer to the MultiSwitch user manual for detailed setup
information: www.strymon.net/support/multiswitch
All manuals and user guides at all-guides.com

TimeLine - User Manual ®
pg 8

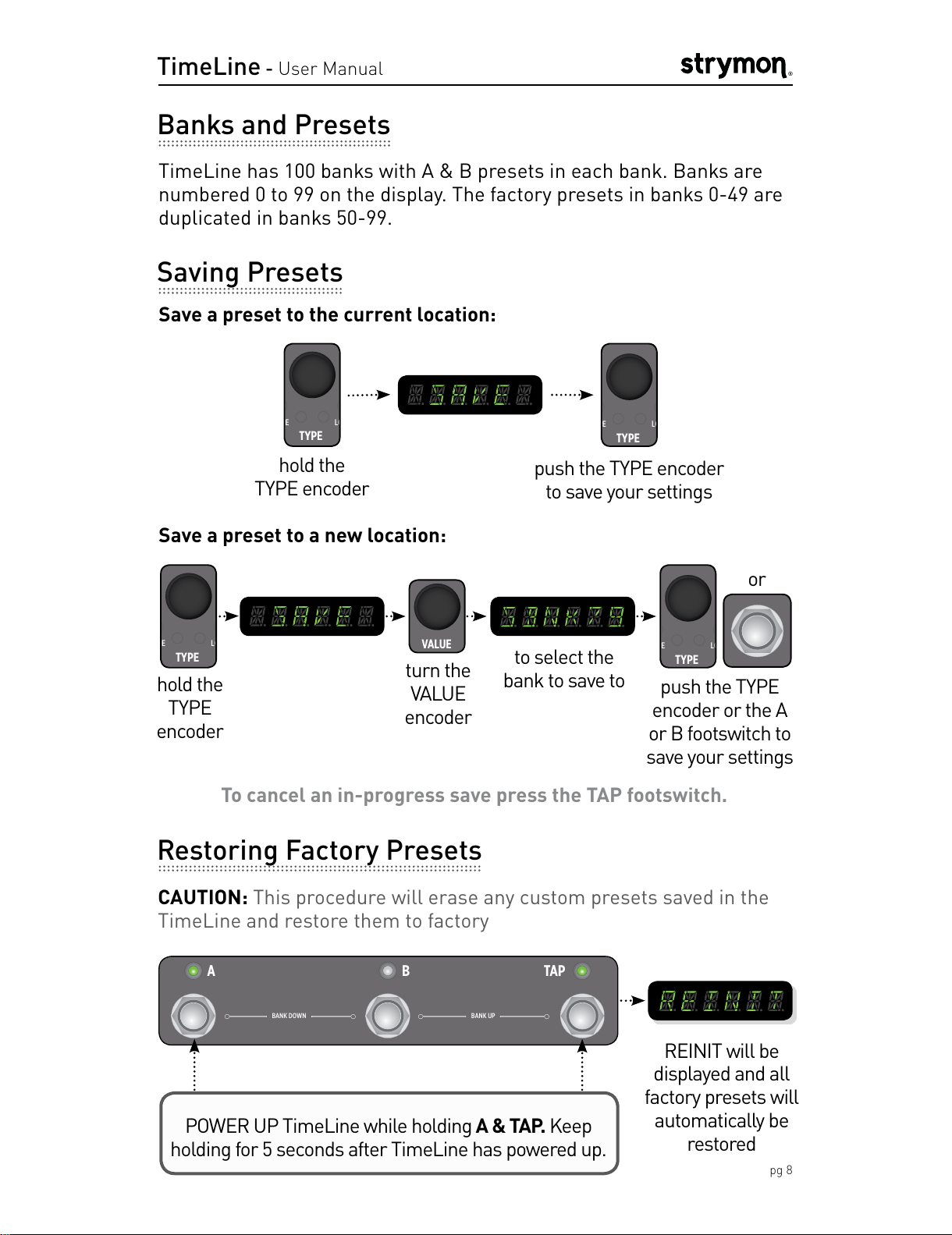

TimeLine has 100 banks with A & B presets in each bank. Banks are
numbered 0 to 99 on the display. The factory presets in banks 0-49 are
duplicated in banks 50-99.
Save a preset to the current location:
Save a preset to a new location:
To cancel an in-progress save press the TAP footswitch.
REC / DUB PLAY STOP
TYPE
REVERSE
FILTER
DUAL
DIGITAL
dBUCKET
PATTERN
dTAPE
push (bank / time)
hold (looper)
hold (save)
push (param)
ICE
TREM
DUCK
SWELL
®
LO-FI
VALUE
FILTER GRIT SPEED DEPTH
BTAPA
TIME REPEATS MIX
MOD
BANK DOWN BANK UP
hold (global)
hold the
TYPE encoder
hold the
TYPE
encoder
REC / DUB PLAY STOP
TYPE
REVERSE
FILTER
DUAL
DIGITAL
dBUCKET
PATTERN
dTAPE
push (bank / time)
hold (looper)
hold (save)
push (param)
ICE
TREM
DUCK
SWELL
®
LO-FI
VALUE
FILTER GRIT SPEED DEPTH
BTAPA
TIME REPEATS MIX
MOD
BANK DOWN BANK UP
hold (global)
push the TYPE encoder
to save your settings
turn the
VALUE
encoder
to select the
bank to save to push the TYPE
encoder or the A
or B footswitch to
save your settings
REC / DUB PLAY STOP
TYPE
REVERSE
FILTER
DUAL
DIGITAL
dBUCKET
PATTERN
dTAPE
push (bank / time)
hold (looper)
hold (save)
push (param)
ICE
TREM
DUCK
SWELL
®
LO-FI
VALUE
FILTER GRIT SPEED DEPTH
BTAPA
TIME REPEATS MIX
MOD
BANK DOWN BANK UP
hold (global)
or
REC / DUB PLAY STOP
TYPE
REVERSE
FILTER
DUAL
DIGITAL
dBUCKET
PATTERN
dTAPE
push (bank / time)
hold (looper)
hold (save)
push (param)
ICE
TREM
DUCK
SWELL
®
LO-FI
VALUE
FILTER GRIT SPEED DEPTH
BTAPA
TIME REPEATS MIX
MOD
BANK DOWN BANK UP
hold (global)
POWER UP TimeLine while holding A & TAP. Keep
holding for 5 seconds after TimeLine has powered up.
REINIT will be
displayed and all
factory presets will
automatically be
restored
CAUTION: This procedure will erase any custom presets saved in the
TimeLine and restore them to factory
Banks and Presets
Saving Presets
REC / DUB PLAY STOP
TYPE
REVERSE
FILTER
DUAL
DIGITAL
dBUCKET
PATTERN
dTAPE
push (bank / time)
hold (looper)
hold (save)
push (param)
ICE
TREM
DUCK
SWELL
®
LO-FI
VALUE
FILTER GRIT SPEED DEPTH
BTAPA
TIME REPEATS MIX
MOD
BANK DOWN BANK UP
hold (global)
REC / DUB PLAY STOP
TYPE
REVERSE
FILTER
DUAL
DIGITAL
dBUCKET
PATTERN
dTAPE
push (bank / time)
hold (looper)
hold (save)
push (param)
ICE
TREM
DUCK
SWELL
®
LO-FI
VALUE
FILTER GRIT SPEED DEPTH
BTAPA
TIME REPEATS MIX
MOD
BANK DOWN BANK UP
hold (global)
REC / DUB PLAY STOP
TYPE
REVERSE
FILTER
DUAL
DIGITAL
dBUCKET
PATTERN
dTAPE
push (bank / time)
hold (looper)
hold (save)
push (param)
ICE
TREM
DUCK
SWELL
®
LO-FI
VALUE
FILTER GRIT SPEED DEPTH
BTAPA
TIME REPEATS MIX
MOD
BANK DOWN BANK UP
hold (global)
Restoring Factory Presets
All manuals and user guides at all-guides.com

TimeLine - User Manual ®
pg 9
While
displaying
BANK or TIME
push the
value encoder
to enter
PARAMS
menu
turn the
value encoder
to select the desired
PARAMETER
REC / DUB PLAY STOP
TYPE
REVERSE
FILTER
DUAL
DIGITAL
dBUCKET
PATTERN
dTAPE
push (bank / time)
hold (looper)
hold (save)
push (param)
ICE
TREM
DUCK
SWELL
®
LO-FI
VALUE
FILTER GRIT SPEED DEPTH
BTAPA
TIME REPEATS MIX
MOD
BANK DOWN BANK UP
hold (global)
push the value
encoder again
and turn to edit the
selected PARAMETER

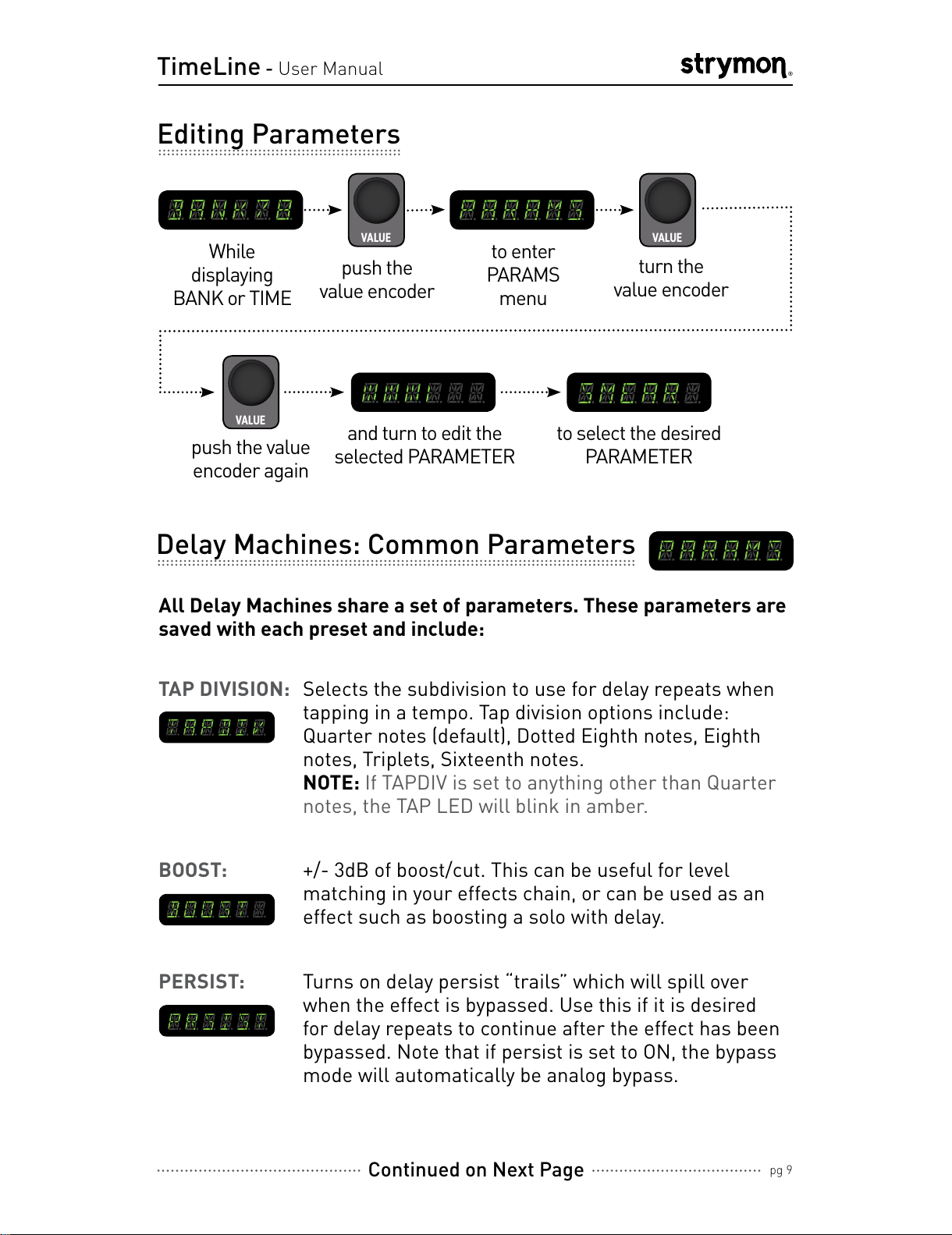

Editing Parameters
REC / DUB PLAY STOP
TYPE
REVERSE
FILTER
DUAL
DIGITAL
dBUCKET
PATTERN
dTAPE
push (bank / time)
hold (looper)
hold (save)
push (param)
ICE
TREM
DUCK
SWELL
®
LO-FI
VALUE
FILTER GRIT SPEED DEPTH
BTAPA
TIME REPEATS MIX
MOD
BANK DOWN BANK UP
hold (global)
REC / DUB PLAY STOP
TYPE
REVERSE
FILTER
DUAL
DIGITAL
dBUCKET
PATTERN
dTAPE
push (bank / time)
hold (looper)
hold (save)
push (param)
ICE
TREM
DUCK
SWELL
®
LO-FI
VALUE
FILTER GRIT SPEED DEPTH
BTAPA
TIME REPEATS MIX
MOD
BANK DOWN BANK UP
hold (global)
Delay Machines: Common Parameters
TAP DIVISION: Selects the subdivision to use for delay repeats when
tapping in a tempo. Tap division options include:
Quarter notes (default), Dotted Eighth notes, Eighth
notes, Triplets, Sixteenth notes.
NOTE: If TAPDIV is set to anything other than Quarter
notes, the TAP LED will blink in amber.
BOOST: +/- 3dB of boost/cut. This can be useful for level
matching in your effects chain, or can be used as an
effect such as boosting a solo with delay.
PERSIST: Turns on delay persist “trails” which will spill over
when the effect is bypassed. Use this if it is desired
for delay repeats to continue after the effect has been
bypassed. Note that if persist is set to ON, the bypass
mode will automatically be analog bypass.
All Delay Machines share a set of parameters. These parameters are
saved with each preset and include:
Continued on Next Page
All manuals and user guides at all-guides.com

TimeLine - User Manual ®
pg 10
NAME: Allows editing the 16 character name of the current
preset. Use the VALUE encoder to change the selected
character. Use the TYPE encoder to select a character.
Exit by pressing the VALUE encoder, then press and
hold the TYPE encoder to SAVE the name permanently.
NOTE: For the preset name to be displayed the NAMES
global must be set to ON or SCROLL.
EXPRESSION PEDAL ON/OFF: Enables or disables the expression
pedal input for each preset.
EXPRESSION PEDAL SET: Enters the expression pedal setup for each
preset. All knobs can be configured to be used with the
expression pedal. To set up which knobs are controlled
by the expression pedal, push the Value encoder
when it displays “EP SET” and it will then display
“HEEL”. Turn the knob(s) to the position desired at heel
down on the expression pedal. Then, turn the Value
encoder right to display”TOE” and set the knobs to
their desired values at the toe down position on the
expression pedal. An expression pedal can control all
of the knobs simultaneously.
TAP MODE: Adjusts how the last tapped tempo affects preset
changes. Set to PRESET so the delay time will change
to the saved value in the preset. Set to GLOBAL so
the delay time will remain at the last tapped tempo
regardless of what tempo is saved in the preset.
Delay Machines: Common Parameters Continued
MIDI CLOCK ON/OFF: When set to ON, TimeLine will respond
to external MIDI clock from the MIDI input. This
parameter is saved independently so that only presets
with this parameter set to ON will respond to MIDI
clock.
All manuals and user guides at all-guides.com

TimeLine - User Manual ®
pg 11
REPEAT DYNAMICS: Reduces the Repeats in a non-linear fashion so
that the delay tapers off faster than it normally would.
The effect is most easily heard with high Repeats
levels, allowing for high repeats that trail off to allow
the next phrase or chord to stand out more.
SMEAR: Softens the attack of the repeats while maintaining
full frequency response. This allows for higher mix
levels while keeping the delay out of the way of the
dry signal. With high Repeats levels, the delayed
signal gets dreamy and ethereal.
OFF
|||||||||
REC / DUB PLAY STOP
TYPE
REVERSE
FILTER
DUAL
DIGITAL
dBUCKET
PATTERN
dTAPE
BANK / TIME
hold (looper)
hold (save)
push (param)
ICE
TREM
DUCK
SWELL
®
LO-FI
VALUE
FILTER GRIT SPEED DEPTH
BTAPA
TIME REPEATS MIX
MOD
BANK DOWN BANK UP
hold (global)
A classic crystal-clear “voiced” digital delay. A wide range of delay
tones are possible by tweaking the Filter, Grit and Modulation controls.
Modern to classic 80’s delay tones are easily achievable with this delay
machine.
PARAMETERS:
OFF
20Hz
40Hz
60Hz
80Hz
100Hz
120Hz
140Hz
160Hz
180Hz
200Hz
230Hz
260Hz
300Hz
350Hz
400Hz
OFF
ON
500Hz
600Hz
700Hz
800Hz
900Hz
HIGH PASS: Reduces the low frequency content of the wet signal
after the delay. A useful additional tone sculptor for
delays on low-note riffs or chords where you want to
reduce booming in your rig.
TIPS & TRICKS: The HIPASS parameter can be very effective in
producing bright repeats for a ‘super-clean’ digital delay. Set the
Filter and GRIT knobs to minimum position for full bandwidth and
experiment.
Set GRIT and FILTER knobs to 12:00 for an “analog-voiced” digital
delay, or try GRIT at minimum and FILTER at maximum for a “tape-
voiced” digital delay.
Delay Machines: Digital
All manuals and user guides at all-guides.com

TimeLine - User Manual ®
pg 12

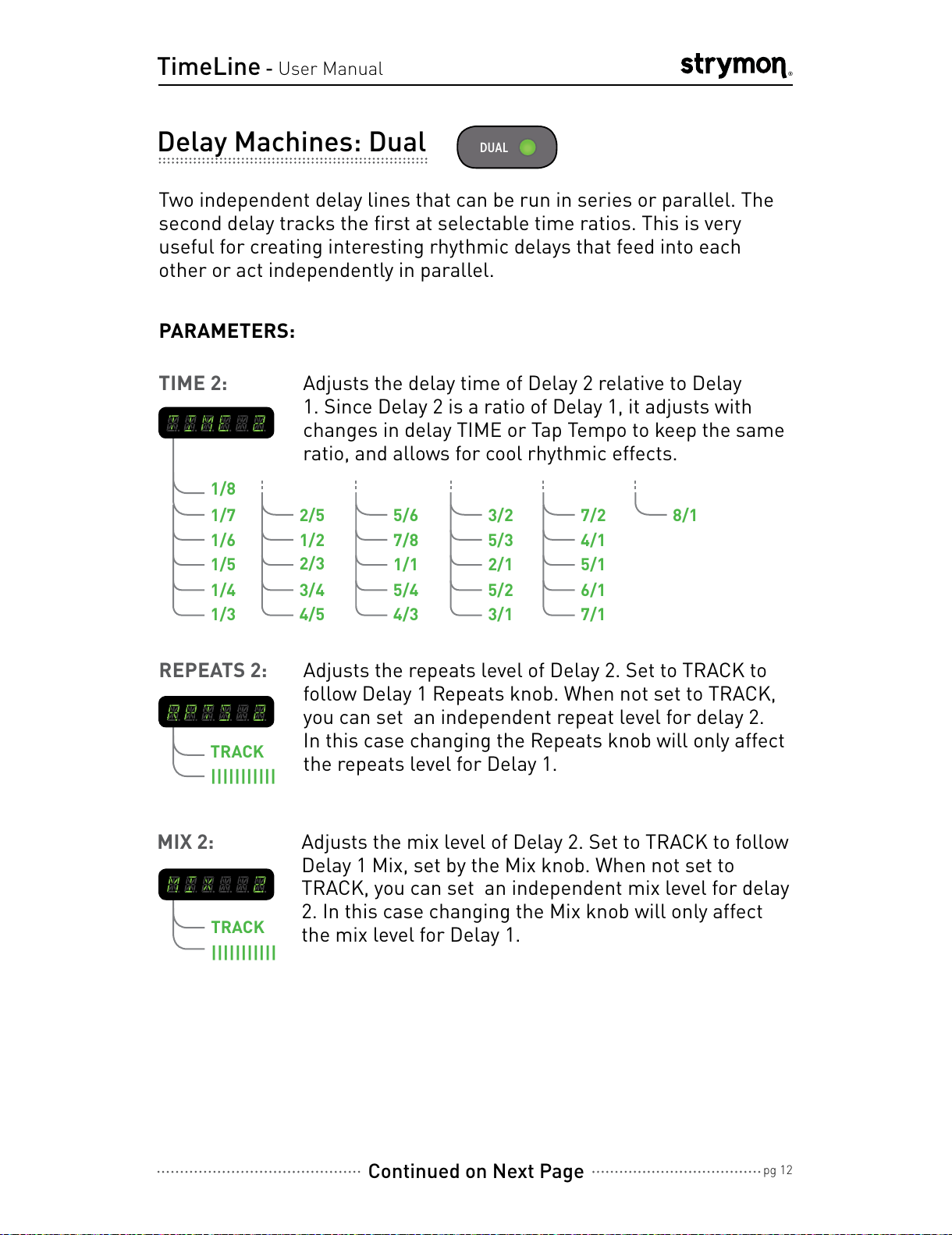

MIX 2: Adjusts the mix level of Delay 2. Set to TRACK to follow
Delay 1 Mix, set by the Mix knob. When not set to
TRACK, you can set an independent mix level for delay
2. In this case changing the Mix knob will only affect
the mix level for Delay 1.
TIME 2: Adjusts the delay time of Delay 2 relative to Delay
1. Since Delay 2 is a ratio of Delay 1, it adjusts with
changes in delay TIME or Tap Tempo to keep the same
ratio, and allows for cool rhythmic effects.
REPEATS 2: Adjusts the repeats level of Delay 2. Set to TRACK to
follow Delay 1 Repeats knob. When not set to TRACK,
you can set an independent repeat level for delay 2.
In this case changing the Repeats knob will only affect
the repeats level for Delay 1.
REC / DUB PLAY STOP
TYPE
REVERSE
FILTER
DUAL
DIGITAL
dBUCKET
PATTERN
dTAPE
BANK / TIME
hold (looper)
hold (save)
push (param)
ICE
TREM
DUCK
SWELL
®
LO-FI
VALUE
FILTER GRIT SPEED DEPTH
BTAPA
TIME REPEATS MIX
MOD
BANK DOWN BANK UP
hold (global)
1/8
1/7
1/6
1/5
1/4
1/3
2/5
1/2
2/3
3/4
4/5
5/6
7/8
1/1
5/4
4/3
3/2
5/3
2/1
5/2
3/1
7/2 8/1
4/1
5/1
6/1
7/1
Two independent delay lines that can be run in series or parallel. The
second delay tracks the first at selectable time ratios. This is very
useful for creating interesting rhythmic delays that feed into each
other or act independently in parallel.
TRACK
|||||||||||
TRACK
|||||||||||
Delay Machines: Dual
PARAMETERS:
Continued on Next Page
All manuals and user guides at all-guides.com

TimeLine - User Manual ®
pg 13

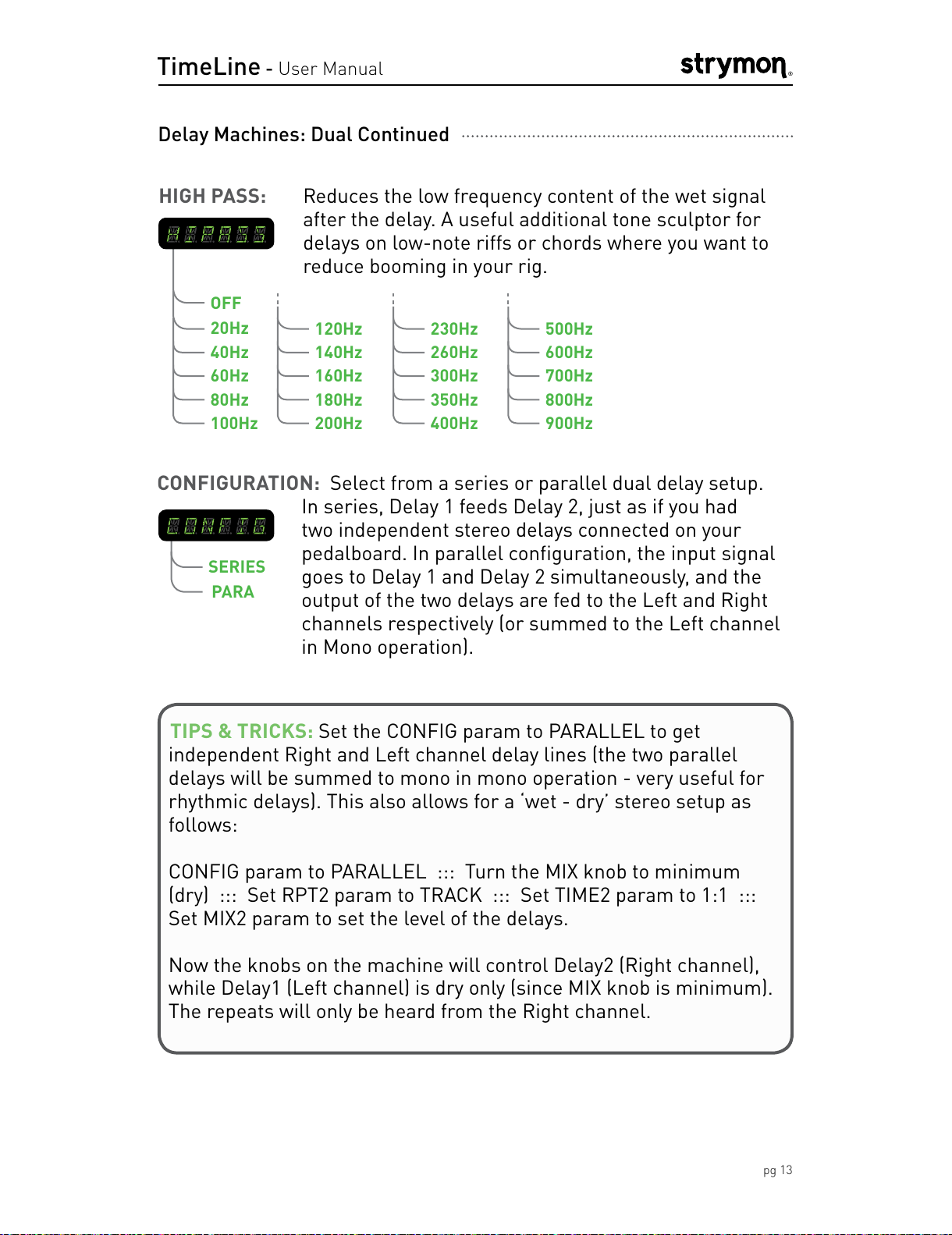

CONFIGURATION: Select from a series or parallel dual delay setup.
In series, Delay 1 feeds Delay 2, just as if you had
two independent stereo delays connected on your
pedalboard. In parallel configuration, the input signal
goes to Delay 1 and Delay 2 simultaneously, and the
output of the two delays are fed to the Left and Right
channels respectively (or summed to the Left channel
in Mono operation).
SERIES
PARA
TIPS & TRICKS: Set the CONFIG param to PARALLEL to get
independent Right and Left channel delay lines (the two parallel
delays will be summed to mono in mono operation - very useful for
rhythmic delays). This also allows for a ‘wet - dry’ stereo setup as
follows:
CONFIG param to PARALLEL ::: Turn the MIX knob to minimum
(dry) ::: Set RPT2 param to TRACK ::: Set TIME2 param to 1:1 :::
Set MIX2 param to set the level of the delays.
Now the knobs on the machine will control Delay2 (Right channel),
while Delay1 (Left channel) is dry only (since MIX knob is minimum).
The repeats will only be heard from the Right channel.
Delay Machines: Dual Continued
OFF
20Hz
40Hz
60Hz
80Hz
100Hz
120Hz
140Hz
160Hz
180Hz
200Hz
230Hz
260Hz
300Hz
350Hz
400Hz
500Hz
600Hz
700Hz
800Hz
900Hz
HIGH PASS: Reduces the low frequency content of the wet signal
after the delay. A useful additional tone sculptor for
delays on low-note riffs or chords where you want to
reduce booming in your rig.
All manuals and user guides at all-guides.com

TimeLine - User Manual ®
pg 14
PATTERN: From simple ping-pong to rhythmic trances, the
patterns can inspire new musical ideas. The patterns
will create a stereo field of delay taps when using both
the L and R outputs, but will sum to the mono output
when the R output jack is unplugged.
REC / DUB PLAY STOP
TYPE
REVERSE
FILTER
DUAL
DIGITAL
dBUCKET
PATTERN
dTAPE
BANK / TIME
hold (looper)
hold (save)
push (param)
ICE
TREM
DUCK
SWELL
®
LO-FI
VALUE
FILTER GRIT SPEED DEPTH
BTAPA
TIME REPEATS MIX
MOD
BANK DOWN BANK UP
hold (global)
A delay with selectable repeat patterns that provide a wide range of
sounds. Rhythmic, Ambient delays are easily achievable.
Delay Machines: Pattern
PARAMETERS:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
SMEAR: Softens the attack of the repeats while maintaining
full frequency response. This allows for higher mix
levels while keeping the delay out of the way of the dry
signal. With high Repeats levels, the delayed signal
gets dreamy and ethereal.
OFF
|||||||||
HIGH PASS: Reduces the low frequency content of the wet signal
after the delay. A useful additional tone sculptor for
delays on low-note riffs or chords where you want to
reduce booming in your rig.
OFF
20Hz
40Hz
60Hz
80Hz
100Hz
120Hz
140Hz
160Hz
180Hz
200Hz
230Hz
260Hz
300Hz
350Hz
400Hz
500Hz
600Hz
700Hz
800Hz
900Hz
Continued on Next Page
All manuals and user guides at all-guides.com

TimeLine - User Manual ®
pg 15
TIPS & TRICKS: The more intricate patterns can be most effective
when the input is simple or ‘sparse’.
Pattern 16 is a sort of ‘early reflection’ pattern. Experiment with
delay times around 200mS, lots of Repeats and the SMEAR param
at maximum to create reverb-like sounds. Add some MOD DEPTH
at lower MOD SPEED and play with the Filter and Grit knobs and
HIPASS param to dial in the ‘reverb’ tone.
Delay Machines: Pattern Continued
All manuals and user guides at all-guides.com

TimeLine - User Manual ®
pg 16
Delay Machines: Reverse
REC / DUB PLAY STOP
TYPE
REVERSE
FILTER
DUAL
DIGITAL
dBUCKET
PATTERN
dTAPE
BANK / TIME
hold (looper)
hold (save)
push (param)
ICE
TREM
DUCK
SWELL
®
LO-FI
VALUE
FILTER GRIT SPEED DEPTH
BTAPA
TIME REPEATS MIX
MOD
BANK DOWN BANK UP
hold (global)
An improvement on the classic reverse delay. The input signal triggers
the delay so the reverse signal is always predictable, musical and
repeatable.
PARAMETERS:
SMEAR: Softens the attack of the repeats while maintaining
full frequency response. This allows for higher mix
levels while keeping the delay out of the way of the dry
signal. With high Repeats levels, the delayed signal
gets dreamy and ethereal.
OFF
|||||||||
HIGH PASS: Reduces the low frequency content of the wet signal
after the delay. A useful additional tone sculptor for
delays on low-note riffs or chords where you want to
reduce booming in your rig.
OFF
20Hz
40Hz
60Hz
80Hz
100Hz
120Hz
140Hz
160Hz
180Hz
200Hz
230Hz
260Hz
300Hz
350Hz
400Hz
500Hz
600Hz
700Hz
800Hz
900Hz
TIPS & TRICKS: Try setting the TIME knob to around 500mS, and
hold a ringing chord for an interesting rhythmic effect. Experiment
with the FILTER, GRIT and MOD knobs.
To keep your dry signal feeding into the reverse delay while
effectively bypassed, assign an expression to control the MIX knob.
Assign the HEEL position to the MIX knob at minimum. Assign
the TOE position to the desired wet mix on the MIX knob. Rock the
expression pedal all the way back to bypass the delay. Rock the
pedal to the TOE position to hear reverse repeats that have already
been generating while the mix was at full dry.
All manuals and user guides at all-guides.com

TimeLine - User Manual ®
pg 17

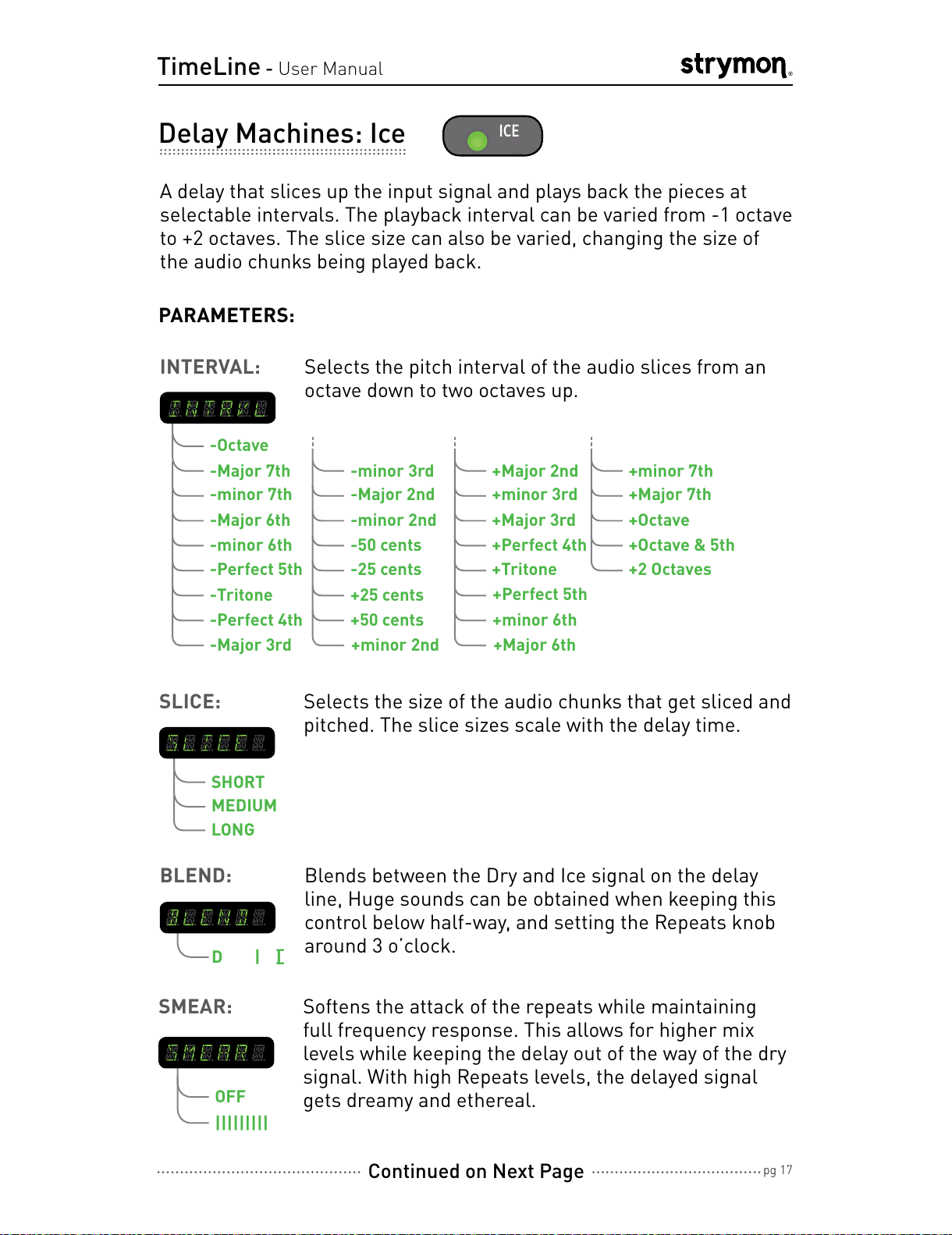

Delay Machines: Ice
REC / DUB PLAY STOP
TYPE
REVERSE
FILTER
DUAL
DIGITAL
dBUCKET
PATTERN
dTAPE
BANK / TIME
hold (looper)
hold (save)
push (param)
ICE
TREM
DUCK
SWELL
®
LO-FI
VALUE
FILTER GRIT SPEED DEPTH
BTAPA
TIME REPEATS MIX
MOD
BANK DOWN BANK UP
hold (global)
A delay that slices up the input signal and plays back the pieces at
selectable intervals. The playback interval can be varied from -1 octave
to +2 octaves. The slice size can also be varied, changing the size of
the audio chunks being played back.
PARAMETERS:
INTERVAL: Selects the pitch interval of the audio slices from an
octave down to two octaves up.
-Octave
-Major 7th
-minor 7th
-Major 6th
-minor 6th
-Perfect 5th
-minor 3rd
-Major 2nd
+Major 2nd
+minor 3rd
+Major 3rd
+Perfect 4th
+Tritone
+minor 7th
+Major 7th
+Octave
+Octave & 5th
+2 Octaves
-Tritone
-Perfect 4th
-Major 3rd
-minor 2nd
-50 cents
-25 cents
+25 cents
+50 cents
+minor 2nd
+Perfect 5th
+minor 6th
+Major 6th
SLICE: Selects the size of the audio chunks that get sliced and
pitched. The slice sizes scale with the delay time.
SHORT
MEDIUM
LONG
BLEND: Blends between the Dry and Ice signal on the delay
line, Huge sounds can be obtained when keeping this
control below half-way, and setting the Repeats knob
around 3 o’clock.
I
D | I
I
SMEAR: Softens the attack of the repeats while maintaining
full frequency response. This allows for higher mix
levels while keeping the delay out of the way of the dry
signal. With high Repeats levels, the delayed signal
gets dreamy and ethereal.
OFF
|||||||||
Continued on Next Page
All manuals and user guides at all-guides.com

TimeLine - User Manual ®

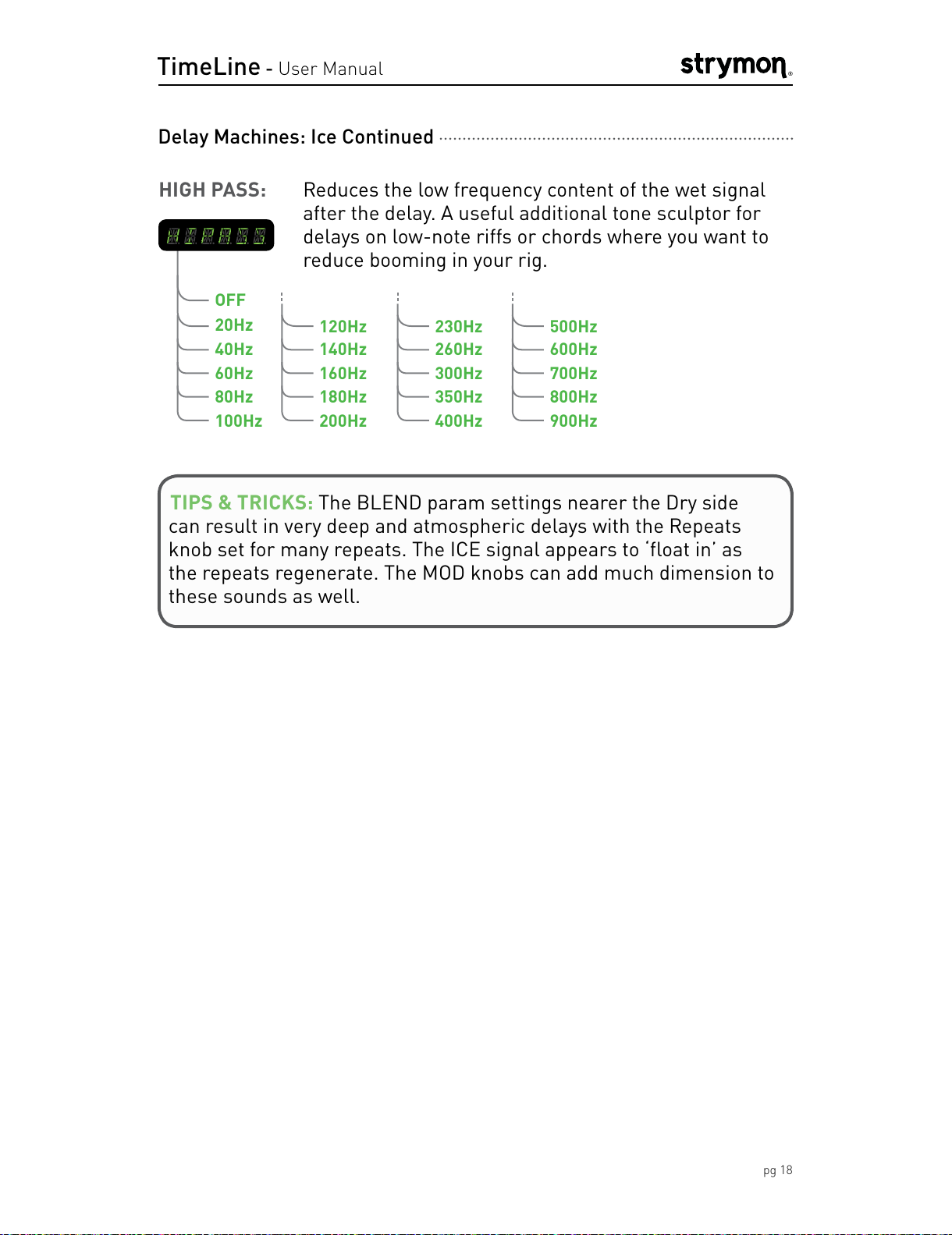

pg 18
HIGH PASS: Reduces the low frequency content of the wet signal
after the delay. A useful additional tone sculptor for
delays on low-note riffs or chords where you want to
reduce booming in your rig.
OFF
20Hz
40Hz
60Hz
80Hz
100Hz
120Hz
140Hz
160Hz
180Hz
200Hz
230Hz
260Hz
300Hz
350Hz
400Hz
500Hz
600Hz
700Hz
800Hz
900Hz
TIPS & TRICKS: The BLEND param settings nearer the Dry side
can result in very deep and atmospheric delays with the Repeats
knob set for many repeats. The ICE signal appears to ‘float in’ as
the repeats regenerate. The MOD knobs can add much dimension to
these sounds as well.
Delay Machines: Ice Continued
All manuals and user guides at all-guides.com

TimeLine - User Manual ®
pg 19
REC / DUB PLAY STOP
TYPE
REVERSE
FILTER
DUAL
DIGITAL
dBUCKET
PATTERN
dTAPE
BANK / TIME
hold (looper)
hold (save)
push (param)
ICE
TREM
DUCK
SWELL
®
LO-FI
VALUE
FILTER GRIT SPEED DEPTH
BTAPA
TIME REPEATS MIX
MOD
BANK DOWN BANK UP
hold (global)
A dynamic delay that reacts to your playing with adjustable sensitivity
and release time. As the sensitivity is increased, the ducking effect
becomes more pronounced.
SENSITIVITY: Adjusts the input sensitivity for the ducking feature.
Turn to higher settings for more extreme ducking. A
low level guitar signal will require higher settings to
achieve the same ducking effect as a high level guitar
signal. At low settings, subtle ducking effects can be
achieved.
|||||
Delay Machines: Duck
PARAMETERS:
RELEASE TIME: Sets the release time for the ducking effect. This
determines how quickly the delay signal returns to
full level once you stop playing. A fast Release with
extreme ducking can create a dramatic special effect,
while slower releases with moderate ducking can be
transparent yet effective.
0.05
0.10
0.15
0.20
0.25
0.30
0.35
0.40
0.45
0.50
0.55
0.60
0.65
0.70
0.75
0.80
0.85
0.90
0.95
1.00
0.01
DUCKING FEEDBACK: Sets the feedback ducking parameter. When
on, the Repeats knob is effectively set to minimum
while you are playing, and then quickly returns to
the Knob setting when you stop playing. Very cool for
single line playing with extreme ducking, you can play
a ‘dry’ solo, and only the last note played will repeat.
NORMAL
GATE
Continued on Next Page
All manuals and user guides at all-guides.com

TimeLine - User Manual ®

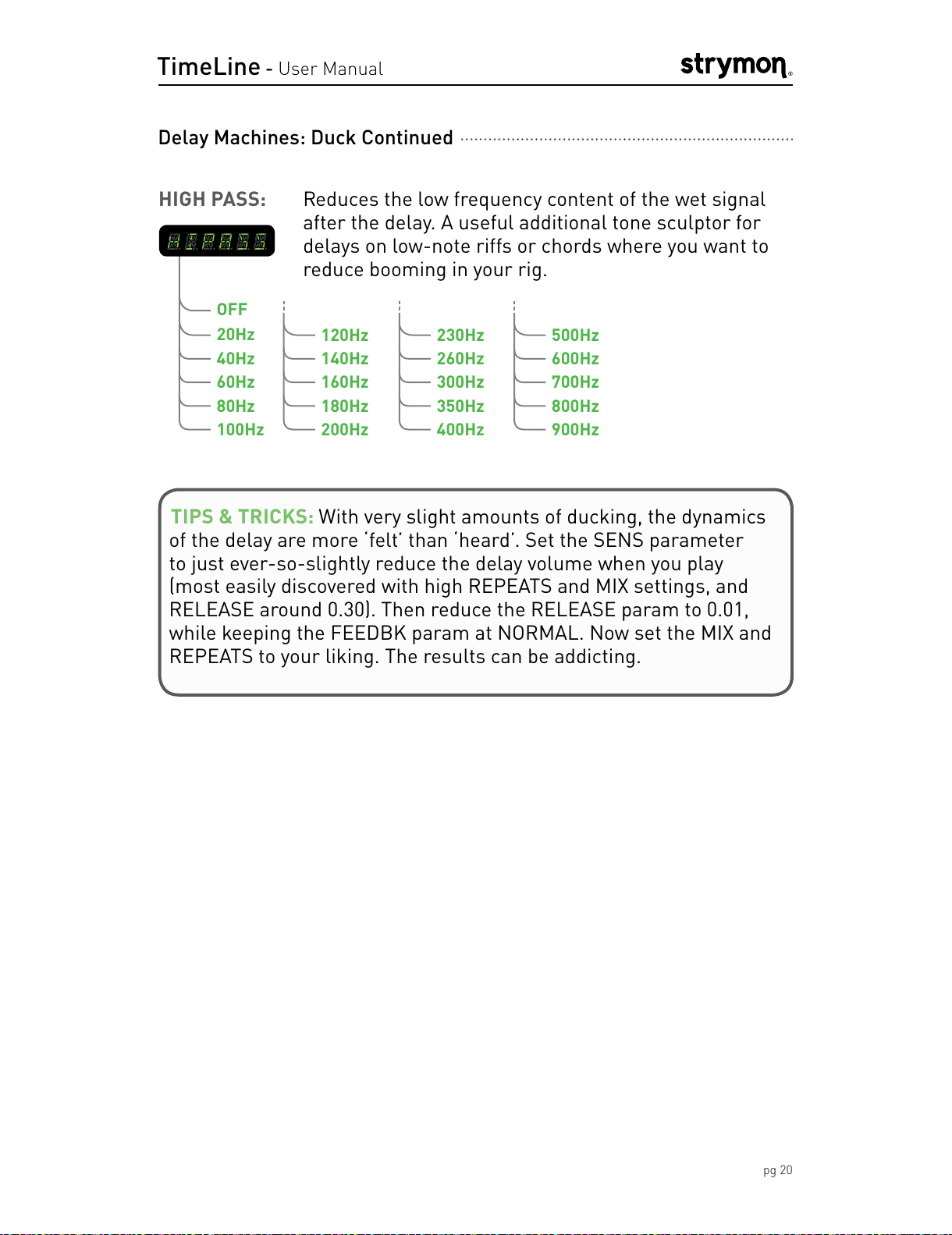

pg 20
HIGH PASS: Reduces the low frequency content of the wet signal
after the delay. A useful additional tone sculptor for
delays on low-note riffs or chords where you want to
reduce booming in your rig.
OFF
20Hz
40Hz
60Hz
80Hz
100Hz
120Hz
140Hz
160Hz
180Hz
200Hz
230Hz
260Hz
300Hz
350Hz
400Hz
500Hz
600Hz
700Hz
800Hz
900Hz
TIPS & TRICKS: With very slight amounts of ducking, the dynamics
of the delay are more ‘felt’ than ‘heard’. Set the SENS parameter
to just ever-so-slightly reduce the delay volume when you play
(most easily discovered with high REPEATS and MIX settings, and
RELEASE around 0.30). Then reduce the RELEASE param to 0.01,
while keeping the FEEDBK param at NORMAL. Now set the MIX and
REPEATS to your liking. The results can be addicting.
Delay Machines: Duck Continued
All manuals and user guides at all-guides.com
