Front Panel Controls
MOD MACHINES:
CHORUS: Full featured Chorus with fi ve distinct modes—dBucket, Multi, Vibrato, Detune and Digital.
FLANGER: Deep and rich Flanger with a wide palette of sonic possibilities. 6 unique fl anger algorithms.
ROTARY: Accurate implementation of a rotary speaker cabinet commonly used with tonewheel organs and guitars.
VIBE: Recreation of the late ‘60s “vibe” circuit which was one of the fi rst modulation effects of it’s time.
PHASER: Highly fl exible phaser with 2, 4, 6, 8, 12, 16 stage, and barber pole modes. Feedback control and selectable LFO waveforms.
FILTER: LFO synced fi lter with three fi lter types, eight LFO waveshapes and variable resonance.
FORMANT: Filter type that emulates the human vocal tract and also features selectable LFO waveforms.
VINTAGE TREM: Three distinctively different classic tremolo sounds from the ‘60s.
PATTERN TREM: Pattern synced tremolo with user defi nable patterns and selectable LFO waveforms.
AUTOSWELL: Auto volume swell triggered by input signal. Rise time and envelope shape are variable. Speed/Depth knobs add chorus.
DESTROYER: Mangles your audio with bit & sample rate reduction, fi lters, and vinyl noise. Vinyl warping controlled by Speed/Depth knobs.
QUADRATURE: Advanced frequency shifter, AM ring modulator, and FM modulator all with selectable LFO waveforms.
TYPE
push (bank/BPM)
hold (save)
push (param)
hold (global)
VALUE
PARAM 1 PARAM 2
BTAPA
SPEED DEPTH LEVEL
BANK DOWN BANK UP
FILTER
DESTROYER
VIBE
ROTARY
FLANGER
PHASER
CHORUS
FORMANT
AUTOSWELL
VINTAGE TREM
PATTERN TREM
QUADRATURE
®
VALUE: Provides fi ne adjustment of LFO speed when
speed is displayed. Scrolls through presets when bank or
name is displayed. Push to access the parameter menu for
the current mod machine. Hold to access the global menu.
SPEED: Provides
coarse adjustment
of LFO speed.
DEPTH: Sets the
modulation depth
for the current mod
machine.
LEVEL: Adjusts the
output level from -3dB to
+3dB. Set to 12 o’clock
for unity gain.
PARAM 1:
Assignable to
the parameters
in the current
mod machine.
To assign the
PARAM 1 knob,
navigate to
the desired
parameter,
press and
hold the value
encoder and
turn the PARAM
1 knob.
PARAM 2:
Assignable to
the parameters
in the current
mod machine.
To assign the
PARAM 2 knob,
navigate to
the desired
parameter,
press and
hold the value
encoder and
turn the PARAM
2 knob.
TYPE: Selects the
currently active mod
machine. Push to toggle
the display between
showing BPM and the
current bank. Hold to
save the current preset.
TIP: If the parameter or
global menu is currently
displayed, push to exit
and show bank or BPM.
FOOTSWITCH A: Press to
engage or bypass preset A
of the current bank.
A & B LEDS: Green if
active. Amber if the
preset has been edited.
Off if bypassed.
TAP LED: Pulses to
indicate the current LFO
rate. Flashes amber
to indicate that a tap
division is active.
TIP: To fi nd the knob
positions of a saved
preset, turn each knob
until the LED returns
to green after glowing
amber.
FOOTSWITCH B: Press to
engage or bypass preset B of
the current bank.
TAP: Tap to set
the LFO speed.
Press once to sync
LFO for Phaser,
Filter, Formant,
Pattern Trem
and Quadrature.
Assignable to tap
or speed select for
Rotary.
BANK SELECT: Press A & B to select a lower bank. Press
B & TAP to select a higher bank. While the selected bank is
pending it is displayed as “B.A.N.K.xx”. Where xx is the bank
number. After the desired bank is selected, press A or B to
activate a preset from that bank.

Mobius - User Manual ®
pg 3
REAR PANEL:
STEREO
IN/OUT
PRE /
POST
OUTPUT 2INPUT 2
POWER: NEVER
plug into voltage
higher than 9VDC.
Requires at least
300mA of available
current.
MIDI: Full featured MIDI input
and output supporting MIDI CCs,
Program changes, etc. Consult
Page 23 for full MIDI spec.
INPUTS: High
impedance
inputs. Use
LEFT input
for mono.
RIGHT IN is
used as input
2 if using
a pre/post
confi guration.
OUTPUTS: Use LEFT
output for mono. RIGHT
OUT is used as output
2 if using a pre/post
confi guration.
SIGNAL ROUTING SWITCH: Choose
between standard stereo in/out
operation or pre/post mode. Turn to
Page 22 for more details.
MOD MACHINE PARAMETERS: Each Mod Machine has numerous parameters in the parameter menu to tweak and customize your
sound. Please consult the Pages 8-19 for a full explanation of all deep edit parameters.
IMPORTANT GLOBAL SETTINGS:
TYPE
push (bank/BPM)
hold (save)
push (param)
hold (global)
VALUE
PARAM 1 PARAM 2
BTAPA
SPEED DEPTH LEVEL
BANK DOWN BANK UP
FILTER
DESTROYER
VIBE
ROTARY
FLANGER
PHASER
CHORUS
FORMANT
AUTOSWELL
VINTAGE TREM
PATTERN TREM
QUADRATURE
®

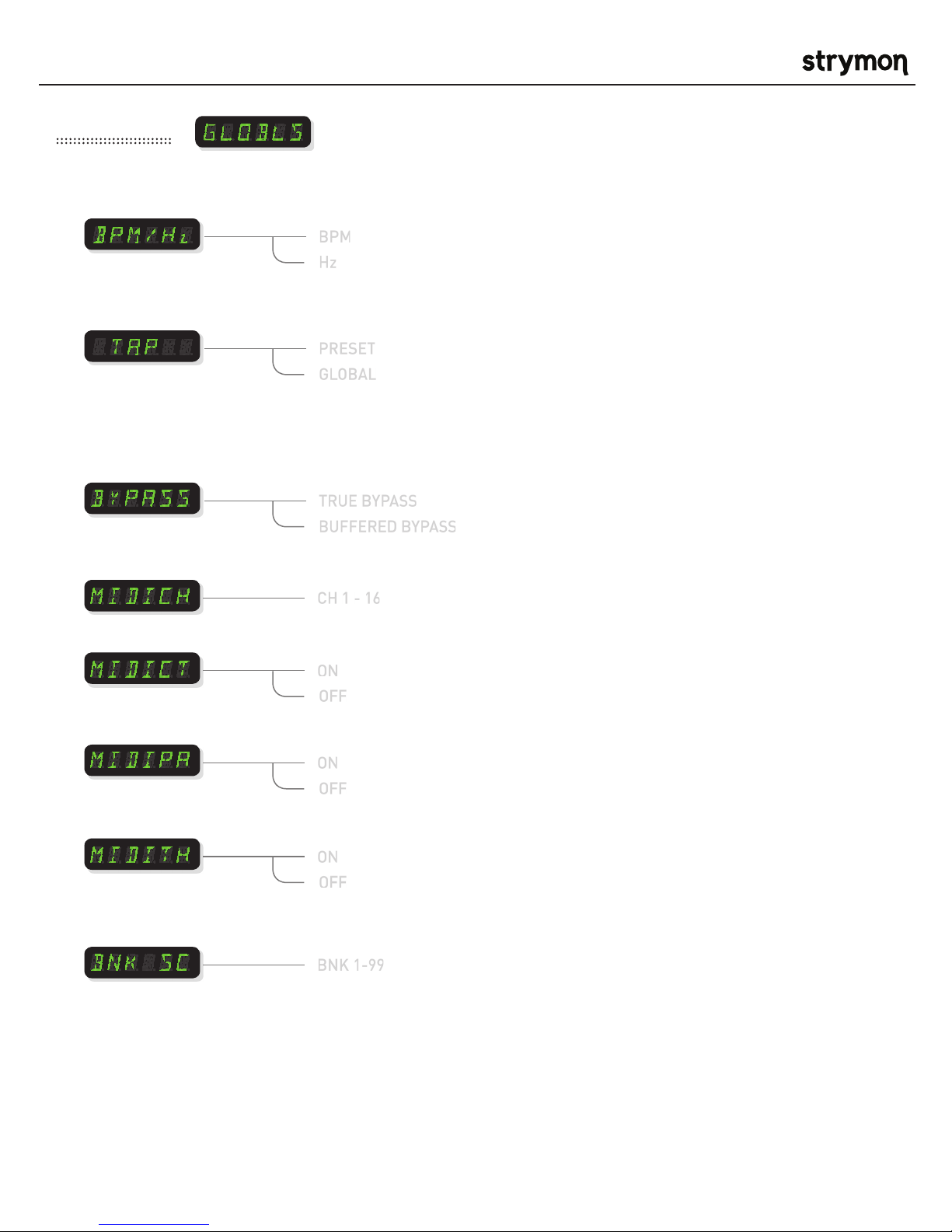

To access the global menu push and hold the value encoder. Turn the encoder to select the global to
edit. Push the value encoder again to edit the selected global. Hold again to exit the global menu.
BPM/HZ: Sets display to show tempo in BPM or Hz.
BYPASS: Select TRUEBYP to bypass with true bypass relays. Select BUFBYP to bypass with a high quality analog buffer.
GLOBAL TAP: Allows the last tapped tempo to affect all presets regardless of the tempo saved in the preset.
NAMES (PRESET NAMES): Set to OFF to only display bank number, set to ON to show the fi rst six characters of the preset
name, set to SCROLL to scroll the preset name across the display when it is fi rst selected.
EXP MD (EXP MODE): Confi gures the EXP input to use an expression pedal or an external tap footswitch.
The full list of global settings are detailed on Pages 20-21.
EXP: Connect
an expression
pedal or switch
for external tap
tempo.
TYPE
push (bank/BPM)
hold (save)
push (param)
hold (global)
VALUE
PARAM 1 PARAM 2
BTAPA
SPEED DEPTH LEVEL
BANK DOWN BANK UP
FILTER
DESTROYER
VIBE
ROTARY
FLANGER
PHASER
CHORUS
FORMANT
AUTOSWELL
VINTAGE TREM
PATTERN TREM
QUADRATURE
®
EDITING PARAMETERS:
TYPE
push (bank/BPM)
hold (save)
push (param)
hold (global)
VALUE
PARAM 1 PARAM 2
BTAPA
SPEED DEPTH LEVEL
BANK DOWN BANK UP
FILTER
DESTROYER
VIBE
ROTARY
FLANGER
PHASER
CHORUS
FORMANT
AUTOSWELL
VINTAGE TREM
PATTERN TREM
QUADRATURE ®
While displaying
BANK, NAME, or
BPM push the
value encoder
to enter PARAMS
menu
TYPE
push (bank/BPM)
hold (save)
push (param)
hold (global)
VALUE
PARAM 1 PARAM 2
BTAPA
SPEED DEPTH LEVEL
BANK DOWN BANK UP
FILTER
DESTROYER
VIBE
ROTARY
FLANGER
PHASER
CHORUS
FORMANT
AUTOSWELL
VINTAGE TREM
PATTERN TREM
QUADRATURE ®
turn the
value encoder
to select the desired
PARAMETER
TYPE
push (bank/BPM)
hold (save)
push (param)
hold (global)
VALUE
PARAM 1 PARAM 2
BTAPA
SPEED DEPTH LEVEL
BANK DOWN BANK UP
FILTER
DESTROYER
VIBE
ROTARY
FLANGER
PHASER
CHORUS
FORMANT
AUTOSWELL
VINTAGE TREM
PATTERN TREM
QUADRATURE ®
push the value
encoder again
and turn to edit the
selected PARAMETER

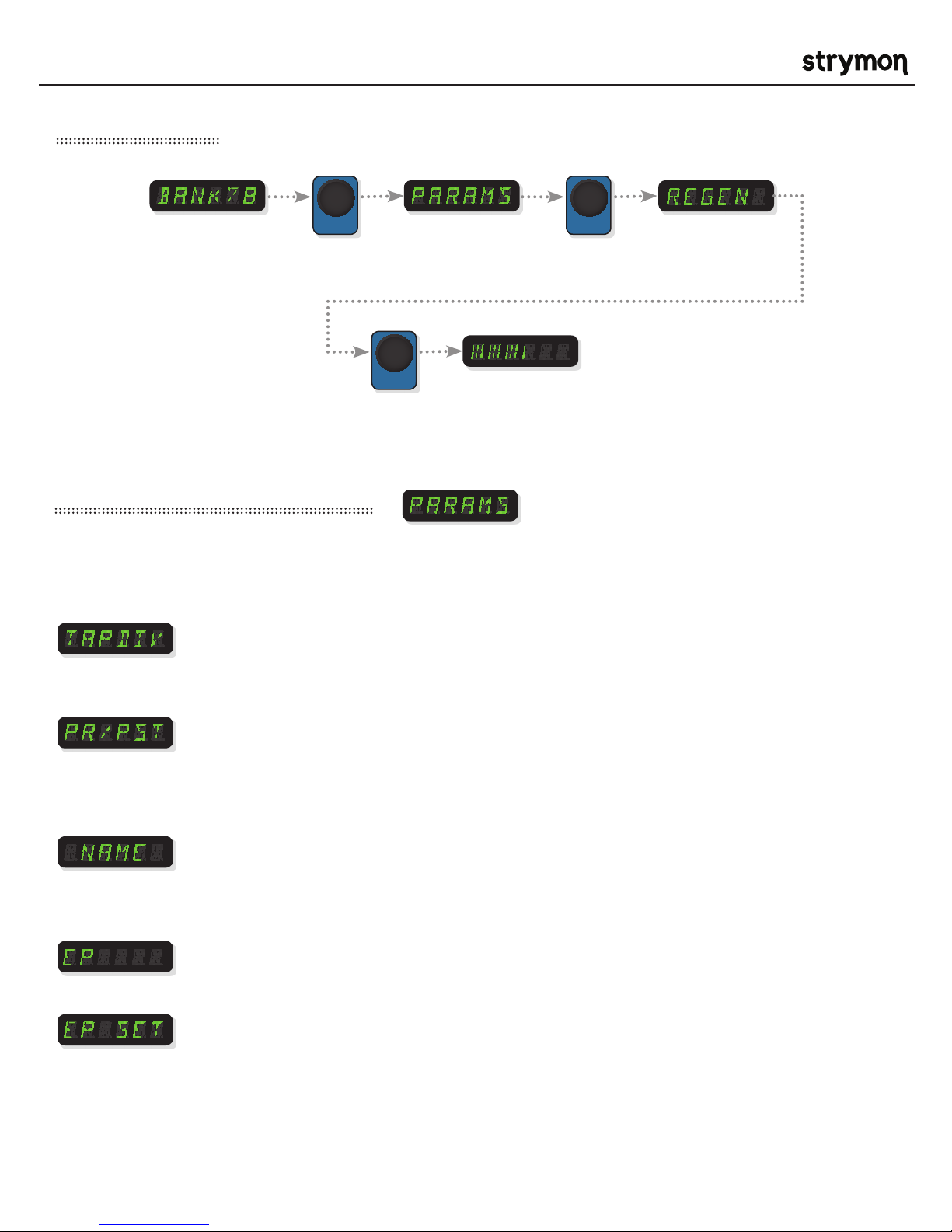

COMMON PARAMETERS - These are available on Mod machines and saved per preset
TAPDIV (TAP DIVISIONS): When tapping tempo, BPM can be set for Whole, Half, Quarter, Dotted Eight, Eighth, Triplets, or
Sixteenth notes
PR/PST (PRE/POST): If using a pre/post setup, this selects whether the effect in the preset is pre or post.
NAME: Allows editing the 16 character name of the current preset. Use the VALUE encoder to change the selected character.
Use the TYPE encoder to select a character. Exit by pressing the VALUE encoder, then press and hold the TYPE encoder to
save the name permanently. Note: For the preset name to be displayed the NAMES global must be set to ON or SCROLL.
EP (EXPRESSION PEDAL ON/OFF): Confi gure the Expression pedal input to be ON or OFF.
EP SET (EXPRESSION PEDAL SET UP): Set up which knobs are controlled by the expression pedal. Turn the knobs while HEEL
is displayed to select the minimum setting for each knob to be controlled. Turn the knobs while TOE is displayed to select the
maximum setting for each knob to be controlled.
UNIQUE PARAMETERS - All Mod machines feature unique parameters. For a full listing
of each parameter available on every Mod machine type please consult the User Manual.

Mobius - User Manual ®
pg 4
In Depth: PARAM 1 & 2 controls
STEP 3: While holding the value encoder. Turn either the PARAM
1 or PARAM 2 knob to assign a parameter.
OR
STEP 4: Turn the newly assigned PARAM knob to adjust your mod
machine parameter.
The PARAM 1 & PARAM 2 knobs allow you to continuously control any desired parameter of the currently active mod
machine. This can be very convenient in allowing continuous control over the various mod machines. For example, REGEN
in a fl anger can be assigned to one of the parameter knobs to allow for continuous control over the fl anger feedback.
TYPE
push (bank/BPM)
hold (save)
push (param)
hold (global)
VALUE
PARAM 1 PARAM 2
BTAPA
SPEED DEPTH LEVEL
BANK DOWN BANK UP
FILTER
DESTROYER
VIBE
ROTARY
FLANGER
PHASER
CHORUS
FORMANT
AUTOSWELL
VINTAGE TREM
PATTERN TREM
QUADRATURE ®
TYPE
push (bank/BPM)
hold (save)
push (param)
hold (global)
VALUE
PARAM 1 PARAM 2
BTAPA
SPEED DEPTH LEVEL
BANK DOWN BANK UP
FILTER
DESTROYER
VIBE
ROTARY
FLANGER
PHASER
CHORUS
FORMANT
AUTOSWELL
VINTAGE TREM
PATTERN TREM
QUADRATURE ®
ASSIGNING A PARAMETER
STEP 1: Navigate to the desired parameter to be assigned.
STEP 2: Press and hold the value encoder.
TYPE
push (bank/BPM)
hold (save)
push (param)
hold (global)
VALUE
PARAM 1 PARAM 2
BTAPA
SPEED DEPTH LEVEL
BANK DOWN BANK UP
FILTER
DESTROYER
VIBE
ROTARY
FLANGER
PHASER
CHORUS
FORMANT
AUTOSWELL
VINTAGE TREM
PATTERN TREM
QUADRATURE ®

Mobius - User Manual ®
pg 5

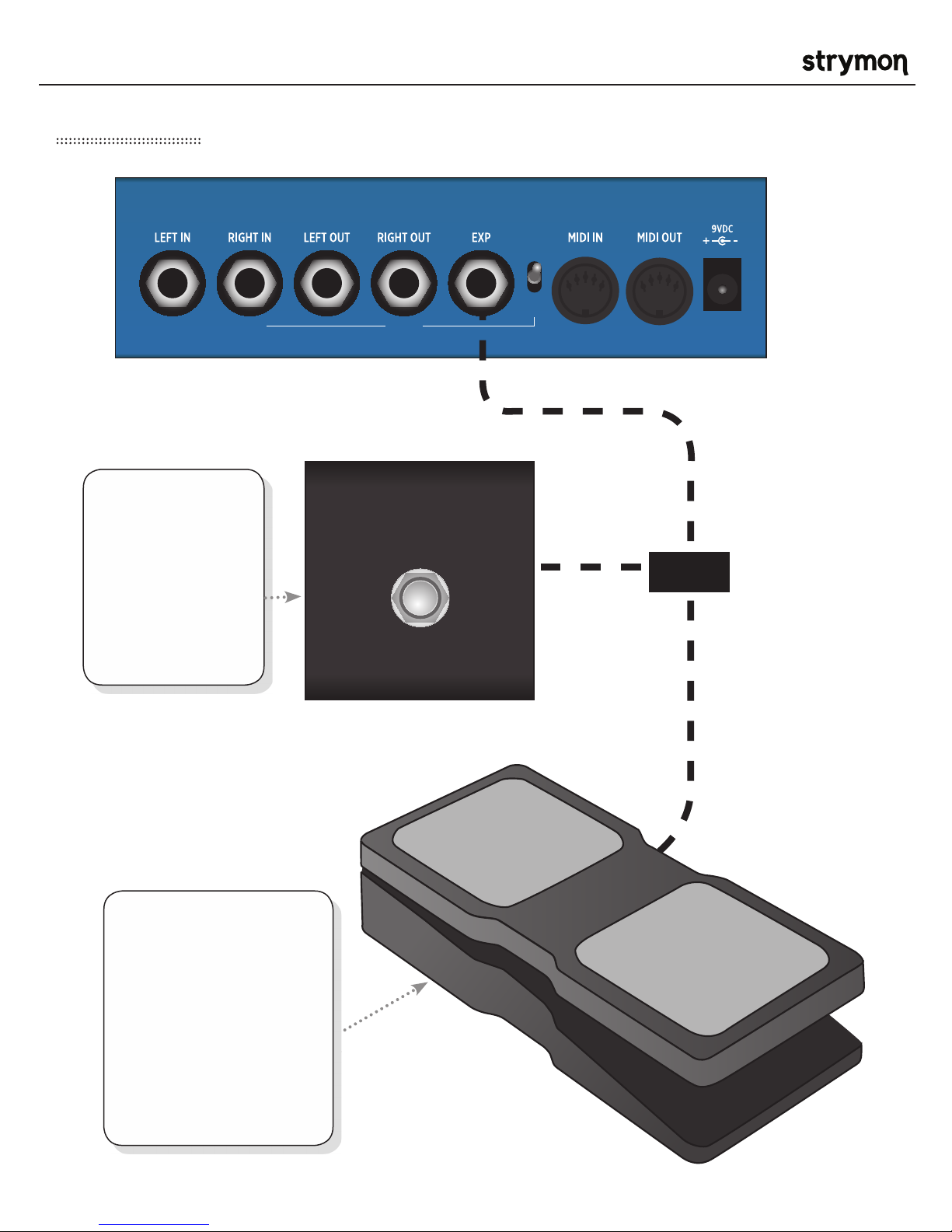

EXP Connections
STEREO
IN/OUT
PRE /
POST
OUTPUT 2INPUT 2
OR
TAP
Connect a standard TRS
expression pedal for
continuous control over
any knob. To select the
knob(s) controlled by the
expression pedal, use the
EP SET parameter in each
preset. All knobs can be
controlled simultaneously.
See Common Parameters
for set up instructions.
Connect an external
TAP switch to tap
tempo remotely.
Use a standard TRS
cable to connect the
external switch. Set
the EXP MD global
setting to TAP to use
external tap.

Mobius - User Manual ®
pg 6
Banks and Patches
Mobius has 100 banks with A & B patches in each bank. Banks are numbered 0 to 99 on the display. The
patches in banks 0-49 are duplicated in banks 50-99 at the factory.
Saving Patches
TYPE
push (bank/BPM)
hold (save)
push (param)
hold (global)
VALUE
PARAM 1 PARAM 2
BTAPA
SPEED DEPTH LEVEL
BANK DOWN BANK UP
FILTER
DESTROYER
VIBE
ROTARY
FLANGER
PHASER
CHORUS
FORMANT
AUTOSWELL
VINTAGE TREM
PATTERN TREM
QUADRATURE ®
to SAVE your
current settings
hold the
TYPE encoder
TYPE
push (bank/BPM)
hold (save)
push (param)
hold (global)
VALUE
PARAM 1 PARAM 2
BTAPA
SPEED DEPTH LEVEL
BANK DOWN BANK UP
FILTER
DESTROYER
VIBE
ROTARY
FLANGER
PHASER
CHORUS
FORMANT
AUTOSWELL
VINTAGE TREM
PATTERN TREM
QUADRATURE ®
push the TYPE
encoder again
to save to the current
patch location
will be displayed when
the patch has been saved
OR
TYPE
push (bank/BPM)
hold (save)
push (param)
hold (global)
VALUE
PARAM 1 PARAM 2
BTAPA
SPEED DEPTH LEVEL
BANK DOWN BANK UP
FILTER
DESTROYER
VIBE
ROTARY
FLANGER
PHASER
CHORUS
FORMANT
AUTOSWELL
VINTAGE TREM
PATTERN TREM
QUADRATURE ®
turn the value
encoder
to select the bank to
save to push the TYPE encoder
or the A or B footswitch
TYPE
push (bank/BPM)
hold (save)
push (param)
hold (global)
VALUE
PARAM 1 PARAM 2
BTAPA
SPEED DEPTH LEVEL
BANK DOWN BANK UP
FILTER
DESTROYER
VIBE
ROTARY
FLANGER
PHASER
CHORUS
FORMANT
AUTOSWELL
VINTAGE TREM
PATTERN TREM
QUADRATURE ®
or
Restoring Factory Patches
TYPE
push (bank/BPM)
hold (save)
push (param)
hold (global)
VALUE
PARAM 1 PARAM 2
BTAPA
SPEED DEPTH LEVEL
BANK DOWN BANK UP
FILTER
DESTROYER
VIBE
ROTARY
FLANGER
PHASER
CHORUS
FORMANT
AUTOSWELL
VINTAGE TREM
PATTERN TREM
QUADRATURE
®
POWER UP while holding A & TA P. Keep holding for 5 seconds after Mobius has
powered up.
REINIT will be displayed
and all factory patches will
automatically be restored
CAUTION: This procedure will erase any custom patches saved in the Mobius and restore them to factory
TYPE
push (bank/BPM)
hold (save)
push (param)
hold (global)
VALUE
PARAM 1 PARAM 2
BTAPA
SPEED DEPTH LEVEL
BANK DOWN BANK UP
FILTER
DESTROYER
VIBE
ROTARY
FLANGER
PHASER
CHORUS
FORMANT
AUTOSWELL
VINTAGE TREM
PATTERN TREM
QUADRATURE ®

Mobius - User Manual ®
pg 7
Mod Machines: Common Parameters
All Mod Machines share a set of parameters. These parameters are saved with each preset and include:
Tap Division: Selects the subdivision to use for LFO speed when tapping in a tempo.
Tap division options include:
Whole, Half, Quarter(default), Dotted Eight, Eighth, Triplets, Sixteenth notes
note: If TAPDIV is set to anything other than Quarter notes, the TAP LED will pulse in amber
Pre / Post: Allows confi guration per preset of the pre/post confi guration available via the rear panel
toggle switch. When Mobius is used in pre/post confi guration, set to “PRE” to place the
modulation effect in front of your amp and set to “POST” to place the modulation effect in
your amp’s effect loop.
Name: Allows editing the 16 character name of the current patch. Use the VALUE encoder to
change the selected character. Use the TYPE encoder to select a character. Exit by pressing
the VALUE encoder, then press and hold the TYPE encoder to SAVE the name permanently.
note: For the patch name to be displayed the NAMES global must be set to ON or SCROLL.
Expression Pedal ON/OFF: Enables or disables the expression pedal input for each patch.

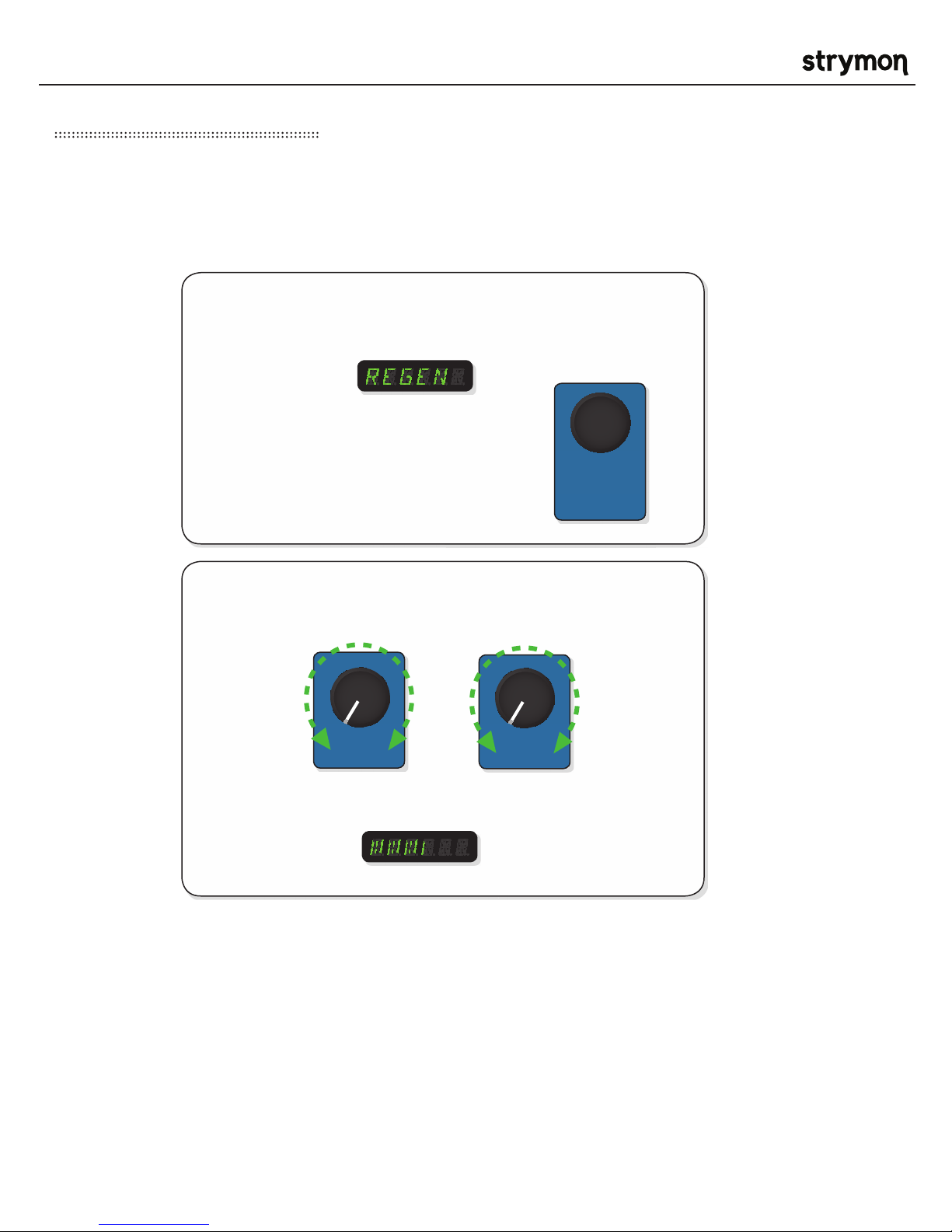

Expression Pedal Set: Enters the expression pedal setup for each patch. All knobs can be confi gured to be
used with the expression pedal. To set up which knobs are controlled by the expression
pedal, push the Value encoder when it displays “EP SET” and it will then display “HEEL”.
Turn the knob(s) to the position desired at heel down on the expression pedal. Then, turn
the Value encoder right to display”TOE” and set the knobs to their desired values at the toe
down position on the expression pedal. An expression pedal can control all of the knobs
simultaneously.
Editing Parameters
TYPE
push (bank/BPM)
hold (save)
push (param)
hold (global)
VALUE
PARAM 1 PARAM 2
BTAPA
SPEED DEPTH LEVEL
BANK DOWN BANK UP
FILTER
DESTROYER
VIBE
ROTARY
FLANGER
PHASER
CHORUS
FORMANT
AUTOSWELL
VINTAGE TREM
PATTERN TREM
QUADRATURE ®
While displaying
BANK or BPM push the
value encoder
to enter PARAMS
menu
TYPE
push (bank/BPM)
hold (save)
push (param)
hold (global)
VALUE
PARAM 1 PARAM 2
BTAPA
SPEED DEPTH LEVEL
BANK DOWN BANK UP
FILTER
DESTROYER
VIBE
ROTARY
FLANGER
PHASER
CHORUS
FORMANT
AUTOSWELL
VINTAGE TREM
PATTERN TREM
QUADRATURE ®
turn the
value encoder
to select the desired
PARAMETER
TYPE
push (bank/BPM)
hold (save)
push (param)
hold (global)
VALUE
PARAM 1 PARAM 2
BTAPA
SPEED DEPTH LEVEL
BANK DOWN BANK UP
FILTER
DESTROYER
VIBE
ROTARY
FLANGER
PHASER
CHORUS
FORMANT
AUTOSWELL
VINTAGE TREM
PATTERN TREM
QUADRATURE ®
push the value
encoder again
and turn to edit
the selected
PARAMETER
Whole, Half, Quarter(default), Dotted Eight, Eighth, Triplets, Sixteenth notes

Mobius - User Manual ®
pg 8
TYPE
push (bank/BPM)
hold (save)
push (param)
hold (global)
VALUE
PARAM 1 PARAM 2
BTAPA
SPEED DEPTH LEVEL
BANK DOWN BANK UP
FILTER
DESTROYER
VIBE
ROTARY
FLANGER
PHASER
CHORUS
FORMANT
AUTOSWELL
VINTAGE TREM
PATTERN TREM
QUADRATURE ®
Mod Machines: Chorus
A full featured Chorus with 5 distinct modes. dBucket, Multi and Vibrato all utilize our dBucket variable clock technology for
classic analog bucket brigade style chorusing. dBucket utilizes a single LFO while Multi utilizes multiple LFOs simultaneously
for a distinctly rich sounding chorus. Vibrato is a pitch modulation effect reminiscent of bucket brigade style pitch modulation
effects. The Detune and Digital modes are clean digital chorus effects reminiscent of the rack effects of the ‘80s. Detune
applys a “thickening” effect to your signal while Digital is a crystal clear chorusing algorithm.
PARAMETERS:
Mode: Selects the current Chorus algorithm. Each algorithm is completely unique in its
sonic character.
||||||||
- | +
Mix: Sets the Mix of the wet Chorus signal relative to the uneffected dry signal. A 50/50
mix is usually the most typical setting.
Tone: Allows adjustment of the brightness of the effected signal.
TIPS & TRICKS:
dBCKET mode covers the sounds of the classic analog choruses from the 1970’s. Turn the DEPTH Knob to 12:00 and the
MIX parameter at around 80% for the coveted large-box chorus sound. Turn the MIX back to half-way to experience the
sound of the fi rst compact chorus pedal.
MULTI mode’s three dBucket modulated-delay- lines allow for super-lush modulation at high mix and depth levels
without excessive ‘warble’. If you have a stereo rig, you owe it to yourself to check this out. Try preset 00A for starters.
VIBRTO mode uses our dBucket and variable-clock technology to capture the warmth of old-school stomp circuits. Set
the MIX param to maximum for pure vibrato. Reduce the MIX to add some dry signal to give a vibrato-infl uenced chorus.
DETUNE mode mixes a pitch-detuned signal with the dry input to create a chorus that doesn’t use an LFO. The SPEED
knob controls the pitch shift from -25 cents to +25 cents, while the DEPTH knob adds a widening or doubling effect as it
is turned up for a distinctive ‘80s feel. Set MIX to 50% for the fullest effect.
DIGITL mode uses a classic modulated digital delay line to produce clean, pristine, unadulterated chorus tones. Set MIX
to 50% for traditional digital chorus sounds.
dBucket
Multi
Vibrato
Detune
Digital

Mobius - User Manual ®
pg 9
Mode: Sets the currently active Flanger algorithm.
TYPE
push (bank/BPM)
hold (save)
push (param)
hold (global)
VALUE
PARAM 1 PARAM 2
BTAPA
SPEED DEPTH LEVEL
BANK DOWN BANK UP
FILTER
DESTROYER
VIBE
ROTARY
FLANGER
PHASER
CHORUS
FORMANT
AUTOSWELL
VINTAGE TREM
PATTERN TREM
QUADRATURE ®

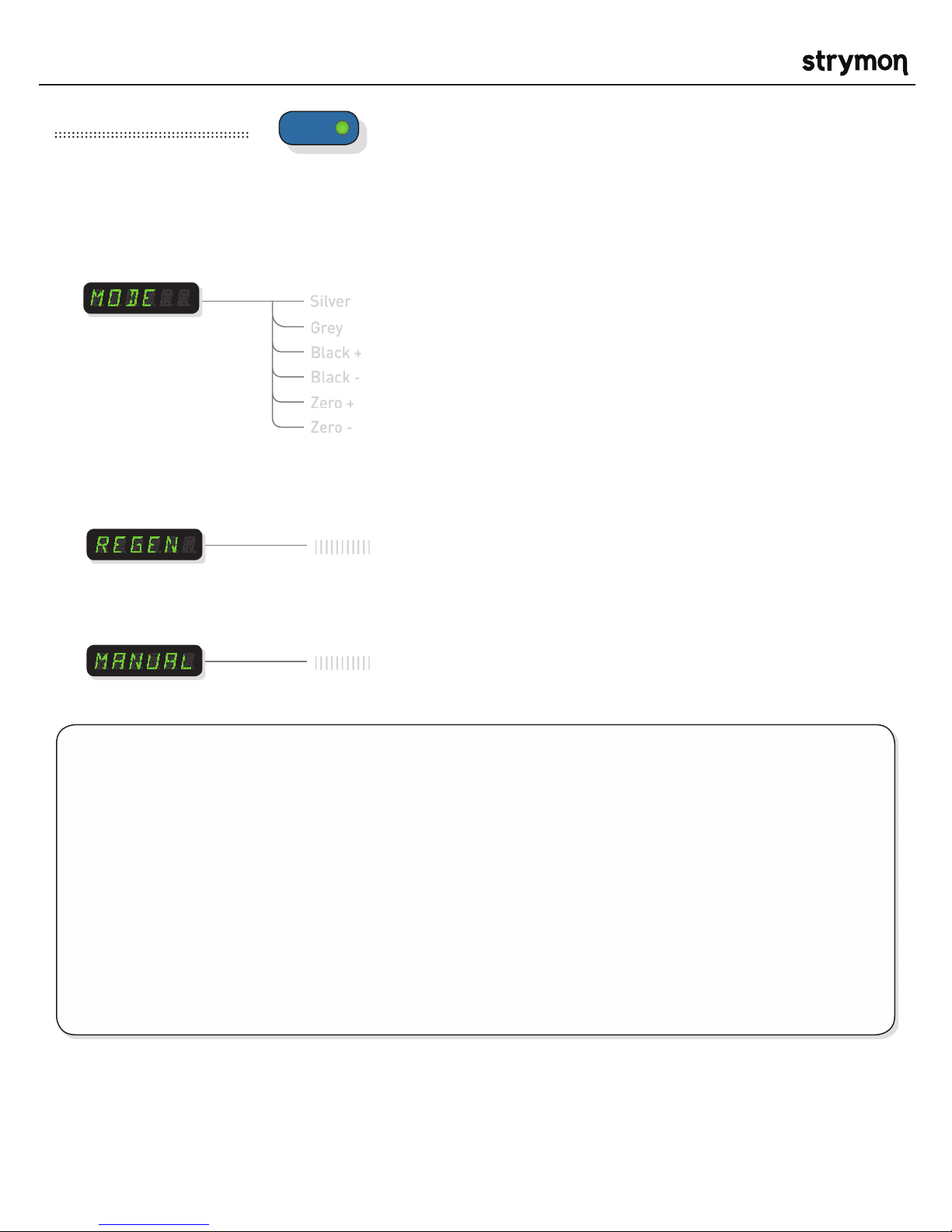

Mod Machines: Flanger
Silver
Grey
Black +
Black -
Zero +
Zero -
A deep and rich Flanger with a wide pallete of sonic possibilities. Six separate modes cover a variety of fl anger sounds. Each
separate algorithm uses dBucket technology at its heart for authentic recreations of classic bucket brigade fl angers.
PARAMETERS:
|||||||||||
|||||||||||
Regen: Adjusts the amount of feedback in the fl anger’s delay line. Adjust high for more extreme
fl anging sounds.
Manual: Controls the delay time of the fl anger. Higher settings produce higher frequency fl anging
effects and vice versa.
TIPS & TRICKS:
SILVER mode creates textured, airy fl anging. Turn up the Depth and Regen params to add color to stacatto rhythm
parts, or turn back for a mellower chorus-like effect.
GREY mode’s logarithmic LFO creates a dramatic sweep that lingers at the higher registers when the DEPTH knob is
high and the speed is slow. Increase the REGEN parameter to intensify the effect.
BLACK mode’s super-wide sweep creates a signature ‘swoop’ at high depth settings. At fast speeds, this mode will get
crazy.
In the ZERO modes with the MANUAL parameter at minimum, the ‘top’ of the sweep just passes through zero.
Increasing the MANUAL parameter moves the sweep even further past zero. Increase the DEPTH to add lower
frequency fl anging at the ‘bottom’ of the sweep.
- a re-creation of the classic “silver box” fl anger
- the classic “grey box” fl anger featuring its unusual LFO waveshape
- one of the most sought after fl ange sounds in history, with positive regeneration
- the black box fl anger with negative regeneration
- a through zero fl anger with positive regeneration
- a through zero fl anger with negative regeneration

Mobius - User Manual ®
pg 10
TYPE
push (bank/BPM)
hold (save)
push (param)
hold (global)
VALUE
PARAM 1 PARAM 2
BTAPA
SPEED DEPTH LEVEL
BANK DOWN BANK UP
FILTER
DESTROYER
VIBE
ROTARY
FLANGER
PHASER
CHORUS
FORMANT
AUTOSWELL
VINTAGE TREM
PATTERN TREM
QUADRATURE ®

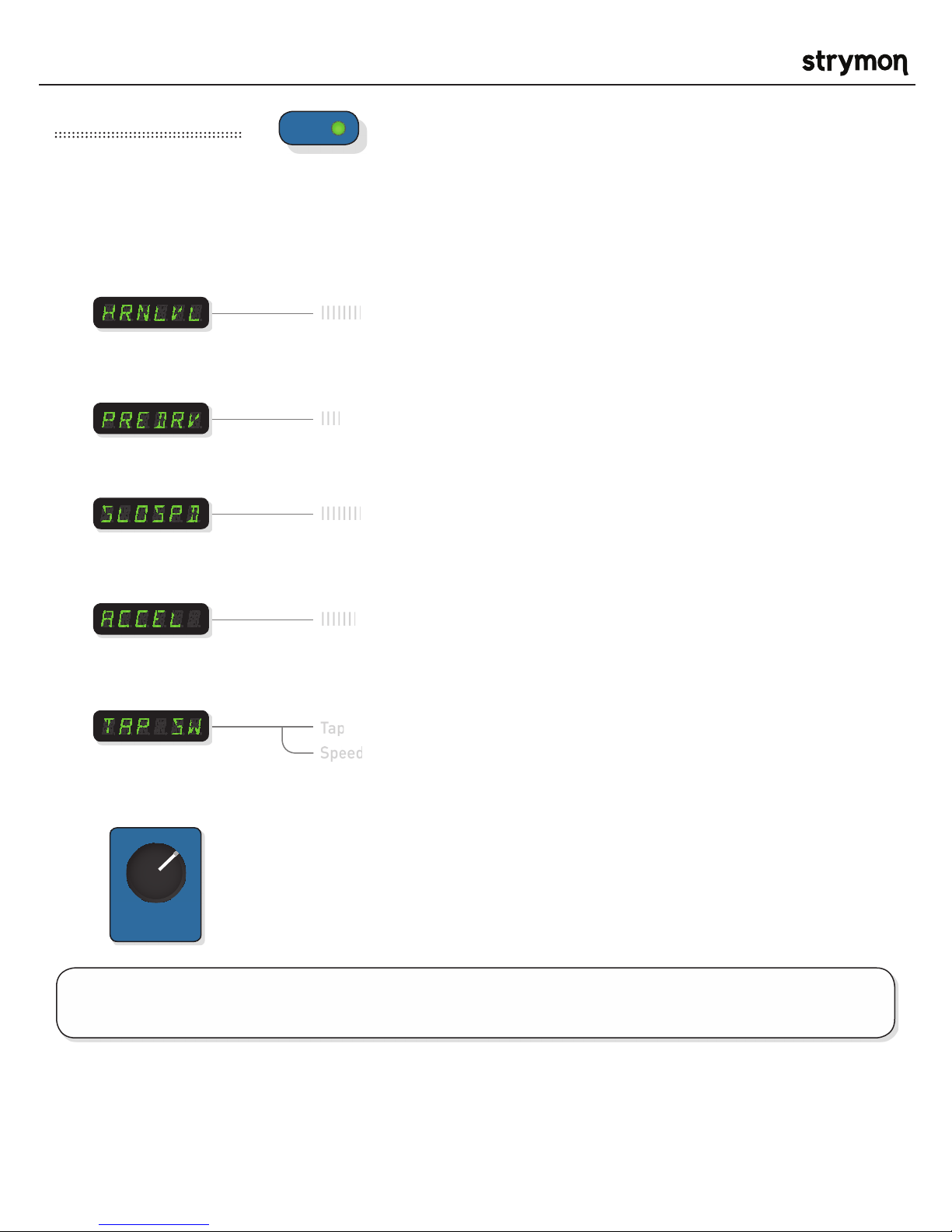

Mod Machines: Rotary
A realistic recreation of a rotary speaker cabinet commonly used with tonewheel organs and guitars. Just like an actual
rotating speaker cabinet, the speed of rotation can be varied between slow and fast speeds.
PARAMETERS:
Horn Level: Controls the output of the high frequency rotating horn driver.
TIPS & TRICKS: In the ROTARY machine, the SPEED knob controls the fast rotor speed. Set the DEPTH control high for
close-miking and maximum intensity, and dial it back for a more mellow effect.
||||||||
Preamp Drive: Controls the drive of the rotary cabinet’s tube preamp and phase inverter stages.
Turn up for a more overdriven cab sound.
||||
Slow Rotor speed: Controls the speed of the rotors in SLOW speed.
||||||||
Acceleration: Controls how quickly the rotors transition from Fast to Slow and from Slow to
Fast speed. The rotors will accelerate independently.
|||||||
TAP Switch: Determines whether to use the TAP footswitch as a tap tempo or a slow/fast
speed toggle.
Tap
Speed
Mic Distance: Varies the distance of the two stereo microphones from the rotating horn driver.
The DEPTH knob takes this function on the Rotary machine.
TYPE
push (bank/BPM)
hold (save)
push (param)
hold (global)
VALUE
PARAM 1 PARAM 2
BTAPA
SPEED DEPTH LEVEL
BANK DOWN BANK UP
FILTER
DESTROYER
VIBE
ROTARY
FLANGER
PHASER
CHORUS
FORMANT
AUTOSWELL
VINTAGE TREM
PATTERN TREM
QUADRATURE ®
