Strymon DIG User manual

QUICK START GUIDE

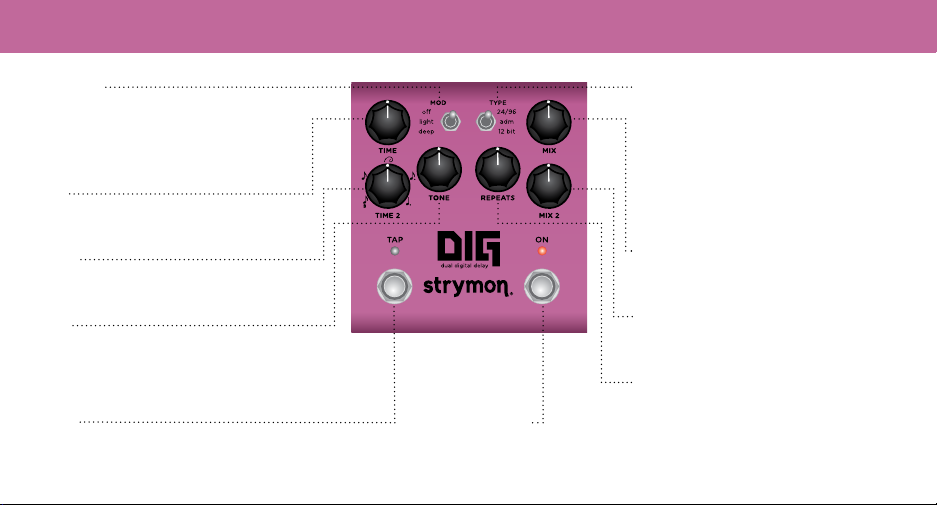

KNOBS AND SWITCHES
DELAY TYPE
Changes the digital delay character:
24/96: modern, clean delay with subtle
dynamics
adm: early ‘80s adaptive delta modulation
process provides snappy, percussive delays
12 bit: mid 80’s 12-bit conversion method
yields slightly darker and warmer delays
MIX
Controls wet/dry mix for Delay 1. 3 o’clock
is 50/50 mix.
MIX 2
Controls wet/dry mix for Delay 2. 3 o’clock
is 50/50 mix.
REPEATS
Adjusts the number of repeats for both delays.
TAP
Tap to set the master delay time. The TAP LED flashes RED to
indicate the tempo. Hold footswitch to engage circular repeats.
ON
Engages the effect. RED LED indicates the effect is engaged.
MOD TYPE
Sets the amount of delay line modulation:
off: no modulation
light: subtle modulation
deep: thick, rich modulation
TIME
Controls the delay time for Delay 1. Acts
as a master time control for both delays.
TIME 2
Sets the rhythmic subdivision relationship
between Delay 1 and Delay 2.
TONE
Sets the feedback filter response. Turn left
for high cut and right for low cut. 12 o’clock
is flat response.

REAR PANEL CONNECTIONS
USB-C
Computer connection for
controlling via MIDI and firmware
updates.
9VDC
Use the included power supply
or an adapter with the following
rating: 9VDC, centernegative,
300mA minimum.
AUDIO INPUT SELECTOR
MONO: Use with a mono input signal.
Output is stereo.
STEREO: Use with a stereo input
signal. Output is stereo.
IN
High impedance, ultra low-noise,
discrete Class A JFET preamp input.
TRS adapter cable required for stereo
input signal.
OUTPUTS
Low impedance stereo audio signal
outputs. Use OUT L for mono output.
EXP / MIDI
Multifunction communication jack for external control of DIG’s features and
functions. Use a standard TRS expression pedal for continuous control over
the knobs of the pedal (default setting). See complete User Manual for details
about configuring for MIDI communication or accessories such as Strymon
Conduit, MultiSwitch Plus, and MiniSwitch.
>> Download the complete User Manual at strymon.net/support/dig-v2/ <<

SAMPLE SETTINGS
CASCADING ECHOES
DISTINCT BOUNCES
DOWN FROM THE HILLS
SHORT ROOM
SUBTLE REPEATS
LIVE EDIT FUNCTIONS
DIG provides a way to adjust several
parameters that do not have a dedicated
knob or switch. These are called Live
Edit functions and details about utilizing
and storing them are included in the
complete User Manual. The sample
settings on this page use the factory
default values for these functions.

REV B
