Style selections SRGF21626X User manual

Before returning to your retailer, call our customer
service department at 1-877-888-8225, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could
also contact us at [email protected].
ATTACH YOUR RECEIPT HERE
Serial NumberPurchase Date
MODEL # SRGF21626X
STYLE SELECTIONSTM and logo design are trademarks or
registered trademarks of LF, LLC. All rights reserved.
GAS FIRE TABLE
Español p.23
Lowe’s Item No.: 4083927
Questions, problems, missing parts?
AS21722

WARNINGS AND CAUTIONS
Read the instructions before use. This appliance must be installed in accordance with such
regulations as are enforced.
•Do not try to light the appliance.
•Do not touch any electrical switch; do not use any phone in the vicinity of this product.
•Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
•If you cannot reach your gas supplier, call the fire department.
WHAT TO DO IF YOU SMELL GAS?
Installation and service must be performed by a qualified installer, service agency or gas
supplier.
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has
no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such
as a camper, tent, car or home.
INSTALLER: Leave this manual with
the appliance.
CONSUMER: Retain this manual for
future reference.
FIRE OR EXPLOSION HAZARD
If you smell gas:
Shut off gas to the appliance.
Extinguish any open flame.
If odor continues, leave the area
immediately.
After leaving the area, call your gas
supplier or fire department.
Failure to follow these instructions
could result in fire or explosion,
which could cause property damage,
personal injury, or death.
DANGER
●
●
●
●
WARNING:For Outdoor Use Only.
Installation and service must be
performed by a qualified installer,
service agency, or the gas supplier.
Do not store or use gasoline or
other flammable vapors and liquids
in the vicinity of this or any other
appliance.
WARNING
An LP-cylinder not connected for use
shall not be stored in the vicinity of
this or any other appliance.
WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury, or loss of life.
!
2

TABLE OF CONTENTS
Warnings and Cautions...................................................................2, 4-5
Table of Contents...................................................................................3
Tools and Parts...................................................................................6-7
Assembly Instructions.......................................................................8-12
Installation Instructions ........................................................................13
Operation.........................................................................................14-16
Locating Fire Pit For Use......................................................................17
Maintenance and Storage...............................................................18-19
Trouble Shooting..................................................................................20
Warranty Information............................................................................21
Replacement Parts List........................................................................22
REMINDER
BEFORE ASSEMBLY
Verify that all parts are included with your gas fire pit BEFORE you begin assembly by checking the Tools and
Parts List. For your convenience, some parts may be pre-assembled or attached to fire pit components.
If all parts are not included, do not attempt to assemble fire pit. Call the toll free number on the cover
page for replacement parts.
Leave hardware installed HALF-TIGHTENED on the gas fire pit during assembly until unit is completely
assembled, then finish tightening all hardware installed.
YOUR OWNER’S MANUAL
Keep and store this Owner’s Manual for future reference – it contains important instructions and
procedures for safety and maintenance.
3

WARNINGS AND CAUTIONS
IMPORTANT SAFETY INFORMATION
•The installation must conform with local codes or, in the absence of local codes, with either the
Natural Gas and Propane Installation Code, CSA B149.1, or the Propane Storage and Handling
Code, CSA B 149.2.
•Always place the appliance on a firm and level surface.
•Do not burn solid fuels in this gas appliance.
•Use the appliance outdoors in a well-ventilated space only, not in a building, garage, or any other
enclosed area.
•When using the appliance, keep the appliance area clear and at least 50 inches from combustible
materials, gasoline and other flammable liquid and vapors. Certain items or materials, when stored
under the appliance or nearby, will be subjected to radiant heat and could be seriously damaged.
•
Inspect the gas connections of appliance prior to each use. Do not operate the unit if there is gas leak.
•
Inspect the hose before each use of the appliance. The hose assembly must be replaced prior to the
appliance being put into operation if there is evidence of excessive abrasion or wear or if the hose is
damaged. The replacement hose assembly shall be that specified by the manufacturer.
A qualified service person should inspect the appliance annually.
•Alert children and adults to the hazards of high surface temperatures and keep them away
to avoid burns or clothing ignition.
•Carefully supervise children and pets when they are near the appliance.
•Any guard, barrier, or other protective device removed for servicing the appliance shall be
replaced prior to operating the appliance.
•Do not hang clothing or other flammable materials on or near the appliance.
•Do not use the appliance if any part has been under water. Immediately call a qualified service
technician to inspect the appliance and to replace any part of the control system and any gas
control which has been under water.
•
•
Use only a cylinder supply system arranged for vapor withdrawal, and the cylinder must include a
•The LP-gas supply cylinder to be used must be: Constructed and marked in accordance with the
Specifications for LP-gas cylinders of the U.S. Department of Transportation (DOT); or the Standard
for Cylinders, Spheres and Tubes for Transportation of Dangerous Goods and Commission,
CAN/CSA-B339, as applicable;
The LP-gas supply cylinder to be used must be provided with a listed overfilling prevention device;
and provided with a cylinder connection device compatible with the connection for the appliance.
collar to protect the cylinder valve.
•This appliance requires 20 lb (9 kg) LP gas supply cylinder.
•The burner must be replaced prior to the appliance being put into operation if it is evident that the
burner is damaged. The replacement burner shall be that specified by the manufacturer.
•Installation and repair should be done by a qualified service person. The appliance should
be inspected before use and at least annually by a qualified service person. More frequent
cleaning may be required as necessary. It is imperative that control compartment, burners,
and circulating air passageways of the appliance be kept clean.
4

WARNINGS AND CAUTIONS
This appliance is designed to operate with a standard 20 Ib propane cylinder with Approved
Cylinder Connection.
NOTE: PLEASE READ THE FOLLOWING SAFETY RULES:
Before beginning assembly of product, make sure all parts are present. If any part is missing or
damaged, do not attempt to assemble the product. Contact customer service for replacement parts.
Perform a leak test with a soapy solution:
1. To check gas connections.
2. After connecting a new cylinder.
3. Upon re-assembly after disassembly.
WARNING:
This product can expose you to chemicals including soot, which is known to the State of
California to cause cancer, and carbon monoxide, which is known to the State of California to
cause birth defects or other reproductive harm. For more information, go to:
www.P65Warnings.ca.gov.
!
SPECIFICATION
Certification CSA
Rated Heat Input 50, 000 Btu/h (14.65kW)
Fuel Propane
Gas Supply 20-lb. LP - gas cylinder
Manifold Pressure 11 in wc (2.74kPa).
Injector Size(diameter) 2.17mm
Min. gas supply for input adj. 25PSI (175kPa)
Max. gas supply 250PSI (1750kPa)
5

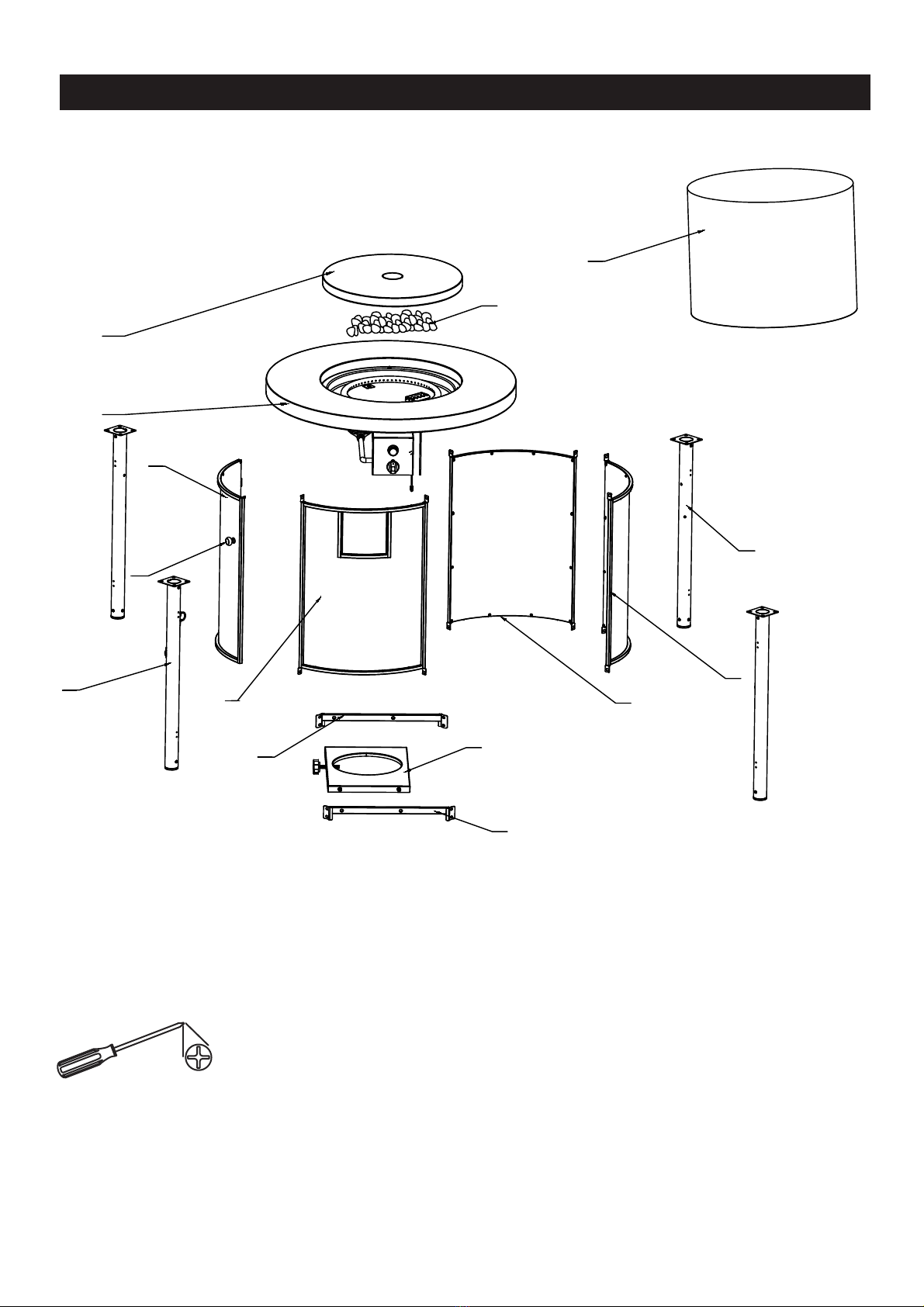

TOOLS NEEDED: (NOT INCLUDED)
Philips screwdriver
Estimated time for assembly: 30 minutes.
TOOLS AND PARTS
6
N
A
B
D
E
FG
H
I
J
C
K
L
H

TOOLS AND PARTS
Cylinder Holder Assembly
Side Panel
Front Panel
Lava Rock
Door Handle
Door
Right Cylinder Support Tube
Table Top Assembly
PART DESCRIPTION QUANTITY
1A
1B 3C
D
E
F
G
H
I
L
J
1
1
1
1
1
1
1
K
Leg
Leg With Door Magnet
Lid
Left Cylinder Support Tube
HARDWARE CONTENTS (shown actual size)
M6x14 ST4.2 x 9.5
Qty.20 Qty. 4
M5x14
Qty.16
BBAA CC
1
2
N
1
PVC Cover
7

Assembly Instructions
Step 2 Step 2

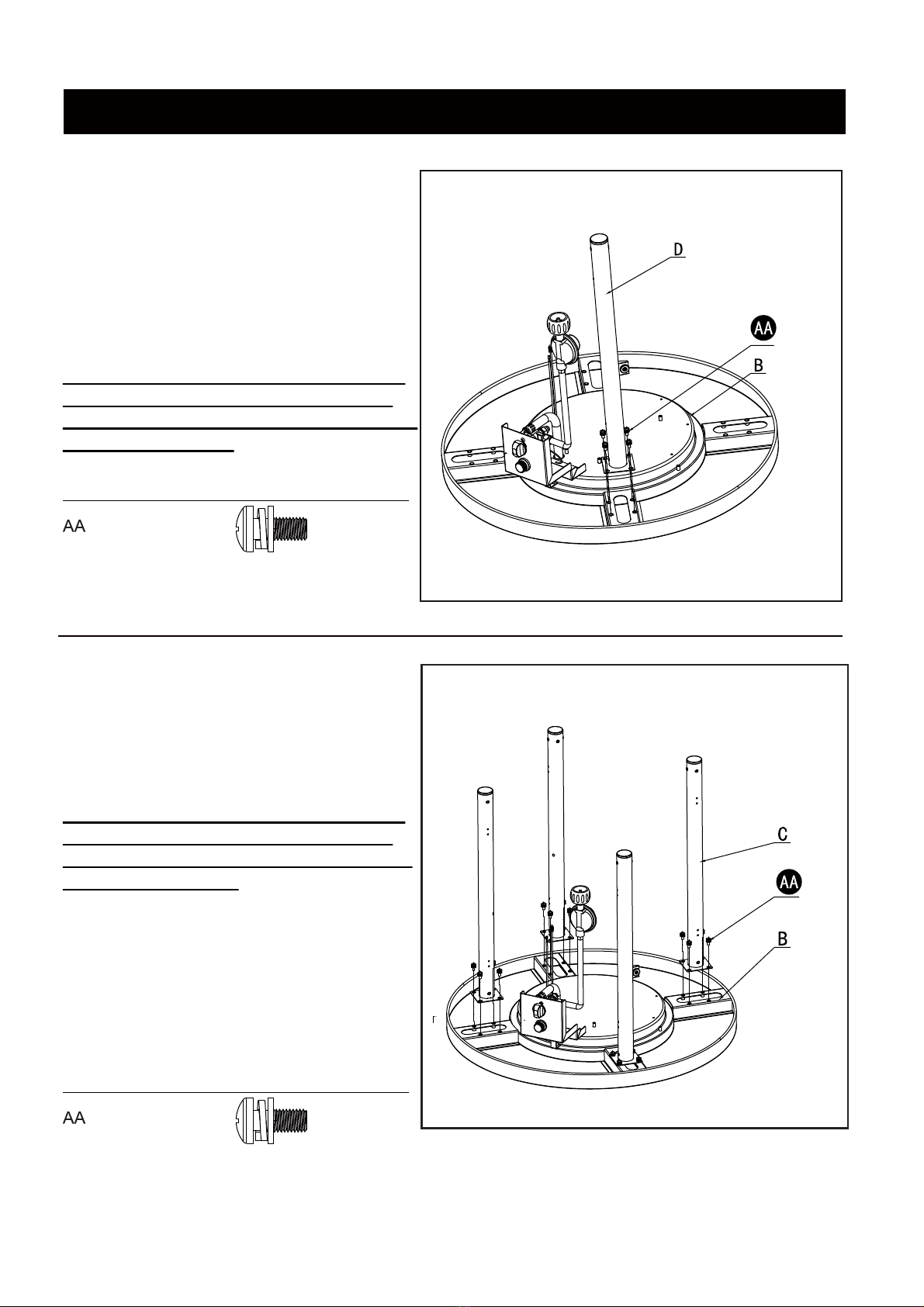

Step 1
Hardware Used
Step 1
Place the Table Top Assembly (B) upside
down on a soft, level surface, place the
Leg With Door Magnet (D) on the left side
of the control panel, and attach it to the
table top assembly (B) with (4)
M6 x 14 bolt (AA) as illustrated.
Note: Leg installing has the directions
requirement. Make sure the leg of no
screw hole side is facing outward when
install the leg 2 (D).
Attach (3) Leg (C) to the Table Top
Assembly (B) with (12) M6 x 14 bolt (AA)
as illustrated.
Note: Leg installing has the directions
requirement. Make sure the leg of no
screw hole side is facing outward when
install the Leg (C).
M6x14 4 pcs
Hardware Used
M6x14 12 pcs
8

Step 3
Attach the left cylinder support tube (E)
and the right cylinder support tube (F) to
the cylinder holder assembly (G) with (4)
M6 x 14 bolt (AA). Then attach this whole
cylinder support assembly (M) onto the
Leg (C) and the Leg With Door Magnet
(D) with (4) M5 x 14 bolt (BB) as
illustrated.
Assembly Instructions
Step 4
Attach (2) side panels (H) to the Leg
(C) with (8) M5 x 14 bolt assemblies
(BB) as illustrated.
Step 3
Step 4
Hardware Used
Hardware Used
M6x14 4 pcs
M5x14BB 4 pcs
M5x14BB 8 pcs
C
M
D
E
G
M
F
H
H
C
AA
BB
BB
BB
9

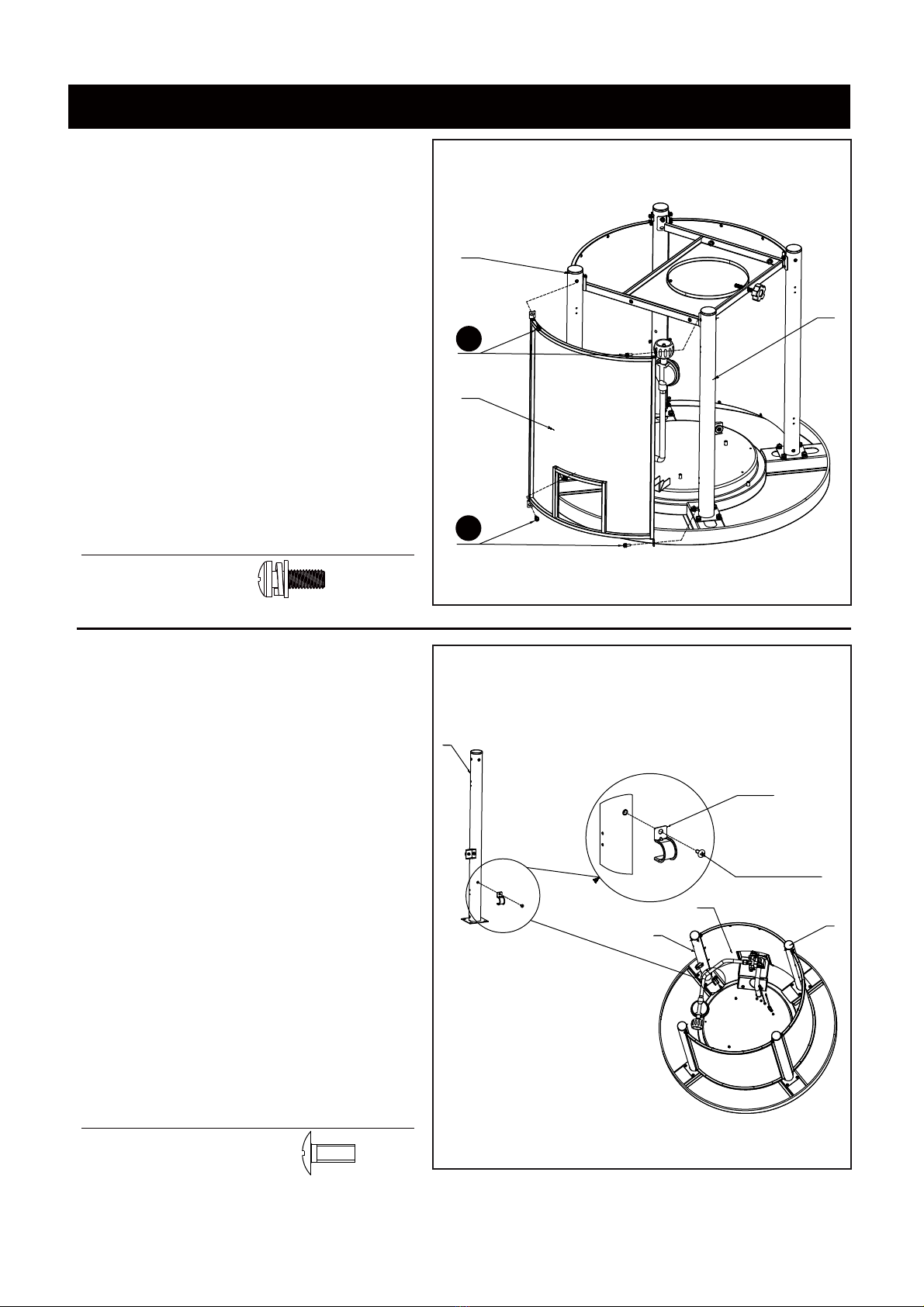

Step 6 Step 6
Assembly Instructions
Attach the front panel (I) to the Leg (C) and the
Leg With Door Magnet (D) with (4) M5 x 14 bolt
(BB) as illustrated.
Unscrew the pre-assembled hose clip from the
Leg With Door Magnet (D), then attach the hose
clip back to the Leg With Door Magnet (D) with
M4 x 10 screw pre-assembled on the Leg With
Door Magnet (D) to fix the hose as illustrated.
Step 5 Step 5
Hardware Used
M5x14BB 4 pcs
Hardware Used
Pre-assembled
screw M4x10 1 pcs
D
Hose Clip
(pre-assembled)
M4x10 Screw
(pre-assembled)
D
I
C
C
D
I
BB
BB
10

Assembly Instructions
Step 8
Step 7
Attach the Door handle (K) to the Door (J).
Next attach the Door (J) to the Leg (C)
with (4) ST 4.2 x 9.5 self-tapping screws
(CC) as illustrated.
Note: With the help of a friend, turn the
gas fire pit into upright position after
this step finished.
Step 7
CC ST4.2 x 9.5 4 pcs
Hardware Used
Step 8
Place the Lava rocks (L) onto the table top
assembly (B). Place the Fire bowl lid (A)
onto the Table top assembly (B) when not
use.
Note:
To avoid ignition failure, do not cover the
shield with lava rocks.
WARNING: If exposed to water lava
rocks may pop when fire is ignited.
To prevent, please replace cover lid after
each use.
11
K
J
J
C
A
B
LShield
CC
!

Assembly Instructions
Step 9
Unscrew the battery compartment cap on
the control panel and install one AA battery
(not included) with the anode end of the
battery located towards the battery
compartment cap.
WARNING: Failure to position the parts in
accordance with these diagrams or failure
to use only parts specifically approved with
this appliance may result in property
damage or personal injury.
Step 9
Battery
Battery
Compartment
Cap
12

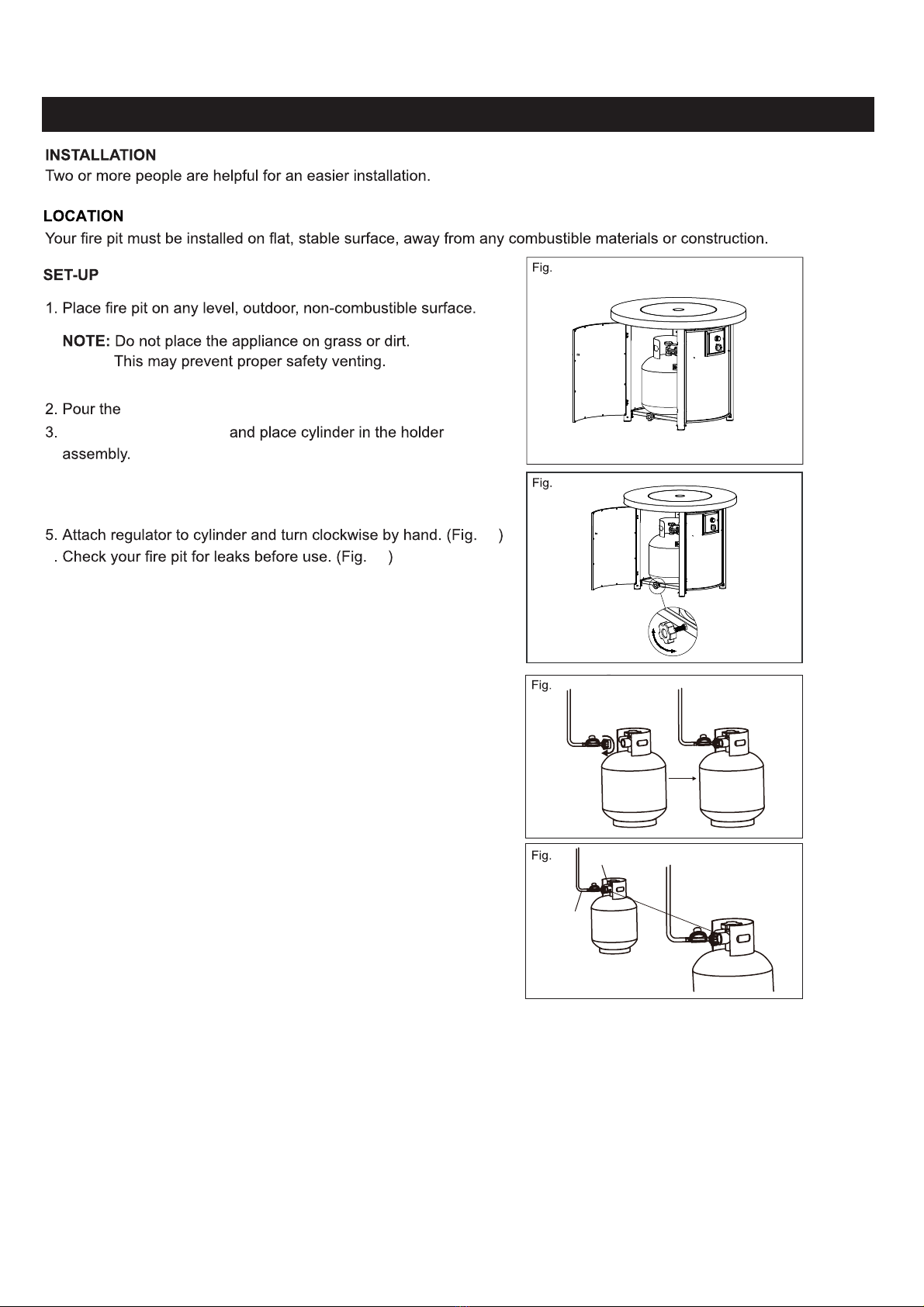

INSTALLATION INSTRUCTIONS
10
11
lava rocks onto the fire pit.
Open the door panel (J)
Make sure the valve outlet of cylinder is facing outward.
4. Turn the cylinder locking bolt clockwise to secure the gas
cylinder. (Fig. 11)
12
13
6
Your gas fire pit has been checked at all connections at the
factory for leakage.
In transportation and handling some connections may have
loosened. Follow these steps to check the hose/
regulator/cylinder connections:
1) Make leakage solution by mixing 1 part liquid dish soap and 3
parts water.
2) Spoon or brush several drops (or use squirt bottle) of the
solution onto hose/regulator/cylinder connection.
3) Turn on gas cylinder. Inspect the connections and look for
bubbles.
4) If no bubbles appear, the connection is safe.
5) If bubbles appear, there is leakage. Loosen and re-tighten this
connection. If there is still a leak, please call customer service:
1-877-888-8225.
Note:
1) The cylinder supply system must be arranged for vapor
withdrawal.
2) The cylinder used must include a collar to protect the cylinder
valve.
The hose assembly must be replaced prior to the appliance being
put into operation if there is evidence of excessive abrasion or
wear, or if the hose is damaged.
At least once a year, a complete inspection of the entire gas path
components should be performed.
If there is need to replace parts, proceed to leak test after
reassembly (These procedures should be performed by a profes-
sional technician).
12
13 P2
P1
Tighten
regulator & cylinder
connection
(Fig. 10)
13

WARNING: DO NOT ATTEMPT TO OPERATE THE APPLIANCE UNTIL YOU HAVE READ AND
UNDERSTAND ALL PRECAUTIONS. FAILURE TO DO SO CAN RESULT IN PROPERTY
DAMAGE, SERIOUS INJURY, OR DEATH.
WARNING
WARNING
WARNING
FOR YOUR SAFETY:
DO NOT touch or move gas appliance
for at least 45 minutes after use.
Lighting operations should comply
with Lighting Instruction section.
Improper lighting operations will
cause serious injury and explosion.
Before turning gas supply ON
Your
fire pit was designed and approved for OUTDOOR
USE ONLY. DO NOT use it inside a building or any other
enclosed area.
Make sure surrounding areas are free of combustible
materials, gasoline, and other flammable vapors or liquids.
Ensure that there is no obstruction to air ventilation.
Be sure all gas connections are tight and there are no leaks.
Be sure the access panel is clear of debris.
Be sure any component removed during assembly or
servicing is replaced and fastened prior to starting.
FOR YOUR SAFETY:
WARNING!!!
Do not use an open flame to check for leakage.
Do not smoke during testing.
Do not test indoors.
A leak check must be performed whenever the gas
cylinder is replaced.
NOTE:
U
se only the pressure regulator supplied with this fire pit.
Replace them with those specified by the manufacturer
only.
OPERATION
If at any time you are unable to
light burner and smell gas, wait 5
minutes to allow gas to dissipate
before attempting to light gas
appliance. If after 1 minute, you
are unable to light burner, wait 5
minutes and allow flammable
vapors to dissipate before
attempting to light gas appliance.
14

ATION
Before Lighting
The gas fire pit should be thoroughly inspected before each
use, and by a qualified service person at least annually.
If relighting a hot gas fire pit, always wait at least 5 minutes.

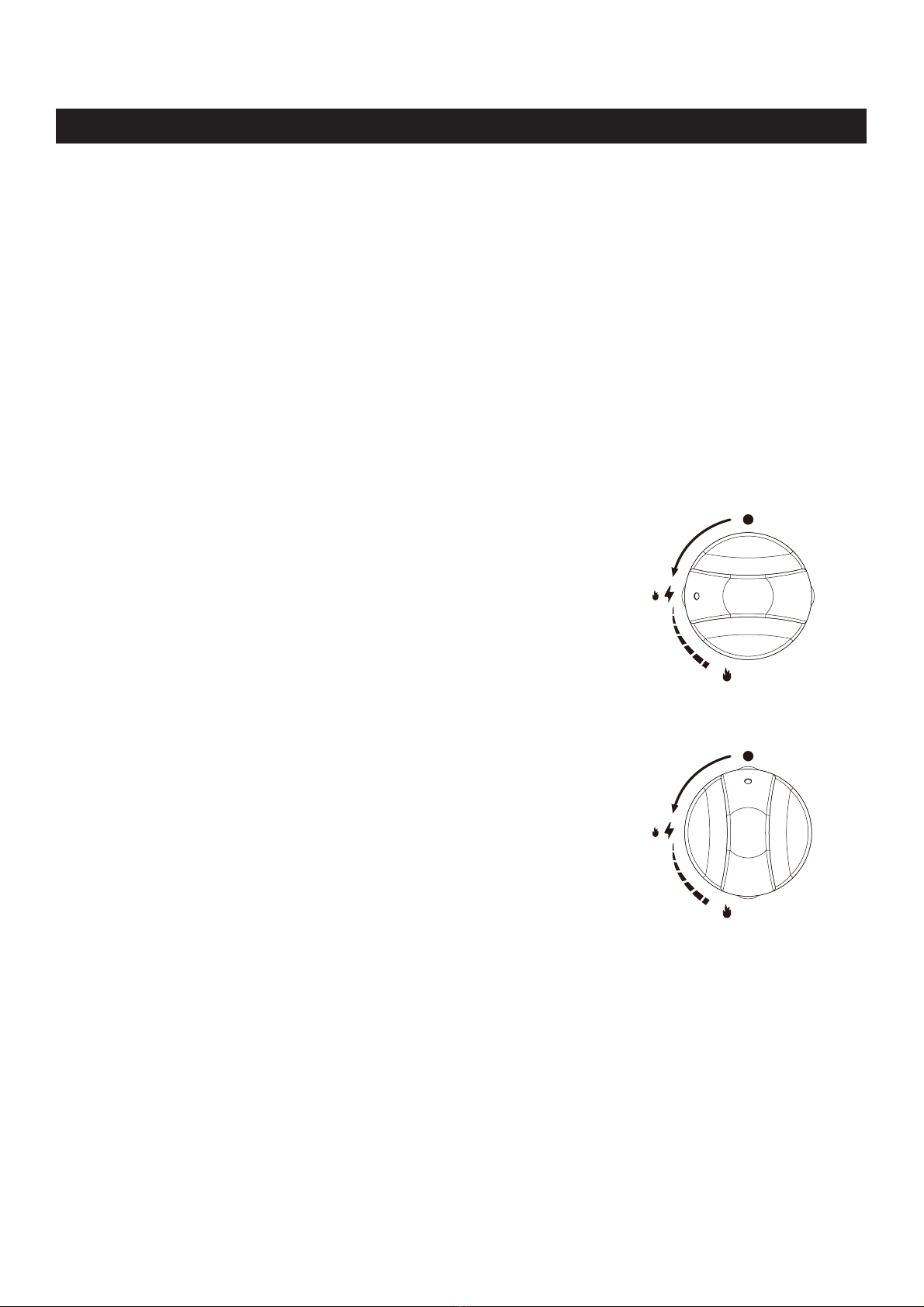

Lighting Instructions
1. Make sure control knob is in the “OFF” position.
2. Turn LP cylinder gas valve to fully open position.
3. Press down control knob and turn it counter clockwise
to "LOW/IGNITE" position.
5. If the burner is not lit immediately (within 5 seconds), press
4. If the burner is lit, keep pressing down the control knob
for 10 seconds before releasing it.
down the control knob and turn clockwise to "OFF" position,
repeat from step 3 after 5 minutes.
6. When burner is lit, turn the control knob to desired heat output position between "LOW"
and "HIGH".
Flame Characteristic
Normally the burner flame is yellow.
If the burner flame is blue and very small, please check the
gas cylinder, as it may be low gas pressure or empty. If there
is enough gas in the cylinder, please contact customer service
to change the burner of the gas fire pit.
If flames lift away from burner or backfire happens, or produce
thick black smoke, the fire pit should be turned off immediately.
The fire pit should not be operated again until the unit is serviced
and/or repaired by a qualified service technician.
WARNING: DO NOT ATTEMPT TO OPERATE THE APPLIANCE UNTIL YOU HAVE READ AND
UNDERSTAND ALL PRECAUTIONS. FAILURE TO DO SO CAN RESULT IN PROPERTY
DAMAGE, SERIOUS INJURY, OR DEATH.
OPERATION
15
BATTERY COMPARTMENT
1xAA
1.5V
OFF
IGNITE
LOW/
HIGH
P
u
s
h
t
o
t
u
r
n

CAUTION: AVOID INHALING FUMES EMITTED FROM THE GAS APPLIANCE'S FIRST USE.
SMOKE AND ODOR FROM THE BURNING OF OILS USED IN MANUFACTURING WILL
APPEAR. BOTH SMOKE AND ODOR WILL DISSIPATE AFTER APPROXIMATELY 30
MINUTES. THE GAS APPLIANCE SHOULD NOT PRODUCE THICK BLACK SMOKE.
NOTE:
The burner may be noisy when initially turned on. To eliminate
excessive noise from the burner, turn the control knob to the
“LOW” position. Then, turn the knob to the level of heat desired.
Operation pressure checked:
If the flame is very small, this is because the supply
pressure is not enough. Please refill gas cylinder.
Re-light:
1) Turn the control knob to "OFF" position.
2)
3) Repeat steps beginning with step 3 of the lighting
instruction.
Shut down instructions:
1) Push in and turn control knob clockwise to "OFF"
position.
2)
2) Turn LP cylinder valve to "OFF" position.
The Event of Gas Leakage:
1) Turn the control knob to "OFF" position.
3) Wait 5 minutes to allow gas to dissipate.
4) If odor continues, immediately call gas supplier.
WARNING : Gas appliance will be hot after use.
Handle with extreme care.
Wait five (5) minutes before attempting to relight appliance.
Turn LP cylinder gas valve clockwise to "OFF" position
when appliance is not in use.
OPERATION
OFF
IGNITE
LOW/
HIGH
P
u
s
h
t
o
t
u
r
n
OFF
IGNITE
LOW/
HIGH
P
u
s
h
t
o
t
u
r
n
16

CAUTION: WHEN CERTAIN MATERIALS OR ITEMS ARE LEFT ABOVE, BESIDE OR UNDER
THIS APPLICANCE WHILE IN USE, THEY WILL BE SUBJECT TO RADIANT HEAT AND
COULD BE SERIOUSLY DAMAGED.
This gas fire pit is primarily used for the heating
of outdoor patios, decks, spas, pools and open
working areas.
Always make sure that adequate fresh air
ventilation is provided. Follow the spacing
tolerances shown in Fig. 14 at all times.
This gas fire pit must be placed on level, firm
ground.
Fig. 14
Never operate in an explosive atmosphere.
Keep away from areas where gasoline or other
flammable liquids or vapors are stored or used.
LOCATING FIRE PIT FOR USE
36”36”
58”
17

T
DO NOT touch or move gas appliance
for at least 45 minutes after use.
Allow all burner elements to cool
before touching.
FOR YOUR SAFETY ;
WARNING:
NOTE:
In a salt-air environment such as
near an ocean, corrosion occurs
more quickly than normal.
Frequently check for corroded
areas and repair them promptly.
NOTE:
Wait until gas appliance is cool before
covering.
CLEANING AND MAINTENANCE :
To enjoy years of outstanding performance from your
gas fire pit, make sure you perform the following
maintenance activities on a regular basis:
Keep exterior surfaces clean.
Use warm soapy water for cleaning. Never use
flammable of corrosive cleaning agents.
While washing your unit, be sure to keep the area
around the burner dry at all times. If the gas control is
exposed to water in any way, do NOT try to use it. It
must be replaced.
Keep the appliance area free and clean from combustible
Check if there are cracks or worn sections on the hose. If
yes, please call our customer service to replace hose.
materials, gasoline and other flammable vapors and
liquids; not obstructing the flow of combustion and
ventilation air; keeping the ventilation opening(s) of the
cylinder enclosure free and clear from debris.
Gas fire pit does NOT reach the desired temperature.
Gas fire pit glow is excessively uneven.
Gas fire pit makes popping noises.
At least once a year, the unit should be inspected for
the presence of spiders, spider webs or other insects.
Air flow must be unobstructed. Keep controls, burner,
and circulating air passageways clean. Signs of possible
blockage include:
Spiders and insects can nest in burner or orifices. This
dangerous condition can damage gas fire pit and render
it unsafe for use. Clean burner holes by using a heavy-duty
pipe cleaner. Compressed air may help clear away
smaller particles.
MAINTENANCE AND STORAGE

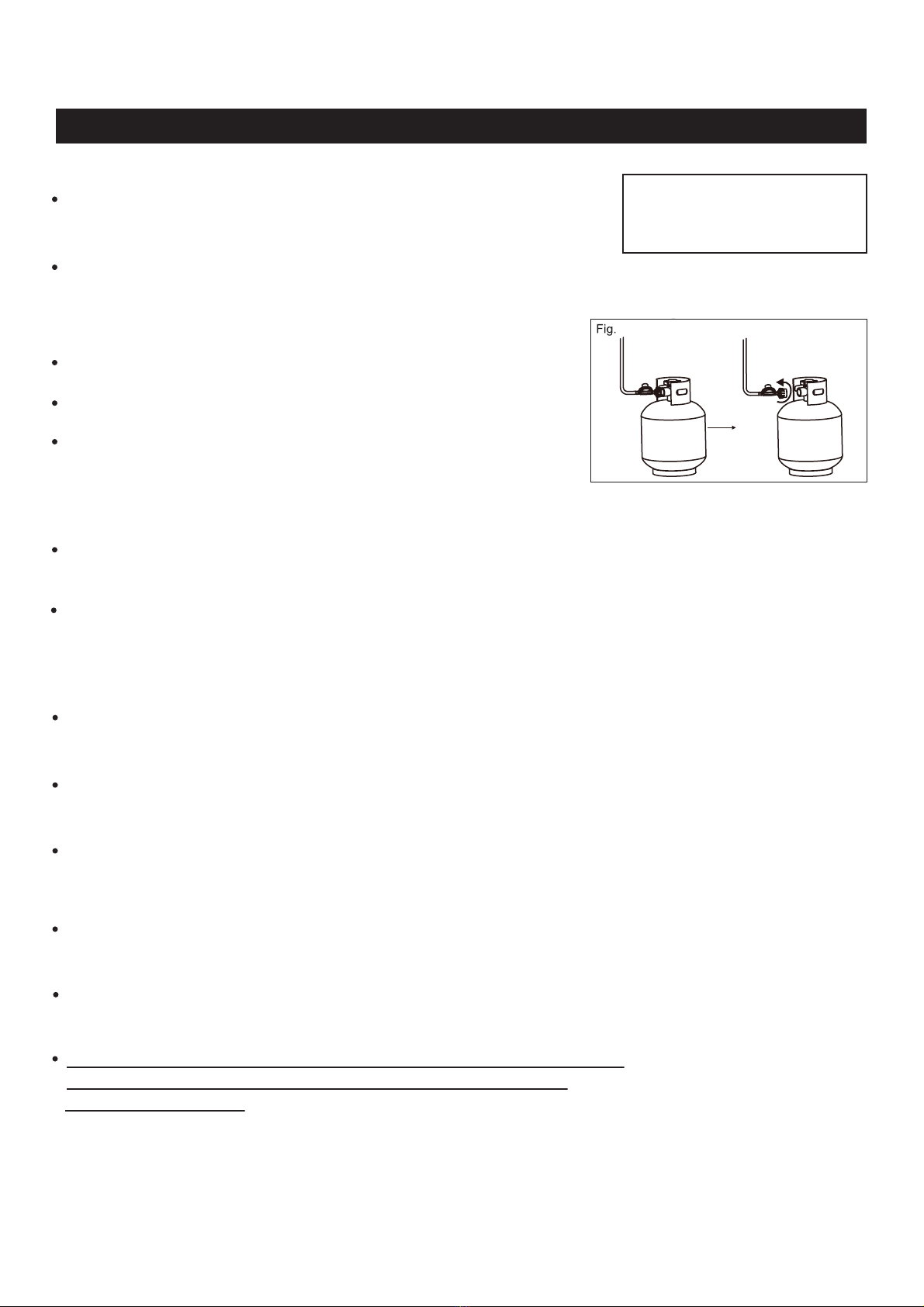

18

NOTE:
Wait until the appliance is
cool before covering.
Store the fire pit indoors during the winter if it will be subjected to
freezing temperatures.
Disconnect and remove the cylinder from the appliance before the
appliance can be stored indoors.
STORAGE
Turn the control knob to "OFF" position.
Allow at least 45 minutes for the fire pit to cool down after use,
Remove the battery from the battery compartment during periods
of extended inactivity and when transporting.
and then turn regulator counterclockwise to disconnect the
regulator from cylinder, turn the cylinder locking bolt
counterclockwise to loose the cylinder and remove the cylinder.
Turn LP cylinder to "OFF" position.
Cylinder must be stored outdoors in a well-ventilated area out of
the reach of children. When the cylinder is disconnected, tightly
install the threaded valve plugs, and do not store it in a building,
garage or any other closed area.
of
You may store product indoors ONLY if the cylinder is
disconnected and removed.
,slairetamelbitsubmocmorfeerfdnaraelcaerafire pitehtpeeK
gasoline and other flammable vapors and liquids.
Cover the fire pit with the PVC cover (N).
Note: If you do not use a cover, store this outdoor fire pit in a dry location
to maximize product life.
Store gas fire pit in an area sheltered from direct contact with
sleet, hail, snow, dust and debris).n,iarsahcus(rehtaewtnemelcni
A qualified service person should install and repair the fire pit and
inspect it annually.
It might be necessary to clean this fire pit frequently. You must
passageways clean.
MAINTENANCE AND STORAGE
keep the control compartment, burner and circulating air
15
Loosen
19

Troubleshooting
Gas leak
Low gas pressure
Clogged or dirty burner
ports
Gas odor
Delayed ignition
Incorrect burner flame
Ignition failure
PROBLEM OBSERVED POSSIBLE CAUSE
Incorrect gas supply or
pressure
The gas cylinder
Clogged or dirty burner ports
Check gas supply pressure.
Clean burner parts--see manual
Check gas supply pressure.
Clean burner parts.
Check all gas connections.
“Cleaning and maintenance” section.
CORRECTIVE MEASURES
Check the gas cylinder is full or not.
The problem of leak. Check the regulator & hose is leaking
or not.
The battery is low or dead. Check the battery is installed or not.
Check the power is sufficient or not.
The problem of ignition
pin
when pressing down the control knob,
check the ignition pin is discharged or not.
If not, using a match or lighter to
ignite the burner at a safe distance from
the fire pit.
The distance between
electrode ignition pins
is improper.
Adjust the distance between the ignition
pins to be 3-5mm in case of ignition
failure (if ignition failure issue
happened).
Wrong connection of
pulse line
Check the electrode wire, switch wire
on valve body and pulse ignitor are
connected properly.
Electrode wire
Switch wire
The top of the shield should not be
covered by the lava rocks, please remove
the lava rocks before ignition.
The top of the shield is
covered by the lava rocks.Shield LL
Shield
20
