V Series Cooktop Ventilation
Service Manual

Page 2
General Information
V-Series Cooktop Hoods
V-Series Cooktop Hoods
1-2 #825309 - Revision A - August, 2014
GENERAL INFORMATION
The V-Series Cooktop Hood allows for elimination of fumes and cooking odors from the kitchen through use of dedi-
cated exhaust piping and blower motor. This Wolf Appliance Service Manual has been compiled with the latest serv-
ice information from Faber S.p.A. Company.
TECHNICAL ASSISTANCE
If you should have any questions regarding the appli-
ance and/or this manual, please contact:
Wolf Appliance, Inc.
ATTN: Service Department
P.O. Box 44988
Madison, WI 53744 - 4988
Customer Assistance
Phone #: (800) 332 - 9513
Facsimile #: (608) 441 - 5887
Technical Assistance
(For Technicians in Customer’s Homes Only)
Phone #: (800) 919 - 8324
Warranty Claims
Phone #: (800) 404 - 7820
Facsimile #: (608) 441 - 5886
Service Department e-mail Address:
[email protected]
Main Office Hours:
8:00 AM to 5:00 PM Central Time
Monday through Friday
(24/7 Phone Coverage)

Page 3
General Information
V-Series Cooktop Hoods
V-Series Cooktop Hoods
1-4 #825309 - Revision A - August, 2014
This page contains a summary of the Warranty supplied with every Domestic Wolf V-Series Cooktop Hood.
NOTE: “ICB” warranties vary by Country and Distributor. Contact selling Distributor for warranty coverage.
2 & 5 Year Warranty Summary
2 Year Total Product Warranty, Parts and Labor.•
3-5 Limited Parts Only Warranty.•
Details:
Warranty applies to products installed in United States or Canada, for residential use only.•
Warranty begins at time of unit’s initial installation.•
This Warranty does not cover Wolf Appliances installed in a demonstration kitchen, test kitchen, culinary school•
kitchen, or similar installations. (See Special Warranty below)
Warranty and Service information collected by Wolf Appliance, Inc. is arranged and stored under unit serial num-•
ber and/or customer’s name. Please note that Wolf Appliance, Inc requests that you have model and serial num-
ber available whenever contacting factory or parts distributor.
Special Warranty Summary
2 Year Total Product Warranty, Part and Labor.•
Details:
This Warranty applies to products installed in United States or Canada, for use in a demonstration kitchen, test•
kitchen, culinary school kitchen, and similar installations that will help promote Wolf Appliance brand and its
products.
Warranty begins at time of unit’s initial installation.•
Warranty and Service information collected by Wolf Appliance, Inc. is arranged and stored under unit serial num-•
ber and/or customer’s name. Please note that Wolf Appliance, Inc. requests that you have model and serial
number available whenever contacting factory or parts distributor.
Information Plate and Serial Number
See Figure 1-1 for typical Information Plate layout.•
See Figures 1-2 for Information Plate location.•
WARRANTY INFORMATION

Page 4
V-Series Cooktop Hoods
V-Series Cooktop Hoods
General Information
1-5
#825309 - Revision A - August, 2014
MODEL: VW36S
5610315
120 Vac 60 Hz 2x1 W LED LAMPS
THERMALLY PROTECTED
FB Serial: 15508176 403
Serial: 15508176
TO PROTECT FINISH, WASH WITH MILD SOAP OR DETERGENT ONLY.TO PROTECT FINISH, WASH WITH MILD SOAP OR DETERGENT ONLY.
COMBINED RATING:
2.6A 300W with BLOWER-VENILATION 600CFM Internal Blower Unit
3.0A Maximum Recommended Remote Blower
110.0298.934
00000295500310278923
Wolf Appliance, Inc
Fitchburg, WI 53719
800-222-7820 991.0298.932
www.wolfappliance.com
Figure 1-2. Information Plate Location
Information Plate
(behind Filters)
Figure 1-1. Information Plate

Page 5
General Information
V-Series Cooktop Hoods
V-Series Cooktop Hoods
1-6 #825309 - Revision A - August, 2014
Model Number Key
Model: ICB V W 36 G
International
Product
Type
Size
Style
Product
VV-Series Hoods
Type
WWall Hood
IIsland Hood
Size
30,” 36,” 42,” and 45.”
Style
GGlass
SStainless Steal
BBlack

Page 6
2-2 #825309 - Revision A - August, 2014
V-Series Cooktop Hoods
V-Series Cooktop Hoods
INSTALLATION INFORMATION
This section of the manual covers some of the installation issues that a service technician may need to know
when servicing a Wolf V-Series Cooktop Hood. All dimensions are in inches.
Maximum of three 90 degree elbows.
Hood should not be installed on GFI receptacle.
Hood should be installed on 15 amp dedicated circuit.
Ducting should be 6” ridged ducting and not flexible ducting.
Maximum amp draw of any Blower Motor used is 3.0 amps.
Notes:
For Electrical, Placement, and Ducting Installation Requirements see Page 8.•
It is possible to use 10” ducting but you would have to transition to the 10” ducting after the Support Frame•
on Island Hoods, or after the Easy Cube on Wall Hoods.
10.25”10.25”
2.25”2.25”
19.25”19.25”
30.00”30.00”
11.75”11.75”
21.25”21.25”
7.88” to 18.00”7.88” to 18.00”
VW30B
VW30B
Overall Width
Hood Height (excluding chimney)
Minimum Height (chimney contracted)
Maximum Height (chimney extended)
Overall Depth
Internal Blower(s)
Inline Blower(s)
Remote Blower(s)
Duct Size
30”
2.25”
31.38”
41.5”
19.25”
300, 600 cfm
600 cfm
600 cfm
6”
Dimensions may vary +/- 1/8”

Page 7
2-3
#825309 - Revision A - August, 2014
V-Series Cooktop Hoods
V-Series Cooktop Hoods
10.25”10.25”
2.25”2.25”
19.25”19.25”
21.25”21.25”
7.88” to 18.00”7.88” to 18.00”
36.00”36.00”
11.75”11.75”
45.00”45.00”
19.25”19.25”
2.25”2.25”
11.75”11.75” 10.25”10.25”
21.25”21.25”
7.88” to 18.00”7.88” to 18.00”
VW36B
VW45B
VW36B
Overall Width
Overall Height (excluding chimney)
Minimum Height (chimney contracted)
Maximum Height (chimney extended)
Overall Depth
Internal Blower(s)
Inline Blower(s)
Remote Blower(s)
Duct Size
36”
2.25”
31.38”
41.5”
19.25”
300, 600 cfm
600 cfm
600 cfm
6”
VW45B
Overall Width
Overall Height (excluding chimney)
Minimum Height (chimney contracted)
Maximum Height (chimney extended)
Overall Depth
Internal Blower(s)
Inline Blower(s)
Remote Blower(s)
Duct Size
45”
2.25”
31.38”
41.5
19.25”
300, 600 cfm
600 cfm
600 cfm
6”
Dimensions may vary +/- 1/8”

Page 8
2-4 #825309 - Revision A - August, 2014
V-Series Cooktop Hoods
V-Series Cooktop Hoods
2.25”2.25”
42.00”42.00” 26.25”26.25”
11.25”11.25”
13.75”13.75”
23.63”23.63”
0.0” to 8.37”0.0” to 8.37”
VI42B
10.25”10.25”
11.75”11.75”
22.00”22.00”
30.00”30.00”
2.00”2.00”
21.25”21.25”
7.50” to 18.13”7.50” to 18.13”
6.00”6.00”
VW30S
VI42B
Overall Width
Overall Height (excluding chimney)
Minimum Height (chimney contracted)
Maximum Height (chimney extended)
Overall Depth
Internal Blower(s)
Inline Blower(s)
Remote Blower(s)
Duct Size
42”
2.25”
25.5”
34.25”
26.25”
300, 600 cfm
600 cfm
600 cfm
6”
VW30S
Overall Width
Overall Height (excluding chimney)
Minimum Height (chimney contracted)
Maximum Height (chimney extended)
Overall Depth
Internal Blower(s)
Inline Blower(s)
Remote Blower(s)
Duct Size
30”
6.00”
34.75”
45.38
22”
300, 600 cfm
600 cfm
600, 1200 cfm
6”
Dimensions may vary +/- 1/8”

Page 9
2-5
#825309 - Revision A - August, 2014
V-Series Cooktop Hoods
V-Series Cooktop Hoods
36.00”36.00”
2.00”2.00”
21.25”21.25”
7.50” to 18.13”7.50” to 18.13”
11.75”11.75”
10.25”10.25”
22.00”22.00”
VW36S
42.00”42.00” 26.50”26.50”
2.00”2.00”
13.75”13.75”
11.25”11.25”
0.00” to 7.87”0.00” to 7.87”
23.63”23.63”
6.00”6.00”
VI42S
VW36S
Overall Width
Overall Height (excluding chimney)
Minimum Height (chimney contracted)
Maximum Height (chimney extended)
Overall Depth
Internal Blower(s)
Inline Blower(s)
Remote Blower(s)
Duct Size
36”
6.0”
34.75”
45.38
22”
300, 600 cfm
600 cfm
600, 1200 cfm
6”
VI42S
Overall Width
Overall Height (excluding chimney)
Minimum Height (chimney contracted)
Maximum Height (chimney extended)
Overall Depth
Internal Blower(s)
Inline Blower(s)
Remote Blower(s)
Duct Size
42”
6.0”
29.63”
37.5”
26.25”
300, 600 cfm
600 cfm
600, 1200 cfm
6”
Dimensions may vary +/- 1/8”

Page 10
2-6 #825309 - Revision A - August, 2014
V-Series Cooktop Hoods
V-Series Cooktop Hoods
19.25”19.25”
45.00”45.00” 34.00”34.00”
21.25”21.25”
7.88” to 18.00”7.88” to 18.00”
11.75”11.75” 10.25”10.25”
16.00”16.00”
2.25”2.25”
VW45G
30.50”30.50”
36.00”36.00”
16.00”16.00”
19.25”19.25”
11.75”11.75”
21.25”21.25”
10.25”10.25”
7.88” to 18.00”7.88” to 18.00”
2.25”2.25”
VW36G
VW36G
Overall Width
Overall Height (excluding chimney)
Minimum Height (chimney contracted)
Maximum Height (chimney extended)
Overall Depth
Internal Blower(s)
Inline Blower(s)
External Blower(s)
Duct Size
36”
2.25”
31.38”
41.50”
19.25”
300, 600 cfm
600 cfm
600 cfm
6”
VW45G
Overall Width
Overall Height (excluding chimney)
Minimum Height (chimney contracted)
Maximum Height (chimney extended)
Overall Depth
Internal Blower(s)
Inline Blower(s)
External Blower(s)
Duct Size
45”
2.25”
31.38”
41.50”
19.25”
300, 600 cfm
600 cfm
600 cfm
6”
Dimensions may vary +/- 1/8”

Page 11
2-7
#825309 - Revision A - August, 2014
V-Series Cooktop Hoods
V-Series Cooktop Hoods
13.75”13.75” 11.25”11.25”
26.25”26.25”
45.00”45.00”
34.00”34.00”
20.00”20.00”
23.63”23.63”
2.25”2.25”
0.00” to 8.37”0.00” to 8.37”
VI45G
VI45G
Overall Width
Overall Height (excluding chimney)
Minimum Height (chimney contracted)
Maximum Height (chimney extended)
Overall Depth
Internal Blower(s)
Inline Blower(s)
External Blower(s)
Duct Size
45”
2.25”
25.5”
34.25
26.25”
300, 600 cfm
600 cfm
600 cfm
6”
Dimensions may vary +/- 1/8”

Page 12
2-8 #825309 - Revision A - August, 2014
V-Series Cooktop Hoods
V-Series Cooktop Hoods

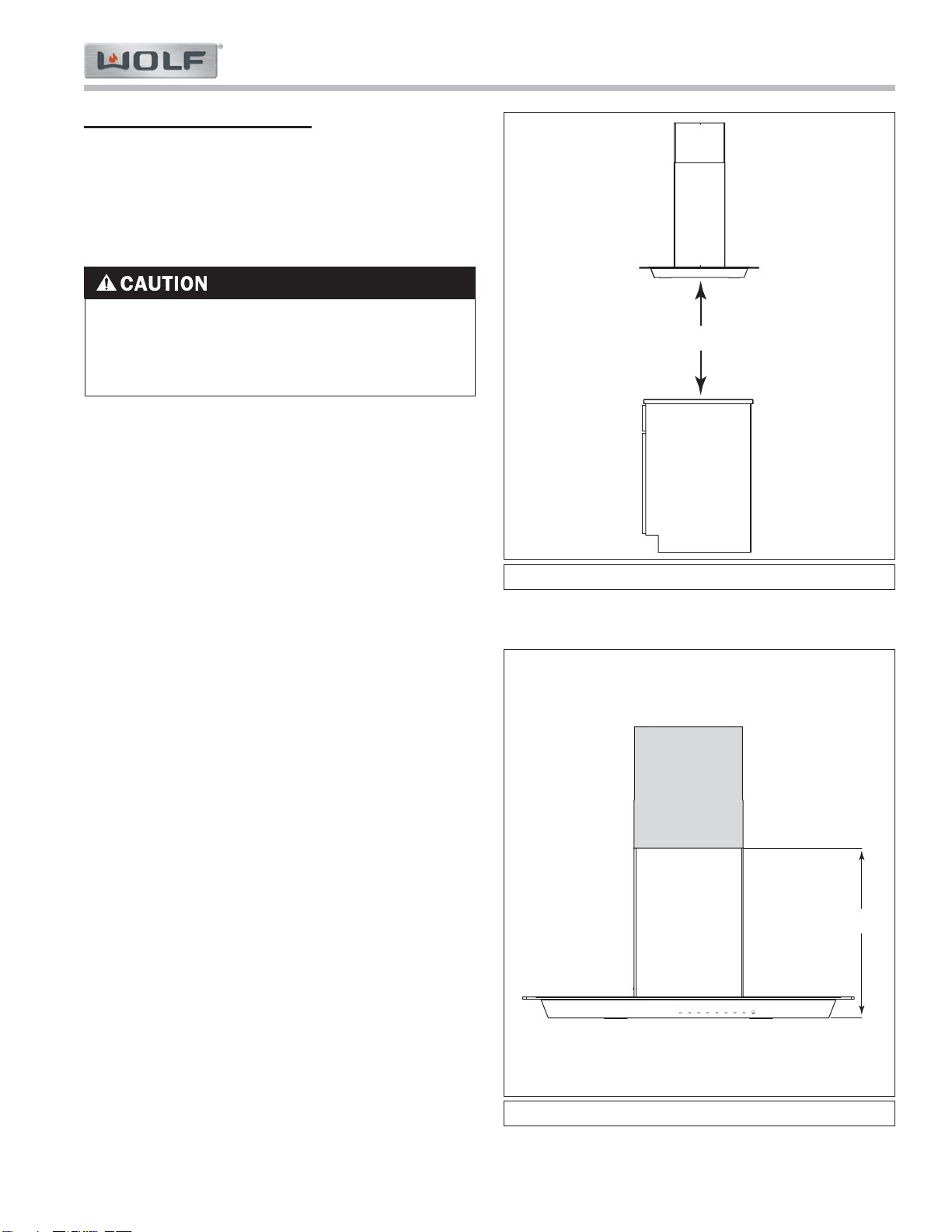

Installation Requirements
Hood Placement:
Both the Island Hood and Wall Hood should be
installed so that the bottom of the hood is 30” to 36”
above countertop. (See Figure 1)
Hood
Countertop
30” to 36”
Figure 1. Countertop to Hood Placement
Electrical:
Installation must be electrically grounded in accor-
dance with local codes or, in the absence of local
codes, with National Electrical Code, ANSI/NFPA70.
Electrical supply for Wall Hoods and Island Hoods
should be located in shaded area in Figure 2.
From where Electrical Supply wires enter the hood
area:
Allow a minimum of 12” (inches) wire for connection to
Wall Hood junction box.
Allow a minimum of 6’ (feet) of wire for connection to
Island Hood junction box.
A separate circuit, servicing only this appliance is
required.
Notes:
Required Electrical Supply: Grounded, 110/120•
VAC, 60 Hz, 15 amp dedicated circuit.
No GFI Circuit.•
18”
E
Figure 2. Electrical Supply Area
Installing hood at less then 30” can damage hood•
Touch Control, LED Assemblies, or wiring.
Placing hood above 36” will reduce efficiency of•
the hood’s performance.

Page 13
2-9
#825309 - Revision A - August, 2014
V-Series Cooktop Hoods
V-Series Cooktop Hoods
Installation Requirements

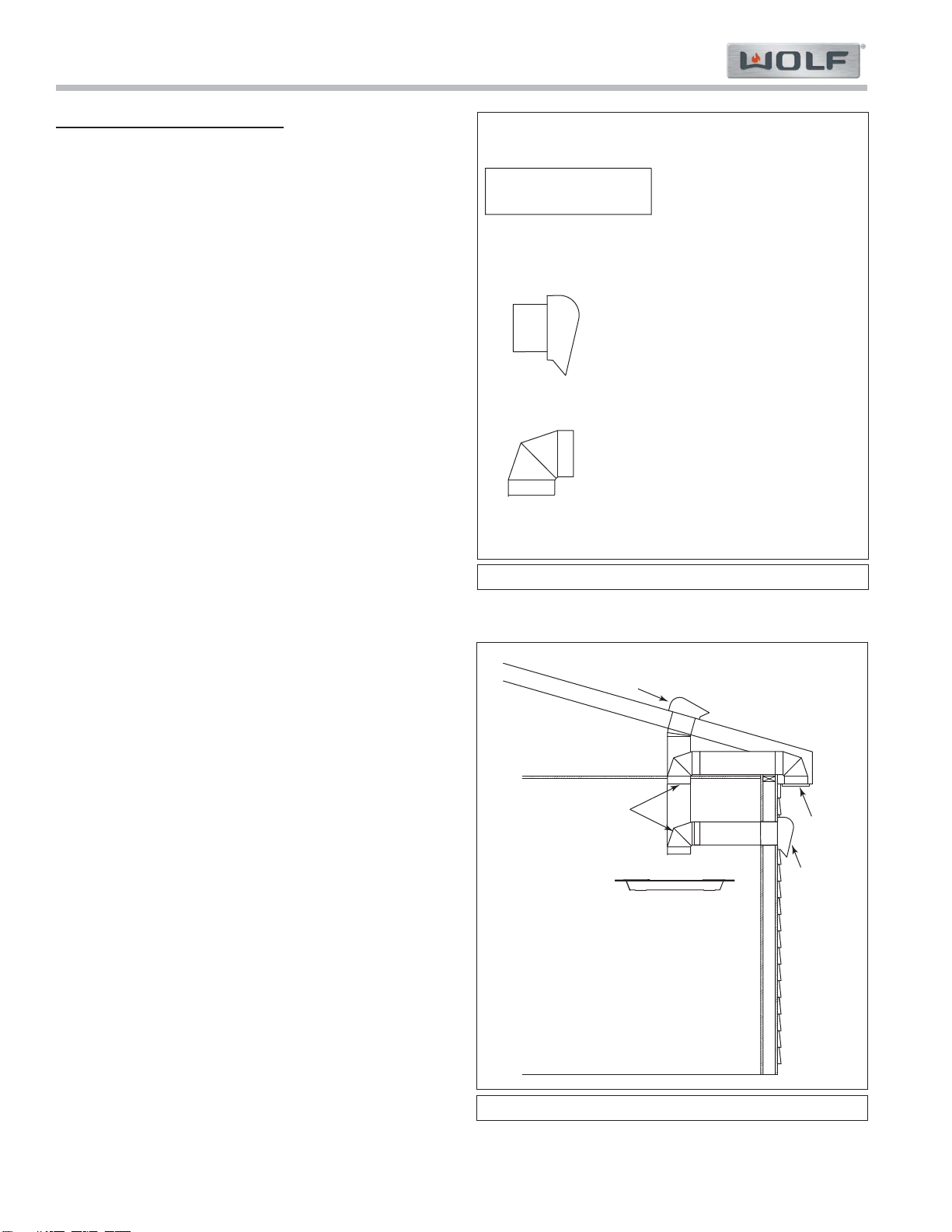

Ducting:
6” (inch) round, rigid metal duct is recommended for
V- Series cooktop ventilation.
Wall Hoods and Island Hoods include a Backdraft
Damper. Local codes may require use of addition
backdraft damper or make up air.
A straight, short run is most effective and will improve
performance and reduce noise. Elbows, transitions,
and air boxes all reduce performance of hood.
Reducing the duct size less then 6” (inches) for even
a short span reduces air flow for the entire duct run.
Duct run should not exceed 50 feet Equivalent
Ducting Length. (See Figure 3).
Internal and In-Line blowers require a Roof or Wall
Cap the same duct size as duct run. (See Figure 4).
Contact your local HVAC professional for specific
codes and requirements.
1’ of 6” Ducting = 4’ of
Equivalent Ducting Length
6” Roof/Wall Cap with Damper
is 30’ of Equivalent Ducting Length
6” 90 degree Elbow = 24’
of Equivalent Ducting Length
Figure 3. Equivalent Duct Feet
Ductwork Installation
Through the roof
Ductwork Installation
Through the eave
Ductwork Installation
Through the wall
6” Wall Cap
6” Roof Cap
6” Elbow
6” Duct
6” Duct
Eave Vent
Figure 4. Duct Run Examples

Page 14
2-10 #825309 - Revision A - August, 2014
V-Series Cooktop Hoods
V-Series Cooktop Hoods
Wall Hood Mounting
If an Internal Blower is being installed, install Internal
Blower prior to mounting the Hood.
1. Mark center line of hood installation. Using the
information in Figure 5 and the Chart below, mark
hole locations for mounting brackets. Additional
wall framing is recommended in this area.
a. Position two mounting brackets for chimney
flue, then install using two mounting screws
per bracket.
b. Install the Easy Cube mounting screws so
there is approximately 1/4” gap between the
screw head and wall.
Note: If wall framing is not available, use of wall
anchors is recommended.
9
1/8
"
(232)
A
(433)
(19)
17
1/16
"
3/4
"
BOTTOM OF HOOD
CEILING
B
Figure 5. Bracket Mounting Location
Hood
Black
Glass
Stainless
Dimension “A”
12-3/4”
12-9/16”
16-3/8”
Dimension “B”
31-3/8” to 41-1/2”
31-3/8” to 41-1/2”
34-3/4” to 45-3/8”
MountingMounting
TabTab
LevelingLeveling
ScrewScrew
Figure 6. Easy Cube Mounting.
2. Place the mounting tabs of the Easy Cube over the
mounting screws. Use leveling adjustment screws
to ensure hood is level. (See Figure 6)
3. Install Upper Chimney to Chimney Bracket.
4. Place Lower Chimney over Upper Chimney and
rest the Lower Chimney on the Hood Body. Fasten
two screw to the Easy Cube.

Page 15
2-11
#825309 - Revision A - August, 2014
V-Series Cooktop Hoods
V-Series Cooktop Hoods
Installation Information
Island Hood Mounting
Island Hoods have a Support Frame that is adjustable
in height. The Support Frame is attached to ceiling,
the Upper and Lower Chimney is attached, then Hood
Body.
Note: If an Internal Blower is being installed, mount
Hood Body to Easy Cube/Support Frame prior
to installing Internal Blower. The two pin molex
connector for Hood Lights must be connected
prior to Internal Blower being installed.
1. Use template provided with Island Hood to mark
location of electrical supply and mounting holes for
Support Frame. Actual Template has a 6” diameter
circle for ducting. (See Figure 7)
a. Use 1-1/4” drill to create a hole for electrical
power supply.
b. Place four mounting screws in ceiling in indi-
cated location. Do not tighten screws.
2. Place Support Frame on mounting screws and
tighten mounting screws.
3. Adjust height of Support Frame by loosening four
screws on each arm of Support Frame. This
adjustment can be made prior to mounting Support
Frame if desired. (See Figure 8)
85/8”
(219)
Electrical
Location
11"
(279)
Figure 7. Template Example
Support
Arm
Screws
Figure 8. Support Frame
4. Install Damper on top of Easy Cube. Install
Ducting. Connect electrical supply to junction
box. Connect remote/inline blower in electrical
box.
5. Install Upper Chimney.
6. Install Lower Chimney.
7. Install Hood Body to Support Frame.
8. Install Internal Blower.

Page 16
3-2
#825309 - Revision A - August, 2014
V-Series Cooktop Hood
V-Series Cooktop Hood
Component Access
COMPONENT ACCESS AND REMOVAL
This section explains how to access and remove components from a Wolf V-Series Hood.
An attempt has been made to arrange these procedures in such a way as to simulate which components would
need to be removed first in order to gain access to the other components. When following a component removal
procedure, it may be necessary to reference another component removal procedure listed earlier in this section.
Note: Before continuing, please take note of the WARNINGS and CAUTIONS below.
• When working on the Hood and components, be careful when handling sheet metal parts. There may be sharp
edges present.
• Chimney should only be secured at the locations provided for by the Hood. Do Not cement, grout, or silicone the
chimney in any manner. Warranty does not cover removing or reinstalling chimneys attached in this manner.
• TO AVOID ELECTRIC SHOCK. POWER TO HOOD MUST BE DISCONNECTED WHEN EVER SERVICING
AND/OR ACCESSING COMPONENTS AND/OR REMOVING COMPONENTS POWERED BY ELECTRICITY OR
COMPONENTS NEAR OTHER ELECTRICAL COMPONENTS.
• IF IT IS NECESSARY TO REMOVE A HOOD FROM ITS INSTALLATION REMEMBER THAT THE UNITS ARE
HEAVY AND MUST BE LOWERED FROM THE INSTALLATION. MAY REQUIRE TWO MEN.
• REMOVING A UNIT FROM ITS INSTALLATION SHOULD ONLY BE PERFORMED BY AN AUTHORIZED SERV-
ICE TECHNICIAN OR INSTALLER.

Page 17
3-3 #825309 - Revision A - August 2014
Component Access
V-Series Cooktop Hood
V-Series Cooktop Hood
Figure 3-1. Filter Cover Hinge
Filter Covers - Black Hoods
Black hoods have a Filter Cover. Filter Cover has a pin
that snaps into a receptacle on hood side. Pull on Filter
Cover to open. Press Filter Cover in to close.
To Remove Filter Cover:
1. Open Filter cover to 90 degrees. Press Hinge
Release Pin toward center of hood. Disengage
Filter Cover from the hinge. (See Figure 3-1)
2. Slide Filter Cover to right and disengage pin from
other hinge.
Hinge Release
Pin
Push
Figure 3-2. Filter Removal
Filter Filter
Bottom of Hood
Filters
All V-Series Hoods have aluminum mesh filters. Glass
and Stainless Steel models are same filter. All filters
are removed in the same manner.
To Remove Filter:
1. Push plastic tab on front end of Filter toward rear of
Hood and gentlely pull down. (See Figure 3-2)
2. Pull Filter forward and remove.

Page 18
3-4
#825309 - Revision A - August, 2014
V-Series Cooktop Hood
V-Series Cooktop Hood
Component Access
Figure 3-5. Internal Blower in Easy Cube
Figure 3-4. LED Light Assembly
Figure 3-3. Light Assembly Support Removal
LED Light Assembly
Hood lights are LED fixtures that must be replaced as
assemblies. Lights are 12 VDC.
To Remove LED Light Assembly:
1. Extract screws holding Light Assembly Support to
hood. Lower front part of Light Assembly Support
and pull toward center of hood. (See Figure 3-3)
2. Align spring clips to square notches in Light
Assembly Support. Depress spring clips on side of
LED Light Assembly and push through Light
Assembly Support. (See Figure 3-4)
Square
Notches
Spring Clips Spring Clips
Square
Notches
Internal Blower Removal
The 600 cfm Internal Blower is mounted in Easy Cube
portion of hood. Once Filter Covers (Black Hoods) and
Filters are removed Internal Blower can be extracted.
To Remove Internal Blower:
1. Support Internal Blower and extract two screws at
bottom of mounting plate. (See Figure 3-5)
2. Lower Internal Blower from hood. Disconnect
Internal Blower Harness from Internal Blower.
Touch Control Board
The touch control board is removed differently for black
hoods and stainless steel/glass hoods. Once the light
assembly support is removed, the touch control
assembly case, which contains the board, is accessible.
Remove the Touch Control Board - Black Hoods:
1. Open the case.
2. Remove the two ribbon cable screws,and
disconnect the ribbon cable.
3. Remove the two touch control board screws,and
remove the touch control board.
Touch Control
Screw
Touch Control
Screw
Ribbon Cable
Screws
Figure 3-6. Black Hood Touch Control Board
Internal Blower
Connector
Blower Mounting
Screws

Page 19
3-5 #825309 - Revision A - August 2014
Component Access
V-Series Cooktop Hood
V-Series Cooktop Hood
Easy Cube Access
The Easy Cube is located directly above the hood body.
If their is an Internal Blower it is located inside the Easy
Cube. The Power Board Assembly, Light Transformer,
and Hood Electricals are mounted on top of the Easy
Cube.
To Access Area Above Easy Cube:
Note: The Lower Chimney should not be secured to
the wall in any manner. In instances where the
Lower Chimney has been secured, it is the cus-
tomer’s responsibility to have the Lower
Chimney removed.
1. Extract two screws at bottom of Lower Chimney.
Raise and block Lower Chimney up on Island
Hoods, and remove Lower Chimney on Wall Hoods.
2. The Easy Cube has the control board mounted on
front edge, and unit electricals mounted on back
edge. (See Figure 3-7)
Touch Control Assembly - continued
To Remove Touch Control Assembly - Glass and
Stainless Steel Hoods:
1. Extract two Ribbon Cable screws and disconnect
Ribbon Cable. (See Figure 3-6)
2. Release six tabs retaining Touch Control Assembly
to Hood.
Figure 3-8. Power Board Assembly
Figure 3-7. Wall Hood Easy Cube - Side View
Power Board
Assembly
Unit Electrical
Box
Screws to
Easy Cube
Case Screws Case Screws
Ribbon Cable
Cover
Power Board Assembly Removal
The Power Board Assembly is located in a black case
attached by two screws to front of Easy Cube.
To Remove Power Board Assembly:
1. Open Ribbon Cable cover with a flat blade screw-
driver and disconnect Ribbon Cable.
(See Figure 3-8)
2. Extract two screws holding Power Board Assembly
case to Easy Cube.
3. Extract four screws holding Power Board Assembly
case together.
4. Disconnect harnesses from Power Board Assembly.
5. Remove three black screws holding Power Board to
Power Board Assembly case.
(See Figure 3-9 - Red Circles)
Primary
Power
12 VDC to
Lighting
12 VDC to
Touch Control
Figure 3-9. Power Board and Transformer
Transformer:
Transformer is located in top cover of Power Board
Assembly case. It is held in with two screws. Orange
wires are 120 VAC to Primary side of Transformer.
Harness in wire sheath is 12 VDC to hood lights.
Connector with gray, black, and white wires is 12 VDC
to Touch Control.

Page 20
V-Series Cooktop Hoods
V-Series Cooktop Hoods
Troubleshooting
4-2
#825309 - Revision A - August, 2014
TROUBLESHOOTING
This section explains how to troubleshoot various components in Wolf V-Series Cooktop Hood.
An attempt has been made to arrange these procedures in such a way as to trace the issue from component to
component.
Note: Before continuing, please take note of the WARNINGS and CAUTIONS below.
•TO AVOID ELECTRIC SHOCK. POWER TO HOOD MUST BE DISCONNECTED WHEN PREPARING FOR A
SPECIFIC TEST. CARE SHOULD BE USED WHILE PERFORMING ANY TEST WITH THE HOOD ENERGIZED.
•IF IT IS NECESSARY TO REMOVE A HOOD FROM ITS INSTALLATION REMEMBER THAT THE UNITS ARE
HEAVY AND MUST BE LOWERED FROM THE INSTALLATION.
• When working on the Hood and components, be careful when handling sheet metal parts. There may be
sharp edges present.
