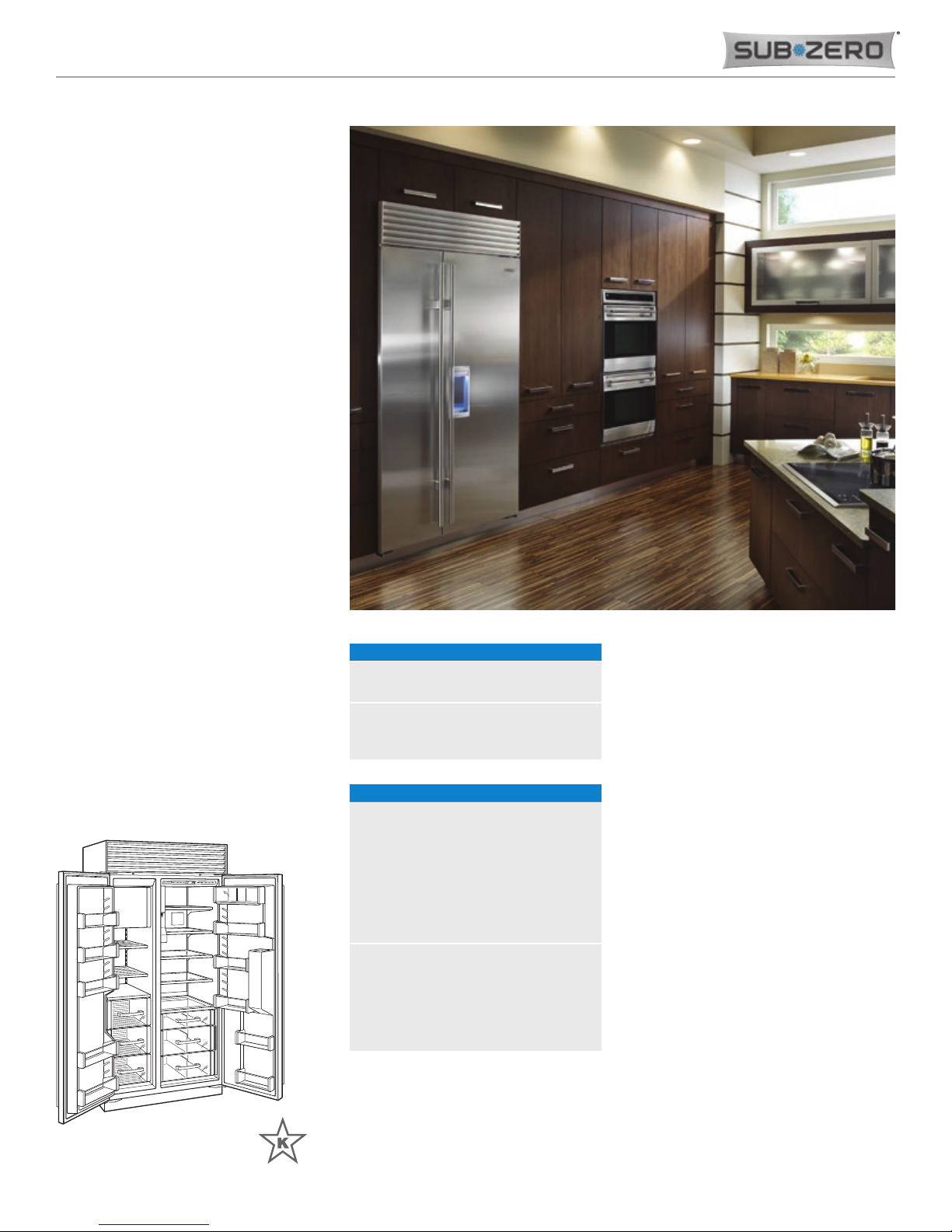

Sub-Zero BI-42SD/S/PH User manual

MODEL OPTIONS
OVERLAY
Framed, overlay, flush inset BI-42SD/O
STAINLESS STEEL
Tubular handles BI-42SD/S/TH
Pro handles BI-42SD/S/PH
INTERIOR FEATURES
REFRIGERATOR
4 Adjustable glass shelves
1 Stationary glass shelf
1 High-humidity drawer with divider
2 Storage drawers with divider
3 Adjustable door shelves
2 Stationary door shelves
Adjustable dairy compartment
FREEZER
2 Adjustable wire shelves
1 Stationary solid shelf
3 Storage drawers
5 Adjustable door shelves
Automatic ice maker with dispenser
42" Built-In Side-by-Side with Dispenser
subzero.com
ACCESSORIES
•Grilles for 83" or 88" finished height
(84" is standard).
•Framed front panels in white or
stainless steel.
•Flush inset panels in stainless steel with
tubular or pro handles.
•Custom front panel mounting kit.
•Side panel in white or stainless steel.
•Stainless steel tubular and pro handles.
•Full-length standard and extended
framed handles.
•Stainless steel kickplate.
•Partial framed kit for stainless steel
panels above and below dispenser.
•Dozen egg container.
•Replacement air purification cartridge
and water filter.
Accessories available through an authorized
Sub-Zero dealer. For local dealer information,
visit the find a showroom section of our
website, subzero.com.
FEATURES
•Four design options: framed, overlay,
flush inset and stainless steel.
•Dual refrigeration system ensures the
freshest food and energy efficiency.
•Electronic microprocessor constantly
monitors entire unit to ensure proper
food storage environment.
•Air purification system reduces odors,
bacteria, viruses and ethylene gas.
•Advanced water filtration system.
•Dispenser provides ice and chilled water
through the door.
•Illuminated touch control panel.
•Bright interior lighting throughout,
including storage drawer area.
•Adjustable door shelves, spill-proof
glass refrigerator shelves, dairy
compartment and wire freezer shelves.
•Crisper and deli drawers form a lower-
temperature zone ideal for produce
and meats.
•Soft-close glide system on refrigerator
storage drawers.
•Easy-access flip-up grille.
•Informational freshness cards.
•Automatic ice maker provides crescent-
shaped ice—max ice feature increases
production for a 24-hour period.

42" (1067)
84"
(2134)
4" (102)
733/4"
(1873)
237/8" (606)
237/8"
(606)
261/4"
(668)
103/8"
(264)
71/2"
(191)
23/8" (60)
HEIGHT DIMENSIONS ±
1/2" (13)
263/16" (665)
SPECIFICATIONS
PRODUCT
Dimensions 42"W x 84"H x 24"D
Weight 608 lb
CAPACITY
Refrigerator 16.0 cu ft
Freezer 7.9 cu ft
ELECTRICAL
Supply 115 VAC, 60 Hz
Service 15 amp circuit
PLUMBING
Supply 1/4" OD copper, braided
stainless steel or PEX tubing
Pressure 35–120 psi
Specifications are subject to change without
notice. Visit subzero.com/specs for the most
up-to-date information.
Dimensions may vary ±1/8"(3). Dimensions in
parentheses are millimeters unless otherwise
specified.
42" Built-In Side-by-Side with Dispenser
subzero.com
STANDARD INSTALLATION FLUSH INSET INSTALLATION
DIMENSIONS
©Sub-Zero, Inc. all rights reserved. 2/2014
833/4"
(2127)
OPENING
HEIGHT
24" (610)
OPENING
DEPTH
NOTE: Shaded line represents profile of unit.
FRONT VIEW
SIDE
VIEW
TOP VIEW
W
OPENING WIDTH
84"
(2134)
FLUSH
INSET
HEIGHT
1/4"
(6)
263/16"
(665)
FLUSH
INSET
DEPTH
23/16"
(56)
*3
"(76) typical depth. Shaded areas will be visible and should be finished to match cabinetry.
NOTE: Shaded line represents profile of unit with
3/4"(19) panel.
FRONT VIEW
SIDE
VIEW
TOP VIEW
FINISHED
CLEATS*
11/4"
(32)
W
FLUSH INSET WIDTH
4" (102)
11/4"
(32)
23/16"
(56)
3"
(76)*
TYPICAL
751/2" (1918)
FROM FLOOR
7"
(178) E
6"
(152)
RIGHT SIDE
OF OPENING
ELECTRICAL
3" (76)
18" (457) 6" (152)
RIGHT SIDE
OF OPENING
AREA EXTENDS 1/2"(13)
FORWARD ON FLOOR
PLUMBING
44" (1118)411/2"(1054)
