Subaru RGX2900 User manual

3ZZ9990184
(英・露・亜)
ISSUE EMD-GU2149
August 2005 CE-SK
PRINTED IN JAPAN

ENGLISH
FOREWORD
Thank you for purchasing a Robin generator.
This manual covers operation and maintenance of the Robin generators.
All information in this publication is based on the latest production
information available at the time of approval for printing.
Pay special attention to statements preceded by the following words:
■The generator is designed to give safe and dependable service if
operated according to instructions.
■Do not operate the generator before you have read and
understood the instructions. Failure to do so could result in death,
personal injury or equipment damage.
WARNING
Indicates a strong possibility of severe personal injury, loss of life and
equipment damage if instructions are not followed.
［CAUTION］
Indicates a possibility of personal injury or equipment damage if instructions
are not followed.
NOTE:
Gives helpful information.
If a problem should arise, or if you have any questions about the generator,
consult an authorized dealer or service shop
WARNING
RGX48000(GEN)GU212205.7.141:21PMページ01

CONTENTS
1. SAFETY PRECAUTIONS ・・・・・・・・・・・・・・・・・・・・・・ 1
2. SPECIFICATIONS ・・・・・・・・・・・・・・・・・・・・・・・・・・
3
3. COMPONENTS ・・・・・・・・・・・・・・・・・・・・・・・・・・・
4
4. PRE-OPERATION CHECKS ・・・・・・・・・・・・・・・・・・・・
7
5. OPERATING PROCEDURES・・・・・・・・・・・・・・・・・・・・
10
6. WATTAGE INFORMATION ・・・・・・・・・・・・・・・・・・・・・
17
7. MAINTENANCE SCHEDULE・・・・・・・・・・・・・・・・・・・・
19
8. "HOW-TO" MAINTENANCE ・・・・・・・・・・・・・・・・・・・・
20
9. PREPARATION FOR STORAGE・・・・・・・・・・・・・・・・・・
22
10. TROUBLESHOOTING ・・・・・・・・・・・・・・・・・・・・・・・
23
11. WIRING DIAGRAM ・・・・・・・・・・・・・・・・・・・・・・・・・
24
RGX48000(GEN)GU212205.7.141:21PMページ02

ENGLISH
1. SAFETY PRECAUTIONS
−1−
Please make sure you review each precaution carefully.
Do not operate the generator near gasoline or gaseous fuel because of the
potential danger of explosion or fire.
Do not fill the fuel tank with fuel while the engine is running. Do not smoke or
use open flame near the fuel tank. Be careful not to spill fuel during refueling.
If fuel is spilt, wipe it off and let dry before starting the engine.
WARNING
Do not operate the generator inside a room, cave, tunnel, or other
insufficiently ventilated area. Always operate it in a well-ventilated area,
otherwise the engine may become overheated, and the poisonous carbon
monoxide gas contained in the exhaust gases will endanger human lives.
Keep the generator at least 1 meter (3 feet) away from any structure or
building during use.
If the generator must be used indoors, the area must be well-ventilated and
extreme caution must be taken regarding the discharge of exhaust gases.
WARNING
Do not place in flammables near the generator.
Be careful not to place fuel, matches, gunpowder, oily cloths, straw, trash, or any other in flammables
near the generator.
WARNING
Do not enclose the generator nor cover it with a box.
The generator has a built-in forced air cooling system, and may become overheated if it is enclosed.
If generator has been covered to protect it from the weather during non use, be sure to remove it and
keep it well away from the area during generator use.
WARNING
1m
1m
Operate the generator on a level surface.
It is not necessary to prepare a special foundation for the generator.
However, the generator will vibrate on an irregular surface, so choose a level place without surface
irregularities.
If the generator is tilted or moved during operation, fuel may spill and / or the generator may tip over,
causing a hazardous situation.
Proper lubrication cannot be expected if the generator is operated on a steep incline or slope. In such
a case, piston seizure may occur even if the oil is above the upper level.
WARNING
Pay attention to the wiring or extension cords from the generator to the connected device.
If the wire is under the generator or in contact with a vibrating part, it may break and
possibly cause a fire, generator burnout, or electric shock hazard.
Replace damaged or worn cords immediately.
WARNING
RGX48000(GEN)GU212205.7.141:21PMページ1

−2−
Do not contact the generator to a commercial power line. Connection to a commercial
power line may short circuit the generator and ruin it or cause electric shock hazard.
Use the transfer switch for connecting to domestic circuit.
WARNING
Engine becomes extremely hot during and for some time after operation.
Keep combustible materials well away from generator area.
Be very careful not to touch any parts of the hot engine especially the muffler area
or serious burns may result.
WARNING
No smoking while handling the battery. The battery emits flammable hydrogen gas,
which can explode if exposed to electric arcing or open flame.
Keep the area well-ventilated and keep open flames/sparks away when handling the battery.
WARNING
Do not operate in rain, in wet or damp conditions, or with wet hands.
The operator may suffer severe electric shock if the generator is wet due to rain or snow.
WARNING
Keep children and all bystanders at a safe distance from work areas.
WARNING
If wet, wipe and dry it well before starting. Do not pour water directly over the generator, nor wash it
with water.
WARNING
Be extremely careful that all necessary electrical grounding procedures are followed during each and
every use. Failure to do so can be fatal.
WARNING
It is absolutely essential that you know the safe and proper use of the power tool or appliance that
you intend to use. All operators must read, understand and follow the tool/appliance owners manual.
Tool and appliance applications and limitations must be understood. Follow all directions given on
labels and warnings. Keep all instruction manuals and literature in a safe place for future reference.
WARNING
Use only "LISTED" extension cords.
When a tool or appliance is used outdoors, use only extension cords marked "For Outdoor Use".
Extension cords, when not in use should be stored in a dry and well ventilated area.
WARNING
Always switch off generator's AC circuit breaker and disconnect tools or appliances when not in use,
before servicing, adjusting, or installing accessories and attachments.
WARNING
Make sure the engine is stopped before starting any maintenance, servicing or repair.
Make sure maintenance and repair of the generator set are performed by properly trained personnel only.
［CAUTION］
RGX48000(GEN)GU212205.7.141:21PMページ2

ENGLISH
2. SPECIFICATIONS
−3−
MODEL
Type
Starting system
L
mm
mm
mm
mL
L
kg
Model
Type
Voltage regulating system
kVA (kW)Rated output
AC Output
kVA (kW)
Maximum output
Rated voltage
Fuel tank capacity
H
Engine oil capacity
Spark plug
Dry weight
Specifications are subject to change without notice.
Displacement
ROBIN, Air-cooled, 4-stroke, OHC
211
Length
Width
Hight
Recoil starter
16.6
BR-6HS (NGK) (Champion; RL86C)
Rated continuous operation
0.6
Fuel Automotive Unleaded Gasoline
Fuse-less circuit breaker
V
Rated current
12
A
Safety device type
8.3
DC Output
Rated power factor 1.0
Condenser type
220-50, 240-50, 230-50, 120/240-60
RGX3600 RGX4800
RGX2900
EX27D
EX17D
265169
Brush-less, self-exciting, 2-poles, single phase
2.4
V-Hz
Rated voltage-Frequency
Safety device type Fuse-less circuit breaker
3
2
2.4
3.5
4.1
2.9
3.6
2.4
2.9
4.1
4.8
EX21D
650580 605
510420 450
540480 500
7048 54
7
1.0
12 9.5
610.5
50Hz
60Hz
50Hz
60Hz
50Hz
60Hz
8.4
Engine Generator
Dimension
RGX48000(GEN)GU214905.8.23:47PMページ3

3. COMPONENTS
−4−
Fuel tank
Fuel gauge
Engine switch
Choke lever
Oil drain plug
Oil gauge (oil filler)
Spark plug cap
Air cleaner
Exhaust outlet
Tank cap
Fuel strainer
(Fuel cock)
Muffler cover
Recoil starter
Recoil starter
handle
Control panel
RGX48000(GEN)GU212205.7.141:21PMページ4

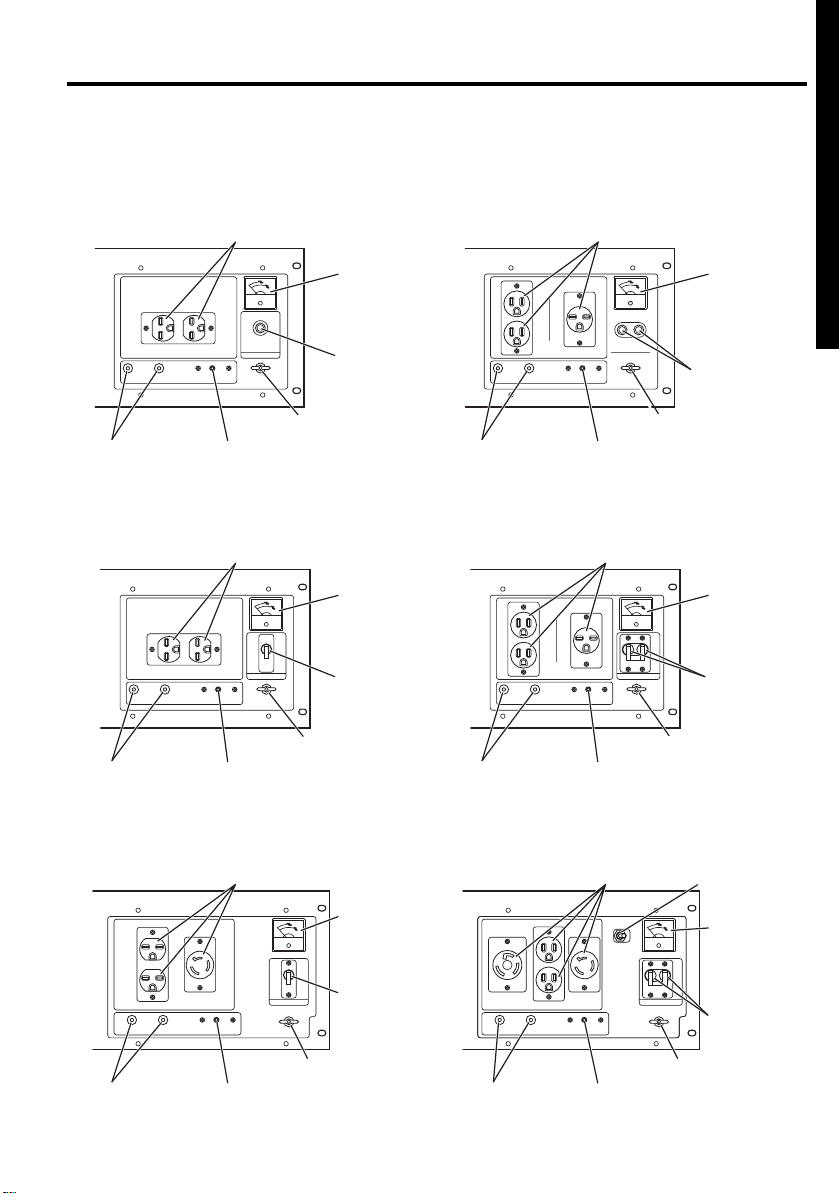

Full power
switch
Voltmeter
DC circuit
breaker
DC output
terminal
AC circuit
breaker
Earth (ground)
terminal
Earth (ground)
terminal
Earth (ground)
terminal
Earth (ground)
terminal
Earth (ground)
terminal
Earth (ground)
terminal
AC receptacle
(50Hz-220V, 240V)
(50Hz-220V, 240V)
(50Hz-220V, 240V)
(60Hz-120/240V)
(60Hz-120/240V)
(60Hz-120/240V)
Voltmeter
DC circuit
breaker
DC output
terminal
AC circuit
breaker
AC receptacle
Voltmeter
DC circuit
breaker
DC output
terminal
AC circuit
breaker
AC receptacle
Voltmeter
DC circuit
breaker
DC output
terminal
AC circuit
breaker
AC receptacle
Voltmeter
DC circuit
breaker
DC output
terminal
AC circuit
breaker
AC receptacle
Voltmeter
DC circuit
breaker
DC output
terminal
AC circuit
breaker
AC receptacle
ENGLISH
−5−
CONTROL PANEL
RGX2900
RGX3600
RGX4800
RGX48000(GEN)GU212205.7.141:21PMページ5

−6−
Voltmeter
DC circuit
breaker
DC output
terminal
AC circuit
breaker
Earth (ground)
terminal
Earth (ground)
terminal
Earth (ground)
terminal
AC receptacle
(50Hz-230V)
(50Hz-230V)
(50Hz-230V)
Voltmeter
DC circuit
breaker
DC output
terminal
AC circuit
breaker
Voltmeter
DC circuit
breaker
DC output
terminal
AC circuit
breaker
AC receptacle
AC receptacle
RGX2900
RGX3600
RGX4800
RGX48000(GEN)GU212205.7.141:21PMページ6

4. PRE-OPERATION CHECKS
−7−
ENGLISH
Upper level
Oil filler cap
(Oil gauge)
Lower level
CHECK ENGINE OIL
Before checking or refilling oil, be sure
generator is located on stable and level
surface with engine stopped.
■Remove oil filler cap and check the
engine oil level.
■If oil level is below the lower level line,
refill with suitable oil (see table) to
upper level line. Do not screw in the
oil filler cap when checking oil level.
■Change oil if contaminated.
(See "How-To" Maintenance.)
Recommended engine oil :
Use 4-stroke automotive detergent oil
of API service class SE or higher grade
(SG, SH or SJ is recommended). SAE
10W-30 or 10W-40 is recommended
for general, all-temperature use. If
single viscosity oil is used, select the
appropriate viscosity for the average
temperature in your area. Ambient
temperature
Single grade
Multigrade
5W
10W
20W
#20
#30
#40
10W
- 30
10W
- 40
RGX2900 . . . . . . . . . . . . . . . . . . 0.6
RGX3600 . . . . . . . . . . . . . . . . . . 0.6
RGX4800 . . . . . . . . . . . . . . . . . . 1.0
Oil capacity (Upper level) : (L)
RGX48000(GEN)GU212205.7.141:21PMページ7

−8−
■Check fuel level at fuel level gauge.
■If fuel level is low, refill with
unleaded automotive gasoline.
■Be sure to use the fuel filter screen
on the fuel filter neck.
LEVEL
Fuel filter screen
Fuel tank cap
Do not refuel while smoking or near open flame or other such
potential fire hazards. Otherwise fire accident may occur.
CHECK ENGINE FUEL.
Make sure you review each warning in order to prevent fire hazard.
■Do not refill tank while engine is running or hot.
■Close fuel cock before refueling with fuel.
■Be careful not to admit dust, dirt, water or other foreign objects Into
fuel.
■Wipe off spilt fuel thoroughly before starting engine.
■Keep open flames away.
WARNING
WARNING
FULL
EMPTY
Fuel Amount
up to "LEVEL" position
12.8 liters
RGX48000(GEN)GU212205.7.141:21PMページ8

−9−
ENGLISH
CHECKING COMPONENT PARTS
Check following items before starting engine:
■Fuel leakage from fuel hose, etc.
■Bolts and nuts for looseness.
■Components for damage or breakage.
■Generator not resting on or against any adjacent wiring.
CHECK GENERATOR SURROUNDINGS

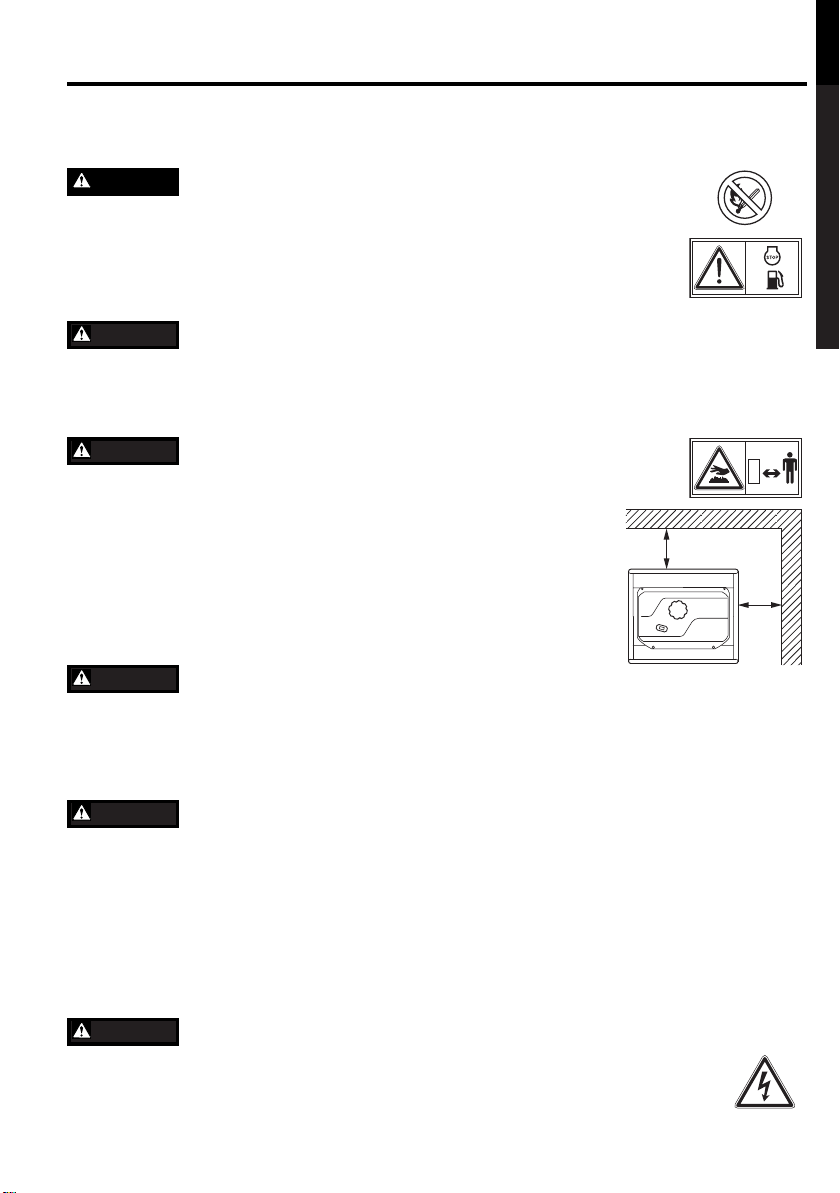

Make sure you review each warning in order to prevent fire hazard.
■Keep area clear of in flammables or other hazardous materials.
■Keep generator at least 3 feet (1 meter) away from buildings or other
structures.
■Only operate generator in a dry, well ventilated area.
■Keep exhaust pipe clear of foreign objects.
■Keep generator away from open flame. No smoking!
■Keep generator on a stable and level surface.
■Do not block generator air vents with paper or other material.
WARNING
GROUNDING THE
GENERATOR
■To ground the generator to the earth,
connect the grounding lug of the
generator to the grounding spike
driven into the earth or to the
conductor which has been already
grounded to the earth.
■If such grounding conductor or
grounding electrode is unavailable,
connect the grounding lug of the
generator to the grounding terminal of
the using electric tool or appliance.
Grounding spike
Earth (ground) terminal
RGX48000(GEN)GU212205.7.141:21PMページ9

5. OPERATING PROCEDURES
−10−
(a) Turn the Engine switch to the position
"ON".
(b) Turn the AC circuit breaker to the
position "OFF".
(c) Open the fuel cock.
(d) Set choke lever to close if the engine
is cold.
STARTING THE GENERATOR
Check the oil level before each operations as outlined by the article
"CHECK ENGINE OIL"
［CAUTION］
ON
OFF
OPEN
CLOSE
CLOSE
Choke lever
CLOSE
OPEN
ON
OFF
OFF
RGX48000(GEN)GU212205.7.141:21PMページ10

ENGLISH
−11−
Pull rapidly
(e) Pull the starter handle slowly until
resistance is felt.
This is the "compression" point.
Return the handle to its original
position and then pull swiftly.
■If the engine fails to start after several
attempts, repeat above procedures
with choke lever returned to "OPEN"
position.
■Do not fully pull out the rope.
■After starting, allow the starter handle
to return to its original position while
still holding the handle.
(f) After the engine started, return the
choke lever gradually to "OPEN"
position.
Choke lever
CLOSE
OPEN
(g) Warm up the engine without a load for
a few minutes.
RGX48000(GEN)GU212205.7.141:21PMページ11

−12−
ASingle voltage type
(a) Check the voltmeter for proper
voltage.
■This generator is thoroughly tested
and adjusted in the factory.
If the generator does not produce the
specified voltage, consult your
nearest Robin dealer or service shop.
(b) Turn off the switch (es) of the electrical
appliance (s) before connecting to the
generator.
(c) Insert the plug (s) of the electrical
appliance(s) into the receptacle.
(1) AC APPLICATION
Voltmeter
USING ELECTRIC POWER
■Make sure that the appliance is switched OFF before connecting it to
the generator.
■Do not move the generator while it is running.
■Be sure to ground the generator if the connected appliance is
grounded. Failure to ground unit may lead to electrical shock.
WARNING
■Check the amperage of the receptacles used referring to TABLE 1, and be
sure not to take a current exceeding the specified amperage.
■Be sure that the total wattage of all appliances dose not exceed the rated
output of the generator.
RGX48000(GEN)GU212205.7.141:21PMページ12

ENGLISH
−13−
Up to 30 amperes
Up to 16 amperes
Up to total 15 ampere
from two receptacles
Up to 15 amperes
TABLE 1
NOTE :
When the AC circuit breaker turns off during operation, the generator is over
loaded or the appliance is defective. Stop the generator immediately, check the
appliance and / or generator for overloading or detect and have repaired as
necessary by Robin dealer or service shop.

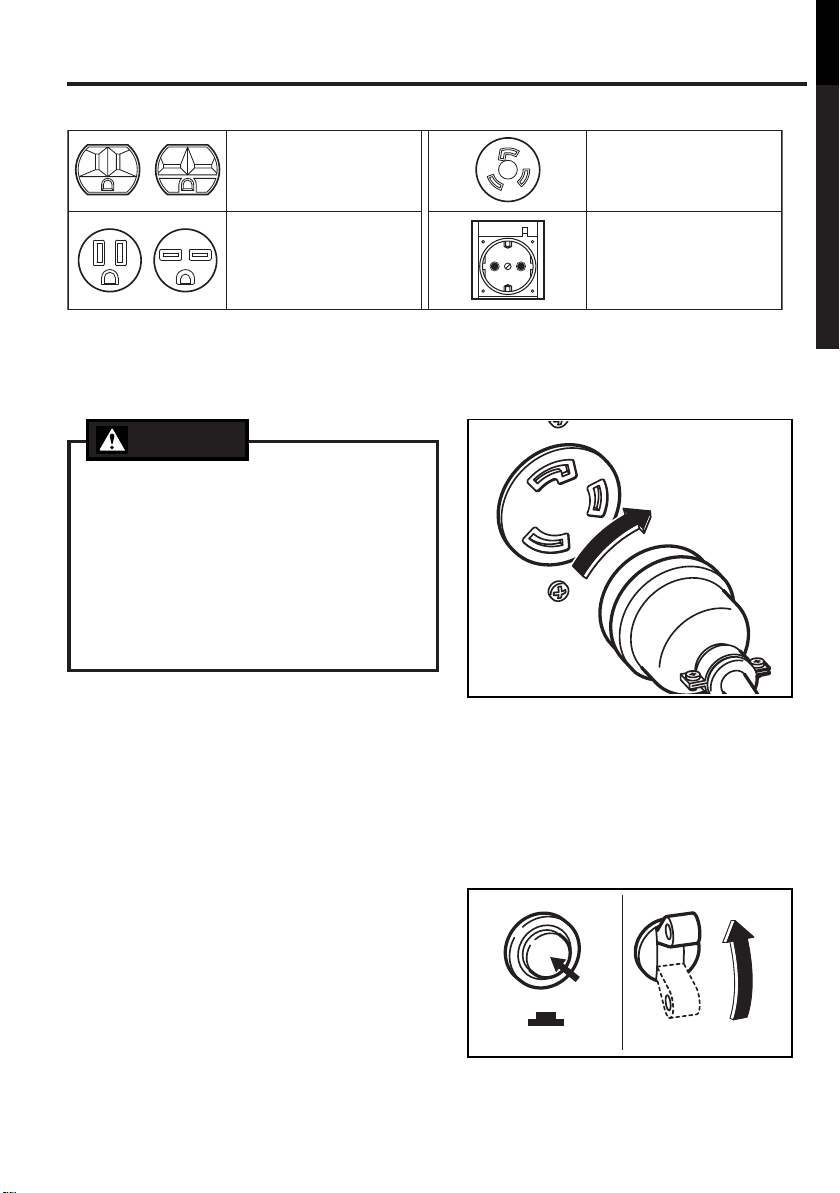

■To take power out from the TWIST
LOCK RECEPTACLE, insert the
plug into the receptacle, and turn
it clockwise to the lock position.
■Be sure to ground the generator if
the connected electrical device Is
grounded.
WARNING
TWIST
(d) Turn the AC circuit breaker to the
position "ON".
(e)Turn on the switch of the appliance.
ON
ON OFF
RGX48000(GEN)GU212205.7.141:21PMページ13

−14−
BDual voltage type (RGX4800)
Switch position Lower Voltage Receptacle Higher Voltage Receptacle
120V Activated full rated output N.A
120/240V Activated half of rated output Activated full rated output
FULL POWER SWITCH
(a) Select the voltage using the FULL
POWER SWITCH in accordance with
the electrical appliance.
Refer to TABLE 2.
120V 120V
240V
Change the FULL POWER SWITCH
after turning the AC circuit breaker
to "OFF".
［CAUTION］
(b) Operate in the same way as step (a)
through step (d) of single voltage type.
NOTE :
Voltmeter always indicates the lower voltage whichever the FULL POWER
SWITCH is set.
TABLE 2
RGX48000(GEN)GU212205.7.141:21PMページ14

ENGLISH
−15−
(2) DC APPLICATION
The DC terminal is used only for charging
12 volt batteries.
It provides up to 12V-8.3A (100W) of
maximum power.

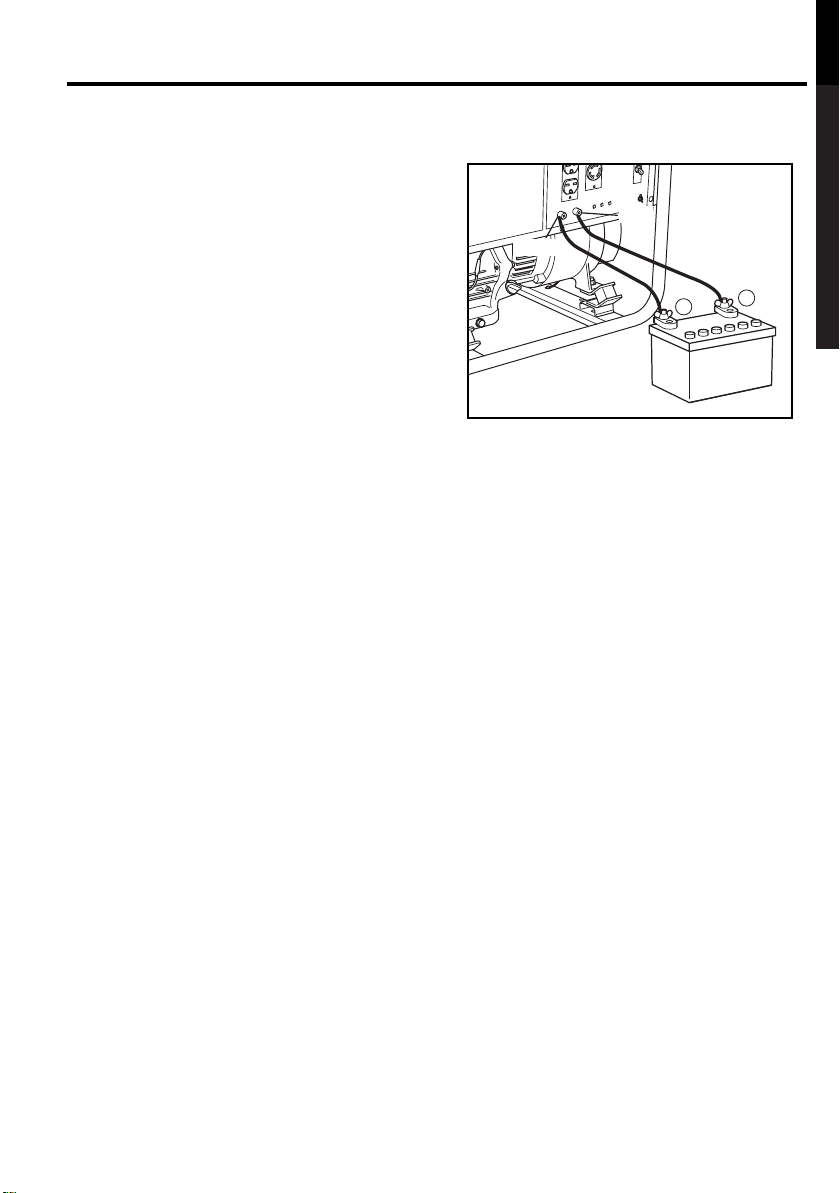

CONNECTION OF CABLE :
■Connect positive (red) terminal on
generator to positive (+) terminal on
battery.
■Connect negative (black) terminal on
generator to negative (
- ) terminal on
battery.
■Both AC and DC output can be used
at the same time if the total output is
within rated output of the generator.
+
-
Red
Black
SAFETY PRECAUTIONS WHILE CHARGING
■An explosive hydrogen gas is discharged through vent holes in the battery
during the charging process. Do not allow spark or open flame around the
generator or battery during the charging process.
■Electrolyte fluid can burn eyes and clothing. Be extremely careful to avoid
contact. If injured, wash the affected area immediately with large quantities of
water and consult a doctor for treatment.
■When charging a large capacity battery or totally discharged battery, excessive
current may force the DC breaker to turn off.
In such cases, use a battery charger to charge a large battery with AC output.
■Battery defects may cause the DC breaker to turn off.
Check the battery before replacing the DC breaker.
RGX48000(GEN)GU212205.7.141:21PMページ15

−16−

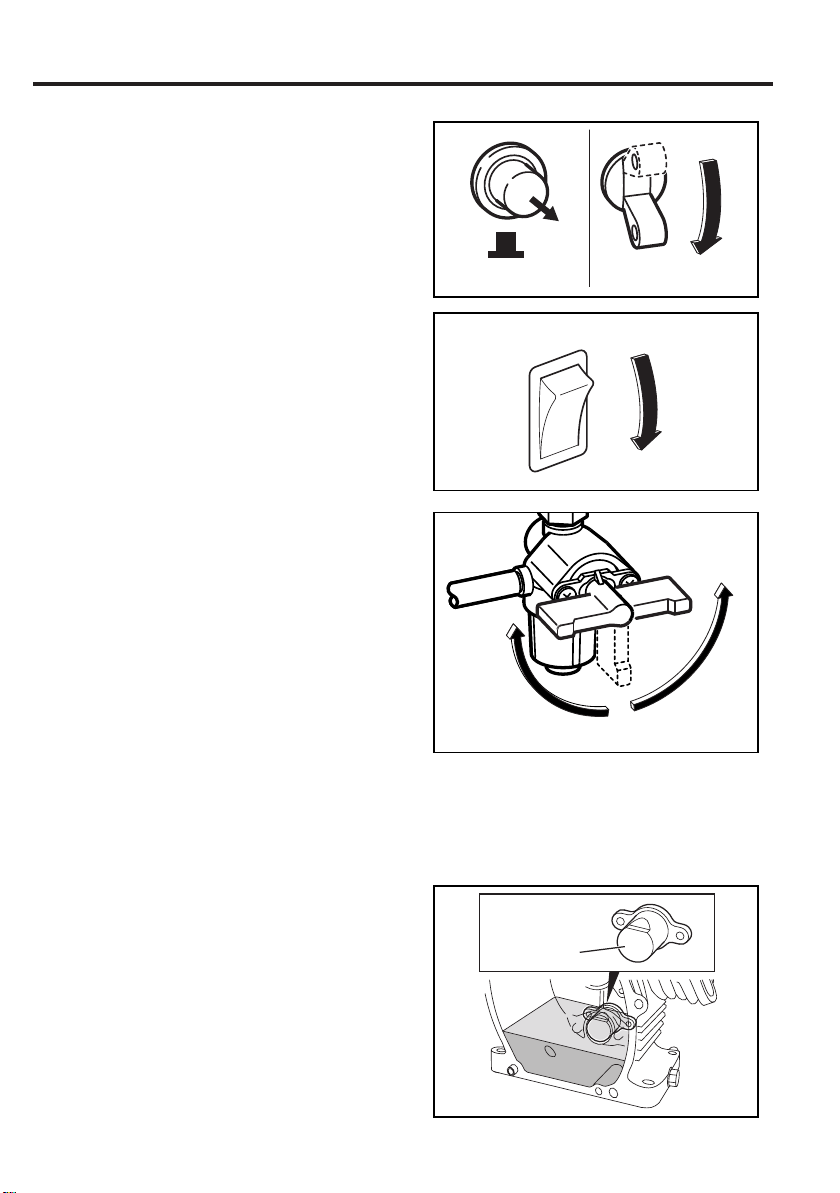

STOPPING THE GENERATOR
(a) Turn off the power switch of the
electric equipment and unplug the cord
from receptacle of the generator.
(b) Turn the AC circuit breaker to the
"OFF" position.
(c) Allow the engine about 3 minutes to
cool down at no-load before stopping.
(d)
Turn the Engine switch counterclockwise
to the position "OFF".
(e) Close the fuel cock.
OIL SENSOR
(a) The oil sensor detects the fall in oil
level in the crankcase and automati-
cally stops the engine when the oil
level falls below a predetermined level.
(b) When engine has stopped
automatically, switch off generator's
AC circuit breaker, and check the oil
level.
Refill engine oil to the upper level as
instructed on page 6 and restart the
engine.
(c) If the engine does not start by usual
starting procedures, check the oil level.
OPEN
CLOSE
CLOSE
Oil sensor
ON
OFF
ON
OFF
OFF
RGX48000(GEN)GU212205.7.141:21PMページ16

ENGLISH
6. WATTAGE INFORMATION
−17−
Some appliances need a "surge" of energy when starting.
This means that the amount of electrical power needed to start the appliance may exceed
the amount needed to maintain its use.
Electrical appliances and tools normally come with a label indicating voltage, cycles / Hz,
amperage (amps) and electrical power needed to run the appliance or tool.
Check with your nearest dealer or service center with questions regarding power surge of
certain appliances or power tools.
■Electrical loads such as incandescent lamps and hot plates require the same wattage
to start as is needed to maintain use.
■Loads such as fluorescent lamps require 1.2 to 2 times the indicated wattage during
start-up.
■Loads for mercury lamps require 2 to 3 times the indicated wattage during start-up.
■Electrical motors require a large starting current. Power requirements depend on the
type of motor and its use. Once enough "surge" is attained to start the motor,
the appliance will require only 50% to 30% of the wattage to continue running.
■Most electrical tools require 1.2 to 3 times their wattage for running under load during
use. For example, a 5,000 watt generator can power a 1800 to 4000 watt electrical
tool.
■Loads such as submersible pumps and air compressors require a very large force to
start. They need 3 to 5 times the normal running wattage in order to start.
For example, a 5,000 watt generator would only be able to drive a 1,000 to 1,700 watt
pump.
NOTE :
The following wattage chart is general guide only. Refer to your specific appliance for
correct wattage.
To determine the total wattage required to run a particular electrical appliance or tool,
multiply the voltage figure of the appliance/tool by the amperage (amps) figure of same.
The voltage and amperage (amps) information can be found on a name plate which is
normally attached to electrical appliances and tools.
Applications
Applicable Wattage (W)
RGX3600
2400
1200
RGX2900
50Hz
900
50Hz
550
Incandescent lamp, Heater 2000
Fluorescent lamp, Electric tool 1100
60Hz
Mercury lamp 800
60Hz
Pump, Compressor 500
2400
1200
900
550
2900
1500
1100
650 800
1300
1800
3500
50Hz
RGX4800
60Hz
950
1500
2100
4100
RGX48000(GEN)GU212205.7.141:21PMページ17
