Subaru Robin rg2800is User manual

ISSUE EMD-GU7130

3ZZ9990551

PRINTED IN JAPAN

January 2011

Original

[appendix]

Instructions for treatment as waste

When disposing this product ,make sure that the fuel and oil should be drained from the engine ,and

submit to local regulations.

[Annexe]

Instructions pour le traitement des déchets

Quand ce produit doit être mis au rebut, s'assurer que le carburant et l’huile ont été vidangés

correctement à partir du moteur, et que les règlements locaux sont bien observés.

[Anhang]

Anweisungen für die Behandlung als Abfall

Bei der Entsorgung dieses Produkts sicherstellen, dass der Kraftstoff und das Öl aus dem Motor

abgelassen wird und unter Befolgung aller örtlich gültigen Bestimmungen entsorgt wird.

[aanhangsel]

Instructies voor afvalverwerking

Wanneer u dit product weggooit, moet u ervoor zorgen dat alle brandstof en olie uit de motor

verwijderd is en dient u zich te houden aan de ter plaatse geldende regelgeving.

[anexo]

Instrucciones para el tratamiento de los residuos

Cuando este producto debe ponerse al rechazo, asegurarse de que el combustible y el aceite

se purgaron correctamente a partir del motor, y que se observan bien los reglamentos locales.

[appendix]

Istruzioni per lo smaltimento

Per lo smaltimento di questo prodotto, assicurarsi di aspirare il carburante e l'olio dal motore,

in conformità con le regolamentazioni locali.

[apêndice]

Instruções para tratamento como resíduo

Quando eliminar este produto, assegure-se de que o combustível e o óleo são escoados do motor

e sujeitos às regulamentações locais.

[vedlegg]

Instruksjoner for behandling av avfall

Når dette produktet kasseres, må man påse at drivstoffet og oljen tømmes fra motoren og behandles

ifølge lokale renovasjonsforskrifter.

[appendix]

Anvisningar för avfallshantering

När denna produkt ska kasseras, se då till att bränslet och oljan töms ur motorn, och att lokala

bestämmelser efterföljs.

[LIITE]

Ohjeita jätteiden käsittelemisestä

Hävittäessäsi tätä tuotetta muista, että polttoaine ja öljy täytyy tyhjentää moottorista.

Muista myös noudattaa paikallisia säädöksiä.

[tillæg]

Anvisninger for behanling af affald

Når du bortskaffer dette produkt, bedes du sikre dig, at motoren tømmes for brændstof og olie

og afhændes i henhold til lokale regler.

2 3

1 2 4

121613

10 11

RG4300iSenGU704510.6.84:35PMページ02

WARNING

NO FIRE IN RAIN OR SNOW

DO NOT OPERATE DO NOT CONNECT TO

A HOUSEHOLD CIRCUIT

UNLEADED GASOLINE

RG4300iSenGU704510.6.84:35PMページ05

FOREWORD

Thank you very much for purchasing a ROBIN GENERATOR.

This manual covers operation and maintenance of the ROBIN GENERATOR.

This ROBIN GENERATOR can be used for general electrical equipments, appliances, lamps, tools as an AC

power source. With regards to DC application, the terminals are used only for charging 12 volt battery.

Never use this generator for any other purposes.

Please take a moment to familiarize yourself with the proper operation and maintenance procedures in order

to maximize the safe and efficient use of this product.

Keep this owner’s manual at hand, so that you can refer to it at any time.

Due to constant efforts to improve our products, certain procedures and specifications are subject to change

without notice.

When ordering spare parts, always give us the MODEL, PRODUCTION NUMBER (PROD No.) and

SERIAL NUMBER (SER No.) of your Product.

Please fill in the following blanks after checking the production number on your product.

(Location of label is different depending on the product model.)

CONTENTS

1. SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2. COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

3. PRE-OPERATION CHECKS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

4. OPERATING PROCEDURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

5. WATTAGE INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6. MAINTENANCE SCHEDULE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7. "HOW-TO" MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8. HOW TO REPLACE FUSES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9. PERIODIC OPERATION AND INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. TRANSPORTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. PREPARATION FOR STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PROD No. / SER No. (Label)

Please refer to the illustrations on the back page of the front cover or back cover

for Fig. 11to 66indicated in the sentence.

NOTE

RG4300iSenGU704510.6.84:35PMページ1

1. SAFETY PRECAUTIONS

Please make sure you review each precaution carefully.

Pay special attention to statement preceded by the following words.

“WARNING” indicates a strong possibility of severe personal injury or loss

of life if instructions are not followed.

“CAUTION” indicates a possibility of personal injury or

equipment damage if instructions are not followed.

Do not operate the generator near gasoline or gaseous fuel because of the potential

danger of explosion or fire.

Do not fill the fuel tank with fuel while the engine is running. Do not smoke or use open

flame near the fuel tank. Be careful not to spill fuel during refueling. If fuel is spilt, wipe

it off and let dry before starting the engine.

WARNING

Operate the generator on a level surface.

It is not necessary to prepare a special foundation for the generator.

However, the generator will vibrate on an irregular surface, so choose a level place without surface

irregularities.

If the generator is tilted or moved during operation, fuel may spill and / or the generator may tip over, causing

a hazardous situation.

Proper lubrication cannot be expected if the generator is operated on a steep incline or slope. In such a case,

piston seizure may occur even if the oil is above the upper level.

WARNING

Pay attention to the wiring or extension cords from the generator to the connected device.

If the wire is under the generator or in contact with a vibrating part, it may break and

possibly cause a fire, generator burnout, or electric shock hazard.

Replace damaged or worn cords immediately.

WARNING

Do not operate the generator inside a room, cave, tunnel, or other

insufficiently ventilated area. Always operate it in a well-ventilated area,

otherwise the engine may become overheated, and the poisonous carbon

monoxide gas contained in the exhaust gases will endanger human lives.

Keep the generator at least 1 meter (3 feet) away from any structure or

building during use.

If the generator must be used indoors, the area must be well-ventilated and

extreme caution must be taken regarding the discharge of exhaust gases.

WARNING

Do not place in flammables near the generator.

Be careful not to place fuel, matches, gunpowder, oily cloths, straw, trash, or any other in flammables near

the generator.

WARNING

Do not enclose the generator nor cover it with a box.

The generator has a built-in forced air cooling system, and may become overheated if it is enclosed.

If generator has been covered to protect it from the weather during non use, be sure to remove it and keep

it well away from the area during generator use.

WARNING

CAUTION

RG4300iSenGU704510.6.84:35PMページ2

Do not contact the generator to a commercial power line. Connection to a commercial

power line may short circuit the generator and ruin it or cause electric shock hazard. Use

the transfer switch for connecting to domestic circuit.

WARNING

Engine becomes extremely hot during and for some time after operation. Keep

combustible materials well away from generator area.

Be very careful not to touch any parts of the hot engine especially the muffler area or

serious burns may result.

WARNING

No smoking while handling the battery. The battery emits flammable hydrogen gas,

which can explode if exposed to electric arcing or open flame.

Keep the area well-ventilated and keep open flames/sparks away when handling the battery.

WARNING

Do not operate in rain, in wet or damp conditions, or with wet hands.

The operator may suffer severe electric shock if the generator is wet due to rain or snow.

WARNING

Keep children and all bystanders at a safe distance from work areas.

WARNING

If wet, wipe and dry it well before starting. Do not pour water directly over the generator, nor wash it with

water.

WARNING

Be extremely careful that all necessary electrical grounding procedures are followed during each and every

use. Failure to do so can be fatal.

WARNING

It is absolutely essential that you know the safe and proper use of the power tool or appliance that you intend

to use. All operators must read, understand and follow the tool/appliance owners manual. Tool and appliance

applications and limitations must be understood. Follow all directions given on labels and warnings. Keep all

instruction manuals and literature in a safe place for future reference.

WARNING

Use only "LISTED" extension cords.

When a tool or appliance is used outdoors, use only extension cords marked "For Outdoor Use". Extension

cords, when not in use should be stored in a dry and well ventilated area.

WARNING

Always switch off generator's AC circuit breaker and disconnect tools or appliances when not in use, before

servicing, adjusting, or installing accessories and attachments.

WARNING

Make sure the engine is stopped before starting any maintenance, servicing or repair.

Make sure maintenance and repair of the generator set are performed by properly trained personnel only.

CAUTION

RG4300iSenGU704510.6.84:35PMページ3

RG4300iSenGU704510.6.84:35PMページ4

2. COMPONENTS (See Fig. 11)

3. PRE-OPERATION CHECKS

(See Fig. 22)

1. CHECK ENGINE OIL (See Fig. 22-qq,ww)

Please refer to the illustrations on the back

page of

the front cover or back cover for

Fig. 11to 66

indicated in the sentence.

NOTE

qCONTROL PANEL

wFUEL TANK

eFUEL GAUGE

rSIDE PANEL (R)

tOIL DRAIN PLUG

yRECOIL STARTER (HANDLE)

uSTOPPER

iTANK CAP

oSPARK PLUG CAP

!0 AIR CLEANER

!1 FUEL STRAINER

!2 BATTERY [Electric starter model]

!3 OIL GAUGE (OIL FILLER)

!4 SIDE PANEL (L)

!5 EXHAUST OUTLET

!6 FUSE

Before checking or refilling oil, be sure generator is

located on stable and level surface with engine

stopped.

■■Remove oil filler cap and check the engine oil

level.(See Fig. 2-q)

qOIL GAUGE

wOIL FILLER

eUPPER LEVEL

rLOWER LEVEL

■■If oil level is below the lower level line, refill

with suitable oil (see table) to upper level line.

Do not screw in the oil filler cap when

checking oil level.(See Fig. 2-w)

qUPPER LEVEL

wLOWER LEVEL

■■Change oil if contaminated.

(See "How-To" Maintenance.)

2. CHECK ENGINE FUEL (See Fig. 22-ee,rr)

■■Check fuel level at fuel level gauge.

(See Fig. 2-r)

qEMPTY (E)

wFULL (F)

e"LEVEL" MARK

rFUEL LEVEL LINE

■■If fuel level is low, refill with unleaded

automotive gasoline.

■■Be sure to use the fuel filter screen on the fuel

filter neck.(See Fig. 2-e)

qFUEL FILTER SCREEN

wTANK CAP

Recommended engine oil:

Use 4-stroke automotive detergent oil of API service class

SE or highergrade (SG, SH or SJ is recommended).

SAE 10W-30 or 10W-40 is recommended for

general, all-temperature use. If single viscosity oil is

used, select the appropriate viscosity for the

average temperature in your area.

Ambient

temperature

Single grade

Multigrade

10W

20W

#20

#30

#40

10W

Do not refuel while smoking or near open

flame or other such potential fire hazards.

Otherwise fire accident may occur.

WARNING

RG2800iS . . . . . . . . . . . . . . . . . . . . . 0.6

RG3200iS . . . . . . . . . . . . . . . . . . . . . 0.6

RG4300iS . . . . . . . . . . . . . . . . . . . . . 1.0

Oil capacity (Upper level) : (L)

RG2800iS . . . . . . . . . . . . . . . . . . 10.8

RG3200iS . . . . . . . . . . . . . . . . . . 10.8

RG4300iS . . . . . . . . . . . . . . . . . . 12.8

Fuel tank capacity : (L)

RG4300iSenGU704510.6.84:35PMページ5

Make sure you review each warning in

order to prevent fire hazard.

■■Do not refill tank while engine is

running or hot.

■■

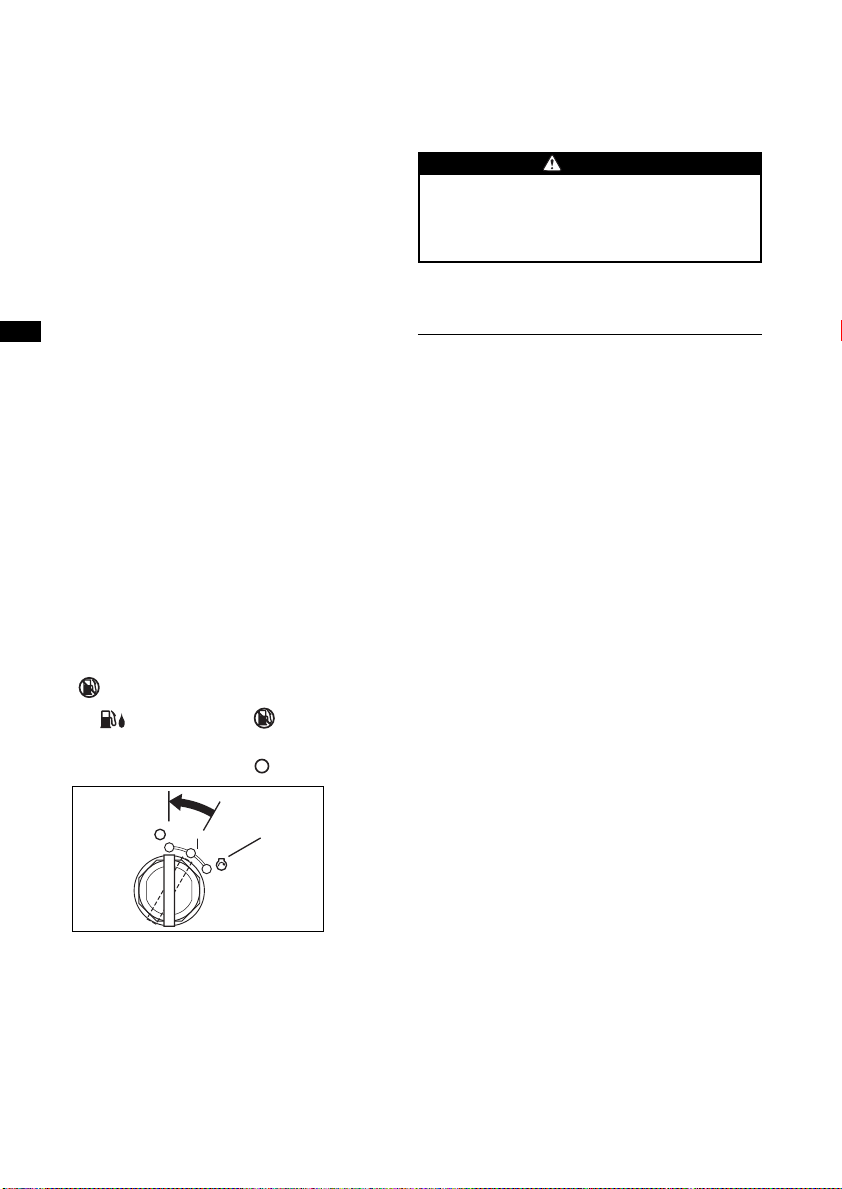

Before filling fuel, turn the engine switch

into ""(Fuel stop/close) position.

■■

Be careful not to admit dust, dirt, water

or other foreign objects Into fuel.

■■Wipe off spilt fuel thoroughly before

starting engine.

■■Keep open flames away.

WARNING

3. CHECKING COMPONENT PARTS

Check following items before starting engine:

■■Fuel leakage from fuel hose, etc.

■■Bolts and nuts for looseness.

■■Components for damage or breakage.

■■Generator not resting on or against any

adjacent wiring.

5. GROUNDING THE GENERATOR

■■To ground the generator to the earth, connect

the grounding lug of the generator to the

grounding spike driven into the earth or to the

conductor which has been already grounded

to the earth. (See Fig. 2-t)

qGROUNDING SPIKE

■■If such grounding conductor or grounding

electrode is unavailable, connect the

grounding lug of the generator to the

grounding terminal of the using electric tool or

appliance. (See Fig. 2-y)

qGROUND TERMINAL

6. NOTES ON INSTALLATION

■■Always be sure to place the generator on a

level surface, locking the wheel with the

stopper and/or chocking the wheels.

(See Fig. 2-u)

qSTOPPER

wUNLOCK

eLOCK

4. CHECK GENERATOR SURROUNDINGS.

Make sure you review each warning in

order to prevent fire hazard.

■■Keep area clear of in flammables or

other hazardous materials.

■■Keep generator at least 1 meter away

from buildings or other structures.

■■Only operate generator in a dry, well

ventilated area.

■■Keep exhaust pipe clear of foreign

objects.

■■Keep generator away from open flame.

No smoking!

■■Keep generator on a stable and level

surface.

■■Do not block generator air vents with

paper or other material.

WARNING

RG4300iSenGU704510.6.84:35PMページ6

OPERATING PROCEDURES

(See Fig. 33,44)

1. STARTING THE GENERATOR

Check the oil level before each operations

as outlined on page 5.

CAUTION

■■Do not run the starting motor over 5

seconds continuously.

If the engine fails to start, return the

key to the " "(ON) position and wait

about 10 seconds then start again.

■■

Do not turn the key switch to "

(START)

position when the engine is running to

prevent damage of starting motor.

■■

When starting the engine by recoil starter,

set the key switch at the " "(ON)

position and pull the starter handle.

CAUTION

(a) Make sure the appliance is disconnected.

(b)Turn engine switch to " "(CHOKE) position.

(When engine is warm or temperature is high,

start engine with the switch at " " (OPEN)

position.) (See Fig. 3-q)

q""(CLOSE)

w""(CHOKE)

Pull the starter handle slowly until passing the

compression point (resistance will be felt), then

return the handle to its original position and pull

briskly. (See Fig. 3-w)

qRECOIL STARTER HANDLE

wPULL BRISKLY

(d)After starting, allow the starter handle to return to

its original position with the handle still in your

hand.

(e) [Electric starter model]

Insert the key into the key switch and turn it

clockwise to the " "(ON) position to start the

engine.

Then turn the key further to the " "(START)

position. The engine will be started by starting

motor.

■■Do not connect defective appliances

including lines and plugs.

■■Be sure appliances are not connected

to generator when starting up.

Starting the generator with an

appliance connected could result in

damage to the generator and/or

appliance and in personal injury.

CAUTION

NOTE

When engine fails to start after several attempts,

repeat the starting procedures mentioned

above with the engine switch placed at

""(OPEN) position.

(f) After 20 to 30 seconds of warm-up is completed,

turn the engine switch to " " (OPEN) position.

(See Fig. 3-e)

q""(CHOKE)

w""(OPEN)

(g) By changing over the LE display in the multi

monitor into the "voltage" indication, make sure

the generating voltage is the normal level

(approx.230V).

NOTE

If no generating condition is found out,

please consult nearest ROBIN dealer.

RG4300iSenGU704510.6.84:35PMページ7

■■Make sure that the appliance is switched OFF before connecting it to the generator.

■■Do not move the generator while it is running.

■■Be sure to ground the generator if the connected appliance is grounded. Failure to

ground unit may lead to electrical shock.

WARNING

2. USING ELECTRIC POWER

(1) CONTROL PANEL

Hours

MULTI MONITOR

AUTO

P-SAVE

457 6

qMULTI MONITOR

wAC RECEPTACLES

eGROUND TERMINAL

rDC TERMINALS

tDC CIRCUIT BREAKER

KEY SWITCH [Electric starter model]

uENGINE SWITCH

qqLE display

Operation hour, voltage and frequency are indicated in turns by

means of depressing the LE display changeover switch.

In addition, "O_Lod" (overload) will be indicated when the generator

is in the overload condition or appliance(s) will be out of order.

In this case, stop the engine immediately and check the appliance

and/or generator for overloading.

After the check and remedy, restarting the engine will resume

displaying in the normal manner.

wwOperation hour lamp

Lamp (red) is turned on when changing over into operation hour indication in the LE display.

eeVoltage lamp

Lamp (red) is turned on when changing over into voltage indication in the LE display.

rrFrequency lamp

Lamp (red) is turned on when changing over into frequency indication in the LE display.

ttLE display changeover switch

When depressing this switch, indication in LE display is changed over in turns;

operation hour →voltage →frequency →operation hour.

When starting the engine, operation hour is indicated in LE display at first.

yyAuto-power saving switch

When depressing this switch, auto-power saving function is activated.

However, auto-power saving function is not activated in case of high-load condition.

uuAuto-power saving lamp

Lamp (green) is turned on while auto-power saving function is activated.

iiEngine oil level warning lamp

When the engine oil level is lower than the specified level, the lamp is turned on.

Then engine will be stopped.

MULTI MONITOR

Hours

MULTI MONITOR

AUTO

P-SAVE

8 7 6 5

NOTE:

Multi monitor is not a presised instrumentation, and so the indication on the LE display is for the reference.

RG4300iSenGU704510.6.84:35PMページ8

(3) DC APPLICATION (See Fig. 44-ww)

The DC terminal is used only for charging 12 volt

batteries.

It provides up to 12V-8.3A (100W) of maximum

power.

qPositive terminal (RED)

wNegative terminal (BLACK)

CONNECTION OF CABLE :

■■Connect positive terminal (red) on generator

to positive (+) terminal on battery.

■■Connect negative terminal (black) on

generator to negative (

) terminal on battery.

NOTE

When the "O_Lod" (overload) is indicated in the

LE display, AC output is cut off on the grounds

that the generator operation is in overload

condition or appliance(s) will be out of order.

In this case, stop the engine immediately and

check the appliance and/or generator for

overloading.

After the check and remedy, restarting the engine

will resume displaying in the normal manner.

(2) AC APPLICATION

(a) Make sure the voltage indicated in the LE

display is the normal level (approx. 230V).

■■This generator is thoroughly tested and

adjusted in the factory.

If the generator does not produce the specified

voltage, consult your nearest Robin dealer or

service shop.

(b) Turn off the switch(es) of the electrical

appliance(s) before connecting to the

generator.

into the receptacle.

■■Be sure to ground the generator if the

connected electrical device is grounded.

■■Failure to ground unit could lead to

electrical shock

WARNING

■■Check the amperage of the receptacles,

and be sure not to take a current exceeding

the specified amperage.

■■Be sure that the total wattage of all appliances

dose not exceed the rated output of the

generator.

Do not put foreign objects into the plug

receptacle.

CAUTION

(d) Turn on the switch of the appliance.

RG4300iSenGU704510.6.84:35PMページ9

SAFETY PRECAUTIONS WHILE CHARGING

■■An explosive hydrogen gas is discharged

through vent holes in the battery during the

charging process. Do not allow spark or open

flame around the generator or battery during the

charging process.

■■Electrolyte fluid can burn eyes and clothing.

Be extremely careful to avoid contact. If injured,

wash the affected area immediately with large

quantities of water and consult a doctor for

treatment.

■■When charging a large capacity battery or

totally discharged battery, excessive current

may force the DC circuit breaker to turn off.

In such cases, use a battery charger to charge

a large battery with AC output.

■■Battery defects may cause the DC circuit

breaker to turn off.

Check the battery before replacing the DC

circuit breaker.

3. STOPPING THE GENERATOR

(a)

Turn off the power switch of the electric equipment

and unplug the cord from receptacle of the generator.

(b) Allow the engine about 3 minutes to cool down

at no load before stopping.

""(CLOSE). (See Fig. 4-e)

q""(OPEN) w""(CLOSE)

(d) [Electric starter model]

Turn the key switch to the " "(OFF) position.

4. OIL SENSOR (See Fig. 44-rr)

qOIL SENSOR

(a) The oil sensor detects the fall in oil level in the

crankcase and automatically stops the engine

when the oil level falls below a predetermined level.

(b)

When engine has stopped automatically, switch off

generator's AC circuit breaker, and check the oil level.

Refill engine oil to the upper level as instructed

on page 5 and restart the engine.

starting

procedures, check the oil level.

Do not remove OIL SENSOR PROBE when

refilling with oil.

Remove oil filler cap on the opposite side

of carburetor.

CAUTION

Some appliances need a "surge" of energy when starting.

This means that the amount of electrical power

needed

to start the appliance may exceed the amount

needed to maintain its use.

Electrical appliances and tools normally come with

a label indicating voltage, cycles / Hz, amperage

(amps) and electrical power needed to run the

appliance or tool.

Check with your nearest dealer or service center

with questions regarding power surge of certain

appliances or power tools.

■■Electrical loads such as incandescent lamps

and hot plates require the same wattage to

start as is needed to maintain use.

■■Loads such as fluorescent lamps require 1.2

to 2 times the indicated wattage during start-up.

■■Loads for mercury lamps require 2 to 3 times

the indicated wattage during start-up.

■■Electrical motors require a large starting

current. Power requirements depend on the

type of motor and its use. Once enough

"surge" is attained to start the motor, the

appliance will require only 50% to 30% of the

wattage to continue running.

■■Most electrical tools require 1.2 to 3 times

their wattage for running under load during

use. For example, a 5000 watt generator can

power a 1800 to 4000 watt electrical tool.

■■Loads such as submersible pumps and air

compressors require a very large force to

start. They need 3 to 5 times the normal

running wattage in order to start.

For example, a 5000 watt generator would

only be able to drive a 1000 to 1700 watt pump.

5. WATTAGE INFORMATION

RG4300iSenGU704510.6.84:35PMページ10

To determine the total wattage required to run a particular electrical appliance or tool, multiply the voltage

figure of the appliance/tool by the amperage (amps) figure of same. The voltage and amperage (amps)

information can be found on a name plate which is normally attached to electrical appliances and tools.

NOTE

The following wattage chart is general guide only. Refer to your specific appliance for

correct wattage.

Applications

Applicable Wattage (approx. W)

RG4300iS

3800

1900

RG2800iS RG3200iS

1600

50Hz

800

Incandescent lamp, Heater 2500 2800

Fluorescent lamp, Electric tool 1300 1400

Mercury lamp 800 1000

Pump, Compressor 500 600

Nominal

cross

section

A.W.G.

Allowable

current

No.of strands

/ strands dia.

Resistance

Current Amp.

No./mm Ω/100m

mm2No. A1A 3A 5A 8A 10A 12A 15A

0.75 18 730/0.18 2.477 2.5V 8V

12.5V

─ ─ ─ ─

Voltage drop

1.27 16 12 50/0.16 1.486 1.5V 5V 7.5V 12V 15V 18V ─

2.0 14 17 37/0.26 0.952 1V 3V 5V 8V 10V 12V 15V

3.5 12 to 10 23 45/0.32 0.517 ─1.5V 2.5V 4V 5V 6.5V 7.5V

5.5 10 to 8 35 70/0.32 0.332 ─1V 2V 2.5V 3.5V 4V 5V

VOLTAGE DROP IN ELECTRIC EXTENSION CORDS

When a long electric extension cord is used to connect an appliance or tool to the generator, a certain

amount of voltage drop or loss occurs in the extension cord which reduces the effective voltage available for

the appliance or tool.

The chart below has been prepared to illustrate the approximate voltage loss when an extension

cord of 100 meters

is used to connect an appliance or tool to the generator.

RG4300iSenGU704510.6.84:35PMページ11

6. MAINTENANCE SCHEDULE

DAILY

■Check oil level.

■Check all components according to "PRE-OPERATION

CHECKS."

EVERY 50 HOURS

■Wash cleaner element. -more often if used in dirty or dusty

environments.

■Check spark plug, clean if necessary.

EVERY 100 HOURS ■Change engine oil. *-more often if used in dusty or dirty

environments.

EVERY 200 HOURS

■Adjust spark plug gap.

■Clean fuel strainer.

EVERY 500 HOURS

■Replace spark plug and cleaner element.

■Clean and adjust carburetor,valve clearance, and valve seat

along with cylinder head.

EVERY 1,000 HOURS

(24 MONTHS)

■Inspect control panel parts.

■Check rotor and starter.

■Replace engine mount rubber.

■Overhaul engine.

■Change fuel lines.

NOTE : (*)

■■Initial oil change should be performed after first twenty (20) hours of use. Thereafter change oil every

100 hours.

■■Before changing the oil, check for a suitable way to dispose of the old oil.

Do not pour it down sewage drains, onto garden soil or into open streams.

Your local zoning or environmental regulations will give you more detailed instructions on proper

disposal.

RG4300iSenGU704510.6.84:35PMページ12

3. SERVICING THE AIR CLEANER

(See Fig. 55-ee)

Maintaining an air cleaner in proper condition is

very important.

Dirt induced through improperly installed,

improperly serviced or inadequate elements

damages and wears out engines. Keep the

element always clean.

(a) Unhook the cover and remove the cleaner

element.

qwELEMENT (Urethane form)

(b) Urethane form : Wash the element with fresh

water. Squeeze out the water then dry the

element. (Do not twist.)

4. CLEANING AND ADJUSTING

SPARK PLUG (See Fig. 55-rr,tt)

(a) If the plug is contaminated with carbon, remove

it using a plug cleaner or wire brush.

(b) Adjust the electrode gap to 0.6 to 0.7 mm.

qSPARK PLUG

wPLUG WRENCH

eSPARK PLUG CAP

5. CLEANING FUEL STRAINER

(See Fig. 55-yy)

Dirt and water in the fuel are removed by the fuel

strainer.

qFUEL STRAINER CUP

(a) Remove the strainer cup and throw away water

and dirt.

(b) Clean the screen and strainer cup with gasoline.

to avoid fuel leak.

6. BATTERY INSTALLATION

(a) Attach terminals to a lead-acid battery already

charged. Mount the battery onto the position as

specified below, with its terminals facing inward.

(b) Insert each long bolt through the specified hole,

its tip pointing outward.

tighten with the butterfly nuts.

(Push the lead-acid battery all the way inward.)

7. "HOW-TO" MAINTENANCE

(See Fig. 55)

2. ENGINE OIL CHANGE (See Fig.

55-ww)

SIDE PANEL (L.R.)

(See Fig.

55-qq)

■■Change engine oil every 50 hours.

(For new engine, change oil after 20 hours.)

(a) Drain oil by removing the drain plug and the oil

filler cap while the engine is warm.

qOIL DRAIN PLUG

(b) Reinstall the drain plug and fill the engine with

oil until it reaches the upper level on the oil filler cap.

■■Use fresh and high quality lubricating oil to the

specified level as directed on page 5.

If contaminated or deteriorated oil is used or the

quantity of the engine oil is not sufficient, the

engine damage will result and its life will be

greatly shortened.

To access the following items for servicing, take the

applicable side panel out by removing the screw

with screwdriver or coin.

LH-side panel ---- Oil level gauge, Air cleaner,

Spark plug, Battery etc.

RH-side panel ---- Oil drain screw etc.

Recommended Battery

Lead-acid battery :

RG2800iS / 3200iS

Acapacity of 12V-6A・h or larger.

RG4300iS

Acapacity of 12V-12A・h or larger.

Spark plug : BR-6HS (NGK)

When replacing with new spark plug, use the

above-recommended one.

If not available by all means, make sure to

replace with equivalent one of resistance type.

Make sure the engine is stopped before

starting any maintenance, servicing or

repair.

CAUTION

NOTE

It is recommended to use ear protection

when performing operation, maintenance

and repair of the generator set.

RG4300iSenGU704510.6.84:35PMページ13

(d) Arrange the wiring so that it won't be damaged by possible vibration caused by the engine.

(e) Only after checking that the engine's starter key is in the "OFF" position, securely connect the red cable,

to the positive (+) terminal. And then connect the other cable to the negative (-) terminal.

Red cable : to the positive (+) terminal

Black cable : to the negative (

) terminal

Should the connection be made in incorrect manner, the engine will be broken.

CAUTION

RED CABEL

RED

CABEL

LESS THAN

131 mm (RG2800iS / 3200iS)

162 mm (RG4300iS)

LESS THAN

114 mm (RG2800iS / 3200iS)

136 mm (RG4300iS)

LESS THAN

71 mm (RG2800iS / 3200iS)

82 mm (RG4300iS)

Battery Base

Flange Bolt

Screw Accessory parts

Battery Band

Bolt and Nut

6Battery cover

RG4300iSenGU704510.6.84:35PMページ14

This manual suits for next models

Table of contents

Other Subaru Portable Generator manuals

Subaru

Subaru ROBIN RGD3300H User manual

Subaru

Subaru RGX4800 User manual

Subaru

Subaru RGX2900 User manual

Subaru

Subaru Robin R1700i User manual

Subaru

Subaru RGX3000 User manual

Subaru

Subaru RGX2900 User manual

Subaru

Subaru RGV12100 User manual

Subaru

Subaru SGX3500 User manual

Subaru

Subaru RGX6500/E User manual

Subaru

Subaru WORMS LEADER 10500 XL21 User manual

Subaru

Subaru RGX2900 User manual

Subaru

Subaru R1100 User manual

Popular Portable Generator manuals by other brands

Garland

Garland BOLT 115 G instruction manual

HP 8672a Service manual

DIRTY HANDS

DIRTY HANDS 104609 Operation manual

KUMATSUGEN

KUMATSUGEN GB3000 manual

Buffalo Tools

Buffalo Tools GEN7000LPC instruction manual

Vigilant

Vigilant T-GEN 50 Installation and operating instructions

Klavis

Klavis Quadigy user manual

Gentherm

Gentherm 5220 operating manual

MMD Equipment

MMD Equipment SDG25S-6A7 Service manual

Hameg

Hameg HM6050-2 user manual

Generac Power Systems

Generac Power Systems PowerBOSS Storm-Plus 1642-0 owner's manual

SFC Energy

SFC Energy EFOY 600 user manual

Wavetek

Wavetek 180 instruction manual

MULTIQUIP

MULTIQUIP DA7000SS Operation and parts manual

EMB

EMB Wallenstein HUF12000E Operator's manual

Dynaset

Dynaset HG 1 user manual

Buffalo

Buffalo Sportsman GEN7000 instruction manual

Generac Portable Products

Generac Portable Products 1313-1 owner's manual

Subaru Robin RG2800iS User manual

Popular Portable Generator manuals by other brands
