SUKKAHMART RapidRoof User manual

RapidRoof
Assembly Instructions
NEW
The ultimate Sukkah Protector
Easy to assemble
Simple to open and close
Fits all free standing sukkahs
Compact storage
Kosher L'Mehadrin

VERY IMPORTANT
The poles and parts are different sizes and it is crucial that you use the correct
poles and parts in the correct places. Each component is marked with number
stickers and it is essential that you follow this guide.
Please only use these instructions and discard the instructions in the box.
WARNING!
The RapidRoof needs to be stabilised, by either being attached to a wall with 2 brackets
provided, or by using the wooden stabilisers provided.
Until such time that you have stabilised the roof, do not leave the roof structure standing
and compacted.
Ensure that it is open until it is stabilised. Failure to do so may lead to the RapidRoof
toppling over, which could cause serious injury.
Please only use these instructions and discard the instructions in the box.

4. Legs (x2)
It already comes pre-assembled
as in picture on right.
Medium has 3 uprights,
Large has 4 uprights (pictured)
Extra large has 5 uprights.
6. Top Foldable Pole (x3)
Horizontal Roof Poles
1. Pole (x8) about 2m long.
2. Pole (x4) about 2m long.
3. Pole (x4) about 2m long.
4
5
3
RapidRoof - Medium 2x3m?
2
1
6
Components

3
8
7
7. Extension poles (x4) – about 50cm in length
Only used if you want to make the roof higher.
Not required for SukkahMart sukkas.
9
10
11
8. Corner Joiner (x4) – about 30cm in length
9. Middle Joiner (x4)– about 30cm in length
10. Top Corner Joiner (x2)– about 30cm in length
11. Top Middle Joiner (x2) - about 30cm in length
RapidRoof - Medium 2x3m?
A. Components cont.
12. Material for the roof
13. Hook pole

8
45
3
32
2
1
1
1
1
1
1
1
1
9
9
8
8
9
9
STEP 2: Insert Poles 1 into poles 10 and 11
Assembly Instructions
STEP 1: Layout parts 1 - 4 on the ground in
a triangle-like formation as per the
diagram below.
6
6
6
6
10
11
11
10
Arial View
8

11
666
10
11
10
STEP 3: Attach all the Part 6s to the 10's and 11's. Fasten them with the short screws provided.
10
Ensure this hole
is facing the inside
of the roof
Now insert all the poles into the joiners and tighten them with the screws provided.
Make sure the concertina grid is on the inside of the roof.
STEP 4:
6
6
6
6

6
6
6
6
STEP 4: Attach the top 8 velcro strips to the frame as per the diagram below.
Inside of canvas
velcro strip
velcro strip

STEP 5: Lift the frame up.
NB: It is recommended to use 3 people for this stage.
NB: As soon as the frame is standing, open it up immediately. If left closed, it will topple over.
STEP 6: Stretch out the material, attach the remaining velcros to the frame and hook
the bottom hooks onto the legs of the frame.

Attach Stabiliser
to the back poles
STEP 7: Stabilising the RapidRoof
NB: The roof must be stabilised using one of the methods below. Failure to do so could lead
to the roof toppling over, which may result in injury.
Method 1:
Affix 2 upright bars to a wall, using the brackets provided.
Method 2:
Affix 2 upright bars to the 2 wooden stabilisers provided, as per the diagram below.
NB: Do not bolt the pole completely
flush against the wall, allow some
space for the joiners to slide up
and down the vertical pole.

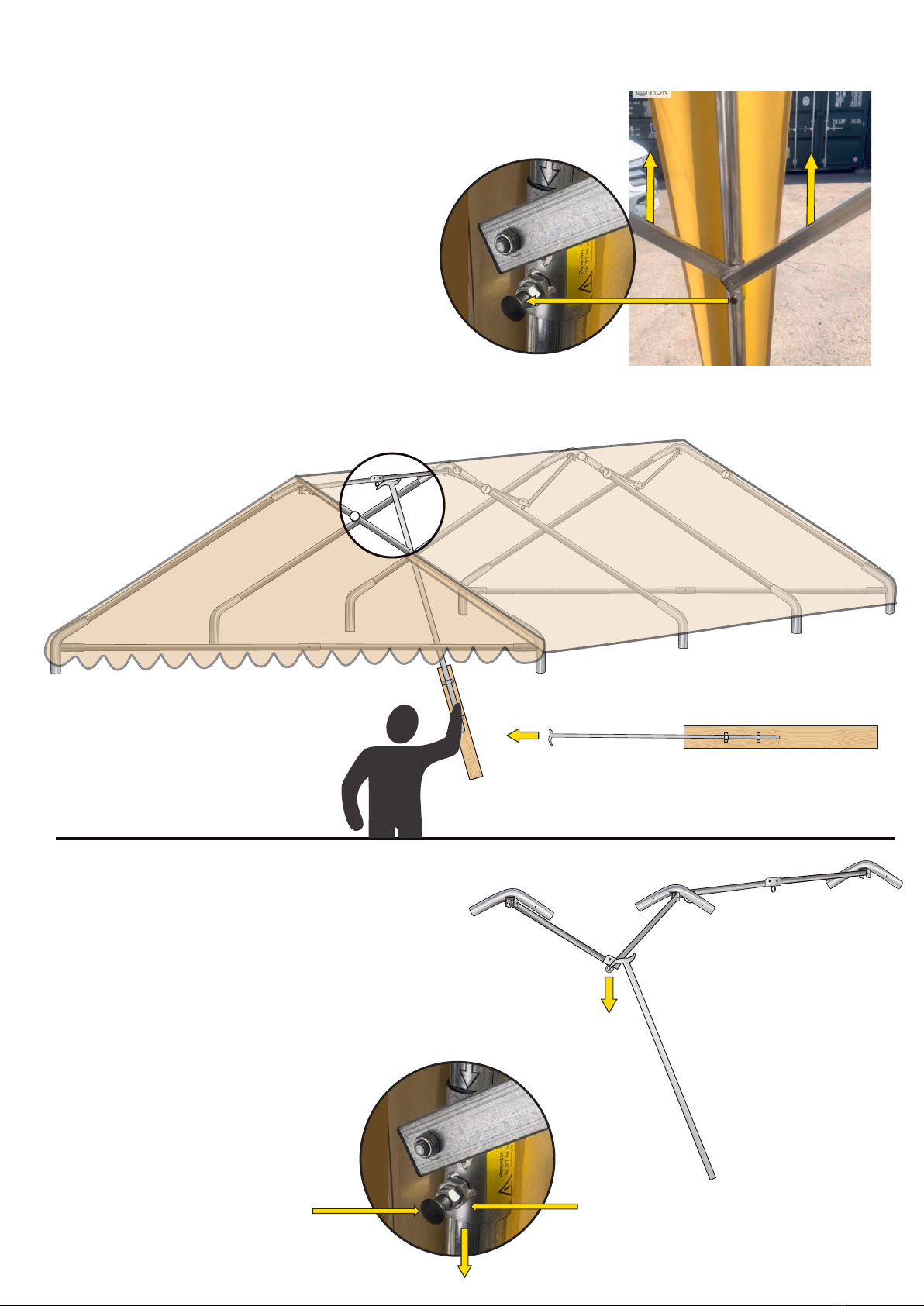

To open the RapidRoof structure
To close the RapidRoof structure
1. Lift the concertina cross-beams until the
black pin clicks into the upright pole’s hole.
(You may need to twist the upright pole to
line up with the pin).
Opening and Closing the RapidRoof Structure
1
1
11
1
11
10
1
2. Use the hook pole to straighten and lock the central
T F P s into place.op oldable ole
1. Use the hook pole to yank the central
T F P s downwards so that these op oldable ole
poles become an upside-down V shape again.
2. Pull the black pins out on all the
vertical poles and the cylindrical part
will drop, allowing you to compact
the concertina-like structure again.
10
cylindrical part
black pin
