Sukup Sweepway Quick start guide

DATES REVISIONS PAGES
01/13/2020 – Updated incline dimensions & installation instructions ................................................... 10-11, 32-33
Updated bin sweep, scraper & Cluster Buster installation instructions .................................... 20-27
Updated parts drawings & tables .................... 41-43, 46-47, 49, 53, 57-64, 67-70, 74-75, 83-84, 86
Added sweep auger replacement part numbers ............................................................................ 90
04/24/2019 – Updated warranty ............................................................................................................................. 4
Updated instructions for supporting floor over unload tube ........................................................... 14
Added note on trimming stirring machine down-augers if present ................................................ 22
Updated troubleshooting solutions for increasing sweep auger capacity ..................................... 40
Added drawings & part numbers for square shaft connectors ...................................................... 55
Sweepway®
Bin Unloading Power Sweep
Owner’s Installation & Operation Manual
Manual L1435 © Sukup Manufacturing Co.
01/13/2020
Sukup Manufacturing Co.
1555 255th Street, Box 677
Sheffield, Iowa, USA 50475-0677
Phone: [phone]
Fax: [phone]
Website: www.sukup.com
E-mail: [email protected]

Introduction
2
INTRODUCTION
Congratulations on your purchase of the Sweepway unload system. Your Sukup Sweepway is designed,
built and tested to ensure highest quality and maximum life.
Read and study operator’s manual carefully to learn how to safely install and operate your machine.
Failure to do so could cause personal injury or equipment damage.
For your convenience, fill in the following information:
Sweepway: 6"_______ 8" ________ 10" _______ Bin Diameter: _______
NOTE: References to 6”, 8” or 10” Sweepways refer to diameter of unload tube, not to diameter of sweep
auger.
With Horizontal Unload: Single Motor Drive _____
With Vertical Unload: 16' _____ 20' _____
2 Motor Drive (2 Motor Top_____ 2 Motor Bottom_____) Single Motor Drive _____
25 Incline: 6" to 8" _____ 8" to 10" _____ 20 Incline: 10" to 12" _____
Date of Purchase: _______________________________
DISCLAIMER: Bin sweeps will vary in performance based on grain condition and condition of bin floor.
Any capacities provided by Sukup Manufacturing Co. are based on dry, clean corn and ideal conditions.
It may take two passes over a given area to remove grain, with a layer of grain remaining on floor
afterward.

Table of Contents
3
TABLE OF CONTENTS
Introduction ................................................................................................................................ 2
Limited Warranty ........................................................................................................................ 4
Safety ......................................................................................................................................... 5
General Safety Practices ......................................................................................................... 5
Safety Decals for Sweepway ................................................................................................... 7
Safety Decals Placement for Sweepway ................................................................................. 8
Sweepway Dimensions .............................................................................................................. 9
Unload System Dimensions ......................................................................................................10
Preparation / Unload Installation ...............................................................................................12
Independent Intermediate Sump Pull Rod Installation ...............................................................17
Assembling Bin Sweep..............................................................................................................20
Attaching Sweep Stop ...............................................................................................................23
Backboard Scraper Installation ..................................................................................................24
Cluster Buster Installation .........................................................................................................26
Powerhead Options ...................................................................................................................28
…Horizontal with Single Motor Drive .........................................................................................28
…Basic Vertical Auger ..............................................................................................................29
…Two Motor Drive ....................................................................................................................30
…One Motor Drive ....................................................................................................................30
…Top Drive ...............................................................................................................................31
…Incline ....................................................................................................................................32
Adjusting Belt Tension...............................................................................................................34
Sump Opener for 6” Sweepway ................................................................................................35
Sump Opener for 8” Sweepway ................................................................................................36
Sump Opener for 10” Sweepway ..............................................................................................37
Operating Instructions ..............................................................................................................38
Troubleshooting ........................................................................................................................40
Lubrication ................................................................................................................................40
Parts/Assemblies ......................................................................................................................41
Quick Reference Parts List (Motors, Pulleys, Bushings) ............................................................87
Replacement Vertical Flighting, Shafts & Tubes ........................................................................88
Unload Auger Flighting Assembly .............................................................................................89
Sweep Auger Replacement Kits ................................................................................................90
Contact Information ...................................................................................................................92

Limited Warranty
4

Safety
5
On safety decals, this symbol and the
signal words Danger, Warning, Caution
and Notice draw your attention to
important instructions regarding safety.
They indicate potential hazards and levels of intensity.
RED - DANGER indicates an
imminently hazardous
situation which, if not avoided, will result in death or
serious injury.
ORANGE - WARNING
indicates a potentially
hazardous situation which, if not avoided, could result
in death or serious injury.
YELLOW - CAUTION
indicates a potentially
hazardous situation which, if not avoided, may result
in minor or moderate injury.
BLUE - NOTICE alerts you to
practices unrelated to personal
injury, such as messages related to property damage.
IMPORTANT: To prevent serious injury or death to
you or your family, it is essential that safety decals
are clearly visible, in good condition, and applied to
the appropriate equipment.
FOLLOW MANUAL & SAFETY DECAL MESSAGES
Carefully read this manual and
all safety decals on your
equipment. Safety decals must be
kept in good condition. Replace
missing or damaged safety decals
by contacting Sukup
Manufacturing Co. via mail at PO
Box 677, Sheffield, Iowa USA, 50475; by phone at
641-892-4222; or by e-mail at [e-mail].
It is the responsibility of the owner/operator to know
what specific requirements, precautions, and work
hazards exist. It is also the responsibility of the
owner/operator to inform anyone operating or
working in the area of this equipment of hazards and
safety precautions that need to be taken to avoid
personal injury or death. Always keep children away
from bins and vehicles with flowing grain.
Make no unauthorized modifications to machine.
Modifications may endanger function and/or safety of
unit. Keep unit in good working condition. Keep shields
in place. Replace worn or missing shields free of
charge by contacting Sukup Manufacturing Co.
GRAIN BIN SAFETY
Owners/operators are responsible for developing
site-specific confined space entry procedures.
OSHA’s confined space entry procedures (29CFR
1910.146) can be found at www.osha.gov.
If you must enter bin for repair or maintenance:
 Use a safety harness, safety line and respirator
 Station another person outside of bin
 Avoid the center of the bin
 Wear appropriate personal protective equipment
 Keep clear of all augers and moving parts
DANGER: Never enter bin unless all power is
locked out and another person is present.
Rotating augers
can kill or
dismember!
NEVER enter bin when augers are running!
When bin is nearly empty, sweep auger will travel at an
increasingly fast speed. Keep away from sweep and
sump augers to avoid entanglement.
Failure to follow precautions above will result in death
or serious injury.
DANGER: Flowing grain
may trap and suffocate. If
you enter a bin of flowing grain
you can be completely submerged
in grain in about 8 seconds.
Failure to heed this warning will
result in death or serious injury.
Read manual before installing or using product. Failure to follow instructions and safety precautions in
manual can result in death or serious injury. Keep manual in a safe location for future reference.

Safety
6
Refer to OSHA 1910.132
(Personal Prot. Equip.)
To avoid electric shock or electrocution, all
equipment must be properly wired and grounded
according to electrical codes. Have unit wired by
qualified electrician.
Have an electrician install a main power disconnect
switch capable of being locked only in OFF position.
Mark disconnect
clearly as to
equipment it
operates.
Always lock out
main power
disconnect
switch whenever
equipment is not
in use.
WARNING: When servicing equipment, never
enter bin unless all power is locked out and
another person is present. Always LOCK OUT
all power and always check with voltage meter before
servicing.
Failure to do so could result in death or serious injury.
Owners/operators are responsible for developing
site-specific Lockout/Tagout procedures based on
equipment at their work site. See OSHA’s typical
minimal lockout procedures (29CFR 1910.147 App A)
at www.osha.gov.
WARNING: KEEP CLEAR OF ALL MOVING
PARTS.
Keep people (ESPECIALLY YOUTH) away from
equipment, particularly during operation.
Keep away from all moving parts.
Keep all shields in place. SHUT
OFF AND LOCK OUT all power
before servicing.
Failure to follow precautions above
could result in death or serious
injury.
WARNING: Metal is slippery when wet. To
avoid falls, never carry items if climbing on
bin. Maintain secure hand and foothold if
climbing on bin. Failure to do so could result in death
or serious injury.
CAUTION: Metal edges are sharp. To avoid
injury, wear protective clothing and handle
equipment and parts with care.
Failure to do so may result in minor or moderate injury.
PERSONAL PROTECTIVE EQUIPMENT
Owners/Operators are
responsible for developing
site-specific personal
protective equipment
standards. OSHA’s
personal protective
equipment standards
(29CFR 1910.132) can be
found at www.osha.gov.
EMERGENCIES – KNOW WHAT TO DO
Have emergency numbers and written directions to
work site readily available in case of emergency. An
area for emergency phone numbers to be recorded is
provided below and at end of this manual.
Ambulance • Fire • Police: 9-1-1
Bin rescue team: _______________________
Emergency medical squad: ______________
Address of work site: ___________________
Directions to work site:__________________

Safety
7
Safety Decals for Sweepway
Safety decals should be mounted on your equipment
as shown in this safety section. Yearly and prior to
equipment use, check that all decals and shields are
in place and legible.
To order a replacement decal or shield at no charge,
contact your dealer or Sukup Manufacturing Co., Box
677, Sheffield, IA USA 50475. If replacement is
necessary, make sure location for decal is free from
grease, oil and dirt. Remove backing from decal and
place in proper position.
Decals 1-5 are factory-mounted. Additional copies of
decals 1 and 4 are shipped with this manual in
separate packet #A3399 and have mounting
instructions inside packet.
IMPORTANT: If suggested locations are not clearly
visible, place safety decals in a more suitable area.
Never cover up any existing safety decals.
1. DECAL L0281 – WARNING: To avoid serious
injury or death. Mount this decal on bin sheet
near door handle.
2. DECAL L0271 - DANGER: Shield missing. Do not
operate!
3. DECAL L0284 – WARNING: Keep away from all
moving parts.
4. DECAL L0258A – DANGER: Do not enter this
bin! Keep clear of all augers. Mount this decal on
bin sheet near door handle and near ladder
leading to roof.
5. DECAL L03061 – DANGER: Keep away when
auger is running!
6. DECAL L0328 – Sweepway Operation. Mount
this decal on bin sidewall near sump openers.

Safety
8
Safety Decals Placement for Sweepway
HORIZONTAL VERTICAL BOOT
SWEEP BACKBOARD

Dimensions
9
SWEEPWAY DIMENSIONS

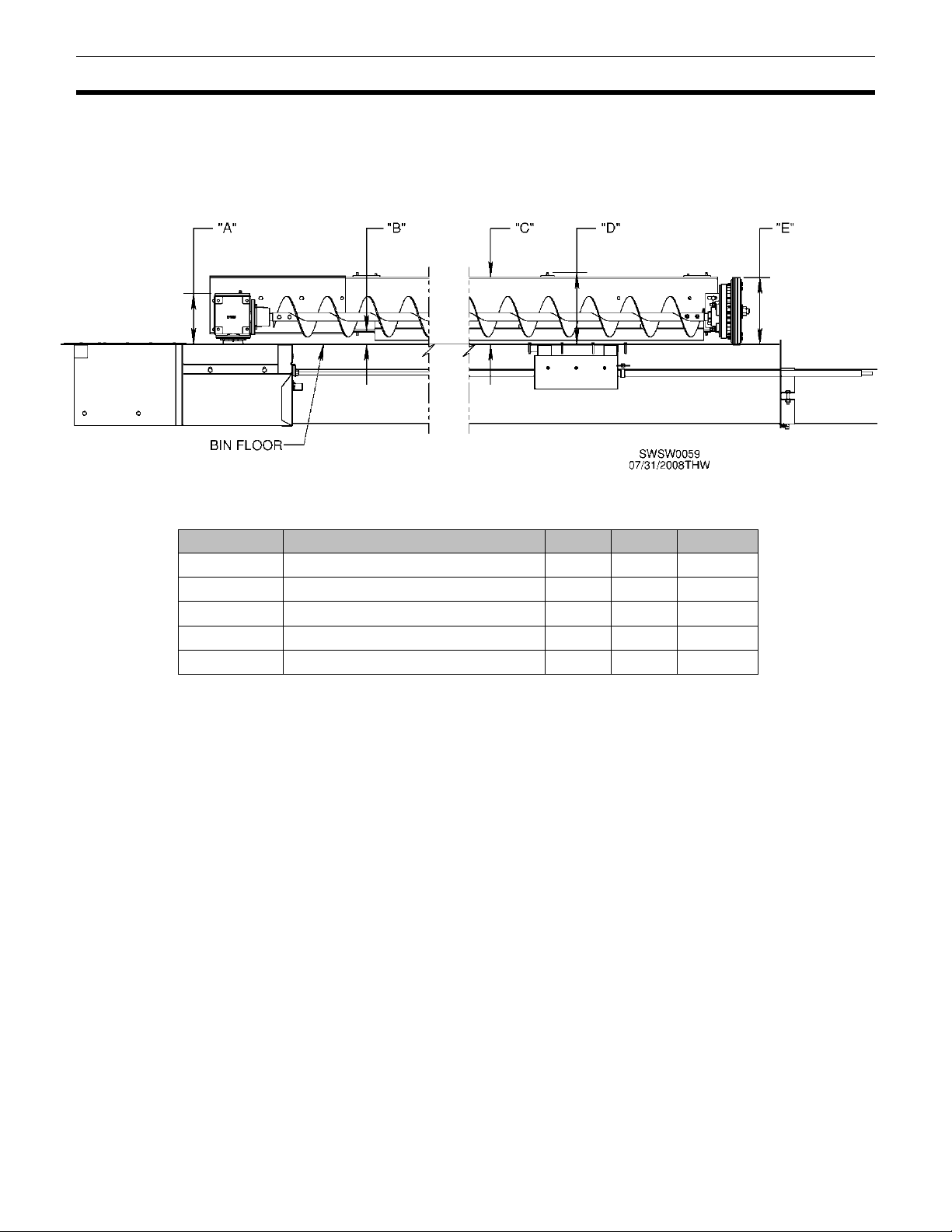

See Fig. 1 and Table 1 for Sweepway dimensions.
Fig. 1 & Table 1 – Sweepway dimensions
DIMENSION
DISTANCE FROM BIN FLOOR
6”
8”
10"
A
Top of gearbox
7-1/2"
7-1/2”
8-1/2”
B
Bottom of backboard
3”
2”
2-5/8”
C
Top of backboard
11-1/4”
9-7/8”
12-5/8”
D
Top of huckbolt sleeve
11-3/4”
10-3/8”
13-1/8”
E
Top of reduction wheel
10”
10” *
17
*Dimension E will be 17” if 17” wheel is used on 8” Sweepway

Dimensions
10
Fig. 2
DISCHARGE HEIGHT IS 24” ABOVE STANDARD
HORIZONTAL POWERHEAD.
SWUL0063
07/30/2012 IJH
UNLOAD SYSTEM DIMENSIONS

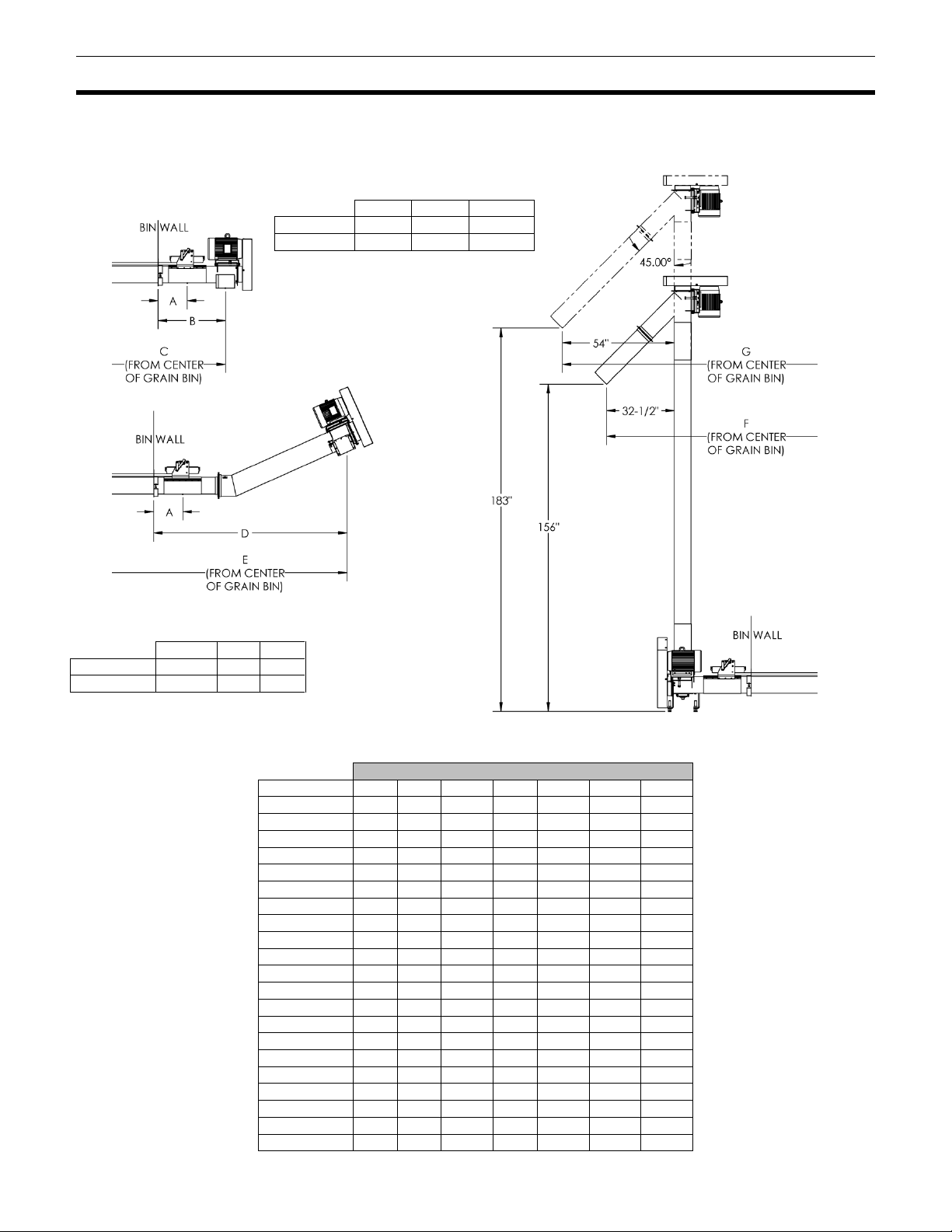

See Fig. 2 and Tables 2-6 for approximate dimensions of unload systems.
6”
8”
10”
WIDTH
6-3/8”
8-1/4”
10-1/4”
LENGTH
7-7/8”
9”
10-3/4”
Table 2 – Horizontal discharge dims.
6”
8”
10”
WIDTH
8-3/8”
10”
12”
LENGTH
9-1/8”
10”
12”
Table 3 – Incline discharge dims.
6” SWEEPWAY DIMENSIONS
BIN DIA.
A
B
C
D
E
F
G
15'
17
35
125
99
189
163
184.5
15' 6"
14
32
125
96
189
163
184.5
16" 5" (5M)
12
30
128.5
94
192.5
166.5
188
18'
17.5
35.5
143.5
99.5
207.5
181.5
203
18' 7"
14
32
143.5
96
207.5
181.5
203
19' 8" (6M)
14
32
150
96
214
188
209.5
21'
18
36
162
100
226
200
221.5
21' 8"
14
32
162
96
226
200
221.5
22" 11" (7M)
14.5
32.5
170
96.5
234
208
229.5
24'
18
36
180
100
244
218
239.5
24' 9"
13.5
31.5
180
95.5
244
218
239.5
26' 3" (8M)
14.5
32.5
190
96.5
254
228
249.5
27'
19
37
199
101
263
237
258.5
27' 10"
14
32
199
96
263
237
258.5
29' 6" (9M)
14
32
209
96
273
247
268.5
30'
20
38
218
102
282
256
277.5
31'
14
32
218
96
282
256
277.5
33'
20
38
236
102
300
274
295.5
34'
14
32
236
96
300
274
295.5
36' (11M)
20
38
254
102
318
292
313.5
37' 1"
13.5
31.5
254
95.5
318
292
313.5
IMPORTANT:
Dimensions are
based on nominal
bin diameters
listed and provide
approximate
measurements for
planning and
layout purposes.
Table 4 – Unload
system dimensions
for 6” Sweepway

Dimensions
11
8” SWEEPWAY DIMENSIONS
BIN DIA.
A
B
C
D
E
F
G
15'
17
35
125
99.5
189.5
162.5
184
15' 6"
14
32
125
99.5
189.5
162.5
184
16" 5" (5M)
14.5
32.5
131
97
195.5
168.5
190
18'
17.5
35.5
143.5
100
208
181
202.5
18' 7"
14
32
143.5
96.5
208
181
202.5
19' 8" (6M)
14
32
150
96.5
214.5
187.5
209
21'
18
36
162
100.5
226.5
199.5
221
21' 8"
14
32
162
96.5
226.5
199.5
221
22" 11" (7M)
14.5
32.5
170
97
234.5
207.5
229
24'
18
36
180
100.5
244.5
217.5
239
24' 9"
13.5
31.5
180
96
244.5
217.5
239
26' 3" (8M)
14.5
32.5
190
97
254.5
227.5
249
27'
19
37
199
101.5
263.5
236.5
258
27' 10"
14
32
199
96.5
263.5
236.5
258
29' 6" (9M)
14
32
209
96.5
273.5
246.5
268
30'
20
38
218
102.5
282.5
255.5
277
31'
14
32
218
96.5
282.5
255.5
277
33'
20
38
236
102.5
300.5
273.5
295
34'
14
32
236
96.5
300.5
273.5
295
36' (11M)
20
38
254
102.5
318.5
291.5
313
37' 1"
13.5
31.5
254
96
318.5
291.5
313
42'
14
32
284
96.5
348.5
321.5
343
42' 8" (13M)
14
32
288
96.5
352.5
325.5
347
43' 3"
14
32
291.5
96.5
356
329
350.5
48'
14
32
320
96.5
384.5
357.5
379
49' 3" (15M)
15
33
328.5
97.5
393
366
387.5
54'
14
32
356
96.5
420.5
393.5
415
55' 8"
14
32
366
96.5
430.5
403.5
425
60'
14
32
392
95.5
456.5
429.5
451
61' 10"
14
32
403
96.5
467.5
440.5
462
10” SWEEPWAY DIMENSIONS
BIN DIA.
A
B
C
D
E
F
G
24'
30
48
192
142
286
236.5
258
24' 9"
25.5
43.5
192
137.5
286
236.5
258
26' 3" (8M)
24
42
199.5
136
293.5
244
265.5
27'
31
49
211
143
305
255.5
277
27' 10"
26
44
211
138
305
255.5
277
29' 6" (9M)
26
44
221
138
315
265.5
287
30'
32
50
230
144
324
274.5
296
31'
26
44
230
138
324
274.5
296
33'
32
50
248
144
342
292.5
314
34'
26
44
248
138
342
292.5
314
36' (11M)
32
50
266
144
360
310.5
332
37' 1"
25.5
43.5
266
137.5
360
310.5
332
42'
26
44
296
138
390
340.5
362
42' 8" (13M)
24
42
298
136
392
342.5
364
43' 3"
26
44
303.5
138
397.5
348
369.5
48'
26
44
332
138
426
376.5
398
49' 3" (15M)
27.5
45.5
341
139.5
435
385.5
407
54'
26
44
368
138
462
412.5
434
55' 8"
26
44
378
138
472
422.5
444
60'
26
44
404
138
498
448.5
470
61' 10"
26
44
415
138
509
459.5
481
IMPORTANT:
Dimensions are
based on nominal
bin diameters
listed and provide
approximate
measurements
for planning and
layout purposes.
Table 6 – Unload
system dimensions
for 10” Sweepway
Table 5 – Unload
system dimensions
for 8” Sweepway

Preparation / Installation
12
PREPARATION / UNLOAD INSTALLATION
Unload tube can either be placed in a bin with a steel aeration floor as shown in Fig. 3 or a concrete
trench as shown in Fig. 7. Instructions are provided for both types of floor. In either case, the first step is
to determine from which side of bin grain will be unloaded.
Unloading tube must have unobstructed path to center sump, and center of top gearbox must be in exact
center of bin as shown in Figs. 3 and 7. Locate center of bin by taking several measurements.
For installation in full aeration floor:
NOTE: If installing in existing bin with a full aeration floor, it may be necessary to remove about half of
floor.
Before installation, check floor height.
Minimum plenum height required for installation of sweep is:
6" sweep -------- 12"
8" and 10" - 13-1/4"
Maximum floor thickness is:
6" and 8" ----- 2-3/4"
10" ------------- 1-3/4"
NOTE: Instructions
are written for
installation prior to
floor installation, and
for when floor is
arranged as shown in
Fig. 3. Ensure there
are adequate floor
supports used
around unload tube.
Fig. 3 & Table 7

Preparation / Installation
13
Cut hole in bin wall at desired unloading location, with center of hole located as shown in Fig. 4,
depending on size of unload tube.
6” Sweep, cut 6-1/4” U-shaped opening
8” Sweep, cut 8-1/4” U-shaped opening
10” Sweep, cut 10-1/4” U-shaped opening
If floor has not previously been installed, install half of bin floor on side opposite of unload, plus two
planks past center of bin. NOTE: Floor planks must run perpendicular to unload tube.
Position center sump so that center of top gearbox is at exact center of bin. Align center sump with bin
wall opening. With spray paint, mark pattern around sump on floor planks. Cut appropriate size hole for
sump. See Fig. 3.
Position center sump so unloading tube attachment points toward bin wall opening. Support center sump
at bottom, if necessary, using non-flammable material. Place extra floor supports around sump for
additional support.
Fig. 5 – Sump installation
Fig. 4 – Bin wall cutout

Installation
14
SUPPORTING FLOOR OVER UNLOAD SYSTEM
DISCLAIMER: It shall not be the responsibility of Sukup Manufacturing Co. to determine suitable support
system for flooring over unload system. Customer (or customer’s retained engineer or construction
supervisor) is responsible. Consideration should include, but not be limited to, live loads, dead loads and
seismic zone. Sukup Manufacturing Co. will not be responsible for any damage to a product, including,
but not limited to, any damage that results from inadequate or improper support methods and materials.
Bridging kits are available from Sukup Manufacturing Co. to simplify installation of flooring over unload
auger and to improve strength and stability of flooring over it. Bridging can be used with Standard or
Heavy Duty Double Super Supports.
Table 8 shows locations where bridging is needed and shows bridging kits available (P5110 or P5111).
If applicable table in flooring manual (for type of supports used under floor) says supports should be
placed closer than allowed by width of center sump gate and/or unload system, then bridging is needed
to support floor planks at sump and/or along unload auger. It is OK to use a Double Super Support in
place of a SuperWave or Z-Post support to get closer to unload system without interference.
See applicable Channel-Lok flooring installation manual for bridging instructions. Fig. 6 shows typical
placement of Double Super Supports and bridging for Sweepway.
Table 8 –Bridging
locations & kits
Fig. 6 – Typical placement of Double
Super Supports & bridging

Installation
15
For installation in concrete trench:
Ensure trench meets dimensions shown in Fig. 7 and Table 9. Trench will need to be formed when
foundation is poured. Because of moving slide gates and pull rods, concrete CANNOT be poured over
sweep tube. After tube installation, cover trench with Channel-Lok flooring or other suitable material.
Position center sump as shown in Fig. 7 so top of gearbox is at exact center.
For installation in either application:
A concrete pad, 4’ 6” x 4’ measured from bin foundation, is required for unload systems using vertical
boot drive. Pad should be poured below level of concrete floor of bin, as shown in Fig. 8. Use Plenum
Height table to determine pad offset (B) from bin floor. NOTICE: In northern locations, frost can lift pad,
causing damage to unload system. Loosen threaded support legs in winter and re-tighten in spring.
Fig. 7
Table 9
DEPTH MAY VARY
DEPENDING ON MATERIAL
USED TO COVER TRENCH.
AFTER UNLOADING TUBE IS PLACED
IN TRENCH, COVER TRENCH WITH
BOARDS OR CHANNEL-LOK
FLOORING.
EXACT CENTER
OF BIN
Fig. 8 & Table 10
BIN SIDEWALL
BIN FLOOR
BIN FOUNDATION
4’ 6” X 4’
CONCRETE
PAD
*B VALUES SHOWN ARE MINIMUMS, BUT PAD
OFFSET CAN BE UP TO 1” GREATER.

Installation
16
For installation in both floor types:

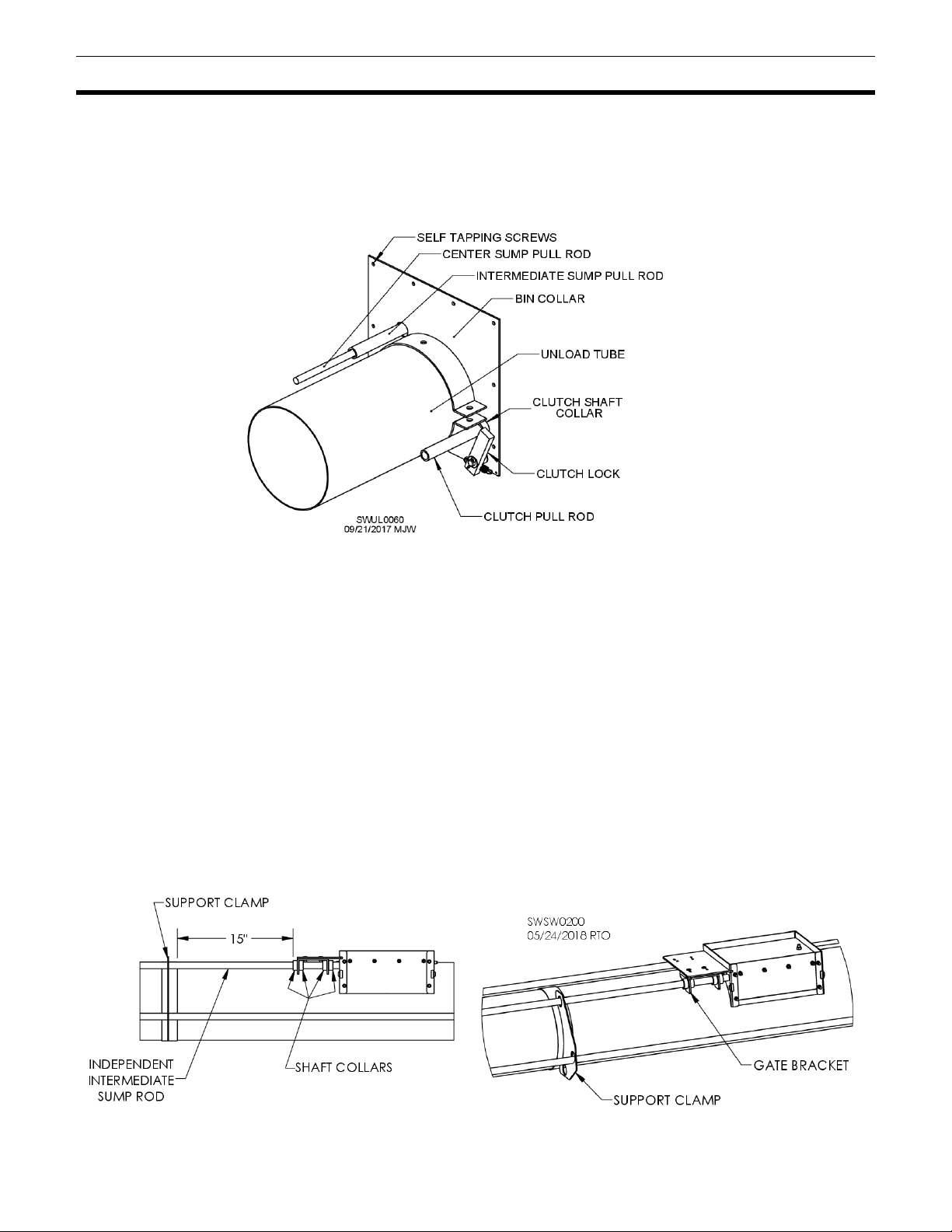

With tabs on unloading tube closest to center sump, slide unloading tube out slightly through bin wall and
then back into sump. Position tube so intermediate sumps are straight up. Bolt tube to sump using
attachment tabs welded onto tube, and holes provided in sump.
Connect extension sections of auger, if applicable, as shown in Fig. 9.
Slide unloading auger, square end first, through unloading tube and over stub shaft in sump. See Fig. 10.
CLUTCH SHOWN IN DISENGAGED POSITION
Fig. 10
STUB SHAFT
1/2 x 1-1/4"
SETSCREW
Using bolts and turning flighting 180°, extension should be lagging, not leading inside section of flighting.
If working in rice or other small grains, bolts may be omitted and shaft can be welded into place to match
flights. Leave a slight gap between tubes to get a good weld on connecting shaft and tube.
Fig. 9
When adding an extension, flighting overlap
needs to be on backside of grain flow. This
will limit wear problems and put least
amount of stress on flighting.
To avoid separating and capacity problems, flighting
should be welded on both overlapping ends.

Installation
17
Fig. 11
Slide bin collar over tube protruding from bin. Position bin collar so clutch pull rod hole and lock assembly
are on lower right side as shown in Fig. 11. Collar clamp tabs will be horizontal as shown. Mark clutch
rod hole and drill through bin wall. Using metal screws, fasten bin collar to bin wall. Caulk around collar.
Do not tighten bin collar clamps at this time. If unload system has an independent intermediate sump,
remove knockout for pull rod.
INDEPENDENT INTERMEDIATE SUMP PULL ROD INSTALLATION
Sweepways with 8” or 10” diameter unload tubes manufactured on or after June 1, 2018, are equipped
with an independent intermediate sump. Follow these steps to attach pull rod:
1. Remove four (4) shaft collars from pull rod.
2. Attach a pull rod support clamp about 15” from independent intermediate sump. Be sure to leave
at least 11” clearance for sump gate opening.
3. In bins more than 31’ diameter, attach a second pull rod support clamp about halfway between
first clamp and bin wall.
4. Slide pull rod through support clamps and into gate bracket as shown in Fig. 12, simultaneously
attaching shaft collars to rod as shown.
5. With gate fully closed, push sump rod against sump.
6. Adjust shaft collars so they are tight against gate bracket. Tighten shaft collars.
7. On outside of bin, attach E5404 handle to pull rod using setscrew.
8. Ensure sump gate opens and closes completely.
Fig. 12

Installation
18
Slide clutch pull rod through bin collar and into rear compartment of center sump. If not already installed
on unload tube in bin 31' dia. or larger, bolt clutch rod support clamp midway on unload tube and slide
clutch pull rod through support (support not needed in smaller bins).
Attach clutch pull rod to clutch shifter arm with 3/8 x 1-1/2” picker pin and hairpin clip. Use hole closest to
end of shifter arm for 10” unit. Use other hole for 6” or 8” unit. See Fig. 13. See Fig. 14 for overview of
center sump and clutch assembly.
Fig. 14 – Overview of sump w/ pull rod connected
Guide center sump gate pull rod up to 1/2" nut rivet on center sump slide gate. See Fig. 5. Thread pull rod
into nut rivet until tight. Turn nut on pull rod until it is tight against slide gate.
As floor installation or re-installation continues, cut floor planks where intermediate sumps will be located.
Number of sumps varies with diameter of bin.
Put top half of each intermediate sump into hole cut into bin flooring. Secure flanges to flooring with self-
drilling screws. See Fig. 5. Also, ensure bottoms of sump covers extend into intermediate sumps. Sump
covers may have to be trimmed so they do not interfere with sump gate operation.
With all intermediate sumps in position and all sump slide gates operating freely, tighten clamps on bin
collar. See Fig. 11.
Fig. 13 – Connecting clutch
pull rod to shifter arm
ATTACH ROD TO
INSIDE HOLE OF ARM
FOR 6” OR 8” UNIT;
OUTSIDE FOR 10”.
HAIRPIN CLIP

Installation
19
Slide 1" lock collar onto clutch pull rod with clutch disengaged (rod pushed in). Push latch down and slide
1” lock collar against bin collar so that when latch is released, lock collar is sandwiched between latch and
bin collar. See Fig. 15. Tighten 1” lock collar setscrew. Latch will keep clutch disengaged. When latch is
pushed down, rod can be pulled for engagement of clutch.
Fig. 15 – Front and side views of clutch lock assembly
NOTE: Clutch is factory-set. However, make sure teeth engage and disengage properly. There should
be about 1/4" clearance when clutch is disengaged. See Fig. 10. Clutch disc may be adjusted by
loosening bolts.
COMPLETING FLOOR INSTALLATION
Complete installation of bin floor, making sure to provide adequate support along unload tube and near
sump. This applies to full-aeration steel floors and flooring over concrete trench.
NOTE: If small, easy-flowing grain will be stored in bin, it is best to seal sumps with silicone or a rubber
membrane (not provided) to avoid leaking.
IMPORTANT: Ensure supports do not interfere with sump gate operation.

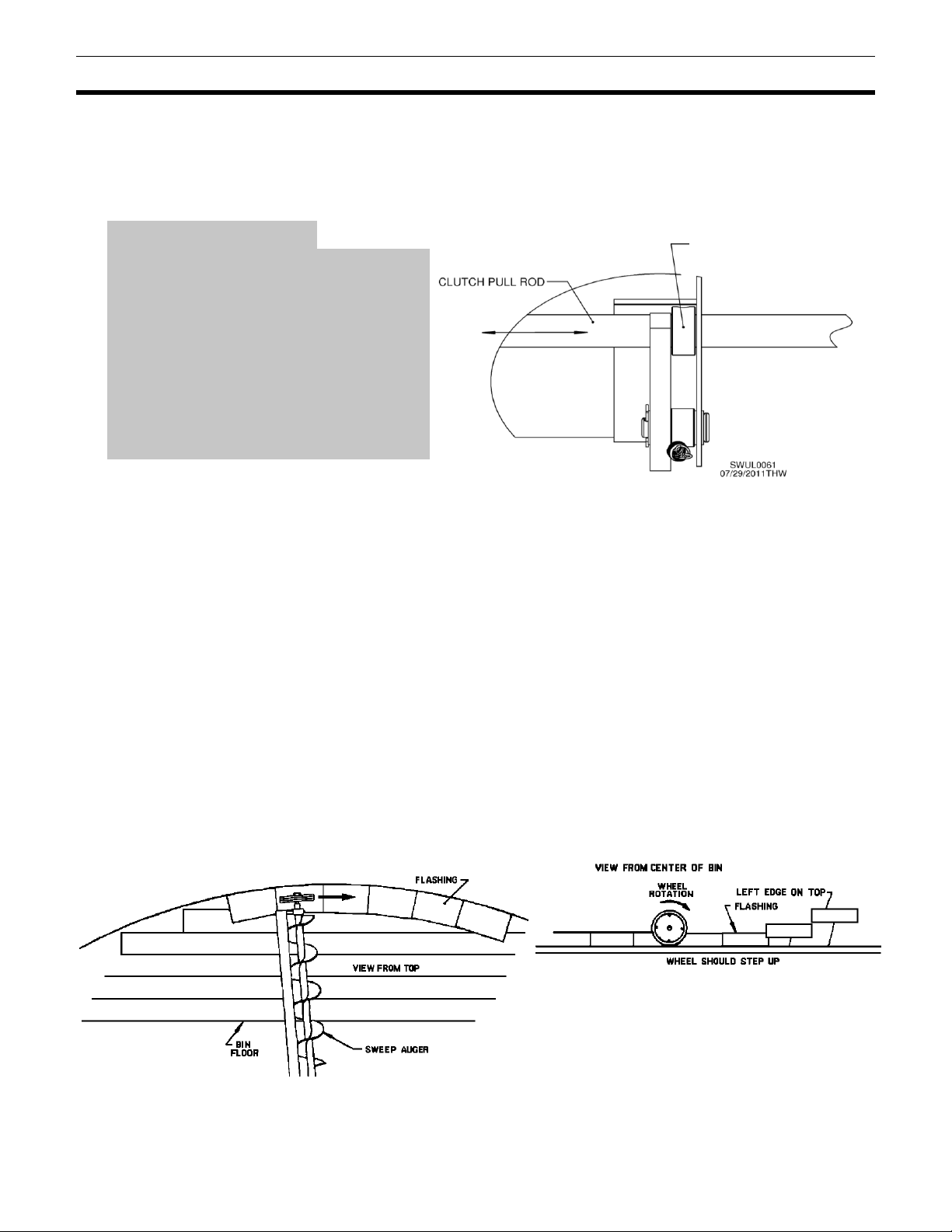

NOTICE: Floor flashing must be installed over steel aeration floor as shown in Fig. 16 to prevent
excessive wear on drive wheel. Sweep moves clockwise. Ensure that flashing is overlaid so sweep
wheel “steps up.”
1” LOCK COLLAR
SETSCREW
PUSH LATCH DOWN TO
MOVE PULL ROD
Fig. 16

Installation
20
ASSEMBLING BIN SWEEP
For 8” and 10” systems, start by attaching sweep input shaft to top gearbox. Insert 1/4" key into shaft and
insert shaft 1” into sprocket. See Fig. 17. Tighten two (2) setscrews.
Preparation of backboard depends on size of system. For 6”, attach extension bracket to backboard
using four (4) 3/8” bolts. See Fig. 18.
For 8” or 10” Sweepway, line up 1” diameter holes in backboard with holes in backboard mount. See Fig.
19. Insert pin and secure it with two (2) 5/16” bolts, one on each end.
Fig. 18
Fig. 19
Fig. 17
