1 MOUNTING

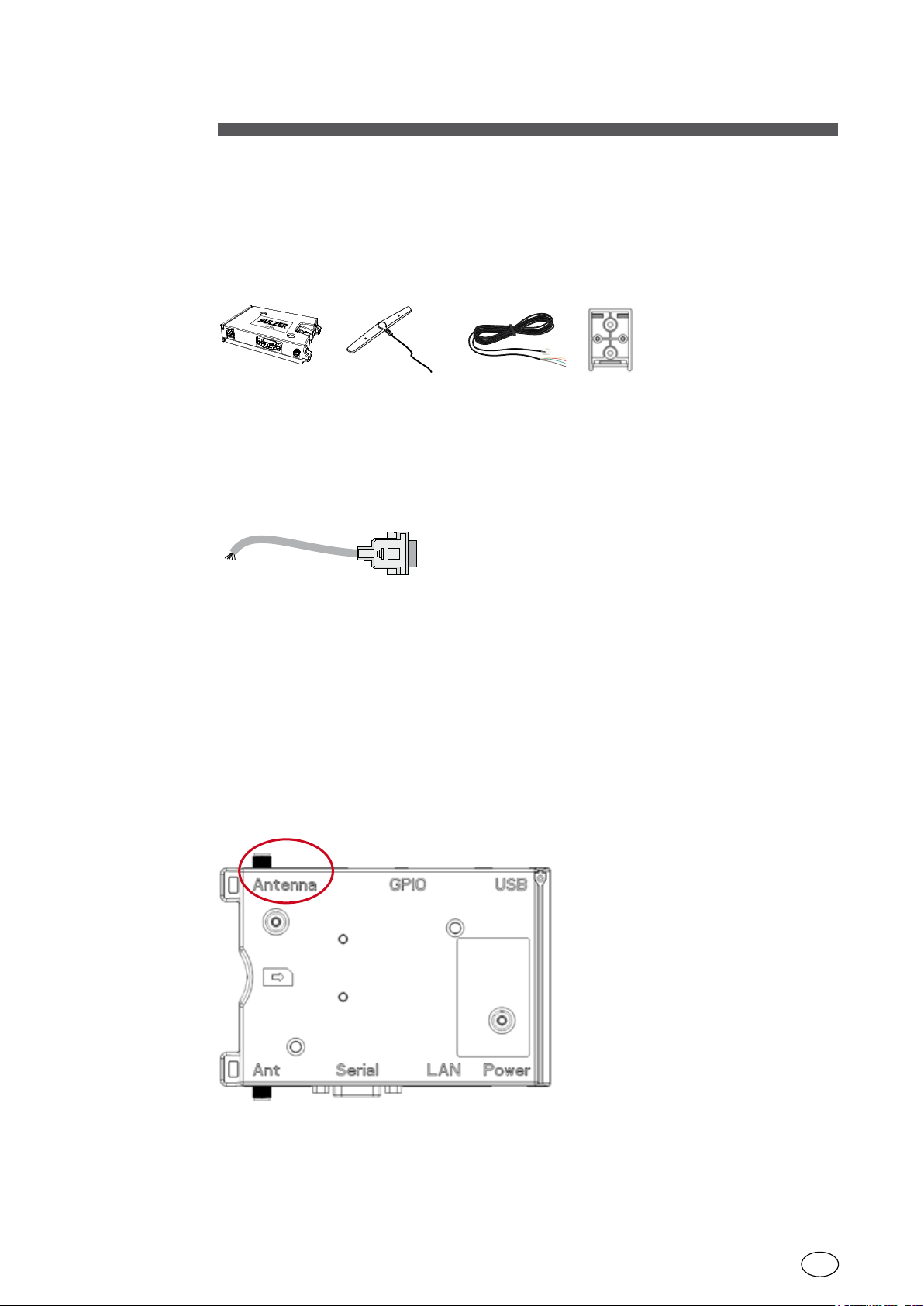

1.1 Part number 28007012 contains:
1. Modem
2. Antenna
3. Power cable
4. DIN rail socket with 2 screws
1. The Modem 2. Antenna 3. Power cable 4. DIN rail socket with
2 screws
1.2 Part number 28007013 contains:
Same items as part number 28007012 above with additional RS-232 cable which also can be or-
dered separately (p/n: 43320588). See accessory list on page 7 below.
5. RS-232 cable
1.3 DIN-rail socket (no. 4)
If the modem is to be mounted on a DIN-rail; attach the DIN rail socket on the rear side of the mo-
dem. Use the two screws included to fasten the socket.
1.4 Antenna (no. 2)
Mount the antenna into the connector at the modem. Place the antenna in open environment and
shielded from precipitation. The backside of the antenna has adhesive Sellotape or Scotch tape for
mounting on a clean surface. Avoid mounting the antenna on a grounded metal plate; it short circuits
the signal.

81907021B
4
en
1.5 Power connection
Use the enclosed power cable (no. 3). Plug in the RJ6/8 connector to the power jack in the modem.
Connect the open ends to your power supply according to description below. The modem is supplied
with recommended +10 - 30 VDC (Maximum Rating +8 - 57 VDC).
Pin assignment and typical connection:
1 Blue
2 Black
3 Red
4 Green
5 Yellow
6 Brown 0 V
+10 ─ +30 V
6 5 4 3 2 1
1.6 Power Supply
NOTE: Normally the modem is supplied from same source as the control unit.
1.7 Mounting of DIN-rail holder
The DIN-rail holder is fastened with two screws enclosed in the kit to t an universal 35 mm DIN-rail
according to DIN EN 60715.
Figure 1-1 Mounting the holder for DIN-rail
1.8 Antenna
The enclosed antenna is a Dipole type T and is to be mounted on a nonmetallic surface. For metal
cabinet; use the “Smartdisc”-antenna. The Dipole-T and the Smartdisc antenna cable must not be
extended.
In the section of 4.1 Accessory List are additional antennas which can be ordered from Sulzer if the
receiving signal is not sufcient.

81907021B
5en
CA 524
2 RS-232 communication and cable congurations
Use the communication cable (section 1.2 on page 3) to connect the substation. Follow the table
below to ensure communication. The default parameters for the modem are; 115 2 0 0 baud, No parity,
8data bits, 1stop bit.
CA 524
D-Sub 9 (F)
D-Sub 9 (M)
Cable color
Connections in controllers
Signal EC 531 PC 441 PC 242 PCx
1Pink
2Brown RXD 23 51 23 47
3White TXD 24 50 24 48
4Blue RTS 25 49 25 49
5Gray GND 22 52 22 46
6 -
7Green RTS 25 49 25 49
8Yellow CTS 26 48 26 50
9 -
Antenna
CA 524
CA 524
CA 524
EC 531
EC 531

81907021B
6
en
3 Installing the SIM card
Yellow LED
(Network status)
Green LED
(Power on/off)
SIM inserted

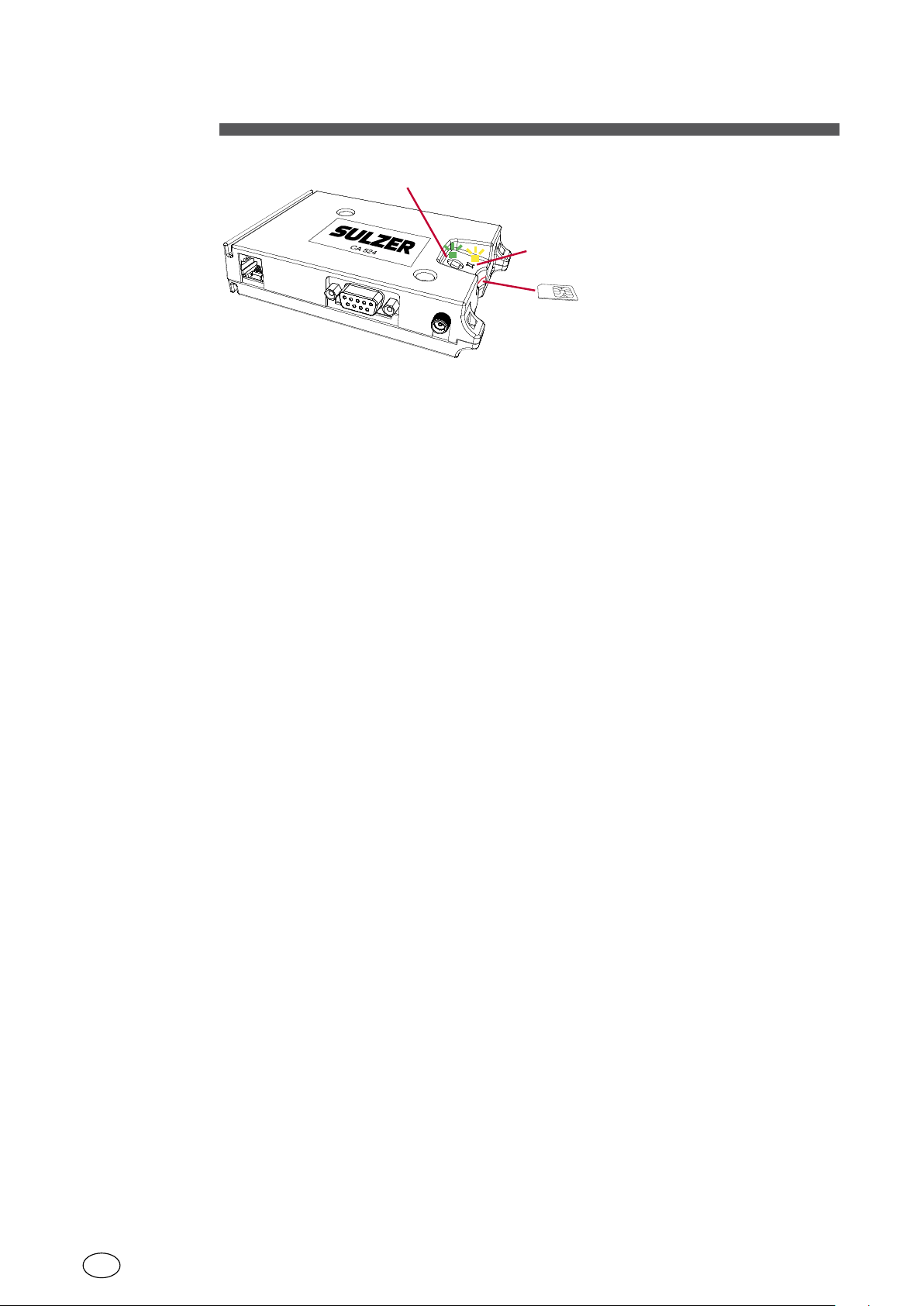

The SIM - with the circuit side facing towards the Sulzer logo - is inserted by gently pushing it into the
SIM card holder until it snaps hold. It is now protected from accidental removal. The SIM can be re-
moved from the card holder by using a at object such as a screwdriver to carefully press the inserted
SIM until it snaps out again.
3.1 Status LEDs
• A green LED; Power ON
• A yellow LED blinking every 2nd second; Network search
• A yellow LED ashes every 4th second; Connected to 2G/3G/4G network
3.2 About SIM cards
AquaWeb
Sulzer provides the AquaWeb SIM-cards. To connect your station to Aquaweb, follow the instructions
enclosed with the SIM.
SIM card from other providers
Only telematics enabled SIM card is working. Consult with the SIM provider which functions need to
be enabled on the SIM card subscription.

81907021B
7en
4 Technical data
GSM/GPRS/EDGE Quad band GSM: 850/900/1800/1900MHz
UMTS/HSPA+ (I, II, IV, V, VIII, IX, XIX) Seven band:
UMTS 800/850/900/(1700/2100)/1800/1900/2100MHz
LTE: (1, 2, 3, 4, 5, 7, 8, 12, 18, 19, 20, 28) Twelve band LTE:
700/800/850/900/1700/2100/1800/1900/2100/2600MHz
Ambient operating temperature –30 to +65 °C (–22 to +149 °F)
Automatic thermal shutdown Min: <-40 °C, Max: >+90°C (± 3°C)
(Min. <-40 °F, Max: >194 °F)
Degree of protection IP 20, NEMA: Type 1
Housing material PPO and PC
Mounting With socket; DIN Rail 35 mm
Humidity 0–90% RH non-condensing
Dimensions H x W x D: 26 x 115 x 86 mm
(1.0 x 4.5 x 3.5 inch)
Power supply Recommended +10 - 30 VDC (Maximum Rating +8 - 57 VDC)
Power consumption < 5 W
Altitude Max 2000 MASL or 6562 ft. AMSL
Compliance R&TTE, GCF, FCC, PTCRB, IC, UL
Attention If the unit is used in a manner not described in this document the protection provided by
the equipment may be impaired.
4.1 Accessory list
Part number Description Note
43320588 Modem cable with DB9M + open end This part is included in
28007013
Antenna Accessories
Part number Description Note
28007007 Low prole Smartdisc
(SMA-M) +1 dB, 2.5 m
Extension of the cable is not
recommended
28007008 Align antenna kit +6.0 ─+9.0 dBi Included in kit:
Antenna
10 m cable
2 m cable
Wall and mast mounting
equipment
4.2 Cleaning
How to clean the unit
Power off the unit and only outside/front shall be cleaned by using a dry, soft cloth. A good choice
would be the microber type of cloth and gently wipe the CA 524 unit on front in order not to scratch
the overlay. If the dry cloth did not completely remove the dirt, do not press harder in an attempt to
scrub it off. If necessary, moisten the cloth by adding a small amount of water with thin solution of
mild detergent and try again. Never use detergent with polish or solvent which can have an impact of
the plastic surface.
