Sulzer ABS Sanimax User manual

www.sulzer.com
Lifting Station Type ABS Sanimax
1051-00
15970278EN (08/2019)
en
Installation and Operating Instructions

Sulzer reserves the right to alter specications due to technical developments
2
Contents
1 General................................................................................................................................................... 5
1.1 Application areas..................................................................................................................................... 5
1.2 Nameplate............................................................................................................................................... 6
1.3 Summary of the legal regulations covering the use of lifting stations for the pumping of faecal-free
e󰀪uent..................................................................................................................................................... 6
2 Safety ..................................................................................................................................................... 6
3 Transport................................................................................................................................................ 7
4 Description ............................................................................................................................................ 7
4.1 Design of the lifting unit........................................................................................................................... 7
5 Installation ............................................................................................................................................. 8
5.1 Cable inlet ............................................................................................................................................... 8
5.2 Discharge Line ........................................................................................................................................ 8
5.2.1 Installation example Sanimax R202 and R202/C.................................................................................... 9
5.3 Electrical connection ............................................................................................................................... 9
5.4 Washing machine connection ............................................................................................................... 10
5.5 Hand wash basin connection ................................................................................................................ 10
5.6 Shower connection (only used with Sanimax R202 & R202/C)............................................................ 10
6 Maintenance ........................................................................................................................................ 11
6.1 General maintenance hints ................................................................................................................... 11
6.2 Cleaning the lifting unit.......................................................................................................................... 11
Lifting Station Type ABS Sanimax
R 202 MF 154
R 202/C MF 154HW
MF 324
This manual is available to download from www.sulzer.com > Products & Services >
Pumps and Systems.

3
1 General
1.1 Application areas
ATTENTION The maximum allowable temperature of the medium pumped:
Sanimax R 202 & R 202C, Sanimax MF 154 & 324 = 40 °C
Sanimax MF 154HW = 80 °C
The Sanimax with Sulzer submersible pump has been designed for the dewatering of buildings below the sewer
level. It is suitable for faecal-free e󰀪uent in accordance with EN 12056/DIN 1986-100.
The Sanimax is a compact wastewater lifting unit which can be installed under or beside the wastewater source
at oor level.
In accordance with the regulations for e󰀪uent lifting stations, pumping of e󰀪uent containing faecal
matter, or the pumping of ammable or explosive uids, is not allowed with these lifting stations.
Examples of substances that should not be allowed into the tank:
• Aggressive uids such as acids, lyes (caustic soda) or salts.
• Flammable liquids such as petrol, oil or phenols.
• Commercial and agricultural waste.
• Solid substances such as ash, rubbish, glass, sand, brous material, cardboard, paper towels, textiles,
diapers, kitchen waste, co󰀨ee grounds, shredder waste.
• Liquid substances that can harden, such as bitumen, cement, lime, lime milk (whitewash), mortar, potato
starch, grease (edible oils and fats), synthetic resin, synthetic resin emulsion, tar, paint residues.
• Cleaning agents, disinfectants.
• Abrasive material.
ATTENTION As with all electrical devices, this product may fail due to operating errors, absence
of mains voltage, or even a technical defect. Such a failure may result in medium
or water escaping. If damage may occur due to the specic usage, measures
are required to avoid such damage arising. In this respect, taking account of the
conditions in question, particularly use of an o-grid alarm system, use of an
emergency generator, and provision of an additional and appropriately connected
second unit are to be considered.
Sanimax R 202 & R 202C, Sanimax MF 154 & 324
This product is only suitable for removing clear and dirty water up to a water temperature of 40 °C or
up to a maximum of 60 °C during short-term operation.
If the system is fed water from units such as washing machines, then the maximum water temperature
could be exceeded if the device is not equipped with discharge cooling or if this is not switched on,
e.g. in order to save energy.
This may cause damage to the pump or the pumping system. In such case Sulzer will not accept any
guarantee or warranty claim.
If necessary, contact the manufacturer of the device or devices provided for connection (e.g. washing
machines) to obtain information on how to switch on discharge cooling. If not possible then we
recommend installation of the Sanimax MF 154HW model (see below).
Our systems are checked in accordance with EN 12050 LGA and conform to the current standards.
Also note that the maximum inlet temperature to the public sewer system is 35 °C and that you must
ensure that the water is cooled accordingly.
Sanimax MF 154HW
Sanimax MF 154HW is designed for the pumping of high temperature liquids up to a maximum of 80 °C.
All inow and discharge pipework to the unit must be temperature resistant accordingly and is the
responsibility of the customer.

4

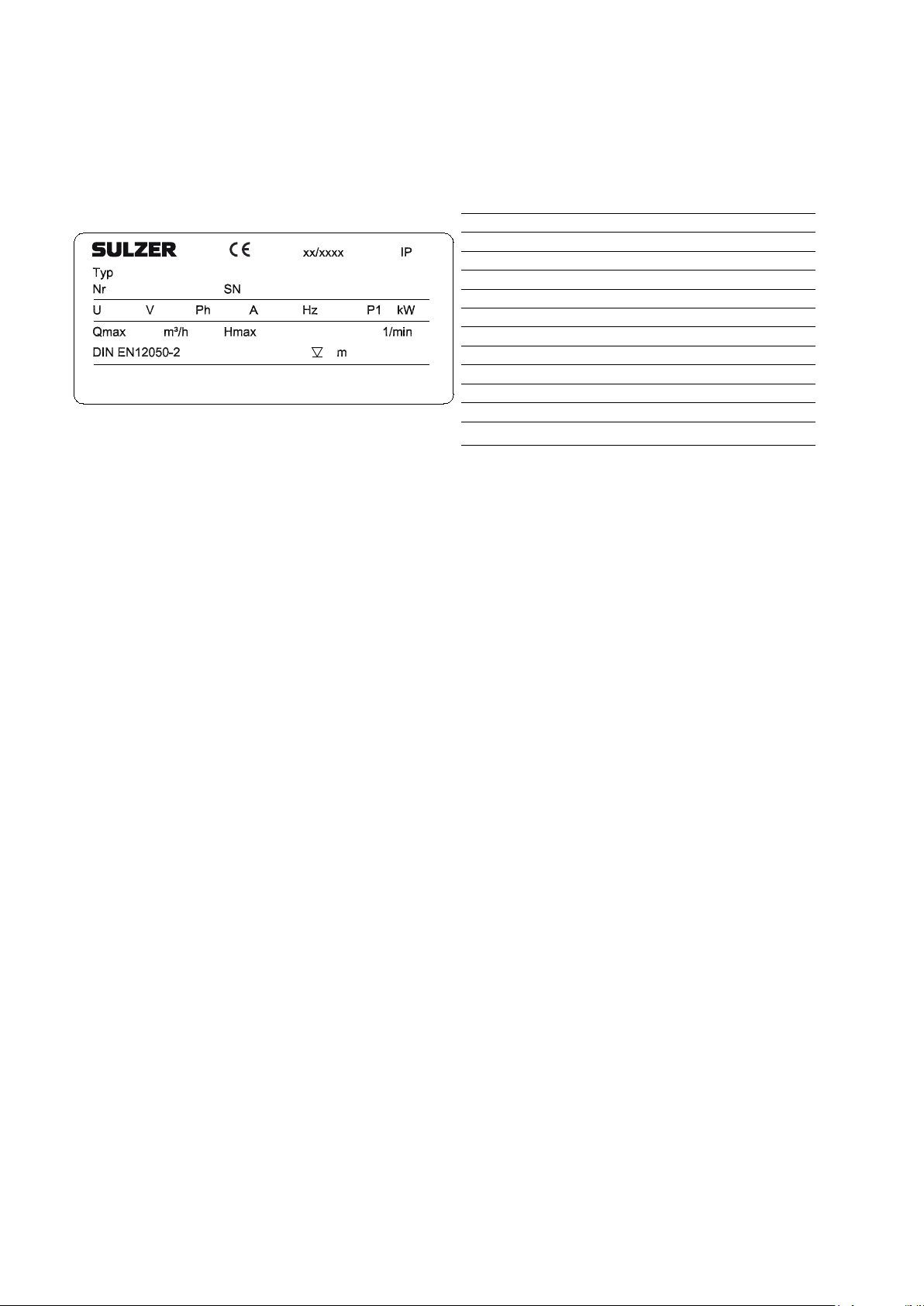

1.2 Nameplate
We recommend that you record the data from the nameplate on the pump in the form below, and maintain it as
a source of reference for the ordering of spare parts, repeat orders and general queries.
Always state the pump type, item number and serial number in the eld “Nr/SN” in all communications
Sulzer Pump Solutions Ireland Ltd.
Wexford, Ireland
www.sulzer.com
Made in Ireland
68
Legend
1052-02
Type Pump type
Nr Item number
SN Serial number
xx/xxxx Production date (Week/Year)
U Rated voltage V
Rated current A
Hz Frequency Hz
P1 Rated input power kW
1/min Speed r/min
Qmax Max. ow m3/h
Hmax Max. head m
▽Max. submersible depth m
Figure 1: Nameplate
1.3 Summary of the legal regulations covering the use of lifting stations for the pumping
of faecal-free e󰀪uent.
Automatically operated lifting units are prescribed if:
- the water level in the odour lock lies below the sewer backwash level.
- rainwater gullies from areas below the sewer backwash level are present.
The sewer backwash level is the maximum possible water level in the public sewer network. Information on this
can be obtained from your Local Authority. If the backwash level has not been xed by the Local Authority, then
the surface level of the roadway at the connection point is taken to be the level.
If the e󰀪uent does not give rise to foul odours, then a water-tight connection tank tted with a lid is acceptable.
ATTENTION! The Regulations of DIN 1986 as well as your own local by-laws should be observed.
2 Safety
The general and specic health and safety guidelines are described in detail in the “Safety Instructions for
Sulzer Products Type ABS” booklet. If anything is not clear or you have any questions as to safety make certain
to contact the manufacturer Sulzer.
This unit can be used by children aged 8 years and above, and
persons with reduced physical, sensory, or mental capabilities,
or lack of experience and knowledge, when they have been
given supervision or instruction concerning the safe use of the
device and understand the hazards involved. Children must
not play with the appliance. Cleaning and user maintenance
should not be performed by children without supervision.

5
3 Transport
ATTENTION! The lifting unit should not be thrown or dropped during transport.
The Sanimax unit should not be lifted by the cable!
All relevant safety regulations as well as good general technical practice must be complied with.
4 Description
• Five optional connections for inow line or cable already prepared for installation, as well as two discharge
connections for PVC pipe.
• Hose connection nozzle ¾”.
• Odour-tight cover containing vent with odour lter and overow protection.
• Non-return valve tted as standard.
A supplementary checkvalve is required above 5 m head (MF 154HW = 3 m).
4.1 Design of the lifting unit
1
2
3
4
5
6
7
1053-01
1
2
3
4
5
6
7
1054-01
Figure 2: Sanimax R202 & R202/C Figure 3: Sanimax MF
1Discharge line 5Vertical inow in tank cover
2Non-return valve 6Tank venting with integral odour lter and overow protection
3Synthetic tank (triangular shape) 7Sealed cable entry
4 Wastewater pump with level control
Supplied as standard:
Sanimax R202 & R202/C Sanimax MF
• Washing machine connection adapter • Washing machine connection adapter
• Hose clamps • Hose clamps
•
Discharge line connection adapter with non-return valve
tted
• Discharge line connection adapter with non-return valve
tted
• Rubber elbow • Flexible discharge pipe
• PVC discharge pipe • PVC discharge pipe with elbow
(stainless steel when tted with MF 154HW pump)

6
5 Installation
NOTE: EN, DIN, and VDE regulations should be observed

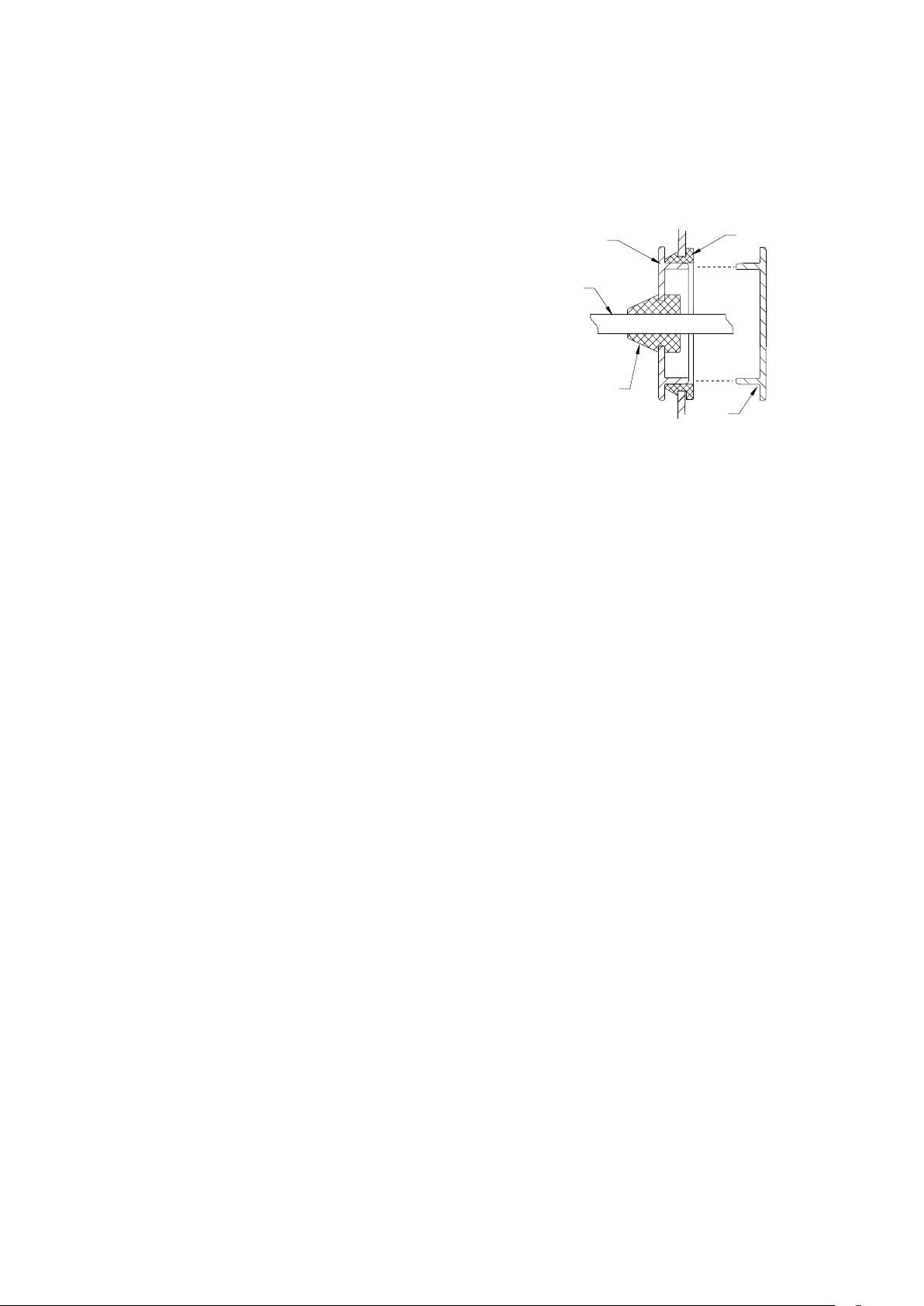

5.1 Cable inlet
- Remove cable ties and select tank opening.
- Remove external stopper (5) from the tank opening while
leaving the tank seal (2) in place.
- Feed cable (3), with cable stopper (1) and cable seal (4), to the
outside of the tank.
- Lubricate tank seal.
- Insert cable stopper fully into seal.
- Tie up the residual cable in the tank with the aid of a cable tie
and place securely between pump and tank wall at the opposite
side to the level control system. The cable should not hinder the
movement of the oat.
Internal External
1055-01
1
4
3
2
5
Figure 4: Cable inlet
(1) Cable stopper (2) Tank seal (3) Cable
(4) Cable seal (5) External stopper
5.2 Discharge Line
As shown in the installation example below, the discharge line outer diameter 40 mm should be brought
above the backwash loop (180° bend) and then allowed to ow by gravity into the collection sewer or channel
(regulations EN 12056 and DIN 1986/100).
The discharge line should be laid so that it is not a󰀨ected by frost.
The discharge line should not be connected to a downpipe. No other discharge lines or inows should be
connected to the discharge line.
Select a suitable tank port for the discharge line and remove the plug. If necessary, rotate the rubber bend to
suit. The discharge line inside the tank should be inserted (at least 30 mm) into the rubber bend. Tighten the
hose clamps thoroughly. For further details see pump installation sheet (MF 15975136 and Robusta 15975137)
supplied with the unit.
All other tank openings can be used in a similar manner.
The non-return valve tted into the rubber discharge line connection adapter, must be installed in such a
manner that the non-return valve opens in the ow direction. Ensure that the ap is orientated so that the hinge
is at the highest point.

7

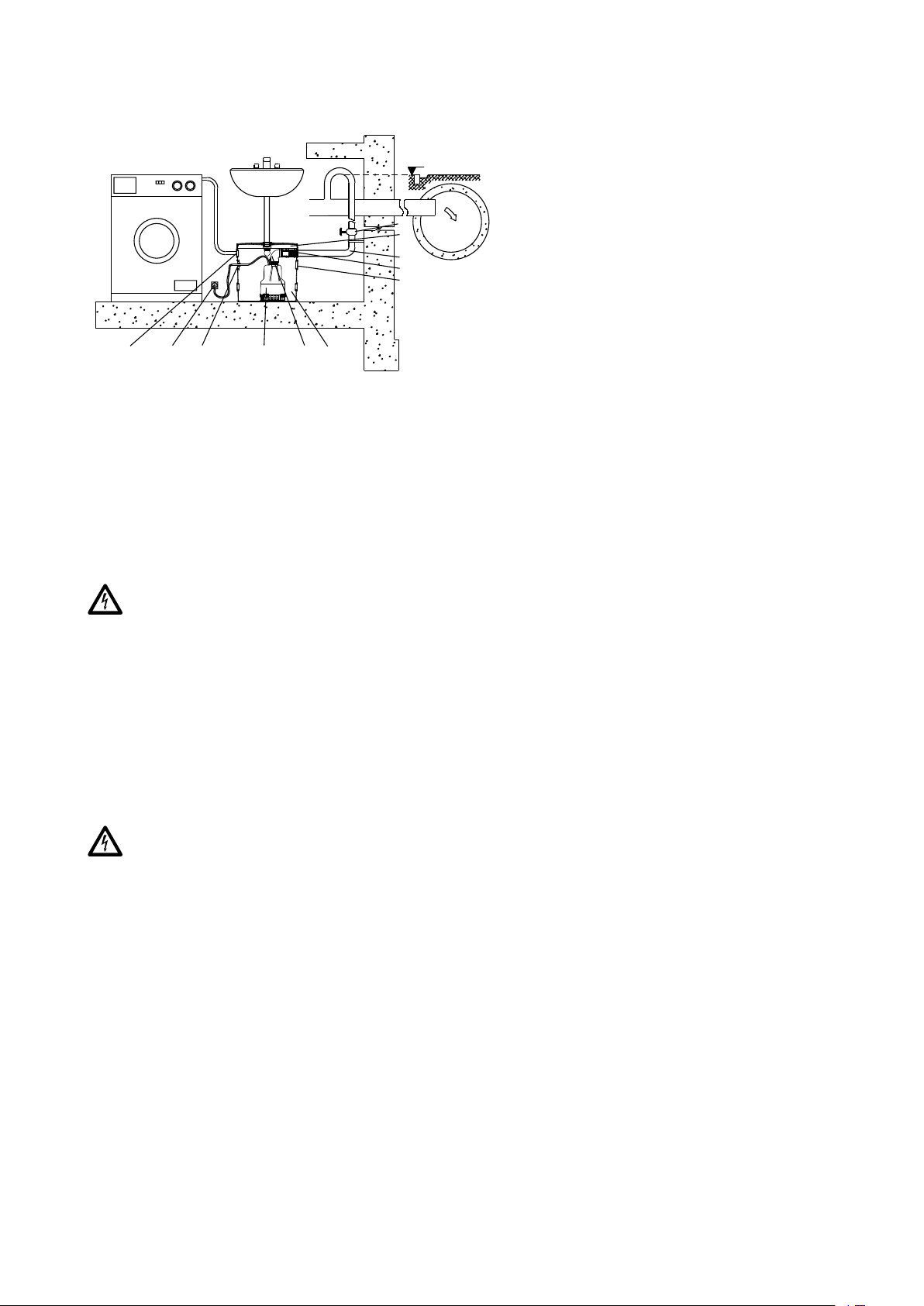

5.2.1 Installation example Sanimax R202 and R202/C
10
12
11
7 9 2 3 1
1)
5
6
8
4
1Synthetic tank
1056-01
2 Wastewater pump Robusta 202 with TS level
control system
3Bend
4 Cover with integral odour lock
5 Variable inlet possibiIities. Pipes Ø 40/50 mm
6 Discharge line connection with seal and
non-return valve
7Earthed socket
8Discharge line 40 mm
9Sealed cable entry
10 Hose connection for washing machine
11 Shut-o󰀨 valve (accessory)
12 Backwash loop
1) Install backwash loop so that the lower edge
is above the backwash level.
Figure 5: Installation example
5.3 Electrical connection
Before operating, have a qualied person check that all required electrical protective measures are
present. Earthing, neutral line, earth leakage circuit breakers, etc. must correspond to the regulations
of your local Electricity Supply Provider and must function perfectly.
ATTENTION! Cross-section and voltage drop of the power line must correspond with the local
Electricity Supply Board regulations.
ATTENTION! Check that the voltage on the nameplate of the pump is the same as the mains
voltage.
The unit is tted with a oat switch, which automatically switches on and o󰀨 the pump at the pre-set switching
heights.
The earthed socket should, depending on type tted, be installed at the prescribed distance from the
lifting station and water source.

8

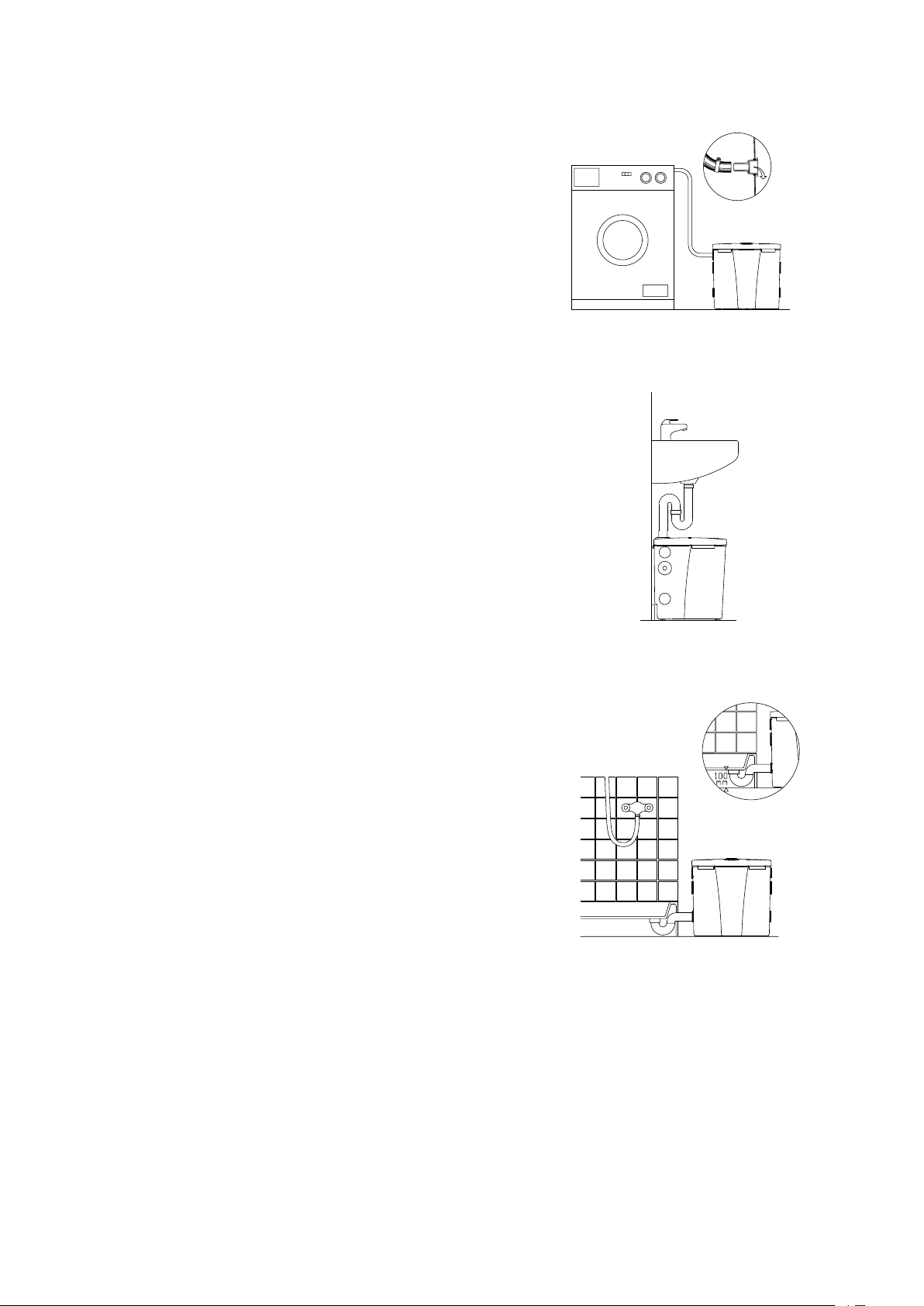

5.4 Washing machine connection
The washing machine nozzle should be installed together with seal from the
inside and pushed into the washing machine hose.
ATTENTION! Clamp the washing machine hose with a hose
clamp.
1057-00
Figure 6: Washing machine connection
5.5 Hand wash basin connection
For hand wash basin connection, remove the plug in the cover and push the
S-bend tube downward into the unit. Connect the S-bend to the hand wash
basin. Do not fully tighten the plastic nuts. Determine the tube length (allow
approximately 20 mm of the tube to enter the unit), cut to size and carry out
nal assembly.
1058-00
Figure 7: Hand wash basin connection
5.6 Shower connection (only used with Sanimax R202 & R202/C)
When connecting a shower, one of the lower tank ports should be used.
The height di󰀨erence between the oor of the shower and the oor of the
tank of the lifting unit should be to EN/DIN in accordance with the illustration.
In the case of a greater distance between the Sanimax R202 & R202/C
and the shower basin, it is necessary to make an addition to allow for the
recommended fall for gravity ow. The shower basin must then be located at a
higher level.
1059-00
Figure 8: Shower connection
Before closing the tank lid, carry out a test run. This is done by allowing water to ow into the tank and
observing the functioning of the pump switching heights.
Sanimax R202 & R202/C: ON = 85 mm; OFF = 55 mm approx.
Sanimax MF: ON = 225 mm; OFF = 50 mm approx.
In order to ensure that it is correctly sealed, the tank cover, with the pipe inlet to the back, is placed in position
and pressed until all four moulded securing clips are fully engaged.

9
6 Maintenance
Before carrying out any maintenance work on the unit, all power lines should be disconnected from
the mains, and care should be taken that the unit cannot be inadvertently switched back on.
To avoid danger if the power cable is damaged, it must be replaced by the manufacturer or its service
agent or a similarly qualifed person.
Servicing must only be carried out by qualied personnel.
ATTENTION! The maintenance hints given here have not been provided for DIY repair work as
special technical knowledge is required.
The Sulzer warranty is only valid if original Sulzer spare parts have been used for all repair work.
6.1 General maintenance hints
Sulzer lifting units are reliable products of proven quality and are subject to careful testing before leaving the
factory. Lubricated-for-life ball bearings together with monitoring devices ensure optimum reliability of the pump,
provided that installation and usage is in accordance with our operating instructions.
Should a problem arise, do not improvise but ask your Sulzer Service Centre for assistance.
In order to ensure a long running life, regular checks and care are recommended.
The Sulzer Service Organisation will be glad to advise you on any special applications you have, and is always
ready to assist you with your pumping problems.
6.2 Cleaning the lifting unit
The lifting unit should be cleaned at least once a year.
If the unit is lightly soiled, it should be rinsed out a number of times with clean water.
If the unit is heavily soiled, then it is necessary to remove the submersible pump for cleaning.
ATTENTION! This work should only be carried out by a Sulzer Service Centre or Contract
Workshop.
A maintenance contract with one of our factory authorised Service Centres will ensure the best possible
professional maintenance for all events.

10

11

Sulzer Pump Solutions Ireland Ltd. Clonard Road, Wexford, Ireland
Tel. [phone] Fax [phone]. www.sulzer.com
