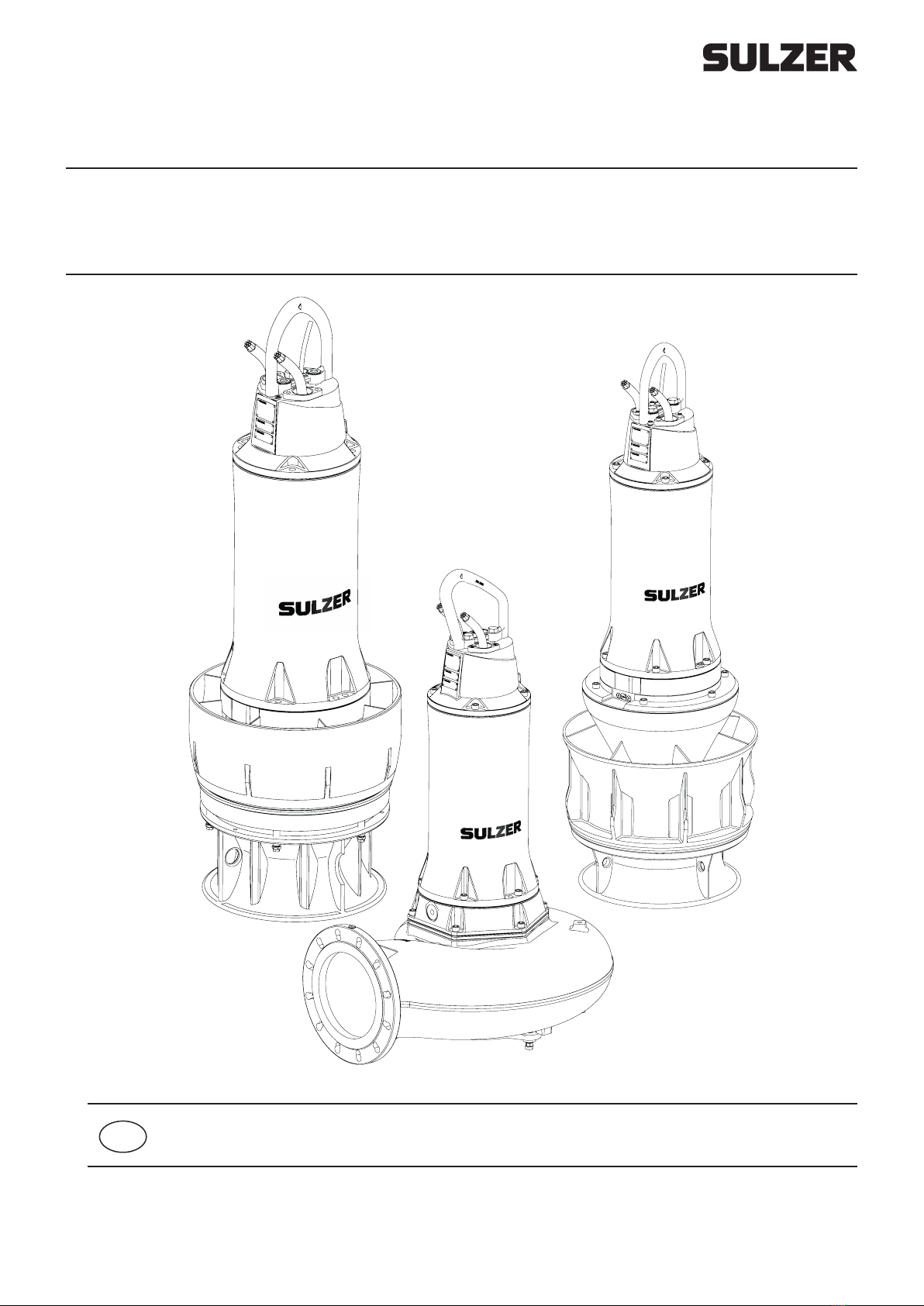

Sulzer ABS XFP-PE4 User manual

www.sulzer.com
EN 6556-H
Submersible Sewage Pump Type ABS XFP-PE4 to PE6
Submersible Mixed Flow Column Pump Type ABS AFLX-PE3 to PE6
Submersible Propeller Pump Type ABS VUPX-PE3 to PE6
6006556 (02.12.2021)
Installation and Operating Instructions
en

2
Sulzer reserves the right to alter specications due to technical developments !
EN 6556-H
Installation and Operating Instructions (translation of original instruction)
For submersible sewage pumps
XFP CB - Hydraulics
XFP 105J XFP 150M XFP 205J XFP 250J XFP 305J XFP 356M XFP 405M
XFP 106J XFP 151M XFP 206J XFP 255J XFP 305M
XFP 155J XFP 306M
XFP CH; SK - Hydraulics
XFP 100J XFP 150J XFP 200J XFP 250M XFP 300J XFP 351M XFP 400M XFP 500U XFP 600V
XFP 200M XFP 300M XFP 400R XFP 501U XFP 600X
XFP 301M
AFLX-Hydraulics
AFLX 0601 AFLX 0701 AFLX 0801 AFLX 1202
AFLX 0803 AFLX 1203
AFLX 1207
VUPX-Hydraulics
VUPX 0402 VUPX 0501 VUPX 0601 VUPX 0801 VUPX 1001 VUPX 1201
VUPX 0403 VUPX 0502 VUPX 0602 VUPX 0802 VUPX 1002 VUPX 1202
VUPX 0503

3
EN 6556-H
Table of contents
1 General................................................................................................................................................... 5
1.1 Correct usage of the products ................................................................................................................ 5
1.2 Application areas for the series XFP....................................................................................................... 6
1.3 Application areas for the series AFLX ..................................................................................................... 6
1.4 Application areas for the series VUPX .................................................................................................... 7
1.5 Technical data ......................................................................................................................................... 7
1.6 Nameplate............................................................................................................................................... 8
2 Safety ..................................................................................................................................................... 8
3 Lifting, transport and storage .............................................................................................................. 9
3.1 Lifting ...................................................................................................................................................... 9
3.2 Transport securing devices ................................................................................................................... 10
3.3 Storage of the units ............................................................................................................................... 10
4 Monitoring system .............................................................................................................................. 10
4.1 Monitoring options................................................................................................................................. 10
4.2 Leakage sensor (DI).............................................................................................................................. 11
4.3 Temperature monitoring of the stator .................................................................................................... 11
4.4 Temperature monitoring of the bearings (Option) ................................................................................. 11
4.5 Temperature sensor indication .............................................................................................................. 11
4.5.1 Temperature sensor bimetall................................................................................................................. 11
4.5.2 Temperature sensor PTC ...................................................................................................................... 12
4.5.3 Temperature sensor PT 100.................................................................................................................. 12
4.6 Operation with frequency inverters ....................................................................................................... 12
5 Installation ........................................................................................................................................... 13
5.1 Installation of the XFP submersible sewage pumps ............................................................................. 14
5.1.1 Installation options for the XFP submersible sewage pumps................................................................ 14
5.1.2 Pedestalttingofo-ringandguidepiece .............................................................................................. 16
5.1.3 Tightening torque .................................................................................................................................. 16
5.1.4 Fitting position of the Nord-Lock® securing washers............................................................................. 16
5.2 Installation of the AFLX and VUPX submersible pumps ....................................................................... 17
5.2.1 Installations examples with AFLX and VUPX submersible pumps........................................................ 17
5.3 Electrical connection ............................................................................................................................. 19
5.3.1 Lead designations ................................................................................................................................ 20
5.4 Checking direction of rotation................................................................................................................ 21
5.5 Connection of the control circuit leads .................................................................................................. 21
5.6 Connection of the seal monitoring unit to the control panel .................................................................. 22
5.6.1 Internal leakage sensor (DI).................................................................................................................. 22
5.6.2 External leakage sensor (DI)................................................................................................................. 23
5.7 Connecting the EMC cable in the control cabinet ................................................................................. 24
6 Commissioning ................................................................................................................................... 25

4
EN 6556-H
7 Maintenance ........................................................................................................................................ 25
7.1 Oilllingwithoutcoolingjacket ............................................................................................................. 26
7.1.1 Symbols ................................................................................................................................................ 26
7.1.2 OilllingXFPPE4/PE5 ....................................................................................................................... 27
7.1.3 OilllingVUPX/AFLX .......................................................................................................................... 28
7.1.4 Oilllinginspectionchamber ................................................................................................................ 30
7.1.5 LubricantllingquantitysealchamberPE3,PE4,PE5......................................................................... 30
7.1.6 LubricantllingquantitysealchamberVUPX/AFLXPE6.................................................................... 30
7.2 Coolant/oilllingwithcoolingjacket.................................................................................................... 31
7.2.1 Symbols ................................................................................................................................................ 31
7.2.2 Coolingliquid/oilllingandemptyingXFPPE4/PE5......................................................................... 31
7.2.3 Coolingliquid/oilllingandemptyingXFPPE6 ................................................................................. 32
7.2.4 Reference values for antifreeze behaviour ........................................................................................... 33
7.2.5 CoolantllingquantitiesXFPPE4 ........................................................................................................ 33
7.2.6 CoolantllingquantitiesXFPPE5 ........................................................................................................ 34
7.2.7 CoolantllingquantitiesXFPPE6 ........................................................................................................ 34
7.3 Starting frequency of the motors ........................................................................................................... 35
7.4 Removal of the submersible sewage pump ......................................................................................... 35
7.4.1 Removal of the XFP submersible sewage pump from a wet sump....................................................... 35
7.4.2 RemovaloftheXFPsubmersiblesewagepumpwhendry-installed .................................................... 35
7.4.3 Removal of the AFLX and VUPX submersible pump ........................................................................... 35

5
EN 6556-H
1 General
These Installation and Operating Instructions and the separate booklet Safety Instructions for Sulzer
Products Type ABScontainbasicinstructionsandsafetyhintswhichmustbeobservedduringtransport,
installation and commissioning. For this reason it is essential that they are read by the installing technician as
well as by relevant skilled operators or users. They should also be always available where the unit is installed.
SafetyInstructionswhichmightcausedangertolifeincaseofnon-observancehavebeenspecically
highlighted with the general danger symbol.
Thepresenceofadangerousvoltageisidentiedwiththissafetysymbol.
This symbol indicates the danger of an explosion occurring.
ATTENTION Appears at safety hints, the non-observance of which could damage the unit or aect
its functioning.
NOTE Used for important pieces of information.
1.1 Correct usage of the products
Inthecaseofanyfaultsarising,theSulzerunitsshouldimmediatelybetakenoutofuseandsecured.Thefault
shouldbeimmediatelyrectiedor,ifnecessary,contactyourSulzerServiceCentre.
ThesubmersiblepumpswithPEmotorcanbesuppliedbothasstandardversionsandinexplosion-proof
executionwithExII2GExhdbIIBT4Gbfor50HzaccordingtothestandardsENISO12100:2010,EN
809:1998+A1:2009+AC:2010,EN60079-0:2012+A11:2018,EN60079-1:2014,EN60034-1:2010,ENISO
80079-36,ENISO80079-37,orFMexecution(NEC500,ClassI,Division1,GroupC&D,T3C)for60Hzin
isolation class H (140).
Temperaturelimiterinthewinding=140°C/284°F(bimetallicorthermistor[PTC]asanoption).
Special version Class H
Aspecialversionwithtemperaturelimiterinthewinding=160°C/320°F(bimetallic,temperaturesensor[PTC]
asanoptionorPT100)isalsoavailable.Thisversionisonlyavailablewithoutexplosion-prooforNEC500
approval with isolation class H (160) components.
ForbothversionsanEMV-executionisavailableasanoption.
ATTENTION Repair work on explosion-proof motors may only be carried out in authorized
workshops by qualied personnel using original parts supplied by the manufacturer.
Otherwise the Ex-approvals are no longer valid. All Ex-relevant components and
dimensions can be found in the modular workshop manual and the spare parts list.
ATTENTION After repair work in unauthorized workshops by unqualied personnel the
Ex-approvals are no longer valid. After such repair the unit must not be operated in

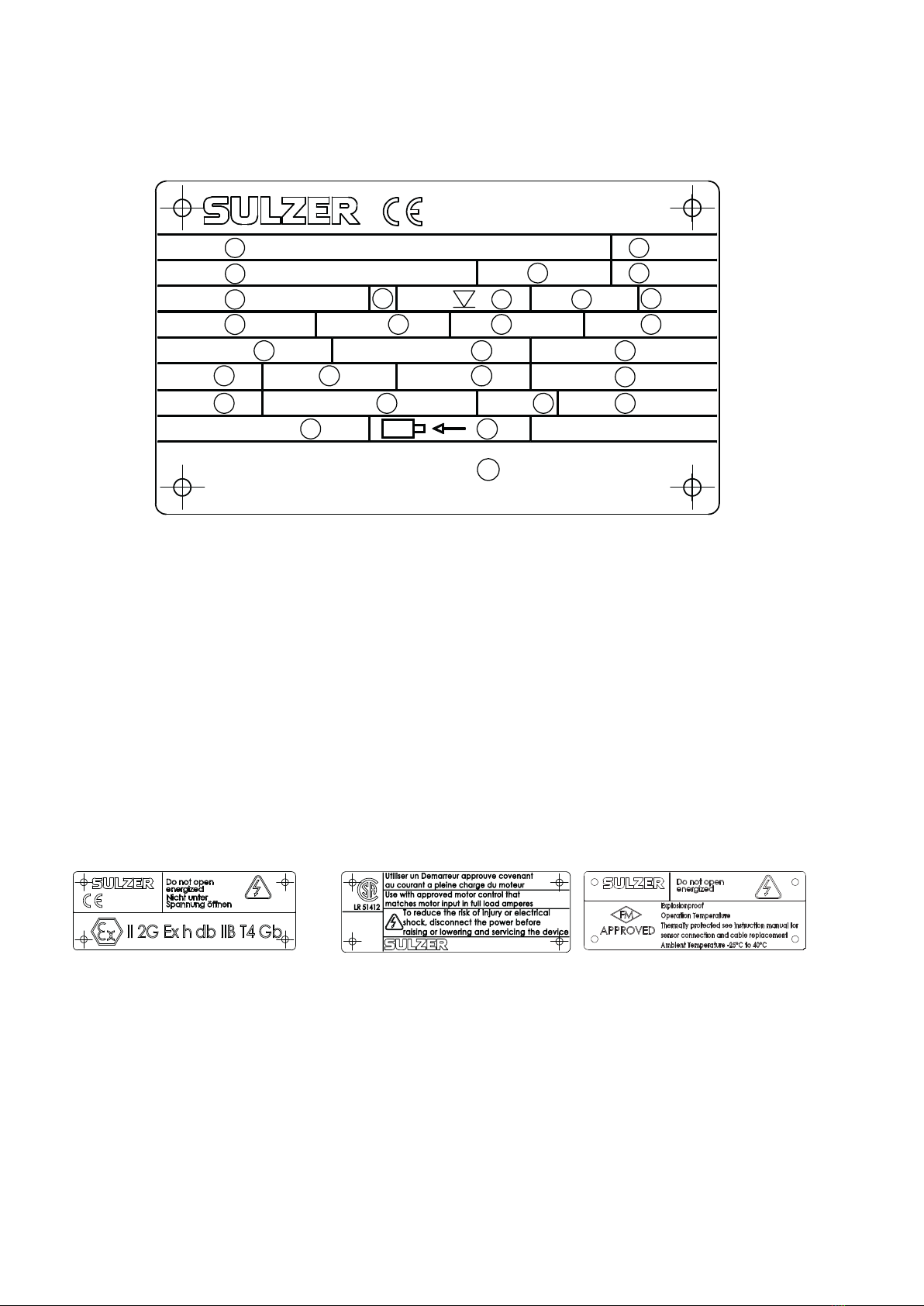

hazardous areas. The Ex-nameplate (see gure 2, 3) has to be removed.
NOTE All regulations and guidelines, which may vary from country to country, must be
followed without exception.
Limitations: The ambient temperature range is 0 °C to + 40 °C (32 °F to 104 °F)
Immersion depth maximum 20 m (65 ft)
NOTE Leakage of lubricants could result in pollution of the medium being pumped.

6
EN 6556-H
Operation of units as explosion-proof execution:
In hazardous areas care must be taken that during switching on and operation of the pumps the pump section
islledwithwater(dryinstallation)oralternativelyissubmerged(wetinstallation).Othertypesofoperatione.g.
snore operation or dry running are not allowed!
Thetemperaturemonitoringoftheexplosion-proofsubmersiblepumpshastobecarriedoutbybimetallic
temperature limiters or thermistors according to DIN 44 082 connected to a suitable release device which is
certiedinaccordancewithECdirective2014/34/EU.
NOTE! Ex protection method type c “Constructional Safety” and k “Liquid immersion“ in
accordance with EN ISO 80079-36, EN ISO 80079-37 are used.
Operation of explosion-proof submersible pumps in wet-well installation without cooling jacket
ItmustbeensuredthatthemotoroftheExsubmersiblepumpisalwaysfullysubmergedduringstart-upand
operation!
Operation of explosion-proof submersible pumps with frequency inverter in hazardous areas (ATEX
Zone 1 and 2):
Motorsmusthavedirectthermalprotectiondevicestted.Theseconsistoftemperaturesensors(PTCDIN
44082)embeddedinthewindings.Thesemustbeconnectedtoasuitablereleasedevicewhichiscertiedin
accordancewithECdirective2014/34/EU.
MachinesdesignatedasExmachinesmaynever,withoutexception,beoperatedusingamainsfrequencythat
is greater than the maximum of 50 or 60 Hz as indicated on the nameplate.
Operation with frequency inverters
See section 4.6
1.2 Application areas for the series XFP
The submersible sewage pumps type ABS XFP series have been designed for the economical and reliable
pumpingofcommercial,industrialandmunicipalsewageandcanbeinstalleddryorwet.
They are suitable for pumping of the following liquids:
• Clearandwastewater,forsewagecontainingsolidsandbrousmaterial
• Faecal matter
• Sludge
• Fresh and process water pumping
• Raw water for drinking water supply
• Surface and rain water
• Sewage
1.3 Application areas for the series AFLX
ThemixedowcolumnpumptypeABSAFLX serieshavebeendevelopedforenvironmentalprotection,water
supply,municipalsewagetreatmentanddewateringofpolders.
They are suitable for the following liquids:
• Stormwaterprotection,irrigationandaquaculture
• Industrial raw water and process water
• Combined sewage and surface water
• Recirculation sludge or return activated sludge (RAS)
• Hazardous locations:
CerticationforATEX(ExII2GExhdbIIBT4Gb),FMandCSAavailableasanoption
The AFLX pumps are installed in a concrete sump or in a steel pressure pipe using a suitable coupling ring.
A screen must be attached to the inlet (see section 5.2).

7
EN 6556-H
1.4 Application areas for the series VUPX
The submersible propeller pumps type ABS VUPX series are designed for those applications where large
watervolumesmustbepumpedatlowheads(upto10m/33ft).
They are suitable for the following liquids
• Stormwaterprotection,irrigationandaquaculture
• Industrial raw water and process water
• Combined sewage and surface water
• Recirculation sludge or return activated sludge (RAS)
• Hazardous locations:
CerticationforATEX(ExII2GExhdbIIBT4Gb),FMandCSAavailableasanoption
The VUPX pumps are installed in a concrete sump or in a steel pressure pipe using a suitable coupling ring.
A screen must be attached to the inlet (see section 5.2).
1.5 Technical data
Please take the technical data and the weight from the nameplate. Please take the dimensions of the units from
the respective dimension drawing.
Themaximumnoiseleveloftheunitsofthisseriesis≤70dB(A).Insometypesofinstallationsitispossible
that during pump operation the noise level of 70 dB(A) or the measured noise level may be exceeded.
HINT The respective dimension drawings can be found in downloads „dimension drawing“
at the following link: www.sulzer.com.
The weights in the dimension sheets refer to a cable length of 10 m. In the case of cable lengths exceeding
10 m the additional weight must be determined and added using the following table.
Cable type Weight
kg/m Cable type Weight kg/m Cable type Weight kg/m
Weight
lb/1000ft
EMC-FC / S1BC4N8-F / S1BC4N8-F
3x6/6KON 0,4
S1BN8-F / H07RN8-F / 07BN8-F
2 x 4 G 4 + 2 x 0,75 0,6
G-GC
AWG 8-3 0,9 597
3x10/10KON 0,7 4 G 4 0,5 AWG 6-3 1,2 764
3x16/16KON 1 4 G 6 0,5 AWG 4-3 1,6 1070
4 G 10 0,8 AWG 2-3 2,3 1533
3x6/6KON +3x1,5ST 0,6 4 G 16 1,3 AWG 1-3 2,8 1865
4 G 25 1,8 AWG 1/0-3 3,5 2315
3x25 +3G16/3 1,5 4 G 35 2,3 AWG 2/0-3 4,1 2750
3x35 +3G16/3 1,9 4 G 50 3,0 AWG 3/0-3 53330
3x50 +3G25/3 2,6 4 G 70 4,2 AWG 4/0-3 6,1 4095
3x70 +3G35/3 3,6 4 G 95 5,5
DLO
AWG 1/0 0,7 480
3x95 +3G50/3 4,7 4 G 120 6,7 AWG 2/0 0,8 558
3x120 + 3G70/3 6 7 G 1,5 0,5 AWG 3/0 1,1 742
3x150 + 3G70/3 7,1 10 G 2,5 0,8 AWG 4/0 1,3 872
3x185 +3G95/3 8,8
3x240 +3G120/3 11 4 G 1,5 0,2 262 MCM 1,6 1068
3x300 +3G150/3 13,5 8 G 1,5 0,4 313 MCM 1,9 1258
10 G 1,5 0,5 373 MCM 2,2 1462
1x185 2,2 12 G 1,5 0,5 444 MCM 2,6 1726
1x240 2,7 535 MCM 3,1 2047
1x300 3,4 1x150 1,8 646 MCM 3,6 2416
1x185 2,2
SOOW
AWG 16/4 0,3 144
1x300 3,4 AWG 16/8 0,4 222
1x400 4,1 AWG 16/10 0,5 278
AWG 16/12 0,5 305

8
EN 6556-H
1.6 Nameplate
We recommend that you record the data from the original nameplate Figure 1 so that you can refer to the data
at any time.
I
N
A
Motor E. Cl
IP68
Weight
DN Q H Hmax.
Hmin. Nema Code T
A
max. °C
P
1N
P
2N
n Ø
Hz max. 3~ UN
V
PN SN
Type
1
2
3 4
5
6
7 8 9 10
11 12 13 14
15 16 17
18 19 20 21
22
23 24
2526
27
28
Sulzer Pump Sweden AB
Vadstena factory
Box 170
SE-592 24 Vadstena
Sweden
2500-0001
Figure 1: Standard nameplate
Legend
1 Address  15 Max.ambienttemperature[exibleunit]
2 Typedesignation  16 Nemacodeletter(onlyat60Hz,e.g.,H)
3 Art.no.  17 Min.pumpingheight[exibleunit]
4 Serialnumber  18 Nominalwidth[exibleunit]
5 Ordernumber  19 Pumpingquantity[exibleunit]
6 Yearofmanufacture[month/year]  20 Pumpingheight[exibleunit]
7 Nominalvoltage  21 Max.pumpingheight[exibleheight]
8 Max.immersiondepth[exibleunit]  22 Weight(withoutattachedparts)[exibleunit]
9 Nominalcurrent  23 Motore󰀩ciencyclass
10 Frequency 24 Motor shaft direction of rotation
11 Power(consumption)[exibleunit]  25 Continuousoperatingmode
12 Power(output)[exibleunit]  26 Soundlevel
13 Rotationspeed[exibleunit]  27 Phaseconnection
14 Impeller/propellerø[exibleunit]  28 Protectionmethod
SN:
Figure 2: Nameplate ATEX Figure 3: Nameplate CSA / FM
2 Safety
ThegeneralandspecichealthandsafetyhintsaredescribedindetailintheseparatebookletSafety
Instructions for Sulzer Products Type ABS. If anything is not clear or you have any questions as to safety
make certain to contact the manufacturer Sulzer.

9
EN 6556-H
3 Lifting, transport and storage
3.1 Lifting
ATTENTION! Observe the total weight of the Sulzer units and their attached components! (see
nameplate for weight of base unit).
The duplicate nameplate provided must always be located and visible close to where the pump is installed (e.g.
attheterminalboxes/controlpanelwherethepumpcablesareconnected).
NOTE! Lifting equipment must be used if the total unit weight and attached accessories
exceeds local manual lifting safety regulations.
The total weight of the unit and accessories must be observed when specifying the safe working load of any
liftingequipment!Theliftingequipment,e.g.craneandchains,musthaveadequateliftingcapacity.Thehoist
mustbeadequatelydimensionedforthetotalweightoftheSulzerunits(includingliftingchainsorsteelropes,
and all accessories which may be attached). The end user assumes sole responsibility that lifting equipment is
certied,ingoodcondition,andinspectedregularlybyacompetentpersonatintervalsinaccordancewithlocal
regulations. Worn or damaged lifting equipment must not be used and must be properly disposed of. Lifting
equipment must also comply with the local safety rules and regulations.
NOTE! The guidelines for the safe use of chains, ropes and shackles supplied by Sulzer are
outlined in the Lifting Equipment manual provided with the items and must be fully
adhered to.
The unit must never be raised by the power cable.
Dependingonmodelandmodeofinstallation,theunitsarepreparedatthefactoryforverticalorhorizontal
transportation.
Theunitsareequippedwithasafetyshackle(seriesforverticalsetup)orswivelringbolt(horizontalsetup),
whichallowxingchainsfortransportingorforinstallingorremoving.Werecommendusingchainsfromthe
Sulzer list of accessories.
Take note of the entire weight of the unit (see nameplate Figure 1) The hoist and chain must be
adequately dimensioned for the weight of the unit and must comply with the current valid safety
regulations.
ATTENTION In the case of pumps set up vertically, sealing plugs are mounted for protecting the
thread holes instead of swivel ring bolts. These seals may only be replaced by a
swivel ring bolt for maintenance work but must be screwed on again before startup!
0838-0005 0838-0004

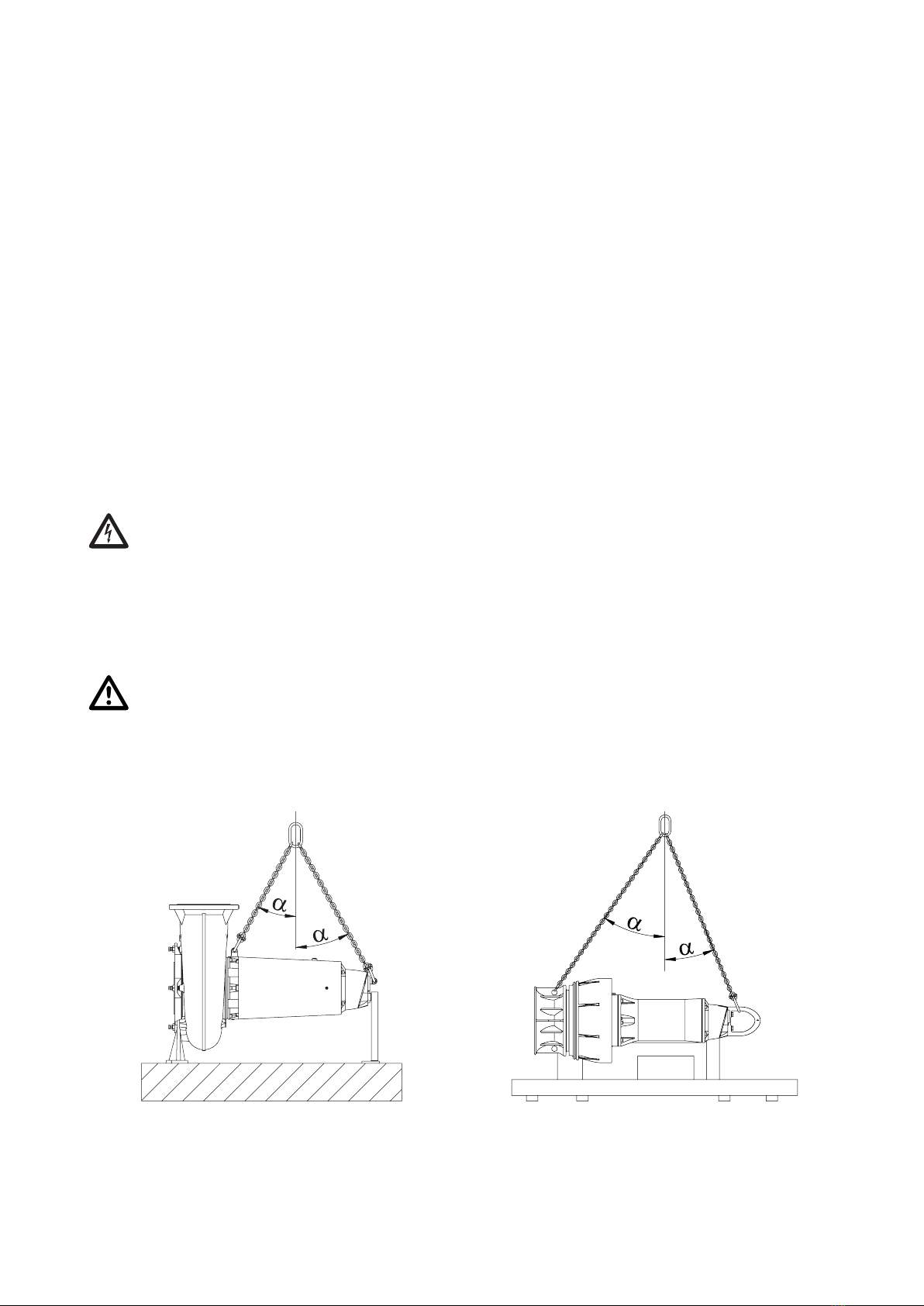

Figure 4: Transport in a horizontal manner XFP Figure 5: Transport in a horizontal manner AFLX/VUPX
ATTENTION α max. ≤ 45°. The angle α between the centre line of the unit and the lifting tools
should not exceed 45°.

10
EN 6556-H
3.2 Transport securing devices
The motor connection cables are protected against the ingress of moisture along the cable by having the ends
sealed with protective covers at manufacture.
These protective covers should only be removed immediately prior to connecting the pumps electrically.
ATTENTION These protective covers only provide protection against water spray or similar and
are not a water tight seal. The ends of the cables should not be immersed in water,
otherwise moisture could enter the connection chamber of the motor.
NOTE If there is a possibility of water ingress then the cables should be secured so that the
ends are above the maximum possible ood level. Take care not to damage the cable
or its insulation when doing this!
In order to avoid damage to the pump shaft or the bearings during horizontal transport the shaft is clamped in
an axial direction when leaving the works.
ATTENTION The motor shaft transport lock must be removed before startup!
3.3 Storage of the units
ATTENTION The Sulzer products must be protected from weather inuences such as UV from
direct sunlight, high humidity, aggressive dust emissions, mechanical damage,
frost etc. The Sulzer original packaging with the relevant transport securing devices
(where used) ensures optimum protection of the unit. If the units are exposed to
temperatures under 0 °C / 32 °F check that there is no water in the hydraulics, cooling
system, or other spaces. In the case of heavy frosts, the units and cable should not
be moved if possible. When storing under extreme conditions, e.g. in tropical or
desert conditions suitable additional protective steps should be taken. We would be
glad to advise you further
NOTE The Sulzer units normally require no maintenance during storage. During longer
storage times, (after approx. one year) the transport locks on the motor shaft (not all
versions) must be dismantled. Coolant is applied to the sealing surfaces by manually
turning the shaft several times (also for the purpose of cooling or lubricating so that
trouble-free function of the sliding ring seal is ensured). No maintenance is required
when storing the motor shaft.
4 Monitoring system
4.1 Monitoring options
Motor equipment:
Motors PE3
50 Hz
PE4/PE5
50 Hz
PE6
50 Hz
PE3
60 Hz
PE4/PE5
60 Hz
PE6
60 Hz
Non-
Ex Ex Non- Ex Ex Non- Ex Ex Non- FM FM Non- FM FM Non- FM FM
Stator
temperature
Bimetallic ●●* ●●* ●●* ●●* ●●* ●●*
Thermistors (PTC) ○○* ○○* ○○* ○○* ○○* ○○*
PT 100 - - ○ ○ ○ ○ - - ○ ○ ○ ○
Leakage
sensor
Inspection chamber - - ●○●○ - ●●●●●
Motor chamber ●●○●●●● - ○○●●
Connection chamber - - ○ ○ ● ● - - ○ ○ ● ●
Upper and
lower bearing
temperature
Bimetallic - - ○ ○ ● ● - - ○ ○ ● ●
Thermistors (PTC) - - ○ ○ ○ ○ - - ○ ○ ○ ○
PT 100 - - ○ ○ ○ ○ - - ○ ○ ○ ○
●=Standard○○=Option*ExwithVFD,monitoringviaPTC

11
EN 6556-H
4.2 Leakage sensor (DI)
The leakage sensor carries out the seal monitoring function and signals the ingress of moisture into the motor
by means of a special electronic device; see also section 5.6
ATTENTION If the leakage sensor (DI) is activated the unit must be immediately taken out of
service. Please contact your Sulzer Service Centre.
4.3 Temperature monitoring of the stator
Thermallimitersprotectthestatorfromoverheatinginthecaseofasymmetricphaseloadingorvoltage,
continuousdryrunning,orexcessivetemperaturesinthemediumitself.Thestatorisequippedwiththree
bimetallicthermallimiters(optionalPTC,PT100)whichareconnectedinseries.
4.4 Temperature monitoring of the bearings (Option)
Inthecaseofexistingbearingmonitoring,abimetaltemperaturelimiterisbuiltintothebearingangesofthe
standardversion.Thisenablesprematureswitchingo󰀨ofthesubmersiblemotor(e.g.,duetowear-related
increase in bearing temperature).
Switching temperature: Upperbearing=140°C/284°F      
   Lowerbearing=130°C/269°F
4.5 Temperature sensor indication
A continuous indication of the temperature in the stator and the bearings is not possible using bimetallic thermal
limitersorthermistors.ForthisapplicationitisnecessarytotthermalsensorsofthetypePT100withlinear
characteristicsintothestatorandbearingblocks.Thistypeofresistorhasalinearcharacteristic,i.e.the
resistance rise is proportional to the temperature rise.
NOTE Running the pump with the thermal and/or leakage sensors disconnected will
invalidate related warranty claims.
4.5.1 Temperature sensor bimetall
Resistance
Temperature
0562-0017
Application Option
Function Temperature switch using the bimetal-
licprinciple,whichopensatarated
temperature
Switching Taking care not to exceed the allow-
ableswitchingcurrent,thesecanbe
tteddirectlyintothecontrolcircuit

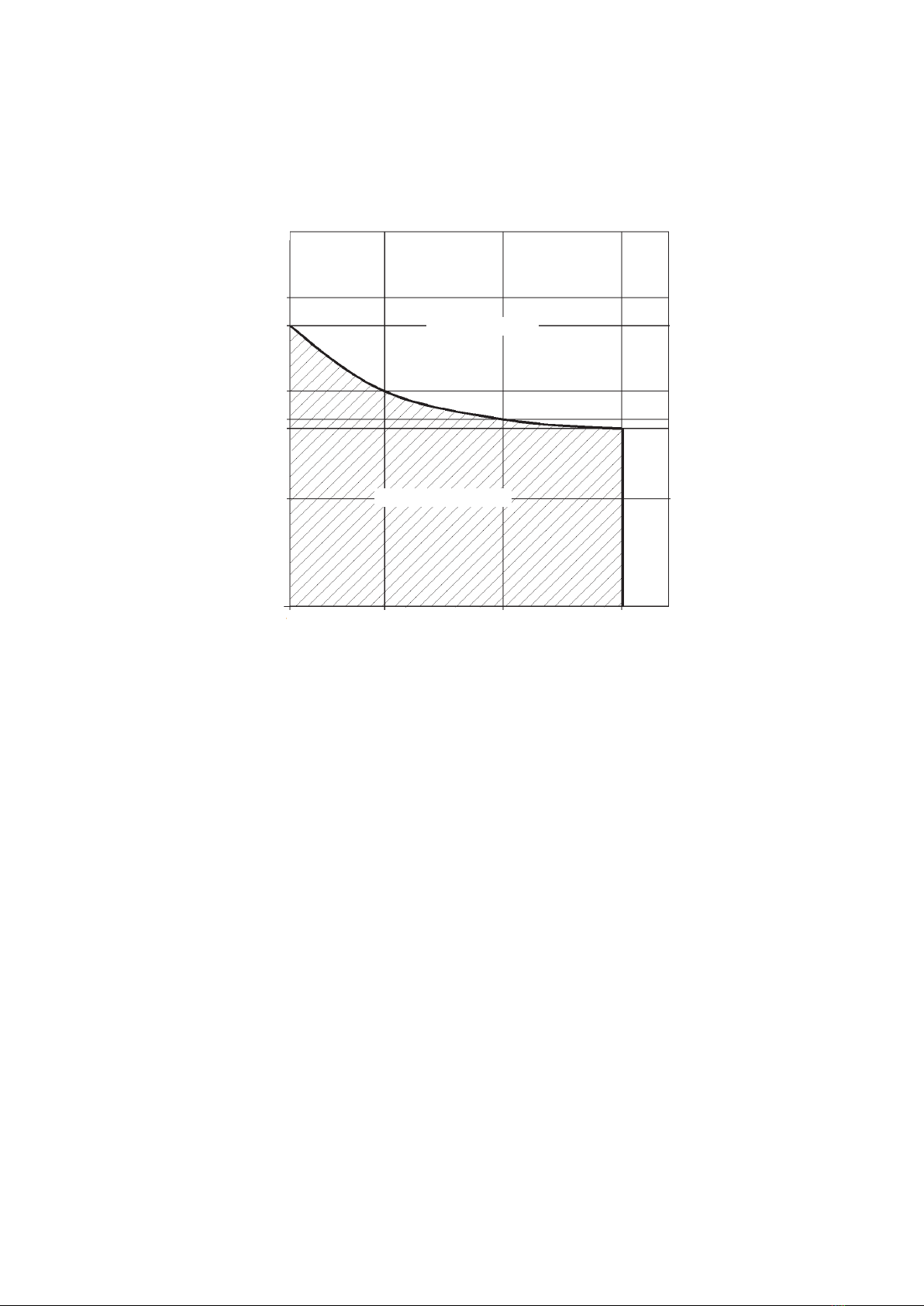

Figure 6: Curve showing principle of operation of bimetallic temperature limiter
Operating voltage ...AC 100 V to 500 V ~
Rated voltage AC 250 V
Rated current AC cos φ = 1,0 2.5 A
Rated current AC cos φ = 0,6 1.6 A
max. switching current at IN5.0 A
ATTENTION The maximum switching ability of the thermal sensors is 5 A, the rated voltage 250 V.
Explosion-proof motors which are connected to static frequency inverters must be
tted with thermistors. Activation must be by means of a thermistor protective relay
device with PTB-Approval number.

12
EN 6556-H
4.5.2 Temperature sensor PTC
Resistance
Temperature
0562-0018
Application Option
Function Temperature dependent resistance (no
switch) curve with stepwise behaviour
Switching Cannot be installed direct into the
control circuit. Evaluation of the signal
must be carried out by suitable elec-
tronic equipment
Figure 7: Curve showing principle of operation of thermistor
4.5.3 Temperature sensor PT 100
Resistance
Temperature
0562-0019
Application Option (not for Ex)
Function Function temperature dependent resist-
ance (no switch). The linear curve
allows continuous measurement and
indication of the temperature
Switching Cannot be installed direct into the
control circuit. Evaluation of the signal
must be carried out by suitable elec-
tronic equipment
Figure 8: Curve showing principle of operation of PT 100
ATTENTION Thermistors or PT 100 devices must never be directly connected into the control or
power system. They must always be connected to a suitable evaluation device.
The thermal monitoring circuit must be wired into the motor contactors in such a manner that a manual reset is
required.
4.6 Operation with frequency inverters
The stator design and the insulation grade of the motors from Sulzer means that they are suitable for usage
with frequency inverters. It is however essential that the following conditions are met:
• The guidelines for EMC (electromagnetic compatibility) are complied with.
• Speed/torquecurvesformotorsdrivenbyfrequencyinverterscanbefoundinourproductselectionrange.
• Explosion-proofmotorsmustbeequippedwiththermistors(PTCtemperaturesensors)ifoperatedinhazard-
ous areas (ATEX Zone 1 and 2).
• MachinesdesignatedasExmachinesmaynever,withoutexception,beoperatedusingamainsfrequency
that is greater than the maximum of 50 or 60 Hz as indicated on the type plate. Make sure that the rated
currentspeciedonthetypeplateisnotexceededafterstartingthemotors.Themaximumnumberofstarts
according to the motor datasheet may not be exceeded.
• Machines that are not designated as Ex machines may only be operated using the mains frequency indicated
on the type plate. Greater frequencies can be used but only after consulting with and receiving permission
from the Sulzer manufacturing plant.
• Foroperationofex-motorsonfrequencyinvertersspecialrequirementsinrelationtothetrippingtimesofthe
thermocontrolelements,mustbeobserved.
• Thelowestfrequencymustbesetsothattheminimumuidvelocityof1m/sispresentinthevolute.
• The maximum frequency must be set so the rated power of the motor is not exceeded.
Modern frequency inverters are using higher wave frequencies and a steeper rise on the edge of the voltage
wave. This means that motors losses and motor noise is reduced. Unfortunately these inverter output signals

13
EN 6556-H
causehighervoltagespikesinthestator.Experiencehasshownthat,dependingonratedvoltageandthe
lengthofthecablebetweentheinverterandthemotor,thesevoltagespikescanadverselya󰀨ectthelifeofthe
motor.Inordertoavoidthis,invertersofthistypemustbeequippedwithsinuslterswhenusedinthecritical
zone (see g 9).Thesinuslterchosenmustbesuitablefortheinverterwithregardtoratedvoltage,inverter
wavefrequency,ratedcurrentoftheinverterandmaximuminverteroutputfrequency.Makesurethattherated
voltage is supplied to the terminal board of the motor.
critical area
non critical area
L = total length (from frequency inverter to motor)
10 50 100 150 L[m]
UN[V]
660
600
460
400
380
230
0562-0012
Figure 9: Critical / non critical area
5 Installation
Thewires(motorcable)aredesignedaccordingtoEN50525-1,theoperatingconditionsarebasedontable14
for special rubber cables. The load capacity of the wires is adapted to an ambient temperature of 40°C accord-
ingtotable15(column4formulticorecablesandcolumn5forsingle-corecables),andcalculatedwithafactor
for clustering and installation type.
A minimum gap of 1x outer diameter of the cable used applies when installing.
ATTENTION Twisting must not occur. The cables must not touch anything, not grabbed or
bundled. When extending, recalculate the wire cross-section according to
EN 50525-1, irrespective of the cable and installation type, cluster etc.!
Inpumpstations/tanks,equipotentialbondingmustbecarriedoutaccordingtoEN60079-14:2014[Ex]or
IEC60364-5-54[non-Ex](Regulationsfortheinstallationofpipelines,protectivemeasuresinhigh-voltage
systems).

14
EN 6556-H
5.1 Installation of the XFP submersible sewage pumps
5.1.1 Installation options for the XFP submersible sewage pumps
There are three main installation options for the submersible pumps.
1. Wet installation vertical with Sulzer automatic coupling system
2. Dry installation with ground support ring (with closed cooling system)
3. Dry installation horizontal (with closed cooling system)
Wet installation:
NOTE The dimensional sheets and foundation plans for each type of installation are
supplied either with the planning documents or your order conrmation.
10
17
16
18
14
11
3246157
16
15
12
89
13
0562-0020
Figure 10a: Wet installation vertical with Sulzer automatic coupling system
Legend
1 Venting 10 Guide tube
2 Valve chamber 11 Discharge line
3 Shut-o󰀨valve  12 Inowchamberwithimpactwall
4 Outowline  13 Inowline
5 Non-returnvalve  14 Sulzersubmersiblesewagepump
6 Fitting for valve removal 15 Automatic level control
7 Cable duct 16 Concrete benching
8 Bracketforoatswitches  17 Pedestal
9 Collection sump 18 Bracket
ATTENTION The power cables should be handled carefully during installation and removal of
the pumps in order to avoid damage to the insulation. When raising the submersible
pump out of the concrete sump or the steel discharge pipe with the hoist ensure that
the connection cables are lifted out simultaneously as the pump itself is being raised.
ATTENTION Submersible sewage pumps should be installed in accordance with Figure 10b.

15
EN 6556-H
• Fit a hoist to the submersible sewage pump.
• The Sulzer submersible sewage pump is suspended on the guide tube by means of the pedestal bracket on
thepressureconnectionandcarefullyloweredvertically,orataslightinclination(max.3°).Itcouplesauto-
maticallyatthepedestalandsealsthepressureconnectionatthepedestalleak-tightbymeansofitsown
weight and a seal.
0562-0028
Figure 10b: Lowering the submersible pump
Dry sump installation:
• Fit a hoist to the submersible pump.
• With the aid of the hoist place the submersible pump carefully into the prepared mounting frame and fasten.
• Mount suction and pressure nozzles on the pump housing.
• Ifrequired,ttheventlinetothevolute.
• Open the gate valves on the suction and discharge side.

16
EN 6556-H
5.1.2 Pedestal tting of o-ring and guide piece
Ensure that adhesive does not come into contact with skin or eyes! Wear safety glasses and gloves!
Theo-ringandgrooveofthebracketmustbecleanandfreeofgrease.TheinstantadhesiveLOCTITEtype
454(suppliedwiththeunit)isspreadevenlyonthebaseofthegrooveinthebracket(11/1)andtheo-ring
inserted immediately.
NOTE The hardening time of the adhesive is only about 10 seconds!
Theguidepiece(11/3)mustbescrewedonasshowninthedrawing!Fastentheguidepiece(11/3)withthetwo
M12screws(11/2).Tightenthescrewswithatorqueof56Nm.
1
2
3
4
5
LOCTITE 454
Legend
1 Bracket(isttedtothepump)
2 Screws(2o󰀨)
3 Guide piece
4 O-ring
5 Pedestal
0562-0027
Figure 11: HD-Pedestal DN 100 - 800
5.1.3 Tightening torque
Tightening torque for Sulzer stainless steel screws A4-70:
Thread M8 M10 M12 M16 M20 M24 M27 M30
Tightening torque 17 Nm 33 Nm 56 Nm 136 Nm 267 Nm 460 Nm 500 Nm 600 Nm
5.1.4 Fitting position of the Nord-Lock® securing washers
Outer side of the two securing washers
Inner side of the two securing washers
0562-0009
Figure 12: Correct tting position of the Nord-Lock®securing washers

17
EN 6556-H
5.2 Installation of the AFLX and VUPX submersible pumps
A screen must be attached to the inlet of the AFLX submersible mixed ow column pump. The maximum
barspacingdependsonthetypeofhydraulicsttedtothepumpandcanbeobtainedfromthetablebelow.
Type of hydraulics Clean water Runo󰀨 water, river water, used water, rain water,
pre-screened liquid, recirculation
Bar spacing in mm Bar spacing in mm
AFLX0600/0700 ≤40 ≤20
AFLX 0800 ≤60 ≤30
AFLX 1200 ≤100 ≤50
Iflargerbarspacingsarerequired,pleasecontactSulzer
A screen must be attached to the inlet of the VUPX submersible propeller pump. The maximum bar spacing
dependsonthetypeofhydraulicsttedtothepumpandcanbeobtainedfromthetablebelow.
Type of hydraulics Clean water Runo󰀨 water, river water,
used water, rain water
pre-screened liquid,
recirculation
Bar spacing in mm Bar spacing in mm Bar spacing in mm
VUPX 0400 ≤30
≤25 ≤6
VUPX 0500 ≤40
VUPX 0600 ≤50
VUPX 0800 ≤60
VUPX 1000 ≤80
VUPX 1200 ≤80
Iflargerbarspacingsarerequired,pleasecontactSulzer
ATTENTION When setting the switching o level the minimum cover as given in the installation
documents must be adhered to.
5.2.1 Installations examples with AFLX and VUPX submersible pumps
187
2
4
6
5
0562-0028
187
5
4
6
3
0562-0029

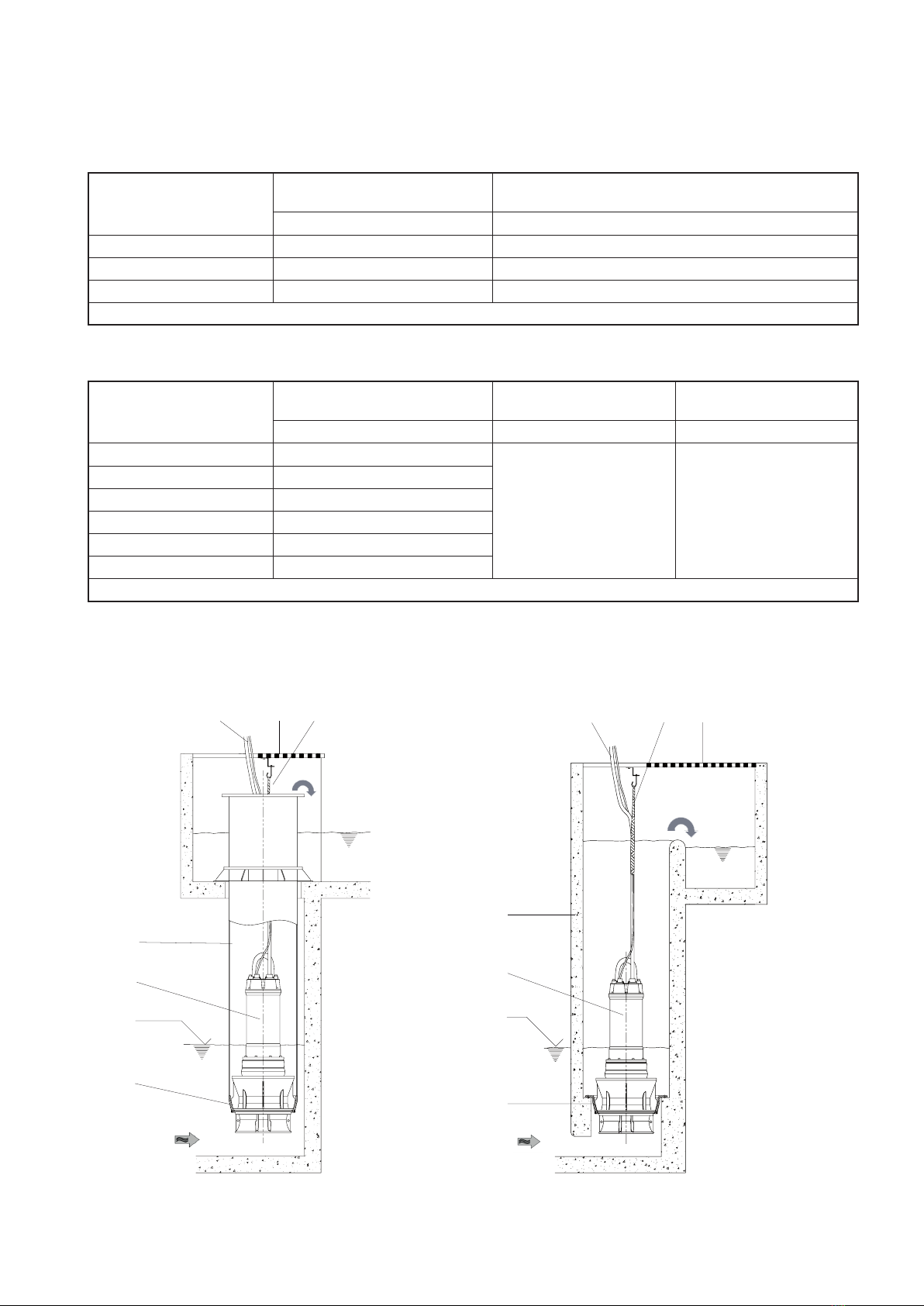

Figure 13a: AFLX/VUPX in a steel discharge pipe Figure 13b: AFLX/VUPX in a concrete sump

18
EN 6556-H
Legend (Figures 13a and 13b)
1 Tank cover 5 Coupling ring
2 Discharge pipe (riser pipe) 6 Minimum water level (see installation drawings)
3 Concrete sump 7 Connection cable
4 AFLX/VUPXsubmersiblepump  8 Cablesupport(forxingthepowercable)
ATTENTION The power cables should be handled carefully during installation and removal of the
pumps in order to avoid damage to the insulation.
• Fit a hoist to the submersible pump.
ThecouplingringrequiredforinstallationoftheAFLX/VUPXsubmersiblepumpmustalreadybeinstalledas
shown in Figure 13a and 13b.Beforeinstallationofthepumpasuitablesupport(hook)forthechain,aswellas
an opening and suspension (cable sock) for the cable must be provided in the sump or riser pipe.
Beforeorduringtheinstallationthemotorconnectioncablesshouldbettedonsitewithsuitablestrainrelief
(e.g. cable socks). Particular care should be taken that the cable insulation is not crushed or damaged by the
weight of the hanging cable especially in the area of the cable inlet.
ATTENTION When raising the submersible pump out of the concrete sump or the steel discharge
pipe with the hoist ensure that the connection cables are lifted out simultaneously as
the pump itself is being raised.
Lowering of the AFLX and VUPX submersible pump into the coupling ring
ATTENTION Before lowering the pump a direction of rotation check should be carried out.
• Draw the cable hose over the end of the connection cable.
2500-0009 2500-0010

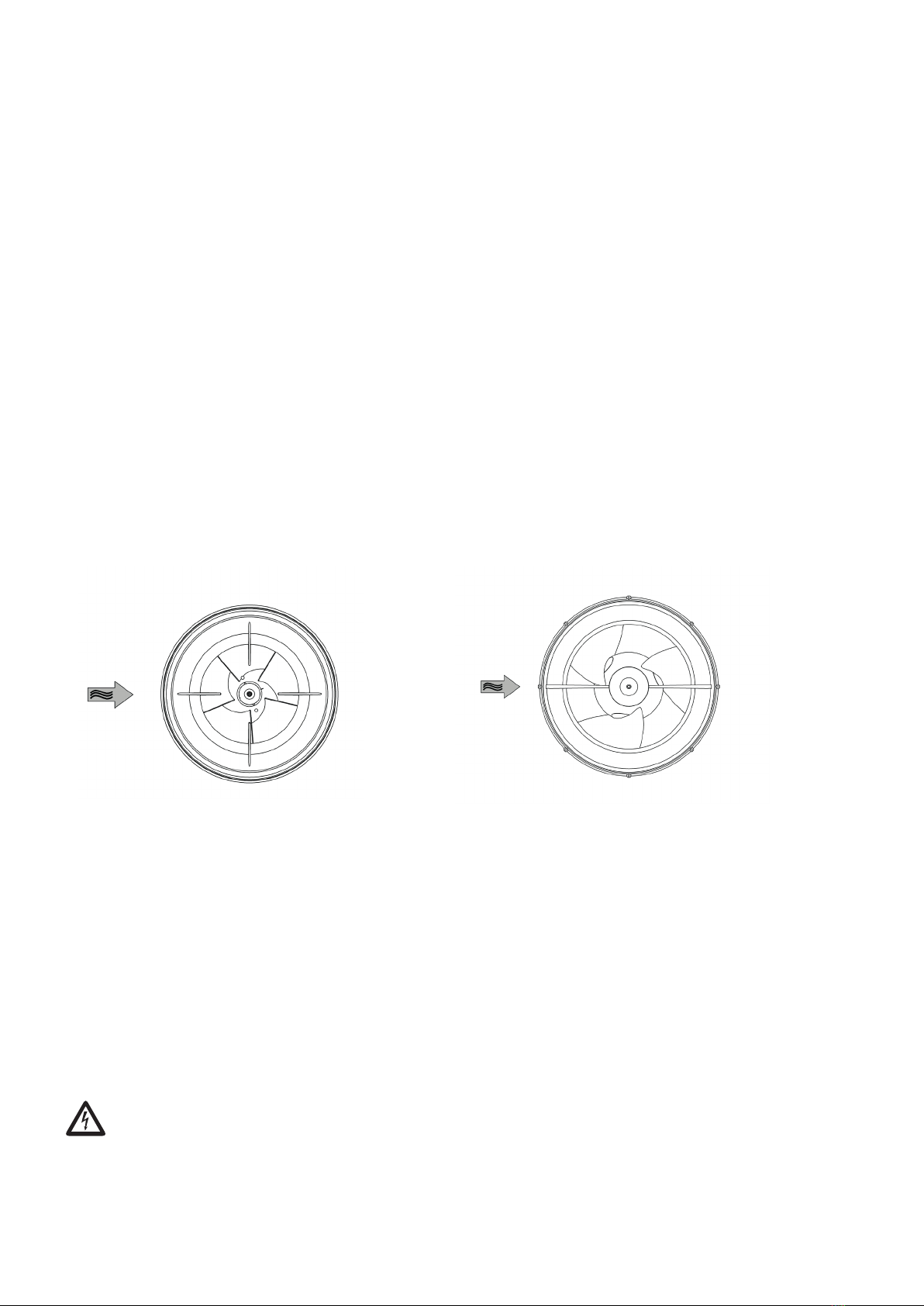

Figure 14: adjustment Bellmouth AFLX Figure 15: adjustment Bellmouth VUPX
ATTENTION The steel riser pipe, or concrete sump must be cleaned thoroughly (builder‘s rubble,
etc.). To optimise the inow and to reduce the noise level it is important that one
pair of ns of the suction pipe are in line with the main ow direction of the inow
chamber. This must be observed when tting the pump into a sump or into a steel
discharge pipe.
• Useliftingequipmenttoslowlylowerthesubmersiblemixedowcolumn/propellerpumpintotheshaftupto
thecouplingring;feedinthemotorconnectingcableatthesametime.Thesubmersiblemixedowcolumn/
propellerpumpcentresitselfautomaticallyandleakage-freeinthecouplingring.
• Attach the lifting chain to the hook provided so that it cannot strike either the pump cable or the sump wall.
• Tension the pump cable and fasten to the hook provided with the aid of the cable sock. Where a steel
pressure pipe is used the connection cable should be brought through the connection cable inlet and sealed
o󰀨inawatertightmanner.
Theconnectioncableshouldonlybetightenedsu󰀩cientlysothatnotensionactsatthecableinletin
the head of the pump. The connection cable should not strike the chain or the sump wall.
• Ifnecessary,thesteelriserpipeissealedo󰀨inawatertightmanner.

19
EN 6556-H
5.3 Electrical connection
Beforecommissioning,anexpertshouldcheckthatoneofthenecessaryelectricalprotectivedevicesis
available.Earthing,neutral,earthleakagecircuitbreakers,etc.mustcomplywiththeregulationsofthelocal
electricitysupplyauthorityandaqualiedpersonshouldcheckthattheseareinperfectorder.
ATTENTION The power supply system on site must comply with local regulations with regard to
cross-sectional area and maximum voltage drop. The voltage stated on the name-
plate of the pump must correspond to that of the mains.
The incoming power supply as well as the connection of the pump itself to the terminals on the control
panel must comply with the circuit diagram of the control panel as well as the motor connection
diagramsandmustbecarriedoutbyaqualiedperson.
Thepowersupplycablemustbeprotectedbyanadequatelydimensionedslow-blowfusecorrespondingtothe
rated power of the pump.
ATTENTION The unit should only be operated with the overload relay and thermal sensors/limiters
connected.
M3 ~
W2 W1
V2
U2
V1
U1
Cable 2
Cable 1
W2
V2
U2
PE
V1
W1
U1
PE
11
22
10
Cable 3
PE
0838-0006
M3 ~
W2
V2
W1
V1
U2 U1
W1
U1
V1 11
22
10
Cable 1
Cable 2
PE
GC
PE = G
GC = ground check
0838-0007

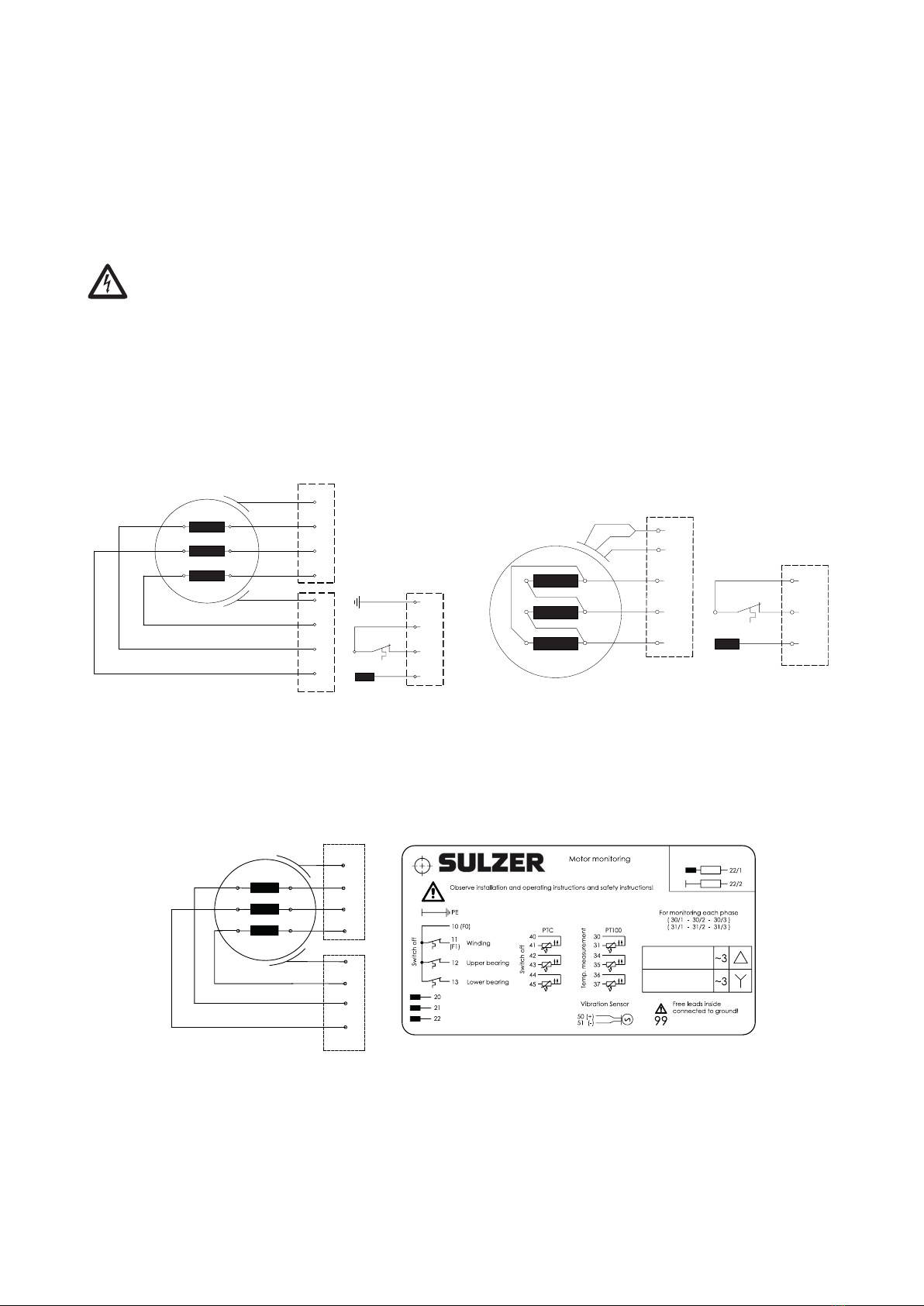

Figure 16: Two power cables and one control cable Figure 17: 60 Hz version: One power cable and one
control cable
W2
U2
M3
Cable 1
W2
PE
U1
V2
V1
W1
W1
V1
U1
PE
U2
V2
Cable 2
Cable 3
Leakage Sensor (DI) Oil-/ Inspection chamber
Leakage Sensor (DI) connection chamber
Leakage Sensor (DI) motor chamber
External Leakage Sensor (DI)
Inspection chamber
2500-0002
Figure 18: Special versions: two power cables and one control cable - for optional motor monitoring features

20
EN 6556-H
Cable 2
V2
PE
W2
U1
V1
Cable 1
W1
GC
U1
V1
W1
U2
M3~
PE=G
GC= ground check
Leakage Sensor (DI) Oil-/ Inspection chamber
Leakage Sensor (DI) connection chamber
Leakage Sensor (DI) motor chamber
External leakage Sensor (DI)
Inspection chamber
2500-0002
Figure 19: 60 Hz version: one power cable and one control cable - for optional motor monitoring features
ATTENTION The cable leads are routed out of the motor. No switching takes place in the motor!
(Exception US-version). Any switching required (use of bridges) must be carried out
in the control panel.
NOTE Information on the type of starting can be obtained from the nameplate of the pump.
5.3.1 Lead designations
Direct starting in star
T1 U1
T3 T2
U2
W2 V2
W1
V1
0562-0033
L1 L2 L3 Join
North America T1(U1)* T2(V1)* T3(W1)*
Sulzer/FactoryStandard U1 V1 W1 U2&V2&W2
Direct starting in delta
T1
U1
T3
T2
U2
W2
V2
W1
V1
0562-0034
L1 L2 L3 -
North America T1(U1)* T2(V1)* T3(W1)* -
Sulzer/FactoryStandard U1; W2 V1; U2 W1; V2 -
*Optionallabelingpossible.
